5T9306NLI

型号：

5T9306NLI

品牌：

IDT[ INTEGRATED DEVICE TECHNOLOGY ]

页数：

16 页

PDF大小：

367 K

下载PDF手册

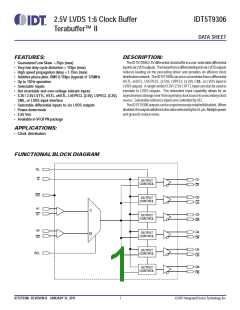

2.5V LVDS 1:6 Clock Buffer
Terabuffer™ II
IDT5T9306
DATA SHEET
DESCRIPTION:
FEATURES:
TheIDT5T93062.5Vdifferential clockbufferisauser-selectabledifferential
inputtosixLVDSoutputs. ThefanoutfromadifferentialinputtosixLVDSoutputs
reduces loading on the preceding driver and provides an efficient clock
distributionnetwork. TheIDT5T9306canactasatranslatorfromadifferential
HSTL, eHSTL, LVEPECL (2.5V), LVPECL (3.3V), CML, or LVDS input to
LVDS outputs. A single-ended 3.3V / 2.5V LVTTL input can also be used to
translate to LVDS outputs. The redundant input capability allows for an
asynchronouschange-over fromaprimaryclocksourcetoasecondaryclock
source. SelectablereferenceinputsarecontrolledbySEL.
• Guaranteed Low Skew < 25ps (max)
• Very low duty cycle distortion < 125ps (max)
• High speed propagation delay < 1.75ns (max)
• Additive phase jitter, RMS 0.159ps (typical) @ 125MHz
• Up to 1GHz operation
• Selectable inputs
• Hot insertable and over-voltage tolerant inputs
• 3.3V / 2.5V LVTTL, HSTL, eHSTL, LVEPECL (2.5V), LVPECL (3.3V),
CML, or LVDS input interface
TheIDT5T9306outputscanbeasynchronouslyenabled/disabled. When
disabled,theoutputswilldrivetothevalueselectedbytheGLpin. Multiplepower
and grounds reduce noise.
• Selectable differential inputs to six LVDS outputs
• Power-down mode
• 2.5V VDD
• Available in VFQFPN package
APPLICATIONS:
• Clock distribution
FUNCTIONALBLOCKDIAGRAM
GL
G
Q1
OUTPUT
CONTROL
Q1
PD
Q2
Q2
OUTPUT
CONTROL
A1
1
A1
Q3
Q3
OUTPUT
CONTROL
A2
Q4
Q4
OUTPUT
CONTROL
0
A2
Q5
Q5
OUTPUT
CONTROL
SEL
Q6
Q6
OUTPUT
CONTROL
IDT5T9306 REVISION B JANUARY 31, 2011
1
©2011 Integrated Device Technology, Inc.
IDT5T9306 Data Sheet
2.5V LVDS 1:6 CLOCK BUFFER TERABUFFER™ II
PINCONFIGURATION
28
27 26 25 24 23 22
21
G
1
2
3
4
5
6
7
PD
20
19
18
17
16
15
VDD
Q4
VDD
Q1
Q1
Q4
GND
VDD
A1
VDD
A2
A1
A2
14
8 9 10 11 12 13
VFQFPN
TOP VIEW
IDT5T9306 REVISION B JANUARY 31, 2011
2
©2011 Integrated Device Technology, Inc.
IDT5T9306 Data Sheet
2.5V LVDS 1:6 CLOCK BUFFER TERABUFFER™ II
ABSOLUTEMAXIMUMRATINGS(1)
CAPACITANCE(1) (TA = +25°C, F = 1.0MHz)
Symbol
VDD
VI
Description
Max
–0.5 to +3.6
–0.5 to +3.6
–0.5 to VDD +0.5
–65 to +150
150
Unit
V
Symbol
Parameter
Min
Typ.
Max.
Unit
Power Supply Voltage
CIN
Input Capacitance
—
—
3
pF
Input Voltage
V
NOTE:
Output Voltage(2)
Storage Temperature
Junction Temperature
V
1. This parameter is measured at characterization but not tested
VO
TSTG
TJ
°C
°C
NOTES:
1. Stresses greater than those listed under ABSOLUTE MAXIMUM RATINGS may cause
permanent damage to the device. This is a stress rating only and functional operation
of the device at these or any other conditions above those indicated in the operational
sections of this specification is not implied. Exposure to absolute maximum rating
conditions for extended periods may affect reliability.
2. Not to exceed 3.6V.
RECOMMENDEDOPERATINGRANGE
Symbol
Description
Min.
–40
2.3
Typ.
+25
2.5
Max.
+85
2.7
Unit
°C
V
TA
AmbientOperatingTemperature
InternalPowerSupplyVoltage
VDD
PINDESCRIPTION
Symbol
A[1:2]
I/O
Type
Description
I
I
Adjustable(1,4) Clockinput. A[1:2] isthe"true"sideofthedifferentialclockinput.
A[1:2]
Adjustable(1,4) Complementaryclockinputs. A[1:2] isthecomplementarysideofA[1:2]. ForLVTTLsingle-endedoperation, A[1:2] shouldbesettothe
desiredtogglevoltageforA[1:2]:
3.3V LVTTL VREF = 1650mV
2.5V LVTTL VREF = 1250mV
G
I
I
LVTTL
LVTTL
GatecontrolfordifferentialoutputsQ1 andQ1 throughQ6 andQ6. WhenGisLOW, thedifferentialoutputsareactive. WhenGis
HIGH,thedifferentialoutputsareasynchronouslydriventotheleveldesignatedbyGL(2).
GL
Specifies output disable level. If HIGH, "true" outputs disable HIGH and "complementary" outputs disable LOW. If LOW, "true"
outputsdisableLOWand"complementary"outputsdisableHIGH.
Qn
Qn
SEL
O
O
I
LVDS
LVDS
LVTTL
LVTTL
Clockoutputs
Complementaryclockoutputs
Reference clock select. When LOW, selects A2 and A2. When HIGH, selects A1 and A1.
PD
I
Power-down control. Shuts off entire chip. If LOW, the device goes into low power mode. Inputs and outputs are disabled. Both
"true" and "complementary" outputs will pull to VDD. Set HIGH for normal operation.(3)
VDD
GND
N C
PWR
PWR
Power supply for the device core and inputs
Power supply return for all power
Noconnect;recommendedtoconnecttoGND
NOTES:
1. Inputs are capable of translating the following interface standards:
Single-ended 3.3V and 2.5V LVTTL levels
Differential HSTL and eHSTL levels
Differential LVEPECL (2.5V) and LVPECL (3.3V) levels
Differential LVDS levels
Differential CML levels
2. Because the gate controls are asynchronous, runt pulses are possible. It is the user's responsibility to either time the gate control signals to minimize the possibility of runt
pulses or be able to tolerate them in down stream circuitry.
3. It is recommended that the outputs be disabled before entering power-down mode. It is also recommended that the outputs remain disabled until the device completes power-
up after asserting PD.
4. The user must take precautions with any differential input interface standard being used in order to prevent instability when there is no input signal.
IDT5T9306 REVISION B JANUARY 31, 2011
3
©2011 Integrated Device Technology, Inc.
IDT5T9306 Data Sheet
2.5V LVDS 1:6 CLOCK BUFFER TERABUFFER™ II
DC ELECTRICAL CHARACTERISTICS OVER OPERATING RANGE FOR LVTTL(1)
Symbol
Parameter
Test Conditions
Min.
Typ.(2)
Max
Unit
InputCharacteristics
IIH
IIL
Input HIGH Current
VDD = 2.7V
—
—
—
—
±5
±5
- 1.2
+3.6
—
μA
InputLOWCurrent
VDD = 2.7V
VIK
ClampDiodeVoltage
DCInputVoltage
VDD = 2.3V, IIN = -18mA
—
- 0.7
—
V
V
V
V
V
V
VIN
VIH
VIL
- 0.3
1.7
—
DC Input HIGH
—
DC Input LOW
—
0.7
—
VTHI
VREF
DCInputThresholdCrossingVoltage
Single-EndedReferenceVoltage(3)
—
VDD /2
1.65
1.25
3.3VLVTTL
2.5VLVTTL
—
—
—
—
NOTES:
1. See RECOMMENDED OPERATING RANGE table.
2. Typical values are at VDD = 2.5V, +25°C ambient.
3. For A[1:2] single-ended operation, A[1:2] is tied to a DC reference voltage.
DCELECTRICALCHARACTERISTICSOVEROPERATINGRANGEFOR
DIFFERENTIALINPUTS(1)
Symbol
Parameter
Test Conditions
Min.
Typ.(2)
Max
Unit
InputCharacteristics
IIH
IIL
Input HIGH Current
VDD = 2.7V
—
—
—
—
±5
±5
μA
InputLOWCurrent
VDD = 2.7V
VIK
VIN
VDIF
VCM
ClampDiodeVoltage
VDD = 2.3V, IIN = -18mA
—
- 0.7
—
- 1.2
+3.6
—
V
V
V
V
DCInputVoltage
- 0.3
0.1
0.05
DCDifferentialVoltage(3)
DC Common Mode Input Voltage(4)
—
—
VDD
NOTES:
1. See RECOMMENDED OPERATING RANGE table.
2. Typical values are at VDD = 2.5V, +25°C ambient.
3. VDIF specifies the minimum input differential voltage (VTR - VCP) required for switching where VTR is the "true" input level and VCP is the "complement" input level. The DC differential
voltage must be maintained to guarantee retaining the existing HIGH or LOW input. The AC differential voltage must be achieved to guarantee switching to a new state.
4. VCM specifies the maximum allowable range of (VTR + VCP) /2.
DCELECTRICALCHARACTERISTICSOVERRECOMMENDEDOPERATING
RANGE FOR LVDS(1)
Symbol
Parameter
Test Conditions
Min.
Typ.(2)
Max
Unit
OutputCharacteristics
VOT(+)
VOT(-)
ΔVOT
VOS
DifferentialOutputVoltagefortheTrueBinaryState
DifferentialOutputVoltagefortheFalseBinaryState
ChangeinVOT BetweenComplementaryOutputStates
OutputCommonModeVoltage(OffsetVoltage)
ChangeinVOS BetweenComplementaryOutputStates
OutputsShortCircuitCurrent
247
247
—
—
—
—
1.2
—
12
6
454
454
50
mV
mV
mV
V
1.125
—
1.375
50
ΔVOS
IOS
mV
mA
mA
VOUT + and VOUT - = 0V
VOUT + = VOUT -
—
24
IOSD
DifferentialOutputsShortCircuitCurrent
—
12
NOTES:
1. See RECOMMENDED OPERATING RANGE table.
2. Typical values are at VDD = 2.5V, TA = +25°C ambient.
IDT5T9306 REVISION B JANUARY 31, 2011
4
©2011 Integrated Device Technology, Inc.
IDT5T9306 Data Sheet
2.5V LVDS 1:6 CLOCK BUFFER TERABUFFER™ II
DIFFERENTIAL INPUT AC TEST CONDITIONS FOR HSTL
Symbol
VDIF
VX
Parameter
Value
Units
V
InputSignalSwing(1)
DifferentialInputSignalCrossingPoint(2)
1
750
mV
%
DH
Duty Cycle
50
VTHI
tR, tF
InputTimingMeasurementReferenceLevel(3)
InputSignalEdgeRate(4)
CrossingPoint
2
V
V/ns
NOTES:
1. The 1V peak-to-peak input pulse level is specified to allow consistent, repeatable results in an automatic test equipment (ATE) environment. This device meets the VDIF (AC)
specification under actual use conditions.
2. A 750mV crossing point level is specified to allow consistent, repeatable results in an automatic test equipment (ATE) environment. This device meets the VX specification under
actual use conditions.
3. In all cases, input waveform timing is marked at the differential cross-point of the input signals.
4. The input signal edge rate of 2V/ns or greater is to be maintained in the 20% to 80% range of the input waveform.
DIFFERENTIAL INPUT AC TEST CONDITIONS FOR eHSTL
Symbol
VDIF
VX
Parameter
Value
Units
V
InputSignalSwing(1)
DifferentialInputSignalCrossingPoint(2)
1
900
mV
%
DH
Duty Cycle
50
VTHI
tR, tF
InputTimingMeasurementReferenceLevel(3)
InputSignalEdgeRate(4)
CrossingPoint
2
V
V/ns
NOTES:
1. The 1V peak-to-peak input pulse level is specified to allow consistent, repeatable results in an automatic test equipment (ATE) environment. This device meets the VDIF (AC)
specification under actual use conditions.
2. A 900mV crossing point level is specified to allow consistent, repeatable results in an automatic test equipment (ATE) environment. This device meets the VX specification under
actual use conditions.
3. In all cases, input waveform timing is marked at the differential cross-point of the input signals.
4. The input signal edge rate of 2V/ns or greater is to be maintained in the 20% to 80% range of the input waveform.
DIFFERENTIAL INPUT AC TEST CONDITIONS FOR LVEPECL (2.5V) AND
LVPECL(3.3V)
Symbol
VDIF
Parameter
Value
Units
mV
InputSignalSwing(1)
732
VX
DifferentialInputSignalCrossingPoint(2)
LVEPECL
LVPECL
1082
mV
1880
DH
Duty Cycle
50
%
V
VTHI
tR, tF
InputTimingMeasurementReferenceLevel(3)
InputSignalEdgeRate(4)
CrossingPoint
2
V/ns
NOTES:
1. The 732mV peak-to-peak input pulse level is specified to allow consistent, repeatable results in an automatic test equipment (ATE) environment. This device meets the VDIF (AC)
specification under actual use conditions.
2. 1082mV LVEPECL (2.5V) and 1880mV LVPECL (3.3V) crossing point levels are specified to allow consistent, repeatable results in an automatic test equipment (ATE) environment.
This device meets the VX specification under actual use conditions.
3. In all cases, input waveform timing is marked at the differential cross-point of the input signals.
4. The input signal edge rate of 2V/ns or greater is to be maintained in the 20% to 80% range of the input waveform.
IDT5T9306 REVISION B JANUARY 31, 2011
5
©2011 Integrated Device Technology, Inc.
IDT5T9306 Data Sheet
2.5V LVDS 1:6 CLOCK BUFFER TERABUFFER™ II
DIFFERENTIAL INPUT AC TEST CONDITIONS FOR LVDS
Symbol
VDIF
VX
Parameter
Value
Units
mV
V
InputSignalSwing(1)
DifferentialInputSignalCrossingPoint(2)
400
1.2
DH
Duty Cycle
50
%
VTHI
tR, tF
InputTimingMeasurementReferenceLevel(3)
InputSignalEdgeRate(4)
CrossingPoint
2
V
V/ns
NOTES:
1. The 400mV peak-to-peak input pulse level is specified to allow consistent, repeatable results in an automatic test equipment (ATE) environment. This device meets the VDIF (AC)
specification under actual use conditions.
2. A 1.2V crossing point level is specified to allow consistent, repeatable results in an automatic test equipment (ATE) environment. This device meets the VX specification under
actual use conditions.
3. In all cases, input waveform timing is marked at the differential cross-point of the input signals.
4. The input signal edge rate of 2V/ns or greater is to be maintained in the 20% to 80% range of the input waveform.
ACDIFFERENTIALINPUTSPECIFICATIONS(1)
Symbol
VDIF
VIX
Parameter
Min.
0.1
Typ.
—
Max
3.6
Unit
V
ACDifferentialVoltage(2)
DifferentialInputCrosspointVoltage
CommonModeInputVoltageRange(3)
InputVoltage
0.05
0.05
- 0.3
—
VDD
VDD
+3.6
V
VCM
—
V
VIN
V
NOTES:
1. The output will not change state until the inputs have crossed and the minimum differential voltage range defined by VDIF has been met or exceeded.
2. VDIF specifies the minimum input voltage (VTR - VCP) required for switching where VTR is the "true" input level and VCP is the "complement" input level. The AC differential voltage
must be achieved to guarantee switching to a new state.
3. VCM specifies the maximum allowable range of (VTR + VCP) /2.
POWER SUPPLY CHARACTERISTICS FOR LVDS OUTPUTS(1)
Symbol
Parameter
Test Conditions
VDD = Max., All Input Clocks = LOW(2)
Outputsenabled
Typ.
Max
Unit
IDDQ
Quiescent VDD Power Supply Current
—
240
mA
ITOT
Total Power VDD Supply Current
Total Power Down Supply Current
VDD = 2.7V., FREFERENCE CLOCK = 1GHz
PD = LOW
—
250
5
mA
mA
IPD
—
NOTES:
1. These power consumption characteristics are for all the valid input interfaces and cover the worst case conditions.
2. The true input is held LOW and the complementary input is held HIGH.
IDT5T9306 REVISION B JANUARY 31, 2011
6
©2011 Integrated Device Technology, Inc.
IDT5T9306 Data Sheet
2.5V LVDS 1:6 CLOCK BUFFER TERABUFFER™ II
AC ELECTRICAL CHARACTERISTICS OVER OPERATING RANGE(1,5)
Symbol
Parameter
Min.
Typ.
Max
Unit
SkewParameters
tSK(O)
Same Device Output Pin-to-Pin Skew(2)
Pulse Skew(3)
—
—
—
—
—
—
25
ps
ps
ps
tSK(P)
125
300
tSK(PP)
Part-to-PartSkew(4)
PropagationDelay
tPLH
tPHL
fO
Propagation Delay A, A Crosspoint to Qn, Qn Crosspoint
—
—
1.25
1.75
1
ns
FrequencyRange(6)
—
GHz
OutputGateEnable/DisableDelay
tPGE
Output Gate Enable Crossing VTHI to Qn/Qn Crosspoint
—
—
—
—
3.5
3.5
ns
ns
tPGD
Output Gate Disable Crossing VTHI to Qn/Qn Crosspoint Driven to GL Designated Level
Power Down Timing
tPWRDN
PD Crossing VTHI to Qn = VDD, Qn = VDD
Output Gate Disable Crossing VTHI to Qn/Qn Driven to GL Designated Level
—
—
—
—
100
100
μS
μS
tPWRUP
RMS Additive Phase Jitter
RMS Additive Phase Jitter @ 25MHz (12kHz – 10MHz Integration Range)
RMS Additive Phase Jitter @ 125MHz (12kHz – 20MHz Integration Range)
RMS Additive Phase Jitter @ 156.25MHz (12kHz – 20MHz Integration Range)
0.541
0.159
0.185
ps
ps
ps
tJIT
Output Rise/Fall Time
tR/tF
Output Rise/Fall Time(6), (20% - 80%)
125
600
ps
NOTES:
1. AC propagation measurements should not be taken within the first 100 cycles of startup.
2. Skew measured between crosspoints of all differential output pairs under identical input and output interfaces, transitions and load conditions on any one device.
3. Skew measured is the difference between propagation delay times tPHL and tPLH of any differential output pair under identical input and output interfaces, transitions and load conditions
on any one device.
4. Skew measured is the magnitude of the difference in propagation times between any single differential output pair of two devices, given identical transitions and load conditions
at identical VDD levels and temperature.
5. All parameters are tested with a 50% input duty cycle.
6. Guaranteed by design but not production tested.
IDT5T9306 REVISION B JANUARY 31, 2011
7
©2011 Integrated Device Technology, Inc.
IDT5T9306 Data Sheet
2.5V LVDS 1:6 CLOCK BUFFER TERABUFFER™ II
DIFFERENTIAL ACTIMING WAVEFORMS
1/fo
+ VDIF
VDIF = 0
- VDIF
A[1:2] - A[1:2]
tPHL
tPLH
+ VDIF
VDIF = 0
- VDIF
Qn - Qn
tSK(O)
tSK(O)
+ VDIF
VDIF = 0
- VDIF
Qm - Qm
Output Propagation and Skew Waveforms
NOTES:
1. Pulse skew is calculated using the following expression:
tSK(P) = | tPHL - tPLH |
Note that the tPHL and tPLH shown above are not valid measurements for this calculation because they are not taken from the same pulse.
2. AC propagation measurements should not be taken within the first 100 cycles of startup.
IDT5T9306 REVISION B JANUARY 31, 2011
8
©2011 Integrated Device Technology, Inc.
IDT5T9306 Data Sheet
2.5V LVDS 1:6 CLOCK BUFFER TERABUFFER™ II
+ VDIF
VDIF = 0
- VDIF
A[1:2] - A[1:2]
VIH
VTHI
VIL
GL
G
tPLH
VIH
VTHI
VIL
tPGD
tPGE
+ VDIF
VDIF = 0
- VDIF
Qn - Qn
Differential Gate Disable/Enable Showing Runt Pulse Generation
NOTE:
1. As shown, it is possible to generate runt pulses on gate disable and enable of the outputs. It is the user's responsibility to time the G signal to avoid this problem.
+VDIF
VDIF=0
-VDIF
A1 - A1
+VDIF
VDIF=0
-VDIF
A2 - A2
VIH
VTHI
VIL
G
VIH
VTHI
VIL
PD
+VDIF
VDIF=0
-VDIF
Qn - Qn
Power Down Timing
NOTES:
1. It is recommended that outputs be disabled before entering power-down mode. It is also recommended that the outputs remain disabled until the device completes power-up after
asserting PD.
2. The POWER DOWN TIMING diagram assumes that GL is HIGH.
3. It should be noted that during power-down mode, the outputs are both pulled to VDD. In the POWER DOWN TIMING diagram this is shown when Qn-Qn goes to VDIF = 0.
IDT5T9306 REVISION B JANUARY 31, 2011
9
©2011 Integrated Device Technology, Inc.
IDT5T9306 Data Sheet
2.5V LVDS 1:6 CLOCK BUFFER TERABUFFER™ II
TESTCIRCUITSANDCONDITIONS
~50
VIN
Transmission Line
VDD/2
A
A
D.U.T.
Pulse
Generator
~50
VIN
Transmission Line
-VDD/2
Scope
50
50
Test Circuit for Differential Input
DIFFERENTIALINPUTTESTCONDITIONS
Symbol
VDD = 2.5V ± 0.2V
Unit
VTHI
Crossing of A and A
V
IDT5T9306 REVISION B JANUARY 31, 2011
10
©2011 Integrated Device Technology, Inc.
IDT5T9306 Data Sheet
2.5V LVDS 1:6 CLOCK BUFFER TERABUFFER™ II
VDD
A
A
Qn
Qn
Pulse
Generator
RL
RL
D.U.T.
VOS
VOD
Test Circuit for DC Outputs and Power Down Tests
VDD/2
SCOPE
CL
Z = 50
A
A
Qn
Qn
Pulse
Generator
50
50
D.U.T.
Z = 50
CL
-VDD/2
Test Circuit for Propagation, Skew, and Gate Enable/Disable Timing
LVDSOUTPUTTESTCONDITION
Symbol
VDD = 2.5V ± 0.2V
Unit
CL
0(1)
8(1,2)
50
pF
RL
Ω
NOTES:
1. Specifications only apply to "Normal Operations" test condition. The TIA/EIA specification load is for reference only.
2. The scope inputs are assumed to have a 2pF load to ground. TIA/EIA - 644 specifies 5pF between the output pair. With CL = 8pF, this gives the test circuit appropriate 5pF equivalent
load.
IDT5T9306 REVISION B JANUARY 31, 2011
11
©2011 Integrated Device Technology, Inc.
IDT5T9306 Data Sheet
2.5V LVDS 1:6 CLOCK BUFFER TERABUFFER™ II
VFQFPNEPADTHERMALRELEASEPATH
In order to maximize both the removal of heat from the package and the
electrical performance, a land pattern must be incorporated on the Printed
Circuit Board (PCB) within the footprint of the package corresponding to the
exposed metal pad or exposed heat slug on the package, as shown in
Figure 1. The solderable area on the PCB, as defined by the solder mask,
should be at least the same size/shape as the exposed pad/slug area on the
package to maximize the thermal/electrical performance. Sufficient clearance
should be designed on the PCB between the outer edges of the land pattern
and the inner edges of pad pattern for the leads to avoid any shorts.
“heat pipes”) are application specific and dependent upon the package
power dissipation as well as electrical conductivity requirements. Thus,
thermal and electrical analysis and/or testing are recommended to determine
the minimum number needed. Maximum thermal and electrical performance
is achieved when an array of vias is incorporated in the land pattern. It is
recommended to use as many vias connected to ground as possible. It is
also recommended that the via diameter should be 12 to 13mils (0.30 to
0.33mm) with 1oz copper via barrel plating. This is desirable to avoid any
solder wicking inside the via during the soldering process which may result
in voids in solder between the exposed pad/slug and the thermal land.
Precautions should be taken to eliminate any solder voids between the
exposed heat slug and the land pattern. Note: These recommendations are
to be used as a guideline only. For further information, refer to theApplication
Note on the Surface Mount Assembly of Amkor’s Thermally/Electrically
Enhance Leadframe Base Package,Amkor Technology.
While the land pattern on the PCB provides a means of heat transfer and
electrical grounding from the package to the board through a solder joint,
thermal vias are necessary to effectively conduct from the surface of the PCB
to the ground plane(s). The land pattern must be connected to ground
through these vias. The vias act as “heat pipes”. The number of vias (i.e.
SOLDER
SOLDER
PIN
PIN
EXPOSED HEAT SLUG
PIN PAD
GROUND PLANE
LAND PATTERN
(GROUND PAD)
PIN PAD
THERMAL VIA
FIGURE 1. P.C.ASSEMBLY FOR EXPOSED PAD THERMAL RELEASE PATH –SIDE VIEW (DRAWING NOT TO SCALE)
IDT5T9306 REVISION B JANUARY 31, 2011
12
©2011 Integrated Device Technology, Inc.
IDT5T9306 Data Sheet
2.5V LVDS 1:6 CLOCK BUFFER TERABUFFER™ II
RECOMMENDEDLANDINGPATTERN
NL 28 pin
NOTE: All dimensions are in millimeters.
IDT5T9306 REVISION B JANUARY 31, 2011
13
©2011 Integrated Device Technology, Inc.
IDT5T9306 Data Sheet
2.5V LVDS 1:6 CLOCK BUFFER TERABUFFER™ II
July 23, 2002
Datasheet creation
October 8, 2002
Page 1, entire page changed; page 2, both diagrams; page 3, Pin Description and notes; page 4, DC Cha. for LVPECL
and Differential Input tables; page 6, DC Cha. and Power Supply tables; page 7, entire page; page 9, added note 3;
page 10, entire page; page 10, entire page; page 11, entire page; page 12, Ordering Info; added 3 new pages (10 thru
12) of diagrams.
October 10, 2002
October 24, 2002
Page 1, entire page changed; page 2, both diagrams; page 3, Pin Description and notes; page 7, AC Cha. table; page
8, added new LVPECL table; page 10, removed Input Clock Switching diagram; page 11, deleted entire page; page
12, changed Power Down Timing; page 15, Ordering Info.
Page2,addednote1toTQFPTOPVIEWtext;page3,adednote4toPinDescription;page4,replaced"Compliantdevices
must meet" with the text "This device meets" in four instances; page 5, Differential Input table, note 1, changed 1V
to 732mV and replaced "Compliant devices must meet" with the text "This device meets"; page 6, DC Electrical table,
Vdif row, changed Min. value to 0.1, and under Differential Input table replaced "Compliant devices must meet" with
the text "This device meets" page 7, Power Supply table, replaced ((TBD)) with 800MHz, and under AC Electrical table,
replaced((TBD))with500;page8,completelyalteredACDIfferentialtable;page12,LVDSOutputtable,replaced((TBD))
with 3.
November 1, 2002
December 12, 2002
December 16, 2002
Radical changes to entire document.
Radical changes to entire document, using 5T9316 as a base.
Throughout document, removed "Differential" from title; page 7, Power Supply table, changed Max values, changed
FREFERENCE value; page 10, note 1, changed Gx to G.
May 8, 2003
Page 2, corrected pinout diagram.
August 7, 2003
Page 1, Features text, 3rd bullet, changed 2ns to 1.75ns, 4th bullet, changed 800MHz to 1GHz, and 7th bullet, added
CML, on Description, 3rd line, added CML to list; page 4, Pin Descr., note 1, added "Differential CML levels", for
Description of PD row, replaced 2nd sentence with "Both 'true' and 'complementary' output will pull to Vdd"; page
5, DC... forDifferentialInputstable, removednote5andchangedVcmMax. from3.5toVdd;page7, PowerSupplytable,
changed 800MHz to 1GHz; page 8, AC Differential table, changed Vix and Vcm Max specs from 3.5V to Vdd, removed
notes 4 and 5, and placed entire table on page 7, for AC Elect. table, added notes 5 and 6, changed ((TBD)) to 300ps,
tplh Type to 1.25ns, and Max from 2ns to 1.75ns, and changed fo Max from 800MHz to 1GHz.
Page 1, Features, 7th bullet, added "3.3V / 2,5V LVTTL" to front, Description, added to 1st paragraph "A single-ended
3.3V / 2.5V LVTTL input can also be used to translate to LVDS outputs."; page 4, Pin Description table, added large
block of text to 2nd row, added "Single-ended 3.3V and 2.5V LVTTL levels" to note 1; page 5, DC for LVTTL table, added
Vref row and note 3, for DC for LVDS table, changed Ios ratings from 5 Typ, 7.5 Max to 12 Typ, 24 Max, and changed
Iosd ratings from 5 Typ, 7.5 Max to 6 Typ, 12 Max; page 7, Power Supply table, changed Ipd from 3 to 5.
Page 2, changed pin 22 to NC; page 3, changed pin 25 to NC; page 4, added NC row to Pin Description.
Removed TQFP package.
October 2, 2003
March 26, 2004
June 22, 2004
October 26, 2004
October 27, 2004
October 29, 2004
March 9, 2005
Inserted a page before Ordering Info and added Landing Pattern.
Added note to Landing Pattern.
Changed landing pattern diagram.
Page 6, switched Iddq and Itot values.
October 23, 2007
April 15, 2008
Page 7, added Additive Phase Jitter, RMS specs to the AC Electrical Characterisitcs Table.
Page 7, added Rise/Fall Time spec. to the AC Electrical Characteristics Table.
January 31, 2011
Page 12, added VFQFPN Thermal Release Path application note.
Updated to header/footer to new format.
IDT5T9306 REVISION B JANUARY 31, 2011
14
©2011 Integrated Device Technology, Inc.
IDT5T9306 Data Sheet
2.5V LVDS 1:6 CLOCK BUFFER TERABUFFER™ II
ORDERINGINFORMATION
XX
X
XXXXX
Package Process
Device Type
I
-40°C to +85°C (Industrial)
Thermally Enhanced Plastic Very Fine Pitch
Quad Flat No Lead Package
NL
2.5V 1:6 LVDS Clock Buffer Terabuffer™ II
5T9306
IDT5T9306 REVISION B JANUARY 31, 2011
15
©2011 Integrated Device Technology, Inc.
IDT5T9306 Data Sheet
2.5V LVDS 1:6 CLOCK BUFFER TERABUFFER™ II
IDT5T9306
2.5V LVDS 1:6 CLOCK BUFFER TERABUFFER™ II
We'veGotYourTimingSolution
6024 Silver Creek Valley Road
San Jose, CA 95138
Sales
Techical Support
netcom@idt.com
+480-763-2056
800-345-7015 (inside USA)
+408-284-8200 (outside USA)
Fax: 408-284-2775
www.IDT.com/go/contactIDT
DISCLAIMER Integrated Device Technology, Inc. (IDT) and its subsidiaries reserve the right to modify the products and/or specifications described herein at any time and at IDT’s sole discretion.All information
in this document, including descriptions of product features and performace, is subject to change without notice. Performance specifications and the operating parameters of the described products are
determined in the independent state and are not guaranteed to perform the same way when installed in customer products. The information contained herein is provided without representation or warranty of any
kind, whether express or implied, including, but not limited to, the suitablity of IDT’s products for any particular purpose, an implied warranty of merchantability, or non-infringement of the intellectual property
rights of others. This document is presented only as a guide and does not convey any license under intellectual property rights of IDT or any third parties.
IDT’s products are not intended for use in life support systems or similar devices where the failure or malfunction of an IDT product can be reasonably expected to significantly affect the health or safety of users.
Anyone using an IDT product in such a manner does so at their own risk, absent an express, written agreement by IDT.
Integrated Device Techology, IDT and the IDT logo are registered trademarks of IDT. Other trademarks and service marks used herein, including protected names, logos and designs, are the property of IDT or
their respective third party owners.
Copyright 2011.All rights reserved.
