5T907PAI8

型号：

5T907PAI8

品牌：

IDT[ INTEGRATED DEVICE TECHNOLOGY ]

页数：

19 页

PDF大小：

128 K

下载PDF手册

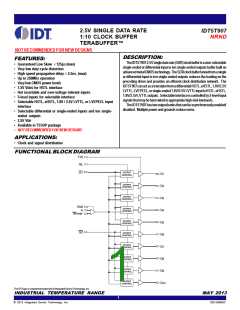

2.5V SINGLE DATA RATE
1:10 CLOCK BUFFER
IDT5T907
NRND
TERABUFFER™
NOT RECOMMENDED FOR NEW DESIGNS
DESCRIPTION:
FEATURES:
TheIDT5T9072.5Vsingledatarate(SDR)clockbufferisauser-selectable
single-ended or differential input to ten single-ended outputs buffer built on
advancedmetalCMOStechnology. TheSDRclockbufferfanoutfromasingle
or differential input to ten single-ended outputs reduces the loading on the
preceding driver and provides an efficient clock distribution network. The
IDT5T907canactasatranslatorfromadifferentialHSTL,eHSTL,1.8V/2.5V
LVTTL,LVEPECL,orsingle-ended1.8V/2.5VLVTTLinputtoHSTL,eHSTL,
1.8V/2.5VLVTTLoutputs. Selectableinterfaceiscontrolledby3-levelinput
signalsthatmaybehard-wiredtoappropriatehigh-mid-lowlevels.
TheIDT5T907hastwooutputbanksthatcanbeasynchronouslyenabled/
disabled. Multiple power and grounds reduce noise.
• Guaranteed Low Skew < 125ps (max)
• Very low duty cycle distortion
• High speed propagation delay < 2.5ns. (max)
• Up to 250MHz operation
• Very low CMOS power levels
• 1.5V VDDQ for HSTL interface
• Hot insertable and over-voltage tolerant inputs
• 3-level inputs for selectable interface
• Selectable HSTL, eHSTL, 1.8V / 2.5V LVTTL, or LVEPECL input
interface
• Selectable differential or single-ended inputs and ten single-
ended outputs
• 2.5V VDD
• Available in TSSOP package
• NOT RECOMMENDED FOR NEW DESIGNS
APPLICATIONS:
• Clock and signal distribution
FUNCTIONALBLOCKDIAGRAM
TxS
GL
G1
OUTPUT
CONTROL
Q1
OUTPUT
CONTROL
Q2
OUTPUT
CONTROL
Q3
RxS
A
OUTPUT
CONTROL
Q4
A/VREF
OUTPUT
CONTROL
Q5
G2
OUTPUT
CONTROL
Q6
OUTPUT
CONTROL
Q7
OUTPUT
CONTROL
Q8
OUTPUT
CONTROL
Q9
OUTPUT
CONTROL
Q10
TheIDTlogoisaregisteredtrademarkofIntegratedDeviceTechnology,Inc.
INDUSTRIAL TEMPERATURE RANGE
MAY 2013
1
© 2013 Integrated Device Technology, Inc.
DSC-5899/23
IDT5T907
2.5VSINGLEDATARATE1:10CLOCKBUFFERTERABUFFER
INDUSTRIALTEMPERATURERANGE
PINCONFIGURATION
ABSOLUTEMAXIMUMRATINGS(1)
Symbol
VDD
VDDQ
VI
Description
Power Supply Voltage(2)
Output Power Supply(2)
Input Voltage
Max
–0.5 to +3.6
–0.5 to +3.6
–0.5 to +3.6
–0.5 to VDDQ +0.5
–0.5 to +3.6
–65 to +165
150
Unit
V
V
GL
VDD
VDD
GND
GND
G1
1
48
47
46
45
44
43
42
41
40
39
38
37
36
35
34
33
32
31
30
29
28
27
26
25
GND
VDDQ
VDDQ
GND
GND
GND
VDDQ
Q3
V
2
VO
Output Voltage(3)
V
3
VREF
TSTG
TJ
Reference Voltage(3)
Storage Temperature
Junction Temperature
V
4
°C
°C
5
NOTES:
6
1. Stresses greater than those listed under ABSOLUTE MAXIMUM RATINGS may cause
permanent damage to the device. This is a stress rating only and functional operation
of the device at these or any other conditions above those indicated in the operational
sections of this specification is not implied. Exposure to absolute maximum rating
conditions for extended periods may affect reliability.
2. VDDQ and VDD internally operate independently. No power sequencing requirements
need to be met.
3. Not to exceed 3.6V.
VDDQ
Q2
7
8
Q1
9
Q4
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
GND
VDDQ
Q5
GND
VDDQ
A/VREF
A
Q6
CAPACITANCE(1) (TA = +25°C, F = 1.0MHz)
VDDQ
GND
Q10
VDDQ
GND
Q7
Symbol
Parameter
Min
Typ.
Max.
Unit
CIN
Input Capacitance
—
3.5
—
pF
NOTE:
Q9
Q8
1. This parameter is measured at characterization but not tested. Capacitance applies
to all inputs except RxS and TxS.
VDDQ
G2
VDDQ
VDDQ
GND
GND
VDDQ
GND
TxS
GND
GND
VDD
VDD
RxS
TSSOP
TOP VIEW
RECOMMENDEDOPERATINGRANGE
Symbol
Description
Min.
–40
2.4
Typ.
+25
2.5
Max.
+85
2.6
Unit
°C
V
TA
AmbientOperatingTemperature
InternalPowerSupplyVoltage
(1)
VDD
HSTL Output Power Supply Voltage
Extended HSTL and 1.8V LVTTL Output Power Supply Voltage
1.4
1.65
1.5
1.8
1.6
1.95
V
V
(1)
VDDQ
2.5VLVTTLOutputPowerSupplyVoltage
TerminationVoltage
VDD
V
V
VT
VDDQ / 2
NOTE:
1. All power supplies should operate in tandem; if VDD or VDDQ is at a maximum, then VDDQ or VDD (respectively) should be at a maximum, and vice-versa.
2
IDT5T907
INDUSTRIALTEMPERATURERANGE
2.5VSINGLEDATARATE1:10CLOCKBUFFERTERABUFFER
PINDESCRIPTION
Symbol
A
I/O
Type
Description
I
I
Adjustable(1) Clock input. A is the "true" side of the differential clock input. If operating in single-ended mode, A is the clock input.
A/VREF
Adjustable(1) Complementaryclockinput. A/VREF isthe"complementary"sideofAiftheinputisindifferentialmode. Ifoperatinginsingle-ended
mode,A/VREF isconnectedtoGND. Forsingle-endedoperationindifferentialmode, A/VREF shouldbesettothedesiredtoggle
voltage for A:
2.5VLVTTL
VREF = 1250mV
1.8VLVTTL,eHSTL VREF = 900mV
HSTL
VREF = 750mV
VREF = 1082mV
LVEPECL
G1
G2
I
I
LVTTL(5)
LVTTL(5)
LVTTL(5)
Adjustable(2) Clockoutputs
3 Level(3)
3 Level(3)
Gate for outputs Q1 through Q5. When G1 is LOW, these outputs are enabled. When G1 is HIGH, these outputs are asynchro-
nouslydisabledtotheleveldesignatedbyGL(4).
Gate for outputs Q6 through Q10. When G2 is LOW, these outputs are enabled. When G2 is HIGH, these outputs are asynchro-
nouslydisabledtotheleveldesignatedbyGL(4).
GL
Qn
I
O
I
Specifies output disable level. If HIGH, the outputs disable HIGH. If LOW, the outputs disable LOW.
RxS
TxS
Selectssingle-ended2.5VLVTTL(HIGH),1.8VLVTTL(MID)clockinputordifferential(LOW)clockinput
I
Sets the drive strength of the output drivers to be 2.5V LVTTL (HIGH), 1.8V LVTTL (MID) or HSTL (LOW) compatible. Used in
conjunctionwithVDDQ tosettheinterfacelevels.
VDD
VDDQ
PWR
PWR
PWR
Power supply for the device core and inputs
Powersupplyforthedeviceoutputs. Whenutilizing2.5VLVTTLoutputs, VDDQ shouldbeconnectedtoVDD.
Power supply return for all power
GND
NOTES:
1. Inputs are capable of translating the following interface standards. User can select between:
Single-ended 2.5V LVTTL levels
Single-ended 1.8V LVTTL levels
or
Differential 2.5V/1.8V LVTTL levels
Differential HSTL and eHSTL levels
Differential LVEPECL levels
2. Outputs are user selectable to drive 2.5V, 1.8V LVTTL, eHSTL, or HSTL interface levels when used with the appropriate VDDQ voltage.
3. 3 level inputs are static inputs and must be tied to VDD or GND or left floating. These inputs are not hot-insertable or over-voltage tolerant.
4. Because the gate controls are asynchronous, runt pulses are possible. It is the user's responsibility to either time the gate control signals to minimize the possibility of runt
pulses or be able to tolerate them in down stream circuitry.
5. Pins listed as LVTTL inputs will accept 2.5V signals when RxS = HIGH or 1.8V signals when RxS = LOW or MID.
3
IDT5T907
2.5VSINGLEDATARATE1:10CLOCKBUFFERTERABUFFER
INDUSTRIALTEMPERATURERANGE
INPUT/OUTPUTSELECTION(1)
Input
Output
Input
Output
2.5V LVTTL SE
1.8V LVTTL SE
2.5V LVTTL DSE
1.8V LVTTL DSE
LVEPECL DSE
eHSTL DSE
eHSTL
2.5V LVTTL SE
1.8V LVTTL SE
2.5V LVTTL DSE
1.8V LVTTL DSE
LVEPECL DSE
eHSTL DSE
2.5VLVTTL
HSTL DSE
HSTL DSE
2.5V LVTTL DIF
1.8V LVTTL DIF
LVEPECL DIF
eHSTL DIF
2.5V LVTTL DIF
1.8V LVTTL DIF
LVEPECL DIF
eHSTL DIF
HSTL DIF
HSTL DIF
2.5V LVTTL SE
1.8V LVTTL SE
2.5V LVTTL DSE
1.8V LVTTL DSE
LVEPECL DSE
eHSTL DSE
HSTL
2.5V LVTTL SE
1.8V LVTTL SE
2.5V LVTTL DSE
1.8V LVTTL DSE
LVEPECL DSE
eHSTL DSE
1.8VLVTTL
HSTL DSE
HSTL DSE
2.5V LVTTL DIF
1.8V LVTTL DIF
LVEPECL DIF
eHSTL DIF
2.5V LVTTL DIF
1.8V LVTTL DIF
LVEPECL DIF
eHSTL DIF
HSTL DIF
HSTL DIF
NOTE:
1. The INPUT/OUTPUT SELECTION Table describes the total possible combinations of input and output interfaces. Single-Ended (SE) inputs in a single-ended mode require the
A/VREF pin to be connected to GND. Differential Single-Ended (DSE) is for single-ended operation in differential mode, requiring a VREF. Differential (DIF) inputs are used only in
differential mode.
DCELECTRICALCHARACTERISTICSOVEROPERATINGRANGE
Symbol
VIHH
Parameter
Test Conditions
Min.
Max
Unit
V
Input HIGH Voltage Level(1)
Input MID Voltage Level(1)
InputLOWVoltageLevel(1)
3-Level Inputs Only
3-Level Inputs Only
3-Level Inputs Only
VIN = VDD
VDD – 0.4
—
VIMM
VDD/2 – 0.2 VDD/2 + 0.2
V
VILL
—
—
0.4
200
+50
—
V
HIGH Level
MID Level
LOW Level
I3
3-Level Input DC Current (RxS, TxS)
VIN = VDD/2
–50
–200
μA
VIN = GND
NOTE:
1. These inputs are normally wired to VDD, GND, or left floating. Internal temination resistors bias unconnected inputs to VDD/2.
4
IDT5T907
INDUSTRIALTEMPERATURERANGE
2.5VSINGLEDATARATE1:10CLOCKBUFFERTERABUFFER
DC ELECTRICAL CHARACTERISTICS OVER OPERATING RANGE FOR HSTL(1)
Symbol
Parameter
Test Conditions
Min.
Typ.(7)
Max
Unit
InputCharacteristics
IIH
IIL
Input HIGH Current(9)
InputLOWCurrent(9)
VDD = 2.6V
VDD = 2.6V
VI = VDDQ/GND
VI = GND/VDDQ
—
—
—
±5
±5
μA
—
—
VIK
ClampDiodeVoltage
VDD = 2.4V, IIN = -18mA
- 0.7
- 1.2
+3.6
—
V
VIN
VDIF
VCM
VIH
VIL
DCInputVoltage
- 0.3
0.2
V
DCDifferentialVoltage(2,8)
DC Common Mode Input Voltage(3,8)
DC Input HIGH(4,5,8)
DC Input LOW(4,6,8)
Single-EndedReferenceVoltage(4,8)
V
680
750
750
900
mV
mV
mV
mV
VREF + 100
—
—
VREF - 100
—
VREF
—
OutputCharacteristics
VOH
VOL
Output HIGH Voltage
IOH = -8mA
IOH = -100μA
IOL = 8mA
VDDQ - 0.4
VDDQ - 0.1
—
—
—
V
V
V
V
OutputLOWVoltage
0.4
0.1
IOL = 100μA
—
NOTES:
1. See RECOMMENDED OPERATING RANGE table.
2. VDIF specifies the minimum input differential voltage (VTR - VCP) required for switching where VTR is the "true" input level and VCP is the "complement" input level. Differential mode
only. The DC differential voltage must be maintained to guarantee retaining the existing HIGH or LOW input. The AC differential voltage must be achieved to guarantee switching
to a new state.
3. VCM specifies the maximum allowable range of (VTR + VCP) /2. Differential mode only.
4. For single-ended operation, in differential mode, A/VREF is tied to the DC voltage VREF.
5. Voltage required to maintain a logic HIGH, single-ended operation in differential mode.
6. Voltage required to maintain a logic LOW, single-ended operation in differential mode.
7. Typical values are at VDD = 2.5V, VDDQ = 1.5V, +25°C ambient.
8. The reference clock input is capable of HSTL, eHSTL, LVEPECL, 1.8V or 2.5V LVTTL operation independent of the device output. The correct input interface table should be
referenced.
9. For differential mode (RxS = LOW), A and A/VREF must be at the opposite rail.
POWERSUPPLYCHARACTERISTICSFORHSTLOUTPUTS(1)
Symbol
Parameter
Test Conditions(2)
Typ.
Max
Unit
IDDQ
Quiescent VDD Power Supply Current
VDDQ = Max., Reference Clock = LOW(3)
Outputsenabled,Alloutputsunloaded
VDDQ = Max., Reference Clock = LOW(3)
Outputsenabled,Alloutputsunloaded
VDD = Max., VDDQ = Max., CL = 0pF
20
30
mA
IDDQQ
IDDD
IDDDQ
ITOT
Quiescent VDDQ Power Supply Current
0.1
20
0.3
30
mA
μA/MHz
μA/MHz
mA
Dynamic VDD Power Supply
CurrentperOutput
Dynamic VDDQ Power Supply
CurrentperOutput
VDD = Max., VDDQ = Max., CL = 0pF
30
50
Total Power VDD Supply Current
VDDQ = 1.5V, FREFERENCE CLOCK = 100MHz, CL = 15pF
VDDQ = 1.5V, FREFERENCE CLOCK = 250MHz, CL = 15pF
VDDQ = 1.5V, FREFERENCE CLOCK = 100MHz, CL = 15pF
VDDQ = 1.5V, FREFERENCE CLOCK = 250MHz, CL = 15pF
20
35
35
50
40
50
ITOTQ
Total Power VDDQ Supply Current
70
mA
100
NOTES:
1. These power consumption characteristics are for all the valid input interfaces and cover the worst case input and output interface combinations.
2. The termination resistors are excluded from these measurements.
3. If the differential input interface is used, the true input is held LOW and the complementary input is held HIGH.
5
IDT5T907
2.5VSINGLEDATARATE1:10CLOCKBUFFERTERABUFFER
INDUSTRIALTEMPERATURERANGE
DIFFERENTIAL INPUT AC TEST CONDITIONS FOR HSTL
Symbol
VDIF
Parameter
Value
Units
V
InputSignalSwing(1)
1
VX
DifferentialInputSignalCrossingPoint(2)
InputTimingMeasurementReferenceLevel(3)
InputSignalEdgeRate(4)
750
mV
V
VTHI
CrossingPoint
1
tR, tF
V/ns
NOTES:
1. The 1V peak-to-peak input pulse level is specified to allow consistent, repeatable results in an automatic test equipment (ATE) environment. Compliant devices must meet the
VDIF (AC) specification under actual use conditions.
2. A 750mV crossing point level is specified to allow consistent, repeatable results in an automatic test equipment (ATE) environment. Compliant devices must meet the VX specification
under actual use conditions.
3. In all cases, input waveform timing is marked at the differential cross-point of the input signals.
4. The input signal edge rate of 1V/ns or greater is to be maintained in the 20% to 80% range of the input waveform.
DC ELECTRICAL CHARACTERISTICS OVER OPERATING RANGE FOR eHSTL(1)
Symbol
Parameter
Test Conditions
Min.
Typ.(7)
Max
Unit
InputCharacteristics
IIH
IIL
Input HIGH Current(9)
InputLOWCurrent(9)
VDD = 2.6V
VDD = 2.6V
VI = VDDQ/GND
VI = GND/VDDQ
—
—
—
±5
±5
μA
—
—
VIK
ClampDiodeVoltage
VDD = 2.4V, IIN = -18mA
- 0.7
- 1.2
+3.6
—
V
VIN
VDIF
VCM
VIH
VIL
DCInputVoltage
- 0.3
0.2
V
DCDifferentialVoltage(2,8)
DC Common Mode Input Voltage(3,8)
DC Input HIGH(4,5,8)
DC Input LOW(4,6,8)
Single-EndedReferenceVoltage(4,8)
V
800
900
900
1000
—
mV
mV
mV
mV
VREF + 100
—
VREF - 100
—
VREF
—
OutputCharacteristics
VOH
VOL
Output HIGH Voltage
IOH = -8mA
IOH = -100μA
IOL = 8mA
VDDQ - 0.4
VDDQ - 0.1
—
—
—
V
V
V
V
OutputLOWVoltage
0.4
0.1
IOL = 100μA
—
NOTES:
1. See RECOMMENDED OPERATING RANGE table.
2. VDIF specifies the minimum input differential voltage (VTR - VCP) required for switching where VTR is the "true" input level and VCP is the "complement" input level. Differential mode
only. The DC differential voltage must be maintained to guarantee retaining the existing HIGH or LOW input. The AC differential voltage must be achieved to guarantee switching
to a new state.
3. VCM specifies the maximum allowable range of (VTR + VCP) /2. Differential mode only.
4. For single-ended operation, in a differential mode, A/VREF is tied to the DC voltage VREF.
5. Voltage required to maintain a logic HIGH, single-ended operation in differential mode.
6. Voltage required to maintain a logic LOW, single-ended operation in differential mode.
7. Typical values are at VDD = 2.5V, VDDQ = 1.8V, +25°C ambient.
8. The reference clock input is capable of HSTL, eHSTL, LVEPECL, 1.8V or 2.5V LVTTL operation independent of the device output. The correct input interface table should be
referenced.
9. For differential mode (RxS = LOW), A and A/VREF must be at the opposite rail.
6
IDT5T907
INDUSTRIALTEMPERATURERANGE
2.5VSINGLEDATARATE1:10CLOCKBUFFERTERABUFFER
POWERSUPPLYCHARACTERISTICSFOReHSTLOUTPUTS(1)
Symbol
Parameter
Test Conditions(2)
Typ.
Max
Unit
IDDQ
Quiescent VDD Power Supply Current
VDDQ = Max., Reference Clock = LOW(3)
Outputsenabled,Alloutputsunloaded
VDDQ = Max., Reference Clock = LOW(3)
Outputsenabled,Alloutputsunloaded
VDD = Max., VDDQ = Max., CL = 0pF
20
30
mA
IDDQQ
IDDD
IDDDQ
ITOT
Quiescent VDDQ Power Supply Current
0.1
20
0.3
30
mA
μA/MHz
μA/MHz
mA
Dynamic VDD Power Supply
CurrentperOutput
Dynamic VDDQ Power Supply
CurrentperOutput
VDD = Max., VDDQ = Max., CL = 0pF
40
60
Total Power VDD Supply Current
VDDQ = 1.8V, FREFERENCE CLOCK = 100MHz, CL = 15pF
VDDQ = 1.8V, FREFERENCE CLOCK = 250MHz, CL = 15pF
VDDQ = 1.8V, FREFERENCE CLOCK = 100MHz, CL = 15pF
VDDQ = 1.8V, FREFERENCE CLOCK = 250MHz, CL = 15pF
20
35
40
80
40
50
ITOTQ
Total Power VDDQ Supply Current
80
mA
160
NOTES:
1. These power consumption characteristics are for all the valid input interfaces and cover the worst case input and output interface combinations.
2. The termination resistors are excluded from these measurements.
3. If the differential input interface is used, the true input is held LOW and the complementary input is held HIGH.
DIFFERENTIAL INPUT AC TEST CONDITIONS FOR eHSTL
Symbol
VDIF
Parameter
Value
Units
InputSignalSwing(1)
1
V
mV
V
VX
DifferentialInputSignalCrossingPoint(2)
InputTimingMeasurementReferenceLevel(3)
InputSignalEdgeRate(4)
900
VTHI
CrossingPoint
1
tR, tF
V/ns
NOTES:
1. The 1V peak-to-peak input pulse level is specified to allow consistent, repeatable results in an automatic test equipment (ATE) environment. Compliant devices must meet the
VDIF (AC) specification under actual use conditions.
2. A 900mV crossing point level is specified to allow consistent, repeatable results in an automatic test equipment (ATE) environment. Compliant devices must meet the VX specification
under actual use conditions.
3. In all cases, input waveform timing is marked at the differential cross-point of the input signals.
4. The input signal edge rate of 1V/ns or greater is to be maintained in the 20% to 80% range of the input waveform.
DCELECTRICALCHARACTERISTICSOVEROPERATINGRANGEFOR
LVEPECL(1)
Symbol
Parameter
Test Conditions
Min.
Typ.(2)
Max
Unit
InputCharacteristics
IIH
IIL
Input HIGH Current(6)
InputLOWCurrent(6)
VDD = 2.6V
VDD = 2.6V
VDD = 2.4V, IIN = -18mA
VI = VDDQ/GND
—
—
—
—
±5
±5
μA
VI = GND/VDDQ
VIK
ClampDiodeVoltage
—
- 0.7
—
- 1.2
3.6
V
VIN
VCM
VREF
VIH
VIL
DCInputVoltage
- 0.3
915
—
V
DC Common Mode Input Voltage(3,5)
Single-EndedReferenceVoltage(4,5)
DC Input HIGH
1082
1082
—
1248
—
mV
mV
mV
mV
1275
555
1620
875
DC Input LOW
—
NOTES:
1. See RECOMMENDED OPERATING RANGE table.
2. Typical values are at VDD = 2.5V, +25°C ambient.
3. VCM specifies the maximum allowable range of (VTR + VCP) /2. Differential mode only.
4. For single-ended operation while in differential mode, A/VREF is tied to the DC voltage VREF.
5. The reference clock input is capable of HSTL, eHSTL, LVEPECL, 1.8V or 2.5V LVTTL operation independent of the device output. The correct input interface table should
be referenced.
6. For differential mode (RxS = LOW), A and A/VREF must be at the opposite rail.
7
IDT5T907
2.5VSINGLEDATARATE1:10CLOCKBUFFERTERABUFFER
INDUSTRIALTEMPERATURERANGE
DIFFERENTIAL INPUT AC TEST CONDITIONS FOR LVEPECL
Symbol
VDIF
Parameter
Value
Units
mV
mV
V
InputSignalSwing(1)
732
VX
DifferentialInputSignalCrossingPoint(2)
InputTimingMeasurementReferenceLevel(3)
InputSignalEdgeRate(4)
1082
CrossingPoint
1
VTHI
tR, tF
V/ns
NOTES:
1. The 732mV peak-to-peak input pulse level is specified to allow consistent, repeatable results in an automatic test equipment (ATE) environment. Compliant devices must meet
the VDIF (AC) specification under actual use conditions.
2. A 1082mV crossing point level is specified to allow consistent, repeatable results in an automatic test equipment (ATE) environment. Compliant devices must meet the VX specification
under actual use conditions.
3. In all cases, input waveform timing is marked at the differential cross-point of the input signals.
4. The input signal edge rate of 1V/ns or greater is to be maintained in the 20% to 80% range of the input waveform.
DC ELECTRICAL CHARACTERISTICS OVER OPERATING RANGE FOR 2.5V
LVTTL(1)
Symbol
Parameter
Test Conditions
Min.
Typ.(8)
Max
Unit
InputCharacteristics
IIH
IIL
Input HIGH Current(10)
InputLOWCurrent(10)
ClampDiodeVoltage
DCInputVoltage
VDD = 2.6V
VDD = 2.6V
VI = VDDQ/GND
VI = GND/VDDQ
—
—
—
—
±5
±5
μA
VIK
VIN
VDD = 2.4V, IIN = -18mA
—
- 0.7
- 1.2
+3.6
V
V
- 0.3
Single-Ended Inputs(2)
VIH
DC Input HIGH
DC Input LOW
1.7
—
—
V
V
VIL
0.7
DifferentialInputs
VDIF
VCM
VIH
DCDifferentialVoltage(3,9)
DC Common Mode Input Voltage(4,9)
DC Input HIGH(5,6,9)
DC Input LOW(5,7,9)
Single-EndedReferenceVoltage(5,9)
0.2
1150
—
1350
V
1250
1250
mV
mV
mV
mV
VREF + 100
—
—
VIL
VREF - 100
—
VREF
—
OutputCharacteristics
VOH
VOL
Output HIGH Voltage
IOH = -12mA
IOH = -100μA
IOL = 12mA
IOL = 100μA
VDDQ - 0.4
VDDQ - 0.1
—
—
—
V
V
V
V
OutputLOWVoltage
0.4
0.1
—
NOTES:
1. See RECOMMENDED OPERATING RANGE table.
2. For 2.5V LVTTL single-ended operation, the RxS pin is tied HIGH and A/VREF is tied to GND.
3. VDIF specifies the minimum input differential voltage (VTR - VCP) required for switching where VTR is the "true" input level and VCP is the "complement" input level. Differential mode
only. The DC differential voltage must be maintained to guarantee retaining the existing HIGH or LOW input. The AC differential voltage must be achieved to guarantee switching
to a new state.
4. VCM specifies the maximum allowable range of (VTR + VCP) /2. Differential mode only.
5. For single-ended operation, in differential mode, A/VREF is tied to the DC voltage VREF.
6. Voltage required to maintain a logic HIGH, single-ended operation in differential mode.
7. Voltage required to maintain a logic LOW, single-ended operation in differential mode.
8. Typical values are at VDD = 2.5V, VDDQ = VDD, +25°C ambient.
9. The reference clock input is capable of HSTL, eHSTL, LVEPECL, 1.8V or 2.5V LVTTL operation independent of the device output. The correct input interface table should be
referenced.
10. For differential mode (RxS = LOW), A and A/VREF must be at the opposite rail.
8
IDT5T907
INDUSTRIALTEMPERATURERANGE
2.5VSINGLEDATARATE1:10CLOCKBUFFERTERABUFFER
POWER SUPPLY CHARACTERISTICS FOR 2.5V LVTTL OUTPUTS(1)
Symbol
Parameter
Test Conditions(2)
Typ.
Max
Unit
IDDQ
Quiescent VDD Power Supply Current
VDDQ = Max., Reference Clock = LOW(3)
Outputsenabled,Alloutputsunloaded
VDDQ = Max., Reference Clock = LOW(3)
Outputsenabled,Alloutputsunloaded
VDD = Max., VDDQ = Max., CL = 0pF
20
30
mA
IDDQQ
IDDD
IDDDQ
ITOT
Quiescent VDDQ Power Supply Current
0.1
25
0.3
40
mA
μA/MHz
μA/MHz
mA
Dynamic VDD Power Supply
CurrentperOutput
Dynamic VDDQ Power Supply
CurrentperOutput
VDD = Max., VDDQ = Max., CL = 0pF
40
70
Total Power VDD Supply Current
VDDQ = 2.5V, FREFERENCE CLOCK = 100MHz, CL = 15pF
VDDQ = 2.5V, FREFERENCE CLOCK = 200MHz, CL = 15pF
VDDQ = 2.5V, FREFERENCE CLOCK = 100MHz, CL = 15pF
VDDQ = 2.5V, FREFERENCE CLOCK = 200MHz, CL = 15pF
25
40
40
70
ITOTQ
Total Power VDDQ Supply Current
40
80
mA
100
200
NOTES:
1. These power consumption characteristics are for all the valid input interfaces and cover the worst case input and output interface combinations.
2. The termination resistors are excluded from these measurements.
3. If the differential input interface is used, the true input is held LOW and the complementary input is held HIGH.
DIFFERENTIAL INPUT AC TEST CONDITIONS FOR 2.5V LVTTL
Symbol
VDIF
Parameter
Value
VDD
Units
InputSignalSwing(1)
V
V
VX
DifferentialInputSignalCrossingPoint(2)
InputTimingMeasurementReferenceLevel(3)
InputSignalEdgeRate(4)
VDD/2
VTHI
CrossingPoint
2.5
V
tR, tF
V/ns
NOTES:
1. A nominal 2.5V peak-to-peak input pulse level is specified to allow consistent, repeatable results in an automatic test equipment (ATE) environment. Compliant devices must
meet the VDIF (AC) specification under actual use conditions.
2. A nominal 1.25V crossing point level is specified to allow consistent, repeatable results in an automatic test equipment (ATE) environment. Compliant devices must meet the
VX specification under actual use conditions.
3. In all cases, input waveform timing is marked at the differential cross-point of the input signals.
4. The input signal edge rate of 2.5V/ns or greater is to be maintained in the 20% to 80% range of the input waveform.
SINGLE-ENDED INPUT AC TEST CONDITIONS FOR 2.5V LVTTL
Symbol
VIH
Parameter
Value
VDD
0
Units
V
Input HIGH Voltage
VIL
InputLOWVoltage
V
VTHI
InputTimingMeasurementReferenceLevel(1)
InputSignalEdgeRate(2)
VDD/2
2
V
tR, tF
V/ns
NOTES:
1. A nominal 1.25V timing measurement reference level is specified to allow constant, repeatable results in an automatic test equipment (ATE) environment.
2. The input signal edge rate of 2V/ns or greater is to be maintained in the 10% to 90% range of the input waveform.
9
IDT5T907
2.5VSINGLEDATARATE1:10CLOCKBUFFERTERABUFFER
INDUSTRIALTEMPERATURERANGE
DC ELECTRICAL CHARACTERISTICS OVER OPERATING RANGE FOR 1.8V
LVTTL(1)
Symbol
Parameter
Test Conditions
Min.
Typ.(8)
Max
Unit
InputCharacteristics
IIH
IIL
Input HIGH Current(12)
InputLOWCurrent(12)
ClampDiodeVoltage
DCInputVoltage
VDD = 2.6V
VDD = 2.6V
VI = VDDQ/GND
VI = GND/VDDQ
—
—
—
—
±5
±5
μA
VIK
VIN
VDD = 2.4V, IIN = -18mA
—
- 0.7
- 1.2
V
V
- 0.3
VDDQ + 0.3
Single-Ended Inputs(2)
VIH
DC Input HIGH
DC Input LOW
1.073(10)
—
—
0.683(11)
V
V
VIL
DifferentialInputs
VDIF
VCM
VIH
DCDifferentialVoltage(3,9)
DC Common Mode Input Voltage(4,9)
DC Input HIGH(5,6,9)
DC Input LOW(5,7,9)
Single-EndedReferenceVoltage(5,9)
0.2
825
—
975
V
900
900
mV
mV
mV
mV
VREF + 100
—
—
VIL
VREF - 100
—
VREF
—
OutputCharacteristics
VOH
VOL
Output HIGH Voltage
IOH = -6mA
IOH = -100μA
IOL = 6mA
VDDQ - 0.4
VDDQ - 0.1
—
—
—
V
V
V
V
OutputLOWVoltage
0.4
0.1
IOL = 100μA
—
NOTES:
1. See RECOMMENDED OPERATING RANGE table.
2. For 1.8V LVTTL single-ended operation, the RxS pin is allowed to float or tied to VDD/2 and A/VREF is tied to GND.
3. VDIF specifies the minimum input differential voltage (VTR - VCP) required for switching where VTR is the "true" input level and VCP is the "complement" input level. Differential mode
only. The DC differential voltage must be maintained to guarantee retaining the existing HIGH or LOW input. The AC differential voltage must be achieved to guarantee switching
to a new state.
4. VCM specifies the maximum allowable range of (VTR + VCP) /2. Differential mode only.
5. For single-ended operation in differential mode, A/VREF is tied to the DC voltage VREF. The input is guaranteed to toggle within ±200mV of VREF when VREF is constrained within
+600mV and VDDI-600mV, where VDDI is the nominal 1.8V power supply of the device driving the A input. To guarantee switching in voltage range specified in the JEDEC 1.8V
LVTTL interface specification, VREF must be maintained at 900mV with appropriate tolerances.
6. Voltage required to maintain a logic HIGH, single-ended operation in differential mode.
7. Voltage required to maintain a logic LOW, single-ended operation in differential mode.
8. Typical values are at VDD = 2.5V, VDDQ = 1.8V, +25°C ambient.
9. The reference clock input is capable of HSTL, eHSTL, LVEPECL, 1.8V or 2.5V LVTTL operation independent of the device output. The correct input interface table should be
referenced.
10. This value is the worst case minimum VIH over the specification range of the 1.8V power supply. The 1.8V LVTTL specification is VIH = 0.65 • VDD where VDD is 1.8V ± 0.15V.
However, the LVTTL translator is supplied by a 2.5V nominal supply on this part. To ensure compliance with the specification, the translator was designed to accept the calculated
worst case value ( VIH = 0.65 • [1.8 - 0.15V]) rather than reference against a nominal 1.8V supply.
11. This value is the worst case maximum VIL over the specification range of the 1.8V power supply. The 1.8V LVTTL specification is VIL = 0.35 • VDD where VDD is 1.8V ± 0.15V.
However, the LVTTL translator is supplied by a 2.5V nominal supply on this part. To ensure compliance with the specification, the translator was designed to accept the calculated
worst case value ( VIL = 0.35 • [1.8 + 0.15V]) rather than reference against a nominal 1.8V supply.
12. For differential mode (RxS = LOW), A and A/VREF must be at the opposite rail.
10
IDT5T907
INDUSTRIALTEMPERATURERANGE
2.5VSINGLEDATARATE1:10CLOCKBUFFERTERABUFFER
POWER SUPPLY CHARACTERISTICS FOR 1.8V LVTTL OUTPUTS(1)
Symbol
Parameter
Test Conditions(2)
Typ.
Max
Unit
IDDQ
Quiescent VDD Power Supply Current
VDDQ = Max., Reference Clock = LOW(3)
Outputsenabled,Alloutputsunloaded
VDDQ = Max., Reference Clock = LOW(3)
Outputsenabled,Alloutputsunloaded
VDD = Max., VDDQ = Max., CL = 0pF
20
30
mA
IDDQQ
IDDD
IDDDQ
ITOT
Quiescent VDDQ Power Supply Current
0.1
20
0.3
40
mA
μA/MHz
μA/MHz
mA
Dynamic VDD Power Supply
CurrentperOutput
Dynamic VDDQ Power Supply
CurrentperOutput
VDD = Max., VDDQ = Max., CL = 0pF
55
80
Total Power VDD Supply Current
VDDQ = 1.8V, FREFERENCE CLOCK = 100MHz, CL = 15pF
VDDQ = 1.8V, FREFERENCE CLOCK = 200MHz, CL = 15pF
VDDQ = 1.8V, FREFERENCE CLOCK = 100MHz, CL = 15pF
VDDQ = 1.8V, FREFERENCE CLOCK = 200MHz, CL = 15pF
25
40
40
60
ITOTQ
Total Power VDDQ Supply Current
55
110
260
mA
130
NOTES:
1. These power consumption characteristics are for all the valid input interfaces and cover the worst case input and output interface combinations.
2. The termination resistors are excluded from these measurements.
3. If the differential input interface is used, the true input is held LOW and the complementary input is held HIGH.
DIFFERENTIAL INPUT AC TEST CONDITIONS FOR 1.8V LVTTL
Symbol
VDIF
Parameter
Value
VDDI
Units
InputSignalSwing(1)
V
mV
V
VX
DifferentialInputSignalCrossingPoint(2)
InputTimingMeasurementReferenceLevel(3)
InputSignalEdgeRate(4)
VDDI/2
VTHI
CrossingPoint
1.8
tR, tF
V/ns
NOTES:
1. VDDI is the nominal 1.8V supply (1.8V ± 0.15V) of the part or source driving the input. A nominal 1.8V peak-to-peak input pulse level is specified to allow consistent, repeatable
results in an automatic test equipment (ATE) environment. Compliant devices must meet the VDIF (AC) specification under actual use conditions.
2. A nominal 900mV crossing point level is specified to allow consistent, repeatable results in an automatic test equipment (ATE) environment. Compliant devices must meet the
VX specification under actual use conditions.
3. In all cases, input waveform timing is marked at the differential cross-point of the input signals.
4. The input signal edge rate of 1.8V/ns or greater is to be maintained in the 20% to 80% range of the input waveform.
SINGLE-ENDED INPUT AC TEST CONDITIONS FOR 1.8V LVTTL
Symbol
VIH
Parameter
Value
VDDI
0
Units
V
Input HIGH Voltage(1)
VIL
InputLOWVoltage
V
VTHI
InputTimingMeasurementReferenceLevel(2)
InputSignalEdgeRate(3)
VDDI/2
2
mV
V/ns
tR, tF
NOTES:
1. VDDI is the nominal 1.8V supply (1.8V ± 0.15V) of the part or source driving the input.
2. A nominal 900mV timing measurement reference level is specified to allow constant, repeatable results in an automatic test equipment (ATE) environment.
3. The input signal edge rate of 2V/ns or greater is to be maintained in the 10% to 90% range of the input waveform.
11
IDT5T907
2.5VSINGLEDATARATE1:10CLOCKBUFFERTERABUFFER
INDUSTRIALTEMPERATURERANGE
AC ELECTRICAL CHARACTERISTICS OVER OPERATING RANGE(7)
Symbol
SkewParameters
tSK(O)
Parameter
Min.
Typ.
Max
Unit
ps
Same Device Output Pin-to-Pin Skew(1) Single-EndedandDifferentialModes
Single-EndedinDifferentialMode(DSE)
—
—
—
—
—
—
40
—
—
—
125
—
125
—
tSK(P)(2)
tSK(P)(4)
Pulse Skew(3)
Single-EndedandDifferentialModes
Single-EndedinDifferentialMode(DSE)
Single-EndedandDifferentialModes
Single-EndedinDifferentialMode(DSE)
300
—
ps
300
—
Pulse Skew(3)
350
—
ps
350
—
(5)
dT
Duty Cycle
60
%
tSK(PP)
Part-to-PartSkew(6)
Single-EndedandDifferentialModes
—
300
—
ps
Single-EndedinDifferentialMode(DSE)
300
PropagationDelay
tPLH
tPHL
tR
Propagation Delay A to Qn
—
—
2.5
ns
ps
Output Rise Time (20% to 80%)
Output Fall Time (20% to 80%)
FrequencyRange(HSTL/eHSTLoutputs)
2.5V / 1.8V LVTTL Outputs
HSTL / eHSTL Outputs
2.5V / 1.8V LVTTL Outputs
HSTL / eHSTL Outputs
350
350
350
350
—
—
—
—
—
—
—
1050
1350
1050
1350
250
tF
ps
fO
MHz
FrequencyRange(2.5V/1.8VLVTTLoutputs)
OutputGateEnable/DisableDelay
—
200
tPGE
tPGD
OutputGateEnabletoQn
OutputGateEnabletoQnDriventoGLDesignatedLevel
—
—
—
—
3.5
3
ns
ns
NOTES:
1. Skew measured between all outputs under identical input and output interfaces, transitions, and load conditions on any one device.
2. For 1.8V LVTTL and eHSTL outputs only.
3. Skew measured is difference between propagation times tPLH and tPHL of any output under identical input and output interfaces, transitions, and load conditions on any one device.
4. For 2.5V LVTTL outputs only.
5. For HSTL outputs only.
6. Skew measured is the magnitude of the difference in propagation times between any outputs of two devices, given identical transitions and load conditions at identical VDD/VDDQ
levels and temperature.
7. Guaranteed by design.
12
IDT5T907
INDUSTRIALTEMPERATURERANGE
2.5VSINGLEDATARATE1:10CLOCKBUFFERTERABUFFER
ACDIFFERENTIALINPUTSPECIFICATIONS(1)
Symbol
Parameter
Min.
1.73
2.17
Typ.
—
Max
—
Unit
t W
Reference Clock Pulse Width HIGH or LOW (HSTL/eHSTL outputs)(2)
Reference Clock Pulse Width HIGH or LOW (2.5V / 1.8V LVTTL outputs)(2)
ns
—
—
HSTL/eHSTL/1.8V LVTTL/2.5V LVTTL
VDIF
VIH
ACDifferentialVoltage(3)
AC Input HIGH(4,5)
AC Input LOW(4,6)
400
Vx + 200
—
—
—
—
—
—
mV
mV
mV
VIL
Vx - 200
LVEPECL
VDIF
ACDifferentialVoltage(3)
AC Input HIGH(4)
AC Input LOW(4)
400
1275
—
—
—
—
—
—
mV
mV
mV
VIH
VIL
875
NOTES:
1. For differential input mode, RxS is tied to GND.
2. Both differential input signals should not be driven to the same level simultaneously. The input will not change state until the inputs have crossed and the voltage range defined
by VDIF has been met or exceeded.
3. Differential mode only. VDIF specifies the minimum input voltage (VTR - VCP) required for switching where VTR is the "true" input level and VCP is the "complement" input level. The
AC differential voltage must be achieved to guarantee switching to a new state.
4. For single-ended operation, A/VREF is tied to DC voltage (VREF). Refer to each input interface's DC specification for the correct VREF range.
5. Voltage required to switch to a logic HIGH, single-ended operation only.
6. Voltage required to switch to a logic LOW, single-ended operation only.
13
IDT5T907
2.5VSINGLEDATARATE1:10CLOCKBUFFERTERABUFFER
INDUSTRIALTEMPERATURERANGE
AC TIMING WAVEFORMS
tW
tW
VIH
VTHI
VIL
A
A
VIH
VTHI
VIL
tPHL
tPLH
VOH
VTHO
VOL
Qn
Qm
tSK(O)
tSK(O)
VOH
VTHO
VOL
Propagation and Skew Waveforms
NOTES:
1. tPHL and tPLH signals are measured from the input passing through VTHI or input pair crossing to Qn passing through VTHO.
2. Pulse Skew is calculated using the following expression:
tSK(P) = | tPHL - tPLH |
where tPHL and tPLH are measured on the controlled edges of any one output from rising and falling edges of a single pulse. Please note that the tPHL and tPLH shown are not
valid measurements for this calculation because they are not taken from the same pulse.
VIH
VTHI
VIL
A
A
VIH
VTHI
VIL
VIH
VTHI
VIL
GL
Gx
Qn
tPLH
VIH
VTHI
VIL
tPGD
tPGE
VOH
VTHO
VOL
Gate Disable/Enable Showing Runt Pulse Generation
NOTE:
As shown, it is possible to generate runt pulses on gate disable and enable of the outputs. It is the user's responsibility to time their Gx signals to avoid this problem.
14
IDT5T907
INDUSTRIALTEMPERATURERANGE
2.5VSINGLEDATARATE1:10CLOCKBUFFERTERABUFFER
TESTCIRCUITSANDCONDITIONS
VDDI
R1
3 inch, ~50
Transmission Line
VIN
VDDQ
VDD
R2
VDDI
A
D.U.T.
Pulse
Generator
R1
A
3 inch, ~50
Transmission Line
VIN
R2
Test Circuit for Differential Input(1)
DIFFERENTIALINPUTTESTCONDITIONS
Symbol
R1
VDD = 2.5V ± 0.1V
100
Unit
Ω
R2
100
Ω
VDDI
VCM*2
V
HSTL: Crossing of A and A
eHSTL: Crossing of A and A
LVEPECL: Crossing of A and A
1.8V LVTTL: VDDI/2
2.5V LVTTL: VDD/2
VTHI
V
NOTE:
1. This input configuration is used for all input interfaces. For single-ended testing,
the VIN input is tied to GND. For testing single-ended in differential input mode,
the VIN is left floating.
15
IDT5T907
2.5VSINGLEDATARATE1:10CLOCKBUFFERTERABUFFER
INDUSTRIALTEMPERATURERANGE
VDDQ
VDDQ
VDD
R1
D.U.T.
Qn
R2
CL
Test Circuit for SDR Outputs
SDROUTPUTTESTCONDITIONS
Symbol
VDD = 2.5V ± 0.1V
Unit
VDDQ = Interface Specified
CL
R1
15
100
pF
Ω
Ω
V
R2
100
VTHO
VDDQ / 2
16
IDT5T907
INDUSTRIALTEMPERATURERANGE
2.5VSINGLEDATARATE1:10CLOCKBUFFERTERABUFFER
ORDERINGINFORMATION
XX
X
XXXXX
IDT
Package Process
Device Type
I
-40°C to +85°C (Industrial)
PA
PAG
Thin Shrink Small Outline Package
TSSOP - Green
2.5V Single Data Rate 1:10 Clock Buffer Terabuffer™
5T907
17
IDT5T907
2.5VSINGLEDATARATE1:10CLOCKBUFFERTERABUFFER
INDUSTRIALTEMPERATURERANGE
REVISIONHISTORY
Rev
Table
Page
Discription of Change
Date
A
1
NRND - Not Recommended for New Designs
5/5/13
18
IDT5T907
INDUSTRIALTEMPERATURERANGE
2.5VSINGLEDATARATE1:10CLOCKBUFFERTERABUFFER
We’ve Got Your Timing Solution.
6024 Silver Creek Valley Road
San Jose, CA 95138
Sales
Tech Support
netcom@idt.com
800-345-7015 (inside USA)
+408-284-8200 (outside USA) +480-763-2056
Fax: 408-284-2775
www.IDT.com/go/contactIDT
DISCLAIMER Integrated Device Technology, Inc. (IDT) and its subsidiaries reserve the right to modify the products and/or specifications described herein at any time and at IDT’s sole discretion.All information
in this document, including descriptions of product features and performance, is subject to change without notice. Performance specifications and the operating parameters of the described products are determined
in the independent state and are not guaranteed to perform the same way when installed in customer products. The information contained herein is provided without representation or warranty of any kind, whether express
or implied, including, but not limited to, the suitability of IDT’s products for any particular purpose, an implied warranty of merchantability, or non-infringement of the intellectual property rights of others. This document
is presented only as a guide and does not convey any license under intellectual property rights of IDT or any third parties.
IDT’s products are not intended for use in applications involving extreme environmental conditions or in life support systems or similar devices where the failure or malfunction of an IDT product can be reasonably
expected to significantly affect the health or safety of users.Anyone using an IDT product in such a manner does so at their own risk, absent an express, written agreement by IDT.
Integrated Device Technology, IDT and the IDT logo are registered trademarks of IDT. Other trademarks and service marks used herein, including protected names, logos and designs, are the property of IDT or
their respective third party owners.
Copyright 2013. All rights reserved.
19
厂商 型号 描述 页数 下载

IDT

 		5T9010BBGI8 [ PLL Based Clock Driver, 5T Series, 5 True Output(s), 0 Inverted Output(s), PBGA144, LEAD FREE, PLASTIC, BGA-144 ] 25 页

IDT

 		5T9050PGI [ Low Skew Clock Driver, 5T Series, 5 True Output(s), 0 Inverted Output(s), CMOS, PDSO28, TSSOP-28 ] 7 页

IDT

 		5T905PGI [ Low Skew Clock Driver, 5T Series, 5 True Output(s), 0 Inverted Output(s), CMOS, PDSO28, TSSOP-28 ] 17 页

IDT

 		5T9070PAGI8 [ Low Skew Clock Driver, 5T Series, 10 True Output(s), 0 Inverted Output(s), CMOS, PDSO48, GREEN, TSSOP-48 ] 9 页

IDT

 		5T9070PAI [ Clock Driver, CMOS, PDSO48 ] 9 页

IDT

 		5T9070PAI8 [ Clock Driver, CMOS, PDSO48 ] 9 页

IDT

 		5T907PAI [ Clock Driver, 5T Series, 10 True Output(s), 0 Inverted Output(s), CMOS, PDSO48, TSSOP-48 ] 19 页

IDT

 		5T9110BBGI8 [ PLL Based Clock Driver, 5T Series, 5 True Output(s), 0 Inverted Output(s), PBGA144, GREEN, PLASTIC, BGA-144 ] 23 页

IDT

 		5T915PAI [ Clock Driver, CMOS, PDSO48 ] 19 页

IDT

 		5T915PAI8 [ Clock Driver, CMOS, PDSO48 ] 19 页

购物指南

支付方式

配送服务

售后服务

发票须知

优惠券使用规则

特色服务

PCBA制造

国产品牌推荐

国产料号替代

质量保证

技术资料

行业资讯

关于我们

关于壹壹捌

联系我们

联系我们

服务热线：400-618-9990

企业邮箱：sales@ic118.com

服务时间：周一至周六 8:30-17:30

壹壹捌官方微信号

PDF索引：

A

B

C

D

E

F

G

H

I

J

K

L

M

N

O

P

Q

R

S

T

U

V

W

X

Y

Z

0

1

2

3

4

5

6

7

8

9

IC型号索引：

A

B

C

D

E

F

G

H

I

J

K

L

M

N

O

P

Q

R

S

T

U

V

W

X

Y

Z

0

1

2

3

4

5

6

7

8

9

Copyright 2024 gkzhan.com Al Rights Reserved 京ICP备06008810号-21 京

深圳网络警察报警平台
公共信息安全网络监察
经营性网站备案信息
不良信息举报中心
工商网监电子标识
全国公安机关备案
0.272273s
