5T9070PAGI8

型号：

5T9070PAGI8

品牌：

IDT[ INTEGRATED DEVICE TECHNOLOGY ]

页数：

9 页

PDF大小：

178 K

下载PDF手册

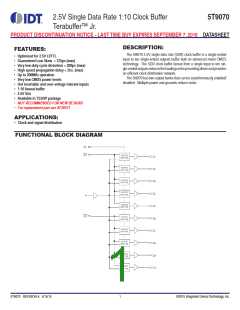

2.5V Single Data Rate 1:10 Clock Buffer
Terabuffer™ Jr.
PRODUCT DISCONTINUATION NOTICE - LAST TIME BUY EXPIRES SEPTEMBER 7, 2016 DATASHEET
5T9070
DESCRIPTION:
FEATURES:
The 5t9070 2.5V single data rate (SDR) clock buffer is a single-ended
input to ten single-ended outputs buffer built on advanced metal CMOS
technology. The SDR clock buffer fanout from a single input to ten sin-
gle-endedoutputsreducestheloadingontheprecedingdriverandprovides
an efficient clock distribution network.
• Optimized for 2.5V LVTTL
• Guaranteed Low Skew < 125ps (max)
• Very low duty cycle distortion < 300ps (max)
• High speed propagation delay < 2ns. (max)
• Up to 200MHz operation
• Very low CMOS power levels
• Hot insertable and over-voltage tolerant inputs
• 1:10 fanout buffer
The 5t9070 has two output banks that can be asynchronously enabled/
disabled. Multiple power and grounds reduce noise.
• 2.5V VDD
• Available in TSSOP package
• NOT RECOMMENDED FOR NEW DESIGNS
• For replacement part use 8T39S11
APPLICATIONS:
• Clock and signal distribution
FUNCTIONAL BLOCK DIAGRAM
5T9070 REVISION A 4/14/15
1
©2015 Integrated Device Technology, Inc.
5T9070 DATA SHEET
PIN CONFIGURATION
ABSOLUTE MAXIMUM RATINGS(1)
Symbol
VDD
VI
Description
Power Supply Voltage
Max
–0.5 to +3.6
–0.5 to +3.6
–0.5 to VDD +0.5
–65 to +165
150
Unit
V
Input Voltage
V
VO
Output Voltage
V
TSTG
TJ
Storage Temperature
Junction Temperature
°C
°C
NOTE:
1. Stresses greater than those listed under ABSOLUTE MAXIMUM RATINGS may cause
permanentdamagetothedevice.Thisisastressratingonlyandfunctionaloperationofthe
device at these or any other conditions above those indicated in the operational sections
of this specification is not implied. Exposure to absolute maximum rating conditions for
extended periods may affect reliability.
CAPACITANCE(1) (TA = +25°C, F = 1.0MHz)
Symbol
Parameter
Min
Typ.
Max.
Unit
pF
CIN
Input Capacitance
—
6
—
NOTE:
1. This parameter is measured at characterization but not tested.
TSSOP
TOP VIEW
RECOMMENDED OPERATING RANGE
Symbol
Description
Min.
–40
2.3
Typ.
+25
2.5
Max.
+85
2.7
Unit
°C
V
TA
Ambient Operating Temperature
Internal Power Supply Voltage
VDD
2.5V SINGLE DATA RATE
1:10 CLOCK BUFFER
TERABUFFER™ JR.
2
REVISION A 4/14/15
5T9070 DATA SHEET
PIN DESCRIPTION
Symbol
I/O
Type
LVTTL
LVTTL
Description
A
I
I
Clock input
G1
Gate for outputs Q1 through Q5. When G1 is LOW, these outputs are enabled. When G1 is HIGH, these outputs are asynchro-
nously disabled to the level designated by GL(1).
G2
I
LVTTL
Gate for outputs Q6 through Q10. When G2 is LOW, these outputs are enabled. When G2 is HIGH, these outputs are asyn-
chronously disabled to the level designated by GL(1).
GL
Qn
I
LVTTL
LVTTL
PWR
Specifies output disable level. If HIGH, the outputs disable HIGH. If LOW, the outputs disable LOW.
O
Clock outputs
VDD
Power supply for the device core, inputs, and outputs
Power supply return for power
GND
PWR
NOTE:
1. Because the gate controls are asynchronous, runt pulses are possible. It is the user's responsibility to either time the gate control signals to minimize the possibility of runt pulses or
be able to tolerate them in down stream circuitry.
(1)
DC ELECTRICAL CHARACTERISTICS OVER OPERATING RANGE
Symbol
IIH
Parameter
Input HIGH Current
Input LOW Current
Clamp Diode Voltage
DC Input Voltage
Test Conditions
Min.
—
Typ.(4)
—
Max
±5
Unit
VDD = 2.7V
VDD = 2.7V
VI = VDD/GND
VI = GND/VDD
μA
IIL
—
—
±5
VIK
VDD = 2.3V, IIN = -18mA
—
- 0.7
- 1.2
+3.6
—
V
V
V
V
V
V
V
V
VIN
- 0.3
1.7
VIH
DC Input HIGH(2)
VIL
DC Input LOW(3)
—
0.7
—
VOH
Output HIGH Voltage
IOH = -12mA
IOH = -100μA
IOL = 12mA
IOL = 100μA
VDD - 0.4
VDD - 0.1
—
—
VOL
Output LOW Voltage
0.4
0.1
—
NOTES:
1. See RECOMMENDED OPERATING RANGE table.
2. Voltage required to maintain a logic HIGH.
3. Voltage required to maintain a logic LOW.
4. Typical values are at VDD = 2.5V, +25°C ambient.
REVISION A 4/14/15
3
2.5V SINGLE DATA RATE
1:10 CLOCK BUFFER
TERABUFFER™ JR.
5T9070 DATA SHEET
POWER SUPPLY CHARACTERISTICS
Symbol
Parameter
Test Conditions(1)
Typ.
Max
Unit
IDDQ
Quiescent VDD Power Supply Current
VDD = Max., Reference Clock = LOW
Outputs enabled, All outputs unloaded
VDD = Max., VDD = Max., CL = 0pF
1.5
2
mA
IDDD
ITOT
Dynamic VDD Power Supply
Current per Output
150
200
μA/MHz
Total Power VDD Supply Current
VDD = 2.5V., FREFERENCE CLOCK = 100MHz, CL = 15pF
VDD = 2.5V., FREFERENCE CLOCK = 200MHz, CL = 15pF
70
90
mA
100
150
NOTE:
1. The termination resistors are excluded from these measurements.
INPUT AC TEST CONDITIONS
Symbol
VIH
Parameter
Value
Units
Input HIGH Voltage
VDD
0
V
V
VIL
Input LOW Voltage
VTH
Input Timing Measurement Reference Level(1)
Input Signal Edge Rate(2)
VDD/2
2
V
tR, tF
V/ns
NOTES:
1. A nominal 1.25V timing measurement reference level is specified to allow constant, repeatable results in an automatic test equipment (ATE) environment.
2. The input signal edge rate of 2V/ns or greater is to be maintained in the 10% to 90% range of the input waveform.
AC ELECTRICAL CHARACTERISTICS OVER OPERATING RANGE(4)
Symbol
Parameter
Min.
Typ.
Max
Unit
Skew Parameters
tSK(O)
Same Device Output Pin-to-Pin Skew(1)
Pulse Skew(2)
Part-to-Part Skew(3)
—
—
—
—
—
—
125
300
300
ps
ps
ps
tSK(P)
tSK(PP)
Propagation Delay
tPLH
tPHL
tR
Propagation Delay A to Qn
—
—
2
ns
Output Rise Time (20% to 80%)
Output Fall Time (20% to 80%)
Frequency Range
350
350
—
—
—
—
850
850
200
ps
ps
tF
fO
MHz
Output Gate Enable/Disable Delay
tPGE Output Gate Enable to Qn
tPGD Output Gate Enable to Qn Driven to GL Designated Level
—
—
—
—
3.5
3
ns
ns
NOTES:
1. Skew measured between all outputs under identical input and output transitions and load conditions on any one device.
2. Skew measured is the difference between propagation delay times tPHL and tPLH of any output under identical input and output transitions and load conditions on any one device.
3. Skew measured is the magnitude of the difference in propagation times between any outputs of two devices, given identical transitions and load conditions at identical VDD levels and
temperature.
4. Guaranteed by design.
2.5V SINGLE DATA RATE
1:10 CLOCK BUFFER
TERABUFFER™ JR.
4
REVISION A 4/14/15
5T9070 DATA SHEET
AC TIMING WAVEFORMS
Propagation and Skew Waveforms
NOTE: Pulse Skew is calculated using the following expression:
tSK(P) = | tPHL - tPLH |
where tPHL and tPLH are measured on the controlled edges of any one output from rising and falling edges of a single pulse. Please note that the tPHL and tPLH shown are not valid
measurements for this calculation because they are not taken from the same pulse.
Gate Disable/Enable Runt Pulse Generation
NOTE:
As shown, it is possible to generate runt pulses on gate disable and enable of the outputs. It is the user's responsibility to time their Gx signals to avoid this problem.
REVISION A 4/14/15
5
2.5V SINGLE DATA RATE
1:10 CLOCK BUFFER
TERABUFFER™ JR.
5T9070 DATA SHEET
TEST CIRCUIT AND CONDITIONS
Test Circuit for Input/Output
INPUT/OUTPUT TEST CONDITIONS
Symbol
VDD = 2.5V ± 0.2V
Unit
VTH
VDD / 2
100
V
R1
Ω
R2
100
Ω
CL
15
pF
2.5V SINGLE DATA RATE
1:10 CLOCK BUFFER
TERABUFFER™ JR.
6
REVISION A 4/14/15
5T9070 DATA SHEET
ORDERING INFORMATION
XXXXX
XX
X
Device Type
Package
Process
-40°C to + 85°C (Industrial)
TSSOP - Green
I
PAG
5T9070
2.5V Single Data Rate 1:10 Clock Buffer
Terabuffer™ Jr.
REVISION A 4/14/15
7
2.5V SINGLE DATA RATE
1:10 CLOCK BUFFER
TERABUFFER™ JR.
5T9070 DATA SHEET
REVISION HISTORY
Rev
Table
Page
Discription of Change
Date
A
A
1
7
NRND - Not Recommended for New Designs
5/5/13
Ordering Information - removed PA leaded device
Updated datsheet format
4/14/15
Product Discontinuation Notice - Last Time Buy Expires September 7, 2016.
PDN# N-16-02.
A
1
3/10/16
2.5V SINGLE DATA RATE
1:10 CLOCK BUFFER
TERABUFFER™ JR.
8
REVISION A 4/14/15
Corporate Headquarters
6024 Silver Creek Valley Road
San Jose, California 95138
Sales
800-345-7015 or +408-284-8200
Fax: 408-284-2775
www.IDT.com
Technical Support
email: clocks@idt.com
DISCLAIMER Integrated Device Technology, Inc. (IDT) and its subsidiaries reserve the right to modify the products and/or specifications described herein at any time and at IDT’s sole discretion. All information in
this document, including descriptions of product features and performance, is subject to change without notice. Performance specifications and the operating parameters of the described products are determined
in the independent state and are not guaranteed to perform the same way when installed in customer products. The information contained herein is provided without representation or warranty of any kind, wheth-
er express or implied, including, but not limited to, the suitability of IDT’s products for any particular purpose, an implied warranty of merchantability, or non-infringement of the intellectual property rights of others.
This document is presented only as a guide and does not convey any license under intellectual property rights of IDT or any third parties.
IDT’s products are not intended for use in applications involving extreme environmental conditions or in life support systems or similar devices where the failure or malfunction of an IDT product can be reason-
ably expected to significantly affect the health or safety of users. Anyone using an IDT product in such a manner does so at their own risk, absent an express, written agreement by IDT.
Integrated Device Technology, IDT and the IDT logo are registered trademarks of IDT. Other trademarks and service marks used herein, including protected names, logos and designs, are the property of IDT or
their respective third party owners.
Copyright 2015. All rights reserved.
