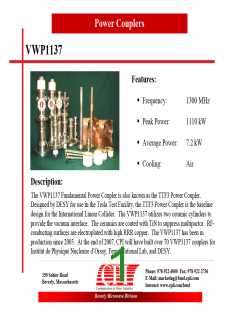

Power Couplers
VWP1137
Features:
Frequency:
Peak Power:
1300 MHz
1110 kW
Average Power: 7.2 kW
Cooling: Air
Description:
The VWP1137 Fundamental Power Coupler is also known as the TTF3 Power Coupler.
Designed by DESY for use in the Tesla Test Facility, the TTF3 Power Coupler is the baseline
design for the International Linear Collider. The VWP1137 utilizes two ceramic cylinders to
provide the vacuum interface. The ceramics are coated with TiN to suppress multipactor. RF-
conducting surfaces are electroplated with high RRR copper. The VWP1137 has been in
production since 2003. At the end of 2007, CPI will have built over 70 VWP1137 couplers for
Institut de Physique Nucleaire d’Orsay, Fermi National Lab, and DESY.
