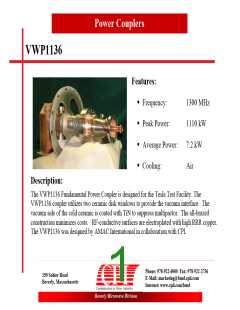

Power Couplers
VWP1136
Features:
Frequency:
Peak Power:
1300 MHz
1110 kW
Average Power: 7.2 kW
Cooling: Air
Description:
The VWP1136 Fundamental Power Coupler is designed for the Tesla Test Facility. The
VWP1136 coupler utilizes two ceramic disk windows to provide the vacuum interface. The
vacuum side of the cold ceramic is coated with TiN to suppress multipactor. The all-brazed
construction minimizes costs. RF-conductive surfaces are electroplated with high RRR copper.
The VWP1136 was designed by AMAC International in collaboration with CPI.
Phone: 978-922-6000 Fax: 978-922-2736
E-Mail: marketing@bmd.cpii.com
Internet: www.cpii.com/bmd
150 Sohier Road
Beverly, Massachusetts
Beverly Microwave Division
