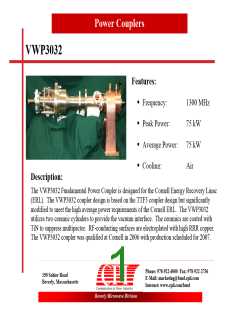

Power Couplers
VWP3032
Features:
Frequency:
Peak Power:
1300 MHz
75 kW
Average Power: 75 kW
Cooling: Air
Description:
The VWP3032 Fundamental Power Coupler is designed for the Cornell Energy Recovery Linac
(ERL). The VWP3032 coupler design is based on the TTF3 coupler design but significantly
modified to meet the high average power requirements of the Cornell ERL. The VWP3032
utilizes two ceramic cylinders to provide the vacuum interface. The ceramics are coated with
TiN to suppress multipactor. RF-conducting surfaces are electroplated with high RRR copper.
The VWP3032 coupler was qualified at Cornell in 2006 with production scheduled for 2007.
Phone: 978-922-6000 Fax: 978-922-2736
E-Mail: marketing@bmd.cpii.com
Internet: www.cpii.com/bmd
150 Sohier Road
Beverly, Massachusetts
Beverly Microwave Division
