VWP1185

型号:

VWP1185

描述:

功率耦合器[ Power Couplers ]

品牌:

CPI[ COMMUNICATIONS & POWER INDUSTRIES, INC. ]

页数:

1 页

PDF大小:

433 K

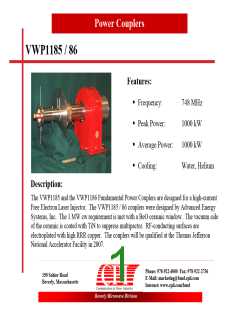

Power Couplers
VWP1185 / 86
Features:
ƒ Frequency:
ƒ Peak Power:
748 MHz
1000 kW
ƒ Average Power: 1000 kW
ƒ Cooling: Water, Helium
Description:
The VWP1185 and the VWP1186 Fundamental Power Couplers are designed for a high-current
Free Electron Laser Injector. The VWP1185 / 86 couplers were designed by Advanced Energy
Systems, Inc. The 1 MW cw requirement is met with a BeO ceramic window. The vacuum side
of the ceramic is coated with TiN to suppress multipactor. RF-conducting surfaces are
electroplated with high RRR copper. The couplers will be qualified at the Thomas Jefferson
National Accelerator Facility in 2007.
Phone: 978-922-6000 Fax: 978-922-2736
E-Mail: marketing@bmd.cpii.com
Internet: www.cpii.com/bmd
150 Sohier Road
Beverly, Massachusetts
c
p
Beverly Microwave Division
