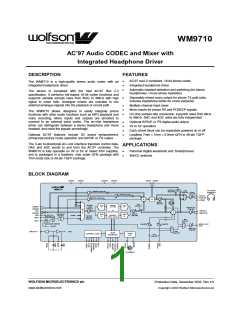

WM9710

AC’97 Audio CODEC and Mixer with

Integrated Headphone Driver

DESCRIPTION

FEATURES

•

AC’97 rev2.2 compliant, 18-bit stereo codec

The WM9710 is a high-quality stereo audio codec with an

integrated headphone driver.

Integrated headphone driver

Automatic headset detection and switching (for stereo

headphones / mono phone headsets)

The device is compliant with the Intel AC’97 Rev 2.2

specification. It performs full-duplex 18-bit codec functions and

supports variable sample rates from 8kHz to 48kHz with high

signal to noise ratio. Analogue mixers are included to mix

external analogue signals into the playback or record path.

•

Separately mixed mono output for phone TX path (also

includes headphone buffer for mono earpiece)

•

Multiple channel input mixer

Mono inputs for phone RX and PCBEEP signals

The WM9710 allows designers to easily integrate phone

functions with other audio functions such as MP3 playback and

voice recording. Mono inputs and outputs are provided to

connect to an external voice codec. The on-chip headphone

driver can distinguish between a stereo headphone and mono

headset, and route the signals accordingly.

On-chip sample rate conversion, supports rates from 8kHz

to 48kHz. DAC and ADC rates are fully independent.

Optional S/PDIF or I²S digital audio output

3V to 5V operation

•

Each circuit block can be separately powered on or off

Optional AC’97 features include 3D sound enhancement,

primary/secondary mode operation and S/PDIF or I²S output.

Leadless 7mm × 7mm × 0.9mm QFN or 48-pin TQFP

package

The 5-pin bi-directional AC-Link interface transfers control data,

DAC and ADC words to and from the AC’97 controller. The

WM9710 is fully operable on 3V or 5V or mixed 3/5V supplies,

and is packaged in a leadless, chip scale QFN package with

7mm body size or 48-pin TQFP package.

APPLICATIONS

•

Personal Digital Assistants and ‘Smartphones’

WinCE systems

BLOCK DIAGRAM

DGND1

DVDD1

DGND2

DVDD2

CX3D1 CX3D2

W

WM9710

ADCNDAC

(Reg 5Ch)

MUX

16 / 32Ohm

headphone

HPND

(Reg 5Ch)

LINEINVOL (Reg 10h)

HPVOL

(Reg 04h)

CDVOL (Reg 12h)

M

U

X

HPOUTL

HPOUTR

HPGND

MICVOL (Reg 0Eh)

3D

MIXVOL

(Reg 72h)

POP

RECORD

GAIN

(Reg 1Ch)

DIGITAL

FILTERS

ADC

L

DAC

L

(Reg 20h)

LINEINL

LINEINR

CDL

MASTER VOL

(Reg 02h)

M

U

X

Σ∆

LINEOUTL

MODULATION

CDGND

CDR

MIC2

LINEOUTR

DACVOL

(Reg 18h)

MIC BOOST

(Reg 0Eh)

ADC

R

DAC

R

MIC SELECT

(Reg 20h)

VARIABLE

RATE AUDIO

PHONE

RECORD

SELECT

(Reg 1Ah)

M

U

X

0/20

dB

MIX

M

U

X

MIC1

(Reg 20h)

M

U

X

headset autodetect

HPOUTL

(Reg 0Ah)

(Reg 0Ch)

MONO_OUT

(TX)

M

U

X

MONO VOL

(Reg 06h)

PSEL

(Reg 5Ch)

VREF

VREFOUT

AC'97

INTERFACE

CLOCK

OSC

CONTROL LOGIC

PHIZ

(Reg 78h)

24.576MHz

WOLFSON MICROELECTRONICS plc

Production Data, December 2003, Rev 4.0

www.wolfsonmicro.com

WM9710

Production Data

TABLE OF CONTENTS

DESCRIPTION ............................................................................................................1

FEATURES..................................................................................................................1

APPLICATIONS ..........................................................................................................1

BLOCK DIAGRAM ......................................................................................................1

TABLE OF CONTENTS ..............................................................................................2

ORDERING INFORMATION .......................................................................................3

ABSOLUTE MAXIMUM RATINGS..............................................................................3

RECOMMENDED OPERATING CONDITIONS ..........................................................4

PIN CONFIGURATION................................................................................................5

PIN DESCRIPTION .....................................................................................................6

ELECTRICAL CHARACTERISTICS ...........................................................................7

POWER CONSUMPTION ...........................................................................................9

DETAILED TIMING DIAGRAMS ...............................................................................11

AC-LINK LOW POWER MODE.........................................................................................11

COLD RESET....................................................................................................................11

WARM RESET..................................................................................................................12

CLOCK SPECIFICATIONS ...............................................................................................12

DATA SETUP AND HOLD (50PF EXTERNAL LOAD).......................................................13

SIGNAL RISE AND FALL TIMES ......................................................................................13

DEVICE DESCRIPTION............................................................................................14

INTRODUCTION...............................................................................................................14

AC’97 FEATURES.............................................................................................................14

NON - AC’97 FEATURES..................................................................................................14

3-D STEREO ENHANCEMENT.........................................................................................15

VARIABLE SAMPLE RATE SUPPORT .............................................................................15

SPDIF OR I²S DIGITAL AUDIO DATA OUTPUT...............................................................16

PRIMARY/SECONDARY ID SUPPORT ............................................................................16

HEADPHONE DRIVE AND HEADSET AUTODETECT.....................................................17

DATA SLOT MAPPING .....................................................................................................18

AC-LINK DIGITAL SERIAL INTERFACE PROTOCOL......................................................18

REGISTER 28H – EXTENDED AUDIO ID.........................................................................24

REGISTER 2AH – EXTENDED AUDIO STATUS AND CONTROL REGISTER................24

REGISTER 2CH AND 32H – AUDIO SAMPLE RATE CONTROL REGISTERS................25

REGISTERS 3AH – SPDIF CONTROL REGISTER..........................................................25

VENDOR SPECIFIC REGISTERS (INDEX 5AH - 7AH) ....................................................25

SERIAL INTERFACE REGISTER MAP ....................................................................28

PACKAGE DIMENSIONS – TQFP............................................................................30

PACKAGE DIMENSIONS – QFN..............................................................................31

IMPORTANT NOTICE...............................................................................................32

ADDRESS: ........................................................................................................................32

PD Rev 4.0 December 2003

w

2

WM9710

Production Data

ORDERING INFORMATION

MOISTURE

SENSITIVITY LEVEL

DEVICE

TEMP. RANGE

PACKAGE

XWM9710EFT/V

WM9710SEFT/V

-25 to 85^oC

48-pin TQFP

(lead free)

MSL1

48-pin TQFP

(tape and reel)

MSL1

XWM9710EFT/RV

WM9710SEFT/RV

-25 to 85^oC

48-pin TQFP

(lead free, tape and reel)

MOISTURE

SENSITIVITY LEVEL

DEVICE

TEMP. RANGE

-25 to 85^oC

PACKAGE

XWM9710EFL/V

WM9710SEFL/V

48-pin QFN

MSL3

48-pin QFN

(lead free)

-25 to 85^oC

48-pin QFN

(tape and reel)

48-pin QFN

(lead free, tape and reel)

MSL3

XWM9710EFL/RV

WM9710SEFL/RV

-25 to 85^oC

Note:

Reel quantity = 2,200

ABSOLUTE MAXIMUM RATINGS

Absolute Maximum Ratings are stress ratings only. Permanent damage to the device may be caused by continuously operating at

or beyond these limits. Device functional operating limits and guaranteed performance specifications are given under Electrical

Characteristics at the test conditions specified.

ESD Sensitive Device. This device is manufactured on a CMOS process. It is therefore generically susceptible

to damage from excessive static voltages. Proper ESD precautions must be taken during handling and storage

of this device.

Wolfson tests its package types according to IPC/JEDEC J-STD-020B for Moisture Sensitivity to determine acceptable storage

conditions prior to surface mount assembly. These levels are:

MSL1 = unlimited floor life at <30°C / 85% Relative Humidity. Not normally stored in moisture barrier bag.

MSL2 = out of bag storage for 1 year at <30°C / 60% Relative Humidity. Supplied in moisture barrier bag.

MSL3 = out of bag storage for 168 hours at <30°C / 60% Relative Humidity. Supplied in moisture barrier bag.

The Moisture Sensitivity Level for each package type is specified in Ordering Information.

Note:

The TQFP version is classified as MSL1 and does not require to be drybagged but will be supplied as such, labelled as MSL1.

CONDITION

MIN

-0.3V

MAX

+7V

Digital supply voltage

Analogue supply voltage

-0.3V

+7V

Voltage range digital inputs

DVSS -0.3V

AVDD -0.3V

-25^oC

DVDD +0.3V

AVDD +0.3V

+85^oC

+150^oC

+240^oC

+183^oC

Voltage range analogue inputs

Operating temperature range, T_A

Storage temperature after soldering

Package body temperature (soldering 10 seconds)

Package body temperature (soldering 2 minutes)

-65^oC

PD Rev 4.0 December 2003

3

w

WM9710

Production Data

RECOMMENDED OPERATING CONDITIONS

PARAMETER

SYMBOL

DVDD1, DVDD2

AVDD

TEST CONDITIONS

MIN

2.7

TYP

MAX

UNIT

V

Digital supply range

5.5

Analogue supply range

Digital ground

2.7

V

DGND1, DGND2

AGND, HPGND

0

V

Analogue ground

V

Difference AGND to DGND – Note 1

Difference AVDD to DVDD – Note 2

-0.3

+0.3

5.5

V

Note:

1. AGND is normally the same as DGND and HPGND

2. AVDD should be greater than or equal to DVDD

PD Rev 4.0 December 2003

4

w

WM9710

Production Data

PIN CONFIGURATION

48 47 46 45 44 43 42 41 40 39 38 37

DVDD1

XTLIN

1

2

3

4

5

6

7

8

9

36 LINEOUTR

35 LINEOUTL

34 CX3D2

33 CX3D1

32 CAP2

XTLOUT

DGND1

SDATAOUT

BITCLK

31 DNC

WM9710

QFN

DGND2

30 DNC

SDATAIN

DVDD2

29 DNC

28 VREFOUT

27 VREF

26 DNC

SYNC 10

RESETB 11

PCBEEP 12

25 DNC

13 14 15 16 17 18 19 20 21 22 23 24

Figure 1 QFN Pinout

48 47 46 45 44 43 42 41 40 39 38 37

DVDD1

XTLIN

1

36

35

34

33

32

31

30

29

28

27

26

25

LINEOUTR

LINEOUTL

CX3D2

CX3D1

CAP2

2

XTLOUT

DGND1

3

4

SDATAOUT

BITCLK

DGND2

5

6

DNC

WM9710

TQFP

7

DNC

QFN

SDATAIN

DVDD2

8

DNC

9

VREFOUT

VREF

SYNC

10

11

12

RESETB

PCBEEP

DNC

13 14 15 16 17 18 19 20 21 22 23 24

Figure 2 TQFP Pinout

PD Rev 4.0 December 2003

5

w

WM9710

Production Data

PIN DESCRIPTION

48 PIN TQFP

OR 48 QFN

TYPE

DESCRIPTION

1

DVDD1

XTLIN

Supply

Digital supply

2

Digital input

Clock crystal connection or clock input (if XTAL not used)

Clock crystal connection

3

XTLOUT

DGND1

SDATAOUT

BITCLK

DGND2

SDATAIN

DVDD2

SYNC

Digital output

Supply

4

Digital ground

5

Digital input

Serial data input (AC-Link signal)

Serial interface clock (AC-Link signal)

Digital ground

6

Digital I/O

7

Supply

8

Digital output

Supply

Serial data output (AC-Link signal)

Digital supply

9

10

11

12

13

14

15

16

17

18

19

20

21

22

23

24

25

26

27

28

29

30

31

32

33

34

35

36

37

38

39

Digital input

Serial interface sync pulse (AC-Link signal)

Reset input (active low, resets registers)

PCBEEP input (mono input to mixer)

Phone RX input (mono input to mixer)

Leave this pin floating

RESETB

PCBEEP

PHONE

DNC

Digital input

Analogue input

Do Not Connect

Analogue input

Do Not Connect

Analogue output

Do Not Connect

Analogue I/O

Analogue output

Analogue input

Analogue output

Supply

DNC

Leave this pin floating

DNC

Leave this pin floating

DNC

Leave this pin floating

CDL

CD Left (stereo input to mixer)

CD input common mode reference (ground)

CD Right (stereo input to mixer)

Microphone input 1 – also HSET detect input

Microphone input 2

CDGND

CDR

MIC1

MIC2

LINEINL

LINEINR

DNC

Line-in Left (stereo mixer input)

Line-in Right (stereo mixer input)

Leave this pin floating

DNC

Leave this pin floating

VREF

Internal reference (buffered CAP2)

Microphone bias voltage (buffered CAP2)

Leave this pin floating

VREFOUT

DNC

Leave this pin floating

DNC

Leave this pin floating

CAP2

Reference input/output; pulls to AVDD/2 if not overdriven

Output pin for 3D enhancement function

Input pin for 3D enhancement function

Line-out Left

CX3D1

CX3D2

LINEOUTL

LINEOUTR

MONOOUT

AVDD

Line-out Right

Mono output (Phone TX or mono earpiece)

Analogue supply

HPOUTL

Analogue output

Headphone output Left (or headset mic input if headset detect

function is enabled)

40

41

42

43

44

45

46

47

48

HPGND

HPOUTR

AGND

Supply

Headphone ground

Analogue output

Supply

Headphone output Right

Analogue ground

PWRUP/LRC

SPEN/I²S

CID0

Digital I/O

Power-up control (or LRCLK signal for I²S output)

SPDIF hardware enable pin and I²S data output

Primary/Secondary codec select (internal pull-up) Hi = Primary

Headset detect signal

Digital I/O

Digital input

Digital output

HSDET

EAPD

External amplifier powerdown (or general purpose control output)

S/PDIF output

SPDIF

PD Rev 4.0 December 2003

6

w

WM9710

Production Data

ELECTRICAL CHARACTERISTICS

Test Characteristics:

AVDD = 3.3V, DVDD = 3.3V, 48kHz audio sampling, T_A= 25^oC, unless otherwise stated.

PARAMETER

SYMBOL

TEST CONDITIONS

MIN

TYP

MAX

UNIT

Digital Logic Levels (DVDD = 3.3V)

Input LOW level

V_IL

V_IH

DGND - 0.3

2.2

0.8

V

Input HIGH level

DVDD + 0.3

0.10 x DVDD

V

Output LOW

V_OL

V_OH

I Load = 2mA

I Load = -2mA

Output HIGH

0.90 x DVDD

Analogue Audio I/O Levels (Input Signals on any audio inputs, Outputs on LINEOUT L, R and MONO and HPOUT L,R)

Input level

Minimum input

impedance = 10k

AGND

-100mV

AVDD

+100mV

V

Output level to LINEOUT L,R

Into 10kΩ load

AGND

+300mV

Near rail to

rail

AVDD

-300mV

Output level to HPOUT L,

HPOUTR and MONOOUT

Into 16Ω load

AGND

+300mV

Near rail to

rail

AVDD

-300mV

Reference Levels

Reference input/output

CAP2 impedance

Mixer reference

CAP2

0.47 AVDD 0.50 AVDD 0.53 AVDD

75

V

kΩ

V

VREF

Buffered

CAP2

MIC reference

VREFOUT

Buffered

CAP2

V

MIDBUFF current source

(pins VREF and VREFOUT)

AVDD = 3.3V

5

10

mA

MIDBUFF current sink

-5

-10

(pins VREF and VREFOUT)

AUDIO DAC to Line-out (10kΩ load)

SNR A-weighted (Note 2)

85

91

dB

Full scale output voltage

VREF = 1.65V

-3dBfs input

0.7

Vrms

Total Harmonic Distortion +

Noise

THD+N

-84

0.006

-40

-74

0.02

dB

%

PSRR

20 to 20kHz, without

supply decoupling

dB

AUDIO ADC

ADC input for full scale output

Signal to Noise Ratio

VREF = 1.65V

Vrms

dBfs

0.7

86

SNR

80

A-weighted (Note 2)

Total Harmonic Distortion+Noise

Power Supply Rejection Ratio

THD+N

PSRR

-6dBfs input

-72

dB

-79

-40

20 to 20kHz, without

supply decoupling

Digital Filter Characteristics

Frequency response

Transition band

20

19,200

28,800

-74

19,200

28,800

Hz

dB

Stop band

Stop band attenuation

ADC

DAC

-40

PD Rev 4.0 December 2003

7

w

WM9710

Production Data

Test Characteristics:

AVDD = 3.3V, DVDD = 3.3V, 48kHz audio sampling, T_A= 25^oC, unless otherwise stated.

PARAMETER

SYMBOL

TEST CONDITIONS

MIN

TYP

MAX

UNIT

Mixer Inputs to Line-out (10kΩ load)

Maximum input voltage

Maximum output voltage

Signal to Noise Ratio

AGND

AVDD

Vrms

dB

0.7

92

on LINEOUT

CD inputs

SNR

90

82

A-weighted (Note 2)

Other inputs

93

-87

0.0044

-82

0.008

-82

Total Harmonic Distortion +

Noise

THD+N

CD and LINE inputs

-77

0.014

-71

0.028

-71

dB

%

-1dBfs input

PHONE input

MIC1 input

0.008

-90

0.028

-71

MIC2 input

0.003

-78

0.028

-67

PCBEEP input

0.013

15

0.045

Input impedance (CD inputs)

At any gain

At max gain

At 0db gain

At max gain

At 0db gain

kΩ

dB

Input impedance (other mixer

inputs)

10

50

10

55

20

100

20

Input impedance MIC inputs

100

Power Supply Rejection Ratio

PSRR

20 to 20kHz, without

supply decoupling

-40

Headphone Buffer (pins HPOUTL, HPOUR and MONOOUT)

Maximum output voltage

Vrms

mW

dB

0.7

30

Max Output Power (Note 1)

P_O

RL = 32Ω

RL = 16Ω

A-weighted

40

SNR (Note 2)

85

92

Total Harmonic Distortion +

Noise

THD+N

1kHz, R_L= 32Ω @ P_O=

-80

0.01

-77

0.014

dB

%

10mW rms

1kHz, R_L= 32Ω@ P_O=

dB

%

20mW rms

1kHz, R_L= 16Ω @ P_O=

-76dB

0.016

dB

%

10mW rms

1kHz, R_L= 16Ω@ P_O=

-75dB

0.018

dB

%

20mW rms

Power Supply Rejection Ratio

PSRR

20 to 20kHz, without

supply decoupling

dB

-40

Clocks

Crystal clock

BITCLK frequency

SYNC frequency

24.576

12.288

48.0

MHz

KHz

Note:

1. Harmonic distortion on the headphone output decreases with output power – see Figure 3.

2. SNR is the ratio of 0dB signal amplitude to noise floor with no signal present (all 0s input code to DACs).

3. ADC sampling capacitance allows the user to calculate the minimum external capacitance required for a stable ADC value.

PD Rev 4.0 December 2003

w

8

WM9710

Production Data

-100

-90

-80

-70

-60

-50

-40

-30

Output Power (mW)

10 15 20

0

5

25

30

Figure 3 Distortion Versus Power on Headphone Outputs, using 32Ω Load and AVDD = HPVDD = 3.3V

PD Rev 4.0 December 2003

9

w

WM9710

Production Data

POWER CONSUMPTION

MODE

DESCRIPTION

CURRENT

CONSUMPTION

AVDD

(mA

DVDD

(mA)

TOTAL

POWER

(mW)

Record and Playback

Mic Record (note 1)

000L

000R

001L

001R

001L

001R

001L

001R

001L

001R

0

1

0

1

0

1

X

00

14.8

17.7

16.3

10.7

0.5

14.3

14.1

96

105.6

101

Other Input Record

PR6

Other Input Record

PR6 and PR2

82.5

48.2

Other Input Record

PR6 and PR3

Playback Only

001L

001R

001L

001R

001L

001R

001L

001R

001L

001R

Low Power

Playback (note 2)

1

0

1

0

1

0

1

0

1

X

00

5.5

11.1

9.7

11.5

56.1

74.6

70

Playback Only

PR6

Playback Only

PR6 and PR2

Playback Only

PR6 and PR3

Record Only

4.0

51.2

39.3

0.4

000L

000R

Mic Record (note 1)

Other Input Record

0

1

0

1

0

1

0

1

X

00

12.9

15.8

14.3

7.2

13.3

11.3

13.3

12.9

86.5

96

100L

100R

Other Input Record

PR6

100L

100R

84.5

67.7

43.6

Other Input Record

PR6 and PR2

100L

100R

Other Input Record

PR6 and PR3

100L

100R

0.3

Power Down

(note 3)

XXXL

XXXR

1

0

1

X

00

11

0.0001

0.1

0.002

3.6

0.007

12.2

Pen Digitiser

(Note 4)

XXXL

XXXR

1

Notes:

1. When the ADC input mux is set to mic input to BOTH ADC channels, (SR2-0 and SL2-0 both set to ‘0’), one ADC is

shared between both channels and the other is powered off to save current. The same digital data is output to both slots.

2. The POP bit (reg 20h) also needs to be set for this mode.

3. These values are recorded with no external clocks applied to the WM9705.

4. Pen active duty cycle is approximately 10%. Average analogue current consumption is approximately 10% of stated figure.

PD Rev 4.0 December 2003

w

10

WM9710

Production Data

DETAILED TIMING DIAGRAMS

Test Characteristics:

AVDD = 3.3V, DVDD = 3.3V, AGND = 0V …………..T_A= 0^oC to +70^oC, unless otherwise stated.

All measurements are taken at 10% to 90% DVDD, unless otherwise stated. All the following timing information is guaranteed,

not tested.

AC-LINK LOW POWER MODE

SLOT 1 SLOT 2

SYNC

BITCLK

WRITE

TO 0X20

DON'T

CARE

DATA PR4

SDATAOUT

SDATAIN

t_{S2_PDOWN}

Figure 4 AC-Link Powerdown Timing

PARAMETER

SYMBOL

MIN

TYP

MAX

UNIT

End of slot 2 to BITCLK SDATAIN

low

t_{S2_PDOWN}

1.0

µs

COLD RESET

t_{RST_LOW}

t_RST2CLK

RESETB

BITCLK

Figure 5 Cold Reset Timing

Note:

For correct operation SDATAOUT and SYNC must be held LOW for entire RESETB active low

period otherwise the device may enter test mode. See AC’97 specification or Wolfson

applications note WAN104 for more details.

PARAMETER

SYMBOL

t_{RST_LOW}

t_RST2CLK

MIN

1.0

TYP

MAX

UNIT

µs

RESETB active low pulse width

RESETB inactive to BITCLK

startup delay

162.8

ns

PD Rev 4.0 December 2003

11

w

WM9710

Production Data

WARM RESET

t_{SYNC_HIGH}

t_SYNC2CLK

SYNC

BITCLK

Figure 6 Warm Reset Timing

PARAMETER

SYMBOL

t_{SYNC_HIGH}

t_SYNC2CLK

MIN

TYP

MAX

UNIT

µs

SYNC active high pulse width

1.3

SYNC inactive to BITCLK startup

delay

162.4

ns

CLOCK SPECIFICATIONS

t_{CLK_HIGH}

t_{CLK_LOW}

BITCLK

t_{CLK_PERIOD}

t_{SYNC_HIGH}

t_{SYNC_LOW}

SYNC

t_{SYNC_PERIOD}

Figure 7 Clock Specifications (50pF External Load)

PARAMETER

SYMBOL

MIN

TYP

MAX

UNIT

MHz

ns

BITCLK frequency

12.288

81.4

BITCLK period

t_{CLK_PERIOD}

BITCLK output jitter

BITCLK high pulse width (Note 1)

BITCLK low pulse width (Note 1)

SYNC frequency

750

45

ps

t_{CLK_HIGH}

t_{CLK_LOW}

36

40.7

48.0

20.8

1.3

ns

45

ns

kHz

µs

SYNC period

t_{SYNC_PERIOD}

t_{SYNC_HIGH}

t_{SYNC_LOW}

SYNC high pulse width

SYNC low pulse width

µs

19.5

µs

Note:

Worst case duty cycle restricted to 45/55.

PD Rev 4.0 December 2003

12

w

WM9710

Production Data

DATA SETUP AND HOLD (50PF EXTERNAL LOAD)

t_SETUP

BITCLK

t_HOLD

SDATAIN

SDATAOUT

t_SETUP

t_HOLD

SYNC

Figure 8 Data Setup and Hold (50pF External Load)

Note:

Setup and hold time parameters for SDATAIN are with respect to AC’97 Controller.

PARAMETER

SYMBOL

t_SETUP

MIN

10

TYP

MAX

UNIT

ns

Setup to falling edge of BITCLK

Hold from falling edge of BITCLK

t_HOLD

10

ns

SIGNAL RISE AND FALL TIMES

trise_CLK

tfall_CLK

BITCLK

t

rise_SYNC

t

fall_SYNC

SYNC

trise_DIN

tfall_DIN

SDATAIN

t

rise_DOUT

tfall_DOUT

SDATAOUT

Figure 9 Signal Rise and Fall Times (50pF External Load)

PARAMETER

SYMBOL

trise_CLK

tfall_CLK

MIN

2

TYP

MAX

UNIT

ns

BITCLK rise time

BITCLK fall time

SYNC rise time

6

2

ns

trise_SYNC

tfall_SYNC

trise_DIN

2

ns

SYNC fall time

2

ns

SDATAIN rise time

SDATAIN fall time

SDATAOUT rise time

SDATAOUT fall time

2

ns

tfall_DIN

2

ns

trise_DOUT

tfall_DOUT

2

ns

2

ns

PD Rev 4.0 December 2003

13

w

WM9710

Production Data

DEVICE DESCRIPTION

INTRODUCTION

This specification describes the WM9710 audio codec, which is designed to be software and

hardware compatible with the Intel AC’97 rev2.2 component specification. The device is a

derivative of the basic AC’97 codec. Variable Rate Audio (VRA) is supported at rates defined in

the Intel rev2.1 or rev2.2 specification, and a SPDIF output port is provided which may optionally

be used to output the PCM DAC information to external processors.

WM9710 offers the following features:

Stereo Audio Codec with Intel specified VRA support of different audio sample rates

Optional SPDIF and I²S audio outputs (SPDIF output may be hardware enabled so needing no

driver support)

Headphone drive capability and optional auto detection of headset or headphone plug in

It is highly recommended that the Intel AC’97 rev2.2 specification be studied in parallel with this

document: This specification can be downloaded from the Intel web site.

The WM9710 is fully operable on 3V or 5V or mixed 3/5V supplies, and is packaged in the

industry standard 48pin TQFP package with 7mm body size.

AC’97 FEATURES

WM9710 implements the base set of AC’97 rev2.2 features, plus several enhancements:

All rev2.2 specified variable audio sample rates supported

3-D stereo enhancement feature.

Headphone support on HPOUT outputs (pins 39,41)

Primary/secondary codec operation by pin programming of CID0 pin

SPDIF audio output with rev2.2 compliant control set.

NON - AC’97 FEATURES

In addition to the AC’97 features offered, WM9710 also supports:

Headphone drive capability on MONO output, with extra signal routing switch PSEL, allowing

PHONE input to be routed to MONO output

Extra switch HPND after the mixer allowing MIX without DAC signal to be output to headphone

outputs, and so allowing DAC with no MIX to be output to LINE outputs.

I²S audio output capability, in addition to SPDIF output, allowing support of an extra external

audio DAC for multi-channel solutions. SPDIF output may be hardware enabled.

Option to route the stereo audio ADC output to the SPDIF and/or I²S digital outputs

Auto-detect of headphones or headset plugged into the HPOUT headphone outputs, with internal

routing of microphone signal from the headphone pin to the MIC1 input.

MPM switch allowing mix of DAC + mixer output onto MONOUT and independent mix of DAC +

PHONE and/or PCBEEP onto LINEOUT or HPOUT.

Reset powerdown override – holding PWRUP/LRC (PIN 43) high in reset overrides the PR bits

forcing the WM9710 into a low power mode.

PD Rev 4.0 December 2003

14

w

WM9710

Production Data

3-D STEREO ENHANCEMENT

This device contains a stereo enhancement circuit, designed to optimise the listening experience

when the device is used in a typical PC operating environment. That is, with a pair of speakers

placed either side of the monitor with little spatial separation. This circuit creates a difference

signal by differencing left and right channel playback data, then filters this difference signal using

lowpass and highpass filters whose time constants are set using external capacitors connected to

the CX3D pins 33 and 34. Typically the values of 100nF and 47nF set highpass and lowpass

poles at about 100Hz and 1kHz respectively. This frequency band corresponds to the range over

which the ear is most sensitive to directional effects.

The filtered difference signal is gain adjusted by an amount set using the 4-bit value written to

Register 22h bits 3 to 0. Value 0h is disable, value Fh is maximum effect. Typically a value of 8h

is optimum. The user interface would most typically use a slider type of control to allow the user to

adjust the level of enhancement to suit the program material. Bit D13 3D in Register 20h is the

overall 3D enable bit. The Reset Register 00h reads back the value 11000 in bits D14 to D10.

This corresponds to decimal 24, which is registered with Intel as Wolfson Stereo Enhancement.

Note that the external capacitors setting the filtering poles applied to the difference signal may be

adjusted in value, or even replaced with a direct connection between the pins. If such adjustments

are made, then the amount of difference signal fed back into the main signal paths may be

significant, and can cause large signals which may limit, distort, or overdrive signal paths or

speakers. Adjust these values with care, to select the preferred acoustic effect. There is no

provision for pseudo-stereo effects. Mono signals will have no enhancement applied (if the signals

are in phase and of the same amplitude). Signals from the PCM DAC channels can have stereo

enhancement applied. It can also be bypassed if desired. This function is enabled by setting the

bit POP in Register 20h.

VARIABLE SAMPLE RATE SUPPORT

The DACs and ADCs on this device support all the recommended sample rates specified in the

Intel AC’97 rev2.1 & rev2.2 specifications for audio rates. The default rate is 48kHz. If alternative

rates are selected and variable rate audio is enabled (Register 2Ah, bit 0), the AC’97 interface

continues to run at 48k words per second, but data is transferred across the link in bursts such

that the net sample rate selected is achieved. It is up to the AC’97 Revision 2.1/2 compliant

controller to ensure that data is supplied to the AC link, and received from the AC link, at the

appropriate rate.

Variable rates are selected by writing to registers 2Ch (DAC) and 32h (ADC). ADC and DAC rates

may be set independently, with left and right channels always at the same rate. The device

supports on demand sampling. That is, when the DAC signal processing circuits need another

sample, a sample request is sent to the controller which must respond with a data sample in the

next frame it sends. For example, if a rate of 24kHz is selected, on average the device will

request a sample from the controller every other frame, for each of the stereo DACs. Note that if

an unsupported rate is written to one of the rate registers, the rate will default to the nearest rate

supported. The Register will then respond, when interrogated, with the supported rate the device

has defaulted to.

The WM9710 clocks will scale automatically dependent upon the MCLK frequency, where MCLK

is not equal to 24.576MHz. With a 24MHz clock the BCLK frequency expected will be 12MHz and

the sampling frequency (SYNC0 expected is BCLK/256 = 46.875kHz.

AUDIO

SAMPLE RATE

CONTROL VALUE

D15-D0

8000

11025

16000

22050

32000

44100

48000

1F40

2B11

3E80

5622

7D000

AC44

BB80

Table 1 Variable Sample Rates Supported

PD Rev 4.0 December 2003

15

w

WM9710

Production Data

SPDIF OR I²S DIGITAL AUDIO DATA OUTPUT

The WM9710 SPDIF output may be enabled in hardware by holding pin 44 (SPEN) high when

RESETB is taken high, or by writing to the SPDIF control bit in register 2Ah. If SPDIF pin 48 is

pulled high at start-up by a weak pull-up (e.g. 100k), then SPDIF capability bit in register 28h is

set to ‘0’, i.e. no SPDIF capability. This allows for stuffing options, so that when SPDIF external

components are not provided, the driver will see ‘no SPDIF capability’ and ‘grey out’ the relevant

boxes in the control panel.

Additionally the digital audio may be output in I²S format using pin 44 (SPEN) as the data output,

and outputting a frame clock or LRCLK onto pin 43. The data is clocked onto pin 44 using the

regular BITCLK at 256fs, which would also then be used as the MCLK if the data is taken to an

external DAC. Operation in this mode is selected by setting bit I²S in register 5Ch. A 64fs bitclk is

also available and can be output on SPDIF by setting bit I2S64 in register 74h. Note that I²S

operation is only supported for 48kHz operation. Hardware selection of SPDIF operation by pulling

pin SPEN ‘hi’ is compatible with I²S operation, provided a weak pull-up (circa 100k) was used to

hold SPEN high at start-up. The SPEN pin becomes I²S data output pin when I²S is enabled, and

the weak pull-up on this pin is overdriven.

For both SPDIF and I²S modes the data that is output may be sent from the WM9710 via the AC

link in the same slots as normal DAC data or may be sent in different slots. The output slots that

contain the SPDIF/I²S data are selected by bits SPSA[1:0] in register 2Ah. WM9710 is compliant

with AC’97 rev2.2 specification with regard to slot mapping; therefore the default mode of

operation is to output SPDIF or I²S data from the next data slots available after the audio data

slots currently in use. Alternatively if required, data may be mapped from any of the available

slots by selection using SPSA bits. The following table shows the default slot mapping for audio

DACs and SPDIF/I²S data: (further details in the register description section later).

SPEN STATE AT

START-UP

CODEC ID (PIN 45 STRAPPING)

AUDIO DAC SLOT

DEFAULT

SPDIF OR I²S

DATASLOT DEFAULT

‘lo’ (rev2.2 compliant)

‘hi’ (WM proprietary)

‘hi’ = ID = 0 = primary

‘lo’ = ID = 1 = secondary

‘hi’ = ID = 0 = primary

‘lo’ = ID = 1 = secondary

Slots 3 & 4 - front channels

Slots 7 & 8 – surround

Slots 7 & 8

Slots 6 & 9

Slots 3 & 4

Slots 3 & 4 - front channels

Slots 7 & 8 – surround

Table 2 DAC and SPDIF Slot Mapping Defaults

However, an exception to the rev2.2 mapping table is made when SPDIF operation is enabled

using the SPEN hardware enable pin (being held high at start-up): in this case SPDIF data is

immediately output from the DAC primary slots 3 & 4. This allows for driver-less SPDIF operation,

where the SPDIF or I²S output is simply the data contained in the main audio DAC channels.

Channel status and control bits output along with the SPDIF data are as set in the SPDIF control

register 3Ah. If required SPDIF data channel slot mapping may be then changed by setting

SPSA bits as required. See tables 18, 19 and 20 for further details.

A mode is provided where the output from the ADC is sent out as the SPDIF or I²S data as

above, rather than the data sent to the DACs over the AC link. This mode is enabled by setting bit

ADCO in register 5Ch. ADC data continues to be sent via the AC link to the controller as normal.

WM9710 supports SPDIF and I²S data only at the default 48kHz frame rate. Writing to SPSR bits

in register 3Ah any value other than the default 48kHz rate will result in a fail to write, with the

48kHz value being returned on subsequent reads of these values.

PRIMARY/SECONDARY ID SUPPORT

WM9710 supports operation as either a primary or a secondary codec. Configuration of the

device as either a primary or as a secondary, is selected by tying the CID0 pin 45 on the package.

Fundamentally, a device identified as a primary (ID = 0, CID0 = ‘hi’) produces BITCLK as an

output, whereas a secondary (any other ID) must be provided with BITCLK as an input. This has

the obvious implication that if the primary device on an AC link is disabled, the sec ondary devices

cannot function. The AC’97 Revision 2.2 specification defines that the CID0 pin has inverting

sense, and are provided with internal weak pull ups. Therefore, if no connections are made to the

CID0 pin, then the pin pull hi and an ID = 0 is selected, i.e. primary. External connect to ground

(with pull-down from 0 to 10kΩ) will select codec ID = ‘1’.

PD Rev 4.0 December 2003

16

w

WM9710

Production Data

PIN 45 CID0

ID

PRIMARY OR

SECONDARY

BITCLK

SELECTED

NC or pull-up

Ground

0

1

Primary

Secondary

Output

Input

Table 3 Codec ID Selection

HEADPHONE DRIVE AND HEADSET AUTODETECT

Headphone drive capability is provided on HPOUT (pins 39 and 41) and on MONOOUT (pin 37).

Headphones of impedance typically from 16Ω upwards may be connected to these pins. AC

coupling with an appropriately sized capacitor is recommended for removal of the mid-rail DC

pedestal present on these outputs. AC’97 rev2.2 specification recommends 32Ω headphones; if a

headphone is connected for use as a headset, where the stereo ear-pieces are driven in parallel,

then each capsule must be of minimum 32Ω impedance.

In many applications it is desirable to be able to connect either a stereo headphone to the

headphone output pins, or a mono headset, comprising ear-piece(s) and a microphone. The

microphone signal is sent via the tip connected wire of the typical 3-wire jack. In this event it is

desirable to be able to auto-detect the connection of either the headphone or the headset (with

microphone). The main characteristic of the headset and microphone compared to the

headphone is that the microphone impedance is typically much higher than the headphone

capsule (assuming a typical moving coil headphone). Because of this it is possible to connect a

weak pull-up to the tip connection of the headphone jack.

When a headphone is connected the low impedance to ground of the headset pulls down the DC

level to near ground. If a headset with microphone is plugged in, the high impedance of the

microphone does not pull down the DC level on the tip connection, the DC on this pin now rising

to near positive supply. This change in DC level is detected, so allowing detection of change from

headphone to microphone, (or nothing plugged in of course). When this event is detected, the

headphone amplifier that drives the tip connection is turned off, and the signal on this pin is

routed instead to the MIC1 input as a microphone input.

This auto-detect comparator is enabled by setting bit HSCMP. The pull-up current is enabled by

setting bit MPUEN in register 5Ch and also toggles the interrupt signal on the HSDET pin. When

bit HSDT is set the mic1 input is connected to a comparator with a threshold set at mid-rail.

When the comparator output is low, then the headphone driver is enabled. When the comparator

output goes high (that is the pull-up current multiplied by the external impedance to ground on the

mic1 pin is greater than mid-rail), the headphone amplifier is turned off and the mic1 signal is

taken internally from the headphone output pin (39).

UP: MONO HEADSET WITH MIC

DOWN: STEREO HEADPHONE

HPOUTR

RIGHT

MIXER

HPVOL

reg 04h

HEAD

PHONE

HPOUTL

LEFT

R

MIXER

L

MIC

OFF

(hi-Z)

HSDT

reg 5Ch

'1'

'0'

MS

reg 20h

'0'

'1'

MIC AMP

MIC1

MIC2

HPGND

HSEN

reg 5Ch

INTERNAL

MIC

+

-

HSCP

reg 5Ch

VMID

HSDET

HSCMP

reg 5Ch

MPUEN

reg 5Ch

5mA

Figure 10 Headset Autodetect

PD Rev 4.0 December 2003

17

w

WM9710

Production Data

Figure 10 shows this function schematically. The output signal from the comparator is accessible

by reading bit HSCP in register 5Ch. Auto detect may be used by setting HSEN bit, or external

control by using the HSDT bit which is an over-ride that forces the headset tri-state and

microphone path switching function to occur.

This function would allow, for example, a stereo headphone to be used that had a microphone in

the connecting lead, and a switch. The switch changes the headphone into a mono headset with

microphone connected via the tip connection on the jack. If used in a product such as an MP3

capable phone it would allow the user to switch from headphone use to headset use by simply

switching a single switch in the headphone cable, so at the same time answering or initiating

telephone calls. It may also be possible to use the pull-up current to provide so called ‘phantom

power’ to dynamic microphones with appropriate choice of microphone.

DATA SLOT MAPPING

DAC data and SPDIF data sent to the device, ADC data sent from the device, can be optionally

mapped into alternative slots under control of slot mapping bits located as follows:

SLOT MAPPING DATA

TYPE

CONTROL

BITS

REGISTER LOCATION

DAC data

SPDIF data

ADC data

DSA[1,0]

SPSA[1,0]

ASS[1,0]

28h

2Ah

5Ch (non-AC’97 feature)

Table 4 Data Slot Mapping Control

Default values and functional behavior are further described in the Serial Interface Register Map

description. DAC slot mapping defaults are in Table 2.

AC-LINK DIGITAL SERIAL INTERFACE PROTOCOL

A digital interface has been provided to control the WM9710 and transfer data to and from it. This

serial interface is compatible with the Intel AC’97 specification.

The main control interface functions are:

•

Control of analogue gain and signal paths through the mixer

Bi-directional transfer of ADC and DAC words to and from AC’97 controller

Selection of power-down modes

The WM9710 incorporates a 5-pin digital serial interface that links it to the AC’97 controller. AC-

link is a bi-directional, fixed rate, serial PCM digital stream. It handles multiple input and output

audio streams, as well as control register accesses employing a time division multiplexed (TDM)

scheme. The AC-link architecture divides each audio frame into 12 outgoing and 12 incoming

data streams, each with 20-bit sample resolution. With a minimum required DAC and ADC

resolution of 16-bits, AC’97 may also be implemented with 18 or 20-bit DAC/ADC resolution,

given the headroom that the AC-link architecture provides. The WM9710 provides support for 18-

bit audio operation.

PD Rev 4.0 December 2003

18

w

WM9710

Production Data

SLOT

NUMBER

0

1

2

3

4

5

6

7

8

9

10

11

12

SYNC

SDATAOUT

SDATAIN

CMD

ADR

CMD

DATA

PCM

LEFT

PCM

RIGHT

TAG

RSRVD

PCM L

(n+1)

PCM R

(n+1)

PCM C

(n+1)

CODEC ID

STATUS

ADDR

STATUS

DATA

PCM

LEFT

PCM

RIGHT

RSRVD

TAG

RSRVD

SLOTREQ 3-12

DATA PHASE

TAG PHASE

Figure 9 AC’97 Standard Bi-Directional Audio Frame

TAG PHASE

DATA PHASE

20.8 S (48kHz)

µ

SYNC

12.288MHz

81.4nS

BITCLK

VALID

FRAME

SLOT(1) SLOT(2)

SLOT(12)

'0'

19

0

19

0

19

0

19

SLOT (12)

0

SDATAOUT

TIME SLOT 'VALID' BITS

('1' = TIME SLOT CONTAINS

VALID PCM DATA)

SLOT (1)

SLOT (2)

SLOT (3)

END OF PREVIOUS

AUDIO FRAME

Figure 10 AC-link Audio Output Frame

The datastreams currently defined by the AC’97 specification include:

PCM playback - 2 output slots

PCM record data - 2 input slots

Control - 2 output slots

2-channel composite PCM output stream

2-channel composite PCM input stream

Control Register write port

Status - 2 input slots

Control Register read port

Optional modem line codec output -

1 output slot

Modem line codec DAC input stream

Optional modem line codec input –

1 input slot

Modem line codec ADC output stream

Optional dedicated microphone input -

1 input slot

Dedicated microphone input stream in

support of stereo AEC and/or other voice

applications.

PD Rev 4.0 December 2003

19

w

WM9710

Production Data

Synchronisation of all AC-link data transactions is signalled by the WM9710 controller. The

WM9710 drives the serial bit clock onto AC-link, which the AC’97 controller then qualifies with a

synchronisation signal to construct audio frames.

SYNC, fixed at 48kHz, is derived by dividing down the serial clock (BITCLK). BITCLK, fixed at

12.288MHz, provides the necessary clocking granularity to support 12, 20-bit outgoing and

incoming time slots. AC-link serial data is transitioned on each rising edge of BITCLK. The

receiver of AC-link data, (WM9710 for outgoing data and AC’97 controller for incoming data),

samples each serial bit on the falling edges of BITCLK.

The AC-link protocol provides for a special 16-bit time slot (slot 0) wherein each bit conveys a

valid tag for its corresponding time slot within the current audio frame. A 1 in a given bit position

of slot 0 indicates that the corresponding time slot within the current audio frame has been

assigned to a data stream, and contains valid data. If a slot is tagged invalid, it is the

responsibility of the source of the data, (the WM9710 for the input stream, AC’97 controller for the

output stream), to stuff all bit positions with 0s during that slot’s active time.

SYNC remains high for a total duration of 16 BITCLKs at the beginning of each audio frame.

The portion of the audio frame where SYNC is high is defined as the Tag Phase. The remainder

of the audio frame where SYNC is low is defined as the Data Phase. Additionally, for power

savings, all clock, sync, and data signals can be halted. This requires that the WM9710 be

implemented as a static design to allow its Register contents to remain intact when entering a

power savings mode.

PLAY MASTER VOLUME REGISTERS (INDEX 02H, 04H AND 06H)

These registers manage the output signal volumes. Register 02h controls the stereo master

volume (both right and left channels), Register 04h controls the stereo headphone out, and

Register 06h controls the mono volume output. Each step corresponds to 1.5dB. The MSB of the

^{register is the mute bit. When this bit is set to 1 the level for that channel is set at -}∞dB.

ML4 to ML0 is for left channel level, MR4 to MR0 is for the right channel and MM4 to MM0 is for

the mono out channel.

Support for the MSB of the volume level is not provided by the WM9710. If the MSB is written to,

then the WM9710 detects when that bit is set and sets all 4 LSBs to 1s. Example: If the driver

writes a 1xxxxx the WM9710 interprets that as x11111. It will also respond when read with x11111

rather than 1xxxxx, the value written to it. The driver can use this feature to detect if support for

the 6th bit is there or not.

The default value of both the mono and the stereo registers is 8000h (1000 0000 0000 0000),

which corresponds to 0dB gain with mute on.

MUTE

MX4...MX0

0 0000

FUNCTION

0

1

0dB attenuation

1.5dB attenuation

46.5dB attenuation

∞dB attenuation

0 0001

1 1111

x xxxx

Table 5 Volume Register Function

The Headphone out has an additional 6dB boost, selectable by setting HPB in register 74h.

PC BEEP REGISTER (INDEX 0AH)

This controls the level for the PC-beep input. Each step corresponds to approximately 3dB of

attenuation. The MSB of the register is the mute bit. When this bit is set to 1 the level for that

^{channel is set at -}∞dB.

WM9710 defaults to the PC-beep path being muted, so an external speaker should be provided

within the PC to alert the user to power on self-test problems.

PD Rev 4.0 December 2003

20

w

WM9710

Production Data

MUTE

PV3...PV0

0000

FUNCTION

0

1

0dB attenuation

45dB attenuation

∞dB attenuation

1111

xxxx

Table 6 PC-beep Register Function

ANALOGUE MIXER INPUT GAIN REGISTERS (INDEX 0CH - 18H AND 72H)

This controls the gain/attenuation for each of the analogue inputs and mixer PGA. Each step

corresponds to approximately 1.5dB. The MSB of the register is the mute bit. When this bit is set

^{to 1 the level for that channel is set at -}∞dB. Note that the gain for the VID and AUX input

channels is fixed at 0dB. Writes to the gain control bits for these channels are ignored, and the

value of readback for these registers is always the default, with the exception of the mute bit 15

which may be written to and read from.

The default value for the mono registers is 8008h, which corresponds to 0dB gain with mute on.

The default value for stereo registers is 8808h, which corresponds to 0dB gain with mute on.

MUTE

GX4...GX0

00000

FUNCTION

+12dB gain

0dB gain

0

1

01000

11111

-34.5dB gain

xxxxx

-∞dB gain

Table 7 Mixer Gain Control Register Function

REGISTER 0EH (MIC VOLUME REGISTER)

This has an extra bit that is for a 20dB boost. When bit 6 is set to 1 the 20dB boost is on. The

default value is 8008h, which corresponds to 0dB gain with mute on.

RECORD SELECT CONTROL REGISTER (INDEX 1AH)

Used to select the record source independently for right and left (see Table 8). The default value

is 0000h, which corresponds to Mic in. Setting Bit ADCNDAC in Register 5Ch selects a stereo mix

WITHOUT DAC when (5 x 2 – 5 x 0) is 5.

SR2 TO SR0

RIGHT RECORD SOURCE

Mic

SL2 TO SL0

LEFT RECORD SOURCE

Mic

0

1

3

4

5

6

0

1

4

5

6

7

CD in (R)

CD in (L)

Line in (R)

Line in (L)

Stereo mix (R)

Mono mix

Stereo mix (L)

Mono mix

Phone

Table 8 Record Select Register Function

RECORD GAIN REGISTERS (INDEX 1CH)

1Ch sets the stereo input record gain with each step corresponding to 1.5dB. The MSB of the

^{register is the mute bit. When this bit is set to 1, the level for both channels is set at -}∞dB.

The default value is 8000h, which corresponds to 0dB gain with mute on.

MUTE

GX3...GX0

1111

FUNCTION

+22.5dB gain

0dB gain

0

1

0000

xxxxx

^-∞dB gain

Table 9 Record Gain Register Function

GENERAL PURPOSE REGISTER (INDEX 20H)

This register is used to control several miscellaneous functions of the WM9710.

PD Rev 4.0 December 2003

21

w

WM9710

Production Data

Below is a summary of each bit and its function. Only the POP, 3D, MIX, MS and LPBK bits are

supported by the WM9710. The MS bit controls the Mic selector. The LPBK bit enables loopback

of the ADC output to the DAC input without involving the AC-link, allowing for full system

performance measurements. The function default value is 0000h which is all off.

BIT

POP

3D

FUNCTION

PCM out path and mute, 0 = pre-3D, 1 = post-3D

3D stereo enhancement on/off, 1 = on

Mono output select 0 = Mix, 1 = Mic

Mic select 0 = Mic1, 1 = Mic2

MIX

MS

LPBK

ADC/DAC loopback mode

3D CONTROL REGISTER (INDEX 22H)

This register is used to control the centre and/or depth of the 3D stereo enhancement function

built into the AC’97 component. Only the depth bits DP0 to 3 have effect in the WM9710.

DP3…DP0

DEPTH

0

0%

1

-

8

Typical value

100%

-

15

Table 10 3D Control Register

POWERDOWN CONTROL/STATUS REGISTER (INDEX 26H)

This read/write register is used to program power-down states and monitor subsystem readiness.

The lower half of this register is read only status, a 1 indicating that the subsection is ready.

Ready is defined as the subsection able to perform in its nominal state. When this register is

written the bit values that come in on AC-link will have no effect on read bits 0- 7.

When the AC-link Codec Ready indicator bit (SDATAIN slot 0, bit 15) is a 1 it indicates that the

AC-link and the WM9710 control and status registers are in a fully operational state. The AC’97

controller must further probe this Powerdown Control/Status Register to determine exactly which

subsections, if any, are ready.

Note that the normal default condition of WM9710 when RESETB is applied is ‘all active’.

However, if pin 43 (PWRUP/LRC) is pulled ‘hi’ during RESETB active, all PR bits are overridden

and the device enters a low power mode. This allows a low power standby mode to be entered

without writing to the device, a condition that is desirable for example, if batteries are changed in

a PDA. The state of pin 43 is latched on the rising edge of RESETB and if the pin is ‘hi’ then the

WM9710 will remain in low power mode until register 26h is written to.

READ BIT

REF

FUNCTION

VREFs up to nominal level

Analogue mixers, etc ready

DAC section ready to accept data

ADC section ready to transmit data

ANL

DAC

ADC

Table 11 Powerdown Status Register Function

The Powerdown modes are as follows. The first three bits are to be used individually rather than

in combination with each other. The last bit PR3 can be used in combination with PR2 or by itself.

PR0 and PR1 control the PCM ADCs and DACs only. PR6 powers down just the stereo Line

Level output headphone amps on pins 39/41.

The WM9710 also includes a low power DAC to headphone mode, whereby resetting PR1and

PR6 enables the DAC and the path from the DAC to HPOUTL/R without having to power up the

main mixer (PR2). The POP bit (reg 20h) also needs to be set for this mode. The headphone

amplifier on the MONO output pin in not powered down by PR6, rather by PR2 or alternatively

may be enabled by setting MONOEN in register 74h.

PD Rev 4.0 December 2003

22

w

WM9710

Production Data

WRITE BIT

PR0

FUNCTION

PCM in ADCs and input Mux Powerdown

PCM out DACs Powerdown

PR1

PR2

Analogue mixer Powerdown

(VREF still on)

PR3

PR4

Analogue mixer Powerdown (VREF off)

Digital interface (AC-link) Powerdown

(external clock off)

PR5

Internal clock disable

PR6

HP amp Powerdown

EAPD

External amplifier Powerdown

Table 12 Powerdown Control Register Function

PR0 = 1

PR1 = 1

PR2 = 1

PR4 = 1

ANALOGUE

OFF PR2 OR

PR3

ADCs OFF

PR0

DACs OFF

PR1

DIGITAL I/F

OFF PR4

SHUT OFF

CODA LINK

NORMAL

WARM

RESET

PR2 = 0 AND

ANL = 1

PR0 = 0 AND

ADC = 1

PR1 = 0 AND

DAC = 1

READY = 1

COLD RESET

DEFAULT

Figure 11 An Example of the WM9710 Powerdown/Powerup Flow

Figure 11 illustrates one example procedure to do a complete Powerdown of the WM9710. From

normal operation sequential writes to the Powerdown Register are performed to Powerdown the

WM9710 a piece at a time. After everything has been shut off (PR0 to PR3 set), a final write (of

PR4) can be executed to shut down the WM9710’s digital interface (AC-link).

The part will remain in sleep mode with all its registers holding their static values. To wake up the

WM9710, the AC’97 controller will send a pulse on the sync line issuing a warm reset. This will

restart the WM9710’s digital interface (resetting PR4 to 0). The WM9710 can also be woken up

with a cold reset. A cold reset will cause a loss of values of the registers, as a cold reset will set

them to their default states. When a section is powered back on, the Powerdown Control/Status

Register (index 26h) should be read to verify that the section is ready (i.e. stable) before

attempting any operation that requires it.

PR0 = 1

PR1 = 1

PR4 = 1

NORMAL

ADC’s OFF

PR0

DIGITAL I/F

OFF PR4

SHUT OFF

CODA LINK

DACs OFF

PR1

PR0 = 0 AND

ADC = 1

PR1 = 0 AND

DAC = 1

WARM RESET

Figure 12 The WM9710 Powerdown Flow with Analogue Still Active

PD Rev 4.0 December 2003

23

w

WM9710

Production Data

Figure 12 illustrates a state when all the mixers should work with the static volume settings that

are contained in their associated registers. This is used when the user could be playing a CD (or

external LINEIN source) through WM9710 to the speakers but have most of the system in low

power mode. The procedure for this follows the previous except that the analogue mixer is never

shut down.

Note that in order to go into ultimate low power mode, PR4 and PR5 are required to be set which

turns off the oscillator circuit. Asserting SYNC resets the PR4 and PR5 bit and re-starts the

oscillator in the same way as the AC link is restarted.

REGISTER 28H – EXTENDED AUDIO ID

The Extended Audio ID register is a read only register that identifies which extended audio

features are supported (in addition to the original AC’97 features identified by reading the reset

register at index 00h). A non zero value indicates the feature is supported.

DATA BIT

VRA

FUNCTION

VALUE

Variable rate audio support

Double rate audio support

SPDIF transmitter supported

Variable rate Mic ADC support

DAC slot mapping control

Centre DAC support

1

DRA

0

SPDIF

VRM

‘1’ = supported

0

DSA0

DSA1

CDAC

SDAC

LDAC

AMAP

REV0

REV1

ID0

See table below

0

Surround DAC support

0

LFE DAC support

0

Slot mapping support for Codec ID

Revision number

1

Revision number

0

Codec configuration – pin 45 value

Codec configuration – fixed in WM9710

0 (Inverse of level at pin 45)

0

ID1

Table 13 Extended Audio ID Register

DSA1, DSA0 DAC SLOT MAPPING

00

Slots 3 & 4

Slots 7 & 8

Slots 6 & 9

Slots 10 & 11

01

10

11

Table 14 DAC Slot Mapping

DAC slot mapping to slots 7 and 8 or slots 6 and 9 cannot be used in variable rate mode (VRA=1)

for sample rates other than 48kHz.

REGISTER 2AH – EXTENDED AUDIO STATUS AND CONTROL REGISTER

The Extended Audio Status and Control Register is a read/write register that provides status and

control of the extended audio features. Note that SPDIF slot mapping default varies according to

codec pin configuration. See Table 2.

DATA BIT

VRA

FUNCTION

READ/WRITE

Read/write

Read

Enables variable rate audio mode

SPDIF transmitter enable

SPDIF slot assignment

SPDIF validity bit

SPDIF

SPSA0

SPSA1

SPCV

Table 15 Extended Audio Status and Control Register

PD Rev 4.0 December 2003

24

w

WM9710

Production Data

SPSA0, SPSA1

SPDIF SLOT MAPPING

Slots 3 & 4

00

01

10

11

Slots 7 & 8

Slots 6 & 9

Slots 10 & 11

Table 16 SPDIF Slot Mapping

REGISTER 2Ch AND 32h – AUDIO SAMPLE RATE CONTROL REGISTERS

These registers are read/write registers that are written to, to select alternative sample rates for

the audio PCM converters. Default is the 48kHz rate. Note that only Revision 2.2 recommended

rates are supported by the WM9710, selection of any other unsupported rates will cause the rate

to default to the nearest supported rate, and the supported rate value to be latched and so read

back. Sample rate is entered in binary form to the appropriate register.

REGISTERS 3AH – SPDIF CONTROL REGISTER

Register 3Ah is a read/write register that controls SPDIF functionality and manages bit fields

propagated as channel status (or sub-frame in the V case). With the exception of V, this register

should only be written to when the SPDIF transmitter is disabled (SPDIF bit in register 2Ah is ‘0’).

Once the desired values have been written to this register, the contents should be read back to

ensure that the sample rate in particular is supported, then SPDIF validity bit SPCV in register

2Ah should be read to ensure the desired configuration is valid. Only then should the SPDIF

enable bit in register 2Ah be set. This ensures that control and status information start up

correctly at the beginning of SPDIF transmission. WM9710 only supports an SPDIF sample rate

of 48kHz.

CONTROL

BIT

FUNCTION

PRO

AUDIB

COPY

PRE

CC[6-0]

L

Professional; ‘0’ indicates consumer, ‘1’ indicates professional

Non-audio; ‘0’ indicates data is PCM, ‘1’ indicates non-PCM format (eg DD or DTS)

Copyright; ‘0’ indicates copyright is not asserted, ‘1’ indicates copyright

Pre-emphasis; ‘0’ indicates not pre-emphasis, ‘1’ indicates 50/15us pre-emphasis

Category code; programmed as required by user

Generation level; programmed as required by user

V

Validity bit; ‘0’ indicates frame valid, ‘1’ indicates frame not valid

Table 17 SPDIF Control Register

VENDOR SPECIFIC REGISTERS (INDEX 5Ah - 7Ah)

These registers are vendor specific. Do not write to these registers unless the Vendor ID register

has been checked first to ensure that the controller knows the source of the AC ‘97 component.

MIXER MUTE PATH (INDEX 5AH)

Bit 4 (MPM) is used to disable the path between the main input mixer and the lineout mixer.

Setting this bit to 1, breaks the connection and allows the following combinations:

DAC + PHONE + PCBEEP to line out / headphone out

When writing to this register all bits (except MPM) must be written as a 0 or device function can

not be guaranteed.

VENDOR SPECIFIC MODE CONTROL (INDEX 5CH)

Register 5Ch is a vendor specific control register used to control the function of non-AC’97

specified functions. This register defaults to all special features ‘disabled’ i.e. All zeros.

PD Rev 4.0 December 2003

25

w

WM9710

Production Data

CONTROL

BIT

FUNCTION

AMUTE

HSCP

MPUEN

MHPZ

PSEL

Indicates automute has been detected in the audio DAC (all ‘0’ data) – read only

Headset detect comparator output – read only

Mic pull up enable

Mono headphone tristate enable

PHONE to MONO path switch enable

Overrides Headset detect comparator, forcing left headphone amp to tristate

Headset auto-detect enable

HSDT

HSEN

HPND

AMEN

I²S

Headphone with no DAC enable

Automute enable bit

I²S data output enable

ADCNDAC

ADCO

HPF

ADC no DAC path enable

ADC to SPDIF and/or I²S output

ADC high pass filter disable;

HSCMP

ASS1

Headset comparator enable bit

ADC slot map control

ASS0

ADC slot map control

Table 18 Vendor Specific Control Register 5Ch

AMUTE indicates automute state has been detected. This is a read-only bit. 1 = automute

detected.

HSCP is a read only bit, indicating headset detected. It is the output from the headset autodetect

comparator. 0 = headset detected.

MPUEN enables a 5mA (typ) pull up current on the MIC1 input pin, which when a headset

microphone of high impedance is plugged in, causes the MIC1 pin to pull up to above Vmid, and

be detected. 1 = enable.

MHPZ tristates the MONO headphone driver output buffer. 1 = tristate.

PSEL enables the switch from PHONE input to MONO output; see block diagram. 1 = enable.

HSDT overrides the headset auto-detect comparator, forcing the left headphone output to tristate

and the HPLOUTL pin to be used as a headset microphone input path to the mic1 preamplifier

input. 1 = autodetect comparator override.

HSEN enables headset auto-detect function. HSCMP enables the headset detect comparator. 1 =

enable.

HPND enables the switch which outputs only the analog mixer output to the HPHONE outputs,

without the DAC signal being summed in. See block diagram. 1 = enable.

AMEN enables the DAC automute function, which detects zero data on both dac channels and

auto-mutes the outputs under this condition. 1 = enable.

Bit I²S enables I²S output, sending an LRCLK to pin 43 (PWRUP/LRC) and I²S data to the

SPEN/I²S pin (pin 44). BITCLK is used to clock out the data. Only 48kHz data is supported. 1 =

enable.

ADCNDAC selects input to the ADC from before the point where the DAC signal is summed in. 1

= select.

Bit ADCO is used to select data from the internal ADCs to be output as SPDIF or I²S data on

these pins rather than the data from the selected AC link slot. 1 = select.

HPF turns off the digital high pass filter in the ADC output when set to ‘1’.

ASS1, ASS0 are ADC slot mapping control bits. See table below. Default is slots 3 and 4.

PD Rev 4.0 December 2003

26

w

WM9710

Production Data

ASS1, ASS0

ADC SLOT MAPPING ( L/R)

Slots 3 & 4

00

01

10

Slots 7 & 8

Slots 6 & 9

11

Slots 10 & 11

Table 19 ADC Slot Mapping Control

VENDOR SPECIFIC GAIN CONTROL REGISTER (INDEX 72H)

This register controls the gain and mute functions applied to the mixer path. This PGA is not

accommodated in the Intel specification, but is required in order to allow the option of

simultaneous recording of the mixer output and playback of DAC signals. The function is as for

the other mixer PGA’s. However, the default value of the register is not-muted. If it is not used it

will be transparent to the user. Normally this reigster would be used in collaboration with bit

ADCNDAC in register 5Ch, allowing recording of the analog mix, manipulation in the digital

domain by an external DSP, then playback through the DACs on the WM9710.

VENDOR SPECIFIC ADDITIONAL FUNCTIONALITY (INDEX 74H)

HPB boosts the headphone output by 6dB. 1 = 6dB boost enabled.

I2S64 enables a 64fs bitclk output on SPDIF for i²s data output. 1 = enabled.

MONOEN enables the mono output independently of PR2 (MIXER Powerdown). This allows the

DAC to MONOUT path to be powered up by resetting PR1 and setting MONOEN while the Mixer

is powered down (PR2 set), providing a lower power mode when the mixer function is not

required.

VENDOR SPECIFIC ADDITIONAL FUNCTIONALITY (INDEX 78H)

The PHIZ bit in register 78h enables the PHONE and PCBEEP input pins. By default, these pins

are disconnected from the audio mixer (PHIZ=0). All other bits in register 78h should be set to 0

at all times. When PHIZ=0, PHONE and PCBEEP are high impedance inputs.

BIT

FUNCTION

PHIZ

PHONE and PCBEEP input enable; 0 = disabled, 1 = enabled

VENDOR ID REGISTERS (INDEX 7CH & 7EH)

These registers are for specific vendor identification if so desired. The ID method is Microsoft’s

Plug and Play Vendor ID code. The first character of that ID is F7 to F0, the second character S7

to S0, and the third T7 to T0. These three characters are ASCII encoded. The REV7 to REV0

field is for the Vendor Revision number. In the WM9710 the vendor ID is set to WML5.

Wolfson is a registered Microsoft Plug and Play vendor.

PD Rev 4.0 December 2003

27

w

WM9710

Production Data

SERIAL INTERFACE REGISTER MAP

The following table shows the function and address of the various control bits that are loaded and

read through the serial interface.

Reg Name

00h Reset

02h Master volume

04h HPHONE volume Mute

06h Master volume

mono

D15

X

Mute

D14 D13 D12 D11 D10 D9 D8

D7

ID7

X

D6

ID6

X

D5

ID5

X

D4

ID4

MR4

D3

ID3

D2

ID2 ID1

D1

D0 Default

ID0 6150h

SE4

SE3

SE2

ML4

X

SE1 SE0 ID9 ID8

ML3 ML2 ML1 ML0

X

MR3 MR2 MR1 MR0 8000h

X

Mute

X

MM4 MM3 MM2 MM1 MM0 8000h

0Ah PCBEEP volume Mute

X

3D

X

GL4

X

PR4

X

20dB

X

PV3

GN4

GR4

X

PV2 PV2 PV0

X

8000h

8008h

8808h

0000h

8000h

0000h

0Ch Phone volume

0Eh Mic volume

10h Line in volume

12h CD volume

Mute

GN3 GN2 GN1 GN0

GR3 GR2 GR1 GR0

GL3 GL2 GL1 GL0

18h PCM out volume Mute

1Ah Rec select

1Ch Rec gain

X

Mute

X

SL2 SL1 SL0

X

SR2 SR1

SR0

GL3 GL2 GL1 GL0

X

GR3 GR2 GR1 GR0

20h General purpose POP

X

MIX MS LPBK

X

DP0

22h 3D control

26h Power/down

control status

X

APD

X

PR6

X

DP3 DP2 DP1

REF ANL DAC ADC 000Fh

PR5

PR3 PR2 PR1 PR0

X

28h Ext’d audio ID

2Ah Ext’d audio

stat/ctrl

ID1

X

ID0

X

REV1 REV0 AMAP LDAC SDAC CDAC DSA1 DSA0 VRM SPDIF DRA VRA 0605h

X

SPCV

X

SPSA1 SPSA0

X

SPDIF

X

VRA 0000h

2Ch Audio DAC rate SR15 SR14 SR13 SR12 SR11 SR10 SR9 SR8 SR7 SR6 SR5

SR4

CC0

MPM

SR3 SR2 SR1

SR0 BB80h

32h Audio ADC rate

3Ah SPDIF control

5Ah Mixer Path Mute

5Ch Add. Function

control

SR15 SR14 SR13 SR12 SR11 SR10 SR9 SR8 SR7 SR6 SR5

V

0

1

0

L

0

CC6 CC5 CC4 CC3 CC2 CC1

PRE COPY UDIB PRO 2000h

0000h

0

2

0

AMUTE HSCP PUEN MHPZ PSEL HSEN HSDT HPND AMEN I S ADCN ADCO HPF

DAC

HS ASS1 ASS0 0000h

CMP

72h Front mixer

volume

Mute

X

GL4

GL3 GL2 GL1 GL0

X

GR4

GR3 GR2 GR1 GR0

0808h

MONOEN

74h Add. Function

78h Add. Function

7Ch Vendor ID1

7Eh Vendor ID2

X

0

F7

T7

X

0

F6

T6

X

0

F5

T5

X

0

F4

T4

X

0

F3

T3

X

0

F2

T2

X

0

F1

T1

X

0

F0

X

0

S7

X

PHIZ

S6

X

0

S5

X

0

S4

HPB I2S64

X

0

S1

0000h

574Dh

0

S0

S3

S2

T0 Rev7 Rev6 Rev5 Rev4 Rev3 Rev2 Rev1 Rev0 4C05h

Table 20 Serial Interface Register Map Description

Note:

1. Default values of register 28h and 2Ah depend on whether the device is a primary or secondary, and whether SPDIF

capability is enabled by pulling pin 44 SPEN high. The conditions shown are for a primary codec with SPDIF capability.

2. When writing to register 5Ah all bits except MPM (bit 4) must be written as 0, otherwise device function can not be

guaranteed.

PD Rev 4.0 December 2003

28

w

WM9710

Production Data

RECOMMENDED EXTERNAL COMPONENTS

DVDD

AVDD

1

DVDD1

38

AVDD

9

DVDD2

+

4

42

40

DGND1

AGND

7

DGND2

HPGND

DGND

43

AGND

DVDD

PWRUP/LRC

27

28

VREF

12

13

18

19

20

21

22

23

24

1uF

PCBEEP

PHONE

CDL

VREFOUT

+

MIXER

INPUTS

32

CDGND

CDR

CAP2

100nF

10uF

+

AGND

33

34

CX3D1

CX3D2

100nF

MIC1

MIC2

AGND

47nF

AGND

WM9710

LINEINL

LINEINR

29

30

31

DNC

14

15

16

17

25

26

DNC

35

36

37

39

41

2.2uF

220uF

+

LINEOUTL

LINEOUTR

MONOOUT

HPOUTL

STEREO OUTPUT

MONO OUTPUT

MASTER/

SLAVE

SELECT

45

CID0

LINE LEVEL STEREO

AVDD

HPOUTR

5

6

AVSS

SDATAOUT

BITCLK

44

SPEN/I2S

8

46

47

48

SDATAIN

SYNC

HSDET

EAPD

AC-LINK

10

11

RESETB

SPDIF

XTLIN

XTLOUT

Notes:

2

24.576MHz

3

1. All decoupling capacitors should

be as close to WM9710 as possible.

2. AGND and DGND should be

connected as close to WM9710

as possible.

XTAL

22pF

DGND

Figure 13 External Components Diagram

PD Rev 4.0 December 2003

29

w

WM9710

Production Data

PACKAGE DIMENSIONS – TQFP

FT: 48 PIN TQFP (7 x 7 x 1.0 mm)

DM004.C

b

e

36

25

37

24

E1

E

48

13

1

12

Θ

D1

D

c

L

A1

A

A2

-C-

SEATING PLANE

ccc

C

Dimensions

(mm)

Symbols

MIN

-----

0.05

0.95

0.17

0.09

NOM

-----

1.00

0.22

-----

MAX

1.20

0.15

1.05

0.27

0.20

A

A₁

A₂

b

c

D

D₁

E

E₁

e

L

Θ

9.00 BSC

7.00 BSC

9.00 BSC

7.00 BSC

0.50 BSC

0.60

0.45

0^o

0.75

7^o

3.5^o

Tolerances of Form and Position

0.08

ccc

REF:

JEDEC.95, MS-026

NOTES:

A. ALL LINEAR DIMENSIONS ARE IN MILLIMETERS.

B. THIS DRAWING IS SUBJECT TO CHANGE WITHOUT NOTICE.

C. BODY DIMENSIONS DO NOT INCLUDE MOLD FLASH OR PROTRUSION, NOT TO EXCEED 0.25MM.

D. MEETS JEDEC.95 MS-026, VARIATION = ABC. REFER TO THIS SPECIFICATION FOR FURTHER DETAILS.

PD Rev 4.0 December 2003

30

w

WM9710

Production Data

PACKAGE DIMENSIONS – QFN

DM029.C

FL: 48 PIN QFN PLASTIC PACKAGE 7 X 7 X 0.9 mm BODY, 0.50 mm LEAD PITCH

D2

SEE DETAIL 1

D

D2/2

48

37

L

INDEX AREA

(D/2 X E/2)

36

1

E2/2

E2

SEE DETAIL 2

E

25

12

aaa

C

2 X

24

13

b

aaa

C

TOP VIEW

e

ccc

C

(A3)

A

0.08

C

A1

SEATING PLANE

DETAIL 1

C

DETAIL 2

DETAIL 3

Terminal

tip

Datum

W

45

degrees

e/2

T

0.35mm

(A3)

G

e

H

b

R

Exposed lead

Half etch tie bar

DETAIL 3

Symbols

Dimensions (mm)

MIN

0.80

0

NOM

0.90

MAX

1.00

0.05

NOTE

A

A1

A3

b

D

D2

E

0.02

0.20 REF

0.25

7.00 BSC

5.15

7.00 BSC

5.15

0.5 BSC

0.213

0.1

0.18

5.00

0.30

5.25

1

E2

e

G

H

L

T

W

0.50

0.30

0.4

0.1

0.2

Tolerances of Form and Position

aaa

bbb

ccc

REF

0.15

0.10

JEDEC, MO-220, VARIATION VKKD-2

NOTES:

1. DIMENSION b APPLIED TO METALLIZED TERMINAL AND IS MEASURED BETWEEN 0.15 mm AND 0.30 mm FROM TERMINAL TIP.

2. ALL DIMENSIONS ARE IN MILLIMETRES

3. THE TERMINAL #1 IDENTIFIER AND TERMINAL NUMBERING CONVENTION SHALL CONFORM TO JESD 95-1 SPP-002.

4. COPLANARITY APPLIES TO THE EXPOSED HEAT SINK SLUG AS WELL AS THE TERMINALS.

5. THIS DRAWING IS SUBJECT TO CHANGE WITHOUT NOTICE.

PD Rev 4.0 December 2003

31

w

WM9710

Production Data

IMPORTANT NOTICE

Wolfson Microelectronics plc (WM) reserve the right to make changes to their products or to discontinue any product or service

without notice, and advise customers to obtain the latest version of relevant information to verify, before placing orders, that

information being relied on is current. All products are sold subject to the WM terms and conditions of sale supplied at the time

of order acknowledgement, including those pertaining to warranty, patent infringement, and limitation of liability.

WM warrants performance of its products to the specifications applicable at the time of sale in accordance with WM’s standard

warranty. Testing and other quality control techniques are utilised to the extent WM deems necessary to support this warranty.

Specific testing of all parameters of each device is not necessarily performed, except those mandated by government

requirements.

In order to minimise risks associated with customer applications, adequate design and operating safeguards must be used by

the customer to minimise inherent or procedural hazards. Wolfson products are not authorised for use as critical components in

life support devices or systems without the express written approval of an officer of the company. Life support devices or

systems are devices or systems that are intended for surgical implant into the body, or support or sustain life, and whose failure

to perform when properly used in accordance with instructions for use provided, can be reasonably expected to result in a

significant injury to the user. A critical component is any component of a life support device or system whose failure to perform

can be reasonably expected to cause the failure of the life support device or system, or to affect its safety or effectiveness.

WM assumes no liability for applications assistance or customer product design. WM does not warrant or represent that any

license, either express or implied, is granted under any patent right, copyright, mask work right, or other intellectual property

right of WM covering or relating to any combination, machine, or process in which such products or services might be or are

used. WM’s publication of information regarding any third party’s products or services does not constitute WM’s approval,

license, warranty or endorsement thereof.

Reproduction of information from the WM web site or datasheets is permissible only if reproduction is without alteration and is

accompanied by all associated warranties, conditions, limitations and notices. Representation or reproduction of this information

with alteration voids all warranties provided for an associated WM product or service, is an unfair and deceptive business

practice, and WM is not responsible nor liable for any such use.

Resale of WM’s products or services with statements different from or beyond the parameters stated by WM for that product or

service voids all express and any implied warranties for the associated WM product or service, is an unfair and deceptive

business practice, and WM is not responsible nor liable for any such use.

ADDRESS:

Wolfson Microelectronics plc

20 Bernard Terrace

Edinburgh

EH8 9NX

United Kingdom

Tel :: +44 (0)131 272 7000

Fax :: +44 (0)131 272 7001

Email :: sales@wolfsonmicro.com

PD Rev 4.0 December 2003

w

32

厂商	型号	描述	页数
WOLFSON	XWM8146CDW/V	12位（8 + 4位）的线性传感器图像处理器[ 12-bit(8+4-bit) Linear Sensor Image Processor ]	17 页
WOLFSON	XWM8148CFT/V	12位/ 12MSPS CCD / CIS模拟前端/数字转换器[ 12-bit/12MSPS CCD/CIS Analogue Front End/Digitiser ]	43 页
WOLFSON	XWM8170CFT/V	3.3V集成信号处理器的面阵CCD的[ 3.3V Integrated Signal Processor for Area Array CCDs ]	41 页
WOLFSON	XWM8181CDW	12位2MSPS串行输出CIS / CCD数字转换器[ 12-bit 2MSPS Serial Output CIS/CCD Digitiser ]	14 页
WOLFSON	XWM8190CDW/V	（ 8 + 6 ）位输出14位CIS / CCD AFE /数字转换器[ (8+6) Bit Output 14-bit CIS/CCD AFE/Digitiser ]	25 页
WOLFSON	XWM8191CFT	14位6MSPS CIS / CCD模拟前端/数字转换器[ 14-bit 6MSPS CIS/CCD Analogue Front End/Digitiser ]	27 页
WOLFSON	XWM8192	（88）位输出16位CIS / CCD AFE /数字转换器[ (88) Bit Output 16-bit CIS/CCD AFE/Digitiser ]	24 页
WOLFSON	XWM8192CDW/V	（88）位输出16位CIS / CCD AFE /数字转换器[ (88) Bit Output 16-bit CIS/CCD AFE/Digitiser ]	24 页
CIRRUS	XWM8194CDW/V	[ Analog Circuit, 1 Func, CMOS, PDSO28, 7.50 MM, 1.27 MM PITCH, MS-013AE, SOIC-28 ]	27 页
WOLFSON	XWM81955CFT/RV	14位12MSPS CIS / CCD模拟前端/数字转换器[ 14-bit 12MSPS CIS/CCD Analogue Front End/Digitiser ]	33 页
