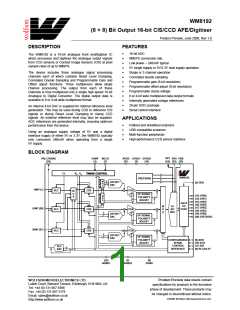

WM8192
(8 + 8) Bit Output 16-bit CIS/CCD AFE/Digitiser
Product Preview, June 2000, Rev 1.0
DESCRIPTION
FEATURES
•
•
•
•
•
•
•
•
•
•
•
•
•
16-bit ADC
The WM8192 is a 16-bit analogue front end/digitiser IC
which processes and digitises the analogue output signals
from CCD sensors or Contact Image Sensors (CIS) at pixel
sample rates of up to 6MSPS.
6MSPS conversion rate
Low power – 240mW typical
5V single supply or 5V/3.3V dual supply operation
Single or 3 channel operation
Correlated double sampling
The device includes three analogue signal processing
channels each of which contains Reset Level Clamping,
Correlated Double Sampling and Programmable Gain and
Offset adjust functions. Three multiplexers allow single
channel processing. The output from each of these
channels is time multiplexed into a single high-speed 16-bit
Analogue to Digital Converter. The digital output data is
available in 8 or 4-bit wide multiplexed format.
Programmable gain (8-bit resolution)
Programmable offset adjust (8-bit resolution)
Programmable clamp voltage
8 or 4-bit wide multiplexed data output formats
Internally generated voltage references
28-pin SOIC package
An internal 4-bit DAC is supplied for internal reference level
generation. This may be used during CDS to reference CIS
signals or during Reset Level Clamping to clamp CCD
signals. An external reference level may also be supplied.
ADC references are generated internally, ensuring optimum
performance from the device.
Serial control interface
APPLICATIONS
•
•
•
•
Flatbed and sheetfeed scanners
USB compatible scanners
Using an analogue supply voltage of 5V and a digital
interface supply of either 5V or 3.3V, the WM8192 typically
only consumes 240mW when operating from a single
5V supply.
Multi-function peripherals
High-performance CCD sensor interface
BLOCK DIAGRAM
VRLC/VBIAS
(26)
VSMP MCLK
(5) (7)
AVDD DVDD1 DVDD2
VRT VRX VRB
(24) (25) (23)
(21)
(3)
(10)
CL
RS VS
TIMING CONTROL
WM8192
VREF/BIAS
R
8
M
U
X
OFFSET
DAC
(4) OEB
G
B
RINP (1)
RLC
RLC
CDS
CDS
+
PGA
+
+
M
U
X
I/P SIGNAL
POLARITY
ADJUST
R
G
B
8
(13) OP[0]
(14) OP[1]
(15) OP[2]
(16) OP[3]
(17) OP[4]
(18) OP[5]
(19) OP[6]
(20) OP[7]/SDO
M
U
X
DATA
I/O
PORT
16-
BIT
ADC
M
U
X
GINP (28)
BINP (27)
+
+
PGA
8
OFFSET
DAC
8
I/P SIGNAL
POLARITY
ADJUST
RLC
CDS
PGA
+
8
OFFSET
DAC
8
I/P SIGNAL
POLARITY
ADJUST
(9) SEN
(12) SCK
(11) SDI
CONFIGURABLE
SERIAL
CONTROL
RLC
DAC
4
INTERFACE
(6) RLC/ACYC
(8)
DGND
(22)
AGND1
(2)
AGND2
Product Preview data sheets contain
specifications for products in the formative
WOLFSON MICROELECTRONICS LTD
Lutton Court, Bernard Terrace, Edinburgh, EH8 9NX, UK
Tel: +44 (0) 131 667 9386
Fax: +44 (0) 131 667 5176
Email: sales@wolfson.co.uk
http://www.wolfson.co.uk
phase of development. These products may
be changed or discontinued without notice.
2000 Wolfson Microelectronics Ltd.
WM8192
Product Preview
PIN CONFIGURATION
ORDERING INFORMATION
DEVICE
TEMP. RANGE
PACKAGE
RINP
1
2
28
27
GINP
BINP
XWM8192CDW/V
0 to 70oC
28-pin SOIC
AGND2
DVDD1
OEB
3
4
5
6
7
8
26
25
24
23
22
21
VRLC/VBIAS
VRX
VSMP
VRT
RLC/ACYC
MCLK
VRB
AGND1
AVDD
DGND
SEN
DVDD2
SDI
9
20
19
18
17
16
15
OP[7]/SDO
OP[6]
10
11
12
13
14
OP[5]
SCK
OP[4]
OP[0]
OP[1]
OP[3]
OP[2]
PIN DESCRIPTION
PIN
1
NAME
RINP
TYPE
DESCRIPTION
Analogue input
Supply
Red channel input video.
Analogue ground (0V).
2
AGND2
DVDD1
3
Supply
Digital supply (5V) for logic and clock generator. This must be operated at the same
potential as AVDD.
4
5
6
OEB
VSMP
Digital input
Digital input
Digital input
Output Hi-Z control, all digital outputs disabled when OEB = 1.
Video sample synchronisation pulse.
RLC/ACYC
RLC (active high) selects reset level clamp on a pixel-by-pixel basis – tie high if
used on every pixel. ACYC autocycles between R, G, B inputs.
7
MCLK
Digital input
Master clock. This clock is applied at N times the input pixel rate (N = 2, 3, 6, 8 or
any multiple of 2 thereafter depending on input sample mode).
8
DGND
SEN
Supply
Digital ground (0V).
9
Digital input
Supply
Enables the serial interface when high.
Digital supply (5V/3.3V), all digital I/O pins.
Serial data input.
10
11
12
DVDD2
SDI
Digital input
Digital input
SCK
Serial clock.
Digital multiplexed output data bus.
ADC output data (d15:d0) is available in two multiplexed formats as shown, under
the control of register bit MUXOP.
See ‘Output Formats’ description in Device Description section for further details.
8+8-bit
4+4+4+4-bit
A
B
A
B
C
D
13
14
15
16
17
18
19
20
OP[0]
OP[1]
OP[2]
OP[3]
OP[4]
OP[5]
OP[6]
OP[7]
Digital output
Digital output
Digital output
Digital output
Digital output
Digital output
Digital output
Digital output
d8
d0
d1
d2
d3
d4
d5
d6
d7
d9
d10
d11
d12
d13
d14
d15
d12
d13
d14
d15
d8
d9
d4
d5
d6
d7
d0
d1
d2
d3
d10
d11
Alternatively, pin OP[7]/SDO may be used to output register read-back data when
OEB = 0 and SEN has been pulsed high. See Serial Interface description in Device
Description section for further details.
WOLFSON MICROELECTRONICS LTD
PP Rev 1.0 June 2000
2
Product Preview
WM8192
PIN
21
NAME
TYPE
Supply
Supply
DESCRIPTION
AVDD
AGND1
VRB
Analogue supply (5V). This must be operated at the same potential as DVDD1.
Analogue ground (0V).
22
23
Analogue output Lower reference voltage.
This pin must be connected to AGND via a decoupling capacitor.
Analogue output Upper reference voltage.
This pin must be connected to AGND via a decoupling capacitor.
Analogue output Input return bias voltage.
This pin must be connected to AGND via a decoupling capacitor.
24
25
26
VRT
VRX
VRLC/VBIAS
Analogue I/O
Selectable analogue output voltage for RLC or single-ended bias reference.
This pin would typically be connected to AGND via a decoupling capacitor.
VRLC can be externally driven if programmed Hi-Z.
27
28
BINP
GINP
Analogue input
Analogue input
Blue channel input video.
Green channel input video.
ABSOLUTE MAXIMUM RATINGS
Absolute Maximum Ratings are stress ratings only. Permanent damage to the device may be caused by continuously operating at
or beyond these limits. Device functional operating limits and guaranteed performance specifications are given under Electrical
Characteristics at the test conditions specified.
ESD Sensitive Device. This device is manufactured on a CMOS process. It is therefore generically susceptible
to damage from excessive static voltages. Proper ESD precautions must be taken during handling and storage
of this device.
As per JEDEC specifications A112-A and A113-B, this product requires specific storage conditions prior to surface mount
assembly. It is anticipated as having a Moisture Sensitivity Level of 2 and as such will be supplied in vacuum-sealed moisture
barrier bags.
CONDITION
MIN
MAX
Analogue supply voltage: AVDD
Digital supply voltages: DVDD1 − 2
Digital ground: DGND
GND - 0.3V
GND - 0.3V
GND - 0.3V
GND - 0.3V
GND - 0.3V
GND - 0.3V
GND - 0.3V
GND + 7V
GND + 7V
GND + 0.3V
GND + 0.3V
DVDD2 + 0.3V
AVDD + 0.3V
AVDD + 0.3V
Analogue grounds: AGND1 − 2
Digital inputs, digital outputs and digital I/O pins
Analogue inputs (RINP, GINP, BINP)
Other pins
°
°
Operating temperature range: TA
Storage temperature
0 C
+70 C
°
°
-65 C
+150 C
°
Package body temperature (soldering, 10 seconds)
Package body temperature (soldering, 2 minutes)
Notes:
+240 C
+183°C
1.
2.
GND denotes the voltage of any ground pin.
AGND1, AGND2 and DGND pins are intended to be operated at the same potential. Differential voltages
between these pins will degrade performance.
RECOMMENDED OPERATING CONDITIONS
CONDITION
SYMBOL
TA
MIN
0
TYP
MAX
70
UNITS
Operating temperature range
Analogue supply voltage
Digital core supply voltage
Digital I/O supply voltage
°C
V
AVDD
DVDD1
4.75
4.75
5.0
5.0
5.25
5.25
V
5V I/O
DVDD2
DVDD2
4.75
2.97
5.0
3.3
5.25
3.63
V
V
3.3V I/O
WOLFSON MICROELECTRONICS LTD
PP Rev 1.0 June 2000
3
WM8192
Product Preview
ELECTRICAL CHARACTERISTICS
Test Conditions
AVDD = DVDD1 = DVDD2 = 4.75 to 5.25V, AGND = DGND = 0V, TA = 0 to 70°C, MCLK = 12MHz unless otherwise stated.
PARAMETER
SYMBOL
TEST
MIN
TYP
MAX
UNIT
CONDITIONS
Overall System Specification (including 16-bit ADC, PGA, Offset and CDS functions)
Full-scale input voltage range
(see Note 1)
Max Gain
Min Gain
0.4
Vp-p
Vp-p
V
4.08
Input signal limits (see Note 2)
Full-scale transition error
VIN
0
AVDD
Gain = 0dB;
PGA[7:0] = 4B(hex)
20
20
mV
Zero-scale transition error
Gain = 0dB;
mV
PGA[7:0] = 4B(hex)
Differential non-linearity
DNL
INL
TBD
TBD
1
LSB
LSB
%
Integral non-linearity
Channel to channel gain matching
References
Upper reference voltage
VRT
VRB
VRX
VRTB
2.85
1.35
0.65
1.5
V
V
V
V
Ω
Lower reference voltage
Input return bias voltage
Diff. reference voltage (VRT-VRB)
Output resistance VRT, VRB, VRX
VRLC/Reset-Level Clamp (RLC)
RLC switching impedance
VRLC short-circuit current
VRLC output resistance
1
50
5
Ω
mA
Ω
2
VRLC Hi-Z leakage current
RLCDAC resolution
VRLC = 0 to AVDD
1
µA
4
bits
V/step
V/step
V
RLCDAC step size, RLCDAC = 0
RLCDAC step size, RLCDAC = 1
VRLCSTEP
VRLCSTEP
VRLCBOT
0.24
0.16
0.40
RLCDAC output voltage at
code 0(hex), RLCDACRNG = 0
RLCDAC output voltage at
code 0(hex), RLCDACRNG = 1
VRLCBOT
VRLCTOP
VRLCTOP
0.25
4.20
2.85
V
V
RLCDAC output voltage at
code F(hex) RLCDACRNG, = 0
RLCDAC output voltage at
V
code F(hex), RLCDACRNG = 1
VRLC deviation
-50
+50
mV
Offset DAC, Monotonicity Guaranteed
Resolution
8
bits
LSB
Differential non-linearity
Integral non-linearity
Step size
DNL
INL
0.1
0.5
1
0.25
2.04
-260
+260
LSB
mV/step
mV
Output voltage
Code 00(hex)
Code FF(hex)
mV
Notes:
1.
2.
Full-scale input voltage denotes the maximum amplitude of the input signal at the specified gain.
Input signal limits are the limits within which the full-scale input voltage signal must lie.
WOLFSON MICROELECTRONICS LTD
PP Rev 1.0 June 2000
4
Product Preview
WM8192
Test Conditions
AVDD = DVDD1 = DVDD2 = 4.75 to 5.25V, AGND = DGND = 0V, TA = 0 to 70°C, MCLK = 12MHz unless otherwise stated.
PARAMETER
SYMBOL
TEST
MIN
TYP
MAX
UNIT
CONDITIONS
Programmable Gain Amplifier
Resolution
Gain
8
208
bits
V/V
283 − PGA[7 : 0]
Max gain, each channel
Min gain, each channel
Gain error, each channel
DIGITAL SPECIFICATIONS
Digital Inputs
GMAX
GMIN
7.4
0.74
1
V/V
V/V
%
High level input voltage
Low level input voltage
High level input current
Low level input current
Input capacitance
VIH
VIL
IIH
0.8 DVDD2
V
0.2 DVDD2
V
1
1
µA
µA
pF
IIL
CI
5
Digital Outputs
High level output voltage
Low level output voltage
High impedance output current
Digital IO Pins
VOH
VOL
IOZ
IOH = 1mA
IOL = 1mA
DVDD2 - 0.5
V
V
0.5
1
µA
Applied high level input voltage
Applied low level input voltage
High level output voltage
Low level output voltage
Low level input current
High level input current
Input capacitance
VIH
VIL
VOH
VOL
IIL
0.8 DVDD2
DVDD2 - 0.5
V
V
0.2 DVDD2
IOH = 1mA
IOL = 1mA
V
0.5
1
V
µA
µA
pF
µA
IIH
1
CI
5
High impedance output current
Supply Currents
IOZ
1
Total supply current − active
48
45
mA
mA
Total analogue supply current −
IAVDD
active
Digital core supply current,
DVDD1 − active
2
1
mA
mA
µA
Digital I/O supply current,
DVDD2 − active
Supply current − full power down
100
mode
WOLFSON MICROELECTRONICS LTD
PP Rev 1.0 June 2000
5
WM8192
Product Preview
INPUT VIDEO SAMPLING
tPER
tMCLKH tMCLKL
MCLK
tVSMPH
tVSMPSU
VSMP
INPUT
tVSU
tVH
tRSU
tRH
VIDEO
Figure 1 Input Video Timing
Note:
1.
See Page 14 (Programmable VSMP Detect Circuit) for video sampling description.
Test Conditions
AVDD = DVDD1 = DVDD2 = 4.75 to 5.25V, AGND = DGND = 0V, TA = 0 to 70°C, MCLK = 12MHz unless otherwise stated
PARAMETER
SYMBOL
TEST CONDITIONS
MIN
TYP
MAX
UNITS
MCLK period
tPER
83.3
ns
MCLK high period
MCLK low period
VSMP set-up time
VSMP hold time
tMCLKH
tMCLKL
tVSMPSU
tVSMPH
tVSU
37.5
37.5
10
5
ns
ns
ns
ns
ns
ns
ns
ns
Video level set-up time
Video level hold time
Reset level set-up time
Reset level hold time
Notes:
15
5
tVH
tRSU
15
5
tRH
1.
2.
tVSU and tRSU denote the set-up time required after the input video signal has settled.
Parameters are measured at 50% of the rising/falling edge.
OUTPUT DATA TIMING
MCLK
tPD
OP[7:0]
Figure 2 Output Data Timing
WOLFSON MICROELECTRONICS LTD
PP Rev 1.0 June 2000
6
Product Preview
WM8192
OEB
tPZE
tPEZ
OP[7:0]
Hi-Z
Hi-Z
Figure 3 Output Data Enable Timing
Test Conditions
AVDD = DVDD1 = DVDD2 = 4.75 to 5.25V, AGND = DGND = 0V, TA = 0 to 70°C, MCLK = 12MHz unless otherwise stated
PARAMETER
SYMBOL
tPD
TEST CONDITIONS
MIN
TYP
MAX
75
UNITS
ns
Output propagation delay
Output enable time
Output disable time
IOH = 1mA, IOL = 1mA
tPZE
50
ns
tPEZ
25
ns
SERIAL INTERFACE
tSPER
tSCKL tSCKH
SCK
tSSU
tSH
SDI
SEN
SDO
tSCE
tSEW tSEC
tSCRDZ
tSERD
tSCRD
ADC
DATA
ADC DATA
MSB
LSB
REGISTER DATA
Figure 4 Serial Interface Timing
Test Conditions
AVDD = DVDD1 = DVDD2 = 4.75 to 5.25V, AGND = DGND = 0V, TA = 0 to 70°C, MCLK = 12MHz unless otherwise stated
PARAMETER
SYMBOL
TEST CONDITIONS
MIN
TYP
MAX
UNITS
SCK period
tSPER
83.3
ns
SCK high
tSCKH
tSCKL
tSSU
37.5
37.5
10
ns
ns
ns
ns
ns
ns
ns
ns
ns
ns
SCK low
SDI set-up time
SDI hold time
tSH
10
SCK to SEN set-up time
SEN to SCK set-up time
SEN pulse width
tSCE
20
tSEC
20
tSEW
tSERD
tSCRD
tSCRDZ
50
SEN low to SDO = Register data
SCK low to SDO = Register data
SCK low to SDO = ADC data
35
35
25
Note:
1.
Parameters are measured at 50% of the rising/falling edge
WOLFSON MICROELECTRONICS LTD
PP Rev 1.0 June 2000
7
WM8192
Product Preview
DEVICE DESCRIPTION
INTRODUCTION
A block diagram of the device showing the signal path is presented on Page 1.
The WM8192 samples up to three inputs (RINP, GINP and BINP) simultaneously. The device then
processes the sampled video signal with respect to the video reset level or an internally/externally
generated reference level using either one or three processing channels.
Each processing channel consists of an Input Sampling block with optional Reset Level Clamping
(RLC) and Correlated Double Sampling (CDS), an 8-bit programmable offset DAC and an 8-bit
Programmable Gain Amplifier (PGA).
The ADC then converts each resulting analogue signal to a 16-bit digital word. The digital output from
the ADC is presented on an 8-bit wide bi-directional bus, with optional 8 or 4-bit multiplexed formats.
On-chip control registers determine the configuration of the device, including the offsets and gains
applied to each channel. These registers are programmable via a serial interface.
INPUT SAMPLING
The WM8192 can sample and process one to three inputs through one or three processing channels
as follows:
Colour Pixel-by-Pixel: The three inputs (RINP, GINP and BINP) are simultaneously sampled for
each pixel and a separate channel processes each input. The signals are then multiplexed into the
ADC, which converts all three inputs within the pixel period.
Monochrome: A single chosen input (RINP, GINP, or BINP) is sampled, processed by the
corresponding channel, and converted by the ADC. The choice of input and channel can be changed
via the control interface, e.g. on a line-by-line basis if required.
Colour Line-by-Line: A single chosen input (RINP, GINP, or BINP) is sampled and multiplexed into
the red channel for processing before being converted by the ADC. The input selected can be
switched in turn (RINP → GINP → BINP → RINP…) together with the PGA and Offset DAC control
registers by pulsing the RLC/ACYC pin. This is known as auto-cycling. Alternatively, other sampling
sequences can be generated via the control registers. This mode causes the blue and green
channels to be powered down. Refer to the Line-by-Line Operation section for more details.
RESET LEVEL CLAMPING (RLC)
To ensure that the signal applied to the WM8192 lies within its input range (0V to AVDD) the CCD
output signal is usually level shifted by coupling through a capacitor, CIN. The RLC circuit clamps the
WM8192 side of this capacitor to a suitable voltage during the CCD reset period.
A typical input configuration is shown in Figure 5. A clamp pulse, CL, is generated from MCLK and
VSMP by the Timing Control Block. When CL is active the voltage on the WM8192 side of CIN, at
RINP, is forced to the VRLC/VBIAS voltage (VVRLC ) by switch 1. When the CL pulse turns off, the
voltage at RINP initially remains at VVRLC but any subsequent variation in sensor voltage (from reset
to video level) will couple through CIN to RINP.
RLC is compatible with both CDS and non-CDS operating modes, as selected by switch 2. Refer to
the CDS/non-CDS Processing section.
WOLFSON MICROELECTRONICS LTD
PP Rev 1.0 June 2000
8
Product Preview
WM8192
RLC/ACYC MCLK VSMP
TIMING CONTROL
FROM CONTROL
INTERFACE
CL
RS
VS
CIN
S/H
+
-
TO OFFSET DAC
+
RINP
2
S/H
1
RLC
CDS
INPUT SAMPLING
BLOCK FOR RED
CHANNEL
EXTERNAL VRLC
CDS
VRLC/
VBIAS
4-BIT
RLC DAC
FROM CONTROL
INTERFACE
VRLCEXT
Figure 5 Reset Level Clamping and CDS Circuitry
If auto-cycling is not required, RLC can be selected by pin RLC/ACYC. Figure 6 illustrates control of
RLC for a typical CCD waveform, with CL applied during the reset period.
The input signal applied to the RLC pin is sampled on the positive edge of MCLK that occurs during
each VSMP pulse. The sampled level, high (or low) controls the presence (or absence) of the internal
CL pulse on the next reset level. The position of CL can be adjusted by using control bits
CDSREF[1:0] (Figure 7).
If auto-cycling is required, pin RLC/ACYC is no longer available for this function and control bit
RLCINT determines whether clamping is applied.
MCLK
VSMP
1
X
X
0
X
X
0
RLC/ACYC
Programmable Delay
CL
(CDSREF = 01)
INPUT VIDEO
RGB
RGB
RGB
No RLC on this Pixel
RLC on this Pixel
Figure 6 Relationship of RLC Pin, MCLK and VSMP to Internal Clamp Pulse, CL
The VRLC/VBIAS pin can be driven internally by a 4-bit DAC (RLCDAC) by writing to control bits
RLCV[3:0]. The RLCDAC range and step size may be increased by writing to control bit
RLCDACRNG. Alternatively, the VRLC/VBIAS pin can be driven externally by writing to control bit
VRLCEXT to disable the RLCDAC and then applying a d.c. voltage to the pin.
CDS/NON-CDS PROCESSING
For CCD type input signals, the signal may be processed using CDS, which will remove pixel-by-pixel
common mode noise. For CDS operation, the video level is processed with respect to the video reset
level, regardless of whether RLC has been performed. To sample using CDS, control bit CDS must
be set to 1 (default), this controls switch 2 (Figure 5) and causes the signal reference to come from
the video reset level. The time at which the reset level is sampled, by clock Rs/CL, is adjustable by
programming control bits CDSREF[1:0], as shown in Figure 7.
WOLFSON MICROELECTRONICS LTD
PP Rev 1.0 June 2000
9
WM8192
Product Preview
MCLK
VSMP
VS
RS/CL (CDSREF = 00)
RS/CL (CDSREF = 01)
RS/CL (CDSREF = 10)
RS/CL (CDSREF = 11)
Figure 7 Reset Sample and Clamp Timing
For CIS type sensor signals, non-CDS processing is used. In this case, the video level is processed
with respect to the voltage on pin VRLC/VBIAS, generated internally or externally as described
above. The VRLC/VBIAS pin is sampled by Rs at the same time as Vs samples the video level in this
mode.
OFFSET ADJUST AND PROGRAMMABLE GAIN
The output from the CDS block is a differential signal, which is added to the output of an 8-bit Offset
DAC to compensate for offsets and then amplified by an 8-bit PGA. The gain and offset for each
channel are independently programmable by writing to control bits DAC[7:0] and PGA[7:0].
In colour line-by-line mode the gain and offset coefficients for each colour can be multiplexed in order
(Red → Green → Blue → Red…) by pulsing the ACYC/RLC pin, or controlled via the FME,
ACYCNRLC and INTM[1:0] bits. Refer to the Line-by-Line Operation section for more details.
ADC INPUT BLACK LEVEL ADJUST
The output from the PGA must be offset to match the full-scale range of the ADC. For negative-going
input signals, a black level (zero differential) output from the PGA should be offset to the top of the
ADC range. For positive going input signal the black level should be offset to the bottom of the ADC
range. This is achieved by writing to control bits PGAFS[1:0].
OVERALL SIGNAL FLOW SUMMARY
Figure 8 represents the processing of the video signal through the WM8192.
OUTPUT
INVERT
BLOCK
INPUT
SAMPLING
BLOCK
OFFSET DAC PGA
ADC BLOCK
BLOCK
BLOCK
D2
x (65535/VFS
)
V1
V2
V3
D1
+0
if PGAFS[1:0]=11
X
+65535 if PGAFS[1:0]=10
+32768 if PGAFS[1:0]=0x
OP[7:0]
+
+
VIN
digital
analog
+
-
CDS = 1
CDS = 0
D2 = D1 if INVOP = 0
D2 = 65535-D1 if INVOP = 1
VRESET
PGA gain
A = 208/(283-PGA[7:0])
VVRLC
Offset
DAC
260mV*(DAC[7:0]-127.5)/127.5
VIN is RINP or GINP or BINP
RESET is VIN sampled during reset clamp
VRLC is voltage applied to VRLC pin
V
RLCEXT=1
RLCEXT=0
CDS, RLCEXT,RLCV[3:0], DAC[7:0],
PGA[7:0], PGAFS[1:0] and INVOP are set
by programming internal control registers.
CDS=1 for CDS, 0 for non-CDS
RLC
DAC
See parametrics for
DAC voltages.
Figure 8 Overall Signal Flow
WOLFSON MICROELECTRONICS LTD
PP Rev 1.0 June 2000
10
Product Preview
WM8192
The INPUT SAMPLING BLOCK produces an effective input voltage V1. For CDS, this is the
difference between the input video level VIN and the input reset level VRESET. For non-CDS this is the
difference between the input video level VIN and the voltage on the VRLC/VBIAS pin, VVRLC
,
optionally set via the RLC DAC.
The OFFSET DAC BLOCK then adds the amount of fine offset adjustment required to move the
black level of the input signal towards 0V, producing V2.
The PGA BLOCK then amplifies the white level of the input signal to maximise the ADC range,
outputting voltage V3.
The ADC BLOCK then converts the analogue signal, V3, to a 16-bit unsigned digital output, D1.
The digital output is then inverted, if required, through the OUTPUT INVERT BLOCK to produce D2.
CALCULATING OUTPUT FOR ANY GIVEN INPUT
The following equations describe the processing of the video and reset level signals through
the WM8192.
INPUT SAMPLING BLOCK: INPUT SAMPLING AND REFERENCING
If CDS = 1, (i.e. CDS operation) the previously sampled reset level, VRESET, is subtracted from the
input video.
V1
=
VIN - VRESET .................................................................. Eqn. 1
If CDS = 0, (non-CDS operation) the simultaneously sampled voltage on pin VRLC is subtracted
instead.
V1
=
VIN - VVRLC .................................................................... Eqn. 2
If RLCEXT = 1, VVRLC is an externally applied voltage on pin VRLC/VBIAS.
If RLCEXT = 0, VVRLC is the output from the internal RLC DAC.
VVRLC
=
(VRLCSTEP RLCV[3:0]) + VRLCBOT ................................. Eqn. 3
V
RLCSTEP is the step size of the RLC DAC and VRLCBOT is the minimum output of the RLC DAC.
OFFSET DAC BLOCK: OFFSET (BLACK-LEVEL) ADJUST
The resultant signal V1 is added to the Offset DAC output.
V2
=
V1 + {260mV (DAC[7:0]-127.5) } / 127.5 .................... Eqn. 4
PGA NODE: GAIN ADJUST
The signal is then multiplied by the PGA gain,
V3
=
V2 208/(283- PGA[7:0]) .............................................. Eqn. 5
ADC BLOCK: ANALOGUE-DIGITAL CONVERSION
The analogue signal is then converted to a 16-bit unsigned number, with input range configured by
PGAFS[1:0].
D1[15:0] = INT{ (V3 /VFS
D1[15:0] = INT{ (V3 /VFS
D1[15:0] = INT{ (V3 /VFS
)
)
)
65535} + 32767 PGAFS[1:0] = 00 or 01 ..... Eqn. 6
65535} PGAFS[1:0] = 11 .............. Eqn. 7
65535} + 65535 PGAFS[1:0] = 10 .............. Eqn. 8
where the ADC full-scale range, VFS = 3V
OUTPUT INVERT BLOCK: POLARITY ADJUST
The polarity of the digital output may be inverted by control bit INVOP.
D2[15:0] = D1[15:0]
(INVOP = 0) ...................... Eqn. 9
(INVOP = 1) ...................... Eqn. 10
D2[15:0] = 61535 – D1[15:0]
WOLFSON MICROELECTRONICS LTD
PP Rev 1.0 June 2000
11
WM8192
Product Preview
OUTPUT FORMATS
The digital data output from the ADC is available to the user in 8 or 4-bit wide multiplexed formats by
setting control bit MUXOP. Latency of valid output data with respect to VSMP is programmable by
writing to control bits DEL[1:0]. The latency for each mode is shown in the Operating Mode Timing
Diagrams section.
Figure 9 shows the output data formats for Modes 1 – 2 and 4 – 6. Figure 10 shows the output data
formats for Mode 3. Table 1 summarises the output data obtained for each format.
MCLK
MCLK
8+8-BIT
OUTPUT
8+8-BIT
OUTPUT
A
B
A
B
4+4+4+4-BIT
OUTPUT
4+4+4+4-BIT
OUTPUT
A
B
C
D
A B A B C
D
Figure 9 Output Data Formats
Figure 10 Output Data Formats
(Mode 3)
(Modes 1 − 2, 4 − 6)
OUTPUT
FORMAT
MUXOP
OUTPUT
PINS
OUTPUT
8+8-bit
multiplexed
0
1
OP[7:0]
A = d15, d14, d13, d12, d11, d10, d9, d8
B = d7, d6, d5, d4, d3, d2, d1,d0
4+4+4+4-bit
(nibble)
OP[7:4]
A = d15, d14, d13, d12
B = d11, d10, d9, d8
C = d7, d6, d5, d4
D = d3, d2, d1, d0
Table 1 Details of Output Data Shown in Figure 9 and Figure 10.
WOLFSON MICROELECTRONICS LTD
PP Rev 1.0 June 2000
12
Product Preview
WM8192
CONTROL INTERFACE
The internal control registers are programmable via the serial digital control interface. The register
contents can be read back via the serial interface on pin OP[7]/SDO.
SERIAL INTERFACE: REGISTER WRITE
Figure 11 shows register writing in serial mode. Three pins, SCK, SDI and SEN are used. A six-bit
address (a5, 0, a3, a2, a1, a0) is clocked in through SDI, MSB first, followed by an eight-bit data
word (b7, b6, b5, b4, b3, b2, b1, b0), also MSB first. Each bit is latched on the rising edge of SCK.
When the data has been shifted into the device, a pulse is applied to SEN to transfer the data to the
appropriate internal register. Note all valid registers have address bit a4 equal to 0 in write mode.
SCK
a5
0
a3
a2
a1
a0
b7
b6
b5
b4
b3
b2
b1
b0
SDI
Address
Data Word
SEN
Figure 11 Serial Interface Register Write
SERIAL INTERFACE: REGISTER READ-BACK
Figure 12 shows register read-back in serial mode. Read-back is initiated by writing to the serial bus
as described above but with address bit a4 set to 1, followed by an 8-bit dummy data word. Writing
address (a5, 1, a3, a2, a1, a0) will cause the contents (d7, d6, d5, d4, d3, d2, d1, d0) of
corresponding register (a5, 0, a3, a2, a1, a0) to be output MSB first on pin SDO (on the falling edge
of SCK). Note that pin SDO is shared with an output pin, OP[7], therefore OEB should always be
held low when register read-back data is expected on this pin. The next word may be read in to SDI
while the previous word is still being output on SDO.
SCK
a5
1
a3 a2 a1 a0
x
x
x
x
x
x
x
x
SDI
Address
Data Word
SEN
SDO/
OP[7]
d7 d6 d5 d4 d3 d2 d1 d0
Output Data Word
OEB
Figure 12 Serial Interface Register Read-back
TIMING REQUIREMENTS
To use this device a master clock (MCLK) of up to 12MHz and a per-pixel synchronisation clock
(VSMP) of up to 6MHz are required. These clocks drive a timing control block, which produces
internal signals to control the sampling of the video signal. MCLK to VSMP ratios and maximum
sample rates for the various modes are shown in Table 4.
WOLFSON MICROELECTRONICS LTD
PP Rev 1.0 June 2000
13
WM8192
Product Preview
PROGRAMMABLE VSMP DETECT CIRCUIT
The VSMP input is used to determine the sampling point and frequency of the WM8192. Under
normal operation a pulse of 1 MCLK period should be applied to VSMP at the desired sampling
frequency (as shown in the Operating Mode Timing Diagrams) and the input sample will be taken on
the first rising MCLK edge after VSMP has gone low. However, in certain applications such a signal
may not be readily available. The programmable VSMP detect circuit in the WM8192 allows the
sampling point to be derived from any signal of the correct frequency, such as a CCD shift register
clock, when applied to the VSMP pin.
When enabled, by setting the VSMPDET control bit, the circuit detects either a rising or falling edge
(determined by POSNNEG control bit) on the VSMP input pin and generates an internal VSMP pulse.
This pulse can optionally be delayed by a number of MCLK periods, specified by the VDEL[2:0] bits.
Figure 13 shows the internal VSMP pulses that can be generated by this circuit for a typical clock
input signal. The internal VSMP pulse is then applied to the timing control block in place of the
normal VSMP pulse provided from the input pin. The sampling point then occurs on the first rising
MCLK edge after this internal VSMP pulse, as shown in the Operating Mode Timing Diagrams.
MCLK
INPUT
PINS
VSMP
POSNNEG = 1
(VDEL = 000) INTVSMP
(VDEL = 001) INTVSMP
(VDEL = 010) INTVSMP
(VDEL = 011) INTVSMP
(VDEL = 100) INTVSMP
(VDEL = 101) INTVSMP
(VDEL = 110) INTVSMP
(VDEL = 111) INTVSMP
POSNNEG = 0
(VDEL = 000) INTVSMP
(VDEL = 001) INTVSMP
(VDEL = 010) INTVSMP
(VDEL = 011) INTVSMP
(VDEL = 100) INTVSMP
(VDEL = 101) INTVSMP
(VDEL = 110) INTVSMP
(VDEL = 111) INTVSMP
Figure 13 Internal VSMP Pulses Generated by Programmable VSMP Detect Circuit
REFERENCES
The ADC reference voltages are derived from an internal bandgap reference, and buffered to pins
VRT and VRB, where they must be decoupled to ground. Pin VRX is driven by a similar buffer, and
also requires decoupling. The output buffer from the RLCDAC also requires decoupling at pin
VRLC/VBIAS
POWER SUPPLY
The WM8192 can run from a 5V single supply or from split 5V (core) and 3.3V (digital interface)
supplies.
POWER MANAGEMENT
Power management for the device is performed via the Control Interface. The device can be powered
on or off completely by the EN bit. Alternatively, when control bit SELPD is high, only blocks selected
by further control bits (SELDIS[3:0]) are powered down. This allows the user to optimise power
dissipation in certain modes, or to define an intermediate standby mode to allow a quicker recovery
into a fully active state. In Line-by-line operation, the green and blue channel PGAs are automatically
powered down.
WOLFSON MICROELECTRONICS LTD
PP Rev 1.0 June 2000
14
Product Preview
WM8192
All the internal registers maintain their previously programmed value in power down modes and the
Control Interface inputs remain active. Table 2 summarises the power down control bit functions.
EN
0
SELDPD
0
0
1
Device completely powers down.
1
Device completely powers up.
X
Blocks with respective SELDIS[3:0] bit high are disabled.
Table 2 Power Down Control
LINE-BY-LINE OPERATION
Certain linear sensors (e.g. Contact Image Sensors) give colour output on a line-by-line basis. i.e. a
full line of red pixels followed by a line of green pixels followed by a line of blue pixels. In order to
accommodate this type of signal the WM8192 can be set into Monochrome mode, with the input
channel switched by writing to control bits CHAN[1:0] between every line. Alternatively, the WM8192
can be placed into colour line-by-line mode by setting the LINEBYLINE control bit. When this bit is
set the green and blue processing channels are powered down and the device is forced internally to
only operate in MONO mode (because only one colour is sampled at a time) through the red channel.
Figure 14 shows the signal path when operating in colour line-by-line mode.
VRLC/VBIAS
VSMP
MCLK
CL
RS VS TIMING CONTROL
WM8192
R
8
OFFSET
MUX
OFFSET
DAC
G
B
16-
BIT
ADC
DATA
I/O
PORT
RINP
RLC
RLC
RLC
CDS
+
PGA
8
+
OP[7:0]
INPUT
MUX
R
G
B
I/P SIGNAL
POLARITY
ADJUST
PGA
MUX
GINP
BINP
SEN
CONFIGURABLE
SERIAL
SCK
CONTROL
INTERFACE
SDI
RLC
DAC
4
RLC/ACYC
Figure 14 Signal Path When in Line-by-Line Mode
In this mode the input multiplexer and (optionally) the PGA/Offset register multiplexers can be auto-
cycled by the application of pulses to the RLC/ACYC input pin by setting the ACYCNRLC register bit.
The multiplexers change on the first MCLK rising edge after RLC/ACYC is taken high. Alternatively,
all three multiplexers can be controlled via the serial interface by writing to register bits INTM[1:0] to
select the desired colour. It is also possible for the input multiplexer to be controlled separately from
the PGA and Offset multiplexers. Table 3 describes all the multiplexer selection modes that are
possible.
FME ACYCNRLC
NAME
Internal,
no force mux
DESCRIPTION
0
0
1
0
1
0
Input mux, offset and gain registers determined by
internal register bits INTM1, INTM0.
Auto-cycling,
no force mux
Input mux, offset and gain registers auto-cycled, RINP
→ GINP → BINP → RINP… on RLC/ACYC pulse.
Internal,
Input mux selected from internal register bits FM1, FM0;
force mux
Offset and gain registers selected from internal register
bits INTM1, INTM0.
1
1
Auto-cycling,
force mux
Input mux selected from internal register bits FM1, FM0;
Offset and gain registers auto-cycled, RINP → GINP →
BINP → RINP… on RLC/ACYC pulse.
Table 3 Colour Selection Description in Line-by-Line Mode
WOLFSON MICROELECTRONICS LTD
PP Rev 1.0 June 2000
15
WM8192
Product Preview
OPERATING MODES
Table 4 summarises the most commonly used modes, the clock waveforms required and the register
contents required for CDS and non-CDS operation.
MODE
DESCRIPTION
CDS
MAX
SENSOR
INTERFACE
DESCRIPTION
TIMING
REQUIRE-
MENTS
REGISTER
CONTENTS
WITH CDS
REGISTER
CONTENTS
WITHOUT
CDS
AVAILABLE SAMPLE
RATE
1
Colour
Pixel-by-Pixel
Yes
2MSPS
The 3 input channels
are sampled in
MCLK max
= 12MHz
SetReg1:
03(hex)
SetReg1:
01(hex)
parallel. The signal is
then gain and offset
adjusted before being
multiplexed into a
single data stream
and converted by the
ADC, giving an output
data rate of 6MSPS
max.
MCLK:
VSMP
ratio is 6:1
2
3
Monochrome/
Colour
Line-by-Line
Yes
Yes
2MSPS
4MSPS
As mode 1 except:
Only one input
channel at a time
is continuously
sampled.
MCLK max
= 12MHz
SetReg1:
07(hex)
SetReg1:
05(hex)
MCLK:
VSMP
ratio is 6:1
Fast
Monochrome/
Colour
Identical to mode 2
MCLK max
= 12MHz
Identical to
mode 2 plus
SetReg3:
bits 5:4 must
be set to
Identical to
mode 2
MCLK:
VSMP
ratio is 3:1
Line-by-Line
0(hex)
4
5
Maximum
speed
Monochrome/
Colour
No
6MSPS
Identical to mode 2
Identical to mode 1
MCLK max
= 12MHz
CDS not
possible
SetReg1:
45(hex)
MCLK:
VSMP
ratio is 2:1
Line-by-Line
Slow Colour
Pixel-by-Pixel
Yes
1.5MSPS
MCLK max
= 12MHz
Identical to
mode 1
Identical to
mode 1
MCLK:
VSMP
ratio is
2n:1, n ≥ 4
6
Slow
Monochrome/
Colour
Yes
1.5MSPS
Identical to mode 2
MCLK max
= 12MHz
Identical to
mode 2
Identical to
mode 2
MCLK:
VSMP
Line-by-Line
ratio is
2n:1, n ≥ 4
Table 4 WM8192 Operating Modes
Notes:
1.
2.
In Monochrome mode, SetReg3 bits 7:6 determine which input is to be sampled.
For Colour Line-by-Line, set control bit LINEBYLINE. For input selection, refer to Table 4, Colour Selection
Description in Line-by-Line Mode.
WOLFSON MICROELECTRONICS LTD
PP Rev 1.0 June 2000
16
Product Preview
WM8192
OPERATING MODE TIMING DIAGRAMS
The following diagrams show 8-bit multiplexed output data and MCLK, VSMP and input video
requirements for operation of the most commonly used modes as shown in Table 4. The diagrams
are identical for both CDS and non-CDS operation. Outputs from RINP, GINP and BINP are shown
as R, G and B respectively. X denotes invalid data.
16.5 MCLK PERIODS
MCLK
VSMP
INPUT VIDEO
OP[7:0]
(DEL = 00)
RA RB GA GB BA BB RA RB GA GB BA BB RA RB GA GB BA BB RA RB GA GB BA BB RA RB GA GB BA BB
BA BB RA RB GA GB BA BB RA RB GA GB BA BB RA RB GA GB BA BB RA RB GA GB BA BB RA RB GA GB
GA GB BA BB RA RB GA GB BA BB RA RB GA GB BA BB RA RB GA GB BA BB RA RB GA GB BA BB RA RB
RA RB GA GB BA BB RA RB GA GB BA BB RA RB GB GA BA BB RA RB GA GB BA BB RA RB GA GB BA BB
OP[7:0]
(DEL = 01)
OP[7:0]
(DEL = 10)
OP[7:0]
(DEL = 11)
Figure 15 Mode 1 Operation
16.5 MCLK PERIODS
MCLK
VSMP
INPUT VIDEO
RA
RB
X
RA
X
RB
X
RA
X
RB
X
RA
X
RB
X
RA
X
RB
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
OP[7:0] (DEL = 00)
OP[7:0] (DEL = 01)
OP[7:0] (DEL = 10)
OP[7:0] (DEL = 11)
RA
RB
RA
RB
RA
RB
RA
RB
X
X
RA
X
RB
X
RA
X
RB
X
RA
X
RB
X
RA
X
RB
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
RA
RB
RA
RB
RA
RB
RA
RB
RA
RB
Figure 16 Mode 2 Operation
WOLFSON MICROELECTRONICS LTD
PP Rev 1.0 June 2000
17
WM8192
Product Preview
23.5 MCLK PERIODS
MCLK
VSMP
INPUT VIDEO
OP[7:0]
(DEL = 00)
RB
RB
RB
RB
RA
RA
RA
RA
RB
RB
RB
RB
RA
RA
RA
RA
RB
RB
RB
RB
RA
RA
RA
RA
RB
RB
RB
RB
RA
RA
RA
RA
RB
RB
RB
RB
RA
RA
RA
RA
RB
RB
RB
RB
RA
RA
RA
RA
RB
RB
RB
RB
RA
RA
RA
RA
RB
RB
RB
RB
RA
RA
RA
RA
RB
RB
RB
RB
RA
RA
RA
RA
RB
RB
RB
RB
RA
RA
RA
RA
RB
RB
RB
RB
RA
RA
RA
RA
RB
RB
RB
RB
RA
RA
RA
RA
RB
RB
RB
RB
OP[7:0]
(DEL = 01)
OP[7:0]
(DEL = 10)
OP[7:0]
(DEL = 11)
Figure 17 Mode 3 Operation
16.5 MCLK PERIODS
MCLK
VSMP
INPUT VIDEO
OP[7:0]
RA
RA
RA
RA
RB
RB
RB
RB
RA
RA
RA
RA
RB
RB
RB
RB
RA
RA
RA
RA
RB
RB
RB
RB
RA
RB
RB
RB
RB
RA
RA
RA
RA
RB
RB
RB
RB
RA
RA
RA
RA
RB
RB
RB
RB
RA
RB
RA
RB
RB
RB
RB
RA
RA
RA
RA
RB
RB
RB
RB
RA
RA
RA
RA
RB
RB
RB
RB
RA
RA
RA
RA
RB
RB
RB
RB
RA
RB
RA
RB
(DEL = 00)
OP[7:0]
(DEL = 01)
RA
RA
RA
RA
RA
RA
RB
RB
RB
RA
RA
RA
RA
RA
RA
RB
RB
RB
RA
RA
RA
RB
RB
RB
OP[7:0]
(DEL = 10)
OP[7:0]
(DEL = 11)
Figure 18 Mode 4 Operation
WOLFSON MICROELECTRONICS LTD
PP Rev 1.0 June 2000
18
Product Preview
WM8192
16.5 MCLK PERIODS
MCLK
VSMP
INPUT
VIDEO
OP[7:0]
RA RB GA GB BA BB
RA RB GA GB BA BB
RA RB GA GB BA BB
RA RB GA GB
X
X
X
X
X
X
X
X
(DEL = 00)
OP[7:0]
BA BB
RA RB GA GB BA BB
RA RB GA GB BA BB
RA RB GA GB BA BB
RA RB
X
X
X
X
X
X
X
X
(DEL = 01)
OP[7:0]
GA GB BA BB
RA RB GA GB BA BB
RA RB GA GB BA BB
RA RB GA GB BA BB
X
X
X
X
X
X
X
X
(DEL = 10)
OP[7:0]
RA RB GA GB BA BB
RA RB GA GB BA BB
RA RB GA GB BA BB
RA RB GA GB BA BB
X
X
X
X
X
X
(DEL = 11)
Figure 19 Mode 5 Operation (MCLK:VSMP Ratio = 8:1)
16.5 MCLK PERIODS
MCLK
VSMP
INPUT VIDEO
OP[7:0]
(DEL = 00)
RA
X
RB
X
RA
X
RB
X
RA
X
RB
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
OP[7:0]
(DEL = 01)
RA
RB
RA
RB
X
RA
RB
OP[7:0]
(DEL = 10)
RA
RB
RA
RB
RA
RB
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
OP[7:0]
RA
RB
RA
RB
RA
RB
RA
RB
X
X
X
X
X
X
X
X
X
X
X
X
X
(DEL = 11)
Figure 20 Mode 6 Operation (MCLK:VSMP Ratio = 8:1)
WOLFSON MICROELECTRONICS LTD
PP Rev 1.0 June 2000
19
WM8192
Product Preview
DEVICE CONFIGURATION
REGISTER MAP
The following table describes the location of each control bit used to determine the operation of the
WM8192. The register map is programmed by writing the required codes to the appropriate
addresses via the serial interface.
ADDRESS
<a5:a0>
DESCRIPTION
DEF
RW
BIT
(hex)
b7
b6
b5
b4
PGAFS[0]
0
b3
b2
b1
b0
EN
000001
000010
000011
000100
000101
000110
000111
001000
001001
001010
001011
001100
100000
100001
Setup Reg 1
Setup Reg 2
Setup Reg 3
Software Reset
Auto-cycle Reset
Setup Reg 4
Revision Number
Setup Reg 5
Setup Reg 6
Reserved
03
20
1F
00
00
00
41
00
00
00
00
00
80
80
RW
RW
RW
W
MODE4
DEL[0]
PGAFS[1]
SELPD
MONO
INVOP
RLCV[2]
CDS
DEL[1]
RLCDACRNG
CDSREF [1]
VRLCEXT
RLCV[3]
MUXOP
RLCV[1]
0
CHAN[1] CHAN[0]
CDSREF [0]
RLCV[0]
W
RW
R
FM[1]
FM[0]
INTM[1]
INTM[0]
RLCINT
FME
ACYCNRLC
LINEBYLINE
RW
RW
RW
RW
RW
RW
RW
0
0
0
POSNNEG
VDEL[2]
VDEL[1]
VDEL[0]
VSMPDET
0
0
0
0
SELDIS[3]
SELDIS[2]
SELDIS[1]
SELDIS[0]
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
Reserved
Reserved
0
0
0
0
0
0
0
0
DAC Value (Red)
DAC[7]
DAC[7]
DAC[6]
DAC[6]
DAC[5]
DAC[5]
DAC[4]
DAC[4]
DAC[3]
DAC[3]
DAC[2]
DAC[2]
DAC[1]
DAC[1]
DAC[0]
DAC[0]
DAC Value
(Green)
100010
100011
101000
101001
DAC Value (Blue)
DAC Value (RGB)
PGA Gain (Red)
80
80
00
00
RW
W
DAC[7]
DAC[7]
PGA[7]
PGA[7]
DAC[6]
DAC[6]
PGA[6]
PGA[6]
DAC[5]
DAC[5]
PGA[5]
PGA[5]
DAC[4]
DAC[4]
PGA[4]
PGA[4]
DAC[3]
DAC[3]
PGA[3]
PGA[3]
DAC[2]
DAC[2]
PGA[2]
PGA[2]
DAC[1]
DAC[1]
PGA[1]
PGA[1]
DAC[0]
DAC[0]
PGA[0]
PGA[0]
RW
RW
PGA Gain
(Green)
101010
101011
PGA Gain (Blue)
PGA Gain (RGB)
00
00
RW
W
PGA[7]
PGA[7]
PGA[6]
PGA[6]
PGA[5]
PGA[5]
PGA[4]
PGA[4]
PGA[3]
PGA[3]
PGA[2]
PGA[2]
PGA[1]
PGA[1]
PGA[0]
PGA[0]
Table 5 Register Map
REGISTER MAP DESCRIPTION
The following table describes the function of each of the control bits shown in Table 5.
REGISTER
BIT
NO
BIT
NAME(S)
DEFAULT
DESCRIPTION
Setup
Register 1
0
1
EN
1
1
Global power down: 0 = complete power down, 1 = fully active.
CDS
Select correlated double sampling mode: 0 = single ended mode,
1 = CDS mode.
2
3
MONO
SELPD
0
0
Mono/colour select: 0 = colour, 1 = monochrome operation.
Selective power down: 0 = no individual control,
1 = individual blocks can be disabled (controlled by SELDIS[3:0]).
5:4
PGAFS[1:0]
MODE4
00
Offsets PGA output to optimise the ADC range for different polarity sensor
output signals. Zero differential PGA input signal gives:
00 = Zero output
(use for bipolar video)
01 = Zero output
10 = Full-scale positive output
(use for negative going video)
11 = Full-scale negative output
(use for positive going video)
6
0
Required when operating in MODE4: 0 = other modes, 1 = MODE4.
WOLFSON MICROELECTRONICS LTD
PP Rev 1.0 June 2000
20
Product Preview
WM8192
REGISTER
BIT
NO
BIT
NAME(S)
DEFAULT
DESCRIPTION
Determines the output data format.
Setup
1
MUXOP
0
Register 2
0 = 8-bit multiplexed (8+8 bits)
1 = 4-bit multiplexed mode (4+4+4+4-bits)
2
INVOP
0
Digitally inverts the polarity of output data.
0 = negative going video gives negative going output,
1 = negative-going video gives positive going output data.
3
5
VRLCEXT
0
1
When set powers down the RLCDAC, changing its output to Hi-Z, allowing
VRLC/VBIAS to be externally driven.
RLCDACRNG
Sets the output range of the RLCDAC.
0 = RLCDAC ranges from 0 to AVDD (approximately),
1 = RLCDAC ranges from 0 to VRT (approximately).
7:6
DEL[1:0]
00
Sets the output latency in ADC clock periods.
1 ADC clock period = 2 MCLK periods except in Mode 3 where 1 ADC
clock period = 3 MCLK periods.
00 = Minimum latency
01 = Delay by one ADC clock
period
10 = Delay by two ADC clock periods
11 = Delay by three ADC clock
periods
Setup
Register 3
3:0
5:4
RLCV[3:0]
1111
01
Controls RLCDAC driving VRLC pin to define single ended signal
reference voltage or Reset Level Clamp voltage. See Electrical
Characteristics section for ranges.
CDSREF[1:0]
CDS mode reset timing adjust.
00 = Advance 1 MCLK period
01 = Normal
10 = Retard 1 MCLK period
11 = Retard 2 MCLK periods
7:6
CHAN[1:0]
00
Monochrome mode channel select.
00 = Red channel select
01 = Green channel select
10 = Blue channel select
11 = Reserved
Software
Reset
Any write to Software Reset causes all cells to be reset.
Auto-cycle
Reset
Any write to Auto-cycle Reset causes the auto-cycle counter to reset
to RINP.
Setup
Register 4
0
1
LINEBYLINE
ACYCNRLC
0
0
Selects line by line operation 0 = normal operation,
1 = line by line operation.
When line by line operation is selected MONO is forced to 1 and
CHAN[1:0] to 00 internally, ensuring that the correct internal timing signals
are produced. Green and Blue PGAs are also disabled to save power.
When LINEBYLINE = 0 this bit has no effect.
When LINEBYLINE = 1 this bit determines the function of the RLC/ACYC
input pin and the input multiplexer and offset/gain register controls.
0 = RLC/ACYC pin enabled for Reset Level Clamp. Internal selection of
input and gain/offset multiplexers,
1 = Auto-cycling enabled by pulsing the RLC/ACYC input pin.
See Table 4, Colour Selection Description in Line-by-Line Mode for colour
selection mode details.
When auto-cycling is enabled, the RLC/ACYC pin cannot be used for
reset level clamping. The RLCINT bit may be used instead.
2
FME
0
When LINEBYLINE = 0 this bit has no effect.
When LINEBYLINE = 1 this bit controls the input force mux mode:
0 = No force mux, 1 = Force mux mode. Forces the input mux to be
selected by FM[1:0] separately from gain and offset multiplexers.
See Table 4 for details.
3
RLCINT
0
When LINEBYLINE = 1 and ACYCNRLC = 1 this bit is used to determine
whether Reset Level Clamping is used.
0 = RLC disabled, 1 = RLC enabled.
5:4
INTM[1:0]
00
Colour selection bits used in internal modes.
00 = Red, 01 = Green, 10 = Blue and 11 = Reserved.
See Table 4 for details.
7:6
FM[1:0]
00
Colour selection bits used in input force mux modes.
00 = Red, 01 = Green, 10 = Blue and 11 = Reserved.
See Table 4 for details.
WOLFSON MICROELECTRONICS LTD
PP Rev 1.0 June 2000
21
WM8192
Product Preview
REGISTER
BIT
NO
BIT
NAME(S)
DEFAULT
DESCRIPTION
Setup
Register 5
0
VSMPDET
0
0 = Normal operation, signal on VSMP input pin is applied directly to
Timing Control block.
1 = Programmable VSMP detect circuit is enabled. An internal
synchronisation pulse is generated from signal applied to VSMP input pin
and is applied to Timing Control block.
3:1
VDEL[2:0]
000
When VSMPDET = 0 these bits have no effect.
When VSMPDET = 1 these bits set a programmable delay from the
detected edge of the signal applied to the VSMP pin. The internally
generated pulse is delayed by VDEL MCLK periods from the detected
edge.
See Figure 13, Internal VSMP Pulses Generated for details.
4
POSNNEG
0
When VSMPDET = 0 this bit has no effect.
When VSMPDET = 1 this bit controls whether positive or negative edges
are detected:
0 = Negative edge on VSMP pin is detected and used to generate internal
timing pulse.
1 = Positive edge on VSMP pin is detected and used to generate internal
timing pulse.
See Figure 13 for further details.
Setup
Register 6
3:0
7:0
SELDIS[3:0]
DAC[7:0]
0000
Selective power disable register - activated when SELPD = 1.
Each bit disables respective cell when 1, enabled when 0.
SELDIS[0] = Red CDS, PGA
SELDIS[1] = Green CDS, PGA
SELDIS[2] = Blue CDS, PGA
SELDIS[3] = ADC
Offset DAC
(Red)
0
Red channel offset DAC value.
Offset DAC
(Green)
7:0
7:0
7:0
DAC[7:0]
DAC[7:0]
DAC[7:0]
0
0
0
Red channel offset DAC value
Red channel offset DAC value
Offset DAC
(Blue)
Offset DAC
(RGB)
A write to this register location causes the red, green and blue offset DAC
registers to be overwritten by the new value
PGA gain
(Red)
7:0
7:0
7:0
7:0
PGA[7:0]
PGA[7:0]
PGA[7:0]
PGA[7:0]
0
0
0
0
Determines the gain of the red channel PGA according to the equation:
Red channel PGA gain = 208/(283-PGA[7:0])
PGA gain
(Green)
Determines the gain of the green channel PGA according to the equation:
Green channel PGA gain = 208/(283-PGA[7:0])
PGA gain
(Blue)
Determines the gain of the blue channel PGA according to the equation:
Blue channel PGA gain = 208/(283-PGA[7:0])
PGA gain
(RGB)
A write to this register location causes the red, green and blue PGA gain
registers to be overwritten by the new value
Table 6 Register Control Bits
WOLFSON MICROELECTRONICS LTD
PP Rev 1.0 June 2000
22
Product Preview
WM8192
RECOMMENDED EXTERNAL COMPONENTS
DVDD
3
8
DVDD1
DGND
10
DVDD2
C1
C2
AVDD
21
22
2
AVDD
AGND1
AGND2
C3
DGND
AGND
AGND
24
25
23
VRT
VRX
VRB
1
RINP
GINP
BINP
C4
C5
Video
Inputs
28
27
C6
C7
C8
26
VRLC/VBIAS
C9
AGND
WM8192
AGND
20
19
18
17
16
15
14
13
OP[7]/SDO
DVDD
AVDD
7
5
6
MCLK
OP[6]
Timing
Signals
VSMP
OP[5]
C10
C11
+
C12
+
+
Output
Data
Bus
RLC/ACYC
OP[4]
OP[3]
12
11
9
SCK
SDI
OP[2]
DGND
AGND
OP[1]
SEN
OP[0]
Interface
Controls
4
OEB
NOTES: 1. C1-9 should be fitted as close to WM8192 as possible.
2. AGND and DGND should be connected as close to WM8192 as possible.
3. DVDD should be connected as close to WM8192 as possible.
Figure 21 External Components Diagram
COMPONENT
REFERENCE
SUGGESTED
VALUE
DESCRIPTION
C1
C2
100nF
100nF
100nF
10nF
De-coupling for DVDD1.
De-coupling for DVDD2.
De-coupling for AVDD.
C3
C4
High frequency de-coupling between VRT and VRB.
C5
1µF
Low frequency de-coupling between VRT and VRB (non-polarised).
De-coupling for VRB.
C6
100nF
100nF
100nF
100nF
10µF
C7
De-coupling for VRX.
C8
De-coupling for VRT.
C9
De-coupling for VRLC.
C10
C11
C12
Reservoir capacitor for DVDD.
Reservoir capacitor for DVDD.
Reservoir capacitor for AVDD.
10µF
10µF
Table 7 External Components Descriptions
WOLFSON MICROELECTRONICS LTD
PP Rev 1.0 June 2000
23
WM8192
Product Preview
PACKAGE DIMENSIONS
D: 28 PIN SOICW 7.5mm (0.3") Wide Body, 1.27mm Lead Pitch
DM016.B
e
B
15
28
ZONE A
ZONE B
E
H
L
h x 45o
1
14
D
α
C
A1
SEATING PLANE
-C-
A
0.10 (0.004)
Dimensions
(mm)
Dimensions
(Inches)
Symbols
MIN
2.35
0.10
0.33
0.23
17.70
MAX
2.65
0.30
0.51
0.32
18.10
MIN
MAX
A
A1
B
C
D
e
0.0926
0.0040
0.0130
0.0091
0.6969
0.1043
0.0118
0.0200
0.0125
0.7125
1.27 BSC
0.0500 BSC
E
h
H
L
7.40
0.25
10.00
0.40
0o
7.60
0.75
10.65
1.27
8o
0.2914
0.0100
0.3940
0.0160
0o
0.2992
0.0290
0.4190
0.0500
8o
α
REF:
JEDEC.95, MS-013
NOTES:
A. ALL LINEAR DIMENSIONS ARE IN MILLIMETERS (INCHES).
B. THIS DRAWING IS SUBJECT TO CHANGE WITHOUT NOTICE.
C. BODY DIMENSIONS DO NOT INCLUDE MOLD FLASH OR PROTRUSION, NOT TO EXCEED 0.25MM (0.010IN).
D. MEETS JEDEC.95 MS-013, VARIATION = AE. REFER TO THIS SPECIFICATION FOR FURTHER DETAILS.
E. PIN ONE INDICATORS WILL BE LOCATED IN EITHER ZONE A OR ZONE B.
WOLFSON MICROELECTRONICS LTD
PP Rev 1.0 June 2000
24
厂商 型号 描述 页数 下载

WOLFSON

 		XWM8146CDW/V 12位（8 + 4位）的线性传感器图像处理器[ 12-bit(8+4-bit) Linear Sensor Image Processor ] 17 页

WOLFSON

 		XWM8148CFT/V 12位/ 12MSPS CCD / CIS模拟前端/数字转换器[ 12-bit/12MSPS CCD/CIS Analogue Front End/Digitiser ] 43 页

WOLFSON

 		XWM8170CFT/V 3.3V集成信号处理器的面阵CCD的[ 3.3V Integrated Signal Processor for Area Array CCDs ] 41 页

WOLFSON

 		XWM8181CDW 12位2MSPS串行输出CIS / CCD数字转换器[ 12-bit 2MSPS Serial Output CIS/CCD Digitiser ] 14 页

WOLFSON

 		XWM8190CDW/V （ 8 + 6 ）位输出14位CIS / CCD AFE /数字转换器[ (8+6) Bit Output 14-bit CIS/CCD AFE/Digitiser ] 25 页

WOLFSON

 		XWM8191CFT 14位6MSPS CIS / CCD模拟前端/数字转换器[ 14-bit 6MSPS CIS/CCD Analogue Front End/Digitiser ] 27 页

WOLFSON

 		XWM8192CDW/V （88）位输出16位CIS / CCD AFE /数字转换器[ (88) Bit Output 16-bit CIS/CCD AFE/Digitiser ] 24 页

CIRRUS

 		XWM8194CDW/V [ Analog Circuit, 1 Func, CMOS, PDSO28, 7.50 MM, 1.27 MM PITCH, MS-013AE, SOIC-28 ] 27 页

WOLFSON

 		XWM81955CFT/RV 14位12MSPS CIS / CCD模拟前端/数字转换器[ 14-bit 12MSPS CIS/CCD Analogue Front End/Digitiser ] 33 页

WOLFSON

 		XWM8195CFT 14位12MSPS CIS / CCD模拟前端/数字转换器[ 14-bit 12MSPS CIS/CCD Analogue Front End/Digitiser ] 31 页

购物指南

支付方式

配送服务

售后服务

发票须知

优惠券使用规则

特色服务

PCBA制造

国产品牌推荐

国产料号替代

质量保证

技术资料

行业资讯

关于我们

关于壹壹捌

联系我们

联系我们

服务热线：400-618-9990

企业邮箱：sales@ic118.com

服务时间：周一至周六 8:30-17:30

壹壹捌官方微信号

PDF索引：

A

B

C

D

E

F

G

H

I

J

K

L

M

N

O

P

Q

R

S

T

U

V

W

X

Y

Z

0

1

2

3

4

5

6

7

8

9

IC型号索引：

A

B

C

D

E

F

G

H

I

J

K

L

M

N

O

P

Q

R

S

T

U

V

W

X

Y

Z

0

1

2

3

4

5

6

7

8

9

Copyright 2024 gkzhan.com Al Rights Reserved 京ICP备06008810号-21 京

深圳网络警察报警平台
公共信息安全网络监察
经营性网站备案信息
不良信息举报中心
工商网监电子标识
全国公安机关备案
0.207014s
