XWM8740EDS

型号:

XWM8740EDS

描述:

24位高性能192kHz的立体声DAC[ 24-bit, High Performance 192kHz Stereo DAC ]

品牌:

WOLFSON[ WOLFSON MICROELECTRONICS PLC ]

页数:

20 页

PDF大小:

345 K

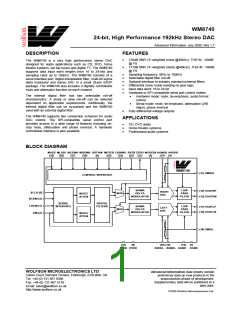

WM8740
24-bit, High Performance 192kHz Stereo DAC
Advanced Information, July 2000, Rev 1.7
DESCRIPTION
FEATURES
120dB SNR (‘A’ weighted mono @48kHz), THD+N: -104dB
@ FS
117dB SNR (‘A’ weighted stereo @48kHz), THD+N: -104dB
@ FS
Sampling frequency: 8kHz to 192kHz
Selectable digital filter roll-off
Optional interface to industry standard external filters
Differential mono mode needing no glue logic
Input data word: 16 to 24-bit
The WM8740 is a very high performance stereo DAC
designed for audio applications such as CD, DVD, home
theatre systems, set top boxes and digital TV. The WM8740
supports data input word lengths from 16 to 24-bits and
sampling rates up to 192kHz. The WM8740 consists of a
serial interface port, digital interpolation filter, multi-bit sigma
delta modulator and stereo DAC in a small 28-pin SSOP
package. The WM8740 also includes a digitally controllable
mute and attenuator function on each channel.
Hardware or SPI compatible serial port control modes:
The internal digital filter has two selectable roll-off
characteristics. A sharp or slow roll-off can be selected
dependent on application requirements. Additionally, the
internal digital filter can be by-passed and the WM8740
used with an external digital filter.
Hardware mode: mute, de-emphasis, audio format
control
Serial mode: mute, de-emphasis, attenuation (256
steps), phase reversal
Fully differential voltage outputs
The WM8740 supports two connection schemes for audio
DAC control. The SPI-compatible serial control port
provides access to a wide range of features including on-
chip mute, attenuation and phase reversal. A hardware
controllable interface is also available.
APPLICATIONS
CD, DVD audio
Home theatre systems
Professional audio systems
BLOCK DIAGRAM
MODE ML/I2S MC/DM1 MD/DM0 DIFFHW MUTEB CSBIWO RSTB ZERO MODE8X AGNDR AVDDR
(24)
(28)
(27)
(26)
(6)
(25)
(23)
(22) (21)
(4)
(10) (9)
WM8740
(11) VMIDR
CONTROL INTERFACE
SIGMA
DELTA
MODULATOR
LOW
PASS
FILTER
(12) VOUTRP
(13) VOUTRN
RIGHT
DAC
SCLK (5)
MUX
MUX
MUTE/
ATTEN
BCKIN (3)
SERIAL
INTERFACE
DIGITAL
FILTERS
LRCIN (1)
DIN (2)
SIGMA
DELTA
MODULATOR
LOW
PASS
FILTER
(17) VOUTLP
(16) VOUTLN
LEFT
DAC
MUTE/
ATTEN
(18) VMIDL
(15)
(8)
(20) (19)
(14) (7)
AVDD DVDD
AVDDL. AGNDL AGND DGND
WOLFSON MICROELECTRONICS LTD
Lutton Court, Bernard Terrace, Edinburgh, EH8 9NX, UK
Tel: +44 (0) 131 667 9386
Fax: +44 (0) 131 667 5176
Email: sales@wolfson.co.uk
Advanced Information data sheets contain
preliminary data on new products in the
preproduction phase of development.
Supplementary data will be published at a
later date.
http://www.wolfson.co.uk
2000 Wolfson Microelectronics Ltd.
WM8740
Advanced Information
PIN CONFIGURATION
ORDERING INFORMATION
DEVICE
TEMP. RANGE
PACKAGE
ML/I2S
MC/DM1
MD/DM0
MUTEB
MODE
LRCIN
DIN
1
2
3
4
5
6
7
8
9
10
28
27
26
25
24
23
22
21
20
19
18
17
16
15
XWM8740EDS
-25° to +85°C
28-pin SSOP
BCKIN
MODE8X
SCLK
DIFFHW
DGND
CSBIWO
RSTB
DVDD
ZERO
AVDDR
AGNDR
VMIDR
AVDDL
AGNDL
VMIDL
11
12
13
14
VOUTLP
VOUTLN
AVDD
VOUTRP
VOUTRN
AGND
PIN DESCRIPTION
PIN
1
NAME
LRCIN
DIN
TYPE
Digital input
Digital input
Digital input
Digital input
Digital input
Digital input
Supply
DESCRIPTION
Sample rate clock input.
2
Audio data serial input (except in 8XMODE when it is DINL).
Audio data bit clock input .
3
BCKIN
MODE8X
SCLK
4
Internal pull-down, active high, 8 x fs mode.
System clock input.
5
6
DIFFHW
DGND
DVDD
Internal pull-down, active high, differential mono mode.
Digital ground supply.
7
8
Supply
Digital positive supply.
9
AVDDR
AGNDR
VMIDR
Supply
Analogue positive supply.
10
11
12
13
14
15
16
17
18
19
20
21
22
Supply
Analogue ground supply.
Analogue output
Mid rail right channel.
VOUTRP Analogue output
VOUTRN Analogue output
Right channel DAC output positive.
Right channel DAC output negative.
Analogue ground supply.
AGND
AVDD
Supply
Supply
Analogue positive supply.
VOUTLN Analogue output
VOUTLP Analogue output
Left channel DAC output negative.
Left channel DAC output positive.
Mid rail left channel.
VMIDL
AGNDL
AVDDL
ZERO
Analogue output
Supply
Analogue ground supply.
Supply
Analogue positive supply.
Digital output
Digital input
Infinite zero detect active low. Open drain type output with active pull-down.
Reset input active low. Internal pull-up.
RSTB
WOLFSON MICROELECTRONICS LTD
AI Rev 1.7 July 2000
2
Advanced Information
WM8740
PIN
NAME
TYPE
DESCRIPTION
Hardware Mode
Normal Mode
Software
Mode
Differential Mode
8X Mode
Wordlength:
Wordlength:
Wordlength:
Low for 20-bit data.
High for 24-bit data.
Low for
serial
interface
operation.
23
CSBIWO
Digital input
Low for 16-bit data.
High for 20-bit
(normal) or 24-bit
I2S data.
Low for 16-bit data.
High for 20-bit
(normal) or 24-bit
I2S data.
Internal pull-down
24
25
MODE
Digital input
Low for hardware
mode.
Low for left
mono mode.
DINR
High for
software
mode.
Internal pull-up
High for right
mono mode
MUTEB
Digital input
Low to soft mute.
Low to soft mute.
Low to soft mute.
Low to
soft mute.
Internal pull-up
High for normal
operation.
High for normal
operation.
High for normal
operation.
High for
normal
operation.
26
27
28
MD/DM0
MC/DM1
ML/I2S
Digital input
De-emphasis mode
select bit 0.
Low for no
de-emphasis.
LRP LRCLK
polarity select.
Control serial
interface
data signal.
Internal pull-up
High for 44.1kHz
de-emphasis.
Digital input
De-emphasis mode
select bit 1.
Low for normal filter
operation.
Unused.
Control serial
interface
clock signal.
Internal pull-up
Leave unconnected.
High for filter slow
roll-off.
Digital input
Audio serial format:
Low right justified.
High I2S.
Audio serial format:
Low right justified.
High I2S.
Input data format:
Low right justified.
High left justified.
Control serial
interface
load signal.
Internal pull-up
Note: Digital input pins have Schmitt trigger input buffers.
ABSOLUTE MAXIMUM RATINGS
Absolute Maximum Ratings are stress ratings only. Permanent damage to the device may be caused by continuously operating at
or beyond these limits. Device functional operating limits and guaranteed performance specifications are given under Electrical
Characteristics at the test conditions specified
ESD Sensitive Device. This device is manufactured on a CMOS process. It is therefore generically susceptible
to damage from excessive static voltages. Proper ESD precautions must be taken during handling and storage
of this device.
CONDITION
MIN
MAX
+7.0V
Supply voltage
-0.3V
Reference input
VDD + 0.3V
Operating temperature range, TA
Storage temperature
°
°
+85 C
-25 C
°
°
+150 C
-65 C
Package body temperature (soldering, 10 seconds)
Package body temperature (soldering, 2 minutes)
°
+240 C
°
+183 C
WOLFSON MICROELECTRONICS LTD
AI Rev 1.7 July 2000
3
WM8740
Advanced Information
RECOMMENDED OPERATING CONDITIONS
PARAMETER
SYMBOL
TEST CONDITIONS
MIN
TYP
MAX
UNIT
Digital supply range
Analogue supply range
Ground
DVDD
AVDD
-10%
-10%
3.3 to 5
+10%
+10%
V
V
3.3 to 5
AGND, DGND
0
0
V
Difference DGND to AGND
Analogue supply current
Digital supply current
Analogue supply current
Digital supply current
-0.3
+0.3
V
AVDD = 5V
DVDD = 5V
AVDD = 3.3V
DVDD = 3.3V
15
15
15
9
mA
mA
mA
mA
ELECTRICAL CHARACTERISTICS
TEST CONDITIONS
AVDD, DVDD = 5V, AGND, DGND = 0V, TA = +25oC, fs = 48kHz, SCKI = 256fs unless otherwise stated.
PARAMETER
DAC Circuit Specifications
SNR
SYMBOL
TEST CONDITIONS
MIN
110
-95
TYP
MAX
UNIT
Mono fs @ 48kHz
Stereo fs @ 48kHz
Stereo fs @ 96kHz
Mono 0dB
120
117
116
-104
-104
117
dB
dB
dB
dB
dB
dB
(See Note 1)
THD (full-scale)
(See Note 2)
Stereo 0dB
THD+N (Dynamic range)
(See Note 2)
-60dB
Filter Characteristics (Sharp Roll-off)
Passband
±0.0012 dB
0.4535fs
-82
dB
Stopband
-3dB
0.491fs
30/fs
Passband ripple
±0.0012
±0.001
dB
dB
s
Stopband attenuation
Delay time
f > 0.5465fs
Filter Characteristics (Slow Roll-off)
Passband
±0.001dB
0.274fs
0.459fs
Stopband
-3dB
Passband ripple
dB
dB
s
Stopband attenuation
Delay time
f > 0.732fs
-82
9/fs
Internal Analogue Filter
Bandwidth
-3dB
195
kHz
dB
Passband edge response
Digital Logic Levels
20kHz
-0.043
Input LOW level
Input HIGH level
Output LOW level
Output HIGH level
VIL
VIH
0.8
2.0
V
V
VOL
VOH
IOL = 2mA
IOH = 2mA
AVSS + 0.3V
AVDD - 0.3V
WOLFSON MICROELECTRONICS LTD
AI Rev 1.7 July 2000
4
Advanced Information
WM8740
TEST CONDITIONS
AVDD, DVDD = 5V, AGND, DGND = 0V, TA = +25oC, fs = 48kHz, SCKI = 256fs unless otherwise stated.
PARAMETER
SYMBOL
TEST CONDITIONS
MIN
TYP
MAX
UNIT
Analogue Output Levels
Output level differential
Into 10kohm, full scale 0dB,
(5V supply)
2
1.32
1
VRMS
VRMS
Into 10kohm, full scale 0dB,
(3.3V supply)
Minimum resistance load
To midrail or AC coupled
(5V supply)
kohms
ohms
To midrail or AC coupled
(3.3V supply)
600
Maximum capacitance load
Output DC level
5V or 3.3V
100
pF
V
AVDD/2
Reference Levels
Potential divider resistance
10
AVDD/2
2.2
kohms
AVDD to VMIDL/VMIDR and
VMIDL/VMIDR to AGND
Voltage at VMIDL/VMIDR
POR
POR threshold
V
Notes: 1.
Ratio of output level with 1kHz full scale input, to the output level with all zeros into the digital input, measured A’
weighted over a 20Hz to 20kHz bandwidth.
2.
All performance measurements done with 20kHz low pass filter. Failure to use such a filter will result in higher
THD+N and lower SNR and Dynamic Range readings than are found in the Electrical Characteristics. The low
pass filter removes out of band noise; although it is not audible it may affect dynamic specification values.
LRCIN
tBCH
tBCL
tLB
BCKIN
DIN
tBCY
tBL
tDS
tDH
Figure 1 Audio Data Input Timing
Test Conditions
AVDD, DVDD = 5V, AGND, DGND = 0V, TA = +25oC, fs = 48kHz, SCKI = 256fs unless otherwise stated.
PARAMETER
SYMBOL
TEST CONDITIONS
MIN
TYP
MAX
UNIT
Audio Data Input Timing Information
BCKIN pulse cycle time
BCKIN pulse width high
BCKIN pulse width low
tBCY
tBCH
tBCL
tBL
100
40
ns
ns
ns
ns
40
BCKIN rising edge to
LRCIN edge
20
LRCIN rising edge to
BCKIN rising edge
tLB
20
ns
WOLFSON MICROELECTRONICS LTD
AI Rev 1.7 July 2000
5
WM8740
Advanced Information
Test Conditions
AVDD, DVDD = 5V, AGND, DGND = 0V, TA = +25oC, fs = 48kHz, SCKI = 256fs unless otherwise stated.
PARAMETER
DIN setup time
DIN hold time
SYMBOL
tDS
TEST CONDITIONS
MIN
20
TYP
MAX
UNIT
ns
tDH
20
ns
tSCKIL
SCKI
tSCKIH
tSCKY
Figure 2 System Clock Timing Requirements
Test Conditions
AVDD, DVDD = 5V, AGND, DGND = 0V, TA = +25oC, fs = 48kHz, SCKI = 256fs unless otherwise stated.
PARAMETER
SYMBOL
TEST CONDITIONS
MIN
TYP
MAX
UNIT
System Clock Timing Information
System clock pulse width high
System clock pulse width low
System clock cycle time
tSCKIH
tSCKIL
tSCKY
10
10
27
ns
ns
ns
tMLL
tMHH
ML/I2S
tMCY
tMCH tMCL
tMLD
tMLS
MC/DM1
MD/DM0
tMDS
tMDH
LSB
Figure 3 Program Register Input Timing – SPI Compatible Serial Control Mode
Test Conditions
AVDD, DVDD = 5V, AGND, DGND = 0V, TA = +25oC, fs = 48kHz, SCKI = 256fs unless otherwise stated.
PARAMETER
SYMBOL
TEST CONDITIONS
MIN
TYP
MAX
UNIT
Program Register Input Information
MC/DM1 pulse cycle time
MC/DM1 pulse width low
MD/DM0 pulse width high
MD/DM0 set-up time
tMCY
tMCL
tMCH
tMDS
tMDH
tMLL
tMHH
tMLS
tMLD
80
32
32
10
10
10
10
10
10
ns
ns
ns
ns
ns
ns
ns
ns
ns
MC/DM1 hold time
ML/I2S pulse width low
ML/I2S pulse width high
ML/I2S set-up time
ML/I2S delay from MC
WOLFSON MICROELECTRONICS LTD
AI Rev 1.7 July 2000
6
Advanced Information
WM8740
DEVICE DESCRIPTION
The WM8740 is a high performance 128fs oversampling rate stereo DAC employing a novel 64 level
sigma delta DAC design which provides optimised signal-to-noise performance and clock jitter
tolerance. It is ideally suited to high quality audio applications such as CD, DVD-audio, home theatre
receivers and professional mixing consoles. The WM8740 supports sample rates from 8ks/s to
192ks/s.
The control functions of the WM8740 are either pin selected (hardware mode) or programmed via the
serial interface (software mode). Control functions that are available include: data input word length
and format selection (16-24 bits: I2S, left justified or right justified): de-emphasis sample rate
selection (48kHz, 44.1kHz and 32kHz); differential output modes; a software or hardware mute and
independently digitally controllable attenuation on both channels.
The digital filtering may be bypassed entirely by selecting MODE8X. Data is then input directly to the
DAC, bypassing the digital filters. Left and right channels are input separately, using the MODE pin
as the right channel input. This mode allows the use of alternative digital filters, such as the Pacific
Microsonics PMD100 HDCD filter.
In addition to the normal stereo operating mode the WM8740 may also be used in dual differential
mode with either the left or right channel (selectable) being output dual differentially. Two WM8740s
can then be used in parallel to implement a stereo channel, each supporting a single channel
differentially. Note that this mode uses 2 pairs of differential outputs for each channel the benefit is
SNR improved by 3dB. This mode is available in both software and hardware modes and may also
be used in conjunction with MODE8X.
SYSTEM CLOCK
Sample rates from 8ks/s up to 96ks/s are available, and automatically selected, with a system clock
of 256fs or 384fs. In addition a system clock of 128fs or 192fs may be used, with sample rates up to
192ks/s. With a 128fs or 192fs system clock 64x oversampling mode operation is automatically
selected and the first stage of the digital filter is bypassed.
WM8740 has an asynchronous monitor circuit, which in the event of removal of the master system
clock, resets the digital filters and analogue circuits, muting the output. Re-application of the system
clock re-starts the filters from an intitialised state. Control registers are not reset under this condition.
The WM8740 is tolerant of asynchronous bit clock jitter. The internal signal processing
resynchronises to the external LRCIN once the phase difference between bit clock and the system
clock exceeds half an LRCIN period. During this re-synch period the interpolating filters will either
miss or repeat an audio sample, minimising the audible effects of the operation. Table 1 shows the
typical system clock frequency inputs for the WM8740.
SAMPLING
RATE
SYSTEM CLOCK FREQUENCY (MHZ)
128fs
192fs
256fs
384fs
(LRCIN)
32kHz
4.096
5.6448
6.114
6.144
8.467
8.192
11.2896
12.288
24.576
12.288
16.9340
18.432
36.864
44.1kHz
48kHz
9.216
96kHz
12.288
24.576
18.432
36.864
192kHz
Unavailable Unavailable
Table 1 System Clock Frequencies Versus Sampling Rate
AUDIO DATA INTERFACE
Data may be input at a rate corresponding to the system clock having a rate of 256fs or 384fs, in
which case an oversampling ratio of 128x is selected. Alternatively a rate of 128fs or 192fs may be
used, in which case the first filter stage is bypassed and an oversampling ratio of 64x results. Finally,
in MODE8X, data may be input at 8x the normal rate, in which case separate input pins are used to
input the two stereo channels of data (unless DIFFHW mode and MODE8X are both selected, in
which case only a mono channel is converted differentially). In MODE8X all filter stages are by-
passed, prior to the sigma delta modulator. Data is input MSB first in all modes.
WOLFSON MICROELECTRONICS LTD
AI Rev 1.7 July 2000
7
WM8740
Advanced Information
NORMAL SAMPLE RATE
In normal mode, the data is input serially on one pin for both left and right channels.
Data can be right justifiedmeaning that the last 16, 20 or 24 bits (depending on chosen PCM word
length) that were clocked in prior to the transition on LRCIN are valid.
Alternatively data can be left justified(20 and 24-bit PCM data only), where the bits are clocked in
as the first 20 or 24 bits after a transition on LRCIN.
For the three I2S modes supported (16-bit, 20-bit and 24-bit PCM data), data is clocked left justified”
except with one additional preceding clock cycle.
1/fs
LEFT
RIGHT
LRCIN (PIN 1)
BCKIN (PIN 3)
16-BIT RIGHT
JUSTIFIED
DIN (PIN 2)
B2 B1 B0
B2 B1 B0
B2 B1 B0
B0
B15
B2 B1 B0
B2 B1 B0
B2 B1 B0
B15
B2 B1 B0
B2 B1 B0
B2 B1 B0
20-BIT RIGHT
JUSTIFIED
DIN (PIN 2)
B19 B18 B17
B19 B18 B17
24-BIT RIGHT
JUSTIFIED
DIN (PIN 2)
B23 B22 B21 B20 B19
B23 B22 B21 B20 B19
24-BIT LEFT
JUSTIFIED
DIN (PIN 2)
B23 B22 B21
B4 B3 B2 B1 B0
B23 B22 B21
B4 B3 B2 B1 B0
20-BIT LEFT
JUSTIFIED
DIN (PIN 2)
B0
B19 B18 B17
B0
B19 B18 B17
B0
LEFT
RIGHT
LRCIN (PIN 1)
BCKIN (PIN 3)
16-BIT I2S
DIN (PIN 2)
B15
B23
B19
B2 B1 B0
B15
B23
B19
B2 B1 B0
B15
B23
B19
24-BIT I2S
DIN (PIN 2)
B6 B5 B4 B3 B2 B1 B0
B6 B5 B4 B3 B2 B1 B0
20-BIT I2S
DIN (PIN 2)
B2 B1 B0
B2 B1 B0
Figure 4 Audio Data Input Format
WOLFSON MICROELECTRONICS LTD
AI Rev 1.7 July 2000
8
Advanced Information
WM8740
8 X FS INPUT SAMPLE RATE
Due to the higher speed of the interface in 8 x fs mode, audio data is input on two pins. The MODE
pin (pin 24) is used as the second input for the right channel data and left data is input on DIN (pin2).
In this mode, software control of the device is not available. The data can be input in two formats, left
or right justified, selectable by ML/I2S and two word lengths (20 or 24 bit), selectable by CSBIWO. In
both modes the data is always clocked in MSB first.
For left justified data the word start is marked by the falling edge of LRCIN. The data is clocked in on
the next 20/24 BCKIN rising edges. This format is compatible with devices such as the PMD100.
For right justified the data is justified to the rising edge of LRCIN and the data is clocked in on the
preceding 20/24 BCKIN rising edges before the LRCIN rising edge. This format is compatible with
devices such as the DF1704 or SM5842.
In both modes the polarity of LRCIN can be switched using MD/DM0.
Differential hardware mode can be used in conjunction with 8fs mode by setting the DIFFHW
pin high. In differential 8fs mode the data is input on DIN and output differentially. MODE is
unused and must be tied low.
1/8fs
LRCIN (PIN 1)
BCKIN (PIN 3)
LEFT AUDIO
B23
B23
B22
B22
B21
B21
B20
B20
B19
B19
B2
B2
B1
B1
B0
B0
B23
B23
B22
B22
B21
B21
B20
B20
DATA DIN
(PIN 2)
RIGHT AUDIO
DATA MODE
(PIN 24)
1/8fs
LRCIN (PIN 1)
BCKIN (PIN 3)
LEFT AUDIO
DATA DIN
(PIN 2)
B23
B22
B21
B21
B20
B20
B19
B19
B2
B2
B1
B1
B0
B0
RIGHT AUDIO
DATA MODE
(PIN 24)
B23
B22
Figure 5 Audio Data Input Format (8 x fs Operation)
MODES OF OPERATION
Control of the various modes of operation is either by software control over the serial interface, or
by hard-wired pin control. Selection of software or hardware mode is via MODE pin. The following
functions may be controlled either via the serial control interface or by hard wiring of the
appropriate pins.
HARDWARE CONTROL MODES
When the MODE pin is held lowthe following hardware modes of operation are available. In
Hardware differential mode or 8X mode some of these modes/control words are altered or
unavailable.
WOLFSON MICROELECTRONICS LTD
AI Rev 1.7 July 2000
9
WM8740
Advanced Information
DE-EMPHASIS CONTROL
MDDM1
MCDMO
DE-EMPHASIS
PIN 27
PIN 26
L
L
L
H
L
Off
48kHz
44.1kHz
32kHz
H
H
H
Table 2 De-Emphasis Control
AUDIO INPUT FORMAT
ML/I2S
PIN 28
L
CSBIWO
PIN 23
L
DATA FORMAT
16 bit normal right
justified
L
H
20 bit normal right
justified
H
H
L
16 bit I2S
24 bit I2S
H
Table 3 Audio Input Format
SOFT MUTE
MUTEB
PIN 25
L
FUNCTION
Mute On (no output)
Mute Off (normal operation)
H
Table 4 Soft Mute
A logic low on the MUTEB pin will cause the attenuation to ramp to infinite attenuation at a rate of
128/fs seconds per 0.5dB step. Setting MUTEB high will cause the attenuation to ramp back to its
previous value.
SOFTWARE CONTROL INTERFACE
The WM8740 can be controlled using a 3-wire serial interface. MD/DM0 (pin 26) is used for the
program data, MC/DM1 (pin 22) is used to clock in the program data and ML/I2S (pin 28) is use to
latch in the program data. The 3-wire interface protocol is shown in Figure 6. CSB/IWO (pin 23) must
be low when writing.
ML/I2S (PIN 28)
MC/DM1 (PIN 27)
MD/DM0 (PIN 26)
B15 B14 B13
B2
B1
B0
Figure 6 Three-Wire Serial Interface
WOLFSON MICROELECTRONICS LTD
AI Rev 1.7 July 2000
10
Advanced Information
WM8740
REGISTER MAP
WM8740 controls the special functions using 4 program registers, which are 16-bits long. These
registers are all loaded through input pin MD/DM0. After the 16 data bits are clocked in, ML/I2S is
used to latch in the data to the appropriate register. Table 5 shows the complete mapping of the 4
registers. Note that in hardware differential mode and 8X modes, software control is not available.
The hardware differential mode (Diff[1:0]) clock loss detector disable (CDD) can only be accessed by
writing to M2[8:5] with the pattern 1111. Register M4 is then accessible by setting A[2:0] to 110.
B15
B14
B13
B12
B11
B10
B9
B8
B7
AL7
AR7
-
B6
AL6
AR6
-
B5
AL5
AR5
-
B4
AL4
AR4
IW1
B3
AL3
AR3
B2
AL2
AR2
B1
AL1
AR1
B0
AL0
AR0
M0
M1
M2
M3
M4
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
A2 (0) A1(0) A0(0) LDL
A2(0) A1(0) A0(1) LDR
A2(0) A1(1) A0(0)
A2(0) A1(1) A0(1) IZD
A2(1) A1(1) A0(0)
-
IW0 OPE DEM MUT
SF1
-
SF0
CK0 REV SR0 ATC LRP
I2S
-
CDD DIFF1 DIFF0
-
-
-
-
Table 5 Mapping of Program Registers
REGISTER
BITS
NAME
AL[7:0]
LDL
DEFAULT
DESCRIPTION
0
[7:0]
FF
0
Attenuation data for left channel.
Attenuation data load control for left channel.
Attenuation data for right channel.
Attenuation data load control for right channel.
Left and right DACs soft mute control.
De-emphasis control.
8
[7:0]
8
1
2
AR[7:0]
LDR
FF
0
0
MUT
DEM
OPE
IW[1:0]
I2S
0
1
0
2
0
Left and right DACs operation control.
Input audio data bit select.
[4:3]
0
0
3
0
Audio data format select.
1
LRP
0
Polarity of LRCIN select.
2
ATC
0
Attenuator control.
3
SR0
0
Digital filter slow roll-off select.
Output phase reverse.
4
REV
0
5
CKO
SF[1:0]
IZD
0
CLKO frequency select.
[7:6]
8
0
Sampling rate select.
0
Infinite zero detection circuit control.
Differential output mode.
4
[5:4]
6
DIFF
CDD
0
0
Clock loss detector disable.
Table 6 Register Bit Descriptions
DAC OUTPUT ATTENUATION
The level of attenuation for eight bit code X, is given by:
0.5 (X - 255) dB, 1 X 255
- dB (mute),
X = 0
Bit 8 in register 0 (LDL) is used to control the loading of attenuation data in B[7:0]. When LDL is set
to 0, attenuation data will be loaded into AL[7:0], but it will not affect the filter attenuation. LDR in
register 1 has the same function for right channel attenuation. Only when LDL or LDR is set to 1will
the filter attenuation be updated. This permits left and right channel attenuation to be updated
simultaneously.
Attenuation level is controlled by AL[7:0] (left channel) or AR[7:0] (right channel). Attenuation levels
are given in Table 7.
WOLFSON MICROELECTRONICS LTD
AI Rev 1.7 July 2000
11
WM8740
Advanced Information
X[7:0]
ATTENUATION LEVEL
00(hex)
- dB (mute)
01(hex)
-127.0dB
:
:
:
:
FD(hex)
FE(hex)
-1.0dB
-0.5dB
0.0dB
FF(hex)
Table 7 Attenuation Control Level
Bit 2 in Reg3 is used to control the attenuator (ATC). When ATC is high, the attenuation data
loaded in program register 0 is used for both the left and the right channels. When ATC is low, the
attenuation data for each register is applied separately to left and right channels.
SOFT MUTE
MUT
(REG2, B0)
L
Soft Mute off (normal operation)
Soft Mute on (no output)
H
Table 8 Soft Mute
Setting MUT causes the attenuation to ramp from the current value down to 00. The values held in
the attenuation registers are unchanged. When MUT is reset the attenuation will ramp back up to the
previous value. The ramp rate is 128/fs s/0.5dB step.
DIGITAL DE-EMPHASIS
DEM
(REG2, B1)
L
De-emphasis off
De-emphasis on
H
Table 9 Digital De-Emphasis
DAC OPERATION ENABLE
OPE
(REG2,B2)
L
Normal operation
H
DAC output forced to bipolar zero,
irrespective of input data.
Table 10 DAC Operation Enable
AUDIO DATA INPUT FORMAT
I2S
IW1
IW0
AUDIO INTERFACE
(REG3, B0)
(REG2, B4)
(REG2, B3)
0
0
0
0
1
1
1
1
0
0
1
1
0
0
1
1
0
1
0
1
0
1
0
1
16-bit standard right justified
20-bit standard right justified
24-bit standard right justified
24-bit left justified (MSB first)
16-bit I2S
24-bit I2S
20-bit I2S
20-bit left justified (MSB first)
Table 11 Audio Data Input Format
WOLFSON MICROELECTRONICS LTD
AI Rev 1.7 July 2000
12
Advanced Information
WM8740
POLARITY OF LR INPUT CLOCK
The left channel data for a particular sample instant is always input first, then the right channel data.
LRP
(REG3, B1)
L
LR High left channel
LR Low right channel
LR Low left channel
LR High right channel
H
Table 12 Polarity of LR Input Clock
INDIVIDUAL OR COMMON ATTENUTATION CONTROL
ATC
(REG3, B2)
L
Individual control
H
Common control from Reg0
Table 13 Individual or Common Attenuation Control
DIGITAL FILTER ROLL-OFF SELECTION
SRO
(REG3, B3)
L
Sharp
Slow
H
Table 14 Digital Filter Roll-Off Selection
ANALOGUE OUTPUT POLARITY REVERSAL
REV
(REG3, B4)
L
Normal
H
Inverted
Table 15 Analogue Output Polarity Reversal
CLKO OUTPUT FREQUENCY
CKO
(REG3, B5)
L
XTI
H
XTI/2
Table 16 CLKO Output Frequency
DE-EMPHASIS SAMPLE RATE
SF1
SF0
SAMPLE RATE
(REG3, B7)
(REG3, B6)
0
0
1
1
0
1
0
1
No de-emphasis
48kHz
44.1kHz
32kHz
Table 17 De-Emphasis Sample Rate
INFINITE ZERO DETECT
IZD
(REG3, B8)
L
Zero detect mute off
Zero detect mute on
H
Table 18 Infinite Zero Detect
WOLFSON MICROELECTRONICS LTD
AI Rev 1.7 July 2000
13
WM8740
Advanced Information
DIFFERENTIAL MONO MODE
Using bits 4 and 5, the differential output mode may be selected to be one of normal stereo, reversed
stereo, mono left or mono right, as shown in Table 19.
DIFF[1:0]
B[4:5])
00
DIFFERENTIAL OUTPUT MODE
Stereo
01
Stereo reverse.
10
Mono left differential outputs.
VOUTL is left channel.
VOUTR is the negative of left channel.
Mono right differential outputs.
VOUTL is the negative right channel.
VOUTR is right channel.
11
Table 19 Differential Output Modes
Using these controls a pair of WM8740 devices may be used to build a dual differential stereo
implementation with higher performance and differential output.
Note: DIFFHW mode pin may be used to achieve the same result by hardware means.
CLOCK LOSS DETECTOR DISABLE
CDD (REG4, B6)
L
Clock loss detector on
Clock loss detector off
R
Table 20 Clock Loss Detector Disable
When the system clock is inactive for approximately 100µs, the clock loss detector circuit detects the
loss of clock and the analogue circuitry is forced into a mute condition and the digital filters reset.
Setting the CDD bit disables this behaviour.
MUTE MODES
The device has various mute modes.
DIGITAL FILTER
ANALOGUE
ANMUTE
Asserted
ANRES
Reg bit OPE = 1’
Unaffected
MUTEB pin
Gain ramped to zero
Asserted when
gain = 0
On release volume ramps
to previous value
AUTOMUTE
Automute has no effect on digital
filters
Asserted after
1024 zero input
samples if IZD = 1
(detect 1024 zero
input samples)
Reg bit MUT
As MUTEB pin
As MUTEB pin
Asserted
Gain = 00
Gain = -dB
(left & right)
RAM initialise
Gain initialised to 0dB
Asserted
Asserted
Loss of system
clock
Not running (no clock). On clock
restart, filters initialised, RAM
initialised. Registers unchanged
Asserted
Asserted
No LRCLK or invalid
SCLK/LRCLK ratio
Filters initialised, RAM initialised.
Registers unchanged
Asserted
RB
Reset gain initialised to 0dB
Asserted
Asserted
Asserted
Asserted
Power-on reset
Table 21 Mute Modes
Reset
WOLFSON MICROELECTRONICS LTD
AI Rev 1.7 July 2000
14
Advanced Information
WM8740
ANRES is the reset to the switched capacitor filter.
ANMUTE is an analogue muting signal gating the analogue signal at the output (after
the SC filter)
AUTOMUTE is asserted when both the IZD register bit is asserted and the input audio
data has been zero on both left and right channels for 1024 input samples. The first
non-zero sample de-asserts.
Applying a logic low to MUTEB or setting MUT in Reg2 causes the gain registers to
ramp to zero. When a logic high is applied, the gain ramps slowly back up to the value
held in the appropriate attenuation register (AL or AR). The ramp rate = 128/fs s/0.5dB
step.
If SOFTMUTE is set or
MUTEB=0 then GAINL and
GAINR are overridden to 00
GAINL[0:7]
Signal
Processing
GAINR[0:7]
SOFTMUTE
MUTEB
gain ramps between
previous and new gain
setting
Automute:
Detect 1024
zero input
samples
IZD
OPE
FREQ_INVALID
INIT
ANMUTE
ZERO
Figure 7 Mute Modes
WOLFSON MICROELECTRONICS LTD
AI Rev 1.7 July 2000
15
WM8740
Advanced Information
FILTER RESPONSES
Figure 8 Digital Filter Response (Sharp Roll-off Mode)
Figure 9 Digital Filter Response (Sharp Roll-off Mode)
Figure 10 Digital Filter Response (Slow Roll-off Mode)
Figure 11 Digital Filter Response (Slow Roll-off Mode)
0
-20
-40
-60
-80
-100
-120
0
0.2
0.4
0.6
0.8
1
1.2
1.4
1.6
1.8
2
Frequency (Fs)
Figure 12 Digital Filter Response 128fs Mode (192kHz
Sample Rate) Normal Mode Solid, Slow Mode Dashed
WOLFSON MICROELECTRONICS LTD
AI Rev 1.7 July 2000
16
Advanced Information
WM8740
1
0.8
0.6
0.4
0.2
0
1
0.8
0.6
0.4
0.2
0
-0.2
-0.4
-0.2
-0.4
0
10
20
30
40
50
60
0
10
20
30
40
50
60
Time (input samples)
Time (input samples)
Figure 13 Impulse Response (Normal Roll-off,
no De-emphasis)
Figure 14 Impulse Response (Slow Roll-off,
no De-emphasis)
WOLFSON MICROELECTRONICS LTD
AI Rev 1.7 July 2000
17
WM8740
Advanced Information
RECOMMENDED EXTERNAL COMPONENTS
DVDD
AVDD
8
15
9
DVDD
AVDD
AVDDR
AVDDL
+
C1
C2
7
20
DGND
+
C3
C4
C5
C6
DGND
14
10
19
16
17
AGND
AGNDR
AGNDL
AGND
28
27
26
23
22
-
ML/I2S
VOUTLN
VOUTLP
LEFT OUTPUT DATA
+
MC/DM1
MD/DM0
CSB/IWO
RSTB
Software I/F or
Hardware Control
13
12
-
VOUTRN
VOUTRP
RIGHT OUTPUT DATA
+
12
6
MODE8X
WM8740
AVDD
DIFFHW
MODE
R1
24
25
21
ZERO
11
18
MUTEB
VMIDR
VMIDL
+
C
C12
+
11
1
2
3
LRCIN
DIN
C9
C10
Audio Serial Data I/F
System Clock Input
BCKIN
AGND
5
SCLK
Notes: 1. AGND and DGND should be connected as close to the WM8740 as possible.
2. 2 to C5, C9 and C11 should be positioned as close to the WM8740 as possible.
C
3. Capacitor type used can have a big effect on device performance. It is
recommended that capacitors with very low ESR are used and that ceramics are
either NPO or COG type material to achieve best performance from the WM8740.
Figure 15 External Components Diagram
RECOMMENDED EXTERNAL COMPONENTS VALUES
COMPONENT
REFERENCE
SUGGESTED
VALUE
DESCRIPTION
C1 and C6
C2 to C5
10µF
0.1µF
10µF
0.1µF
10µF
10kΩ
De-coupling for DVDD and AVDD.
De-coupling for DVDD and AVDD.
C7 and C8
C9 and C11
C10 and C12
R1
Output AC coupling caps to remove VMID DC level from outputs.
Reference de-coupling capacitors for VMIDR and VMIDL.
Resistor to AVDD for open drain output operation.
Table 22 External Components Description
WOLFSON MICROELECTRONICS LTD
AI Rev 1.7 July 2000
18
Advanced Information
WM8740
SUGGESTED DIFFERENTIAL OUTPUT FILTER CIRCUIT
Figure 16 Suggested Differential Output Filter Circuit
WOLFSON MICROELECTRONICS LTD
AI Rev 1.7 July 2000
19
WM8740
Advanced Information
PACKAGE DIMENSIONS
DS: 28 PIN SSOP (10.2 x 5.3 x 1.75 mm)
DM007.B
b
e
28
15
E1
E
GAUGE
PLANE
1
14
Θ
D
0.25
c
L
A1
A A2
-C-
C
0.10
SEATING PLANE
Dimensions
(mm)
NOM
-----
Symbols
MIN
-----
MAX
A
A1
A2
b
c
D
e
E
E1
L
2.13
0.25
1.88
0.38
0.20
10.50
0.05
1.62
0.22
0.09
9.90
-----
1.75
-----
-----
10.20
0.65 BSC
7.80
7.40
5.00
0.63
0o
8.20
5.60
1.03
8o
5.30
0.90
4o
θ
REF:
JEDEC.95, MO-150
NOTES:
A. ALL LINEAR DIMENSIONS ARE IN MILLIMETERS.
B. THIS DRAWING IS SUBJECT TO CHANGE WITHOUT NOTICE.
C. BODY DIMENSIONS DO NOT INCLUDE MOLD FLASH OR PROTRUSION, NOT TO EXCEED 0.20MM.
D. MEETS JEDEC.95 MO-150, VARIATION = AH. REFER TO THIS SPECIFICATION FOR FURTHER DETAILS.
WOLFSON MICROELECTRONICS LTD
AI Rev 1.7 July 2000
20
厂商 型号 描述 页数 下载

WOLFSON

XWM8146CDW/V 12位(8 + 4位)的线性传感器图像处理器[ 12-bit(8+4-bit) Linear Sensor Image Processor ] 17 页

WOLFSON

XWM8148CFT/V 12位/ 12MSPS CCD / CIS模拟前端/数字转换器[ 12-bit/12MSPS CCD/CIS Analogue Front End/Digitiser ] 43 页

WOLFSON

XWM8170CFT/V 3.3V集成信号处理器的面阵CCD的[ 3.3V Integrated Signal Processor for Area Array CCDs ] 41 页

WOLFSON

XWM8181CDW 12位2MSPS串行输出CIS / CCD数字转换器[ 12-bit 2MSPS Serial Output CIS/CCD Digitiser ] 14 页

WOLFSON

XWM8190CDW/V ( 8 + 6 )位输出14位CIS / CCD AFE /数字转换器[ (8+6) Bit Output 14-bit CIS/CCD AFE/Digitiser ] 25 页

WOLFSON

XWM8191CFT 14位6MSPS CIS / CCD模拟前端/数字转换器[ 14-bit 6MSPS CIS/CCD Analogue Front End/Digitiser ] 27 页

WOLFSON

XWM8192 (88)位输出16位CIS / CCD AFE /数字转换器[ (88) Bit Output 16-bit CIS/CCD AFE/Digitiser ] 24 页

WOLFSON

XWM8192CDW/V (88)位输出16位CIS / CCD AFE /数字转换器[ (88) Bit Output 16-bit CIS/CCD AFE/Digitiser ] 24 页

CIRRUS

XWM8194CDW/V [ Analog Circuit, 1 Func, CMOS, PDSO28, 7.50 MM, 1.27 MM PITCH, MS-013AE, SOIC-28 ] 27 页

WOLFSON

XWM81955CFT/RV 14位12MSPS CIS / CCD模拟前端/数字转换器[ 14-bit 12MSPS CIS/CCD Analogue Front End/Digitiser ] 33 页

PDF索引:

A

B

C

D

E

F

G

H

I

J

K

L

M

N

O

P

Q

R

S

T

U

V

W

X

Y

Z

0

1

2

3

4

5

6

7

8

9

IC型号索引:

A

B

C

D

E

F

G

H

I

J

K

L

M

N

O

P

Q

R

S

T

U

V

W

X

Y

Z

0

1

2

3

4

5

6

7

8

9

Copyright 2024 gkzhan.com Al Rights Reserved 京ICP备06008810号-21 京

0.216718s
