XWM8733ED

型号：

XWM8733ED

描述：

102分贝立体声DAC[ 102dB Stereo DAC ]

品牌：

WOLFSON[ WOLFSON MICROELECTRONICS PLC ]

页数：

11 页

PDF大小：

366 K

下载PDF手册

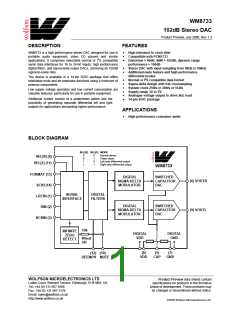

WM8733
102dB Stereo DAC
Product Preview, July 2000, Rev 1.3
DESCRIPTION
FEATURES
WM8733 is a high performance stereo DAC designed for use in
portable audio equipment, video CD players and similar
applications. It comprises selectable normal or I2S compatible
serial data interfaces for 16 to 24-bit inputs, high performance
digital filters, and sigma-delta output DACs, achieving an 102dB
signal-to-noise ratio.
•
•
•
High tolerance to clock jitter
Compatible with PCM1733
Distortion > 90dB, SNR > 102dB, dynamic range
performance > 100dB
•
•
Stereo DAC with input sampling from 8kHz to 96kHz
Additional mute feature and high performance
differential modes
The device is available in a 14-pin SOIC package that offers
selectable mute and de-emphasis functions using a minimum of
external components.
•
•
•
•
•
•
Normal or I2S compatible data format
Sigma-delta design with 64x oversampling
System clock 256fs or 384fs or 512fs
Supply range 3V to 5V
Low supply voltage operation and low current consumption are
valuable features, particularly for use in portable equipment.
Analogue voltage output to drive 2kΩ load
14-pin SOIC package
Additional modes consist of a powerdown option and the
possibility of generating separate differential left and right
outputs for applications demanding higher performance.
APPLICATIONS
•
High performance consumer audio
BLOCK DIAGRAM
SEL[0] SEL[1] MODE
0
0
1
1
0
1
0
1
Normal stereo
Power down
Left only differential output
Right only differential output
SEL[0] (4)
SEL[1] (11)
WM8733
FORMAT (13)
SCKI (14)
LRCIN (1)
DIN (2)
DIGITAL
SIGMA-DELTA
MODULATOR
SWITCHED
CAPACITOR
DAC
(6) VOUTR
(9) VOUTL
SERIAL
INTERFACE
DIGITAL
FILTERS
DIGITAL
SIGMA-DELTA
MODULATOR
SWITCHED
CAPACITOR
DAC
BCKIN (3)
10k
INFINITE
ZERO
DETECT
DIGITAL
VDD
DIGITAL
GND
Wired
OR
(8)
VDD
(5)
CAP
(7)
GND
(12) (10)
DEEMPH MUTE
WOLFSON MICROELECTRONICS LTD.
Lutton Court, Bernard Terrace, Edinburgh, EH8 9NX, UK
Tel: +44 (0) 131 667 9386
Product Preview data sheets contain
specifications for products in the formative
phase of development. These products may
be changed or discontinued without notice.
Fax: +44 (0) 131 667 5176
Email: sales@wolfson.co.uk
http://www.wolfson.co.uk
2000 Wolfson Microelectronics Ltd.
WM8733
Product Preview
PIN CONFIGURATION
ORDERING INFORMATION
DEVICE
TEMP. RANGE
PACKAGE
LRCIN
DIN
1
2
3
4
5
6
7
14
13
12
11
10
9
SCKI
XWM8733ED
-25 to +85oC
14-pin SOIC
FORMAT
DEEMPH
SEL1
BCKIN
SEL0
CAP
WM8733
MUTE
VOUTL
VDD
VOUTR
GND
8
ABSOLUTE MAXIMUM RATINGS
Absolute Maximum Ratings are stress ratings only. Permanent damage to the device may be caused by continuously operating
at or beyond these limits. Device functional operating limits and guaranteed performance specifications are given under Electrical
Characteristics at the test conditions specified
ESD Sensitive Device. This device is manufactured on a CMOS process. It is therefore generically susceptible
to damage from excessive static voltages. Proper ESD precautions must be taken during handling and storage
of this device.
CONDITION
MIN
MAX
Supply voltage
Reference input
-0.3V
+7.0V
VDD+0.3V
-25oC
-65oC
+85oC
+150oC
+260oC
+183oC
Operating temperature range, TA
Storage temperature
Lead temperature (soldering, 10 seconds)
Lead temperature (soldering, 2 minutes)
RECOMMENDED OPERATING CONDITIONS
PARAMETER
Supply range
SYMBOL
VDD
TEST CONDITIONS
MIN
TYP
MAX
+10%
UNIT
V
-10%
3.0 to 5.0
Ground
GND
0
V
Supply current
VDD = 5V
15
mA
WOLFSON MICROELECTRONICS LTD
PP Rev 1.3 July 2000
2
Product Preview
WM8733
ELECTRICAL CHARACTERISTICS
Test Characteristics
VDD = 5V, GND = 0V, TA = +25oC, fs = 44.1kHz, SCKI = 384fs unless otherwise stated.
PARAMETER
Digital Logic Levels
Input LOW level
SYMBOL
TEST CONDITIONS
MIN
TYP
MAX
UNIT
VIL
VIH
0.8
V
V
Input HIGH level
2.0
Analogue Output Levels
Output level
Into 10kohm, full scale 0dB,
(5V supply)
1
VRMS
VRMS
Into 10kohm, full scale 0dB,
(3V supply)
0.6
Minimum resistance load
o midrail or AC coupled (5V supply)
o midrail or AC coupled (3V supply)
5V or 3V
2
10
10
kohms
kohms
pF
Maximum capacitance load
Output DC level
100
VDD/2
V
Reference Levels
Potential divider resistance
Voltage at CAP
80
100
120
kohms
VDD to CAP and CAP to GND
VDD/2
DAC Circuit Specifications
SNR (Note 1) Stereo mode
Mono mode
VDD = 5V
VDD = 3V
98
96
102
100
dB
dB
Stereo mode
dB
Mono mode
dB
THD (full scale)
0dB
0.03
-40
0.01
%
THD+N
-60dB
-35
0
dB
Frequency response
Pass band ripple
20,000
Hz
±0.25
dB
Transition band
20,000
Hz
Out of band rejection
-40
dB
Dynamic
Range
Stereo mode
Mono mode
100
dB
dB
Channel Separation
90
±1
dB
Gain mismatch
±5
%FSR
channel-to-channel
Audio Data Input and System Clock Timing Information
BCKIN pulse cycle time
BCKIN pulse width high
BCKIN pulse width low
tBCY
tBCH
tBCL
tBL
100
50
ns
ns
ns
ns
50
BCKIN rising edge to LRCIN
edge
30
LRCIN rising edge to BCKIN
rising edge
tLB
30
ns
DIN setup time
tDS
tDH
tSCKIH
tSCKIL
30
30
13
13
ns
ns
ns
ns
DIN hold time
System clock pulse width high
System clock pulse width low
Note 1 Ratio of RMS output level with 1kHz full scale input, to the RMS output level with all zeros into the digital input, measured
“A” weighted over a 20Hz to 20kHz bandwidth.
Note 2 All performance measurements done with 20kHz low pass filter. Failure to use such a filter will result in higher THD+N
and lower SNR and Dynamic Range readings than are found in the Electrical Characteristics. The low pass filter removes
out of band noise; although it is not audible it may affect dynamic specification values.
WOLFSON MICROELECTRONICS LTD
PP Rev 1.3 July 2000
3
WM8733
Product Preview
PIN DESCRIPTION
PIN
1
NAME
LRCIN
TYPE
Digital input
Digital input
Digital input
Digital input
Analogue output
Analogue output
Supply
DESCRIPTION
Sample rate clock input
Serial data input
2
DIN
3
BCKIN
SEL0
Bit clock input
4
Mode select (internal pull-down)
Analogue internal reference
Right channel DAC output
0V supply
5
CAP
6
VOUTR
GND
7
8
VDD
Supply
Positive supply
9
VOUTL
MUTE
SEL1
Analogue output
Digital input
Digital input
Digital input
Left channel DAC output
10
11
12
Soft mute control; high = muted, Z = auto mute input/output
Mode select (internal pull-down)
DEEMPH
De-emphasis select; high = de-emphasis ON (44.1kHz only), (internal
pull-up)
13
FORMAT
Digital input
Data input format select; ‘lo’ = normal, ‘hi’ = I2S (internal pull-up)
14
SCKI
Digital input
System clock input (256fs or 384fs or 512fs)
WOLFSON MICROELECTRONICS LTD
PP Rev 1.3 July 2000
4
Product Preview
WM8733
DEVICE DESCRIPTION
INTRODUCTION
WM8733 is a complete high performance stereo audio 18-bit digital-to-analogue converter, including
digital interpolation filter, multibit sigma-delta with dither, and switched capacitor multibit stereo DAC
and output smoothing filters.
Special functions of soft mute and de-emphasis are provided, and operation using system clock of
256fs, or 384fs or 512fs is provided, selection between either clock rate being automatically
controlled. Sample rates (fs) from less than 8ks/s to 96ks/s are allowed, provided the appropriate
system clock is input.
An auto mute function is provided which is enabled if MUTE (pin 10) is left at high impedance. If 64
successive left and right channel data samples of value 0 are received, auto mute is achieved. This
signal is wire ORed to MUTE (pin 10) via 10K resistor. If MUTE (pin 10) internally is not externally
driven, the internal auto mute state is visible on this pin as a weak drive strength signal (10kΩ
source).
MUTE
DESCRIPTION
Soft mute is OFF
0
Z
1
Auto mute is enabled
Soft mute is ON
Table 1 Soft Mute Control
A novel multi bit sigma-delta DAC design is used, utilising a 64x oversampling rate, to optimise
signal to noise performance and offer increased clock jitter tolerance.
Internally generated midrail references are used to DC bias output signals, requiring only a single
external capacitor for decoupling purposes.
The device is packaged in a small 14-pin SOIC package, offering pin compatibility with Burr Brown
PCM1733, but with added functionality of a soft mute input pin, which may be left floating to enable
auto mute detection, or held ‘low’ leaving the device operational.
Single 3V to 5V supplies may be used, the output amplitude scaling with absolute supply level. Low
supply voltage operation and low current consumption, and the low pin count small package, make
the WM8733 attractive for many consumer type applications.
WOLFSON MICROELECTRONICS LTD
PP Rev 1.3 July 2000
5
WM8733
Product Preview
DAC CIRCUITS
The WM8733 DACs are designed to allow playback of 18-bit PCM audio or similar data with high
resolution and low noise and distortion. Sample rates up to 96ks/s may be used, with much lower
sample rates acceptable provided that the ratio of sample rate (LRCIN) to system clock is maintained
at the required 256fs, or 384fs or 512fs times.
The DACs on WM8733 are implemented using sigma-delta oversampled conversion techniques.
These require that the PCM samples are digitally filtered and interpolated to generate a set of
samples at a much higher rate than the input rate. This sample stream is then digitally modulated to
generate a digital pulse stream that is then converted to analogue signals in a switched capacitor
DAC. The advantage of this technique is that the DAC is linearised using noise shaping techniques,
allowing the 16-bit resolution to be met using non-critical analogue components. A further advantage
is that the high sample rate at the DAC output means that smoothing filters on the output of the DAC
need only have fairly crude characteristics in order to remove the characteristic steps, or images, on
the output of the DAC. In order to ensure that generation of tones characteristic to sigma-delta
convertors is not a problem, dithering is used in the digital modulator, and a higher order modulator is
used. The switched capacitor technique used in the DAC reduces sensitivity to clock jitter compared
to switched current techniques used in other implementations.
De-emphasis of 44.1kHz signals may be applied if required.
DEEMPH
DESCRIPTION
0
1
De-emphasis is OFF
De-emphasis is ON
(44.1kHz only)
Table 2 De-emphasis Control
The voltage on the CAP pin is used as the reference for the DACs, therefore the amplitude of the
signals at the DAC outputs will scale with the amplitude of the voltage at the CAP. An external
reference could be used to drive in on the CAP pin if desired, but a value typically of about midrail
should be used for optimum performance.
The outputs of the 2 DACs are buffered out of the device by buffer amplifiers. These amplifiers will
source load current of several mA and sink current up to 1.5mA, so allowing significant loads to be
driven. The output source is active, the sink is Class A, i.e. fixed value, so greater loads might be
driven if an external ‘pull-down’ resistor is connected at the output.
Typically an external low pass filter circuit will be used to remove residual sampling noise of the 64x
oversampling used and if desired adjust the signal amplitude and device strength.
WOLFSON MICROELECTRONICS LTD
PP Rev 1.3 July 2000
6
Product Preview
WM8733
SERIAL DATA INTERFACE
WM8733 has serial interface formats that are fully compatible with both normal (MSB first, right-
justified) and I2S interfaces. The data format is selected with the FORMAT pin. When FORMAT is
LOW, normal data format is selected. When the format is HIGH, I2S format is selected.
If the application demands 16-bit or 20-bit data, then I2S format may be used. Two LSBs will be lost
in 20-bit mode. Normal mode will support 18-bit data applications or 16-bit packed mode applications
(automatically detected).
Note: In 16-bit “packed” mode operation (exactly 32 BLCKS per LRCIN period) the data word must
align exactly with LRCIN clock edges (effectively both left and right justified at the same time).
FORMAT
DESCRIPTION
Normal format (MSB-first, right justified)
I2S format (Philips serial data protocol)
0
1
Table 3 Serial Interface Formats
1/fs
LEFT CHANNEL
RIGHT CHANNEL
LRCIN
BCKIN
1
2
3
16 17 18
LSB
1
2
3
16 17 18
LSB
DIN
AUDIO DATA WORD = 18-BIT
MSB
MSB
Figure 1 ‘Normal’ Data Input Timing
1/fs
LEFT CHANNEL
RIGHT CHANNEL
LRCIN
BCKIN
18
18
16 17
1
2
3
16 17
1
2
3
DIN
MSB
LSB
MSB
LSB
AUDIO DATA WORD = 18-BIT
Figure 2 I2S Data Input Timing
WOLFSON MICROELECTRONICS LTD
PP Rev 1.3 July 2000
7
WM8733
Product Preview
1/fs
LEFT CHANNEL
RIGHT CHANNEL
LRCIN
BCKIN
DIN
15 16
1
2
3
14 15 16
1
2
3
14 15 16
LSB
1
AUDIO DATA WORD = 16-BIT
MSB
LSB MSB
Figure 3 16-bit Normal Packed Mode
1/fs
LEFT CHANNEL
RIGHT CHANNEL
LRCIN
BCKIN
DIN 17 18
AUDIO DATA WORD = 18-BIT
1
2
3
16 17 18
1
2
3
16 17 18
LSB
1
MSB
LSB MSB
Figure 4 18-bit Normal Packed Mode
MODE SELECT PINS
The WM8733 has four possible modes.
SEL0
SEL1
MODE
0
0
1
1
0
1
0
1
Normal stereo operation
Power down
Left only differential output
Right only differential output
Table 4 Mode Select Pins
The SEL0/1 pins (pins 4 and 11) can be hard wired, or left floating as internal “pull-downs” will cause
the device to operate in normal stereo mode.
WOLFSON MICROELECTRONICS LTD
PP Rev 1.3 July 2000
8
Product Preview
WM8733
SYSTEM CLOCK
The system clock is used to operate the digital filters and the noise shaping circuits. The system
clock input is at pin 14 (SCKI). The frequency of WM8733’s system clock should be set to 256fs or
384fs or 512fs, (where fs is the audio sampling frequency). The sample rate is typically: 32 kHz, 44.1
kHz, 48 kHz or 96kHz.
WM8733 has a system clock detection circuit that automatically determines whether the system
clock being supplied is at 256fs or 384fs or 512fs. The system clock should be synchronised with
LRCIN, but WM8733 is tolerant of phase differences. Severe distortion in the phase difference
between LRCIN and the system clock will be detected, and cause the device to automatically
resynchronise. During resynchronisation, the output of the device will either repeat the previous
sample, or drop the next sample, depending on the nature of the phase slip. This will ensure minimal
“click“ at the analog outputs during resynchronisation.
tSCKIH
SCKI
tSCKIL
Figure 5 System Clock Timing Requirements
SYSTEM CLOCK FREQUENCY (MHz)
SAMPLING RATE
(LRCIN)
256fs
384fs
512fs
32 kHz
8.192
12.288
16.384
44.1 kHz
48 kHz
96kHz
11.2896
12.288
24.576
16.9340
18.432
36.864
22.5792
24.576
49.152
Table 5 System Clock Frequencies Versus Sampling Rate
LRCIN
tBCH
tBCL
tLB
BCKIN
DIN
tBL
tBCY
tDS
tDH
Figure 6 Audio Data Input Timing
WOLFSON MICROELECTRONICS LTD
PP Rev 1.3 July 2000
9
WM8733
Product Preview
RECOMMENDED EXTERNAL COMPONENTS
1
256fs/384fs/512fs CLK
14
13
SCKI
LRCIN
FROM AUDIO
PROCESSOR
2
3
4
DIN
FORMAT
BCKIN
SEL0
CAP
DEEMPH 12
WM8733
SEL1 11
MUTE 10
(diode allows automute operation)
10µF
+
5
6
ANALOGUE
ANALOGUE
OUTPUT FOR
LEFT CHANNEL
OUTPUT FOR
RIGHT
External
LPF
External
LPF
VOUTR
GND
VOUTL
VDD
9
8
CHANNEL
7
GND
10µF
0.1µF
VDD
Figure 5 Applications Diagram
DETAIL OF APPLICATION DIAGRAM SHOWING THE EXTERNAL LOW POWER FILTER
External LPF
x2 for Stereo Operation
-
Filtered
Analogue
Output
1500pF
10k
+
10k
Vin
Ω
10kΩ
Ω
+
-
680pF
100pF
Figure 6 Third-Order Low Pass Filter (LPF) Example
An external low pass filter is recommended if the device is driving a wide band amplifier, as shown in
Figure 6. In some applications, second-order or passive RC filter may be adequate.
WOLFSON MICROELECTRONICS LTD
PP Rev 1.3 July 2000
10
Product Preview
WM8733
PACKAGE DIMENSIONS
DM001.C
D: 14 PIN SOIC 3.9mm Wide Body
e
B
14
8
H
E
1
7
D
L
h x 45o
A1
SEATING PLANE
-C-
α
C
A
0.10 (0.004)
Dimensions
(MM)
Dimensions
(Inches)
Symbols
MIN
MAX
1.75
0.25
0.51
0.25
8.75
4.00
MIN
MAX
A
A1
B
C
D
E
1.35
0.10
0.33
0.19
8.55
3.80
0.0532
0.0040
0.0130
0.0075
0.3367
0.1497
0.0688
0.0098
0.0200
0.0098
0.3444
0.1574
e
1.27 BSC
0.05 BSC
H
h
L
5.80
0.25
0.40
0o
6.20
0.50
1.27
8o
0.2284
0.0099
0.0160
0o
0.2440
0.0196
0.0500
8o
α
REF:
JEDEC.95, MS-012
NOTES:
A. ALL LINEAR DIMENSIONS ARE IN MILLIMETERS (INCHES).
B. THIS DRAWING IS SUBJECT TO CHANGE WITHOUT NOTICE.
C. BODY DIMENSIONS DO NOT INCLUDE MOLD FLASH OR PROTRUSION, NOT TO EXCEED 0.25MM (0.010IN).
D. MEETS JEDEC.95 MS-012, VARIATION = AB. REFER TO THIS SPECIFICATION FOR FURTHER DETAILS.
WOLFSON MICROELECTRONICS LTD
PP Rev 1.3 July 2000
11
厂商 型号 描述 页数 下载

WOLFSON

 		XWM8146CDW/V 12位（8 + 4位）的线性传感器图像处理器[ 12-bit(8+4-bit) Linear Sensor Image Processor ] 17 页

WOLFSON

 		XWM8148CFT/V 12位/ 12MSPS CCD / CIS模拟前端/数字转换器[ 12-bit/12MSPS CCD/CIS Analogue Front End/Digitiser ] 43 页

WOLFSON

 		XWM8170CFT/V 3.3V集成信号处理器的面阵CCD的[ 3.3V Integrated Signal Processor for Area Array CCDs ] 41 页

WOLFSON

 		XWM8181CDW 12位2MSPS串行输出CIS / CCD数字转换器[ 12-bit 2MSPS Serial Output CIS/CCD Digitiser ] 14 页

WOLFSON

 		XWM8190CDW/V （ 8 + 6 ）位输出14位CIS / CCD AFE /数字转换器[ (8+6) Bit Output 14-bit CIS/CCD AFE/Digitiser ] 25 页

WOLFSON

 		XWM8191CFT 14位6MSPS CIS / CCD模拟前端/数字转换器[ 14-bit 6MSPS CIS/CCD Analogue Front End/Digitiser ] 27 页

WOLFSON

 		XWM8192 （88）位输出16位CIS / CCD AFE /数字转换器[ (88) Bit Output 16-bit CIS/CCD AFE/Digitiser ] 24 页

WOLFSON

 		XWM8192CDW/V （88）位输出16位CIS / CCD AFE /数字转换器[ (88) Bit Output 16-bit CIS/CCD AFE/Digitiser ] 24 页

CIRRUS

 		XWM8194CDW/V [ Analog Circuit, 1 Func, CMOS, PDSO28, 7.50 MM, 1.27 MM PITCH, MS-013AE, SOIC-28 ] 27 页

WOLFSON

 		XWM81955CFT/RV 14位12MSPS CIS / CCD模拟前端/数字转换器[ 14-bit 12MSPS CIS/CCD Analogue Front End/Digitiser ] 33 页

购物指南

支付方式

配送服务

售后服务

发票须知

优惠券使用规则

特色服务

PCBA制造

国产品牌推荐

国产料号替代

质量保证

技术资料

行业资讯

关于我们

关于壹壹捌

联系我们

联系我们

服务热线：400-618-9990

企业邮箱：sales@ic118.com

服务时间：周一至周六 8:30-17:30

壹壹捌官方微信号

PDF索引：

A

B

C

D

E

F

G

H

I

J

K

L

M

N

O

P

Q

R

S

T

U

V

W

X

Y

Z

0

1

2

3

4

5

6

7

8

9

IC型号索引：

A

B

C

D

E

F

G

H

I

J

K

L

M

N

O

P

Q

R

S

T

U

V

W

X

Y

Z

0

1

2

3

4

5

6

7

8

9

Copyright 2024 gkzhan.com Al Rights Reserved 京ICP备06008810号-21 京

深圳网络警察报警平台
公共信息安全网络监察
经营性网站备案信息
不良信息举报中心
工商网监电子标识
全国公安机关备案
0.172203s
