PXAC182002FC_15

型号:

PXAC182002FC_15

品牌:

INFINEON[ Infineon ]

页数:

8 页

PDF大小:

1179 K

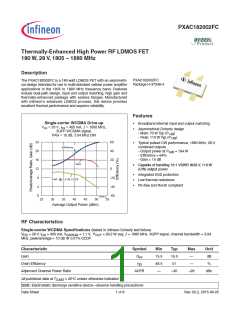

PXAC182002FC
Thermally-Enhanced High Power RF LDMOS FET
180 W, 28 V, 1805 – 1880 MHz
Description
PXAC182002FC
Package H-37248-4
The PXAC182002FC is a 180-watt LDMOS FET with an asymmetri-
cal design intended for use in multi-standard cellular power amplifier
applications in the 1805 to 1880 MHz frequency band. Features
include dual-path design, input and output matching, high gain and
thermally-enhanced package with earless flanges. Manufactured
with Infineon's advanced LDMOS process, this device provides
excellent thermal performance and superior reliability.
Features
Single-carrier WCDMA Drive-up
VDD = 28 V, IDQ = 400 mA, ƒ = 1880 MHz,
3GPP WCDMA signal,
•ꢀ Broadband internal input and output matching
•ꢀ Asymmetrical Doherty design
- Main: 70 W Typ (P
)
1dB
PAR = 10 dB, 3.84 MHz BW
- Peak: 110 W Typ (P
)
1dB
24
20
16
12
8
60
40
20
0
•ꢀ Typical pulsed CW performance, 1880 MHz, 28 V,
Efficiency
combined outputs
- Output power at P
- Efficiency = 64%
- Gain = 14 dB
= 194 W
3dB
Gain
•ꢀ Capable of handling 10:1 VSWR @28 V, 110 W
(CW) output power
•ꢀ Integrated ESD protection
•ꢀ Low thermal resistance
-20
-40
-60
PAR @ 0.01% CCDF
•ꢀ Pb-free and RoHS compliant
4
0
c182002fc_g1
25
30
35
40
45
50
55
Average Output Power (dBm)
RF Characteristics
Single-carrier WCDMA Specifications (tested in Infineon Doherty test fixture)
= 28 V, I = 400 mA, V = 1.1 V, P = 28.2 W avg, ƒ = 1880 MHz, 3GPP signal, channel bandwidth = 3.84
V
DD
DQ
GSPEAK
OUT
MHz, peak/average = 10 dB @ 0.01% CCDF
Characteristic
Gain
Symbol
Min
15.5
48.5
Typ
16.5
51
Max
Unit
dB
G
ps
Drain Efficiency
hD
%
Adjancent Channel Power Ratio
ACPR
–30
–26
dBc
All published data at T
= 25°C unless otherwise indicated
CASE
ESD: Electrostatic discharge sensitive device—observe handling precautions!
Data Sheet 1 of 8
Rev. 02.2, 2015-06-05
PXAC182002FC
DC Characteristics (each side)
Characteristic
Conditions
Symbol
Min
65
Typ
Max
Unit
V
Drain-Source Breakdown Voltage
Drain Leakage Current
V
GS
= 0 V, I = 10 mA
V(
BR)DSS
DS
V
= 28 V, V = 0 V
I
I
0.1
1.0
µA
µA
W
DS
DS
GS
DSS
V
= 63 V, V = 0 V
GS
DSS
On-State Resistance (main)
(peak)
V
GS
= 10 V, V = 0.1 V
R
R
0.18
0.135
2.65
1.2
DS
DS(on)
DS(on)
V
GS
= 10 V, V = 0.1 V
W
DS
Operating Gate Voltage (main)
(peak)
V
= 28 V, I
= 28 V, I
= 400 mA
= 0 A
V
GS
2.55
0.9
2.75
1.3
0.1
V
DS
DS
DQ
DQ
V
V
GS
V
Gate Leakage Current
V
GS
= 10 V, V = 0 V
I
GSS
µA
DS
Maximum Ratings
Parameter
Symbol
Value
65
Unit
V
Drain-Source Voltage
Gate-Source Voltage
Operating Voltage
V
DSS
V
–6 to +10
0 to +32
225
V
GS
DD
V
V
Junction Temperature
Storage Temperature Range
T
°C
J
T
STG
–65 to +150
1.088
°C
Thermal Resistance (main, T
(peak, T
= 70°C, 28 W CW)
= 70°C, 100 W CW)
R
°C/W
°C/W
CASE
qJC
qJC
R
0.587
CASE
Ordering Information
Type and Version
PXAC182002FC V1
Order Code
Package Description
H-37248-4, earless flange
H-37248-4, earless flange
Shipping
PXAC182002FCV1XWSA1
PXAC182002FCV1R250XTMA1
Tray
PXAC182002FC V1 R250
Tape & Reel, 250 pcs
Data Sheet
2 of 8
Rev. 02.2, 2015-06-05
PXAC182002FC
Typical Performance (data taken in a production test fixture)
Single-carrier WCDMA Drive-up
VDD = 28 V, IDQ = 400 mA, ƒ = 1880 MHz,
3GPP WCDMA signal, PAR = 10 dB,
BW = 3.84 MHz
Single-carrier WCDMA 3GPP Drive-up
VDD = 28 V, IDQ = 400 mA, ƒ = 1805-1880 MHz,
3GPP WCDMA signal, PAR = 10 dB,
BW = 3.84 MHz
1880 ACPL
-10
-20
-30
-40
-50
-60
-70
60
50
40
30
20
10
0
-20
1880 ACPU
1842.5 ACPL
1842.5 ACPU
1805 ACPL
1805 ACPU
-25
-30
-35
-40
-45
-50
ACP Up
ACP Low
Efficiency
37
c182002fc_g2
c182002fc_g3
27
32
42
47
52
27
32
37
42
47
52
Average Output Power (dBm)
Average Output Power (dBm)
CW Performance
at various VDD
CW Performance
VDD = 28 V, IDQ = 400mA
IDQ = 400 mA, ƒ = 1880 MHz
1842.5 Gain
1805 Gain
1880 Gain
1880 Eff
1842.5 Eff
1805 Eff
25
20
15
10
5
65
50
35
20
5
24
20
16
12
8
65
55
45
35
25
15
5
Efficiency
Efficiency
Gain
Gain
24V Gain
28V Gain
32V Gain
24V Eff
28V Eff
32V Eff
4
0
c182002fc_g4
c182002fc_g5
29
33
37
41
45
49
53
57
27
35
43
51
59
Output Power (dBm)
Output Power (dBm)
Data Sheet
3 of 8
Rev. 02.2, 2015-06-05
PXAC182002FC
Typical Performance (cont.)
CW Performance Small Signal
Gain & Input Return Loss
VDD = 28 V, IDQ = 400 mA
18
16
14
12
10
-10
-15
-20
-25
-30
Gain
IRL
c182002fc_g6
1700 1750 1800 1850 1900 1950 2000
Frequency (MHz)
Load Pull Performance
Main Side Load Pull Performance – Pulsed CW signal: 160 µs, 10% duty cycle, 28 V, I
= 405 mA
DQ
P
1dB
Max Output Power
Max Drain Efficiency
Zs
[W]
Zl
[W]
Zl
[W]
Freq
[MHz]
Gain
[dB]
P
P
[W]
Gain
[dB]
P
P
OUT
[W]
hD
hD
OUT
OUT
OUT
[dBm]
[dBm]
[%]
[%]
1810 3.94 – j10.15 2.92 – j5.27
1840 5.13 – j10.93 2.93 – j4.16
1880 5.90 – j12.44 2.73 – j5.17
19.2
19.5
19.2
49.4
86
54.0
57.6
55.2
6.49 – j2.19
5.82 – j2.44
4.53 – j2.29
21.9
21.7
21.5
47.2
52
66.6
66.3
67.9
49.3
85
47.5
56
49.5
89
47.7
59
Peak Side Load Pull Performance – Pulsed CW signal: 160 µs, 10% duty cycle, 28 V, I
= 685 mA
DQ
P
1dB
Max Output Power
Max Drain Efficiency
Zs
[W]
Zl
[W]
Zl
[W]
Freq
[MHz]
Gain
[dB]
P
P
Gain
[dB]
P
P
OUT
[W]
hD
hD
OUT
OUT
OUT
[dBm]
[W]
123
117
116
[dBm]
[%]
[%]
1810 3.71 – j9.13 4.64 – j5.44
1840 4.76 – j8.65 4.66 – j5.68
1880 6.40 – j9.13 4.63 – j5.74
20.5
20.6
20.8
50.9
55.5
54.5
54.3
3.52 – j2.84
3.39 – j3.01
2.83 – j3.50
22.7
23.2
23.1
49.7
94
66.2
64.1
64.3
50.7
49.2
84
50.7
49.2
83
Data Sheet
4 of 8
Rev. 02.2, 2015-06-05
PXAC182002FC
Reference Circuit , 1805 – 1880 MHz
RO4350, .020
(60)
RO4350, .020
(61)
VGS
VDD
C217
C209 C213
C211
R106
C102
C106
C105
C108
R102
C212 C210
R104
R101
C218
R103
C203
C201
S1
RF_IN
RF_OUT
C219
C215
C208
C104
C101
C207
R105
C206
C216
C204 C202
VDD
C107
C103
C214
VGSPK
C205
PXAC182002FC_IN_01
PXAC182002FC_OUT_01
c
1 8 2 0 0 2 f c _ C D _ 0 3 - 2 4 - 2 0 1 5
Reference circuit assembly diagram (not to scale)
Data Sheet
5 of 8
Rev. 02.2, 2015-06-05
PXAC182002FC
Reference Circuit (cont.)
Reference Circuit Assembly
DUT
PXAC182002FC V1
Test Fixture Part No.
PCB
LTA/PXAC182002FC V1
Rogers 4350, 0.508 mm [0.020”] thick, 2 oz. copper, εr = 3.66, ƒ = 1805 – 1880 MHz
Find Gerber files for this test fixture on the Infineon Web site at http://www.infineon.com/rfpower
Components Information
Component
Input
Description
Manufacturer
P/N
C101
Capacitor, 1.2 pF
Capacitor, 0.5 pF
ATC
ATC600F1R2CW250T
ATC600F0R5CW250T
ATC600F180JW250T
UMK325C7106MM-T
C8A50Z4A
C102
ATC
C103, C104, C105, C106 Capacitor, 18 pF
ATC
C107, C108
R101
Capacitor, 10 µF
Resistor, 50 W
Resistor, 18 ohms
Resistor, 301 W
Resistor, 10 W
Hybrid Coupler
Taiyo Yuden
Richardson
R102
Panasonic Electronic Components
ERJ-8GEYJ180V
CR0603-16W-3010FT
ERJ-3GEYJ100V
X3C19P1-03S
R103, R104
R105, R106
S1
Venkel
Panasonic Electronic Components
Anaren
Output
C201, C207, C215,
C218, C219
Capacitor, 18 pF
ATC
ATC600F180JW250T
C202
Capacitor, 0.8 pF
Capacitor, 5.1 pF
Capacitor, 1.6 pF
Capacitor, 220 µF
Capacitor, 10 µF
ATC
ATC600F0R8AW250T
ATC600F5R1AW250T
ATC600F1R6AW250T
SK221M050ST
C203
ATC
C204
ATC
C205, C217
Cornell Dubilier Electronics
Taiyo Yuden
C206, C208, C209,
UMK325C7106MM-T
C211, C213, C214, C216
C210
C212
Capacitor, 0.5 pF
Capacitor, 1.6 pF
ATC
ATC
ATC600F0R5AW250T
ATC600F1R6AW250T
Pinout Diagram (top view)
S
Main
Peak
Pin Description
D1 Drain device 1 (Main)
D1
D2
D2 Drain device 2 (Peak)
G1 Gate device 1 (Main)
G2 Gate device 2 (Peak)
S Source (flange)
H-37248-4_pd_10-10-2012
G1
G2
Lead connections for PXAC182002FC
Data Sheet
6 of 8
Rev. 02.2, 2015-06-05
PXAC182002FC
Package Outline Specifications
Package H-37248-4
(8.89
[.350])
(5.08
[.200])
2X 45° X 2.72
[45° X .107]
C
L
+0.13
4X R0.76
-0.38
2X 4.83±0.51
[.190±0.020]
D1
D2
+0.005
-0.015
R.030
[
]
FLANGE 9.78
[.385]
LID 9.40
[.370]
19.43±0.51
[.765±0.020]
C
L
G1
G2
4X 3.81
[.150]
2X 12.70
[.500]
SPH 1.57
[.062]
19.81±0.20
[.780±0.008]
1.02
[.040]
H-37248-4_po_02_01-09-2013
1
3.76±0.25
[.148±0.010]
C
L
20.57
[.810]
S
Diagram Notes—unless otherwise specified:
1. Interpret dimensions and tolerances per ASME Y14.5M-1994.
2. Primary dimensions are mm. Alternate dimensions are inches.
3. All tolerances 0.127 [.005] unless specified otherwise.
4. Pins: D1, D2 – drains; G1, G2 – gates; S – source.
5. Lead thickness: 0.10 + 0.076/–0.025 mm [0.004+0.003/–0.001 inch].
6. Gold plating thickness: 1.14 0.38 micron [45 15 microinch].
Find the latest and most complete information about products and packaging at the Infineon Internet page
http://www.infineon.com/rfpower
Data Sheet
7 of 8
Rev. 02.2, 2015-06-05
PXAC182002FC V1
Revision History
Revision
Date
Data Sheet Type
Advance
Page
Subjects (major changes since last revision)
01
02
2014-09-23
2015-03-24
All
Data Sheet reflects advance specification for product development
Production
All
All
Data Sheet reflects released product specification
Revised all data and includes updated final specs, typical performance graphs, loadpull, refer-
ence circuit, package outline
02.1
02.2
2015-05-20
2015-06-05
Production
Production
1
1
Updated single-carrier WCDMA test spec
Corrected I/O in description paragraph, removed f from single-carrier WCDMA test spec condi-
1
tion
We Listen toYour Comments
Any information within this document that you feel is wrong, unclear or missing at all?
Your feedback will help us to continuously improve the quality of this document.
Please send your proposal (including a reference to this document) to:
(highpowerRF@infineon.com)
To request other information, contact us at:
+1 877 465 3667 (1-877-GO-LDMOS) USA
or +1 408 776 0600 International
Edition 2015-06-05
Published by
Infineon Technologies AG
85579 Neubiberg, Germany
© 2014 Infineon Technologies AG
All Rights Reserved.
Legal Disclaimer
The information given in this document shall in no event be regarded as a guarantee of conditions or characteristics.
With respect to any examples or hints given herein, any typical values stated herein and/or any information regarding the
application of the device, Infineon Technologies hereby disclaims any and all warranties and liabilities of any kind,
including without limitation, warranties of non-infringement of intellectual property rights of any third party.
Information
For further information on technology, delivery terms and conditions and prices, please contact the nearest
Infineon Technologies Office (www.infineon.com/rfpower).
Warnings
Due to technical requirements, components may contain dangerous substances. For information on the types in question,
please contact the nearest Infineon Technologies Office.
Infineon Technologies components may be used in life-support devices or systems only with the express written approval of In-
fineon Technologies, if a failure of such components can reasonably be expected to cause the failure of that life-support device
or system or to affect the safety or effectiveness of that device or system. Life support devices or systems are intended to be
implanted in the human body or to support and/or maintain and sustain and/or protect human life. If they fail, it is
reasonable to assume that the health of the user or other persons may be endangered.
Data Sheet
8 of 8
Rev. 02.2, 2015-06-05
厂商 型号 描述 页数 下载

ETC

PXA.M0.5GG.NB [ CONN RCPT FMALE 5POS GOLD SOLDER ] 76 页

MARVELL

PXA1088 WCDMA / TD -SCDMA通信处理器[ WCDMA/TD-SCDMA Communication Processor ] 2 页

MARVELL

PXA168 高性能,高集成度处理器可扩展到1.2 GHz的对成本敏感的,智能消费类和嵌入式设备[ High Performance, Highly Integrated Processor Scalable to 1.2 GHz for Cost-Sensitive, Intelligent Consumer and Embedded Devices ] 2 页

INTEL

PXA210 英特尔-R PXA250和PXA210应用处理器[ Intel-R PXA250 and PXA210 Applications Processors ] 46 页

INTEL

PXA250 英特尔-R PXA250和PXA210应用处理器[ Intel-R PXA250 and PXA210 Applications Processors ] 46 页

INTEL

PXA255 PXA255处理器[ PXA255 Processor ] 40 页

INTEL

PXA270 电气,机械和热规格[ Electrical, Mechanical, and Thermal Specification ] 126 页

ACTEL

PXA270 为PXA270平台的存储解决方案[ Storage solution for PXA270 platform ] 2 页

ACTEL

PXA300 为Marvell公司的PXA300 / 310平台存储解决方案[ Storage Solution for Marvell’s PXA300/310 Platform ] 2 页

MARVELL

PXA300 可扩展性能高达624兆赫的高性价比和高能效的智能手机,嵌入式解决方案,以及手持设备[ Scalable Performance up to 624 MHz for Cost-Effective and Power-Efficient Smartphones, Embedded Solutions, and Handheld Devices ] 4 页

PDF索引:

A

B

C

D

E

F

G

H

I

J

K

L

M

N

O

P

Q

R

S

T

U

V

W

X

Y

Z

0

1

2

3

4

5

6

7

8

9

IC型号索引:

A

B

C

D

E

F

G

H

I

J

K

L

M

N

O

P

Q

R

S

T

U

V

W

X

Y

Z

0

1

2

3

4

5

6

7

8

9

Copyright 2024 gkzhan.com Al Rights Reserved 京ICP备06008810号-21 京

0.181415s
