PXA250

型号：

PXA250

描述：

英特尔-R PXA250和PXA210应用处理器[ Intel-R PXA250 and PXA210 Applications Processors ]

品牌：

INTEL[ INTEL ]

页数：

46 页

PDF大小：

410 K

下载PDF手册

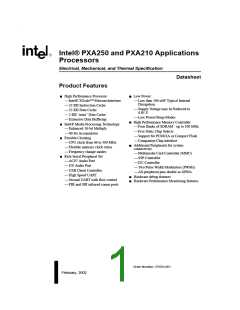

Intel® PXA250 and PXA210 Applications
Processors
Electrical, Mechanical, and Thermal Specification
Datasheet
Product Features
High Performance Processor
—Intel® XScale™ Microarchitecture
—32 KB Instruction Cache
—32 KB Data Cache
Low Power
—Less than 500 mW Typical Internal
Dissipation
—Supply Voltage may be Reduced to
0.85 V
—2 KB “mini” Data Cache
—Extensive Data Buffering
Intel® Media Processing Technology
—Enhanced 16-bit Multiply
—40-bit Accumulator
—Low Power/Sleep Modes
High Performance Memory Controller
—Four Banks of SDRAM - up to 100 MHz
—Five Static Chip Selects
—Support for PCMCIA or Compact Flash
—Companion Chip interface
Flexible Clocking
—CPU clock from 66 to 300 MHz
—Flexible memory clock ratios
—Frequency change modes
Rich Serial Peripheral Set
—AC97 Audio Port
Additional Peripherals for system
connectivity
—Multimedia Card Controller (MMC)
—SSP Controller
—I2C Controller
—I2S Audio Port
—Two Pulse Width Modulators (PWMs)
—All peripheral pins double as GPIOs.
Hardware debug features
—USB Client Controller
—High Speed UART
—Second UART with flow control
—FIR and SIR infrared comm ports
Hardware Performance Monitoring features
Order Number: 278524-001
February, 2002
Information in this document is provided in connection with Intel products. No license, express or implied, by estoppel or otherwise, to any intellectual
property rights is granted by this document. Except as provided in Intel's Terms and Conditions of Sale for such products, Intel assumes no liability
whatsoever, and Intel disclaims any express or implied warranty, relating to sale and/or use of Intel products including liability or warranties relating to
fitness for a particular purpose, merchantability, or infringement of any patent, copyright or other intellectual property right. Intel products are not
intended for use in medical, life saving, or life sustaining applications.
Intel may make changes to specifications and product descriptions at any time, without notice.
Designers must not rely on the absence or characteristics of any features or instructions marked "reserved" or "undefined." Intel reserves these for
future definition and shall have no responsibility whatsoever for conflicts or incompatibilities arising from future changes to them.
The Intel® PXA250 and PXA210 Applications Processors may contain design defects or errors known as errata which may cause the product to
deviate from published specifications. Current characterized errata are available on request.
MPEG is an international standard for video compression/decompression promoted by ISO. Implementations of MPEG CODECs, or MPEG enabled
platforms may require licenses from various entities, including Intel Corporation.
Contact your local Intel sales office or your distributor to obtain the latest specifications and before placing your product order.
Copies of documents which have an ordering number and are referenced in this document, or other Intel literature may be obtained by calling
1-800-548-4725 or by visiting Intel's website at http://www.intel.com.
Copyright © Intel Corporation, 2002
*Other names and brands may be claimed as the property of others.
2
Datasheet
Electrical, Mechanical, and Thermal Specification — PXA250 and PXA210
Contents
1.0 About this Document.............................................................................................7
2.0 Functional Overview..............................................................................................7
3.0 Package Information..............................................................................................8
3.1
Package Introduction.....................................................................................8
3.1.1 Functional Signal Definitions............................................................9
3.1.1.1 PXA250 Signal Pin Descriptions ......................................9
3.1.1.2 PXA210 Signal Pin Descriptions ....................................19
Package Power Ratings..............................................................................29
3.2
4.0 Electrical Specifications......................................................................................29
4.1
4.2
4.3
4.4
4.5
Absolute Maximum Ratings.........................................................................29
Operating Conditions...................................................................................30
Targeted DC Specifications.........................................................................31
Targeted AC Specifications.........................................................................32
Oscillator Electrical Specifications...............................................................33
4.5.1 32.768 kHz Oscillator Specifications..............................................33
4.5.2 3.6864 MHz Oscillator Specifications.............................................34
Reset and Power AC Timing Specifications................................................35
4.6.1 Power On Timing............................................................................35
4.6.2 Hardware Reset Timing..................................................................36
4.6.3 Watchdog Reset Timing.................................................................37
4.6.4 GPIO Reset Timing ........................................................................37
4.6.5 Sleep Mode Timing ........................................................................38
Memory Bus and PCMCIA AC Specifications.............................................39
Peripheral Module AC Specifications..........................................................42
4.8.1 LCD Module AC Timing..................................................................43
4.8.2 SSP Module AC Timing..................................................................43
4.8.3 Boundary Scan Test Signal Timings ..............................................44
AC Test Conditions .....................................................................................45
4.6
4.7
4.8
4.9
Datasheet
3
PXA250 and PXA210 — Electrical, Mechanical, and Thermal Specification
Figures
1
2
3
4
5
6
7
8
9
Applications Processor Block Diagram .................................................................8
PXA250 Applications Processor .........................................................................16
PXA210 Applications Processor .........................................................................26
Power-On Reset Timing......................................................................................36
Hardware Reset Timing ......................................................................................37
GPIO Reset Timing.............................................................................................37
Sleep Mode Timing .............................................................................................38
LCD AC Timing Definitions .................................................................................43
SSP AC Timing Definitions .................................................................................44
10 AC Test Load ......................................................................................................45
Tables
1
2
3
4
5
6
7
8
9
Related Documentation.........................................................................................7
Pin and Signal Descriptions for the PXA250 Applications Processor ...................9
PXA250 256-Lead 17x17mm mBGA Pinout — Ballpad Number Order..............17
Pin and Signal Descriptions for the PXA210 Applications Processor .................19
PXA210 225-Lead 13x13mm TPBGA Pinout — Ballpad Number Order............27
JA and Maximum Power Ratings........................................................................29
Absolute Maximum Ratings ................................................................................29
Voltage, Temperature, and Frequency Electrical Specifications.........................30
Standard Input, Output, and I/O Pin DC Operating Conditions...........................31
10 Standard Input, Output, and I/O Pin AC Operating Conditions...........................32
11 32.768 kHz Oscillator Specifications...................................................................33
12 3.6864 MHz Oscillator Specifications..................................................................34
13 Power-On Timing Specifications.........................................................................36
14 Hardware Reset Timing Specifications ...............................................................37
15 GPIO Reset Timing Specifications......................................................................38
16 Sleep Mode Timing Specifications......................................................................39
17 SRAM / ROM / Flash / Synchronous Fast Flash AC Specifications....................39
18 Variable Latency I/O Interface AC Specifications ...............................................40
19 Card Interface (PCMCIA or Compact Flash) AC Specifications .........................41
20 Synchronous Memory Interface AC Specifications1............................................42
21 LCD AC Timing Specifications............................................................................43
22 SSP AC Timing Specifications............................................................................44
23 Boundary Scan Test Signal Timing.....................................................................44
4
Datasheet
Electrical, Mechanical, and Thermal Specification — PXA250 and PXA210
Revision History
Date
Revision
Description
7/6/01
2/8/02
0.5
First Release
-001
First public release of the EMTS
Datasheet
5
PXA250 and PXA210 — Electrical, Mechanical, and Thermal Specification
6
Datasheet
Electrical, Mechanical, and Thermal Specification — PXA250 and PXA210
1.0
About this Document
This is the Electrical, Mechanical, and Thermal Specification datasheet for the Intel® PXA250 and
PXA210 applications processors. This datasheet contains a functional overview, mechanical data,
package signal locations, targeted electrical specifications (simulated), and bus functional
waveforms. Detailed functional descriptions other than parametric performance is published in the
Intel® PXA250 and PXA210 Applications Processors Developer's Manual. Refer to Table 1,
“Related Documentation” for a list of documents that support the PXA250 and PXA210
applications processors.
Table 1. Related Documentation
Document Title
Order / Contact
Intel Order # 278522
Intel® PXA250 and PXA210 Applications
Processors Developer's Manual
Intel® XScaleTM Microarchitecture for the PXA250
and PXA210 Applications Processors Developer's
Manual
Intel Order # 278525
Intel Order # 278523
Intel® PXA250 and PXA210 Applications
Processors Design Guide
2.0
Functional Overview
The PXA250 and PXA210 applications processors provide high integration, high performance and
low power consumption for portable handheld and handset devices. These applications processors
incorporate Intel’s XScaleTM Microarchitecture based on the ARM* V5TE architecture. Refer to
the Intel® XScaleTM Microarchitecture for the Intel® PXA250 and PXA210 Applications
Processors Developer's Manual for implementation details, extensions, and options implemented
by Intel’s XScaleTM Microarchitecture.
The applications processor’s memory interface supports a variety of memory types that allow
flexibility in design requirements. Hooks for connection to two companion chips permit glueless
connection to external devices. An integrated LCD display controller provides support for displays,
and permits 1, 2 and 4 bit grayscale and 8 or 16 bit color pixels. A 256-byte palette RAM provides
flexibility in color mapping.
A rich set of serial devices as well as general system resources provide enough compute and
connectivity capability for many applications. For details on the programming model and theory of
operation of each of these units, refer to the Intel® PXA250 and PXA210 Applications Processors
Developer's Manual. For the applications processor’s block diagram refer to Figure 1,
“Applications Processor Block Diagram” on page 8.
Datasheet
7
PXA250 and PXA210 — Electrical, Mechanical, and Thermal Specification
Figure 1. Applications Processor Block Diagram
RTC
Color or
Grayscale
LCD
Memory
Controller
OS Timer
PWM(2)
Int Contr.
Controller
Clocks &
Pwr Man.
Variable
Latency I/O
Control
ASIC
I2 S
System Bus
DMA
Controller
And
I2 C
Socket 0
Socket 1
PCMCIA & CF
Control
AC97
XCVR
Bridge
UART1
UART2
Dynamic
Memory
Control
SDRAM/
SMROM
4 banks
Megacell
Core
Slow IrDA
Fast IrDA
SSP
ROM/
Flash/
SRAM
Static
Memory
Control
USB
Client
MMC
3.6864 32.768
MHz
Osc
KHz
Osc
4 Banks
3.0
Package Information
3.1
Package Introduction
The applications processor is offered in two packages;
• The PXA250 applications processor, 256-pin mBGA (refer to Figure 2, “PXA250
Applications Processor” on page 16)
• The PXA210 applications processor, 225-pin TPBGA package (refer to Figure 3, “PXA210
Applications Processor” on page 26)
8
Datasheet
Electrical, Mechanical, and Thermal Specification — PXA250 and PXA210
3.1.1
Functional Signal Definitions
3.1.1.1
PXA250 Signal Pin Descriptions
Signal definitions for the PXA250 applications processor are described in Table 2, “Pin and Signal
Descriptions for the PXA250 Applications Processor” on page 9. The physical characteristics of
the PXA250 applications processor are shown in Figure 2, “PXA250 Applications Processor” on
page 16. The pinout for the PXA250 applications processor is described in Table 3, “PXA250 256-
Lead 17x17mm mBGA Pinout — Ballpad Number Order” on page 17.
Table 2. Pin and Signal Descriptions for the PXA250 Applications Processor (Sheet 1 of 7)
Name
Type
Description
Memory Controller Pins
Memory address bus. This bus signals the address requested for memory
accesses.
MA[25:0]
MD[15:0]
OCZ
ICOCZ Memory data bus. D[15:0] are used for 16-bit data mode.
Memory data bus. D[31:16]: These data bits are used for the PXA250 applications
ICOCZ processor 32-bit memories and are not pinned out for the PXA210 applications
processor, 16-bit package option.
MD[31:16]
Memory output enable. This signal should be connected to the output enables of
memory devices to control their data bus drivers.
nOE
OCZ
Memory write enable. Connect this signal should to the write enables of memory
devices.
nWE
OCZ
SDRAM CS for banks 0 through 3. Connect these signals to the chip select (CS)
pins for SDRAM. nSDCS0 is three-stateable nSDCS1-3 are not
nSDCS[3:0]
DQM[3:0]
nSDRAS
nSDCAS
OCZ
SDRAM DQM for data bytes 0 through 3. Connect these signals to the data output
mask enables (DQM) for SDRAM.
OCZ
SDRAM RAS. Connect this signal should to the row address strobe (RAS) pins for
all banks of SDRAM.
OCZ
SDRAM CAS. Connect this signal should to the column address strobe (CAS)
pins for all banks of SDRAM.
OCZ
SDRAM and/or Synchronous Static Memory clock enable.
Connect SDCKE[0] to the CKE pins of SMROM and SDRAM-timing Synchronous
SDCKE[0]
SDCKE[1]
OC
OC
Flash.
The memory controller provides control register bits for deassertion of each
SDCKE pin.
SDRAM and/or Synchronous Static Memory clock enable.
Connect SDCKE[1] to the SDRAM clock enable pins. It is de-asserted (held low)
during sleep. SDCKE[1] is always deasserted upon reset.
The memory controller provides control register bits for deassertion of each
SDCKE pin.
Datasheet
9
PXA250 and PXA210 — Electrical, Mechanical, and Thermal Specification
Table 2. Pin and Signal Descriptions for the PXA250 Applications Processor (Sheet 2 of 7)
Name
Type
Description
SDRAM and/or Synchronous Static Memory clocks. Connect SDCLK[0] to the
clock (CLK) pins of SMROM and SDRAM-timing Synchronous Flash. SDCLK[1]
and SDCLK[2] should be connected to the clock pins of SDRAM in bank pairs 0/1
and 2/3, respectively. They are driven by either the internal memory controller
clock, or the internal memory controller clock divided by 2. At reset, all clock pins
are free running at the divide by 2 clock speed and may be turned off via free
running control register bits in the memory controller. The memory controller also
provides control register bits for clock division and deassertion of each SDCLK
pin. SDCLK[0] control register assertion bit defaults to on if the boot-time static
memory bank 0 is configured for SMROM or SDRAM-timing Synchronous Flash.
SDCLK[2:1] control register assertion bits are always deasserted upon reset.
SDCLK[2:0]
OCZ
0 and 2 are not three-stateable, SDCLK1 is three-stateable
Static chip selects. These signals are chip selects for static memory devices such
as ROM and Flash. They are individually programmable in the memory
configuration registers. nCS[5:3] may be used with variable data latency variable
latency I/O devices.
nCS[5]/
ICOCZ
GPIO[33]
See Note [1]
nCS[4]/
ICOCZ Static chip select 4.
ICOCZ Static chip select 3.
ICOCZ Static chip select 2.
ICOCZ Static chip select 1.
GPIO[80]
nCS[3]/
GPIO[79]
nCS[2]/
GPIO[78]
nCS[1]/
GPIO[15]
Static chip select 0. This is the boot memory chip select. nCS[0] is a dedicated
pin.
nCS[0]
ICOCZ
OCZ
Read/Write for static interface. Intended for use as a steering signal for buffering
logic
RD/nWR
RDY/
Variable Latency I/O Ready pin (input)
See Note [1]
ICOCZ
GPIO[18]
PCMCIA/CF Control Pins
PCMCIA Output Enable. This PCMCIA signal is an output and performs reads
from memory and attribute space.
nPOE/
ICOCZ
GPIO[48]
See Note [1]
PCMCIA Write Enable. This signal is an output and performs writes to memory
and attribute space.
nPWE/
ICOCZ
GPIO[49]
See Note [1]
PCMCIA I/O Write. This signal is an output and performs write transactions to the
PCMCIA I/O space.
nPIOW/
ICOCZ
GPIO[51]
See Note [1]
PCMCIA I/O Read. This signal is an output and performs read transactions from
the PCMCIA I/O space.
nPIOR/
ICOCZ
GPIO[50]
See Note [1]
PCMCIA Card Enable. These signals are outputs and select a PCMCIA card. Bit
one enables the high byte lane and bit zero enables the low byte lane.
nPCE[2:1]/
ICOCZ
GPIO[53, 52]
See Note [1]
10
Datasheet
Electrical, Mechanical, and Thermal Specification — PXA250 and PXA210
Table 2. Pin and Signal Descriptions for the PXA250 Applications Processor (Sheet 3 of 7)
Name
Type
Description
I/O Select 16. This signal is an input and is an acknowledge from the PCMCIA
card that the current address is a valid 16 bit wide I/O address.
nIOIS16/
ICOCZ
GPIO[57]
See Note [1]
PCMCIA Wait. This signal is an input and is driven low by the PCMCIA card to
extend the length of the transfers to/from applications processor.
nPWAIT/
GPIO[56]
ICOCZ
ICOCZ
See Note [1]
PCMCIA Socket Select. This signal is an output and is used by external steering
logic to route control, address and data signals to one of the two PCMCIA
sockets. When PSKTSEL is low, socket zero is selected. When PSKTSEL is high,
socket one is selected. This signal has the same timing as an address.
nPSKTSEL/
GPIO[54]
See Note [1]
PCMCIA Register Select. This signal is an output and indicates that, on a memory
transaction, the target address is attribute space. This signal has the same timing
as address.
nPREG/
ICOCZ
GPIO[55]
See Note [1]
LCD Controller Pins
L_DD(15:0)/
LCD Controller display data
See Note [1]
ICOCZ
GPIO[73:58]
L_FCLK/
GPIO[74]
LCD Frame clock
See Note [1]
ICOCZ
ICOCZ
ICOCZ
ICOCZ
L_LCLK/
GPIO[75]
LCD Line clock
See Note [1]
L_PCLK/
GPIO[76]
LCD pixel clock
See Note [1]
L_BIAS/
AC Bias Drive
See Note [1]
GPIO[77]
Full Function UART Pins
FFRXD/
ICOCZ
Full Function UART Receive pin
See Note [1]
GPIO[34]
FFTXD/
ICOCZ
Full Function UART Transmit pin
See Note [1]
GPIO[39]
FFCTS/
ICOCZ
Full Function UART Clear-to-Send pin
See Note [1]
GPIO[35]
FFDCD/
ICOCZ
Full Function UART Data-Carrier-Detect Pin
See Note [1]
GPIO[36]
FFDSR/
ICOCZ
Full Function UART Data-Set-Ready Pin:
See Note [1]
GPIO[37]
FFRI/
Full Function UART Ring Indicator Pin
See Note [1]
ICOCZ
GPIO[38]
FFDTR/
ICOCZ
Full Function UART Data-Terminal-Ready pin
See Note [1]
GPIO[40]
FFRTS/
ICOCZ
Full Function UART Ready-to-Send pin
See Note [1]
GPIO[41]
Datasheet
11
PXA250 and PXA210 — Electrical, Mechanical, and Thermal Specification
Table 2. Pin and Signal Descriptions for the PXA250 Applications Processor (Sheet 4 of 7)
Name
Type
Description
Bluetooth UART Pins
BTRXD/
Bluetooth UART Receive pin
See Note [1]
ICOCZ
GPIO[42]
BTTXD/
Bluetooth UART Transmit pin
See Note [1]
ICOCZ
ICOCZ
ICOCZ
GPIO[43]
BTCTS/
Bluetooth UART Clear-to-Send pin
See Note [1]
GPIO[44]
BTRTS/
Bluetooth UART Data-Terminal-Ready pin
See Note [1]
GPIO[45]
MMC Controller Pins
MMCMD
MMDAT
SSP Pins
ICOCZ Multimedia Card Command pin (I/O)
ICOCZ Multimedia Card Data Pin (I/O)
SSPSCLK/
GPIO[23]
Synchronous Serial Port Clock (output)
ICOCZ
See Note [1]
SSPSFRM/
GPIO[24]
Synchronous serial port Frame Signal (output)
ICOCZ
See Note [1]
SSPTXD/
GPIO[25]
Synchronous serial port transmit (output)
ICOCZ
See Note [1]
SSPRXD/
GPIO[26]
Synchronous serial port receive (input)
ICOCZ
See Note [1]
SSPEXTCLK/
GPIO[27]
Synchronous Serial port external clock (input)
ICOCZ
See Note [1]
USB Client Pins
USB_P
IAOA
IAOA
USB Client port positive Pin of differential pair.
USB Client port negative Pin of differential pair.
USB_N
AC97 Controller Pins
BITCLK/
AC97 Audio Port bit clock (output)
See Note [1]
ICOCZ
GPIO[28]
SDATA_IN0/
GPIO[29]
AC97 Audio Port data in (input)
See Note [1]
ICOCZ
ICOCZ
ICOCZ
ICOCZ
OC
SDATA_IN1/
GPIO[32]
AC97 Audio Port data in (input)
See Note [1]
SDATA_OUT/
GPIO[30]
AC97 Audio Port data out (output)
See Note [1]
SYNC/
AC97 Audio Port sync signal (output)
See Note [1]
GPIO[31]
AC97 Audio Port reset signal (output)
This pin is a dedicated output.
nACRESET
12
Datasheet
Electrical, Mechanical, and Thermal Specification — PXA250 and PXA210
Table 2. Pin and Signal Descriptions for the PXA250 Applications Processor (Sheet 5 of 7)
Name
Type
Description
Standard UART and ICP Pins
IRRXD/
IrDA Receive signal (input).
ICOCZ
GPIO[46]
See Note [1]
IrDA Transmit signal (output).
IRTXD/
ICOCZ This pin is the transmit pin for both the SIR and FIR functions.
See Note [1]
GPIO[47]
I2C Controller Pins
I2C clock (Bidirectional)
This signal is bidirectional. When it is driving, it functions as an open collector
ICOCZ
SCL
device and requires a pull up resistor. As an input, it expects standard CMOS
levels.
I2C Data signal (bidirectional).
SDA
ICOCZ
Bidirectional signal. When it is driving, it functions as an open collector device and
requires a pull up resistor. As an input, it expects standard CMOS levels.
PWM Pins
Pulse Width Modulation channels 0 and 1 (outputs)
PWM[1:0]/
ICOCZ See Note [1]
GPIO[17,16]
Dedicated GPIO Pins
General Purpose I/O. These two pins are contained in both the PXA250 and
PXA210 Applications Processors. They are preconfigured at a hard reset
(nRESET) as wakeup sources for both rising and falling edge detects.
GPIO[1:0]
ICOCZ
These GPIOs do not have alternate functions and are intended to be used as the
main external sleep wakeup stimulus.
General Purpose I/O: These pins are not included in the PXA210 Applications
Processor.
GPIO[14:2])
ICOCZ
See Note [1]
Crystal Pins
PXTAL
IA
OA
IA
Input connection for 3.6864 Mhz crystal
Output connection for 3.6846 Mhz crystal
Input connection for external oscillator
PEXTAL
TXTAL
Input connection for 32.768 Khz crystal
Output connection for 32.768 Khz crystal
Input connection for external oscillator
TEXTAL
OA
Datasheet
13
PXA250 and PXA210 — Electrical, Mechanical, and Thermal Specification
Table 2. Pin and Signal Descriptions for the PXA250 Applications Processor (Sheet 6 of 7)
Name
Type
Description
Miscellaneous Pins
Boot programming select pins. These pins are sampled to indicate the type of
boot device present per the following table;
BOOT_SEL[2:0]
Description
000
001
010
011
100
101
110
111
Asynchronous 32-bit ROM
Asynchronous 16-bit ROM
Reserved
BOOT_SEL
[2:0]
IC
Reserved
One 32-bit SMROM
One 16 bit SMROM
Two 16 bit SMROMs (32 bit bus)
Reserved
Power Enable. Active high output.
PWR_EN enables the external power supply. Negating it signals the power supply
that the system is going into sleep mode and that the VDD power supply should
be removed.
PWR_EN
OCZ
IC
Battery Fault. Active low input.
Signals the applications processor that the main power source is going away
(battery is low or is removed from the system.) The assertion of nBATT_FAULT
causes the applications processor to enter Sleep Mode. The device will not
recognize a wakeup event while this signal is asserted.
nBATT_FAUL T
VDD Fault. Active low input.
Signals the applications processor that the main power source is going out of
regulation (i.e. shorted card is inserted). nVDD_FAULT causes the device to enter
Sleep Mode. nVDD_FAULT is ignored after a wakeup event until the power supply
timer completes (approximately 10 ms).
nVDD_FAULT
IC
IC
Hard reset. Active low input.
nRESET is a level sensitive input which starts the processor from a known
address. A LOW level causes the current instruction to terminate abnormally, and
all on-chip states to be reset. When nRESET is driven HIGH, the processor re-
starts from address 0. nRESET must remain LOW until the power supply is stable
and the internal 3.6864 MHz oscillator has come up to speed. While nRESET is
LOW the processor performs idle cycles.
nRESET
Reset Out. Active low output.
This signal is asserted when nRESET is asserted and deasserts after nRESET is
negated but before the first instruction fetch. nRESET_OUT is also asserted for
“soft” reset events (sleep, watchdog reset, GPIO reset)
nRESET_OUT
OC
IC
JTAG Pins
nTRST
JTAG Test interface reset. If JTAG is used, then you must drive nTRST from low
to high either before or at the same time as nRESET
If JTAG is not used, then tie nTRST to either nRESET or low.
TDI
IC
OCZ
IC
JTAG test interface data input. Note this pin has an internal pullup resistor.
JTAG test interface data output. Note this pin does NOT have an internal pullup
resistor.
TDO
TMS
TCK
TEST
JTAG test interface mode select. Note this pin has an internal pullup resistor.
JTAG test interface reference Clock. TCK is the reference clock for all transfers
on the JTAG test interface. Note this pin has an internal pulldown resistor.
IC
IC
Test Mode. You must ground this pin. This pin is for manufacturing purposes only.
14
Datasheet
Electrical, Mechanical, and Thermal Specification — PXA250 and PXA210
Table 2. Pin and Signal Descriptions for the PXA250 Applications Processor (Sheet 7 of 7)
Name
Type
Description
Test Clock. This pin should be used for test purposes only. An end user should
ground this pin.
TESTCLK
IC
Power and Ground Pins
Positive supply for the applications processor internal Logic. Connect this supply
to the low voltage (.85 - 1.3v) supply on the PCB.
VCC
VSS
SUP
SUP
Ground supply for the applications processor internal logic. Connect these pins to
the common ground plane on the PCB.
Positive supply for the PLLs and Oscillators. It is recommended that you connect
this pin to the common low voltage supply.
PLL_VCC
PLL_VSS
VCCQ
SUP
SUP
SUP
Ground signal for PLLs.
Positive supply for all CMOS I/O, except memory bus and PCMCIA pins. Connect
these pins to the common 3.3 volt supply on the PCB.
Ground supply for all CMOS I/O except memory bus and PCMCIA pins. Connect
these pins to the common ground plane on the PCB.
VSSQ
VCCN
VSSN
SUP
SUP
SUP
Positive supply for memory bus and PCMCIA pins. Connect these pins to the
common 3.3 volt supply on the PCB.
Ground supply for memory bus and PCMCIA pins. Connect these pins to the
common ground plane on the PCB.
Backup battery connection. Connect this pin to the backup battery supply. If a
backup battery is not required, then this pin may be connected to the common
3.3 volt supply on the PCB.
BATT_VCC
SUP
NOTE:
1. GPIO Reset Operation: Configured as GPIO inputs by default after any reset. The input buffers for these
pins are disabled to prevent current drain.
Datasheet
15
PXA250 and PXA210 — Electrical, Mechanical, and Thermal Specification
Figure 2. PXA250 Applications Processor
16
Datasheet
Electrical, Mechanical, and Thermal Specification — PXA250 and PXA210
Table 3. PXA250 256-Lead 17x17mm mBGA Pinout — Ballpad Number Order (Sheet 1 of 3)
Ball #
Signal
Ball #
Signal
Ball #
Signal
A1
A2
VCCN
C10
C11
C12
C13
C14
C15
C16
D1
VCCQ
VSSQ
USB_P
VCCQ
VSSQ
F3
F4
nSDCAS
VCCN
L_DD[13]/GPIO[71]
L_DD[12]/GPIO[70]
L_DD[11]/GPIO[69]
L_DD[9]/GPIO[67]
L_DD[7]/GPIO[65]
GPIO[11]
A3
F5
SDCLK[1]
VSSQ
A4
F6
A5
F7
GPIO[10]
FRTS/GPIO[41]
SSPSCLK/GPIO[23]
FFDTR/GPIO[40]
VCC
A6
IRTXD/GPIO[47]
VSS
F8
A7
F9
A8
L_BIAS/GPIO[77]
SSPRXD/GPIO[26]
SDATA_OUT/GPIO[30]
SDA
SDCLK[2]
F10
F11
F12
F13
F14
F15
F16
G1
A9
D2
SDCLK[0]
A10
A11
A12
A13
A14
A15
A16
B1
D3
RDnWR
GPIO[9]
BOOT_SEL[2]
GPIO[8]
VSSQ
D4
VCCN
FFDCD/GPIO[36]
FFRXD/GPIO[34]
FFCTS/GPIO[35]
BTCTS/GPIO[44]
SDATA_IN1/GPIO[32]
DQM[1]
D5
L_DD[10]/GPIO[68]
L_DD[5]/GPIO[63]
L_DD[1]/GPIO[59]
L_LCLK/GPIO[75]
SSPTXD/GPIO[25]
nACRESET
D6
D7
VSSQ
D8
MA[0]
D9
G2
VSSN
D10
D11
D12
D13
D14
D15
D16
E1
G3
nSDCS[2]
nWE
B2
DQM[2]
SCL
G4
B3
L_DD[15]/GPIO[73]
GPIO[14]
PWM[1]/GPIO[17]
BTTXD/GPIO[43]
MMCMD
G5
nOE
B4
G6
nSDCS[1]
VCC
B5
GPIO[13]
G7
B6
GPIO[12]
VCCQ
G8
VSSQ
B7
L_DD[3]/GPIO[61]
L_PCLK/GPIO[76]
SSPEXTCLK/GPIO[27]
FFRI/GPIO[38]
FFDSR/GPIO[37]
USB_N
VSSQ
G9
VCC
B8
nSDRAS
G10
G11
G12
G13
G14
G15
G16
H1
VSSQ
B9
E2
VSSN
TESTCLK
TEST
B10
B11
B12
B13
B14
B15
B16
C1
E3
SDCKE[1]
E4
SDCKE[0]
BOOT_SEL[1]
VCCQ
E5
L_DD[6]/GPIO[64]
L_DD[4]/GPIO[62]
L_DD[[0]/GPIO[58]
L_FCLK/GPIO[74]
SSPSFRM/GPIO[24]
SDATA_IN0/GPIO[29]
SYNC/GPIO[31]
PWM[0]/GPIO[16]
FFTXD/GPIO[39]
VCCQ
BTRXD/GPIO[42]
BTRTS/GPIO[45]
IRRXD/GPIO[46]
MMDAT
E6
GPIO[7]
BOOT_SEL[0]
MA[2]
E7
E8
E9
H2
MA[1]
RDY/GPIO[18]
VSSN
E10
E11
E12
E13
E14
H3
MD[16]
C2
H4
VCCN
C3
L_DD[14]/GPIO[72]
VSSQ
H5
MD[17]
C4
H6
MA[3]
C5
L_DD[8]/GPIO[66]
H7
VSSQ
Datasheet
17
PXA250 and PXA210 — Electrical, Mechanical, and Thermal Specification
Table 3. PXA250 256-Lead 17x17mm mBGA Pinout — Ballpad Number Order (Sheet 2 of 3)
Ball #
Signal
Ball #
Signal
Ball #
Signal
C6
C7
VCCQ
E15
E16
F1
VSSQ
VSSQ
H8
H9
VSS
L_DD[2]/GPIO[60]
VSSQ
VSS
C8
nSDCS[0]
nSDCS[3]
VCC
H10
H11
P6
VCC
C9
BITCLK/GPIO[28]
TCK
F2
nTRST
MD[24]
MD26]
MD[27]
H12
H13
H14
H15
H16
J1
L9
TMS
L10
L11
L12
L13
L14
L15
L16
M1
M2
M3
M4
M5
M6
M7
GPIO[0]
PWR_EN
GPIO[1]
GPIO[2]
VSSQ
P7
GPIO[6]
TDI
P8
P9
nCS[2]/GPIO[78]
MD[29]
TDO
P10
P11
P12
P13
P14
P15
P16
R1
MA[7]
MD[12]
J2
VSSN
TEXTAL
TXTAL
MD[31]
J3
MA[6]
nPOE/GPIO[48]
nPCE[1]/GPIO[52]
VSSN
J4
MD[18]
MA[5]
MA[14]
MD[21]
MA[15]
VCCN
J5
J6
MA[4]
nPSKTSEL/GPIO[54]
MA[18]
J7
VCC
J8
VSS
MD[1]
R2
VSSN
J9
VSS
MD[6]
R3
MA[20]
J10
J11
J12
J13
J14
J15
J16
K1
VSSQ
MD[7]
R4
VSSN
GPIO[5]
GPIO[4]
nRESET
VSSQ
M8
DQM[0]
MD[8]
R5
MA[22]
M9
M10
M11
M12
M13
M14
M15
M16
N1
R6
VSSN
MD[15]
BATT_VCC
GPIO[22]
nPREG/GPIO[55]
VCCN
R7
MD[25]
R8
VSSN
PLL_VCC
PLL_VSS
MA[8]
R9
MD[10]
R10
R11
R12
R13
R14
R15
R16
T1
VSSN
MD[30]
K2
MA[9]
VSSN
VSSN
K3
MD[19]
VCCN
nIOIS16/GPIO[57]
MD[22]
VSSN
nCS[4]/GPIO[80]
VSSN
K4
K5
MA[10]
MA[11]
VSSQ
N2
nPIOW/GPIO[51]
nPCE[2]/GPIO[53]
VSS
K6
N3
MA[16]
K7
N4
MD[0]
K8
VCC
N5
VCCN
T2
VCCN
K9
VSSQ
N6
MD[4]
T3
MD[23]
K10
K11
K12
K13
VCC
N7
VCCN
T4
MA[21]
nRESET_OUT
nBATT_FAULT
nVDD_FAULT
N8
nCS[0]
T5
MA[24]
N9
VCCN
T6
MD[3]
N10
MD[13]
T7
MD[5]
18
Datasheet
Electrical, Mechanical, and Thermal Specification — PXA250 and PXA210
Table 3. PXA250 256-Lead 17x17mm mBGA Pinout — Ballpad Number Order (Sheet 3 of 3)
Ball #
Signal
Ball #
Signal
Ball #
Signal
K14
K15
K16
L1
GPIO[3]
PXTAL
PEXTAL
MA[12]
VSSN
N11
N12
N13
N14
N15
N16
P1
VCCN
T8
T9
nCS[1]/GPIO[15]
nCS[3]/GPIO[79]
MD[9]
DREQ[0]/GPIO[20]
VCCN
T10
T11
T12
T13
T14
T15
T16
DREQ[1]/GPIO[19]
GPIO[21]
MD[11]
L2
MD[14]
L3
MA[13]
MD[20]
MD[2]
nPWAIT/GPIO[56]
MA[17]
nCS[5]/GPIO[33]
nPWE/GPIO[49]
nPIOR/GPIO[50]
VCCN
L4
L5
P2
MA[19]
L6
VCC
P3
VCCN
L7
DQM[3]
MD[28]
P4
MA[25]
L8
P5
MA[23]
3.1.1.2
PXA210 Signal Pin Descriptions
Signal definitions for the PXA210 applications processor are described in Table 4. The physical
characteristics of the PXA210 applications processor are shown in Figure 3, “PXA210
Applications Processor” on page 26. The pinout for the PXA210 applications processor is
described in Table 5, “PXA210 225-Lead 13x13mm TPBGA Pinout — Ballpad Number Order” on
page 27.
Table 4. Pin and Signal Descriptions for the PXA210 Applications Processor (Sheet 1 of 7)
Pin Name
Type
Signal Descriptions
Memory Controller Pins
Memory address bus. (output) Signals the address requested for memory
accesses.
MA[25:0]
MD[15:0]
nOE
OCZ
ICOCZ Memory data bus. (input/output) Lower 16 bits of the data bus.
Memory output enable. (output) Connect to the output enables of memory
devices to control data bus drivers.
OCZ
nWE
OCZ
OCZ
Memory write enable. (output) Connect to the write enables of memory devices.
SDRAM CS for banks 1 and 0. (output) Connect to the chip select (CS) pins for
SDRAM. For the PXA210 applications processor nSDCS0 can be Hi-Z, nSDCS1
cannot.
nSDCS[1:0]
SDRAM DQM for data bytes 1 and 0. (output) Connect to the data output mask
enables (DQM) for SDRAM.
DQM[1:0]
nSDRAS
nSDCAS
OCZ
OCZ
OCZ
SDRAM RAS. (output) Connect to the row address strobe (RAS) pins for all banks
of SDRAM.
SDRAM CAS. (output) Connect to the column address strobe (CAS) pins for all
banks of SDRAM.
SDRAM and/or Synchronous Static Memory clock enable. (output) Connect to
the CKE pins of SMROM and SDRAM-timing Synchronous Flash. The memory
controller provides control register bits for deassertion.
SDCKE[0]
OC
Datasheet
19
PXA250 and PXA210 — Electrical, Mechanical, and Thermal Specification
Table 4. Pin and Signal Descriptions for the PXA210 Applications Processor (Sheet 2 of 7)
Pin Name
Type
Signal Descriptions
SDRAM and/or Synchronous Static Memory clock enable. (output) Connect to
the clock enable pins of SDRAM. It is deasserted during sleep. SDCKE[1] is
always deasserted upon reset. The memory controller provides control register bits
for deassertion.
SDCKE[1]
SDCLK[0]
OC
OC
SDRAM and/or Synchronous Static Memory clocks. (output) Connect to the
clock (CLK) pins of SMROM and SDRAM-timing Synchronous Flash. Connect
SDCLK[1] to the clock pins of SDRAM in bank pairs 0/1. It is driven by either the
internal memory controller clock or the internal memory controller clock divided by
2. At reset, all clock pins are free running at the divide by 2 clock speed and may
be turned off via free running control register bits in the memory controller. The
memory controller also provides control register bits for clock division and
deassertion of each SDCLK pin. SDCLK[0] control register assertion bit defaults to
on if the boot-time static memory bank 0 is configured for SMROM or SDRAM-
timing Synchronous Flash. SDCLK[1] control register assertion bit is always
deasserted on reset. SDCLK[1] can be Hi-Z, SDCLK[0] cannot.
SDCLK[1]
OCZ
nCS[5]/
ICOCZ
ICOCZ
GPIO[33]
nCS[4]/
GPIO[80]
Static chip selects. (output) Chip selects to static memory devices such as ROM
ICOCZ and Flash. Individually programmable in the memory configuration registers.
nCS[5:3] can be used with variable latency I/O devices.
nCS[3]/
GPIO[79]
nCS[2]/
ICOCZ
ICOCZ
GPIO[78]
nCS[1]/
GPIO[15]
nPWE/
VLIO write enable (output). Used as the write enable signal for Variable Latency
ICOCZ
I/O.
GPIO[49]
Static chip select 0. (output) Chip select for the boot memory. nCS[0] is a
dedicated pin.
nCS[0]
ICOCZ
Read/Write for static interface. (output) Signals that the current transaction is a
read or write.
RD/nWR
OCZ
RDY/
Variable Latency I/O Ready pin. (input) Notifies the memory controller when an
external bus device is ready to transfer data.
ICOCZ
GPIO[18]
LCD display data. (output) Transfers pixel information from the LCD Controller to
L_DD[8]/
GPIO[66]
the external LCD panel.
ICOCZ
Memory Controller alternate bus master request. (input) Allows an external
device to request the system bus from the Memory Controller.
LCD display data. (output) Transfers pixel information from the LCD Controller to
L_DD[15]/
GPIO[73]
the external LCD panel.
ICOCZ
Memory Controller grant. (output) Notifies an external device that it has been
granted the system bus.
LCD Controller Pins
L_DD(7:0)/
LCD display data. (outputs) Transfers pixel information from the LCD Controller to
the external LCD panel.
ICOCZ
GPIO[65:58]
LCD display data. (output) Transfers pixel information from the LCD Controller to
L_DD[8]/
GPIO[66]
the external LCD panel.
ICOCZ
Memory Controller alternate bus master request. (input) Allows an external
device to request the system bus from the Memory Controller.
20
Datasheet
Electrical, Mechanical, and Thermal Specification — PXA250 and PXA210
Table 4. Pin and Signal Descriptions for the PXA210 Applications Processor (Sheet 3 of 7)
Pin Name
Type
Signal Descriptions
LCD display data. (output) Transfers pixel information from the LCD Controller to
the external LCD panel.
L_DD[9]/
ICOCZ
GPIO[67]
MMC chip select 0. (output) Chip select 0 for the MMC Controller.
LCD display data. (output) Transfers pixel information from the LCD Controller to
the external LCD panel.
L_DD[10]/
GPIO[68]
ICOCZ
ICOCZ
ICOCZ
ICOCZ
ICOCZ
MMC chip select 1. (output) Chip select 1 for the MMC Controller.
LCD display data. (output) Transfers pixel information from the LCD Controller to
the external LCD panel.
L_DD[11]/
GPIO[69]
MMC clock. (output) Clock for the MMC Controller.
LCD display data. (output) Transfers pixel information from the LCD Controller to
the external LCD panel.
L_DD[12]/
GPIO[70]
RTC clock. (output) Real time clock 1 Hz tick.
LCD display data. (output) Transfers pixel information from the LCD Controller to
the external LCD panel.
L_DD[13]/
GPIO[71]
3.6864 MHz clock. (output) Output from 3.6864 MHz oscillator.
LCD display data. (output) Transfers pixel information from the LCD Controller to
the external LCD panel.
L_DD[14]/
GPIO[72]
32 kHz clock. (output) Output from the 32 kHz oscillator.
LCD display data. (output) Transfers pixel information from the LCD Controller to
L_DD[15]/
GPIO[73]
the external LCD panel.
ICOCZ
Memory Controller grant. (output) Notifies an external device it has been granted
the system bus.
L_FCLK/
GPIO[74]
LCD frame clock. (output) Indicates the start of a new frame. Also referred to as
Vsync.
ICOCZ
ICOCZ
L_LCLK/
GPIO[75]
LCD line clock. (output) Indicates the start of a new line. Also referred to as
Hsync.
L_PCLK/
GPIO[76]
ICOCZ LCD pixel clock. (output) Clocks valid pixel data into the LCD’s line shift buffer.
L_BIAS/
AC bias drive. (output) Notifies the panel to change the polarity for some passive
ICOCZ
LCD panel. For TFT panels, this signal indicates valid pixel data.
GPIO[77]
Full Function UART Pins
FFRXD/
ICOCZ
Full Function UART Receive. (input)
GPIO[34]
MMC chip select 0. (output) Chip select 0 for the MMC Controller.
FFTXD/
ICOCZ
Full Function UART Transmit. (output)
GPIO[39]
MMC chip select 1. (output) Chip select 1 for the MMC Controller.
Bluetooth UART Pins
BTRXD/
ICOCZ Bluetooth UART Receive. (input)
GPIO[42]
BTTXD/
ICOCZ Bluetooth UART Transmit. (output)
ICOCZ Bluetooth UART Clear-to-Send. (input)
ICOCZ Bluetooth UART Data-Terminal-Ready. (output)
GPIO[43]
BTCTS/
GPIO[44]
BTRTS/
GPIO[45]
Datasheet
21
PXA250 and PXA210 — Electrical, Mechanical, and Thermal Specification
Table 4. Pin and Signal Descriptions for the PXA210 Applications Processor (Sheet 4 of 7)
Pin Name
Type
Signal Descriptions
Standard UART and ICP Pins
IRRXD/
IrDA receive signal. (input) Receive pin for the FIR function.
Standard UART receive. (input)
ICOCZ
ICOCZ
GPIO[46]
IrDA transmit signal. (output) Transmit pin for the Standard UART, SIR and FIR
functions.
IRTXD/
GPIO[47]
Standard UART transmit. (output)
MMC Controller Pins
MMCMD
MMDAT
GPIO[53]
ICOCZ Multimedia Card Command. (bidirectional)
ICOCZ Multimedia Card Data. (bidirectional)
ICOCZ MMC clock. (output) Clock signal for the MMC Controller.
LCD display data. (output) Transfers pixel information from the LCD Controller to
L_DD[9]/
GPIO[67]
the external LCD panel.
ICOCZ
ICOCZ
ICOCZ
MMC chip select 0. (output) Chip select 0 for the MMC Controller.
LCD display data. (output) Transfers pixel information from the LCD Controller to
the external LCD panel.
L_DD[10]/
GPIO[68]
MMC chip select 1. (output) Chip select 1 for the MMC Controller.
LCD display data. (output) Transfers pixel information from the LCD Controller to
the external LCD panel.
L_DD[11]/
GPIO[69]
MMC clock. (output) Clock for the MMC Controller.
FFRXD/
Full Function UART Receive. (input)
ICOCZ
ICOCZ
GPIO[34]
MMC chip select 0. (output) Chip select 0 for the MMC Controller.
FFTXD/
Full Function UART Transmit. (output)
GPIO[39]
MMC chip select 1. (output) Chip select 1 for the MMC Controller.
SSP Pins
SSPSCLK/
GPIO[23]
ICOCZ Synchronous Serial Port Clock. (output)
ICOCZ Synchronous Serial Port Frame. (output)
ICOCZ Synchronous Serial Port Transmit. (output)
ICOCZ Synchronous Serial Port Receive. (input)
ICOCZ Synchronous Serial Port External Clock. (input)
SSPSFRM/
GPIO[24]
SSPTXD/
GPIO[25]
SSPRXD/
GPIO[26]
SSPEXTCLK/
GPIO[27]
USB Client Pins
USB_P
IAOAZ USB Client Positive. (bidirectional)
USB_N
IAOAZ USB Client Negative pin. (bidirectional)
22
Datasheet
Electrical, Mechanical, and Thermal Specification — PXA250 and PXA210
Table 4. Pin and Signal Descriptions for the PXA210 Applications Processor (Sheet 5 of 7)
Pin Name
Type
Signal Descriptions
AC97 Controller and I2S Controller Pins
AC97 Audio Port bit clock. (input) AC97 clock is generated by Codec 0 and fed
into the PXA210 applications processor and Codec 1.
AC97 Audio Port bit clock. (output) AC97 clock is generated by the PXA210
BITCLK/
applications processor.
I2S bit clock. (input) I2S clock is generated externally and fed into PXA210
ICOCZ
GPIO[28]
applications processor.
I2S bit clock. (output) I2S clock is generated by the PXA210 applications
processor.
SDATA_IN0/
GPIO[29]
AC97 Audio Port data in. (input) Input line for Codec 0.
I2S data in. (input) Input line for the I2S Controller.
ICOCZ
ICOCZ
ICOCZ
SDATA_IN1/
GPIO[32]
AC97 Audio Port data in. (input) Input line for Codec 1.
I2S system clock. (output) System clock from I2S Controller.
SDATA_OUT/
GPIO[30]
AC97 Audio Port data out. (output) Output from the PXA210 to Codecs 0 and 1.
I2S data out. (output) Output line for the I2S Controller.
AC97 Audio Port sync signal. (output) Frame sync signal for the AC97
Controller.
I2S sync. (output) Frame sync signal for the I2S Controller.
SYNC/
ICOCZ
OC
GPIO[31]
nACRESET
AC97 Audio Port reset signal. (output)
I2C Controller Pins
SCL
ICOCZ I2C clock. (bidirectional)
ICOCZ I2C data. (bidirectional).
SDA
PWM Pins
PWM[1:0]/
ICOCZ Pulse Width Modulation channels 0 and 1. (outputs)
GPIO[17:16]
GPIO Pins
GPIO[1:0]
General Purpose I/O. Wakeup sources on both rising and falling edges on
nRESET.
ICOCZ
General Purpose I/O. Wakeup sources on both rising and falling edges on
nRESET.
GPIO[57:48]
ICOCZ
Crystal and Clock Pins
PXTAL
PEXTAL
TXTAL
IA
3.6864 Mhz crystal input.
3.6864 Mhz crystal output.
32.768 khz crystal input.
32.768 khz crystal output.
OA
IA
TEXTAL
OA
LCD display data. (output) Transfers pixel information from the LCD Controller to
the external LCD panel.
L_DD[12]/
GPIO[70]
ICOCZ
ICOCZ
ICOCZ
RTC clock. (output) Real time clock 1 Hz tick.
LCD display data. (output) Transfers the pixel information from the LCD Controller
to the external LCD panel.
L_DD[13]/
GPIO[71]
3.6864 MHz clock. (output) Output from 3.6864 MHz oscillator.
LCD display data. (output) Transfers pixel information from the LCD Controller to
the external LCD panel.
L_DD[14]/
GPIO[72]
32 kHz clock. (output) Output from the 32 kHz oscillator.
Datasheet
23
PXA250 and PXA210 — Electrical, Mechanical, and Thermal Specification
Table 4. Pin and Signal Descriptions for the PXA210 Applications Processor (Sheet 6 of 7)
Pin Name
Type
Signal Descriptions
Miscellaneous Pins
BOOT_SEL
IC
Boot select pins. (input) Indicates type of boot device.
[2:0]
Power Enable for the power supply. (output) When negated, it signals the power
supply to remove power because the system is entering Sleep Mode.
PWR_EN
OC
Main Battery Fault. (input) Signals that main battery is low or removed. Assertion
causes the PXA210 applications processor to enter Sleep Mode or force an
Imprecise Data Exception, which cannot be masked. The PXA210 applications
processor will not recognize a wakeup event while this signal is asserted.
nBATT_FAULT IC
VDD Fault. (input) Signals that the main power source is going out of regulation.
nVDD_FAULT causes the PXA210 applications processor to enter Sleep Mode or
force an Imprecise Data Exception, which cannot be masked. nVDD_FAULT is
ignored after a wakeup event until the power supply timer completes
(approximately 10 ms).
nVDD_FAULT IC
Hard reset. (input) Level sensitive input used to start the processor from a known
address. Assertion causes the current instruction to terminate abnormally and
causes a reset. When nRESET is driven high, the processor starts execution from
address 0. nRESET must remain low until the power supply is stable and the
internal 3.6864 MHz oscillator has stabilized.
nRESET
IC
Reset Out. (output) Asserted when nRESET is asserted and deasserts after
nRESET is deasserted but before the first instruction fetch. nRESET_OUT is also
asserted for “soft” reset events: sleep, watchdog reset, or GPIO reset.
nRESET_OUT OC
JTAG and Test Pins
JTAG Test Interface Reset. Resets the JTAG/Debug port. If JTAG/Debug is used,
drive nTRST from low to high either before or at the same time as nRESET. If
JTAG is not used, nTRST must be either tied to nRESET or tied low. Intel
recommends that a JTAG/Debug port be added to all systems for debug and
download. See Chapter 9 in the “Intel® PXA250 and PXA210 Applications
Processor Design Guide” for details.
nTRST
IC
JTAG test data input. (input) Data from the JTAG controller is sent to the PXA210
using this pin. This pin has an internal pull-up resistor.
TDI
IC
JTAG test data output. (output) Data from the PXA210 applications processor is
returned to the JTAG controller using this pin.
TDO
TMS
OCZ
IC
JTAG test mode select. (input) Selects the test mode required from the JTAG
controller. This pin has an internal pull-up resistor.
TCK
IC
IC
IC
JTAG test clock. (input) Clock for all transfers on the JTAG test interface.
Test Mode. (input) Reserved. Must be grounded.
TEST
TESTCLK
Test Clock. (input) Reserved. Must be grounded.
Power and Ground Pins
Positive supply for internal logic. Must be connected to the low voltage (.85 -
1.3v) supply on the PCB.
VCC
VSS
SUP
SUP
Ground supply for internal logic. Must be connected to the common ground
plane on the PCB.
Positive supply for PLLs and oscillators. Must be connected to a separate quiet
supply plane on the PCB but may be connected to the common low voltage supply.
PLL_VCC
PLL_VSS
VCCQ
SUP
SUP
SUP
Ground signal for PLLs.
Positive supply for all CMOS I/O except memory bus. Must be connected to the
common 3.3 V supply on the PCB.
24
Datasheet
Electrical, Mechanical, and Thermal Specification — PXA250 and PXA210
Table 4. Pin and Signal Descriptions for the PXA210 Applications Processor (Sheet 7 of 7)
Pin Name
VSSQ
Type
SUP
Signal Descriptions
Ground supply for all CMOS I/O except memory bus. Must be connected to the
common ground plane on the PCB.
Positive supply for memory bus. Must be connected to the common 3.3 V or
2.5 V supply on the PCB.
VCCN
VSSN
SUP
SUP
Ground supply for memory bus and some GPIO pins. Must be connected to
the common ground plane on the PCB.
Backup battery supply. Connect to the backup battery supply. If a backup battery
is not required then this pin may be connected to the common 3.3 V supply on the
PCB.
BATT_VCC
SUP
Datasheet
25
PXA250 and PXA210 — Electrical, Mechanical, and Thermal Specification
Figure 3. PXA210 Applications Processor
26
Datasheet
Electrical, Mechanical, and Thermal Specification — PXA250 and PXA210
Table 5. PXA210 225-Lead 13x13mm TPBGA Pinout — Ballpad Number Order (Sheet 1 of 3)
Ball #
Signal
Ball #
Signal
Ball #
Signal
A1
A2
DQM[1]
C12
C13
C14
C15
D1
BTTXD/GPIO[43]
VSSQ
F8
F9
SSPRXD/GPIO[26]
VCC
L_DD[14]/GPIO[72]
L_DD[10]/GPIO[68]
VSSQ
A3
VSS
F10
F11
F12
F13
F14
F15
G1
FFTXD/GPIO[39]
VCC
A4
VCCQ
A5
L_DD[6]/GPIO[64]
L_DD[2]/GPIO[60]
L_LCLK/GPIO[75]
SSPSCLK/GPIO[23]
SSPEXTCLK/GPIO[27]
nACRESET
VCC
VSSQ
TESTCLK
BOOT_SEL[0]
TEST
A6
D2
VSSQ
A7
D3
SDCLK[1]
A8
D4
L_DD[15]/GPIO[73]
VCC
A9
D5
MA[0]
A10
A11
A12
A13
A14
A15
B1
D6
L_DD[5]/GPIO[63]
L_DD[0]/GPIO[58]
SSPSFRM/GPIO[24]
SDATA_OUT/GPIO[30]
SCL
G2
nOE
PWM[1]/GPIO[17]
VSSQ
D7
G3
nWE
D8
G4
VCCN
VSSN
FFRXD/GPIO[34]
BTCTS/GPIO[44]
IRRXD/GPIO[46]
RDY/GPIO[18]
VSSN
D9
G5
D10
D11
D12
D13
D14
D15
E1
G6
RDnWR
VSS
SDATA_IN1/GPIO[32]
BOOT_SEL[1]
VSSQ
G7
G8
VSS
B2
G9
VSS
B3
L_DD[13]/GPIO[71]
L_DD[9]/GPIO[67]
VSSQ
VSSQ
G10
G11
G12
G13
G14
G15
H1
BTRXD/GPIO[42]
nTRST
TDI
B4
VSSQ
B5
nSDCAS
B6
L_DD[3]/GPIO[61]
L_PCLK/GPIO[76]
VSSQ
E2
VCCN
TCK
B7
E3
VSSN
TMS
B8
E4
SDCLK[0]
TDO
B9
BITCLK/GPIO[28]
SDA
E5
L_DD[11]/GPIO[69]
L_DD[7]/GPIO[65]
L_DD[1]/GPIO[59]
SSPTXD/GPIO[25]
SYNC/GPIO[31]
VCCQ
VCCN
VSSN
B10
B11
B12
B13
B14
B15
C1
E6
H2
VSSQ
E7
H3
MA[2]
USB_N
E8
H4
MA[1]
BTRTS/GPIO[45]
IRTXD/GPIO[47]
MMDAT
E9
H5
VCC
E10
E11
E12
E13
E14
E15
F1
H6
VSSQ
MMCMD
H7
VSS
SDCKE[1]
VCCQ
H8
VSS
C2
SDCKE[0]
VSSQ
H9
VSS
C3
VCCN
VSSQ
H10
H11
H12
H13
H14
VSSQ
VCC
C4
L_DD[12]/GPIO[70]
VCCQ
BOOT_SEL[2]
VSSN
C5
VSSQ
VCC
C6
L_DD[4]/GPIO[62]
L_BIAS/GPIO[77]
F2
NSDCS[0]
NSDRAS
C7
F3
PLL_VCC
Datasheet
27
PXA250 and PXA210 — Electrical, Mechanical, and Thermal Specification
Table 5. PXA210 225-Lead 13x13mm TPBGA Pinout — Ballpad Number Order (Sheet 2 of 3)
Ball #
Signal
Ball #
Signal
NSDCS[1]
Ball #
Signal
PLL_VSS
C8
C9
C10
C11
J4
VCCQ
F4
F5
H15
J1
SDATA_IN0/GPIO[29]
PWM[0]/GPIO[16]
USB_P
MA[4]
VCC
MA[5]
F6
L_DD[8]/GPIO[66]
L_FCLK/GPIO[74]
GPIO[0]
MA[14]
J2
MA[6]
F7
J3
VSSN
L15
M1
M2
M3
M4
M5
M6
M7
M8
M9
M10
M11
M12
M13
M14
M15
N1
P11
P12
P13
P14
P15
R1
VCCN
J5
MA[3]
MD[15]
J6
VSSQ
MA[15]
VCCN
J7
VSS
VCCN
GPIO[50]
VSSQ
J8
VSS
MA[16]
J9
VSS
VCCN
MA[19]
J10
J11
J12
J13
J14
J15
K1
VSSQ
VSSN
R2
MA[20]
nRESET
nRESET_OUT
PWR_EN
nVDD_FAULT
nBATT_FAULT
MA[8]
MD[3]
R3
MA[21]
MD[7]
R4
MA[25]
nCS[1]/GPIO[15]
MD[10]
R5
MD[1]
R6
VCCN
MD[13]
R7
MD[5]
GPIO[48]
GPIO[52]
VSSN
R8
nCS[0]
K2
MA[9]
R9
nCS[3]/GPIO[79]
MD[9]
K3
MA[10]
MA[7]
R10
R11
R12
R13
R14
R15
K4
GPIO[56]
VSSN
VSSN
K5
VCCN
MD[14]
K6
VCC
N2
MA[18]
nCS[4]/GPIO[80]
nPWE/GPIO[49]
GPIO[51]
K7
VSSQ
N3
VSS
K8
VCC
N4
MA[22]
K9
VSSQ
N5
MA[24]
K10
K11
K12
K13
K14
K15
L1
VCC
N6
VCCN
GPIO[1]
TEXTAL
TXTAL
N7
VCC
N8
VSSN
N9
DQM[0]
VCCN
PEXTAL
PXTAL
N10
N11
N12
N13
N14
N15
P1
MD[12]
VSSN
VSSN
L2
VCCN
nCS[5]/GPIO[33]
GPIO[53]
VCCN
L3
MA[12]
MA[13]
MA[11]
L4
L5
MA[17]
L6
VSSQ
P2
VSSN
L7
MD[2]
P3
VCCN
28
Datasheet
Electrical, Mechanical, and Thermal Specification — PXA250 and PXA210
Table 5. PXA210 225-Lead 13x13mm TPBGA Pinout — Ballpad Number Order (Sheet 3 of 3)
Ball #
Signal
Ball #
Signal
Ball #
Signal
L8
MD[6]
VSSN
MD[11]
P4
P5
MA[23]
MD[0]
VSSN
MD[4]
VCCN
L9
L10
L11
L12
L13
L14
P6
P7
P8
P9
P10
BATT_VCC
GPIO[54]
GPIO[55]
GPIO[57]
nCS[2]/GPIO[78]
MD[8]
3.2
Package Power Ratings
Table 6.
JA and Maximum Power Ratings
Processor
Max Power
JA
PXA250
PXA210
33 C /w
44 C /w
1.4W
888W
4.0
Electrical Specifications
4.1
Absolute Maximum Ratings
This section provide the Absolute Maximum ratings for the applications processors. Do not exceed
these parameters. If you do the part may be permanently damaged. Operation at Absolute
Maximum Ratings is not guaranteed.
Table 7. Absolute Maximum Ratings (Sheet 1 of 2)
Symbol
Description
Min
Max
Units
TS
Storage Temperature
-40
125
deg C
Offset Voltage between any two VSS pins (VSS, VSSQ,
VSSN)
VSS_O
VCC_O
-0.3
-0.3
0.3
0.3
V
V
Offset Voltage between any of the following pins:
VCCQ and VCCN
Voltage Applied to High Voltage Supplies (VCCQ, VCCN,
BATT_VCC)
VCC_HV
VCC_LV
VSS-0.3
VSS-0.3
VSS+4.0
V
V
Voltage Applied to Low Voltage Supplies (VCC,
PLL_VCC)
VSS+1.65
max of
VCCQ+0.3,
VSS+4.0
VIP
Voltage Applied to non-Supply pins except XTAL pins
VSS-0.3
V
Datasheet
29
PXA250 and PXA210 — Electrical, Mechanical, and Thermal Specification
Table 7. Absolute Maximum Ratings (Sheet 2 of 2)
Symbol
Description
Min
Max
Units
max of
VCC+0.3,
VSS+1.65
Voltage Applied to XTAL pins (PXTAL, PEXTAL, TXTAL,
TEXTAL)
VIP_X
VSS-0.3
V
Maximum ESD stress voltage, Human Body Model; Any
pin to any supply pin, either polarity, or Any pin to all non-
supply pins together, either polarity. Three stresses
maximum.
VESD
IEOS
2000
5
V
Maximum DC Input Current (Electrical Overstress) for any
non-supply pin
mA
4.2
Operating Conditions
This section shows voltage, frequency, and temperature specifications for the applications
processor for four different ranges (shown in Table 8, “Voltage, Temperature, and Frequency
Electrical Specifications”.) The temperature specification for each range is constant; the frequency
range is dependent on the operation voltage.
Note: The parameters in Table 8 are preliminary and subject to change.
Table 8. Voltage, Temperature, and Frequency Electrical Specifications (Sheet 1 of 2)
Symbol
Description
Min
Typical
Max
Units
tA
Ambient Temperature - Extended Temp
Ambient Temperature - Nominal Temp
VSS, VSSN, VSSQ Voltage
VCCQ Voltage
-40
0
-
-
85
70
°C
°C
V
tA
VVSS
VVCCQ
VVCCN
VBATT
-0.3
3.0
0
0.3
3.6
3.6
3.8
3.3
2.5/3.3
3.0
V
VCCN Voltage
2.375
2.2
V
BATT_VCC Voltage
V
Low Voltage Range (PXA250 and PXA210)
VVCC_L
VCC, PLL_VCC Voltage, Low Range
0.765
99.5
0.85
1.00
1.10
0.935
132.7
V
fTURBO_L
Turbo Mode Frequency, Low Range
MHz
External Synchronous Memory
Frequency, Low Range
fSDRAM_L
50
99.5
MHz
Medium Voltage Range (PXA250 and PXA210)
VVCC_M
VCC, PLL_VCC Voltage, Mid Range
Turbo Mode Frequency, Mid Range
0.90
99.5
1.10
V
fTURBO_M
199.1
MHz
External Synchronous Memory
Frequency, Mid Range
fSDRAM_M
50
99.5
MHz
High Voltage Range (PXA250)
VVCC_H
VCC, PLL_VCC Voltage, High Range
0.99
99.5
1.21
V
fTURBO_H
Turbo Mode Frequency, High Range
298.7
MHz
External Synchronous Memory
Frequency, High Range
fSDRAM_H
50
99.5
MHz
30
Datasheet
Electrical, Mechanical, and Thermal Specification — PXA250 and PXA210
Table 8. Voltage, Temperature, and Frequency Electrical Specifications (Sheet 2 of 2)
Symbol
Description
Min
Typical
Max
Units
Peak Voltage Range (PXA250)
VVCC_P
VCC, PLL_VCC Voltage, Peak Range
Turbo Mode Frequency, Peak Range
1.17
99.5
1.30
1.43
V
fTURBO_P
398.2
MHz
External Synchronous Memory
Frequency, Peak Range
fSDRAM_P
50
99.5
MHz
4.3
Targeted DC Specifications
The DC Characteristics for each pin include input sense levels and output drive levels and currents.
These parameters can be used to determine maximum DC loading, and also to determine maximum
transition times for a given load. The DC Operating Conditions for the High- and Low-Strength
Input, Output, and I/O pins are shown in Table 9, “Standard Input, Output, and I/O Pin DC
Operating Conditions”. All DC specification values are valid for the entire temperature range of the
device.
Table 9. Standard Input, Output, and I/O Pin DC Operating Conditions
Symbol
Description
Min
Typical
Max
Units
Input DC Operating Conditions
Input High Voltage, all standard input and
I/O pins
VIH
VIL
IIN
0.8*VCCQ
VSS
VCCQ
0.2*VCCQ
10
V
V
A
Input Low Voltage, all standard input and
I/O pins
Input Leakage, all standard input and IO
pins
Output DC Operating Conditions
Output High Voltage, all standard output
and I/O pins
VOH
VOL
VCCQ-0.6
VCCQ
V
Output Low Voltage, all standard output
and I/O pins
VSS
-10
-3
VSS+0.4
V
Output High Current, all standard, high-
strength output and I/O pins (VO=VOH)
IOH_H
IOH_L
IOL_H
IOL_L
mA
mA
mA
mA
Output High Current, all standard, low-
strength output and I/O pins (VO=VOH)
Output Low Current, all standard, high-
strength output and I/O pins (VO=VOH)
10
3
Output Low Current, all standard, low-
strength output and I/O pins (VO=VOH)
Datasheet
31
PXA250 and PXA210 — Electrical, Mechanical, and Thermal Specification
4.4
Targeted AC Specifications
All the non-analog input, output, and I/O pins on the applications processor can be divided into one
of two categories:
1. High Strength Input, Output, and I/O pins:
• nCS[5:1] (GP 33, 80, 79, 78, 15 respectively), nCS[0]
• MD[31:0], MA[25:0]
• DQM[3:0]
• nOE, nWE, nSDRAS, nSDCAS, nSDCS[3:0]
• SDCLK[2:0], SDCKE[1:0]
• RDnWR, RDY (GP[18])
• nPWE, nPOE pins (GP[49:48])
• MMCLK (GP[53]), MMCMD, MMDAT
• TDO
• nACRESET
2. Low Strength Input, Output, and I/O pins - all remaining non-supply pins
A pin’s AC Characteristics include input and output capacitance. These determine loading for
external drivers or other load analysis. The AC Characteristics also include a de-rating factor,
which indicates how much faster or slower the AC timings get with different loads. The AC
Operating Conditions for the high- and low-strength input, output, and I/O pins are shown in
Table 10, “Standard Input, Output, and I/O Pin AC Operating Conditions”. All AC specification
values are valid for entire temperature range of the device.
Table 10. Standard Input, Output, and I/O Pin AC Operating Conditions
Symbol
Description
Min
Typical
Max
Units
Input Capacitance, all standard input and
IO pins
CIN
10
pF
Output Capacitance, all standard high-
strength output and IO pins
COUT_H
tdF_H
251
501
pF
Output de-rating, falling edge on all
standard, high-strength output and I/O
pins, from 50pF load.
ns/pF
Output de-rating, rising edge on all
standard, high-strength output and I/O
pins, from 50pF load.
tdR_H
ns/pF
NOTE: AC Specifications guaranteed for loads in this range. All testing is done at 50pF
32
Datasheet
Electrical, Mechanical, and Thermal Specification — PXA250 and PXA210
4.5
Oscillator Electrical Specifications
The applications processor contains two oscillators: a 32.768 kHz oscillator and a 3.6864 MHz
oscillator. Each is for a specific crystal. When choosing a crystal, match the crystal parameters as
closely as possible.
4.5.1
32.768 kHz Oscillator Specifications
The 32.768 kHz Oscillator is connected between the TXTAL (amplifier input) and TEXTAL
(amplified output). The 32.768 kHz specifications are shown in Table 11, “32.768 kHz Oscillator
Specifications”.
Table 11. 32.768 kHz Oscillator Specifications
Symbol
Description
Min
Typical
Max
Units
Crystal Specifications - Typical is FOX NC38
FXT
LMT
CMT
RMT
COT
CLT
Crystal Frequency, TXTAL/TEXTAL
Motional Inductance, TXTAL/TEXTAL
Motional Capacitance, TXTAL/TEXTAL
Motional Resistance, TXTAL/TEXTAL
Shunt Capacitance TXTAL to TEXTAL
Load Capacitance TXTAL/TEXTAL
32.768
6827.81
3.455
16
kHz
H
fF
6
35
k
1.6
pF
pF
12.5
Amplifier Specifications
VIH_X
VIL_X
Input High Voltage, TXTAL
0.8*VCC
VSS
VCC
V
V
Input Low Voltage, TXTAL
Input Leakage, TXTAL
0.2*VCC
IIN_XT
CIN_XT
tS_XT
1
A
Input Capacitance, TXTAL/TEXTAL
Stabilization Time
18
-
25
10
pF
s
2
Board Specifications
Parasitic Resistance, TXTAL/TEXTAL to
any node
RP_XT
CP_XT
20
M
Parasitic Capacitance, TXTAL/TEXTAL,
total
5
pF
pF
Parasitic Shunt Capacitance, TXTAL to
TEXTAL
COP_XT
0.4
To drive the 32.768 kHz crystal pins from an external source:
• Drive the TEXTAL pin with a digital signal that has a low level near 0 volts and a high level
near VCC. Do not exceed VCC or go below VSS by more than 100 mV. The minimum slew
rate is 1 volt per 1 µs. The maximum current sourced by the external clock source when the
clock is at its maximum positive voltage should be approximately 1 mA.
• Float the TXTAL pin or drive it complementary to the TEXTAL pin, with the same voltage
level, slew rate, and input current restrictions.
Datasheet
33
PXA250 and PXA210 — Electrical, Mechanical, and Thermal Specification
4.5.2
3.6864 MHz Oscillator Specifications
The 3.6864 MHz Oscillator is connected between the PXTAL (amplifier input) and PEXTAL
(amplified output). The 3.6864 MHz specifications are shown in Table 12, “3.6864 MHz Oscillator
Specifications”.
Table 12. 3.6864 MHz Oscillator Specifications
Symbol
Description
Min
Typical
Max
Units
Crystal Specifications - Typical is FOX HC49S
FXP
LMP
CMP
RMP
COP
CLP
Crystal Frequency, PXTAL/PEXTAL
Motional Inductance, PXTAL/PEXTAL
Motional Capacitance, PXTAL/PEXTAL
Motional Resistance, PXTAL/PEXTAL
Shunt Capacitance PXTAL to PEXTAL
Load Capacitance PXTAL/PEXTAL
3.6864
0.50593
3.68488
99.3
MHz
H
fF
50
200
W
1.7
pF
pF
20
Amplifier Specifications
VIH_X
VIL_X
Input High Voltage, PXTAL
0.8*VCC
VSS
VCC
0.2*VCC
10
V
V
Input Low Voltage, PXTAL
Input Leakage, PXTAL
IIN_XP
CIN_XP
tS_XP
A
Input Capacitance, PXTAL/PEXTAL
Stabilization Time
40
50
pF
ms
17.8
20
67.8
Board Specifications
Parasitic Resistance, PXTAL/PEXTAL to
any node
RP_XP
CP_XP
M
Parasitic Capacitance, PXTAL/PEXTAL,
total
5
pF
pF
Parasitic Shunt Capacitance, PXTAL to
PEXTAL
COP_XP
0.4
To drive the 3.6864 MHz crystal pins from an external source:
• Drive the PEXTAL pin with a digital signal with a low level near 0 volts and a high level near
VCC. Do not exceed VCC or go below VSS by more than 100 mV. The minimum slew rate is
1 volt / 100 ns. The maximum current sourced by the external clock source when the clock is
at its maximum positive voltage should be approximately 1 mA.
• Float the PXTAL pin or drive it complementary to the PXTAL pin, with the same voltage
level, slew rate, and input current restrictions. If floated, some degree of noise susceptibility
will be introduced in the system, and it is therefore not recommended.
34
Datasheet
Electrical, Mechanical, and Thermal Specification — PXA250 and PXA210
4.6
Reset and Power AC Timing Specifications
The applications processor asserts the nRESET_OUT pin in one of several different modes:
• Power On
• Hardware Reset
• Watchdog Reset
• GPIO Reset
• Sleep Mode
The following sections give the timing and specifications for the entry and exit of these modes.
4.6.1
Power On Timing
The External Voltage Regulator and other power-on devices must provide the applications
processor with a specific sequence of power and resets to ensure proper operation. This sequence is
shown in Figure 4, “Power-On Reset Timing” on page 36, and detailed in Table 13, “Power-On
Timing Specifications” on page 36.
On the applications processor, it is important that the power supplies be powered-up in a certain
order to avoid high current situations. The required order is:
1. BATT_VCC
2. VCCQ
3. VCCN
4. VCC and PLL_VCC
The supply in step 3 may be powered at the same time as those in step 2, however, VCCN should
not be powered before VCCQ.
Datasheet
35
PXA250 and PXA210 — Electrical, Mechanical, and Thermal Specification
Note: If Hardware Reset is entered during Sleep Mode, follow the proper power-supply stabilization
times and nRESET timing requirements indicated in Table 13.
Figure 4. Power-On Reset Timing
t
R_BA
T T
t
R_VCCQ
BATT_VCC
VCCQ
t
D_VCCQ
t
R_VCC
N
N
t
D_VCC
t
R_VCC
VCCN
t
D_VCC
VCC
t
D_NTRST
nTRST
t
D_JT
A G
JTAG PINS
nRESET
t
D_NRESET
t
D_OUT
Note: nBATT_FAULT and nVDD_FAULT must be high before nRESET_OUT is
deasserted or the PXA250 applications processor enters Sleep Mode.
Table 13. Power-On Timing Specifications
Symbol
Description
Min
Typical
Max
Units
tR_BATT
tR_VCCQ
tR_VCC
BATT_VCC Rise / Stabilization time
VCCQ, VCCN Rise / Stabilization time
VCC, PLL_VCC Rise / Stabilization time
0.01
0.01
0.01
100
100
10
ms
ms
ms
Delay between BATT_VCC at voltage
and before VCCQ and VCCN applied
tD_VCCQ
tD_VCC
0
0
ms
ms
ms
ms
ms
ms
Delay from VCCQ, VCCN at voltage and
before VCC, PLL_VCC applied
—
Delay between VCC, PLL_VCC stable
and nTRST deasserted
tD_NTRST
tD_JTAG
50
Delay between nTRST deasserted and
JTAG pins active, with nRESET asserted
0.03
50
Delay between VCC, PLL_VCC stable
and nRESET deasserted
tD_NRESET
tD_OUT
Delay between nRESET deasserted and
nRESET_OUT deasserted
18.1
18.2
4.6.2
Hardware Reset Timing
The timing sequences shown in Hardware Reset Timing for hardware reset assumes stable power
supplies at the assertion of nRESET. If the power supplies are unstable, follow the timings
indicated in Section 4.6.1, “Power On Timing” on page 35.
36
Datasheet
Electrical, Mechanical, and Thermal Specification — PXA250 and PXA210
Figure 5. Hardware Reset Timing
t
DHW_NRESET
nRESET
t
DHW_OUT
nRESET_OUT
t
DHW_OUT_A
Note: nBATT_FAULT and nVDD_FAULT must be high before nRESET is
deasserted or the PXA250 applications processor enters Sleep Mode.
Table 14. Hardware Reset Timing Specifications
Symbol
Description
Min
Typical
Max
Units
tDHW_NRESET Minimum assertion time of nRESET
0.001
ms
Delay between nRESET Asserted and
tDHW_OUT_A
0
0.001
18.2
ms
ms
nRESET_OUT Asserted
Delay between nRESET deasserted and
tDHW_OUT
18.1
nRESET_OUT deasserted
4.6.3
4.6.4
Watchdog Reset Timing
Watchdog Reset is an internally generated reset and therefore has no external pin dependencies.
The nRESETOUT pin is the only indicator of Watchdog Reset, and it stays asserted for tDHW_OUT
Refer to Figure 5, “Hardware Reset Timing” on page 37.
.
GPIO Reset Timing
GPIO Reset is generated externally, and the source is reconfigured as a standard GPIO as soon as
the reset propagates internally. The clocks module is not reset by GPIO Reset, so the timing varies
based on the frequency of clock selected and if the Clocks and Power Manager is in the Frequency
Change Sequence when GPIO Reset is asserted (see Section 4.5.1, “32.768 kHz Oscillator
Specifications” on page 33.) Figure 6, “GPIO Reset Timing” on page 37 shows the possible timing
of GPIO Reset.
Figure 6. GPIO Reset Timing
t
A_GP[1]
GP[1]
nRESET_OUT
t
DHW_OUT
t
DHW_OUT_A
Note: nBATT_FAULT and nVDD_FAULT must be high before nRESET is
deasserted or the application processor will enter Sleep Mode
Datasheet
37
PXA250 and PXA210 — Electrical, Mechanical, and Thermal Specification
Table 15. GPIO Reset Timing Specifications
Symbol
Description
Min
Typical
Max
Units
Minimum assert time of GP[1]1 in
3.6864MHz input clock cycles
tA_GP[1]
4
-
cycles
Delay between GP[1] Asserted and
tDHW_OUT_A nRESET_OUT Asserted in 3.6864MHz
input clock cycles
6
5
5
8
cycles
Delay between nRESET_OUT asserted
tDHW_OUT
and nRESET_OUT deasserted, Run or
Turbo Mode2
28
s
s
Delay between nRESET_OUT asserted
tDHW_OUT_F and nRESET_OUT deasserted, during
380
Frequency Change Sequence3
NOTES:
1. GP[1] is not recognized as a reset source again until configured to do so in software. Software should check
the state of GP[1] before configuring as a Reset to ensure no spurious reset is generated.
2. Time is 512*N Processor Clock Cycles plus up to 4 cycles of the 3.6864MHz input clock.
3. Time during the Frequency Change Sequence depends on the state of the PLL Lock Detector at the
assertion of GPIO Reset. The Lock Detector has a maximum time of 350µs plus synchronization.
4.6.5
Sleep Mode Timing
Sleep Mode is internally asserted, it and asserts the nRESET_OUT and PWR_EN signals. The
sequence indicated in Figure 7, “Sleep Mode Timing” on page 38 and detailed in Figure 16, “Sleep
Mode Timing Specifications” on page 39 is the required timing parameters for Sleep Mode.
Figure 7. Sleep Mode Timing
t
A_GP[x]
GP[x]
PWR_EN
t
t
D_PWR_R
D_PWR_F
t
DSM_VCC
VCC
t
D_F
A UL T
nVDD_FAULT
nRESET_OUT
t
DSM_OUT
Note: nBATT_FAULT must be high or the PXA250 applications processor
will not exit Sleep Mode.
38
Datasheet
Electrical, Mechanical, and Thermal Specification — PXA250 and PXA210
Table 16. Sleep Mode Timing Specifications
Symbol
Description
Min
Typical
Max
Units
Assert Time of GPIO Wake up Source
(x=[15:0])
tA_GP[x}
91.6
s
Delay from nRESET_OUT asserted to
PWR_EN deasserted
tD_PWR_F
tD_PWR_R
tDSM_VCC
tD_FAULT
61
91.6
122.1
10
s
s
Delay between GP[x] asserted to
PWR_EN asserted
30.5
Delay between PWR_EN asserted and
VCC stable
ms
ms
ms
ms
Delay between PWR_EN asserted and
nVDD_FAULT deasserted
10
Delay between PWR_EN asserted and
nRESET_OUT deasserted, OPDE Set
tDSM_OUT
tDSM_OUT_O
28.0
80
Delay between PWR_EN asserted and
nRESET_OUT deasserted, OPDE Clear
10.35
10.5
4.7
Memory Bus and PCMCIA AC Specifications
This section gives the timing information for these types of memory:
• SRAM / ROM / Flash / Synchronous Fast Flash Asynchronous writes (Table 17, “SRAM /
ROM / Flash / Synchronous Fast Flash AC Specifications” on page 39)
• Variable Latency I/O (Table 18, “Variable Latency I/O Interface AC Specifications” on
page 40)
• Card Interface (PCMCIA or Compact Flash) (Table 19, “Card Interface (PCMCIA or Compact
Flash) AC Specifications” on page 41)
• Synchronous Memories (Table 20, “Synchronous Memory Interface AC Specifications1” on
page 42)
Table 17. SRAM / ROM / Flash / Synchronous Fast Flash AC Specifications (Sheet 1 of 2)
MEMCLK Frequency (MHz)
Units,
Symbol
Description
Notes
99.5
118.0
132.7
147.5
165.9
MA(25:0) setup to nCS, nOE, nSDCAS
(as nADV) asserted
tromAS
tromAH
10
8.5
7.5
6.8
6
ns, 1
ns, 1
MA(25:0) hold after nCS, nOE,
nSDCAS (as nADV) deasserted
10
8.5
7.5
6.8
6
tromASW
tromAHW
tromCES
tromCEH
MA(25:0) setup to nWE asserted
MA(25:0) hold after nWE deasserted
nCS setup to nWE asserted
30
10
20
10
25.5
8.5
17
22.5
7.5
15
20.4
6.8
18
6
ns, 3
ns, 1
ns, 2
ns, 1
13.6
6.8
12
6
nCS hold after nWE deasserted
8.5
7.5
MD(31:0), DQM(3:0) write data setup to
nWE asserted
tromDS
10
8.5
7.5
6.8
6
ns, 1
Datasheet
39
PXA250 and PXA210 — Electrical, Mechanical, and Thermal Specification
Table 17. SRAM / ROM / Flash / Synchronous Fast Flash AC Specifications (Sheet 2 of 2)
MEMCLK Frequency (MHz)
Units,
Symbol
Description
Notes
99.5
118.0
132.7
147.5
165.9
MD(31:0), DQM(3:0) write data setup to
nWE deasserted
tromDSWH
tromDH
20
17
15
13.6
12
ns, 2
ns, 1
ns, 2
MD(31:0), DQM(3:0) write data hold
after nWE deasserted
10
20
8.5
17
7.5
15
6.8
6
nWE high time between beats of write
data
tromNWE
13.6
12
NOTES:
1. This number represents 1 MEMCLK period
2. This number represents 2 MEMCLK periods
3. This number represents 3 MEMCLK periods
Table 18. Variable Latency I/O Interface AC Specifications
MEMCLK Frequency (MHz)
Units,
Notes
Symbol
Description
99.5
118.0
132.7
147.5
165.9
tvlioAS
MA(25:0) setup to nCS asserted
10
8.5
7.5
6.8
6
ns, 1
ns, 1
MA(25:0) setup to nOE or nPWE
asserted
tvlioASRW
10
8.5
7.5
6.8
6
MA(25:0) hold after nOE or nPWE
deasserted
tvlioAH
tvlioCES
tvlioCEH
10
20
10
8.5
17
7.5
15
6.8
13.6
6.8
6
12
6
ns, 1
ns, 2
ns, 1
nCS setup to nOE or nPWE asserted
nCS hold after nOE or nPWE
deasserted
8.5
7.5
MD(31:0), DQM(3:0) write data setup to
nPWE asserted
tvlioDSW
tvlioDSWH
tvlioDHW
tvlioDHR
10
20
10
8.5
17
7.5
15
6.8
13.6
6.8
6
12
6
ns, 1
ns, 2
ns, 1
MD(31:0), DQM(3:0) write data setup to
nPWE deasserted
MD(31:0), DQM(3:0) hold after nPWE
deasserted
8.5
7.5
MD(31:0) read data hold after nOE
deasserted
0
0
0
0
0
0
0
0
0
0
ns
ns
tvlioRDYH RDY hold after nOE, nPWE deasserted
nPWE, nOE high time between beats of
write or read data
tvlioNPWE
20
17
15
13.6
12
ns, 2
NOTES:
1. This number represents 1 MEMCLK period
2. This number represents 2 MEMCLK periods
40
Datasheet
Electrical, Mechanical, and Thermal Specification — PXA250 and PXA210
Table 19. Card Interface (PCMCIA or Compact Flash) AC Specifications
MEMCLK Frequency (MHz)
Units,
Notes
Symbol
Description
99.5
118.0
132.7
147.5
165.9
MA(25:0), nPREG, PSKTSEL, nPCE
setup to nPWE, nPOE, nPIOW, or
nPIOR asserted
tcardAS
tcardAH
20
17
15
13.6
12
ns, 1
ns, 1
MA(25:0), nPREG, PSKTSEL, nPCE
hold after nPWE, nPOE, nPIOW, or
nPIOR deasserted
10
8.5
7.5
6.8
6
MD(31:0) setup to nPWE, nPOE,
nPIOW, or nPIOR asserted
tcardDS
tcardDH
10
10
30
8.5
8.5
7.5
7.5
6.8
6.8
6
6
ns, 1
ns, 1
ns, 1
MD(31:0) hold after nPWE, nPOE,
nPIOW, or nPIOR deasserted
nPWE, nPOE, nPIOW, or nPIOR
command assertion
tcardCMD
25.5
22.5
20.4
18
NOTE: These numbers are minimums. They can be much longer based on the programmable Card Interface
timing registers.
Datasheet
41
PXA250 and PXA210 — Electrical, Mechanical, and Thermal Specification
Table 20. Synchronous Memory Interface AC Specifications1
Units,
Notes
Symbol
Description
MIN
MAX
SDRAM / SMROM / SDRAM-Timing Synchronous Flash (Synchronous)
tsynCLK
tsynCMD
tsynRCD
tsynCAS
SDCLK period
10
1
20
ns, 2
sdclk
sdclk
sdclk
nSDCAS, nSDRAS, nWE, nSDCS assert time
nSDRAS to nSDCAS assert time
1
nSDCAS to nSDCAS assert time
2
MA(25:0), MD(31:0), DQM(3:0), nSDCS(3:0), nSDRAS, nSDCAS,
tsynSDOS nWE, nOE, SDCKE(1:0), RDnWR output setup time to SDCLK(2:0)
rise
3.8
3.6
ns, 3
ns, 3
MA(25:0), MD(31:0), DQM(3:0), nSDCS(3:0), nSDRAS, nSDCAS,
tsynSDOH nWE, nOE, SDCKE(1:0), RDnWR output hold time from
SDCLK(2:0) rise
tsynSDIS
tsynDIH
MD(31:0) read data input setup time from SDCLK(2:0) rise
MD(31:0) read data input hold time from SDCLK(2:0) rise
0.5
1.5
ns
ns
Fast Flash (Synchronous READS only)
tffCLK
tffAS
SDCLK period
15
0.5
0.5
1
20
ns, 4
sdclk
sdclk
sdclk
sdclk
sdclk
MA(25:0) setup to nSDCAS (as nADV) asserted
nCS setup to nSDCAS (as nADV) asserted
nSDCAS (as nADV) pulse width
tffCES
tffADV
tffOS
nSDCAS (as nADV) deassertion to nOE assertion
nOE deassertion to nCS deassertion
3
tffCEH
4
NOTES:
1. These numbers are for a maximum 99.5 MHz MEMCLK and 99.5 MHz output SDCLK.
2. SDCLK for SDRAM, SMROM, and SDRAM-timing Synchronous Flash can be at the slowest, divide-by-2 of
the 99.5 MHz MEMCLK. It can be 99.5MHz at the fastest.
3. This number represents 1/2 SDCLK period.
4. SDCLK for Fast Flash can be at the slowest, divide-by-2 of the 99.5 MHz MEMCLK. It can be divide-by-2 of
the 132.7 MHz MEMCLK at its fastest.
4.8
Peripheral Module AC Specifications
This section describes the AC Specifications for these peripheral units:
• LCD
• SSP
42
Datasheet
Electrical, Mechanical, and Thermal Specification — PXA250 and PXA210
4.8.1
LCD Module AC Timing
Figure 8 describes the LCD timing parameters. The LCD pin timing specifications are referenced
to the pixel clock (L_PCLK). Values for the parameters are given in Table 21.
Figure 8. LCD AC Timing Definitions
L_PCLK
T
pclkdv
L_LDD[7:0]
(rise)
T
pclkdv
L_LDD[7:0]
(fall)
T
pclklv
L_LCLK
L_BIAS
L_FCLK
T
pclkbv
T
pclkfv
A4775-01
Table 21. LCD AC Timing Specifications
Symbol
Description
Min
Max
Units
Notes
L_PCLK rise/fall to L_LDD<7:0> driven
valid
Tpclkdv
14
ns
1
Tpclklv
Tpclkfv
Tpclkbv
L_PCLK fall to L_LCLK driven valid
L_PCLK fall to L_LFCLK driven valid
L_PCLK rise to L_BIAS driven valid
14
14
14
ns
ns
ns
2
2
2
NOTES:
1. You can program the LCD data pins to be driven on either the rising or falling edge of the pixel clock
(L_PCLK).
2. These LCD signals can, at times, transition when L_PCLK is not clocking (between frames). At this time,
they are clocked with the internal version of the pixel clock before it is driven out onto the L_PCLK pin.
4.8.2
SSP Module AC Timing
Figure 9, “SSP AC Timing Definitions” on page 44 describes the SSP timing parameters. The SSP
pin timing specifications are referenced to SCLK_C. Values for the parameters are given in
Table 22, “SSP AC Timing Specifications” on page 44.
Datasheet
43
PXA250 and PXA210 — Electrical, Mechanical, and Thermal Specification
Figure 9. SSP AC Timing Definitions
SCLK_C
T
sfmv
SFRM_C
TXD_C
RXD_C
T
sfmv
T
T
rxdh
rxds
A4774-01
Table 22. SSP AC Timing Specifications
Symbol
Description
SCLK_C rise to SFRM_C driven valid
Min
Max
Units
Notes
Tsfmv
Trxds
21
ns
ns
RXD_C valid to SCLK_C fall (input setup)
11
0
SCLK_C fall to RXD_C invalid (input
hold)
Trxdh
Tsfmv
ns
ns
SCLK_C rise to TXD_C valid
22
4.8.3
Boundary Scan Test Signal Timings
Boundary scan test signal timing is shown in Table 23, “Boundary Scan Test Signal Timing”.
Table 23. Boundary Scan Test Signal Timing (Sheet 1 of 2)
Symbol
Parameter
TCK Frequency
Min
Max
Units
Notes
TBSF
0.0
33.33
MHz
ns
ns
ns
ns
ns
ns
ns
ns
ns
ns
TBSCH TCK High Time
15.0
15.0
Measured at 1.5 V
TBSCL TCK Low Time
Measured at 1.5 V
0.8 V to 2.0 V
TBSCR TCK Rise Time
5.0
5.0
TBSCF TCK Fall Time
2.0 V to 0.8 V
TBSIS1 Input Setup to TCK TDI, TMS
TBSIH1 Input Hold from TCK TDI, TMS
TBSIS2 Input Setup to TCK nTRST
TBSIH2 Input Hold from TCK nTRST
TBSOV1 TDO Valid Delay
4.0
6.0
25.0
3.0
1.5
1.1
6.9
5.4
Relative to falling edge of TCK
Relative to falling edge of TCK
TOF1
TDO Float Delay
All Outputs (Non-Test) Valid
Delay
TOV12
1.5
6.9
ns
Relative to falling edge of TCK
44
Datasheet
Electrical, Mechanical, and Thermal Specification — PXA250 and PXA210
Table 23. Boundary Scan Test Signal Timing (Sheet 2 of 2)
Symbol
Parameter
Min
Max
Units
Notes
All Outputs (Non-Test) Float
Delay
TOF2
1.1
5.4
ns
Relative to falling edge of TCK
Input Setup to TCK All Inputs
(Non-Test)
TIS10
TIH8
4.0
6.0
ns
ns
Input Hold from TCK All Inputs
(Non-Test)
4.9
AC Test Conditions
The AC specifications in Section 4.4, “Targeted AC Specifications” on page 32 are tested with a
50 pF load indicated in Figure 10.
Figure 10. AC Test Load
Output Ball
C = 50pF
L
C
L
Datasheet
45
厂商 型号 描述 页数 下载

ETC

 		PXA.M0.5GG.NB [ CONN RCPT FMALE 5POS GOLD SOLDER ] 76 页

MARVELL

 		PXA1088 WCDMA / TD -SCDMA通信处理器[ WCDMA/TD-SCDMA Communication Processor ] 2 页

MARVELL

 		PXA168 高性能，高集成度处理器可扩展到1.2 GHz的对成本敏感的，智能消费类和嵌入式设备[ High Performance, Highly Integrated Processor Scalable to 1.2 GHz for Cost-Sensitive, Intelligent Consumer and Embedded Devices ] 2 页

INTEL

 		PXA210 英特尔-R PXA250和PXA210应用处理器[ Intel-R PXA250 and PXA210 Applications Processors ] 46 页

INTEL

 		PXA255 PXA255处理器[ PXA255 Processor ] 40 页

INTEL

 		PXA270 电气，机械和热规格[ Electrical, Mechanical, and Thermal Specification ] 126 页

ACTEL

 		PXA270 为PXA270平台的存储解决方案[ Storage solution for PXA270 platform ] 2 页

ACTEL

 		PXA300 为Marvell公司的PXA300 / 310平台存储解决方案[ Storage Solution for Marvell’s PXA300/310 Platform ] 2 页

MARVELL

 		PXA300 可扩展性能高达624兆赫的高性价比和高能效的智能手机，嵌入式解决方案，以及手持设备[ Scalable Performance up to 624 MHz for Cost-Effective and Power-Efficient Smartphones, Embedded Solutions, and Handheld Devices ] 4 页

ACTEL

 		PXA310 为Marvell公司的PXA300 / 310平台存储解决方案[ Storage Solution for Marvell’s PXA300/310 Platform ] 2 页

购物指南

支付方式

配送服务

售后服务

发票须知

优惠券使用规则

特色服务

PCBA制造

国产品牌推荐

国产料号替代

质量保证

技术资料

行业资讯

关于我们

关于壹壹捌

联系我们

联系我们

服务热线：400-618-9990

企业邮箱：sales@ic118.com

服务时间：周一至周六 8:30-17:30

壹壹捌官方微信号

PDF索引：

A

B

C

D

E

F

G

H

I

J

K

L

M

N

O

P

Q

R

S

T

U

V

W

X

Y

Z

0

1

2

3

4

5

6

7

8

9

IC型号索引：

A

B

C

D

E

F

G

H

I

J

K

L

M

N

O

P

Q

R

S

T

U

V

W

X

Y

Z

0

1

2

3

4

5

6

7

8

9

Copyright 2024 gkzhan.com Al Rights Reserved 京ICP备06008810号-21 京

深圳网络警察报警平台
公共信息安全网络监察
经营性网站备案信息
不良信息举报中心
工商网监电子标识
全国公安机关备案
0.229174s
