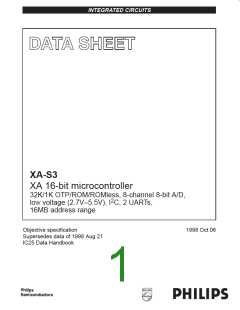

INTEGRATED CIRCUITS
XA-S3
XA 16-bit microcontroller
32K/1K OTP/ROM/ROMless, 8-channel 8-bit A/D,
low voltage (2.7V–5.5V), I2C, 2 UARTs,
16MB address range
Objective specification
1998 Oct 06
Supersedes data of 1998 Aug 21
IC25 Data Handbook
Philips
Semiconductors
Philips Semiconductors
Objective specification
XA 16-bit microcontroller
32K/1K OTP/ROM/ROMless, 8-channel 8-bit A/D, low voltage (2.7V–5.5V),
XA-S3
2
I C, 2 UARTs, 16MB address range
GENERAL DESCRIPTION
Three standard counter/timers with enhanced features. All timers
The XA-S3 device is a member of Philips Semiconductors’ XA
(eXtended Architecture) family of high performance 16-bit
single-chip microcontrollers.
have a toggle output capability.
Watchdog timer.
5-channel 16-bit Programmable Counter Array (PCA).
The XA-S3 device combines many powerful peripherals on one
chip. With its high performance A/D converter, timers/counters,
watchdog, Programmable Counter Array (PCA), I C interface, dual
2
I C-bus serial I/O port with byte-oriented master and slave
2
functions.
UARTs, and multiple general purpose I/O ports, it is suited for
general multipurpose high performance embedded control functions.
Two enhanced UARTs with independent baud rates.
Seven software interrupts.
Specific features of the XA-S3
2.7 V to 5.5 V operation.
Active low reset output pin indicates all reset occurrences
(external reset, watchdog reset and the RESET instruction). A
reset source register allows program determination of the cause of
the most recent reset.
32K bytes of on-chip EPROM/ROM program memory.
1024 bytes of on-chip data RAM.
50 I/O pins, each with 4 programmable output configurations.
Supports off-chip addressing up to 16 megabytes (24 address
lines). A clock output reference is added to simplify external bus
interfacing.
30 MHz operating frequency at 2.7–5.5V V over commercial
DD
operating conditions.
High performance 8-channel 8-bit A/D converter with automatic
channel scan and repeated read functions. Completes a
conversion in 4.46 microseconds at 30 MHz.
Power saving operating modes: Idle and Power-down. Wake-up
from power-down via an external interrupt is supported.
68-pin PLCC and 80-pin PQFP packages.
ORDERING INFORMATION
ROMless
ROM
EPROM
PXAS37KBBA
PXAS37KBBE
TEMPERATURE RANGE (°C)
FREQ.
(MHz)
DRAWING
NUMBER
AND PACKAGE
PXAS30KBBA
PXAS30KBBD
PXAS33KBBA
PXAS33KBBD
OTP
OTP
0 to +70,
68-pin Plastic Leaded Chip Carrier
30
SOT188-3
0 to +70,
30
SOT315-1
80-pin Plastic Quad Flat Pack
2
1998 Oct 06
Philips Semiconductors
Objective specification
XA 16-bit microcontroller
32K/1K OTP/ROM/ROMless, 8-channel 8-bit A/D, low voltage (2.7V–5.5V),
I C, 2 UARTs, 16MB address range
XA-S3
2
PIN CONFIGURATIONS
68-pin PLCC package
9
8
7
6
5
4
3
2
1
68 67 66 65 64 63 62 61
P4.7/A21 10
P3.0/RxD0 11
P3.1/TxD0 12
P3.2/INT0 13
P3.3/INT1 14
P3.4/T0 15
60 P2.1/A13D9
59 P2.0/A12D8
58 P0.7/A11D7
57 P0.6/A10D6
56 P0.5/A9D5
55
54
V
SS
V
DD
P3.5/T1/BUSW 16
P3.6/WRL 17
P3.7/RD 18
53 P0.4/A8D4
52 P0.3/A7D3
51 P0.2/A6D2
50 RST
CERAMIC AND PLASTIC LEADED CHIP CARRIER
RSTOUT 19
V
V
20
21
22
SS
DD
PP
49 CLKOUT
48 PSEN
EA/WAIT/V
P5.0/AD0 23
P5.1/AD1 24
P5.2/AD2 25
P5.3/AD3 26
47 ALE/PROG
46 P0.1/A5D1
45 P0.0/A4D0
44 P6.1/A23
27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43
SU00936
3
1998 Oct 06
Philips Semiconductors
Objective specification
XA 16-bit microcontroller
32K/1K OTP/ROM/ROMless, 8-channel 8-bit A/D, low voltage (2.7V–5.5V),
I C, 2 UARTs, 16MB address range
XA-S3
2
80-pin LQFP package
80 79 78 77 76 75 74 73 72 71 70 69 68 67 66 65 64 63 62 61
NC
P4.7/A21
1
2
3
4
5
6
7
8
9
60 NC
59 P2.1/A13D9
58 P2.0/A12D8
57 P0.7/A11D7
56 P0.6/A10D6
55 P0.5/A9D5
P3.0/RxD0
P3.1/TxD0
P3.2/INT0
P3.3/INT1
P3.4/T0
54
53
52
51
V
V
V
SS
SS
DD
P3.5/T1/BUSW
P3.6/WRL
P3.7/RD 10
RSTOUT 11
V
DD
LOW PROFILE PLASTIC QUAD FLAT PACK
50 P0.4/A8D4
49 P0.3/A7D3
48 P0.2/A6D2
47 RST
V
V
12
13
14
15
16
SS
SS
DD
DD
V
V
46 CLKOUT
45 PSEN
EA/WAIT/V
PP
P5.0/AD0 17
P5.1/AD1 18
P5.2/AD2 19
P5.3/AD3 20
44 ALE/PROG
43 P0.1/A5D1
42 P0.0/A4D0
41 P6.1/A23
21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40
SU00937
4
1998 Oct 06
Philips Semiconductors
Objective specification
XA 16-bit microcontroller
32K/1K OTP/ROM/ROMless, 8-channel 8-bit A/D, low voltage (2.7V–5.5V),
I C, 2 UARTs, 16MB address range
XA-S3
2
LOGIC SYMBOL
V
V
SS
DD
XTAL1
XTAL2
ECI
CEX0
CEX1
CEX2
CEX3
CEX4
A20
AV
A21
DD
AV
REF+
REF–
AV
AV
SS
A/D
INPUTS
CLKOUT
ALE
PSEN
SCL
SDA
RSTOUT
RST
EA/WAIT
A22
A23
WRH/A0
A1
A2
A3
RxD1
TxD1
T2
T2EX
RxD0
TxD0
INT0
INT1
T0
T1/BUSW
WRL
RD
SU00847A
5
1998 Oct 06
Philips Semiconductors
Objective specification
XA 16-bit microcontroller
32K/1K OTP/ROM/ROMless, 8-channel 8-bit A/D, low voltage (2.7V–5.5V),
I C, 2 UARTs, 16MB address range
XA-S3
2
BLOCK DIAGRAM
XA CPU Core
Program
SFR
bus
Memory
Bus
UART 0
32K Bytes
ROM/EPROM
Data
Bus
UART 1
1024 Bytes
Static RAM
2
I C
Port 0
Port 1
Port 2
Port 3
Port 4
Timer 0, 1
Timer 2
Watchdog
Timer
PCA
Port 5
Port 6
Input Port/
A/D
SU00846
6
1998 Oct 06
Philips Semiconductors
Objective specification
XA 16-bit microcontroller
32K/1K OTP/ROM/ROMless, 8-channel 8-bit A/D, low voltage (2.7V–5.5V),
I C, 2 UARTs, 16MB address range
XA-S3
2
PIN DESCRIPTIONS
PIN NUMBER
MNEMONIC
TYPE
NAME AND FUNCTION
PLCC
LQFP
V
SS
1, 20, 55
12, 13,
53, 54,
69, 70
I
Ground: 0V reference.
V
2, 21, 54
14, 15,
51, 52,
71, 72
I
I
Power Supply: This is the power supply voltage for normal, idle, and power down
operation.
DD
RST
RSTOUT
ALE/PROG
PSEN
50
19
47
48
22
47
11
44
45
16
Reset: A low on this pin resets the microcontroller, causing I/O ports and peripherals to
take on their default states, and the processor to begin execution at the address contained
in the reset vector.
O
I/O
O
I
Reset Output: This pin outputs a low whenever the XA-S3 processor is reset for any
reason. This includes an external reset via the RST pin, watchdog reset, and the RESET
instruction.
Address Latch Enable/Program Pulse: A high output on the ALE pin signals external
circuitry to latch the address portion of the multiplexed address/data bus. A pulse on ALE
occurs only when it is needed in order to process a bus cycle.
Program Store Enable: The read strobe for external program memory. When the
microcontroller accesses external program memory, PSEN is driven low in order to enable
memory devices. PSEN is only active when external code accesses are performed.
EA/WAIT/V
External Access/Bus Wait: The EA input determines whether the internal program
memory of the microcontroller is used for code execution. The value on the EA pin is
latched as the external reset input is released and applies during later execution. When
latched as a 0, external program memory is used exclusively. When latched as a 1, internal
program memory will be used up to its limit, and external program memory used above that
point. After reset is released, this pin takes on the function of bus WAIT input. If WAIT is
asserted high during an external bus access, that cycle will be extended until WAIT is
released.
PP
XTAL1
XTAL2
68
68
I
Crystal 1: Input to the inverting amplifier used in the oscillator circuit and input to the
internal clock generator circuits.
67
49
67
46
I
Crystal 2: Output from the oscillator amplifier.
CLKOUT
O
Clock Output: This pin outputs a buffered version of the internal CPU clock. The clock
output may be used in conjunction with the external bus to synchronize WAIT state
generators, etc. The clock output may be disabled by software.
AV
AV
33
34
32
31
28, 29
30, 31
27
I
Analog Power Supply: Positive power supply input for the A/D converter.
Analog Ground.
DD
I
SS
AV
AV
I
I
A/D Positive Reference Voltage: High end reference for the A/D converter.
A/D Negative Reference Voltage: Low end reference for the A/D converter.
REF+
REF–
26
P0.0 – P0.7
45, 46,
51–53,
56–58
42, 43,
48–50,
55–57
I/O
Port 0: Port 0 is an 8-bit I/O port with a user-configurable output type. Port 0 latches have
1s written to them and are configured in the quasi-bidirectional mode during reset. The
operation of port 0 pins as inputs and outputs depends upon the port configuration
selected. Each port pin is configured independently. Refer to the section on I/O port
configuration and the DC Electrical Characteristics for details.
When the external program/data bus is used, Port 0 becomes the multiplexed low
data/instruction byte and address lines 4 through 11.
7
1998 Oct 06
Philips Semiconductors
Objective specification
XA 16-bit microcontroller
32K/1K OTP/ROM/ROMless, 8-channel 8-bit A/D, low voltage (2.7V–5.5V),
I C, 2 UARTs, 16MB address range
XA-S3
2
PIN NUMBER
MNEMONIC
TYPE
NAME AND FUNCTION
PLCC
LQFP
35–42
32–39
I/O
Port 1: Port 1 is an 8-bit I/O port with a user-configurable output type. Port 1 latches have
1s written to them and are configured in the quasi-bidirectional mode during reset. The
operation of port 1 pins as inputs and outputs depends upon the port configuration
selected. Each port pin is configured independently. Refer to the section on I/O port
configuration and the DC Electrical Characteristics for details.
P1.0 – P1.7
Port 1 also provides various special functions as described below:
35
32
O
A0/WRH (P1.0)
Address bit 0 of the external address bus when the eternal data
bus is configured for an 8-bit width. When the external data bus
is configured for a 16-bit width, this pin becomes the high byte
write strobe.
36
37
38
39
40
41
42
33
34
35
36
37
38
39
O
O
O
I
A1 (P1.1):
Address bit 1 of the external address bus.
Address bit 2 of the external address bus.
Address bit 3 of the external address bus.
Serial port 1 receiver input.
A2 (P1.2):
A3 (P1.3):
RxD1 (P1.4):
TxD1 (P1.5):
T2 (P1.6):
O
I/O
O
Serial port 1 transmitter output.
Timer/counter 2 external count input or overflow output.
Timer/counter 2 reload/capture/direction control.
T2EX (P1.7):
P2.0 – P2.7
59–66
58, 59,
61–66
I/O
Port 2: Port 2 is an 8-bit I/O port with a user-configurable output type. Port 2 latches have
1s written to them and are configured in the quasi-bidirectional mode during reset. The
operation of port 2 pins as inputs and outputs depends upon the port configuration
selected. Each port pin is configured independently. Refer to the section on I/O port
configuration and the DC Electrical Characteristics for details.
When the external program/data bus is used in 16-bit mode, Port 2 becomes the
multiplexed high data/instruction byte and address lines 12 through 19. When the external
data/address bus is used in 8-bit mode, the number of address lines that appear on Port 2
is user programmable in groups of 4 bits.
11–18
3–10
I/O
Port 3: Port 3 is an 8-bit I/O port with a user-configurable output type. Port 3 latches have
1s written to them and are configured in the quasi-bidirectional mode during reset. The
operation of port 3 pins as inputs and outputs depends upon the port configuration
selected. Each port pin is configured independently. Refer to the section on I/O port
configuration and the DC Electrical Characteristics for details.
P3.0 – P3.7
Port 3 also provides the various special functions as described below:
11
12
13
14
15
16
3
4
5
6
7
8
I
O
I
RxD0 (P3.0):
TxD0 (P3.1):
INT0 (P3.2):
INT1 (P3.3):
T0 (P3.4):
Receiver input for serial port 0.
Transmitter output for serial port 0.
External interrupt 0 input.
I
External interrupt 1 input.
I/O
I/O
Timer/counter 0 external count input or overflow output.
T1 / BUSW (P3.5):
Timer/counter 1 external count input or overflow output. The
value on this pin is latched as an external chip reset is
completed and defines the default external data bus width.
17
18
9
O
O
WRL (P3.6):
RD (P3.7):
External data memory low byte write strobe.
External data memory read strobe.
10
3–10
73–79, 2
I/O
Port 4: Port 4 is an 8-bit I/O port with a user-configurable output type. Port 4 latches have
1s written to them and are configured in the quasi-bidirectional mode during reset. The
operation of Port 4 pins as inputs and outputs depends upon the port configuration
selected. Each port pin is configured independently. Refer to the section on I/O port
configuration and the DC Electrical Characteristics for details.
P4.0 – P4.7
Port 4 also provides various special functions as described below:
3
4
73
74
75
76
77
78
79
2
I
ECI (P4.0):
PCA External clock input.
I/O
I/O
I/O
I/O
I/O
O
CEX0 (P4.1):
CEX1 (P4.2):
CEX2 (P4.3):
CEX3 (P4.4):
CEX4 (P4.5):
A20 (P4.6):
A21 (P4.7):
Capture/compare external I/O for PCA module 0.
Capture/compare external I/O for PCA module 1.
Capture/compare external I/O for PCA module 2.
Capture/compare external I/O for PCA module 3.
Capture/compare external I/O for PCA module 4.
Address bit 20 of the external address bus.
Address bit 21 of the external address bus.
5
6
7
8
9
10
O
8
1998 Oct 06
Philips Semiconductors
Objective specification
XA 16-bit microcontroller
32K/1K OTP/ROM/ROMless, 8-channel 8-bit A/D, low voltage (2.7V–5.5V),
I C, 2 UARTs, 16MB address range
XA-S3
2
PIN NUMBER
MNEMONIC
TYPE
NAME AND FUNCTION
PLCC
LQFP
23–30
17–20,
22–25
I/O
Port 5: Port 5 is an 8-bit I/O port with a user-configurable output type. Port 5 latches have
1s written to them and are configured in the quasi-bidirectional mode during reset. The
operation of Port 5 pins as inputs and outputs depends upon the port configuration
selected. Each port pin is configured independently. Refer to the section on I/O port
configuration and the DC Electrical Characteristics for details.
P5.0 – P5.7
Port 5 also provides various special functions as described below. Port 5 pins used as A/D
inputs must be configured by the user to the high impedance mode.
23
24
25
26
27
28
29
30
17
18
19
20
22
23
24
25
I
AD0 (P5.0):
A/D channel 0 input.
A/D channel 1 input.
A/D channel 2 input.
A/D channel 3 input.
A/D channel 4 input.
A/D channel 5 input.
I
AD1 (P5.1):
I
AD2 (P5.2):
I
I
AD3 (P5.3):
AD4 (P5.4):
I
AD5 (P5.5):
2
I/O
I/O
AD6/SCL (P5.6):
AD7/SDA (P5.7):
A/D channel 6 input. I C serial clock input/output.
2
A/D channel 7 input. I C serial data input/output.
43, 44
40, 41
I/O
Port 6: Port 6 is a 2-bit I/O port with a user-configurable output type. Port 6 latches have
1s written to them and are configured in the quasi-bidirectional mode during reset. The
operation of Port 6 pins as inputs and outputs depends upon the port configuration
selected. Each port pin is configured independently. Refer to the section on I/O port
configuration and the DC Electrical Characteristics for details.
P6.0 – P6.7
Port 6 also provides special functions as described below:
43
44
40
41
O
O
A22 (P6.0):
A23 (P6.1):
Address bit 22 of the external address bus.
Address bit 23 of the external address bus.
Table 1. Special Function Registers
BIT FUNCTIONS AND ADDRESSES
Reset
Value
SFR
Address
NAME
DESCRIPTION
MSB
3F7
LSB
3F6
3F5
3F4
3F3
3F2
ADMOD
3FA
3F1
3F0
ADCON#* A/D control register
43E
ADSST ADINT 00h
3F9 3F8
3FF
3FE
3FD
3FC
3FB
ADCS#*
ADCFG#
A/D channel select register
A/D timing configuration
43F
4B9
4B0
ADCS7 ADCS6 ADCS5 ADCS4 ADCS3 ADCS2 ADCS1 ADCS0 00h
A/D Timing Configuration
0Fh
xx
ADRSH0# A/D high byte result,
channel 0
ADRSH1# A/D high byte result,
channel 1
4B1
4B2
4B3
4B4
4B5
4B6
4B7
xx
xx
xx
xx
xx
xx
xx
ADRSH2# A/D high byte result,
channel 2
ADRSH3# A/D high byte result,
channel 3
ADRSH4# A/D high byte result,
channel 4
ADRSH5# A/D high byte result,
channel 5
ADRSH6# A/D high byte result,
channel 6
ADRSH7# A/D high byte result,
channel 7
BCR#
BTRH
Bus configuration register
46A
469
CLKD
DWA1
WAITD BUSD
BC2
DR0
BC1
BC0
Note 1
Bus timing register high
byte
DW1
DW0
DWA0
DR1
DRA1
DRA0 FFh
BTRL
Bus timing register low byte
468
WM1
WM0
9
ALEW
CR1
CR0
CRA1
CRA0 EFh
1998 Oct 06
Philips Semiconductors
Objective specification
XA 16-bit microcontroller
32K/1K OTP/ROM/ROMless, 8-channel 8-bit A/D, low voltage (2.7V–5.5V),
I C, 2 UARTs, 16MB address range
XA-S3
2
BIT FUNCTIONS AND ADDRESSES
Reset
Value
SFR
Address
NAME
DESCRIPTION
MSB
2D7
CF
LSB
2D6
CR
2D5
2D4
CCF4
2D3
CCF3
2D2
2D1
2D0
CCON#*
CMOD#
CH#
PCA counter control
PCA mode control
41A
490
48B
48A
491
492
493
494
495
497
CCF2
CPS1
CCF1
CPS0
CCF0 00h
CIDL
WDTE
ECF
00h
00h
00h
PCA counter high byte
PCA counter low byte
CL#
CCAPM0# PCA module 0 mode
CCAPM1# PCA module 1 mode
CCAPM2# PCA module 2 mode
CCAPM3# PCA module 3 mode
CCAPM4# PCA module 4 mode
ECOM
ECOM
ECOM
ECOM
ECOM
CAPP
CAPP
CAPP
CAPP
CAPP
CAPN
CAPN
CAPN
CAPN
CAPN
MAT
MAT
MAT
MAT
MAT
TOG
TOG
TOG
TOG
TOG
PWM
PWM
PWM
PWM
PWM
ECCF 00h
ECCF 00h
ECCF 00h
ECCF 00h
ECCF 00h
xx
CCAP0H# PCA module 0 capture
high byte
CCAP1H# PCA module 1 capture
high byte
499
49B
49D
49F
496
498
49A
49C
49E
xx
xx
xx
xx
xx
xx
xx
xx
xx
CCAP2H# PCA module 2 capture
high byte
CCAP3H# PCA module 3 capture
high byte
CCAP4H# PCA module 4 capture
high byte
CCAP0L# PCA module 0 capture
low byte
CCAP1L# PCA module 1 capture
low byte
CCAP2L# PCA module 2 capture
low byte
CCAP3L# PCA module 3 capture
low byte
CCAP4L# PCA module 4 capture
low byte
CS
DS
ES
Code segment
Data segment
Extra segment
443
441
442
00h
00h
00h
367
366
365
364
363
SI
362
AA
0
361
CR1
0
360
2
I2CON#*
I2STAT#
I2DAT#
I C control register
42C
46C
46D
46E
CR2
ENA
STA
STO
CR0
0
00h
F8h
xx
2
2
I C status register
I C Status Code/Vector
2
I C data register
2
2
I2ADDR#
I C address register
I C Slave Address
GC
338
00h
33F
33E
33D
33C
33B
ETI1
333
33A
ERI1
332
339
ETI0
331
IEH*
Interrupt enable high byte
Interrupt enable low byte
427
426
ERI0
330
00h
00h
337
EA
377
336
EAD
376
335
EPC
375
EI2
334
ET2
374
EC4
IEL#*
ET1
373
EX1
372
ET0
371
EX0
370
IELB#*
IPA0
Interrupt enable B low byte
Interrupt priority A0
Interrupt priority A1
Interrupt priority A2
Interrupt priority A3
Interrupt priority A4
42E
4A0
4A1
4A2
4A3
4A4
EC3
EC2
EC1
EC0
00h
00h
00h
00h
00h
00h
PT0
PT1
PPC
PX0
PX1
PT2
IPA1
IPA2#
IPA3#
IPA4
PAD
PRI0
PTI0
10
1998 Oct 06
Philips Semiconductors
Objective specification
XA 16-bit microcontroller
32K/1K OTP/ROM/ROMless, 8-channel 8-bit A/D, low voltage (2.7V–5.5V),
I C, 2 UARTs, 16MB address range
XA-S3
2
BIT FUNCTIONS AND ADDRESSES
Reset
Value
SFR
Address
NAME
IPA5
DESCRIPTION
MSB
LSB
Interrupt priority A5
Interrupt priority B0
Interrupt priority B1
Interrupt priority B2
4A5
4A8
4A9
4AA
PTI1
PC1
PC3
PI2
PRI1
PC0
PC2
PC4
00h
00h
00h
00h
IPB0#
IPB1#
IPB2#
387
A11D7
38F
386
385
A9D5
38D
384
A8D4
38C
383
A7D3
38B
A3
382
381
380
P0*
Port 0
Port 1
Port 2
Port 3
Port 4
Port 5
Port 6
430
431
432
433
434
435
436
A10D6
38E
T2
A6D2
38A
A2
A5D1
389
A1
A4D0 FFh
388
A0/WRH
390
P1*
T2EX
397
TxD1
395
RxD1
394
FFh
396
393
392
391
A17D13 A16D12 A15D11 A14D10
P2*
A19D15 A18D14
A13D9 A12D8 FFh
39F
RD
39E
WRL
3A6
A20
3AE
39D
T1
39C
T0
39B
INT1
3A3
39A
INT0
3A2
399
TxD0
3A1
398
P3*
RxD0 FFh
3A0
3A7
A21
3AF
3A5
CEX4
3AD
AD5
3A4
CEX3
3AC
AD4
P4#*
P5#*
P6#*
CEX2
3AB
CEX1
3AA
CEX0
3A9
ECI
3A8
AD0
3B0
A22
FFh
FFh
FFh
AD7/SDA AD6/SCL
AD3
AD2
AD1
3B1
A23
P0CFGA
P1CFGA
P2CFGA
P3CFGA
Port 0 configuration A
Port 1 configuration A
Port 2 configuration A
Port 3 configuration A
470
471
472
473
474
475
476
4F0
4F1
4F2
4F3
4F4
4F5
4F6
Note 5
Note 5
Note 5
Note 5
Note 5
Note 5
Note 5
Note 5
Note 5
Note 5
Note 5
Note 5
Note 5
Note 5
P4CFGA# Port 4 configuration A
P5CFGA# Port 5 configuration A
P6CFGA# Port 6 configuration A
P0CFGB
P1CFGB
P2CFGB
P3CFGB
Port 0 configuration B
Port 1 configuration B
Port 2 configuration B
Port 3 configuration B
P4CFGB# Port 4 configuration B
P5CFGB# Port 5 configuration B
P6CFGB# Port 6 configuration B
227
226
225
224
223
222
221
PD
220
IDL
208
IM0
PCON*
PSWH*
Power control register
404
401
00h
20F
SM
20E
TM
20D
RS1
20C
RS0
20B
IM3
20A
IM2
209
IM1
Program status word
(high byte)
Note 2
207
C
206
AC
205
204
203
202
V
201
N
200
Z
PSWL*
Program status word
(low byte)
400
402
Note 2
Note 3
217
C
216
AC
215
F0
214
213
212
V
211
F1
210
P
PSW51*
80C51 compatible PSW
RS1
RS0
11
1998 Oct 06
Philips Semiconductors
Objective specification
XA 16-bit microcontroller
32K/1K OTP/ROM/ROMless, 8-channel 8-bit A/D, low voltage (2.7V–5.5V),
I C, 2 UARTs, 16MB address range
XA-S3
2
BIT FUNCTIONS AND ADDRESSES
Reset
Value
SFR
Address
NAME
DESCRIPTION
MSB
LSB
R_CMD
RSTSRC# Reset source register
463
R_WD
R_EXT Note 7
RTH0
RTH1
RTL0
RTL1
Timer 0 reload register,
high byte
455
457
454
456
00h
00h
Timer 1 reload register,
high byte
Timer 0 reload register,
low byte
00h
Timer 1 reload register,
low byte
00h
307
SM0_0
30F
306
305
304
303
302
301
TI_0
309
300
S0CON*
Serial port 0 control register
420
421
SM1_0 SM2_0 REN_0 TB8_0 RB8_0
RI_0
308
00h
00h
30E
30D
30C
30B
FE0
30A
BR0
STINT0
S0STAT#* Serial port 0 extended
status
ERR0
OE0
S0BUF
Serial port 0 data buffer
register
460
461
462
xx
S0ADDR
S0ADEN
Serial port 0 address
register
00h
00h
Serial port 0 address
enable
327
326
325
324
323
322
321
320
S1CON*
Serial port 1 control
register
424
SM0_1
SM1_1 SM2_1 REN_1 TB8_1 RB8_1
TI_1
RI_1
00H
32F
32E
32D
32C
32B
FE1
32A
BR1
329
328
STINT1
S1STAT#* Serial port 1 extended
status
425
464
465
466
ERR1
OE1
00h
xx
S1BUF
Serial port 1 data buffer
register
S1ADDR
S1ADEN
Serial port 1 address
register
00h
00h
Serial port 1 address
enable
SCR
System configuration
register
440
PT1
21B
PT0
CM
219
PZ
00h
21F
21E
21D
21C
21A
218
R5SEG R4SEG R3SEG
R1SEG R0SEG
SSEL*
SWE
Segment selection register
Software interrupt enable
Software interrupt request
Timer 2 control register
Timer 2 mode control
403
47A
42A
418
419
ESWEN R6SEG
R2SEG
00h
SWE7
356
SWE6
355
SWE5
354
SWE4
353
SWE3
352
SWE2
351
SWE1 00h
350
357
SWR*
SWR7
2C6
SWR6
2C5
SWR5
2C4
SWR4
2C3
SWR3
2C2
TR2
2CA
SWR2
2C1
SWR1 00h
2C0
2C7
TF2
2CF
CP/RL2
2C8
T2CON*
T2MOD*
EXF2
2CE
RCLK0 TCLK0 EXEN2
C/T2
2C9
00h
2CD
2CC
2CB
RCLK1 TCLK1
T2OE
DCEN 00h
TH2
Timer 2 high byte
459
458
45B
45A
00h
00h
00h
00h
TL2
Timer 2 low byte
T2CAPH
T2CAPL
Timer 2 capture, high byte
Timer 2 capture, low byte
287
TF1
286
285
TF0
284
283
IE1
282
IT1
281
IE0
280
TCON*
Timer 0 and 1 control
register
410
TR1
TR0
IT0
00h
12
1998 Oct 06
Philips Semiconductors
Objective specification
XA 16-bit microcontroller
32K/1K OTP/ROM/ROMless, 8-channel 8-bit A/D, low voltage (2.7V–5.5V),
I C, 2 UARTs, 16MB address range
XA-S3
2
BIT FUNCTIONS AND ADDRESSES
Reset
Value
SFR
Address
NAME
TH0
DESCRIPTION
Timer 0 high byte
MSB
LSB
451
453
450
452
00h
00h
00h
00h
TH1
TL0
TL1
Timer 1 high byte
Timer 0 low byte
Timer 1 low byte
TMOD
Timer 0 and 1 mode control
45C
GATE
28F
C/T
28E
M1
28D
M0
28C
GATE
28B
C/T
28A
M1
289
M0
00h
288
TSTAT*
Timer 0 and 1 extended
status
411
T1OE
T0OE 00h
2FF
2FE
2FD
2FC
2FB
2FA
2F9
2F8
WDRUN WDTOF
WDCON*
Watchdog control register
41F
PEW2
PRE1
PRE0
Note 6
WDL
Watchdog timer reload
Watchdog feed 1
45F
45D
45E
00h
xx
WFEED1
WFEED2
Watchdog feed 2
xx
NOTES:
*
#
SFRs are bit addressable.
SFRs are modified from or added to XA-G3 SFRs.
1. At reset, the BCR is loaded with the binary value 00000a11, where “a’ is the value on the BUSW pin. This defaults the address bus size to
24 bits.
2. SFR is loaded from the reset vector.
3. All bits except F1, F0, and P are loaded from the reset vector. Those bits are all 0.
4. Unimplemented bits in SFRs are X (unknown) at all times. Ones should not be written to these bits since they may be used for other
purposes in future XA derivatives. The reset value shown for these bits is 0.
5. Port configurations default to quasi-bidirectional when the XA begins execution from internal code memory after reset, based on the
condition found on the EA pin. Thus, all PnCFGA registers will contain FF, and PnCFGB register will contain 00 when the XA begins
execution using internal code memory. When the XA begins execution using external code memory, the default configuration for pins that
are associated with the external bus will be push-pull. The PnCFGA and PnCFGB register contents will reflect this difference.
6. The WDCON reset value is E6 for a Watchdog reset, E4 for all other reset causes.
7. The RSTSRC register reflects the cause of the last XA-S3 reset. One bit will be set to 1, the others will be cleared to 0.
8. The XA guards writes to certain bits (typically interrupt flags) that may be altered directly by a peripheral function. This prevents loss of an
interrupt or other status if a bit was written directly by a peripheral action during the time between the read and write portions of an
instruction that performs a read-modify-write operation. Examples of such instructions are:
and
clr
s0con,#$fb
tr0
setb
ti_0
XA-S3 SFR bits that are guarded in this manner are: ADINT (in ADCON); CF, CCF4, CCF3, CCF2, CCF1, and CCF0 (in CCON); SI (in
I2CON); TI_0 and RI_0 (in S0CON); TI_1 and RI_1 (in S1CON); FE0, BR0, and OE0 (in S0STAT); FE1, BR1, and OE1 (in S1STAT); TF2 (in
T2CON); TF1, TF0, IE1, and IE0 (in TCON); and WDTOF (in WDCON).
9. The XA-S3 implements an 8-bit SFR bus, as stated in Chapter 8 of the XA User Guide. All SFR accesses must be 8-bit operations. Attempts
to write 16 bits to an SFR will actually write only the lower 8 bits. Sixteen bit SFR reads will return undefined data in the upper byte.
13
1998 Oct 06
Philips Semiconductors
Objective specification
XA 16-bit microcontroller
32K/1K OTP/ROM/ROMless, 8-channel 8-bit A/D, low voltage (2.7V–5.5V),
I C, 2 UARTs, 16MB address range
XA-S3
2
bits in the ADCS register will be converted once. The ADINT flag is
set when the last channel is converted. In the continuous scan
mode, the A/D converter continuously converts all A/D channels
selected by bits in the ADCS register. The ADINT flag is set when all
channels have been converted once.
FUNCTIONAL DESCRIPTION
Details of XA-S3 functions will be described in the following
sections.
Analog to Digital converter
The XA-S3 has an 8-channel, 8-bit A/D converter with 8 sets of
result registers, single scan and multiple scan operating modes. The
The A/D converter can generate an interrupt when the ADINT flag is
set. This will occur if the A/D interrupt is enabled (via the EAD bit in
IEL), the interrupt system is enabled (via the EA bit in IEL), and the
A/D interrupt priority (specified in IPA3 bits 3 to 0) is higher than the
currently running code (PSW bits IM3 through IM0) and any other
pending interrupt. ADINT must be cleared by software.
A/D input range is limited to 0 to AV (3.3V max.). The A/D inputs
DD
are on Port 5. Analog Power and Ground as well as AV
and
REF+
AV
must be supplied in order for the A/D converter to be used.
REF–
Prior to enabling the A/D converter or driving analog signals into the
A/D inputs, the port configurations for the pins being used as A/D
inputs must be set to the “off” (high impedance, input only) mode.
A/D Timing Configuration
The A/D sampling and conversion timing may be optimized for the
particular oscillator frequency and input drive characteristics of the
application. Because A/D operation is mostly dependent on real-time
effects (charging time of sampling capacitors, settling time of the
comparator, etc.), A/D conversion times are not necessarily much
longer at slower clock frequencies. The A/D timing is controlled by
the ADCFG register, as shown in Figure 3 and Table 2.
A/D timing can be adapted to the application clock frequency in
order to provide the fastest possible conversion.
A/D converter operation is controlled through the ADCON (A/D
Control) register, see Figure 1. Bits in ADCON start and stop the
A/D, flag conversion completion, and select the converter operating
modes.
The primary effect of ADCFG settings is to adjust the A/D sample
and hold time to be relatively constant over various clock
frequencies. Two settings (value 6 and B) are provided to allow fast
conversions with a lower external source driving the A/D inputs.
These settings provide double the sample time at the same
frequency. Of course, settings intended for lower frequencies may
also be used at higher frequencies in order to increase the A/D
sampling time, but this method has the side effect of significantly
increasing A/D conversion times.
A/D Conversion Modes
The A/D converter supports a single scan mode and a continuous
scan mode. In either mode, one or more A/D channels may be
converted. The ADCS register determines which channels are
converted. If the corresponding bit in the ADCS register is set, that
channel is selected for conversions, otherwise that channel is
skipped. The ADCS register is detailed in Figure 2.
For any A/D conversion, the results are stored in ADRSHn,
corresponding to the A/D channel just converted.
A/D conversions are begun by setting the A/D Start and STatus bit in
ADCON. In the single scan mode, all of the channels selected by
ADCON
Address:43Eh
MSB
LSB
Bit Addressable
Reset Value: 00h
ADMOD ADSST ADINT
BIT
SYMBOL
FUNCTION
ADCON.7
ADCON.6
ADCON.5
ADCON.4
ADCON.3
ADCON.2
ADMOD
Reserved for future use. Should not be set to 1 by user programs.
Reserved for future use. Should not be set to 1 by user programs.
Reserved for future use. Should not be set to 1 by user programs.
Reserved for future use. Should not be set to 1 by user programs.
Reserved for future use. Should not be set to 1 by user programs.
A/D mode select.
1 = continuous scan of selected inputs after a start of the A/D.
0 = single scan of selected inputs after a start of the A/D.
ADCON.1
ADCON.0
ADSST
ADINT
A/D start and status. Setting this bit by software starts the A/D conversion of the selected A/D
inputs. ADSST remains set as long as the A/D is in operation. In continuous conversion mode,
ADSST will remain set unless the A/D is stopped by software. While ADSST is set, new start
commands are ignored. An A/D conversion is progress may be aborted by software clearing
ADSST.
A/D conversion complete/interrupt flag. This flag is set when all selected A/D channels are
converted in either the single scan or continuous scan modes. Must be cleared by software.
SU00938A
Figure 1. A/D Control Register (ADCON)
14
1998 Oct 06
Philips Semiconductors
Objective specification
XA 16-bit microcontroller
32K/1K OTP/ROM/ROMless, 8-channel 8-bit A/D, low voltage (2.7V–5.5V),
I C, 2 UARTs, 16MB address range
XA-S3
2
ADCS
Address:43Fh
MSB
LSB
Bit Addressable
Reset Value: 00h
ADCS7 ADCS6 ADCS5 ADCS4 ADCS3 ADCS2 ADCS1 ADCS0
BIT
SYMBOL
ADCS7
ADCS6
ADCS5
ADCS4
ADCS3
ADCS2
ADCS1
ADCS0
FUNCTION
ADCS.7
ADCS.6
ADCS.5
ADCS.4
ADCS.3
ADCS.2
ADCS.1
ADCS.0
A/D channel 7 select bit.
A/D channel 6 select bit.
A/D channel 5 select bit.
A/D channel 4 select bit.
A/D channel 3 select bit.
A/D channel 2 select bit.
A/D channel 1 select bit.
A/D channel 0 select bit.
SU00939
Figure 2. A/D Channel Select Register (ADCS)
ADCFG
Address:4B9h
MSB
LSB
Not bit Addressable
Reset Value: 00h
A/D Timing Configuration
BIT
SYMBOL
FUNCTION
ADCFG.7
ADCFG.6
ADCFG.5
ADCFG.4
Reserved for future use. Should not be set to 1 by user programs.
Reserved for future use. Should not be set to 1 by user programs.
Reserved for future use. Should not be set to 1 by user programs.
Reserved for future use. Should not be set to 1 by user programs.
A/D timing configuration (see text and table).
ADCFG.3–0 ADCFG
SU00940
Figure 3. A/D Timing Configuration Register (ADCFG)
Table 2. A/D Timing Configuration
Conversion Time
µsec at max. Osc.
Max. Oscillator
ADCFG.3–0
Sampling Time
(Osc. Clocks)
Frequency (MHz)
Osc. Clocks
70
0h (0000)
1h (0001)
2h (0010)
3h (0011)
4h (0100)
5h (0101)
6.66
10
11.11
7.8
4
78
6
11.11
13.33
16.66
20
82
7.38
7.35
6.12
5.3
8
98
8
102
106
118
10
12
24
14
14
16
18
32
20
20
22
24
1
6h (0110)
7h (0111)
8h (1000)
9h (1001)
Ah (1010)
20
5.9
22.2
23.3
26.6
30
102
126
130
134
148
138
152
172
176
4.95
5.4
4.88
4.46
4.93
4.31
4.56
4.69
4.4
1
Bh (1011)
Ch (1100)
Dh (1101)
Eh (1110)
Fh (1111)
30
32
33.3
36.6
40
NOTE:
1. These settings provide additional A/D input sampling time, in order to allow accurate readings with a higher external source impedance.
15
1998 Oct 06
Philips Semiconductors
Objective specification
XA 16-bit microcontroller
32K/1K OTP/ROM/ROMless, 8-channel 8-bit A/D, low voltage (2.7V–5.5V),
I C, 2 UARTs, 16MB address range
XA-S3
2
A/D Inputs
A/D timing configurations indicated in Table 1 allow for full A/D
In order to obtain accurate measurements with the A/D Converter,
the source drive must be sufficient to adequately charge the
sampling capacitor during the sampling time. Figure 4 shows the
equivalent resistance and capacitance related to the A/D inputs.
accuracy (according to the A/D specifications) assuming a source
resistance of less than or equal to 20k. Larger source resistances
may be accommodated by increasing the sampling time with a
different A/D timing configuration.
Sm
Sm
Rm
Rm
N+1
N+1
AD
N+1
N
N
TO COMPARATOR
AD
N
+
Multiplexer
R
S
C
C
C
S
V
ANALOG
INPUT
R
C
C
R
(multiplexer resistance)
(pin capacitance)
=
=
=
=
3 kmaximum
10 pF maximum
2 pF maximum
m
S
C
S
(sampling capacitor)
(source resistance)
Recommended less than 20kfor full specified accuracy. This allows time for the sampling
capacitor (C ) to fully charge while the multiplexer switch is closed. Please note that sampling
C
causes the analog input to present a varying load to the pin.
SU00948
Figure 4. A/D Input: Equivalent Circuit
16
1998 Oct 06
Philips Semiconductors
Objective specification
XA 16-bit microcontroller
32K/1K OTP/ROM/ROMless, 8-channel 8-bit A/D, low voltage (2.7V–5.5V),
I C, 2 UARTs, 16MB address range
XA-S3
2
I2CON
Address:42Ch
MSB
CR2
LSB
CR0
Bit Addressable
Reset Value: 00h
ENA
STA
STO
SI
AA
CR1
BIT
SYMBOL
CR2
ENA
FUNCTION
2
I2CON.7
I2CON.6
I2CON.5
I C Rate Control, with CR1 and CR0. See text and table.
2
2
Enable I C port. When ENA = 1, the I C port is enabled.
2
STA
Start flag. Setting STA to 1 causes the I C interface to attempt to gain mastership of the bus by
generating a Start condition.
Stop flag. Setting STO to 1 causes the I C interface to attempt to generate a Stop condition.
Serial Interrupt. SI is set by the I C hardware when a new I C state is entered, indicating that
software needs to respond. SI causes an I C interrupt if enabled and of sufficient priority.
2
I2CON.4
I2CON.3
STO
SI
2
2
2
2
I2CON.2
AA
Assert Acknowledge. Setting AA to 1 causes the I C hardware to automatically generate
acknowledge pulses for various conditions (see text).
2
I2CON.1
I2CON.0
CR1
CR0
I C Rate Control, with CR2 and CR0. See text and table.
I C Rate Control, with CR2 and CR1. See text and table.
2
SU00941
2
Figure 5. I C Control Register (I2CON)
2
2
If STA is set while the I C interface is already in a master mode and
one or more bytes are transmitted or received, the hardware
transmits a repeated START condition. STA may be set at any time.
I C Interface
2
The I C interface on the XA-S3 is identical to the standard byte-style
2
I C interface found on devices such as the 8xC552 except for the
2
2
2
STA may also be set when the I C interface is an addressed slave.
rate selection. The I C interface conforms to the 100 kHz I C
specification, but may be used at rates up to 400 kHz
(non-conforming).
STA = 0: When the STA bit is reset, no START condition or
repeated START condition will be generated.
2
Important: Before the I C interface may be used, the port pins
P5.6 and 5.7, which correspond to the I C functions SCL and SDA
respectively, must be set to the open drain mode.
STO, the STOP flag
STO = 1: When the STO bit is set while the I C interface is in a
master mode, a STOP condition is transmitted to the I C bus. When
2
2
2
2
The processor interfaces to the I C logic via the following four
special function registers: I2CON (I C control register), I2STA (I C
the STOP condition is detected on the bus, the hardware clears the
STO flag. In a slave mode, the STO flag may be set to recover from
an error condition. In this case, no STOP condition is transmitted to
2
2
2
2
status register), I2DAT (I C data register), and I2ADR (I C slave
2
2
2
address register). The I C control logic interfaces to the external I C
bus via two port 5 pins: P5.6/SCL (serial clock line) and P5.7/SDA
(serial data line).
the I C bus. However, the hardware behaves as if a STOP condition
has been received and switches to the defined “not addressed”
slave receiver mode. The STO flag is automatically cleared by
hardware.
The Control Register, I2CON
This register is shown in Figure 5. Two bits are affected by the I C
2
If the STA and STO bits are both set, then a STOP condition is
2
transmitted to the I C bus if the interface is in a master mode (in a
hardware: the SI bit is set when a serial interrupt is requested, and
the STO bit is cleared when a STOP condition is present on the I C
bus. The STO bit is also cleared when ENA = “0”.
2
slave mode, the hardware generates an internal STOP condition
which is not transmitted). The I C interface then transmits a START
2
condition.
2
ENA, the I C Enable Bit
STO = 0: When the STO bit is reset, no STOP condition will be
generated.
ENA = 0: When ENA is “0”, the SDA and SCL outputs are not
driven. SDA and SCL input signals are ignored, SIO1 is in the “not
addressed” slave state, and the STO bit in I2CON is forced to “0”.
No other bits are affected. P5.6 and P5.7 may be used as open
drain I/O ports.
SI, the Serial Interrupt flag
SI = 1: When the SI flag is set, and the EA (interrupt system
2
2
enable) and EI2 (I C interrupt enable) bits are also set, an I C
interrupt is requested. SI is set by hardware when one of 25 of the
ENA = 1: When ENA is “1”, SIO1 is enabled. The P5.6 and P5.7
port latches must be set to logic 1.
2
26 possible I C interface states is entered. The only state that does
not cause SI to be set is state F8H, which indicates that no relevant
state information is available.
2
ENA should not be used to temporarily release the I C-bus since,
2
when ENA is reset, the I C-bus status is lost. The AA flag should be
While SI is set, the low period of the serial clock on the SCL line is
stretched, and the serial transfer is suspended. A high level on the
SCL line is unaffected by the serial interrupt flag. SI must be reset
by software.
used instead (see description of the AA flag in the following text).
In the following text, it is assumed the ENA = “1”.
STA, the START flag
STA = 1: When the STA bit is set to enter a master mode, the I C
hardware checks the status of the I C bus and generates a START
condition if the bus is free. If the bus is not free, the I C interface
2
SI = 0: When the SI flag is reset, no serial interrupt is requested,
and there is no stretching of the serial clock on the SCL line.
2
2
waits for a STOP condition (which will free the bus) and generates a
START condition after a delay of a half clock period of the internal
serial clock generator.
17
1998 Oct 06
Philips Semiconductors
Objective specification
XA 16-bit microcontroller
32K/1K OTP/ROM/ROMless, 8-channel 8-bit A/D, low voltage (2.7V–5.5V),
I C, 2 UARTs, 16MB address range
XA-S3
2
AA, the Assert Acknowledge flag
not requested. Thus, the hardware can be temporarily released from
the I C bus while the bus status is monitored. While the hardware is
2
AA = 1: If the AA flag is set, an acknowledge (low level to SDA)
will be returned during the acknowledge clock pulse on the SCL line
when:
released from the bus, START and STOP conditions are detected,
and serial data is shifted in. Address recognition can be resumed at
any time by setting the AA flag. If the AA flag is set when the part’s
own slave address or the general call address has been partly
received, the address will be recognized at the end of the byte
transmission.
The “own slave address” has been received.
The general call address has been received while the general call
bit (GC) in I2ADR is set.
2
A data byte has been received while the I C interface is in the
CR0, CR1, and CR2, the Clock Rate Bits
2
master receiver mode.
These three bits determine the serial clock frequency when the I C
2
interface is in a master mode. An I C rate of 100kHz or lower is
2
A data byte has been received while the I C interface is in the
typical and can be derived from many oscillator frequencies. The
various serial rates are shown in Table 3. A variable bit rate may
also be used if Timer 1 is not required for any other purpose while
addressed slave receiver mode.
AA = 0: If the AA flag is reset, a not acknowledge (high level to
SDA) will be returned during the acknowledge clock pulse on the
SCL line when:
2
the I C hardware is in a master mode. The frequencies shown in
2
Table 3 are unimportant when the I C hardware is in a slave mode.
2
A data byte has been received while the I C interface is in the
In the slave modes, the hardware will automatically synchronize with
the incoming clock frequency.
master receiver mode.
2
2
A data byte has been received while the I C interface is in the
The I C Status Register, I2STA
addressed slave receiver mode.
I2STA is an 8-bit read-only special function register. The three least
significant bits are always zero. The five most significant bits contain
the status code. There are 26 possible status codes. When I2STA
contains F8H, no relevant state information is available and no serial
interrupt is requested. All other I2STA values correspond to defined
hardware interface states. When each of these states is entered, a
serial interrupt is requested (SI = “1”).
2
When the I C interface is in the addressed slave transmitter mode,
state C8H will be entered after the last serial data byte is
transmitted. When SI is cleared, the I C interface leaves state C8H,
enters the not addressed slave receiver mode, and the SDA line
remains at a high level. In state C8H, the AA flag can be set again
for future address recognition.
2
2
NOTE: A detailed I C interface description and usage
information, including example driver code, will be provided in
a separate document.
2
When the I C interface is in the not addressed slave mode, its own
slave address and the general call address are ignored.
Consequently, no acknowledge is returned, and a serial interrupt is
2
Table 3. I C Rate Control
2
Example I C Rates at Specific Oscillator Frequencies
Frequency Select
(CR2, CR1, CR0)
Clock Divisor
8 MHz
12 MHz
16 MHz
20 MHz
24 MHz
30 MHz
1
0h (0000)
1h (0001)
2h (0010)
3h (0011)
4h (0100)
5h (0101)
6h (0110)
7h (0111)
20
40
(400)
1
1
1
(200)
(300)
(400)
1
1
1
1
1
68
(116.65)
90.91
50
(176.46)
(136.36)
75
(235.29)
(181.82)
100
(294.12)
(227.27)
(352.94)
(272.73)
1
1
1
1
1
88
(340.91)
1
1
1
160
272
352
(125)
(150)
(187.5)
(110.29)
85.23
1
29.41
22.73
44.12
34.09
58.82
73.53
56.82
88.24
68.18
45.45
2
2
2
2
2
2
2
(Timer 1)
(Timer 1)
(Timer 1)
(Timer 1)
(Timer 1)
(Timer 1)
(Timer 1)
NOTES:
2
2
1. The XA-S3 I C interface does not conform to the 400kHz I C specification (which applies to rates greater than 100kHz) in all details, but
may be used with care where higher rates are required by the application.
2. The timer 1 overflow is used to clock the I C interface. The resulting bit rate is 1/2 of the timer overflow rate.
2
18
1998 Oct 06
Philips Semiconductors
Objective specification
XA 16-bit microcontroller
32K/1K OTP/ROM/ROMless, 8-channel 8-bit A/D, low voltage (2.7V–5.5V),
I C, 2 UARTs, 16MB address range
XA-S3
2
XA-S3 Timer/Counters
Clock Output
The XA-S3 has three general purpose counter/timers, two of which
may also be used as baud rate generators for either or both of the
UARTs.
The CLKOUT pin allows easier external bus interfacing in some
situations. This output reflects the X1 clock input to the XA, but is
delayed to match the external bus outputs and strobes. The default
is for CLKOUT to be on at reset, but it may be turned off via the
CLKD bit that has been added to the BCR register.
Timer 0 and 1
These are identical to the standard XA-G3 timer 0 and 1.
Timer 2
Reset
This is identical to the standard XA-G3 timer 2.
Active low reset input, the same as the XA-G3.
The associated RSTOUT pin provides an external indication via an
active low open drain output when an internal reset occurs. The
RSTOUT pin will be driven low when the RST pin is driven low,
when a Watchdog reset occurs or the RESET instruction is
executed. This signal may be used to inform other devices in a
system that the XA-S3 has been reset.
PCA
This is a standard 80C51FC-style PCA counter/timer. The XA uses
TCLK (the global peripheral clock which is Osc/4, Osc/16, or
Osc/64), Timer 0 overflow, and External (ECI pin). When the ECI
input is used, the falling edge clocks the PCA counter. The
maximum rate for the counter in this mode on the XA is Osc/4. Each
PCA module has its own interrupt (in addition to the standard global
PCA interrupt).
The latched values of EA and BUSW are NOT automatically
updated when an internal reset occurs. RSTOUT may be used to
apply an external reset to the XA-S3 in order to update the
previously latched EA and BUSW values. However, since RSTOUT
reflects ALL reset sources, it cannot simply be fed back into the RST
pin without other logic.
CPS1
CPS0
PCA Clock Source
TCLK (osc/4, osc/16, or osc/64
Timer 0 Overflow
0
1
1
x
0
1
ECI (PCA External Clock Input)
The reset source identification register (RSTSRC) indicates the
cause of the most recent XA reset. The cause may have been an
externally applied reset signal, execution of the RESET instruction,
or a Watchdog reset. Figure 6 shows the fields in the RSTSRC
register.
Watchdog Timer
This is a standard XA-G3 watchdog timer. This watchdog timer
always comes up running at reset. The watchdog acts the same on
EPROM, ROM, and ROMless parts, as in the XA-G3.
UARTs
Power Reduction Modes
Standard XA-G3 UART0 and UART1 with double buffered transmit
register. A flag has been added to SnSTAT that is set if any of the
status flags (BRn, FEn, or OEn) is set for the corresponding UART
channel. This allows polling for UART errors quickly at the interrupt
service routine. Baud rate sources may be timer 1 or timer 2.
The XA-S3 supports Idle and Power Down modes of power
reduction. The idle mode leaves some peripherals running in order
to allow them to activate the processor when an interrupt is
generated. The power down mode stops the oscillator in order to
absolutely minimize power. The processor can be made to exit
power down mode via a reset or one of the external interrupt inputs
(INT0 or INT1). This will occur if the interrupt is enabled and its
priority is higher than that defined by IM3 through IM0. In power
down mode, the power supply voltage may be reduced to the RAM
Clocking / Baud Rate Generation
Same as for the XA-G3.
I/O Port Output Configuration
Port output configurations are the same as for the XA-G3: open
drain, quasi-bidirectional, push-pull, and off.
keep-alive voltage V
. This retains the RAM, register, and SFR
RAM
contents at the point where power down mode was entered. V
must be raised to within the operating range before power down
mode is exited.
DD
External Bus
The external bus operates in the same manner as the XA-G3, but all
24 address lines are brought out to the outside world. This allows for
a maximum of 16 Mbytes of code memory and 16 Mbytes of data
memory.
RSTSRC
Address:463h
MSB
LSB
Not bit Addressable
R_WD R_CMD R_EXT
Reset Value: see below
BIT
SYMBOL
FUNCTION
RSTSRC.7
RSTSRC.6
RSTSRC.5
RSTSRC.4
RSTSRC.3
RSTSRC.2
RSTSRC.1
RSTSRC.0
Reserved for future use. Should not be set to 1 by user programs.
Reserved for future use. Should not be set to 1 by user programs.
Reserved for future use. Should not be set to 1 by user programs.
Reserved for future use. Should not be set to 1 by user programs.
Reserved for future use. Should not be set to 1 by user programs.
Indicates that the last reset was caused by a watchdog timer overflow.
Indicates that the last reset was caused by execution of the RESET instruction.
Indicates that the last reset was caused by the external RST input.
R_WD
R_CMD
R_EXT
SU00942
Figure 6. Reset source register (RSTSRC)
19
1998 Oct 06
Philips Semiconductors
Objective specification
XA 16-bit microcontroller
32K/1K OTP/ROM/ROMless, 8-channel 8-bit A/D, low voltage (2.7V–5.5V),
I C, 2 UARTs, 16MB address range
XA-S3
2
INTERRUPTS
UART 0 transmitter and receiver interrupts (2)
XA-S3 interrupt sources include the following:
UART 1 transmitter and receiver interrupts (2)
External interrupts 0 and 1 (2)
2
I C interrupt (1)
Timer 0, 1, and 2 interrupts (3)
PCA: 1 global and 5 channel interrupts (6)
A/D interrupt (1)
Software interrupts (7)
There are a total of 17 hardware interrupt sources, enable bits,
priority bit sets, etc.
EXCEPTION/TRAPS PRECEDENCE
DESCRIPTION
VECTOR ADDRESS
ARBITRATION RANKING
Reset (h/w, watchdog, s/w)
Breakpoint
0000–0003
0004–0007
0008–000B
000C–000F
0010–0013
0014–0017
0040–007F
0 (High)
1
1
1
1
1
1
Trace
Stack Overflow
Divide by 0
User RETI
TRAP 0–15 (software)
EVENT INTERRUPTS
INTERRUPT
PRIORITY
ARBITRATION
RANKING
DESCRIPTION
FLAG BIT
VECTOR ADDRESS
ENABLE BIT
External Interrupt 0
Timer 0 Interrupt
External Interrupt 1
Timer 1 Interrupt
Timer 2 Interrupt
PCA Interrupt
IE0
TF0
0080–0083
0084–0087
0088–008B
008C–008F
0090–0093
0094–0097
0098–009B
00A0–00A3
00A4–00A7
00A8–00AB
00AC–00AF
00C0–00C3
00C4–00C7
00C8–00CB
00CC–00CF
00D0–00D3
00D4–00D7
EX0
ET0
EX1
ET1
ET2
EPC
EAD
ERI0
ETI0
ERI1
ETI1
EC0
EC1
EC2
EC3
EC4
EI2
IPA0.3–0 (PX0)
IPA0.7–4 (PT0)
IPA1.3–0 (PX1)
IPA1.7–4 (PT1)
IPA2.3–0 (PT2)
IPA2.7–4 (PPC)
IPA3.3–0 (PAD)
IPA4.3–0 (PRI0)
IPA4.7–4 (PTI0)
IPA5.3–0 (PRI1)
IPA5.7–4 (PTI1)
IPB0.3–0 (PC0)
IPB0.7–4 (PC1)
IPB1.3–0 (PC2)
IPB1.7–4 (PC3)
IPB2.3–0 (PC4)
IPB2.7–4 (PI2)
2
3
IE1
4
TF1
5
TF2 (EXF2)
CCF0–CCF4, CF
ADINT
RI_0
6
7
A/D Interrupt
8
Serial Port 0 Rx
Serial Port 0 Tx
Serial Port 1 Rx
Serial Port 1 Tx
PCA channel 0
PCA channel 1
PCA channel 2
PCA channel 3
PCA channel 4
9
TI_0
10
11
12
17
18
19
20
21
22
RI_1
TI_1
CCF0
CCF1
CCF2
CCF3
CCF4
SI
2
I C Interrupt
SOFTWARE INTERRUPTS
DESCRIPTION
Software Interrupt 1
Software Interrupt 2
Software Interrupt 3
Software Interrupt 4
Software Interrupt 5
Software Interrupt 6
Software Interrupt 7
FLAG BIT
VECTOR ADDRESS
0100–0103
ENABLE BIT
SWE1
INTERRUPT PRIORITY
SWR1
SWR2
SWR3
SWR4
SWR5
SWR6
SWR7
(fixed at 1)
(fixed at 2)
(fixed at 3)
(fixed at 4)
(fixed at 5)
(fixed at 6)
(fixed at 7)
0104–0107
SWE2
0108–010B
010C–010F
0110–0113
SWE3
SWE4
SWE5
0114–0117
SWE6
0118–011B
SWE7
20
1998 Oct 06
Philips Semiconductors
Objective specification
XA 16-bit microcontroller
32K/1K OTP/ROM/ROMless, 8-channel 8-bit A/D, low voltage (2.7V–5.5V),
I C, 2 UARTs, 16MB address range
XA-S3
2
ABSOLUTE MAXIMUM RATINGS
PARAMETER
RATING
–55 to +125
–65 to +150
0 to +13.0
UNIT
°C
Operating temperature under bias
Storage temperature range
°C
Voltage on EA/V pin to V
V
PP
SS
Voltage on any other pin to V
–0.5 to V +0.5V
V
mA
W
SS
DD
Maximum I per I/O pin
15
OL
Power dissipation (based on package heat transfer, not device power consumption)
1.5
DC ELECTRICAL CHARACTERISTICS
V
DD
= 2.7V to 5.5V, unless otherwise specified.
T
amb
= 0 to +70°C for commercial unless otherwise specified.
LIMITS
SYMBOL
PARAMETER
TEST CONDITIONS
UNIT
MIN
TYP
MAX
80
I
I
I
Power supply current, operating
Power supply current, Idle mode
Power supply current, Power Down mode
RAM keep-alive voltage
5.0V, 30MHz
5.0V, 30MHz
5.0V, 3.0V
mA
mA
µA
V
DD
35
ID
5
50
PD
V
V
V
1.5
–0.5
2.2
RAM
Input low voltage
0.22 V
V
IL
DD
Input high voltage, except XTAL1, RST
V
V
= 5.0V
= 3.0V
V
IH
DD
2.0
V
DD
V
V
Input high voltage to XTAL1, RST
For both 3.0V and 5.0V
0.7 V
V
IH1
DD
4
Output low voltage, all ports, ALE, PSEN
I
I
= 3.2mA, V = 5.0V
0.5
0.4
V
OL
OL
OL
DD
= 1.0mA, V = 3.0V
V
DD
2
V
V
Output high voltage, all ports, ALE, PSEN
I
= –100µA, V = 4.5V
2.4
2.0
2.4
2.2
V
OH1
OH
DD
I
= –30µA, V = 2.7V
V
OH
DD
3
Output high voltage, all ports ALE, PSEN
I
I
= –3.2mA, V = 4.5V
V
OH2
OH
OH
DD
= –1.0mA, V = 2.7V
V
DD
1
C
Input/Output pin capacitance
15
pF
µA
µA
µA
µA
IO
7
I
I
I
Logical 0 input current, all ports
V
= 0.45V
–50
±10
IL
IN
6
Input leakage current, all ports
V
= V or V
IL IH
LI
IN
5
Logical 1 to 0 transition current, all ports
At V = 5.5V
–650
–250
TL
DD
At V = 2.7V
DD
NOTES:
1. Maximum 15pF for EA/V
.
PP
2. Ports in quasi-bidirectional mode with weak pullup (applies to ALE, PSEN only during RESET).
3. Ports in PUSH-PULL mode, both pullup and pulldown assumed to be the same strength.
4. In all output modes.
5. Port pins source a transition current when used in quasi-bidirectional mode and externally driven from 1 to 0. This current is highest when
is approximately 2V.
V
IN
6. Measured with port in high impedance mode.
7. Measured with port in quasi-bidirectional mode.
8. Under steady state (non-transient) conditions, I must be externally limited as follows:
OL
Maximum I per port pin:
15mA
26mA
71mA
OL
Maximum I per 8-bit port:
OL
Maximum total I for all outputs:
OL
If I exceeds the test condition, V may exceed the related specification. Pins are not guaranteed to sink current greater than the listed
OL
OL
test conditions.
21
1998 Oct 06
Philips Semiconductors
Objective specification
XA 16-bit microcontroller
32K/1K OTP/ROM/ROMless, 8-channel 8-bit A/D, low voltage (2.7V–5.5V),
I C, 2 UARTs, 16MB address range
XA-S3
2
A/D CONVERTER DC ELECTRICAL CHARACTERISTICS
T
amb
= 0 to +70°C for commercial unless otherwise specified.
LIMITS
SYMBOL
AV
PARAMETER
Analog supply voltage
TEST CONDITIONS
UNIT
MIN
MAX
2.7
3.3
2.5
2.5
NA
V
DD
AI
AI
AI
Analog supply current (operating)
Analog supply current (Idle mode)
Analog supply current (Power-Down mode)
Analog input voltage
Port 5 = 0 to AV
mA
µA
DD
DD
ID
µA
PD
AV
AV –0.2
AV +0.2
V
IN
REF
IA
SS
DD
R
C
Resistance between V
and V
125
225
15
kΩ
REF+
REF–
Analog input capacitance
pF
1, 2, 3
DL
Differential non-linearity
±1
LSB
LSB
LSB
LSB
LSB
LSB
LSB
LSB
dB
e
1, 4
IL
e
Integral non-linearity
±1
1, 5
OS
Offset error
±4
e
1, 5, 9
COS
Compensated offset error
±2
e
1, 6
G
Gain error
±1
e
1, 7
A
e
Absolute voltage error
±4
1, 7, 9
CA
Compensated absolute voltage error
Channel-to-channel matching
±2.5
±1
e
M
CTC
8
C
Crosstalk between inputs of port
0 – 100kHz
–60
t
NOTES:
1. Conditions: AV
= 0V; AV
= 3.07V.
REF–
REF+
2. The differential non-linearity (DL ) is the difference between the actual step width and the ideal step width. See Figure 7.
e
3. The ADC is monotonic, there are no missing codes.
4. The integral non-linearity (IL ) is the peak difference between the center of the steps of the actual and the ideal transfer curve after
e
appropriate adjustment of gain and offset errors. See Figure 7.
5. The offset error (OS ) is the absolute difference between the straight line which fits the actual transfer curve (after removing gain error), and
e
the straight line which fits the ideal transfer curve. See Figure 7.
6. The gain error (G ) is the relative difference in percent between the straight line fitting the actual transfer curve (after removing offset error),
e
and the straight line which fits the ideal transfer curve. Gain error is constant at every point on the transfer curve. See Figure 7.
7. The absolute voltage error (A ) is the maximum difference between the center of the steps of the actual transfer curve of the non-calibrated
e
ADC and the ideal transfer curve.
8. This should be considered when both analog and digital signals are input simultaneously to Port 5. Parameter is guaranteed by design.
9. Compensated values are the direct ADC result minus the result of a calibration operation.
22
1998 Oct 06
Philips Semiconductors
Objective specification
XA 16-bit microcontroller
32K/1K OTP/ROM/ROMless, 8-channel 8-bit A/D, low voltage (2.7V–5.5V),
I C, 2 UARTs, 16MB address range
XA-S3
2
Offset
error
Gain
error
OS
e
G
e
255
254
253
252
251
Full Scale
error
FS
e
250
(2)
7
(1)
Code
Out
6
5
(5)
4
(4)
3
(3)
2
1
1 LSB
(ideal)
0
1
2
3
4
5
6
7
250
251
252
253
254
)
255
256
AV (LSB
IN
ideal
Offset
error
OS
e
AV
AV
REF–
REF+
256
1 LSB =
(1) Example of an actual transfer curve.
(2) The ideal transfer curve.
(3) Differential non-linearity (DL ).
e
(4) Integral non-linearity (IL ).
e
(5) Center of a step of the actual transfer curve.
SU01010
Figure 7. ADC Conversion Characteristic
23
1998 Oct 06
Philips Semiconductors
Objective specification
XA 16-bit microcontroller
32K/1K OTP/ROM/ROMless, 8-channel 8-bit A/D, low voltage (2.7V–5.5V),
I C, 2 UARTs, 16MB address range
XA-S3
2
AC ELECTRICAL CHARACTERISTICS (5V)
V
DD
= 4.5V to 5.5V; T
= 0 to +70°C for commercial.
amb
LIMITS
SYMBOL
FIGURE
PARAMETER
UNIT
MIN
MAX
External Clock
f
t
t
t
t
t
14
14
14
14
14
14
Oscillator frequency
Clock period and CPU timing cycle
Clock high-time
0
30
MHz
ns
C
1/f
C
C
t
C
t
C
* 0.5
* 0.4
ns
CHCX
CLCX
CLCH
CHCL
Clock low time
ns
Clock rise time
5
5
ns
Clock fall time
ns
Address Cycle
t
t
t
8, 10, 12
8, 10, 12
8, 10, 12
ALE pulse width (programmable)
(V1 * t ) – 6
ns
ns
ns
LHLL
AVLL
LLAX
C
Address valid to ALE de-asserted (set-up)
Address hold after ALE de-asserted
(V1 * t ) – 12
C
(t /2) – 10
C
Code Read Cycle
t
t
t
t
t
t
t
t
8
8
8
9
8
8
8
8
PSEN pulse width
(V2 * t ) – 10
ns
ns
ns
ns
ns
ns
ns
ns
PLPH
LLPL
AVIVA
AVIVB
PLIV
C
ALE de-asserted to PSEN asserted
(t /2) – 7
C
Address valid to instruction valid, ALE cycle (access time)
Address valid to instruction valid, non-ALE cycle (access time)
PSEN asserted to instruction valid (enable time)
Instruction hold after PSEN de-asserted
(V3 * t ) – 36
C
(V4 * t ) – 29
C
(V2 * t ) – 29
C
0
0
PHIX
PHIZ
IXUA
Bus 3-State after PSEN de-asserted
t – 8
C
Hold time of unlatched part of address after instruction latched
Data Read Cycle
t
t
t
t
t
t
t
t
10
10
10
11
10
10
10
10
RD pulse width
(V7 * t ) – 10
ns
ns
ns
ns
ns
ns
ns
ns
RLRH
LLRL
C
ALE de-asserted to RD asserted
(t /2) – 7
C
Address valid to data input valid, ALE cycle (access time)
Address valid to data input valid, non-ALE cycle (access time)
RD low to valid data in (enable time)
(V6 * t ) – 36
C
AVDVA
AVDVB
RLDV
RHDX
RHDZ
DXUA
(V5 * t ) – 29
C
(V7 * t ) – 29
C
Data hold time after RD de–asserted
0
0
Bus 3-State after RD de-asserted (disable time)
Hold time of unlatched part of address after data latched
t – 8
C
Data Write Cycle
t
t
t
t
t
t
12
12
12
12
12
12
WR pulse width
(V8 * t ) – 10
ns
ns
ns
ns
ns
ns
WLWH
LLWL
C
ALE falling edge to WR asserted
(V12 * t ) – 10
C
Data valid before WR asserted (data set-up time)
Data hold time after WR de-asserted (Note 6)
Address valid to WR asserted (address set-up time) (Note 5)
Hold time of unlatched part of address after WR is de-asserted
(V13 * t ) – 22
C
QVWX
WHQX
AVWL
UAWH
(V11 * t ) – 5
C
(V9 * t ) – 22
C
(V11 * t ) – 7
C
Wait Input
t
t
13
13
WAIT stable after bus strobe (RD, WR, or PSEN) asserted
WAIT hold after bus strobe (RD, WR, or PSEN) asserted
(V10 * t ) – 30
ns
ns
WTH
C
(V10 * t ) – 5
WTL
C
NOTES ON PAGE 27.
24
1998 Oct 06
Philips Semiconductors
Objective specification
XA 16-bit microcontroller
32K/1K OTP/ROM/ROMless, 8-channel 8-bit A/D, low voltage (2.7V–5.5V),
I C, 2 UARTs, 16MB address range
XA-S3
2
AC ELECTRICAL CHARACTERISTICS (5V) (continued)
This set of parameters is referenced to the XA-S3 clock output.
LIMITS
SYMBOL
FIGURE
PARAMETER
UNIT
MIN
MAX
Address Cycle
t
t
t
t
8
8
8
8
Delay from CLKOUT rising edge to ALE rising edge
Delay from CLKOUT falling edge to ALE falling edge
Delay from CLKOUT rising edge to address valid
Address hold after CLKOUT rising edge
10
40
ns
ns
ns
ns
CHLH
CLLL
CHAV
CHAX
Code Read Cycle
t
t
t
t
t
8
8
8
8
8
Delay from CLKOUT rising edge to PSEN asserted
Delay from CLKOUT rising edge to PSEN de-asserted
Instruction valid to CLKOUT rising edge
ns
ns
ns
ns
ns
CHPL
CHPH
IVCH
CHIX
CHIZ
Instruction hold from CLKOUT rising edge
Bus 3-State after CLKOUT rising edge (code read)
Data Read Cycle
t
t
t
t
t
10
10
10
10
10
Delay from CLKOUT rising edge to RD asserted
Delay from CLKOUT rising edge to RD de-asserted
Data valid to CLKOUT rising edge
ns
ns
ns
ns
ns
CHRL
CHRH
DVCH
CHDX
CHDZ
Data hold after CLKOUT rising edge
Bus 3-State after CLKOUT rising edge (data read)
Data Write Cycle
t
t
t
t
t
12
12
12
12
12
Delay from CLKOUT rising edge to WR asserted
Delay from CLKOUT rising edge to WR de-asserted
Data valid to CLKOUT rising edge
ns
ns
ns
ns
ns
CHWL
CHWH
QVCH
CHQX
CHQZ
Data hold after CLKOUT rising edge
Bus 3-State after CLKOUT rising edge (data write)
Wait Input
t
t
13
13
WAIT stable before CLKOUT rising edge
WAIT hold after CLKOUT rising edge
ns
ns
CHWTH
CHWTL
NOTES ON PAGE 27.
25
1998 Oct 06
Philips Semiconductors
Objective specification
XA 16-bit microcontroller
32K/1K OTP/ROM/ROMless, 8-channel 8-bit A/D, low voltage (2.7V–5.5V),
I C, 2 UARTs, 16MB address range
XA-S3
2
AC ELECTRICAL CHARACTERISTICS (3V)
V
DD
= 2.7V to 4.5V; T
= 0 to +70°C for commercial.
amb
LIMITS
SYMBOL
FIGURE
PARAMETER
UNIT
MIN
MAX
Address Cycle
t
t
t
8, 10, 12
8, 10, 12
8, 10, 12
ALE pulse width (programmable)
(V1 * t ) – 10
ns
ns
ns
LHLL
AVLL
LLAX
C
Address valid to ALE de-asserted (set-up)
Address hold after ALE de-asserted
(V1 * t ) – 18
C
(t /2) – 12
C
Code Read Cycle
t
t
t
t
t
t
t
t
8
8
8
9
8
8
8
8
PSEN pulse width
(V2 * t ) – 12
ns
ns
ns
ns
ns
ns
ns
ns
PLPH
LLPL
AVIVA
AVIVB
PLIV
C
ALE de-asserted to PSEN asserted
(t /2) – 9
C
Address valid to instruction valid, ALE cycle (access time)
Address valid to instruction valid, non-ALE cycle (access time)
PSEN asserted to instruction valid (enable time)
Instruction hold after PSEN de-asserted
(V3 * t ) – 58
C
(V4 * t ) – 52
C
(V2 * t ) – 52
C
0
0
PHIX
PHIZ
IXUA
Bus 3-State after PSEN de-asserted
t – 8
C
Hold time of unlatched part of address after instruction latched
Data Read Cycle
t
t
t
t
t
t
t
t
10
10
10
11
10
10
10
10
RD pulse width
(V7 * t ) – 12
ns
ns
ns
ns
ns
ns
ns
ns
RLRH
LLRL
C
ALE de-asserted to RD asserted
(t /2) – 9
C
Address valid to data input valid, ALE cycle (access time)
Address valid to data input valid, non-ALE cycle (access time)
RD low to valid data in (enable time)
(V6 * t ) – 58
C
AVDVA
AVDVB
RLDV
RHDX
RHDZ
DXUA
(V5 * t ) – 52
C
(V7 * t ) – 52
C
Data hold time after RD de–asserted
0
0
Bus 3-State after RD de-asserted (disable time)
Hold time of unlatched part of address after data latched
t – 8
C
Data Write Cycle
t
t
t
t
t
t
12
12
12
12
12
12
WR pulse width
(V8 * t ) – 12
ns
ns
ns
ns
ns
ns
WLWH
LLWL
C
ALE falling edge to WR asserted
(V12 * t ) – 10
C
Data valid before WR asserted (data set-up time)
Data hold time after WR de-asserted (Note 6)
Address valid to WR asserted (address set-up time) (Note 5)
Hold time of unlatched part of address after WR is de-asserted
(V13 * t ) – 28
C
QVWX
WHQX
AVWL
UAWH
(V11 * t ) – 8
C
(V9 * t ) – 28
C
(V11 * t ) – 10
C
Wait Input
t
t
13
13
WAIT stable after bus strobe (RD, WR, or PSEN) asserted
WAIT hold after bus strobe (RD, WR, or PSEN) asserted
(V10 * t ) – 40
ns
ns
WTH
C
(V10 * t ) – 5
WTL
C
NOTES ON PAGE 27.
26
1998 Oct 06
Philips Semiconductors
Objective specification
XA 16-bit microcontroller
32K/1K OTP/ROM/ROMless, 8-channel 8-bit A/D, low voltage (2.7V–5.5V),
I C, 2 UARTs, 16MB address range
XA-S3
2
AC ELECTRICAL CHARACTERISTICS (3V) (continued)
This set of parameters is referenced to the XA-S3 clock output.
LIMITS
SYMBOL
FIGURE
PARAMETER
UNIT
MIN
MAX
Address Cycle
t
t
t
t
8
8
8
8
Delay from CLKOUT rising edge to ALE rising edge
Delay from CLKOUT falling edge to ALE falling edge
Delay from CLKOUT rising edge to address valid
Address hold after CLKOUT rising edge
15
60
ns
ns
ns
ns
CHLH
CLLL
CHAV
CHAX
Code Read Cycle
t
t
t
t
t
8
8
8
8
8
Delay from CLKOUT rising edge to PSEN asserted
Delay from CLKOUT rising edge to PSEN de-asserted
Instruction valid to CLKOUT rising edge
ns
ns
ns
ns
ns
CHPL
CHPH
IVCH
CHIX
CHIZ
Instruction hold from CLKOUT rising edge
Bus 3-State after CLKOUT rising edge (code read)
Data Read Cycle
t
t
t
t
t
10
10
10
10
10
Delay from CLKOUT rising edge to RD asserted
Delay from CLKOUT rising edge to RD de-asserted
Data valid to CLKOUT rising edge
ns
ns
ns
ns
ns
CHRL
CHRH
DVCH
CHDX
CHDZ
Data hold after CLKOUT rising edge
Bus 3-State after CLKOUT rising edge (data read)
Data Write Cycle
t
t
t
t
t
12
12
12
12
12
Delay from CLKOUT rising edge to WR asserted
Delay from CLKOUT rising edge to WR de-asserted
Data valid to CLKOUT rising edge
ns
ns
ns
ns
ns
CHWL
CHWH
QVCH
CHQX
CHQZ
Data hold after CLKOUT rising edge
Bus 3-State after CLKOUT rising edge (data write)
Wait Input
t
t
13
13
WAIT stable before CLKOUT rising edge
WAIT hold after CLKOUT rising edge
ns
ns
CHWTH
CHWTL
NOTES:
1. Load capacitance for all outputs = 50pF.
2. Variables V1 through V13 reflect programmable bus timing, which is programmed via the Bus Timing registers (BTRH and BTRL). Refer to
the XA User Guide for details of the bus timing settings.
V1) This variable represents the programmed width of the ALE pulse as determined by the ALEW bit in the BTRL register. V1 = 0.5 if the
ALEW bit = 0, and 1.5 if the ALEW bit = 1.
V2) This variable represents the programmed width of the PSEN pulse as determined by the CR1 and CR0 bits or the CRA1, CRA0, and
ALEW bits in the BTRL register.
For a bus cycle with no ALE, V2 = 1 if CR1/0 = 00, 2 if CR1/0 = 01, 3 if CR1/0 = 10, and 4 if CR1/0 = 11. Note that during burst
mode code fetches, PSEN does not exhibit transitions at the boundaries of bus cycles. V2 still applies for the purpose of
determining peripheral timing requirements.
For a bus cycle with an ALE, V2 = the total bus cycle duration (2 if CRA1/0 = 00, 3 if CRA1/0 = 01, 4 if CRA1/0 = 10, and 5 if
CRA1/0 = 11) minus the number of clocks used by ALE (V1 + 0.5) = 2.
Example: if CRA1/0 = 10 and ALEW = 1, the V2 = 4 – (1.5 + 0.5) = 2.
V3) This variable represents the programmed length of an entire code read cycle with ALE. This time is determined by the CRA1 and
CRA0 bits in the BTRL register. V3 = the total bus cycle duration (2 if CRA1/0 = 00, 3 if CRA1/0 = 01, 4 if CRA1/0 = 10, and
5 if CRA1/0 = 11).
V4) This variable represents the programmed length of an entire code read cycle with no ALE. This time is determined by the CR1 and
CR0 bits in the BTRL register. V4 = 1 if CR1/0 = 00, 2 if CR1/0 = 01, 3 if CR1/0 = 10, and 4 if CR1/0 = 11.
V5) This variable represents the programmed length of an entire data read cycle with no ALE. This time is determined by the DR1 and
DR0 bits in the BTRH register. V5 = 1 if DR1/0 = 00, 2 if DR1/0 = 01, 3 if DR1/0 = 10, and 4 if DR1/0 = 11.
V6) This variable represents the programmed length of an entire data read cycle with ALE. The time is determined by the DRA1 and
DRA0 bits in the BTRH register. V6 = the total bus cycle duration (2 if DRA1/0 = 00, 3 if DRA1/0 = 01, 4 if DRA1/0 = 10, and
5 if DRA1/0 = 11).
27
1998 Oct 06
Philips Semiconductors
Objective specification
XA 16-bit microcontroller
32K/1K OTP/ROM/ROMless, 8-channel 8-bit A/D, low voltage (2.7V–5.5V),
I C, 2 UARTs, 16MB address range
XA-S3
2
V7) This variable represents the programmed width of the RD pulse as determined by the DR1 and DR0 bits or the DRA1, DRA0 in the
BTRH register, and the SLEW bit in the BTRL register. Note that during a 16-bit operation on an 8-bit external bus, RD remains low
and does not exhibit a transition between the first and second byte bus cycles. V7 still applies for the purpose of determining
peripheral timing requirements. The timing for the first byte is for a bus cycle with ALE, the timing for the second byte is for a bus
cycle with no ALE.
For a bus cycle with no ALE, V7 = 1 if DR1/0 = 00, 2 if DR1/0 = 01, 3 if DR1/0 = 10, and 4 if DR1/0 = 11.
For a bus cycle with an ALE, V7 = the total bus cycle duration (2 if DRA1/0 = 00, 3 if DRA1/0 = 01, 4 if DRA1/0 = 10, and
5 if DRA1/0 = 11) minus the number of clocks used by ALE (V1 + 0.5).
Example: if DRA1/0 = 00 and ALEW = 0, then V7 = 2 – (0.5 +0.5) = 1.
V8) This variable represents the programmed width of the WRL and/or WRH pulse as determined by the WM1 bit in the BTRL register.
V8 = 1 if WM1 = 0, and 2 if WM1 = 1.
V9) This variable represents the programmed address setup time for a write as determined by the data write cycle duration (defined by
DW1 and DW0 or the DWA1 and DWA0 bits in the BTRH register), the WM0 bit in the BTRL register, and the value of V8.
For a bus cycle with an ALE, V9 = the total bus write cycle duration (2 if DWA1/0 = 00, 3 if DWA1/0 = 01, 4 if DWA1/0 = 10, and
5 if DWA1/0 = 11) minus the number of clocks used by the WRL and/or WRH pulse (V8) minus the number of clocks used by data
hold time (0 if WM0 = 0 and 1 if WM0 = 1).
Example: If DWA1/0 = 10, WM0 = 1, and WM1 = 1, then V9 = 4 – 1 – 2 = 1.
For a bus cycle with no ALE, V9 = the total bus cycle duration (2 if DW1/0 = 00, 3 if DW1/0 = 01, 4 if DW1/0 = 10, and
5 if DW1/0 = 11) minus the number of clocks used by the WRL and/or WRH pulse (V8), minus the number of clocks used by data
hold time (0 if WMo = 0 and 1 if WM0 = 1).
Example: If DW1/0 = 11, WM0 = 1, and WM1 = 0, then V9 = 5 – 1 – 1 = 3.
V10) This variable represents the length of a bus strobe for calculation of WAIT set-up and hold times. The strobe may be RD (for data
read cycles), WRL and/or WRH (for data write cycles), or PSEN (for code read cycles), depending on the type of bus cycle being
widened by WAIT. V10 = 2 for WAIT associated with a code read cycle using PSEN. V10 = V8 for a data write cycle using WRL
and/or WRH. V10 = V7 – 1 for a data read cycle using RD. This means that a single clock data read cycle cannot be stretched using
WAIT. If WAIT is used to vary the duration of data read cycles, the RD strobe width must be set to be at least two clocks in duration.
Also see Note 4.
V11) This variable represents the programmed write hold time as determined by the WM0 bit in the BTRL register. V11 0 if the WM0 bit = 0,
and 1 if the WM0 bit = 1.
V12) this variable represents the programmed period between the end of the ALE pulse and the beginning of the WRL and/or WRH pulse
as determined by the data write cycle duration (defined by the DWA1 and DWA0 bits in the BTRH register), the WM0 bit in the BTRL
register, and the values of V1 and V8. V12 = the total bus cycle duration (2 if DWA1/0 = 00, 3 if DWA1/0 = 01, 4 if DWA1/0 = 10, and 5
if DWA1/0 = 11) minus the number of clocks used by the WRL and/or WRH pulse (V8), minus the number of clocks used by data hold
time (0 if WM0 = 0 and 1 if WM0 = 1), minus the width of the ALE pulse (V1).
Example: If SWA1/0 = 11, WM0 = 1, WM1 = 0, and ALEW = 1, then V12 = 5 – 1 – 1 – 1.5 = 1.5.
V13) This variable represents the programmed data setup time for a write as determined by the data write cycle duration (defined by DW1
and DW0 or the DWA1 and DWA0 bits in the BTRH register), the WM0 bit in the BTRL register, and the values of V1 and V8.
For a bus cycle with an ALE, V13 = the total bus cycle duration (2 if DWA1/0 = 00, 3 if DWA1/0 = 01, 4 if DWA1/0 = 10, and
5 if DWA1/0 = 11) minus the number of clocks used by the WRL and/or WRH pulse (V8), minus the number of clocks used by
data hold time (0 if WM0 = 0 and 1 if WM0 = 1), minus the number of clocks used by ALE (V1 + 0.5).
Example: If DWA1/0 = 11, WM0 = 1, WM1 = 1, and ALEW = 0, then V13 = 5 – 1 – 2 – 1 = 1.
For a bus cycle with no ALE, V13 = the total bus cycle duration (2 if DW1/0 = 00, 3 if DW1/0 = 01, 4 if DW1/0 = 10, and
5 if DW1/0 = 11) minus the number of clocks used by the WRL and/or WRH pulse (V8), minus the number of clocks used by
data hold time (0 if WM0 = 0 and 1 if WM0 = 1).
Example: If DW1/0 = 01, WM0 = 1, and WM1 = 0, then V13 = 3 – 1 – 1 = 1.
3. Not all combinations of bus timing configuration values result in valid bus cycles. Please refer to the XA User Guide section on the External
Bus for details.
4. When code is being fetched for execution on the external bus, a burst mode fetch is used that dows not have PSEN edges in every fetch
cycle. This would be A3–A0 for an 8-bit bus, and A3–A1 for a 16-bit bus. Also, a 16-bit read operation conducted on an 8-bit wide bus
similarly does not include two separate RD strobes. So, a rising edge on the low order address line (A0) must be used to trigger a WAIT in
the second half of such a cycle.
5. This parameter is provided for peripherals that have the data clocked in on the falling edge of the WR strobe. This is not usually the case
and in most applications this parameter is not used.
6. Please note that the XA-S3 requires that extended data bus hold time (WM0 = 1) to be used with external bus write cycles.
28
1998 Oct 06
Philips Semiconductors
Objective specification
XA 16-bit microcontroller
32K/1K OTP/ROM/ROMless, 8-channel 8-bit A/D, low voltage (2.7V–5.5V),
I C, 2 UARTs, 16MB address range
XA-S3
2
AC WAVEFORMS
CLKOUT
t
t
t
t
CHPH
CHLH
CLLL
CHPL
t
LHLL
ALE
t
CHAX
t
t
t
CHAV
PHIZ
t
PLPH
CHIZ
t
LLPL
PSEN
t
t
t
IVCH
CHIX
t
t
LLAX
AVLL
t
PLIV
PHIX
Multiplexed
Address and Data
A4–A11 or A4–A23
INSTR IN*
t
IXUA
t
AVIVA
Unmultiplexed
Address
A0 or A1–A3, A12–A23
*INSTR IN is either D0–D7 or D0–D15, depending on the bus width (8 or 16 bits).
Figure 8. External Program Memory Read Cycle (ALE Cycle)
SU00943A
PSEN
Multiplexed
Address and Data
INSTR IN*
t
AVIVB
Unmultiplexed
Address
A0 or A1–A3, A12–A23
*INSTR IN is either D0–D7 or D0–D15, depending on the bus width (8 or 16 bits).
Figure 9. External Program Memory Read Cycle (Non-ALE Cycle)
SU00949
29
1998 Oct 06
Philips Semiconductors
Objective specification
XA 16-bit microcontroller
32K/1K OTP/ROM/ROMless, 8-channel 8-bit A/D, low voltage (2.7V–5.5V),
I C, 2 UARTs, 16MB address range
XA-S3
2
CLKOUT
t
t
CHRH
CHRL
t
LHLL
ALE
RD
t
t
RHDZ
t
RLRH
CHDZ
t
LLRL
t
t
CHDX
DVCH
t
t
LLAX
AVLL
t
t
RHDX
RLDV
Multiplexed
Address and Data
A4–A11 or A4–A23
DATA IN*
t
DXUA
t
AVDVA
Unmultiplexed
Address
A0 or A1–A3, A12–A23
*DATA IN is either D0–D7 or D0–D15, depending on the bus width (8 or 16 bits).
Figure 10. External Data Memory Read Cycle (ALE Cycle)
SU00944
RD
Multiplexed
Address and Data
D0–D7
t
AVDVB
Unmultiplexed
Address
A0–A3, A12–A23
SU00950A
Figure 11. External Data Memory Read Cycle (Non-ALE Cycle)
30
1998 Oct 06
Philips Semiconductors
Objective specification
XA 16-bit microcontroller
32K/1K OTP/ROM/ROMless, 8-channel 8-bit A/D, low voltage (2.7V–5.5V),
I C, 2 UARTs, 16MB address range
XA-S3
2
CLKOUT
t
t
CHWH
CHWL
t
CHQZ
ALE
WR
t
t
CHQX
WHQX
t
t
WLWH
LLWL
t
QVCH
t
QVWX
t
t
LLAX
AVLL
Multiplexed
Address and Data
A4–A11 or A4–A23
DATA OUT*
t
UAWH
t
AVWL
Unmultiplexed
Address
A0 or A1–A3, A12–A23
*DATA OUT is either D0–D7 or D0–D15, depending on the bus width (8 or 16 bits).
Figure 12. External Data Memory Write Cycle
SU00945
XTAL1
ALE
t
CRAR
ADDRESS BUS
WAIT
t
t
CHWTL
CHWTH
BUS STROBE
(WRL, WRH,
RD, OR PSEN)
t
WTH
t
WTL
(The dashed line shows the strobe without WAIT.)
SU01068
Figure 13. WAIT Signal Timing
31
1998 Oct 06
Philips Semiconductors
Objective specification
XA 16-bit microcontroller
32K/1K OTP/ROM/ROMless, 8-channel 8-bit A/D, low voltage (2.7V–5.5V),
I C, 2 UARTs, 16MB address range
XA-S3
2
V
–0.5
DD
0.7V
DD
–0.1
0.45V
0.2V
DD
t
CHCX
t
t
t
CHCL
CLCX
CLCH
t
C
SU00842
Figure 14. External Clock Drive
V
–0.5
DD
0.2V +0.9
DD
0.2V –0.1
DD
0.45V
NOTE:
AC inputs during testing are driven at V –0.5 for a logic ‘1’ and 0.45V for a logic ‘0’.
DD
Timing measurements are made at the 50% point of transitions.
SU00703A
Figure 15. AC Testing Input/Output
V
V
+0.1V
LOAD
V
V
–0.1V
TIMING
REFERENCE
POINTS
OH
V
LOAD
–0.1V
LOAD
+0.1V
OL
NOTE:
For timing purposes, a port is no longer floating when a 100mV change from load voltage occurs,
and begins to float when a 100mV change from the loaded V /V level occurs. I /I ≥ ±20mA.
OH OL
OH OL
SU00011
Figure 16. Float Waveform
V
V
DD
DD
V
V
DD
DD
RST
V
DD
RST
EA
EA
(NC)
XTAL2
XTAL1
(NC)
CLOCK SIGNAL
XTAL2
XTAL1
CLOCK SIGNAL
V
SS
V
SS
SU00591B
SU00590B
Figure 17. I Test Condition, Active Mode
Figure 18. I Test Condition, Idle Mode
DD
DD
All other pins are disconnected
All other pins are disconnected
32
1998 Oct 06
Philips Semiconductors
Objective specification
XA 16-bit microcontroller
32K/1K OTP/ROM/ROMless, 8-channel 8-bit A/D, low voltage (2.7V–5.5V),
I C, 2 UARTs, 16MB address range
XA-S3
2
100
80
MAX. I
DD
TYPICAL 5.0V I (ACTIVE)
DD
60
CURRENT (mA)
40
20
0
TYPICAL I (IDLE)
DD
0
5
10
15
20
25
30
FREQUENCY (MHz)
SU00988
Figure 19. I vs. Frequency
DD
Valid only within frequency specification of the device under test.
V
–0.5
DD
0.7V
DD
–0.1
0.45V
0.2V
DD
t
CHCX
t
t
t
CHCL
CLCX
CLCH
t
CL
SU00608A
Figure 20. Clock Signal Waveform for I Tests in Active and Idle Modes
DD
t
= t
= 5ns
CHCL
CLCH
V
DD
V
DD
V
DD
RST
EA
(NC)
XTAL2
XTAL1
V
SS
SU00585A
Figure 21. I Test Condition, Power Down Mode
DD
All other pins are disconnected. V =2V to 5.5V
DD
33
1998 Oct 06
Philips Semiconductors
Objective specification
XA 16-bit microcontroller
32K/1K OTP/ROM/ROMless, 8-channel 8-bit A/D, low voltage (2.7V–5.5V),
I C, 2 UARTs, 16MB address range
XA-S3
2
EPROM CHARACTERISTICS
Security Bits
The XA-S3 is programmed by using a modified Improved
Quick-Pulse Programming algorithm. This algorithm is essentially
the same as that used by 80C51 family EPROM parts. However
different pins are used for many programming functions.
With none of the security bits programmed the code in the program
memory can be verified. When only security bit 1 is programmed,
MOVC instructions executed from external program memory are
disabled from fetching code bytes from the internal memory. All
further programming of the EPROM is disabled. When security bits
1 and 2 are programmed, in addition to the above, verify mode is
disabled. When all three security bits are programmed, all of the
conditions above apply and all external program memory execution
is disabled. (See Table 4.)
Detailed EPROM programming information may be obtained from
the Internet at www.philipsmcu.com/ftp.html.
The XA-S3 contains three signature bytes that can be read and
used by an EPROM programming system to identify the device. The
signature bytes identify the device as an XA-S3 manufactured by
Philips.
Table 4. Program Security Bits
PROGRAM LOCK BITS
SB1
U
SB2
U
SB3
U
PROTECTION DESCRIPTION
1
2
No Program Security features enabled.
P
U
U
MOVC instructions executed from external program memory are disabled from fetching code bytes
from internal memory and further programming of the EPROM is disabled.
3
P
P
P
P
U
P
Same as 2, also verify is disabled.
4
Same as 3, external execution is disabled. Internal data RAM is not accessible.
NOTES:
1. P – programmed. U – unprogrammed.
2. Any other combination of the security bits is not defined.
ROM CODE SUBMISSION
When submitting ROM code for the XA-S3, the following must be specified:
1. 32k byte user ROM data
2. ROM security bits.
ADDRESS
0000H to 7FFFH
8020H
CONTENT
DATA
BIT(S)
COMMENT
7:0
0
User ROM Data
ROM Security Bit 1
SEC
8020H
SEC
1
ROM Security Bit 2
0 = enable security
1 = disable security
8020H
SEC
3
ROM Security Bit 3
0 = enable security
1 = disable security
Trademark phrase of Intel Corporation.
1998 Oct 06
34
Philips Semiconductors
Objective specification
XA 16-bit microcontroller
32K/1K OTP/ROM/ROMless, 8-channel 8-bit A/D, low voltage (2.7V–5.5V),
I C, 2 UARTs, 16MB address range
XA-S3
2
PLCC68: plastic leaded chip carrier; 68 leads; pedestal
SOT188-3
35
1998 Oct 06
Philips Semiconductors
Objective specification
XA 16-bit microcontroller
32K/1K OTP/ROM/ROMless, 8-channel 8-bit A/D, low voltage (2.7V–5.5V),
I C, 2 UARTs, 16MB address range
XA-S3
2
LQFP80: plastic low profile quad flat package; 80 leads; body 12 x 12 x 1.4 mm
SOT315-1
36
1998 Oct 06
Philips Semiconductors
Objective specification
XA 16-bit microcontroller
32K/1K OTP/ROM/ROMless, 8-channel 8-bit A/D, low voltage (2.7V–5.5V),
I C, 2 UARTs, 16MB address range
XA-S3
2
NOTES
37
1998 Oct 06
Philips Semiconductors
Objective specification
XA 16-bit microcontroller
32K/1K OTP/ROM/ROMless, 8-channel 8-bit A/D, low voltage (2.7V–5.5V),
I C, 2 UARTs, 16MB address range
XA-S3
2
Data sheet status
[1]
Data sheet
status
Product
status
Definition
Objective
specification
Development
This data sheet contains the design target or goal specifications for product development.
Specification may change in any manner without notice.
Preliminary
specification
Qualification
This data sheet contains preliminary data, and supplementary data will be published at a later date.
Philips Semiconductors reserves the right to make chages at any time without notice in order to
improve design and supply the best possible product.
Product
specification
Production
This data sheet contains final specifications. Philips Semiconductors reserves the right to make
changes at any time without notice in order to improve design and supply the best possible product.
[1] Please consult the most recently issued datasheet before initiating or completing a design.
Definitions
Short-form specification — The data in a short-form specification is extracted from a full data sheet with the same type number and title. For
detailed information see the relevant data sheet or data handbook.
Limiting values definition — Limiting values given are in accordance with the Absolute Maximum Rating System (IEC 134). Stress above one
or more of the limiting values may cause permanent damage to the device. These are stress ratings only and operation of the device at these or
at any other conditions above those given in the Characteristics sections of the specification is not implied. Exposure to limiting values for extended
periods may affect device reliability.
Application information — Applications that are described herein for any of these products are for illustrative purposes only. Philips
Semiconductors make no representation or warranty that such applications will be suitable for the specified use without further testing or
modification.
Disclaimers
Life support — These products are not designed for use in life support appliances, devices or systems where malfunction of these products can
reasonably be expected to result in personal injury. Philips Semiconductors customers using or selling these products for use in such applications
do so at their own risk and agree to fully indemnify Philips Semiconductors for any damages resulting from such application.
RighttomakechangesPhilipsSemiconductorsreservestherighttomakechanges, withoutnotice, intheproducts, includingcircuits,standard
cells, and/or software, described or contained herein in order to improve design and/or performance. Philips Semiconductors assumes no
responsibility or liability for the use of any of these products, conveys no license or title under any patent, copyright, or mask work right to these
products, and makes no representations or warranties that these products are free from patent, copyright, or mask work right infringement, unless
otherwise specified.
Philips Semiconductors
811 East Arques Avenue
P.O. Box 3409
Copyright Philips Electronics North America Corporation 1998
All rights reserved. Printed in U.S.A.
Sunnyvale, California 94088–3409
Telephone 800-234-7381
Date of release: 10-98
Document order number:
9397 750 04674
Philips
Semiconductors
厂商 型号 描述 页数 下载

ETC

PXA.M0.5GG.NB [ CONN RCPT FMALE 5POS GOLD SOLDER ] 76 页

MARVELL

PXA1088 WCDMA / TD -SCDMA通信处理器[ WCDMA/TD-SCDMA Communication Processor ] 2 页

MARVELL

PXA168 高性能,高集成度处理器可扩展到1.2 GHz的对成本敏感的,智能消费类和嵌入式设备[ High Performance, Highly Integrated Processor Scalable to 1.2 GHz for Cost-Sensitive, Intelligent Consumer and Embedded Devices ] 2 页

INTEL

PXA210 英特尔-R PXA250和PXA210应用处理器[ Intel-R PXA250 and PXA210 Applications Processors ] 46 页

INTEL

PXA250 英特尔-R PXA250和PXA210应用处理器[ Intel-R PXA250 and PXA210 Applications Processors ] 46 页

INTEL

PXA255 PXA255处理器[ PXA255 Processor ] 40 页

INTEL

PXA270 电气,机械和热规格[ Electrical, Mechanical, and Thermal Specification ] 126 页

ACTEL

PXA270 为PXA270平台的存储解决方案[ Storage solution for PXA270 platform ] 2 页

ACTEL

PXA300 为Marvell公司的PXA300 / 310平台存储解决方案[ Storage Solution for Marvell’s PXA300/310 Platform ] 2 页

MARVELL

PXA300 可扩展性能高达624兆赫的高性价比和高能效的智能手机,嵌入式解决方案,以及手持设备[ Scalable Performance up to 624 MHz for Cost-Effective and Power-Efficient Smartphones, Embedded Solutions, and Handheld Devices ] 4 页

PDF索引:

A

B

C

D

E

F

G

H

I

J

K

L

M

N

O

P

Q

R

S

T

U

V

W

X

Y

Z

0

1

2

3

4

5

6

7

8

9

IC型号索引:

A

B

C

D

E

F

G

H

I

J

K

L

M

N

O

P

Q

R

S

T

U

V

W

X

Y

Z

0

1

2

3

4

5

6

7

8

9

Copyright 2024 gkzhan.com Al Rights Reserved 京ICP备06008810号-21 京

0.207189s
