OZDM16P1001/S14

型号：

OZDM16P1001/S14

品牌：

IVO[ BAUMER IVO GMBH & CO. KG ]

页数：

1 页

PDF大小：

121 K

下载PDF手册

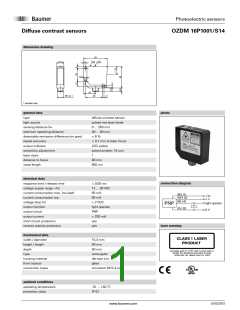

Photoelectric sensors
Diffuse contrast sensors
OZDM 16P1001/S14
dimension drawing
50
15,4
4
Pot LED
4,3
25
M12x 1
36
3
* emitter axis
general data
type
diffuse contrast sensor
pulsed red laser diode
0 ... 250 mm
40 ... 80 mm
> 8 %
light source
sensing distanceTw
optimum operating distance
detectable remission difference (on grey)
repeat accuracy
< 0,1 mm at laser focus
LED yellow
output indicator
sensitivity adjustment
laser class
potentiometer, 14 turn
1
distance to focus
80 mm
wave length
650 nm
electrical data
connection diagram
response time / release time
voltage supply range +Vs
current consumption max. (no load)
current consumption typ.
voltage drop Vd
< 0,05 ms
12 ... 30 VDC
65 mA
BN (1)
WH (2)
+VS
n.c.
60 mA
BK (4)
< 2 VDC
light operate
PNP
light operate
PNP
Z
output function
BU (3)
0 V
output circuit
output current
< 200 mA
yes
short circuit protection
reverse polarity protection
laser warning
yes
mechanical data
width / diameter
height / length
depth
CLASS 1 LASER
PRODUCT
15,4 mm
50 mm
50 mm
Complies with 21 CFR 1040.10 and 1040.11
except for deviations pursuant to laser
notice No. 50, dated June 24, 2007
type
rectangular
die-cast zinc
glass
housing material
front (optics)
connection types
connector M12 4 pin
ambient conditions
operating temperature
protection class
-10 ... +50 °C
IP 67
www.baumer.com
5/10/2013
