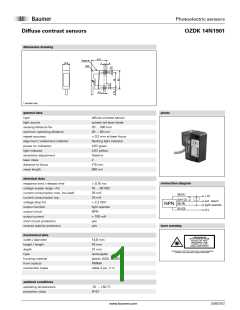

Photoelectric sensors
Diffuse contrast sensors
OZDK 14N1901
dimension drawing
32,7
Teach-in
LED
14,8
2
4
4,3
* emitter axis
general data
type
diffuse contrast sensor
pulsed red laser diode
20 ... 300 mm
40 ... 60 mm
< 0,2 mm at laser focus
flashing light indicator
LED green
light source
sensing distanceTw
optimum operating distance
repeat accuracy
alignment / soiled lens indicator
power on indication
light indicator
LED yellow
sensitivity adjustment
laser class
Teach-in
2
distance to focus
wave length
115 mm
650 nm
electrical data
connection diagram
response time / release time
voltage supply range +Vs
current consumption max. (no load)
current consumption typ.
voltage drop Vd
< 0,15 ms
10 ... 30 VDC
35 mA
BN(1)
+VS
25 mA
Z
WH (2)
ext. teach
light operate
< 2,2 VDC
light operate
NPN
(4
BK
)
NPN
output function
BU(3)
0 V
output circuit
output current
< 100 mA
yes
short circuit protection
reverse polarity protection
yes
laser warning
mechanical data
width / diameter
height / length
depth
LASER RADIATION
DO NOT STARE INTO BEAM
14,8 mm
Wavelength: 620...680nm
Max. av. Output: < 1mW
IEC 60825-1, Ed. 2, 2007
43 mm
CLASS 2 LASER PRODUCT
31 mm
Complies with 21 CFR 1040.10 and 1040.11 except for deviations
pursuant to laser notice No. 50, dated June 24, 2007
type
rectangular
plastic (ASA, MABS)
PMMA
housing material
front (optics)
connection types
cable 4 pin, 2 m
ambient conditions
operating temperature
protection class
-10 ... +50 °C
IP 67
www.baumer.com
25/8/2012
