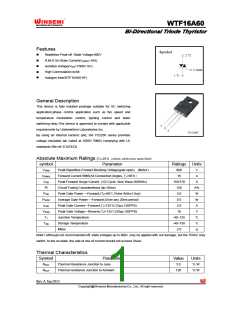

WTF16A60
Bi-Directional Triode Thyristor
Features
�
�
�
�
�
Repetitive Peak off -State Voltage:600V
R.M.S On-State Current(IT(RMS)=16A)
Isolation voltage(VISO=1500V AC)
High Commutation dv/dt
Halogen free(WTF16A60-HF)
General Description
This device is fully isolated package suitable for AC switching
application,phase control application such as fan speed and
temperature modulation control, lighting control and static
switching relay.This device is approved to comply with applicable
requirements by Underwriters Laboratories Inc.
By using an internal ceramic pad, the TO220F series provides
voltage insulated tab (rated at 2500V RMS) complying with UL
standards (file ref.:E347423)
Absolute Maximum Ratings (TJ=25℃ unless otherwise specified)
symbol
VDRM
IT(RMS)
ITSM
Parameter
Peak Repetitive Forward Blocking Voltage(gate open) (Note1)
Forward Current RMS(All Conduction Angles, TJ=68℃)
Peak Forward Surge Current, (1/2 Cycle, Sine Wave,50/60Hz)
Circuit Fusing Considerations (tp=10ms)
Ratings Units
600
V
16
A
155/170
120
A
I2t
A2s
W
W
A
PGM
Peak Gate Power —Forward,(TC=68℃,Pulse With≤1.0us)
Average Gate Power —Forward,(Over any 20ms period)
Peak Gate Current—Forward,TJ=125℃(20µs,120PPS)
Peak Gate Voltage—Reverse,TJ=125℃(20µs,120PPS)
Junction Temperature
5.0
PG(AV)
IFGM
0.5
2.0
VRGM
TJ
10
V
-40~125
-40~150
2.0
℃
℃
g
Tstg
Storage Temperature
Mass
Note1.Although not recommended off -state voltages up to 800v ,may be applied with out damage, but the TRIAC may
switch, to the on-state .the rate of rise of current should not exceed 3A/us.
Thermal Characteristics
Symbol
RӨJC
Parameter
Value
3.0
Units
℃/W
℃/W
Thermal Resistance Junction to case
RӨJA
Thermal resistance Junction to Ambient
120
Rev.A Jun.2011
Copyright@Winsemi Microelectronics Co., Ltd., All right reserved.
