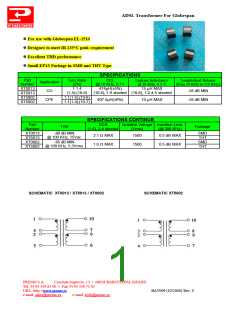

ADSL Transformer For Globespan
] For use with Globespan EL-1510
] Designedto meet IR 235°C peak requirement
] Excellent THD performance
] Small EP13 Package in SMD and THT Type
SPECIFICATIONS
Part
Turn Ratio
(2%)
1:1.4
(1-5):(10-6)
1:1(1-5):(10-6)
1:1(1-4):(10-7)
OCL
Leakage Inductance
@ 10 KHz, 0.1 V
15 µH MAX
Longitudinal Balance
(from 20 KHz to 250 KHz)
Application
CO
Number
XT0013
XT5013
XT5002
XT5002
@ 10 KHz, 0.1V
474µH(±5%)
-55 dB MIN
-55 dB MIN
(10-6), 7-9 shorted (10-6), 1-2-4-5 shorted
CPE
407.5µH(±6%) 10 µH MAX
SPECIFICATIONS CONTINUE
Part
Number
DCR
Isolation Voltage Insertion Loss
THD
Package
(1-5), 2-4 shorted
(Vrms)
(@ 300 KHz)
XT0013
XT5013
XT0002
XT5002
-80 dB MIN
@ 100 KHz, 15Vac
-85 dB MIN
@ 100 KHz, 5.3Vrms
SMD
THT
SMD
THT
2.1 W MAX
1.0 W MAX
1500
0.5 dB MAX
0.5 dB MAX
1500
SCHEMATIC XT0013 / XT5013 / XT0002
SCHEMATIC XT5002
PREMO S.A.
Conchita Supervia, 13 • 08028 BARCELONA (SPAIN)
Tel. 34 93 339 81 00 • Fax 34 93 330 75 02
URL: http://www.premo.es
BAT009 (10/2000) Rev. C
