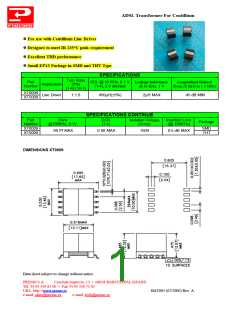

ADSL Transformer For Centillium
] For use with Centillium Line Driver
] Designedto meet IR 235°C peak requirement
] Excellent THD performance
] Small EP13 Package in SMD and THT Type
SPECIFICATIONS
Turn Ratio
(2%)
(1-4):(10-7)
Part
Number
OCL @ 10 KHz, 0.1 V Leakage Inductance
Longitudinal Balance
(from 20 KHz to 1.1 MHz)
Application
Line Driver
(1-4), 2-3 shorted
@ 10 KHz, 1 V
XT0009
XT5009
1:1.8
450µH(±5%)
2µH MAX
-45 dB MIN
SPECIFICATIONS CONTINUE
Part
Cww
@100KHz, 0.1V
DCR
(1-4)
Isolation Voltage
(Vrms)
Insertion Loss
(@ 100KHz)
Package
Number
XT0009
XT5009
SMD
THT
80 Pf MAX
0.88 MAX
1500
0.5 dB MAX
DIMENSIONS XT0009
Data sheet subject to change without notice
PREMO S.A.
Conchita Supervia, 13 • 08028 BARCELONA (SPAIN)
Tel. 34 93 339 81 00 • Fax 34 93 330 75 02
URL: http://www.premo.es
BAT005 (07/2000) Rev. A
