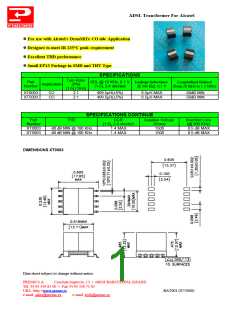

ADSL Transformer For Alcatel
] For use with Alcatel's DynaMiTe CO side Application
] Designedto meet IR 235°C peak requirement
] Excellent THD performance
] Small EP13 Package in SMD and THT Type
SPECIFICATIONS
Turn Ratio
(2%)
(1-5):(10-6)
Part
Number
OCL @ 10 KHz, 0.1 V Leakage Inductance
Longitudinal Balance
(from 20 KHz to 1.1 MHz)
Application
(1-5), 2-4 shorted
@ 300 khZ, 0,1 V
XT0003
XT5003
CO
CO
2:1
2:1
409.5µH(±5%)
409.5µH(±5%)
6.5µH MAX
6.5µH MAX
-50dB MIN
-50dB MIN
SPECIFICATIONS CONTINUE
Part
THD
DCR
(1-5), 2-4 shorted
1.4 MAX
Isolation Voltage
Insertion Loss
(@ 300 KHz)
0.5 dB MAX
0.5 dB MAX
Number
XT0003
XT5003
(Vrms)
1500
1500
-80 dB MIN @ 100 KHz
-80 dB MIN @ 100 KHz
1.4 MAX
DIMENSIONS XT0003
Data sheet subject to change without notice
PREMO S.A.
Conchita Supervia, 13 • 08028 BARCELONA (SPAIN)
Tel. 34 93 339 81 00 • Fax 34 93 330 75 02
URL: http://www.premo.es
BAT001 (07/2000)
