LYU1035

型号：

LYU1035

描述：

SMD顶视图类型[ SMD Top View Type ]

品牌：

LUXPIA[ LUXPIA ]

页数：

16 页

PDF大小：

214 K

下载PDF手册
LYU1035
-

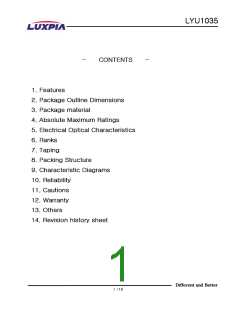

CONTENTS
-
1. Features
2. Package Outline Dimensions
3. Package material
4. Absolute Maximum Ratings
5. Electrical Optical Characteristics
6. Ranks
7. Taping
8. Packing Structure
9. Characteristic Diagrams
10. Reliability
11. Cautions
12. Warranty
13. Others
14. Revision history sheet
Different and Better
1 /16
LYU1035
1. Features
• Package : SMD Top View Type
• Colorless transparency
• 3.5 × 2.7 × 1.8 mm(L×W×H) small size surface mount type
• Viewing angle : extremely wide(120˚)
• Soldering methods : IR reflow soldering
• Taping : 8 mm conductive black carrier tape & antistatic clear cover tape.
2,000pcs/reel, Φ180 mm wheel
2. Outline dimensions
(unit : mm)
Different and Better
2 /16
LYU1035
3. Package material
(1) Material construction
Number
Item
LED Chip
1
2
3
4
5
Gold wire
Lead Frame
Epoxy or Silicon Resin
Heat-Resistant Polymer
Different and Better
3 /16
LYU1035
(Ta = 25℃)
4. Absolute Maximum Ratings
Parameter
Symbol
Value
Unit
mW
mA
mA
V
Power dissipation
PD
IF
80
30
Forward Current
*1Peak Forward Current
Reverse Voltage
IFP
100
VR
5
Operating Temperature
Storage Temperature
Reflow Soldering Temperature
Topr
Tstg
Tsol
-30∼+85
-40∼+100
℃
℃
Reflow Soldering : 260℃ for 10 sec.
Hand Soldering : 350℃ for 3 sec.
*1.Duty ratio ≦ 1/10, Pulse Width ≦ 10msec.
5. Electrical - Optical Characteristics
(Ta = 25℃)
Characteristic
Forward Voltage
Dominant Wavelength
Spectrum Bandwidth
Reverse Current
Symbol
Test Condition
IF= 20mA
IF= 20mA
IF= 20mA
VR=5V
Min.
Typ. Max.
Unit
V
VF
λD
-
-
-
-
-
2.2
592
15
2.6
-
nm
nm
uA
Δλ
IR
-
-
10
-
*2Half Angle
θ1/2
IF= 20mA
±60
deg
*2. θ1/2 is the off-axis angle where the luminous intensity is 1/2 the peak intensity
Different and Better
4 /16
LYU1035
6. Ranks
(1)Dominant Wavelength
(Ta=25℃)
Unit
WD RANK
Test Condition
Min.
586
591
Typ.
-
Max.
591
597
A
B
IF= 20mA
nm
-
* Wavelength are tested at a current pulse duration 25ms and an accuracy of ±1 nm.
(2) Luminous intensity ranks
(Ta=25℃)
Unit
Iv RANK
J
Test Condition
Min.
150
Typ.
-
Max.
210
K
L
210
300
420
600
-
-
-
-
300
420
600
850
IF=20mA
mcd
M
N
* Luminous intensity is tested at a current pulse duration of 25 ms and an accuracy of ±11%.
* Intensity Measured : 0.01sr(CIE. LED_B)
(3) Forward Voltage
(Ta=25℃)
Unit
VF RANK
Test Condition
IF=20mA
Min.
1.8
2.0
2.2
2.4
Typ.
-
Max.
2.0
2.2
2.4
2.6
1
2
3
4
-
V
-
-
* Voltages are tested at a current pulse duration of 1 ms and an accuracy of ±0.1V.
(4) Precautions On LED using
* To avoid optical difference, Please do not mix differently-ranked product.
Different and Better
5 /16
LYU1035
7. Taping
(1) Dimension of wheel((Material : PS Conductive, 10E9~12Ω)
(Unit : mm)
(2) Dimension of tape(Material : PS Conductive, 10E4~5Ω)
(Unit : mm)
Different and Better
6 /16
LYU1035
(3) Details of CHIP LEDs loading on tape
(End)
(Start)
more than 40mm
unloaded tape
mounted with LED
(2,000ea)
more than 40mm
unloaded tape
150 ~ 380mm
leading part
(4) Loading quantity per reel : 2,000pcs
(5) Label Outline
* SIZE(L X W) : 85mm X 50mm
Different and Better
7 /16
LYU1035
8. Packing Structure
• The LEDs are packed in cardboard boxes after taping
Please refer to figure : page 8
The label on the minimum packing unit shows : Part Number, Lot Number, Ranking, Quantity
• In order to protect the LEDs from mechanical shock, we pack them in cardboard boxes
for transportation.
• The LEDs may be damaged if the boxes are dropped or receive a strong impact against them,
so precautions must be taken to prevent any damage.
• The boxes are not water resistant and therefore must be kept away from water and moisture.
• When the LEDs are transported, we recommend that you use the same packing method as Luxpia.
• If a box shows noticeable damage upon arrival at the User’s warehouse. It is recommended that
the User submit a claim to Luxpia within one weeks after arrival of the products. If the submitted
notice regarding the damage exceeds the aforementioned two weeks, it will be treated in the
manner shown in term 13.
Different and Better
8 /16
LYU1035
9. Characteristic Diagrams
(2) Max. Permissible Forward Current
(1) Relative Luminous Intensity
vs Forward Current (IF-Iv)
1.6
35
30
25
20
15
10
5
1.4
1.2
1.0
0.8
0.6
0.4
0.2
0.0
0
0
5
10
15
20
25
30
0
20
40
60
80
100
Ambient temp(℃)
Forward Current(mA)
(3) Forward Current vs Forward Voltage(If-Vf)
(4) Spectrum Distribution
Wavelength λ [nm]
Forward Voltage VF[V]
Different and Better
9 /16
LYU1035
(5) Radiation Characteristics
(TA=25℃ , IF = 20mA)
Different and Better
10 /16
LYU1035
10. Reliability
(1) The Reliability criteria of SMD LED
Limit
ITEM
Symbol
Test Condition
Min.
I.V × 0.9
-
Max.
I.V × 1.1
10uA
Forward Voltage
Reverse Current
Luminous intensity
VF
IR
IF = 20mA
VR = 5V
Iv
IF = 20mA
I.V × 0.7
-
* I.V : Initial Value
U : Upper Spec Limit
L : Lower Spec Limit
(2) Results of reliability Test
Ac/Re
NO
1
Item
Test Conditions
Ta=25℃, If=30mA
Time
(검토,보증)
Steady State Operating Life
1000hrs
1000hrs
1000hrs
1000hrs
0/22, 0/45
0/22, 0/45
0/22, 0/45
0/22, 0/45
Steady State Operating Life of
Low Temperature
2
Ta=-30℃, If=20mA
Ta=85℃, If=7.5mA
Steady State Operating Life of
High Temperature
3
Steady State Operating Life of
High Humidity Heat
4
Ta=60℃, RH=90%, If=20mA
Ta=-40℃~25℃~100℃~25℃
Time=30min~5min~30min~5min
5
Temperature Cycle
100Cycle
0/22, 0/45
6
7
Low Temperature Storage
High Temperature Storage
1000hrs
1000hrs
1000hrs
1 time
0/22, 0/45
0/22, 0/45
0/22, 0/45
0/22, 0/45
0/22, 0/45
Ta=-40℃
Ta=100℃
Temperature Humidity
Storage
8
Ta=60℃, RH=90%
Tsld=260℃, 10sec
Tsld=230±5℃, 3sec
9
SHT(Reflow)
1 time
10
Solderability(Reflow)
(over5%)
Different and Better
11 /16
LYU1035
11. Cautions
(1) Moisture Proof Package
• When moisture is absorbed into the SMT package it may vaporize and expand during soldering.
There is a possibility that this can cause exfoliation of the contacts and damage to the optical
characteristics of the LEDs. For this reason, the moisture proof package is used to keep
moisture to a minimum in the package.
• A package of a moisture absorbent material (silica gel) is inserted into the shielding bag.
The silica gel changes its color from blue to pink as it absorbs moisture.
(2) Storage
• Storage Conditions
Before opening the package :
The LEDs should be kept at 30℃ or less and 90%RH or less. The LEDs should be used
within a year. When storing the LEDs, moisture proof packaging with absorbent material
(silica gel) is recommended.
After opening the package :
The LEDs should be kept at 30℃ or less and 70%RH or less. The LEDs should be soldered
within 168 hours (7days) after opening the package. If unused LEDs remain, they should be
stored in moisture proof packages, such as sealed containers with packages of moisture
absorbent material (silica gel). It is also recommended to return the LEDs to the original
moisture proof bag and to reseal the moisture proof bag again.
• If the moisture absorbent material (silica gel) has faded away or the LEDs have exceeded the
storage time, baking treatment should be performed using the following conditions.
Baking treatment : more than 24 hours at 65±5℃
• Luxpia LED electrode sections are comprised of a silver plated copper alloy. The silver surface
may be affected by environments which contain corrosive gases and so on. Please avoid
condition may cause difficulty during soldering operations. It is recommended that the User
use the LEDs as soon as possible.
• Please avoid rapid transitions in ambient temperature, especially in high humidity environments
where condensation can occur.
(3) Heat Generation
• Thermal design of the end product is of paramount importance.
Please consider the heat generation of the LED when making the system design.
The coefficient of temperature increase per input electric power is affected by the thermal
resistance of the circuit board and density of LED placement on the board, as well as other
components.
It is necessary to avoid intense heat generation and operate within the maximum ratings given
in this specification.
• The operating current should be decided after considering the ambient maximum temperature
of LEDs.
Different and Better
12 /16
LYU1035
(4) Soldering Conditions
• The LEDs can be soldered in place using the reflow soldering method. Luxpia cannot make a
guarantee on the LEDs after they have been assembled using the dip soldering method.
• Recommended soldering conditions
Reflow Soldering
Lead Solder
120~150℃
120sec Max
240℃ Max
10sec Max
refer to
Hand Soldering
Lead-free Solder
180~200℃
120sec Max
260℃ Max
10sec Max
refer to
Pre-heat
Temperature
350℃ Max
3sec Max
Pre-heat time
Peak temperature
Soldering time
Soldering time
(one time only)
Temperature
Temperature
1
- profile ○
2
- profile ○
* After reflow soldering rapid cooling should be avoided.
Temperature-profile (Surface of circuit board)
Use the conditions shown to the under figure.
1
2
[○ : Lead-free Solder]
[○ : Lead Solder]
[Recommended soldering pad design]
Use the following conditions shown in the figure.
Different and Better
13 /16
LYU1035
• Occasionally there is a brightness decrease caused by the influence of heat or ambient
atmosphere during air reflow. It is recommended that the User use the nitrogen reflow method.
• Repairing should not be done after the LEDs have been soldered. When repairing is
unavoidable, a double-head soldering iron should be used. It should be confirmed beforehand
whether the characteristics of the LEDs will or will not be damaged by repairing.
• Reflow soldering should not be done more than two times.
• When soldering, do not put stress on the LEDs during heating.
• After soldering, do not warp the circuit board.
(5) Cleaning
• It is recommended that isopropyl alcohol be used as a solvent for cleaning the LEDs. When
using other solvents, it should be confirmed beforehand whether the solvents will
dissolve the package and the resin or not. Freon solvents should not be
used to clean the LEDs because of worldwide regulations. Do not clean the LEDs by the
ultrasonic. When it is absolutely necessary, the influence of ultrasonic cleaning on the LEDs
depends on factors such as ultrasonic power and the assembled condition.
Before cleaning, a pre-test should be done to confirm whether any damage to the LEDs will
occur.
(6) Others
• Care must be taken to ensure that the reverse voltage will not exceed the absolute maximum
rating when using the LEDs with matrix drive.
• The LED light output is strong enough to injure human eyes. Precautions must be taken to
prevent looking directly at the LEDs with unaided eyes for more than a few seconds.
• Flashing lights have been known to cause discomfort in people; you can prevent this by taking
precautions during use. Also, people should be cautious when using equipment that has had
LEDs incorporated into it.
Different and Better
14 /16
LYU1035
12. Warranty
(1) Luxpia warrants that its LEDs conform to the foregoing specifications and that Luxpia will
convey good title to all LEDs sold.
(2) Luxpia Disclaims all other warranties including the implied warranties of merchantability and
fitness for a particular purpose.
(3) In the event any LED supplied by Luxpia is found not to conform to the foregoing
specifications within ninety days of receipt, Luxpia will repair or replace the LED, at Luxpia’s
discretion, provided that the User (1) promptly notifies Luxpia in writing of the details of the
defect (2) ships the LEDs at the User’s expense to Luxpia for examination, and (3) the defect
is due to the negligence of Luxpia and not mishandling or misuse by the User.
(4) Luxpia will not take responsibility for any trouble that is caused by using the LEDs at
conditions exceeding our specifications.
(5) These specifications are applied only when a LED stands alone and it is strongly
recommended that the User of the LEDs confirms the properties upon assembly.
Luxpia is not responsible for failures caused during and after assembling.
It will be excepted from the rule if the failure would caused undoubtedly by Luxpia.
(6) A claim report stating details about the defect shall be made when returning defective LEDs.
Luxpia will investigate the report immediately and inform the user of the results.
(7) The LEDs described in this brochure are intended to be used for ordinary electronic equipment
(Such as office equipment, communications equipment, on the applications in which
exceptional quality and reliability are required, particularly when the failure or malfunction of
the LEDs may directly jeopardize life or health (such as for airplanes, aerospace, submersible
repeaters, nuclear reactor control systems, automobiles, traffic control equipment, life support
systems and safety devices)
(7) Luxpia’s liability for defective lamps shall be limited to replacement and in no event shall
Luxpia be liable for consequential damage or lost profits.
13. Others
(1) The warranties of quality set forth herein are exclusive. All previous negotiations and
agreements not specifically incorporated herein are superseded and rendered null and void.
(2) Both parties shall sincerely try to find a solution when any disagreement occurs regarding
these specifications.
(3) User shall not reverse engineer by disassembling or analysis of the LEDs without having prior
written consent from Luxpia. When defective LEDs are found, the User shall inform Luxpia
directly before disassembling or analysis.
(4) These specifications can be revised upon mutual agreement.
(5) Luxpia understands that the User accepts the content of these specifications, if the User does
not return these specifications with signatures within 3 weeks after receipt.
Different and Better
15 /16
LYU1035
14. Revision history sheet
Spec NO.
Title
Specification for Approval
Summary of revision
Times
Date
Remarks
1
2
3
4
2003. 04. 16.
2004. 09. 09.
2004. 11. 15.
2006. 08. 04.
신규제정
Format 변경
Mold재료 및 Soldering 조건 추가
Iv Rank 추가
Different and Better
16 /16
厂商 型号 描述 页数 下载

INFINEON

 		LYU260-EO 迷你LED 1毫米的带领下，扩散[ Mini LED 1 mm LED, Diffused ] 7 页

LUXPIA

 		LYU3000 高亮度LED灯[ High Brightness LED Lamp ] 6 页

LUXPIA

 		LYU5000 超亮度LED灯[ Ultra Brightness LED Lamp ] 6 页

LUXPIA

 		LYU5015 超亮度LED灯[ Ultra Brightness LED Lamp ] 6 页

LUXPIA

 		LYU5020 超亮度LED灯[ Ultra Brightness LED Lamp ] 6 页

LUXPIA

 		LYU5090 超亮度LED灯[ Ultra Brightness LED Lamp ] 6 页

购物指南

支付方式

配送服务

售后服务

发票须知

优惠券使用规则

特色服务

PCBA制造

国产品牌推荐

国产料号替代

质量保证

技术资料

行业资讯

关于我们

关于壹壹捌

联系我们

联系我们

服务热线：400-618-9990

企业邮箱：sales@ic118.com

服务时间：周一至周六 8:30-17:30

壹壹捌官方微信号

PDF索引：

A

B

C

D

E

F

G

H

I

J

K

L

M

N

O

P

Q

R

S

T

U

V

W

X

Y

Z

0

1

2

3

4

5

6

7

8

9

IC型号索引：

A

B

C

D

E

F

G

H

I

J

K

L

M

N

O

P

Q

R

S

T

U

V

W

X

Y

Z

0

1

2

3

4

5

6

7

8

9

Copyright 2024 gkzhan.com Al Rights Reserved 京ICP备06008810号-21 京

深圳网络警察报警平台
公共信息安全网络监察
经营性网站备案信息
不良信息举报中心
工商网监电子标识
全国公安机关备案
0.187052s
