LYU3000

型号：

LYU3000

描述：

高亮度LED灯[ High Brightness LED Lamp ]

品牌：

LUXPIA[ LUXPIA ]

页数：

6 页

PDF大小：

125 K

下载PDF手册

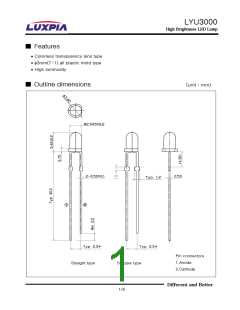

LYU3000

High Brightness LED Lam p

■ Features

• Colorless transparency lens type

• φ3mm(T-1) all plastic mold type

• High luminosity

■ Outline dimensions

(unit : mm)

Pin connectors

1.Anode

Straight type

Stopper type

2.Cathode

Different and Better

1/6

LYU3000

High Brightness LED Lam p

■ Absolute maximum ratings

Characteristic

Power dissipation

Symbol

P_D

Ratings

120

Unit

Forward Current

I_F

*¹Peak Forward Current

Reverse Voltage

I_FP

100

V_R

Operating Temperature

Storage Temperature

*²Soldering Temperature

T_opr

T_stg

T_sol

-30∼85

-40∼100

℃

260℃ for 3 seconds

*1.Duty ratio ≦ 1/10, Pulse Width ≦ 10msec

*2.Keep the distance more than 2.0mm from PCB to the bottom of LED package

■ Electrical – Optical Characteristics

(Ta=25℃)

Characteristic

Forward Voltage

Dominant Wavelength

Spectrum Bandwidth

Reverse Current

Symbol

Test Condition

I_F= 20mA

V_R=5V

Min.

Typ. Max.

Unit

V_F

λ_P

2.1

592

2.7

Δ_λ

I_R

*³Half Angle

θ1/2

I_F= 20mA

±17

deg

*3. θ1/2 is the off-axis angle where the luminous intensity is 1/2 the peak intensity

Different and Better

2/6

LYU3000

High Brightness LED Lam p

■ Luminous intensity ranks

(Ta=25℃)

Iv RANK

Test Condition

Min.

1200

1700

2400

3400

Typ.

Max.

1700

2400

3400

4800

Unit

I_F= 20mA

mcd

* Luminous intensity is tested at a current pulse duration of 25 ms and an accuracy of ±11%.

Intensity Measured : 0.01sr(CIE. LED_B)

■ Precautions On LED using

* To avoid optical difference, Please do not mix differently-ranked product.

Different and Better

3/6

LYU3000

High Brightness LED Lam p

■ Characteristic Diagrams

Fig.2 IV-IF

Fig.1 IF-VF

Ta=25℃

100

0.1

0.01

1.5

1.7

1.9

2.1

2.3

2.5

100

Vf(V)

IF(mA)

Forward Voltage VF[V]

Forward Current IF[mA]

Fig.3 Max. Permissible Forward Current

Fig.4 Relative Intensity-Ta

Ta=25℃

-20

100

Ambient Temperature Ta[℃]

Wavelength λ [nm]

Different and Better

4/6

LYU3000

High Brightness LED Lam p

Fig. 5 Radiation Diagram

100

Relative Luminous Intensity Iv[%]

Different and Better

5/6

LYU3000

High Brightness LED Lam p

■ Revision history sheet

Spec NO.

Title

Specification for Approval

Summary of revision

Times

Date

Remarks

2001. 07. 15

2003. 02. 26

2004. 06. 03

신규제정

Format 변경

Iv Rank 변경

Different and Better

6/6
