LYU5020

型号:

LYU5020

描述:

超亮度LED灯[ Ultra Brightness LED Lamp ]

品牌:

LUXPIA[ LUXPIA ]

页数:

6 页

PDF大小:

193 K

LYU5020
Ultra Brightness LED Lamp
■ Features
Colorless transparency lens type
• φ5mm(T-1¾) all plastic mold type
High Luminosity

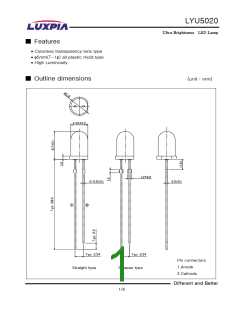

■ Outline dimensions
(unit : mm)
Pin connectors
1.Anode
Straight type
Stopper type
2.Cathode
Different and Better
1/6
LYU5020
Ultra Brightness LED Lamp
Absolute Maximum Ratings
(Ta=25℃)
Characteristic
Power dissipation
Symbol
Ratings
Unit
mW
mA
mA
V
PD
IF
75
Forward Current
30
100
*1Peak Forward Current
Reverse Voltage
IFP
VR
5
Operating Temperature
Storage Temperature
*2Soldering Temperature
Topr
Tstg
Tsol
-30 ∼ +85
-40 ∼ +100
260℃ for 3 seconds
*1.Duty ratio = 1/16, Pulse width = 0.1ms
*2.Keep the distance more than 2.0mm from PCB to the bottom of LED package
■ Electrical – Optical Characteristics
(Ta=25℃)
Characteristic
Forward Voltage
Dominant Wavelength
Spectrum Bandwidth
Reverse Current
Symbol
Test Condition
IF= 20mA
IF= 20mA
IF= 20mA
VR=5V
Min.
Typ. Max.
Unit
V
VF
λP
-
-
-
-
-
2.1
592
15
2.7
-
nm
nm
uA
Δλ
IR
-
-
10
-
*3Half Angle
θ1/2
IF= 20mA
±15
deg
*3. θ1/2 is the off-axis angle where the luminous intensity is 1/2 the peak intensity
Different and Better
2/6
LYU5020
Ultra Brightness LED Lamp
■ Luminous intensity ranks
(Ta=25℃)
Iv RANK
Test Condition
Min.
850
Typ.
Max.
1200
1700
2400
3400
Unit
O
P
-
-
-
-
1200
1700
2400
IF= 20mA
mcd
Q
R
* Luminous intensity is tested at a current pulse duration of 25 ms and an accuracy of ±11%.
Intensity Measured : 0.01sr(CIE. LED_B)
■ Precautions On LED using
* To avoid optical difference, Please do not mix differently-ranked product.
Different and Better
3/6
LYU5020
Ultra Brightness LED Lamp
Characteristic Diagrams
Fig.2 IV-IF
Fig.1 IF-VF
Ta=25℃
Ta=25℃
10
1
80
70
60
50
40
30
20
10
0
0.1
0.01
0
0.5
1
1.5
2
2.5
1
10
100
Forward Voltage VF[V]
Forward Current IF[mA]
Fig.3 Max. Permissible Forward Current
Ta=25℃
Fig.4 Spectrum Distribution
Ta=25℃
Ambient Temperature Ta[℃]
Wavelength λ [nm]
Different and Better
4/6
LYU5020
Ultra Brightness LED Lamp
Fig. 5 Radiation Diagram
100
50
0
50
100
Relative Luminous Intensity Iv[%]
Different and Better
5/6
LYU5020
Ultra Brightness LED Lamp
■ Revision history sheet
Spec NO.
Title
Specification for Approval
Summary of revision
Times
Date
Remarks
1
2
2001. 07. 15
2003. 02. 26
신규제정
Format 변경
Different and Better
6/6
