VV5430

型号:

VV5430

描述:

单色模拟输出CMOS图像传感器[ Monochrome Analog Output CMOS Image Sensors ]

品牌:

STMICROELECTRONICS[ ST ]

页数:

33 页

PDF大小:

278 K

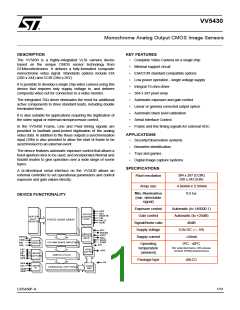

VV5430
Monochrome Analog Output CMOS Image Sensors
KEY FEATURES
®
DESCRIPTION
The VV5430 is a highly-integrated VLSI camera device
based on the unique CMOS sensor technology from
STMicroelectronics. It delivers a fully-formatted composite
monochrome video signal. Standards options include EIA
(320 x 244) and CCIR (384 x 287).
Complete Video Camera on a single chip
Minimal support circuit
EIA/CCIR standard compatible options
Low power operation - single voltage supply
Integral 75 ohm driver
It is possible to develop a single chip video camera using this
device that requires only supply voltage in, and delivers
composite video out for connection to a video monitor.
384 x 287 pixel array
The integrated 75driver eliminates the need for additional
active components to drive standard loads, including double
terminated lines.
Automatic exposure and gain control
Linear or gamma corrected output option
Automatic black level calibration
Serial Interface Control
It is also suitable for applications requiring the digitisation of
the video signal or external microprocessor control.
In the VV5430 Frame, Line and Pixel timing signals are
provided to facilitate pixel-locked digitisation of the analog
video data. In addition to the these outputs a synchronisation
input (SIN) is also provided to allow the start of frame to be
synchronised to an external event.
Frame and line timing signals for external ADC
APPLICATIONS
Security/Observation systems
Biometric identification
Toys and games
The device features automatic exposure control that allows a
fixed-aperture lens to be used, and incorporates Normal and
Backlit modes to give operation over a wide range of scene
types.
Digital Image capture systems
SPECIFICATIONS
A bi-directional serial interface on the VV5430 allows an
external controller to set operational parameters and control
exposure and gain values directly.
384 x 287 (CCIR)
320 x 243 (EIA)
Pixel resolution
Array size
4.66mm x 3.54mm
0.5 lux
Min. illumination
(min. detectable
signal)
DEVICE FUNCTIONALITY
Exposure control
Gain control
Automatic (to 146000:1)
Automatic (to +20dB)
46dB
AGC
AEC
RESETB
LIN
BKLIT
CCIR
DIGITAL
CONTRO
LOGIC.
VERTICAL
SHIFT
REG ISTER
PHOTO DIODE ARRAY
Signal/Noise ratio
Supply voltage
Supply current
5.0v DC +/− 5%
<45mA
VRT
Vbloom
VOFF
VBG
EBCK
EVWT
2V7
AVO
ANALOG
VO LTAGE
REFS.
CKOUT
CKIN
SIN
CPE
CLOCK
CIRCUIT
COLUMN SENSE AMPLIFIERS
Operating
temperature
(ambient)
0oC - 40oC
(for extended temp. info please
contact STMicroelectronics)
FST
LST
PV
VIDEO
BUFFER
CAPTURE
SAMPLE
& HOLD
PVB
ODD
Package type
48LCC
5V
SDA
SCL
SERIAL
I/F
VIDEO
AM P
HORIZONTAL SHIFT REGIS
SAB0
SAB1
1/33
CD5430F-A


VV5430
Table of Contents
1. Revision History . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3
2. Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4
2.1 Device Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
2.2 Defect Specification . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
3. Device Details . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7
3.1 Package Details . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7
3.2 Pinout Diagram. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
3.3 Pin List . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8
4. Video Standards . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .10
4.1 Video Signal Characteristics. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
5. Control Signals for Image Digitisation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
5.1 Image Capture Control Signal Timing. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
6. Shuffle Modes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .15
6.1 Quarter mode output. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
6.2 Quarter mode line timing. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .16
7. Exposure Control. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
7.1 Automatic Exposure Control (AEC) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
7.2 Automatic Gain Control (AGC) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
7.3 Backlit Mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
8. Serial Communication . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .20
8.1 Serial Communication Protocol . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .20
9. Read data from camera . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22
10. Write to Camera . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23
10.1 Timing Protocol. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .23
10.2 Header Codes. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24
10.3 Message content . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24
11. Example Support Circuit . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31
12. Ordering Details . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32
2/33
CD5430F-A
VV5430
Revision History
1. Revision History
The following is a list of specific changes made to this datasheet since the previous revisions. It does not include general
fomatting changes, but is intended to highlight changes that may affect device operation in a customer system.
Section
Change
2
Removed obsolete test descriptions
Corrected Defect Specification
6
Added reference to generating SIN on only odd or
only evenfields, not both.
10
Setup Code 1: Bit 10 was incorrectly described. This
bit should be set to 0 for normal operation.
Table 1 : Revision History
CD5430F-A
3/33
Specifications
VV5430
2. Specifications
2.1 Device Specifications
1.0
0.8
0.6
0.4
0.2
0
Illumination Colour Temp.
Clock Frequency
Exposure
3200o K
Std. CCIR
Maximum
x1
Gain
Auto. Gain Control (AGC)
Correction mode
Off
Linear
Wavelength nm
Figure 1 : Spectral Response
The sensor is tested using the example support circuit illustrated later in this document. Standard imaging conditions used for
optical tests employ a tungsten halogen lamp to uniformly illuminate the sensor (to better than 0.5%), or to illuminate specific
areas. A neutral density filter is used to control the level of illumination where required.
Parameter
Value
Supply Voltage
-0.5 to +7.0 volts
-0.5 to VDD + 0.5 volts
0oC to 40oC
Voltage on other input pins
Ambient Operating Temperature
(contact STMicroelectronics for extended temp. ranges)
Storage Temperature
-30oC to 125oC
Maximum DC TTL output Current Magnitude
10mA (per o/p, one at a time, 1sec. duration)
Table 2 : Absolute Maximum Ratings
Note: Stresses exceeding the Absolute Maximum Ratings may induce failure. Exposure to absolute maximum ratings
for extended periods may reduce reliability. Functionality at or above these conditions is not implied.
Symbol
Parameter
Min.
Typ.
Max.
Units Notes
VDD
VIH
VIL
TA
Operating supply voltage
Input Voltage Logic “1”
4.75
2.4
-0.5
0
5.0
5.25
VDD+0.5
0.8
Volts
Volts
Volts
Input Voltage Logic “0”
Ambient Operating Temperature
40
oC
Still air
Table 3 : DC Operating Conditions
4/33
CD5430F-A
VV5430
Specifications
Min
.
Unit Note
Symbol
Parameter
Typ.
Max.
s
s
EIA Crystal frequency
CCIR Crystal frequency
Serial Data Clock
12.0000
14.7456
MHz
MHz
KHz
1
1
2
CKIN
CKIN
SCL
100
Table 4 : AC Operating Conditions
1. Pixel Clock = CKIN
/
2
2. Serial Interface clock must be generated by host processor.
Unit
s
Symbol
Parameter
Min.
Typ. Max.
Notes
IDCC
IADD
IDD
Digital supply current
10
25
mA
mA
1
1
1
Analog supply current
Overall supply current
Internal voltage reference
Internal bandgap reference
Output Voltage Logic “1”
Output Voltage Logic “0”
Input Leakage current
35
mA
VREF2V7
VBG
VOH
VOL
2.700
1.22
Volts
Volts
Volts
Volts
µA
IOH = 2mA
IOL = -2mA
VIH on input
VIL on input
2.4
-1
0.6
1
IILK
µA
Table 5 : Electrical Characteristics
Typical conditions, VDD = 5.0 V, TA = 27oC
1. Digital and Analogue outputs unloaded - add output current.
Parameter
min. typ. max.
50
units
Note
Dark Current Signal
Modal pixel voltage due to photodiode leakage
under zero illumination with Gain=1
(Vdark = (Vt1 - Vt2)/(t1-t2), calculated over two dif-
ferent frames
mV/Sec
Sensitivity
VAve/Lux·10ms, where Lux gives 50% saturation
with Gain=1 and Exposure=10ms
6
V/Lux·Sec
Lux
Min. Illumination
Minimum detectable illumination with Standard
CCIR clock
0.5
Note: Devices are normaly not 100% tested for the above characterisation parameters, other than Dark Current Signal.
Table 6 : Operating characteristics
CD5430F-A
5/33
Specifications
VV5430
2.2 Defect Specification
A Defect is an area of pixels that produces output significantly different from its surrounding pixels for the same illumination level.
The definition of a Defect Pixel varies according to testing conditions as follows:
Test
Exposure
Illumination
Defective Pixel output definition
Black Image Test
Light Image Test
Minimum
Mid range
Black
Differing more than ±8%. from modal value.
Differing more than ±4% from modal value.
66% Sat.
The pixel area of the sensor is divided into the following areas to qualify the defect specification:
Area A
Area B
Where Area A is the inner 50% of the image area
The defect specification is then defined as follows:
Area
Max. No. of
Defectes
Notes
Area A
Area B
0
This is the most critical image area
4
1
Unconnected single pixels
Of up to four connected pixels (2x2 max.)
6/33
CD5430F-A

VV5430
Device Details
3. Device Details
3.1 Package Details
1.56 TYP
0.51
TYP
13.7
Glass Lid
0.5min, 0.6max
Die
Base
0.90min, 1.12max
Viewed from side
The optical array is centred within the package to a
tolerance of ± 0.2 mm, and rotated no more than ± 0.5o
Unless otherwise stated, tolerances on package
dimensions ±10%
Glass lid placement is controlled so that no package
overhang exists.
2.16
PIN 1
All dimensions in millimetres
Refractive index of glass approx 1.52
1.016 PITCH TYP
Viewed from below
3.2 Pinout Diagram
30 29 28 27 26 25 24 23 22 21 20 19
31
VSS
18
17
SCE
SIN
PV 32
33
PVB
VDD
CPE
16 SAB1
34
35
15
VGND
AVO
14
13
48 Pin LCC
FST 36
VVDD
Viewed from top of package
37
38
ODD
SCI
12
AMP2
AMP1
AVSS
11
10
39
40
SCL
SDA
VDD
9
8
EVWT
EBCK
41
42
VSS
7
AVDD
43 44 45 46 47 48
1
2
3
4
5
6
CD5430F-A
7/33
Device Details
3.3 Pin List
VV5430
Signal
Name
Typ
e
Pin
Description
POWER SUPPLIES
1
7
AVCC
AVDD
AVSS
VVDD
VGND
VSS
PWR
PWR
GND
PWR
GND
GND
PWR
PWR
GND
GND
Core analogue power and reference supplies.
Output stage power. AVDD3 output stage logic.
Output stage ground. AVSS3 output stage logic.
75ohm buffer supply.
10
13
15
75ohm buffer ground.
24,31
27,34
41
Digital padring & logic ground.
Digital padring & logic power.
VDD
DVDD
DVSS
AGND
Core digital power.
42
Core digital ground.
48
Core analogue ground and reference supplies.
ANALOGUE VOLTAGE REFERENCES
2
3
VBG
OA
IA
Internal bandgap reference voltage (1.22V nominal). Requires external 0.1uF
capacitor.
VOFF/VPED
Pedestal DAC & offset comp. DAC bias. Connect to VBG or external refer-
ence.
4
5
DEC2V2
DEC2V7
-
OA
OA
DNC
IA
Decouple 2.2V reference. Requires external 0.1uF capacitor.
Decouple 2.7V reference. Requires external 0.1uF capacitor.
Do NOT connect - for test use only
6
8
EBCK
External black level bias. Internally generated. Decouple to VGND
External white pixel threshold for exposure control. Decouple to VGND
Defines white level for clamp circuitry. Requires external 0.1uF capacitor.
Anti-blooming voltage reference. Requires external 0.1uF capacitor.
Pixel reset voltage. Connect to VREF2V7 or external reference.
Offset DAC common mode input. Connect to VREF2V7.
Internally generated 2.7V reference. Requires external 4.7uF capacitor.
ANALOGUE OUTPUTS
9
EVWT
VBLWT
VBLOOM
VRT
IA
43
44
45
46
47
IA
OA
IA
VCM
IA
VREF2V7
OA
14
AVO
OA
Buffered Analogue video out. Can drive a doubly terminated 75ohm load.
SYSTEM CLOCKS
25
26
CKOUT
CKIN
OD
ID
Oscillator output. Connect Crystal for standard timing.
Oscillator input. Connect Crystal for standard timing.
IMAGE CAPTURE TIMING SIGNALS
8/33
CD5430F-A
VV5430
Device Details
Signal
Name
Typ
e
Pin
Description
30
32
33
35
36
37
LST
PV
OD
OD
OD
ID↓
OD
OD
Line start. Active high pulse (start of active video lines).
Pixel sample clock. Qualifies video output for external image capture.
Pixel sample clock bar. Inverse of PV.
PVB
CPE
FST
ODD
Pixel sample clock enable. Default CPE = 0 i.e. PV/PVB disabled.
Field start. Synchronises external image capture.
Odd/even field signal. (ODD = 1 for odd fields, ODD = 0 for even)
DIGITAL CONTROL SIGNALS
16
17
SAB1
SIN
ID↓
ID↓
Higher bit of two least significant bits of device address on serial interface.
Used to reset video timing control logic without resetting any other part of
VV5430. Resets video logic on the falling edge of the SIN pulse.
18
19
SCE
LIN
ID↓
ID↓
Scan mode enable - only relevant to test mode.
Gamma corrected or Linear output. LIN = 0, gamma corrected output,
LIN = 1, linear output. Default is gamma. LIN = 0 can be overridden via serial
interface.
20
21
SAB0
AEC
ID↓
ID↑
Lower bit of two least significant bits of device address on serial interface.
Automatic exposure control. AEC = 1, auto exposure is enabled; AEC = 0 auto
exposure and auto gain control are disabled. AEC = 1 can be overridden via
serial interface.
22
23
28
AGC
CCIR
BKLIT
ID↑
ID↑
ID↓
Automatic gain control enable. AGC = 1, auto-gain is enabled (if AEC = 1);
AGC = 0, auto-gain is disabled. AGC can be overridden via serial interface.
Select default video mode for power-on. CCIR = 1 for CCIR video. EIA video
mode is selected when CCIR = 0. Default is CCIR if unconnected
Normal or Backlit exposure control mode. BKLIT = 0, normal mode. BKLIT = 1,
backlit mode. Default is normal. BKLIT state can be overridden via serial inter-
face. See Exposure Control for details.
29
38
39
40
RESETB
SCI
ID↑
ID↓
ID↑
BI↑
Active low camera reset. All camera systems are reset to power-on state.
Scan chain input - only relevant to test mode.
SCL
Serial bus clock (input only). Must be generated by comms. host.
Serial bus data (bidirectional, open drain).
SDA
Key:
OA- Analogue output
OD- Digital output
IA - Analogue input
ID - Digital input
OD-Digital output with internal pull-down
ID- Digital input with internal pull-up
BI - Bidirectional
CD5430F-A
9/33
Video Standards
VV5430
4. Video Standards
The VV5430 has 2 different video format modes, producing CCIR or EIA standard composite Monochrome video output. Line
standards and frequencies are as follows:
Video Mode
CCIR
Format
4:3
Image (Pixels)
384 x 287
Crystal Frequency
14.7456 MHz
12.0000 MHz
CCIR pin
1
0
EIA
4:3
320 x 243
Table 7 : VV5430 Video Modes
4.1 Video Signal Characteristics
The following table summarises the composite video output levels (AVO) for the two standards, which are graphically illustrated
on the following pages:
Symb
ol
Typ
.
Unit
s
Parameter
Min.
Max.
Notes
VSync
Vblank
Vblack
CCIR, EIA Sync. level
CCIR, EIA Blanking level
CCIR Black level
0.3
0.9
0.9
1.0
2.3
2.4
V
V
V
V
V
V
DC reference level
EIA Black level
VSat
CCIR Saturation level
EIA Saturation level
Peak White; AVO
clipped at this level
Table 8 : Video Timing Parameters
Note: All measurements are made with AVO driving one 75load.
10/33
CD5430F-A
VV5430
Video Standards
CCIR Timing Diagram
line time reference point
rise times
(10% - 90%)
line blank 0.3 ± 0.1µs
line sync. 0.25 ± 0.05µs
{
line period H = 64µs
line sync. 4.7µs
back porch 5.8µs
front porch 1.5µs
peak white level
2.3v
black &
blanking level
0.9v
0.3v
sync. level
Figure 2 : CCIR composite video line-level timing
frame start
field 1
field 0
2.5H
2.5H
2.5H
26H
SL
field 1
2.5H
field 2
2.5H
2.5H
25H
Figure 3 : CCIR composite video signal - field level timing
CD5430F-A
11/33
Video Standards
VV5430
EIA Timing Diagrams
rise times
(10% - 90%)
line blank 0.3 ± 0.1µs
line sync. 0.25 ± 0.05µs
line time reference point
line period H = 63.5µs
{
line sync. 4.83µs
back porch 4.00µs
front porch 1.33µs
peak white level
2.4v
black level
1.0v
0.9v
0.3v
blanking level
sync. level
Figure 4 : EIA composite video signal - line level timing
frame start
field 0
3H
field 1
3H
3H
19H
field 2
3H
field 1
3H
3H
20H
Figure 5 : EIA composite video signal - field level timing
12/33
CD5430F-A
VV5430
Control Signals for Image Digitisation
5. Control Signals for Image Digitisation
The VV5430 sensor can be used with an Analog-to-Digital Converter (ADC) and the necessary logic to form an image capture
and processing system. The camera provides an analogue video output together with digital signals to qualify this output and
synchronise image capture.
The signals provided for image capture are the following:-
• PV,PVB: (Pixel Valid, PV Bar) Complementary signals, their leading edges qualify valid pixel levels.
• LST: (Line STart) The rising edge signals the start of a visible line.
• FST: (Field STart) The rising edge signals the start of a field.
• ODD: Identifies an odd field within a frame.
• CPE (Clock Pulse Enable): Disables generation of PV/PVB and LST signals. The state of this pin is sampled
only during a system reset. Its state after reset can be overridden via the serial interface using Set-up Code_2.
The following diagram illustrates the relative timing of the image capture signals. Scale is not actual but edge succession is
preserved.
FST
ODD
LST
AVO
PV
PVB
T
T
lst
fst
T
psu
T
line
T
blank
Todd
T
pv
T
porch
T
field
T
phd
Figure 6 : Frame Capture signal timing
CD5430F-A
13/33
Control Signals for Image Digitisation
VV5430
5.1 Image Capture Control Signal Timing
The time intervals given are correct for the recommended crystals:
Name
CCIR
EIA
Crystal Frequency (FCKIN
)
14.7456 MHz
135.63 nsec
1:1
12.0000 MHz
166.67nsec
1:1
Pixel clock period (Tpck = 2/FCKIN
PV (Pixel clock) mark:space
PV high period (Tpv = Tpck/2)
)
67.82 nsec
20.032 msec
83.34 nsec
16.7005 msec
Even (first) field period (Tfield
)
(313 x Tline
)
(263 x Tline
)
Odd (second) field period (Tfield
)
19.968 msec
16.637 msec
(312 x Tline
)
)
(262 x Tline
)
)
FST duration (TFST
)
7.73 µsec
6.1 µsec
(45 x Tpck)
(57 x Tpck
)
Line period (Tline
)
64.0 usec
(472 x Tpck
63.5 µsec
(381 x Tpck
LST duration (TLST
)
4.61 µsec
4.66 µsec
(34 x Tpck
)
(28 x Tpck)
First visible line delay (Tblank
)
704.949 µsec
762.833µsec
(11xTline + 7xTpck)
(12xTline + Tpck)
First visible pixel delay (Tporch
)
10.58 µsec
8.833 µsec
(78 x Tpck
)
(53 x Tpck
)
Visible line period
52.083 µsec
53.333 µsec
(384 x Tpck
33.9 nsec
30nsec
)
(320 x Tpck
41.7nsec
40nsec
)
Max AVO to PV setup time (Tpsu
)
Min. PV to AVO hold time (Tphd
)
ODD to FST rise (TODD)
21.700 msec
(160 x Tpck)
11.500 msec
(69 x Tpck)
Table 9 : Signal Timing
14/33
CD5430F-A
VV5430
Shuffle Modes
6. Shuffle Modes
The pixels in the VV5430 sensor array can be output to AVO as alternate columns and rows by setting bits 5 and 6 in the Setup
Code_1 register (header code 0001 - see Serial Interface for details). This has the effect of generating two, or four, identical low
resolution images in one field:
Unshuffled Image
Horizontal Shuffle
Vertical Shuffle
Hor. + Vert. Shuffle
When this facility is combined with AVO Enable selected for the appropriate quarter, it is possible to display the images from four
separate cameras on one monitor.
In order to achieve four identical images in one frame (from one sensor), bits 5 and 6 of Setup Code_1 must both be set via the
serial interface, that is HSHUFFLE=1 and VSHUFFLE=1. The former interleaves odd and even pixel lines in the image, and the
latter interleaves pixel columns. OE[0..2] can then Enable AVO output for any one quarter of the display field.
6.1 Quarter mode output
The VV5430 video output can be Enabled in different parts of the standard field by programming bits 9..11 of Setup Code_2, that
is CE[0..2]; when not enabled, the AVO output is Tristated, that is floating at high impedance. Thus, a number of different sensor
AVO outputs can be connected together and selectively enabled. This feature, together with bus addressing of up to four
VV5430s on one serial link, is intended for multi-sensor systems that, in conjunction with bits 5,6 of Setup Code_1, enable the
images from up to four cameras to be displayed on a single monitor.
By programming CE[0..2] different areas of the field can be enabled:.
Pixels
Sync
Sync + Blanking
Q1
Q3
Q2
Q4
Image subdivided into 4 quarters :
CCIR: 384 pixels x 287 lines:
Q1,Q2 = 192 x 142
Q3, Q4 = 192 x 142
EIA: 320 pixels x 243 lines:
Q1,Q2 = 160 x 120
Q3, Q4 = 160 x 120
CD5430F-A
15/33
Shuffle Modes
VV5430
The effect of OE[0..2] on AVO output is summarised in the following table:
Regions where AVO is
enabled
OE[2]
OE[1]
OE[0]
All (Normal operation)
0
0
0
0
1
1
1
1
0
0
1
1
0
0
1
1
0
1
0
1
0
1
0
1
None (AVO permanently tristate)
Sync only
Sync plus Q1 image
Q1
Q2
Q3
Q4
Table 10 : AVO Enable selection
Since each of the horizontal ‘halves’ of the frame is only 142 lines (CCIR) or 120 lines (EIA), there is a ‘black band’ of three lines
separating the top half from the bottom half. Similarly, for timing purposes, there is a two pixel vertical black band separating the
left and right halves of the frame. (See the timing diagram below.)
6.2 Quarter mode line timing.
Standard Line
Left Quarter
Right Quarter
t1
t2
t3
t4
Pixel timings for AVO 1/4 Mode:
CCIR
EIA
Description
#t
t1
pck
cycles
Time
(us)
pck
cycles
Time
(us)
Left quarter Line Delay
1
0.1356
1
0.1667
Duration of left quarter line
190
25.4928
158
26.0052
Table 11 : Pixel Timings for 1/4 mode
16/33
CD5430F-A
VV5430
Shuffle Modes
CCIR
EIA
Description
#t
t2
pck
cycles
Time
(us)
pck
cycles
Time
(us)
Inter-quarter Interval
Duration of right quarter line
Right quarter border
2
0.2713
25.4928
0.1356
2
0.3333
26.0052
0.1667
190
1
158
1
t3
t4
Duration of standard SI
384
52.0704
320
53.3440
Table 11 : Pixel Timings for 1/4 mode
In addition there are line level signals to identify the top and bottom half of the active video area of the field: .
Description
Start line
Number of lines
CCIR
EIA
CCIR
EIA
Top half of field
First active line
Active line 145
First active line
Active line 124
142
142
120
120
Bottom half of field
Table 12 : Line Timings for 1/4 mode
There is a ‘black band’ of three video lines between the valid lines in the top half of the field and the valid lines in the bottom half
of the field. This ensures that both halves of the field are the same size and provides a horizontal frame line. The line level timing
described above also provides a two pixel vertical black line, hence the four quarters appear to be ‘framed’ in the display.
CD5430F-A
17/33
Exposure Control
VV5430
7. Exposure Control
Automatic exposure and gain control ensure operation of the VV5430 over a wide range of lighting conditions. Automatic black
level control and optional ‘Backlit’ mode further ensure consistent picture quality. The devices control exposure over a range of
99,000:1 in EIA mode and 146,000:1 in CCIR mode, and operates at illumination levels as low as 0.5 lux.
Note: The System Clock can be divided by up to eight times to further increase sensitivity by extending the exposure time. This,
of course, also reduces the frame rate to non-standard values.
Automatic exposure and gain control are enabled with AEC=1 (pin 21) and AGC=1 (pin22), but can be inhibited via the serial
interface (Setup Code_1). However, If AEC is inhibited by pin 21, AGC is also inhibited and the serial interface has no control.
Inhibiting AEC or AGC via the serial interface, or by taking pin 21 or 22 low, freezes the current value(s) for these, which can then
be altered by writing to the exposure and gain control registers. (See Serial Interface for details.)
Note: The timing of exposure and gain control messages on the serial interface is very important. External values for exposure
and gain are only applied at the start of a frame, and the serial interface must be paused until the new values are installed—no
further communications will be accepted during this time.
7.1 Automatic Exposure Control (AEC)
Automatic exposure control is achieved by varying pixel current integration time according to the average light level on the
sensor. This integration time can vary from one pixel clock period to one frame period.
Pixels above a threshold white level are counted every frame, and the number at the end of the frame defines the image as
overexposed, above average, correctly exposed, below average or underexposed. If the image is other than correctly exposed, a
new value for integration time is calculated and applied for the next frame. Corrections are either ±1/8 or ±1/64, depending upon
the degree of over or under exposure. If the exposure value is close to its limit (12% below max. or 25% above min.), then gainis
increased or decreased by one step and exposure is set to midway in its range. Exposure is then controlled as normal.
7.2 Automatic Gain Control (AGC)
The VV5430 automatically increases the system gain of its output stage if with the current gain setting and maximum exposure
the image is too dark. Gain can be varied from x1 to x16 in times-two steps, giving five different gain settings.
If the scene is too dark and the integration period has almost reached its maximum value, the gain value is incremented by one
step (times two). In the same frame period the exposure value is divided by two, halving the integration period. The exposure
controller then increases the exposure value as necessary. Similarly if the image is too bright and the integration period is short
then gain will be reduced by one step (divide by two) and the exposure value will be doubled. The exposure controller can then
adjust the exposure value as necessary to provide a correctly exposed image.
Increasing gain is limited to a programmable upper limit, for which the default value is x8. The gain upper limit is programmed by
setting bits [0..3] with header code 0101, when AGC=1. If Automatic Gain Control is inhibited (AGC=0), these registers are used
instead to select a gain setting up to x16.
18/33
CD5430F-A
VV5430
Exposure Control
7.3 Backlit Mode
The VV5430 can be configured to operate in two auto-exposure modes, selected by the BKLIT pin (pin28) state, or via the serial
interface (Setup Code_1, bit 0). The default mode (BKLIT = 0) provides exposure control for normally illuminated scenes. For
scenes where a bright background can cause the foreground subject to be severely under exposed, the ‘Backlit’ mode (BKLIT =
1) offers superior performance.
‘Backlit Mode’ (BKLIT=1) operates by using a higher threshold level for the exposure control comparator over the central area of
an image, which is therefore exposed for longer and so enhanced. The area in which the higher comparator threshold is used
when BKLIT=1 is illustrated below:
Normal operation (BKLIT=0)
Higher threshold area (BKLIT=1)
10%
30%
80%
25%
80%
90%
25%
75%
Exposure
control area
Visible
Higher
Threshold
Figure 7 : Backlit exposure region
Note: The threshold level used for the central area is a preset mutiple of the normal mode reference level, and is not
alterable. In some circumstances this may not be sufficient difference to cause a noticable effect on the overall expo-
sure of the image.
CD5430F-A
19/33
Serial Communication
VV5430
8. Serial Communication
The VV5430 includes a full duplex (two-wire) serial interface, and can be controlled and configured by a host processor. The base
bus address for the VV5430 is 20H, but the two least significant bits of the address (SAB0, SAB1) can be selected by hard-wiring
pins 20 and 16. This allows up to four separate camera devices to be controlled on one serial link, which, for example, makes
multiplexing of camera outputs possible.
The serial interface reads or writes data to a set of Registers that define the characterisation of the sensor, and control certain
operations.
8.1 Serial Communication Protocol
The host must perform the role of a communications master and the camera acts as either a slave receiver or transmitters
communication between host and camera takes the form of three or five byte messages of 8-bit data, with a maximum serial clock
(SCL) frequency of 100kHz. Since the serial clock is generated by the host, the host determines the data transfer rate.
The host processor initiates a message by forcing both Serial Data (SDA) and Serial Clock (SCL) low. The first byte addresses
the required device, and defines either a READ message (four bytes to follow) or a WRITE message (two bytes to follow). After
the camera has acknowledged a valid address (ACK, bit 9 of SCL), the host then either reads four bytes of data from the camera
or transmits a further two bytes to the camera. The data transfer protocol on the bus is illustrated below:
Start condition
Read/Write bit
Acknowledge from receiver
SDA
SCL
MSB
2
2
1
7
8
9
1
3 - 8
9
S
P
ACK
ACK
Stop condition
Figure 8 : Data Transfer Protocol
20/33
CD5430F-A
VV5430
Serial Communication
start stop
stop start
SDA
SCL
...
...
Tbuf
Tlo Tr
Tf
Thd;sta
Thd;sta
Thd;dat
Thi
Tsu;dat
Tsu;sta
Tsu;sto
Note: All values referred to the minimum input level (high) = 3.5V, and maximum input level (low) = 1.5V
Parameter
Symbol
Fscl
Min.
0
Max.
100
-
Unit
kHz
µs
SCL clock frequency
Bus free time between a
stop and a start
Tbuf
4.7
Hold time for a repeated
start
Thd;sta
4.0
-
µs
LOW period of SCL
HIGH period of SCL
Tlo
Thi
4.7
4.0
4.7
-
-
-
µs
µs
µs
Set-up time for a repeated
start
Tsu;sta
01
-
-
µs
ns
ns
ns
µs
pF
Data hold time
Data Set-up time
Thd;dat
Tsu;dat
Tr
250
Rise time of SCL, SDA
Fall time of SCL, SDA
Set-up time for a stop
-
-
1000
300
-
Tf
Tsu;sto
Cb
4.0
-
Capacitive load of each
bus line (SCL, SDA)
100
1. The VV5430 internally provides a hold time of at least 300ns for the SDA signal (referred
to the minimum input level (high) of the SCL signal) to bridge the undefined region of the
falling edge of SCL
Table 13 : Serial Interface Timing Characteristics
CD5430F-A
21/33
Read data from camera
VV5430
9. Read data from camera
Information describing the current configuration and the current exposure values can be read from the camera. The data is
formed into four bytes of 8 bits. Each pair of bytes is considered to be a data word and is read out msb first.
Camera acknowledge (valid address)
Read = 1
Master acknowledge
DATA[23:16]
R
/
S
A
A
A
ADDRESS[7:1]
DATA[31:24]
W
0 0 1 0 0 x x 1
Master acknowledge
DATA[7:0]
DATA[15:8]
A
A P
Figure 9 : Read Data Format
The following tables defines the information contained in the read messages. By default, the Primary Read Data is accessed;
only if a Secondary Read Select bit is set in Setup Code_2 (header code 0010) is the Secondary information read.
Primary Read Data:
Secondary Read Data:
Bit
Function
Bit
Function
31 - 23
Coarse Exposure Value (9 bits)
Fine Exposure Value (9 bits)
Gain Value (4 bits)
31 - 18
17
Undefined
22 - 14
Black Level monitor in progress
White Pixel count (17 bits)
13 - 10
16 - 0
9
8
Auto Exposure Control on/off
Internal Black Calibration on/off
Auto Gain Control on/off
Gamma or Linear Video Output
Normal or Backlit mode1
Undefined
7
6
5
4
3 - 0
Camera Type ID Code (4 bits)
1. Bit 5 of the Primary Read message only reflects the state
of the BKLIT pin, not the combined result of the pin and
the serial interface BKLIT control bit.
22/33
CD5430F-A
VV5430
Write to Camera
10. Write to Camera
Information to be communicated from host to camera consists of configuration data (for example automatic gain control ON), and
parametric information (for example sensor integration time). The write data is formed into two bytes. A 4-bit Header Code in the
first byte is used by the camera to determine the destination of the 12-bit message following the header.
Camera acknowledge
Write = 0
R
/
ADDRESS[7:1]
HEADER
DATA[11:8]
DATA[7:0]
S
A
A
A P
W
0 0 1 0 0 x x 0
Camera acknowledge (valid address)
Figure 10 : Receive Data Format
After the camera acknowledges the receipt of a valid address the host transfers the first data byte which the camera
acknowledges by pulling SDA low. The second byte is then sent followed by a final acknowledge from the camera. A stop
condition is produced by the host after the second message byte. As with the read procedure, the stop condition is not absolutely
necessary as the camera’s serial interface will reset automatically after two bytes have been received.
The valid Header Codes and their data structures are fully described in the following pages.
10.1 Timing Protocol
When an exposure or gain value has been written to the camera it is held in the interface until the camera is ready to consume
the new data. For correct operation, there should be no further read or write accesses to the camera during this hold period.
Normal communication between other modules connected to the serial interface will not cause problems. The minimum length of
the wait period is 40ms in EIA mode and 34ms in CCIR mode from the end of the data transfer.
CD5430F-A
23/33
Write to Camera
VV5430
10.2 Header Codes
The message can be a configuration word, an exposure, gain or calibration value. The camera’s interpretation of the header code
and the set-up code message are given in the table below. Defaults for each control bit are built in to the camera’s reset cycle,
and may be changed on-the-fly under host control.
Code
Interpretation
Invalid
Comment
0000
0001
0010
0011
0100
0101
0110
0111
1000
1001
1010
1011
1100
1101
1110
1111
Set-up code_1 (9 bits)
Set-up code_2 (9 bits)
Coarse exposure value (9 bits)
Fine exposure value (9 bits)
Gain control value (4 bits)
Unused
Basic funtionality options
Pixel control & Read Data
Set AEC=0 to enable
Set AEC=0 to enable
Set AGC=0 to enable
Unused
Exposure control T1 threshold (9 bit)
Exposure control T2 threshold (9 bit)
Analogue control register (8 bit)
Reserved
Not applicable to normal use
Not applicable to normal use
Not applicable to normal use
Pixel synchronisation
Reserved
Reserved
Set-up code_3 (6 bits)
Test mode select
Not applicable to normal use
Table 14 : Header Codes
10.3 Message content
The following Tables contain details of the data associated with each header code, and the number of valid data bits in each of
the registers. In all cases the full 12 bit message tail can be sent, the valid bits being packed to the lsb. (Normally, the unused bits
would be assigned zeroes.)
24/33
CD5430F-A
VV5430
Write to Camera
Setup Code_1
Header Code = 0001
Valid data bits: 11
The code_1 setup register is used to select different basic operating modes:
Bit
0
Function
Default
0
Comment
Normal/Backlit
Selects between normal and backlit exposure modes. The
power-on default is normal mode. See Exposure Control
for full description
Linear Correction enable
Auto gain control enable
Selects between a linear (LIN=1) or gamma corrected
video signal on AVO. The power-on default is gamma cor-
rected.
1
2
0
1
Allows automatic gain control to be inhibited. The current
gain value selected is frozen. With AGC=0 a new gain
value can be written to the gain register via the serial inter-
face (header code 0101).
Inhibit black calibration
Allows automatic black calibration to be inhibited.
3
4
0
1
Auto exposure control enable
Allows automatic exposure control to be inhibited. The cur-
rent exposure value selected is frozen. Note that if auto-
matic exposure control is inhibited then automatic gain
control is also disabled. With AEC=0 a new exposure
value can be selected by writing to the coarse and fine
exposure registers via the serial interface (header codes
0011 & 0100).
Horizontal shuffle enable
Vertical shuffle enable
Shuffles the read out of the horizontal shift register. Even
columns read out together then odd columns.
5
6
0
0
Shuffles the readout of the vertical shift register. Even
lines read out together then odd lines.
Force black calibration
Clock divisor DIV0
Clock divisor DIV1
Internal Register
Not used
Requests a re-calibration of the black level while bit is low.
7
8
1
0
0
0
0
System clock division: (see Note)
0,0=1; 0,1=÷2; 1,0=÷4; 1,1=÷8
9
This bit must be set to 0 for correct sensor operation
10
11
Table 15 : Set-up code_1
Note: Decreasing the system clock rate proportionately increases sensor sensitivity (by increasing exposure time), but
also decreases frame frequency. System Clock must be x1 for standard CCIR or EIA framing.
CD5430F-A
25/33
Write to Camera
Setup Code_2
VV5430
Header Code = 0010
Valid data bits: 12
The code_2 setup register is used to select read data, valid pixels and video output operating modes:
Bit
Function
Default
Comment
Primary read mode (A) enable
Secondary read mode (B) enable
Pixel sample clock select (SEL0)
Pixel sample clock select (SEL1)
Not used
0
1
2
3
4
5
6
0
0
Select Primary read mode A or B.
Note: bits 0,1 are mutually exclusive.
CPE
0
Pixel sample clock mode (PV/PVB). See
below.
MUST be set to 0
0
Enable free running pixel clock
Enable external pixel thresholds
Overrides SEL0 & SEL1.
0
Use external algorithm thresholds in expo-
sure controller
0
Not used
Not used
OE[0]
MUST be set to 0
MUST be set to 0
7
8
0
0
0
0
0
9
AVO output enable control bits [0..2]. See
Shuffle Modes above for explanation.
OE[1]
10
11
OE[2]
Table 16 : Setup Code_2
The table below shows the function of SEL0 and SEL1 (Bit 2 and Bit 3); the default value of SEL0 is set by the CPE pin level:
Bit 3
Bit 2
Pixel Clock (PV/PVB pins) function
Disable pixel clock output
0
0
1
1
0
1
0
1
Qualify full image area (as defined for CCIR or EIA)
Qualify central 256 x 256 pixels (CCIR only)
PV/PVB active only during interline periods of visible image lines.
Note. This mode is required for digitisation of standard video output.
Table 17 : SEL0 and SEL1 bits
Coarse and Fine Exposure Values.
Header Code (coarse)
= 0011
Valid data bits: 9
26/33
CD5430F-A
VV5430
Write to Camera
Header Code (fine)
= 0100
Valid data bits: 9
The 18 bit exposure control value is formed from two 9-bit values, coarse (9 msb’s) and fine (9 lsb’s). For external exposure
control (AEC = 0) the exposure value can be set via the serial interface (header codes 0011 and 0100). Values written that
exceed the mode dependant maxima will be ignored and the maximum will be used.
CCIR
min
max
EIA
min
max
Bit
Function
Comments
0-8
0-8
Coarse exposure value
Fine exposure value
Unused
0
0
310
404
0
0
260
325
Header code 0011
Header code 0100
9-11
Table 18 : Exposure Values
Exposure Control Thresholds T1 and T2
Header Code (T1)
= 1000
= 1001
Valid data bits: 9
Header Code (T2)
Valid data bits: 9
The lower and upper pixel count thresholds are used by the automatic exposure controller. The power-on default values for T1
and T2 are exposure mode and video mode dependant. If the external pixel threshold control bit (bit 6 in Setup Code_2 register)
is set the internal default values for T1 and T2 are overridden by the serial interface values. Note that only the most significant
nine bits of each seventeen bit threshold can be controlled.
Bit
DAC
Comments
Lower Exposure control threshold (T1)
Upper Exposure control threshold (T2)
Unused
Header Code 1000
Header Code 1001
0 - 8
0 - 8
9 - 11
Table 19 : Pixel Count Thresholds (T1,T2)
CD5430F-A
27/33
Write to Camera
VV5430
Gain and Gain Ceiling
Header Code = 0101
Valid data bits: 4
This register is used to select an external gain value when automatic gain control is inhibited (AGC = 0) and to set the gain ceiling
while automatic gain control is active (AGC = 1).
Bit
Function
Default
Comment
Gain value G[0]
Gain value G[1]
Gain value G[2]
Gain Value G[3]
Unused
Default gain value
0
1
0
0
0
0
2
Default gain ceiling
3
4-11
Table 20 : Gain Register
The table below shows the valid gain codes.
G[3] G[2] G[1] G[0] Gain
Comment
Default gain value
0
0
0
0
1
0
0
0
1
1
0
0
1
1
1
0
1
1
1
1
1
2
4
Default gain ceiling
8
16
Table 21 : Gain Values
28/33
CD5430F-A
VV5430
Write to Camera
Analogue Control Register
Header Code = 1010
Valid data bits: 10
A number of parameters that are used to define internal operations can be altered by the serial interface:
Bit
Function
Default
Comments
Internal
Internal
Must be set(=1) for normal op.
Must be 0 for normal op.
Must be 0 for normal op.
0
1
2
3
4
5
6
7
8
9
1
0
0
0
0
0
0
0
0
0
Internal
Disable anti-blooming protection
Internal
Must be 0 for normal op.
Must be 0 for normal op.
Internal
Enable external black reference
Enable external white threshold
Internal
Must be 0 for normal op.
Enable binarisation of AVO output
AVO output level is either VBLACK
or VWHITE for each pixel (see
Note)l
Table 22 : Control Register
Note: The Threshold Level above which a pixel is deemed to be WHITE is set via the serial interface, Header Codes
1001 and 1000 (Upper and Lower Exposure Control Thresholds).
CD5430F-A
29/33
Write to Camera
Setup Code_3
VV5430
Header Code = 1110
Valid data bits: 7
This register stores data used during sensor synchronisation and when the pixel counter in the video timing logic is reset, either at
the end of a video line or when the sensor is forced to synchronise externally.
Bit
5:0
Function
Default
3
Comment
Video timing pixel counter offset
Variable offset that is added to the fixed pixel
counter preset value when the counter is reset, at
the end of a video line or when an external syn-
chronisation is applied
Enable SNO
Not used
Synchronising signal to other cameras in multi-
camera applications (see Note)
6
0
0
11:7
Table 23 : Set-Up Code_3
Note: Enable SNO adjusts the timing of the FST signal (output on pin 36) to correctly synchronise external slave cam-
eras. Alternatively, the synchronising signal for all cameras can be generated externally, which may be more useful in
image processing applications.
30/33
CD5430F-A
VV5430
Example Support Circuit
11. Example Support Circuit
AVD
VDD
8
REG1
1
R1
+7 to +12v dc
0v
2, 3,
6, 7
C5
C6
C1
C2
C3
C4
24
C7
34 41
1
7
13
27
Component
IC1
Value
VDD1 VDD2
DVDD
MONITOR
AVCC AVDD VVDD
AVO
R4
14
VSS1
VV5430
LM78L05
31
42
10
48
15
38
VSS2
DVSS
AVSS
VGND
SCI
IC1
30
18
REG1
LST
(48 pin LCC)
SCE
AGND
23
36
C1,C2
C3
0.22 µF
68 µF
CCIR
16
SAB1
SAB0
20
28
19
FST
VDD
(6V Tant.)
0.1 µF
33
32
37
PVB
PV
BKLIT
LIN
C4 - C9,C13,
C15 - C19
C10
ODD
22
21
AGC
AEC
4.7µF
10 pF
100pF
11
12
8
AMP2
AMP1
C11, C12
C14
VV5430
44
45
C19
VBLOOM
VRT
EBCK
C8
C9
C18
C17
9
EVWT
R1
R2
R3
R4
5R6
10R
10M
75R
VBLTW
R5
43
46
47
VCM
DNC
6
5
VREF2V7
C10
DEC2V7
C16
39
40
SCL
SCL
SDA
DEC2V2
4
3
C15
Use Surface Mount components
throughout.
SDA
VOFF/VPED
RESETB
CPE
29
CKIN CKOUT
26
VBG
SIN
17
2
C13
C14
25
R2
35
R3
C11
C12
X1
VDD
1. Keep nodes Supply and Ground pins low impedance and independent
2. Video output should be referred to VGND.
3. Keep circuit components close to chip pins (especially de-coupling capacitors)
CD5430F-A
31/33
Ordering Details
VV5430
12. Ordering Details
STMicroelectronics recommends using their Evaluation Kits for initial evaluation of sensors. For the VV5430 sensors the
Evaluation Kit comprises a lensed board camera attached to an embedded microcontroller, and an LCD display in a plastic case.
Buttons are provided to control the different options of the sensor in real time. In addition software is provided to allow cont rol of
the sensor from a PC running Windows95, via the serial port.
Part Number
Description
Defect specification
VV5430C001
CCIR/EIA Enhanced Mono-
chrome Analog Video Image
Sensor, 48 pin LCC package
As per Defect
Specification,
Section 2.2
EVK-5430-001
EVK-5430-002
CCIR Evaluation Kit for
VV5430 sensor
As per Defect
Specification,
Section 2.2
EIA Evaluation Kit for VV5430
sensor
As per Defect
Specification,
Section 2.2
32/33
CD5430F-A
VV5430
Information furnished is believed to be accurate and reliable. However, STMicroelectronics assumes no responsibility for the
consequences of use of such information nor for any infringement of patents or other rights of third parties which may result from
its use. No license is granted by implication or otherwise under any patent or patent rights of STMicroelectronics. Specifications
mentioned in this publication are subject to change without notice. This publication supersedes and replaces all information
previously supplied. STMicroelectronics products are not authorized for use as critical components in life support devices or
systems without express written approval of STMicroelectronics
The ST logo is a registered trademark of STMicroelectronics
© 1999 STMicroelectronics - All Rights Reserved
.
asiapacific_sales@vvl.co.uk
central _europe_sales@vvl.co.uk
www.vvl.co.uk
www.st.com
france_sales@vvl.co.uk
japan_sales@vvl.co.uk
nordic_sales@vvl.co.uk
southern_europe_sales@vvl.co.uk
uk_eire_sales@vvl.co.uk
usa_sales@vvl.co.uk
®
VLSI VISION
LIMITED
A company of the ST Microelectronics Group
33/33
CD5430F-A
厂商 型号 描述 页数 下载

ETC

VV5300 带有片上ADC集成的CMOS图像传感器[ Integrated CMOS Image Sensor with on-chip ADC ] 43 页

ETC

VV5402 VV5402单片传感器[ VV5402 Monolithic Sensor ] 16 页

STMICROELECTRONICS

VV5404 黑白和彩色数字视频CMOS图像传感器[ Mono and Colour Digital Video CMOS Image Sensors ] 54 页

STMICROELECTRONICS

VV5404C001 黑白和彩色数字视频CMOS图像传感器[ Mono and Colour Digital Video CMOS Image Sensors ] 54 页

STMICROELECTRONICS

VV5410 黑白和彩色数字视频CMOS图像传感器[ Mono and Colour Digital Video CMOS Image Sensors ] 105 页

STMICROELECTRONICS

VV5410C036 黑白和彩色数字视频CMOS图像传感器[ Mono and Colour Digital Video CMOS Image Sensors ] 105 页

STMICROELECTRONICS

VV5430C001 单色模拟输出CMOS图像传感器[ Monochrome Analog Output CMOS Image Sensors ] 33 页

PDF索引:

A

B

C

D

E

F

G

H

I

J

K

L

M

N

O

P

Q

R

S

T

U

V

W

X

Y

Z

0

1

2

3

4

5

6

7

8

9

IC型号索引:

A

B

C

D

E

F

G

H

I

J

K

L

M

N

O

P

Q

R

S

T

U

V

W

X

Y

Z

0

1

2

3

4

5

6

7

8

9

Copyright 2024 gkzhan.com Al Rights Reserved 京ICP备06008810号-21 京

0.242235s
