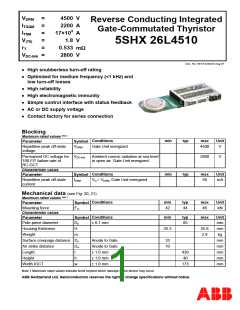

5SHX26L4510

型号：

5SHX26L4510

描述：

反向开展集成门极换流晶闸管[ Reverse Conducting Integrated Gate-Commutated Thyristor ]

品牌：

ABB[ THE ABB GROUP ]

页数：

13 页

PDF大小：

730 K

下载PDF手册
VDRM
ITGQM
ITSM
=
=
=
=
=
=
4500 V
2200 A
17×103 A
1.8 V
Reverse Conducting Integrated
Gate-Commutated Thyristor
V(T0)
rT
5SHX 26L4510
0.533
mW
VDC-link
2800 V
Doc. No. 5SYA1230-03 Aug 07
· High snubberless turn-off rating
· Optimized for medium frequency (<1 kHz) and
low turn-off losses
· High reliability
· High electromagnetic immunity
· Simple control interface with status feedback
· AC or DC supply voltage
· Contact factory for series connection
Blocking
Maximum rated values Note 1
Conditions
min
min
typ
typ
max
Unit
Parameter
Symbol
Repetitive peak off-state
voltage
VDRM
Gate Unit energized
4500
V
Permanent DC voltage for VDC-link
100 FIT failure rate of
RC-GCT
Ambient cosmic radiation at sea level
in open air. Gate Unit energized
2800
V
Characteristic values
Conditions
max
Unit
Parameter
Symbol
Repetitive peak off-state
current
IDRM
VD = VDRM, Gate Unit energized
50
mA
Mechanical data (see Fig. 20, 21)
Maximum rated values Note 1
Conditions
min
typ
max
Unit
Parameter
Symbol
Mounting force
Characteristic values
Parameter
Fm
42
44
46
kN
Conditions
min
typ
max
Unit
mm
mm
kg
Symbol
Pole-piece diameter
Dp
± 0.1 mm
85
Housing thickness
Weight
H
25.3
25.8
2.9
m
Surface creepage distance Ds
Anode to Gate
Anode to Gate
± 1.0 mm
33
10
mm
mm
mm
mm
mm
Air strike distance
Length
Da
l
439
40
Height
h
± 1.0 mm
Width IGCT
w
± 1.0 mm
173
Note 1 Maximum rated values indicate limits beyond which damage to the device may occur
ABB Switzerland Ltd, Semiconductors reserves the right to change specifications without notice.
5SHX 26L4510
GCT Data
On-state (see Fig. 3 to 6, 23)
Maximum rated values Note 1
Conditions
min
typ
max
Unit
Parameter
Symbol
IT(AV)M
Max. average on-state
current
Half sine wave, TC = 85 °C,
Double side cooled
1010
A
Max. RMS on-state current IT(RMS)
1590
17×103
A
A
Max. peak non-repetitive
surge on-state current
ITSM
tp = 10 ms, Tj = 125 °C, sine wave
after surge: VD = VR = 0 V
Limiting load integral
I2t
1.45×106 A2s
25×103
Max. peak non-repetitive
surge on-state current
ITSM
tp = 3 ms, Tj = 125 °C, sine wave
after surge: VD = VR = 0 V
A
Limiting load integral
I2t
938×103 A2s
Critical rate of rise of on-
state current
diT/dtcr For higher diT/dt and current lower
than 100 A an external retrigger
pulse is required.
100
A/µs
Characteristic values
Parameter
Conditions
min
typ
max
2.95
1.8
Unit
V
Symbol
On-state voltage
VT
IT = 2200 A, Tj = 125 °C
2.3
2.6
Threshold voltage
Slope resistance
V(T0)
rT
Tj = 125 °C
IT = 400...3000 A
V
0.533
mW
Turn-on switching (see Fig. 23, 25)
Maximum rated values Note 1
Conditions
Symbol
min
min
typ
typ
max
Unit
Parameter
Critical rate of rise of on-
state current
Characteristic values
Parameter
diT/dtcr f = 0..500 Hz, Tj = 125 °C,
IT = 2200 A, VD = 2800 V
650
A/µs
Conditions
max
3.5
7
Unit
µs
Symbol
Turn-on delay time
tdon
VD = 2800 V, Tj = 125 °C
IT = 2200 A, di/dt = VD / Li
Li = 5 µH
Turn-on delay time status
feedback
tdon SF
µs
CCL = 10 µF, LCL = 0.3 µH
Rise time
tr
1
µs
J
Turn-on energy per pulse
Eon
0.85
Turn-off switching (see Fig. 7, 8, 23, 25)
Maximum rated values Note 1
Conditions
min
typ
max
Unit
Parameter
Symbol
Max. controllable turn-off
current
ITGQM
2200
A
V
DM £ VDRM, Tj = 125 °C,
VD = 2800 V, RS = 0.65 W,
CCL = 10 µF, LCL £ 0.3 µH
Max. controllable turn-off
current
ITGQM
1100
A
V
DM £ VDRM, Tj = 125 °C,
VD = 3200 V, RS = 0.65 W,
CCL = 10 µF, LCL £ 0.3 µH
Characteristic values
Parameter
Conditions
VD = 2800 V, Tj = 125 °C
min
typ
max
Unit
µs
Symbol
Turn-off delay time
tdoff
7
7
VDM £ VDRM, RS = 0.65 W
Turn-off delay time status
feedback
tdoff SF
µs
ITGQ = 2200 A, Li = 5 µH
CCL = 10 µF, LCL = 0.3 µH,
Turn-off energy per pulse
Eoff
7.8
12
J
ABB Switzerland Ltd, Semiconductors reserves the right to change specifications without notice.
Doc. No. 5SYA1230-03 Aug 07
page 2 of 13
5SHX 26L4510
Diode Data
On-state (see Fig. 9 to 12, 24, 25)
Maximum rated values Note 1
Conditions
min
typ
max
390
Unit
Parameter
Symbol
Max. average on-state
current
IF(AV)M
Half sine wave, TC = 85 °C
A
Max. RMS on-state current IF(RMS)
620
10.6×103
A
A
Max. peak non-repetitive
surge current
IFSM
tp = 10 ms, Tvj = 125°C, VR = 0 V
tp = 3 ms, Tvj = 125°C, VR = 0 V
Limiting load integral
I2t
561.8×103 A2s
14.3×103
Max. peak non-repetitive
surge current
IFSM
A
Limiting load integral
Characteristic values
Parameter
I2t
306.7×103 A2s
Conditions
min
typ
max
5.4
Unit
V
Symbol
On-state voltage
VF
IF = 2200 A, Tvj = 125°C
3.54
4.25
Threshold voltage
Slope resistance
V(F0)
rF
Tvj = 125°C
IF = 400...3000 A
2.7
V
1.24
mW
Turn-on (see Fig. 24, 25)
Characteristic values
Conditions
min
min
min
typ
typ
typ
max
80
Unit
V
Parameter
Symbol
Peak forward recovery
voltage
VFRM
dIF/dt = 650 A/µs, Tvj = 125°C
dIF/dt = 3000 A/µs, Tvj = 125°C
250
V
Turn-off (see Fig. 13 to 17, 24, 25)
Maximum rated values Note 1
Conditions
Symbol
max
Unit
Parameter
Max. decay rate of on-state di/dtcrit
current
IFM = 2200 A, Tvj = 125 °C
VDClink = 2800 V
650
A/ms
Max. decay rate of on-state di/dtcrit
current
Characteristic values
IFM = 3200 A, Tvj = 125 °C
VDClink = 2800 V
650
A/ms
Conditions
max
900
2800
4
Unit
A
Parameter
Symbol
IFM = 2200 A, VDC-Link = 2800 V
-dIF/dt = 650 A/µs, LCL = 300 nH
CCL = 10 µF, RS = 0.8 W,
Reverse recovery current
IRM
Reverse recovery charge
Turn-off energy
Qrr
Err
µC
J
2.7
Tvj = 125°C, DCL = 5SDF 10H4520
ABB Switzerland Ltd, Semiconductors reserves the right to change specifications without notice.
Doc. No. 5SYA1230-03 Aug 07
page 3 of 13
5SHX 26L4510
Gate Unit Data
Power supply (see Fig. 18, 19)
Maximum rated values Note 1
Conditions
Symbol
min
typ
max
Unit
Parameter
Gate Unit voltage
(Connector X1)
VGIN,RMS AC square wave amplitude (15 kHz
- 100kHz) or DC voltage. No
28
40
V
galvanic isolation to power circuit.
Min. current needed to power IGIN Min Rectified average current
2.1
A
up the Gate Unit
see application note 5SYA 2031
Gate Unit power consumption PGIN Max
100
W
Characteristic values
Conditions
Symbol
min
typ
max
Unit
Parameter
Internal current limitation
IGIN Max Rectified average current limited by
the Gate Unit
8
A
Optical control input/output 2) (see Fig. 23)
Maximum rated values Note 1
Conditions
min
40
typ
typ
max
Unit
µs
Parameter
Symbol
Min. on-time
ton
Min. off-time
Characteristic values
Parameter
toff
40
µs
Conditions
min
max
-1
Unit
dBm
dBm
dBm
dBm
ns
Symbol
Optical input power
Pon CS
-15
CS: Command signal
Poff CS SF: Status feedback
Optical noise power
-45
-1
Valid for 1mm plastic optical fiber
Optical output power
Optical noise power
Pon SF
Poff SF
-19
(POF)
-50
400
1100
Pulse width threshold
tGLITCH Max. pulse width without response
External retrigger pulse width
tretrig
600
ns
2) Do not disconnect or connect fiber optic cables while light is on.
Connectors 2) (see Fig. 20 to 22)
Description
Parameter
Symbol
Gate Unit power connector
X1
AMP: MTA-156, Part Number 641210-5 3)
Avago, Type HFBR-2528 4)
Avago, Type HFBR-1528 4)
LWL receiver for command signal
CS
SF
LWL transmitter for status feedback
2) Do not disconnect or connect fiber optic cables while light is on.
3) AMP, www.amp.com
4) Avago Technologies, www.avagotech.com
Visual feedback (see Fig. 22)
Description
Symbol
Color
Parameter
Gate OFF
LED1 "Light" when GCT is off
(green)
(yellow)
(red)
Gate ON
LED2 "Light" when gate-current is flowing
LED3 "Light" when not ready / Failure
LED4 "Light" when power supply is within specified range
Fault
Power supply voltage OK
(green)
ABB Switzerland Ltd, Semiconductors reserves the right to change specifications without notice.
Doc. No. 5SYA1230-03 Aug 07
page 4 of 13
5SHX 26L4510
Thermal
Maximum rated values Note 1
Conditions
min
0
typ
typ
max
Unit
°C
Parameter
Symbol
Junction operating temperature
Tvj
125
60
Storage temperature range
Tstg
Ta
-40
0
°C
Ambient operational temperature
Characteristic values
50
°C
Conditions
min
max
12.6
4.2
Unit
K/kW
K/kW
Parameter
Symbol
Thermal resistance junction-to-case
of GCT
Rth(jc)
Double side cooled
No heat flow between GCT
and Diode part
Thermal resistance case-to-
heatsink of GCT
Rth(ch)
Rth(jc)
Rth(ch)
Thermal resistance junction-to-case
of Diode
Double side cooled
26
K/kW
K/kW
No heat flow between GCT
and Diode part
Thermal resistance case-to-
heatsink of Diode
10.4
Analytical function for transient thermal
impedance:
n
Z
thJC (t) =
R
(1 - e-t/t i )
i
å
i=1
GCT
i
1
2
3
4
Ri(K/kW)
8.769
0.5407
1.909
1.218
0.0091
0.699
0.0025
0.0792
ti(s)
Diode
i
1
2
3
4
Ri(K/kW)
ti(s)
17.057
0.5460
5.007
0.0829
2.498
0.0089
1.439
0.0023
Fig. 1 Transient thermal impedance (junction-to-
case) vs. time (max. values)
Max. Turn-off current for Lifetime operation
·
·
·
calculated lifetime of on-board capacitors
20 years
with slightly forced air cooling (air velocity
> 0.5 m/s)
strong air cooling allows for increased
ambient temperature
Fig. 2 Max. turn-off current vs. frequency for lifetime
operation
ABB Switzerland Ltd, Semiconductors reserves the right to change specifications without notice.
Doc. No. 5SYA1230-03 Aug 07
page 5 of 13
5SHX 26L4510
GCT Part
Max. on-state characteristic model:
Max. on-state characteristic model:
VT125
VT25
= A +B ×IT +C ×ln(IT +1)+D × IT
= A +B ×IT +C ×ln(IT +1)+D × IT
Tvj
Tvj
Tvj
Tvj
Tvj
Tvj
Tvj
Tvj
Valid for iT = 300 – 15000 A
Valid for iT = 300 – 15000 A
B25 C25
-79.1×10-3 272.3×10-6 296.9×10-3
A25
D25
A125
B125
C125
312.7×10-3
D125
0.0
-342.7×10-3 414.9×10-6
0.0
Fig. 3 GCT on-state voltage characteristics
Fig. 4 GCT on-state voltage characteristics
Fig. 5 GCT surge on-state current vs. pulse length,
Fig. 6 GCT surge on-state current vs. number of
half-sine wave
pulses, half-sine wave, 10 ms, 50Hz
ABB Switzerland Ltd, Semiconductors reserves the right to change specifications without notice.
Doc. No. 5SYA1230-03 Aug 07
page 6 of 13
5SHX 26L4510
Fig. 7 GCT turn-off energy per pulse vs. turn-off
Fig. 8 GCT Safe Operating Area
current
ABB Switzerland Ltd, Semiconductors reserves the right to change specifications without notice.
Doc. No. 5SYA1230-03 Aug 07
page 7 of 13
5SHX 26L4510
Diode Part
Max. on-state characteristic model:
Max. on-state characteristic model:
VF125
VF25
= A +B ×IT +C ×ln(IT +1)+D × IT
= A +B ×IT +C ×ln(IT +1)+D × IT
Tvj
Tvj
Tvj
Tvj
Tvj
Tvj
Tvj
Tvj
Valid for IT = 300 – 15000 A
Valid for IF = 300 – 15000 A
B25 C25
-463.7×10-3 867.9×10-6 495.5×10-3
A25
D25
A125
B125
C125
555.4×10-3
D125
0.0
-1.2
1.0×10-3
0.0
Fig. 9 Diode on-state voltage characteristics
Fig. 10 Diode on-state voltage characteristics
Fig. 11 Diode surge on-state current vs. pulse length,
Fig. 12 Diode surge on-state current vs. number of
half-sine wave
pulses, half-sine wave, 10 ms, 50Hz
ABB Switzerland Ltd, Semiconductors reserves the right to change specifications without notice.
Doc. No. 5SYA1230-03 Aug 07
page 8 of 13
5SHX 26L4510
Fig. 13 Upper scatter range of diode turn-off energy
Fig. 14 Upper scatter range of diode turn-off energy
per pulse vs. turn-off current
per pulse vs decay rate of on-state current
Fig. 15 Upper scatter range of diode reverse recovery
Fig. 16 Upper scatter range of diode reverse recovery
charge vs decay rate of on-state current
current vs decay rate of on-state current
ABB Switzerland Ltd, Semiconductors reserves the right to change specifications without notice.
Doc. No. 5SYA1230-03 Aug 07
page 9 of 13
5SHX 26L4510
Fig. 17 Diode Safe Operating Area
Fig. 18 Max. Gate Unit input power in chopper mode
Fig. 19 Burst capability of Gate Unit
ABB Switzerland Ltd, Semiconductors reserves the right to change specifications without notice.
Doc. No. 5SYA1230-03 Aug 07
page 10 of 13
5SHX 26L4510
Fig. 20 Outline drawing; all dimensions are in millimeters and represent nominal values unless stated otherwise
1) VGIN (AC or DC+)
2) VGIN (AC or DC+)
3) Cathode
4) VGIN (AC or DC-)
5) VGIN (AC or DC-)
Fig. 21 Detail A: pin out of supply connector X1.
RC-IGCT
Gate Unit
RC-GCT
Anode
Supply (VGIN
)
X1
Internal Supply (No galvanic isolation to power circuit)
LED1
Gate
LED2
LED3
LED4
Turn-
On
Circuit
Logic
Command Signal (Light)
Status Feedback (Light)
Cathode
Rx
CS
SF
Monitoring
Turn-
Off
Circuit
Tx
Fig. 22 Block diagram
ABB Switzerland Ltd, Semiconductors reserves the right to change specifications without notice.
Doc. No. 5SYA1230-03 Aug 07
page 11 of 13
5SHX 26L4510
Turn-on
External
Turn-off
Retrigger pulse
dIT/dt
VDM
ITM
VDSP
VD
VD
IT
0.9 VD
IT
0.4 ITGQ
0.1 VD
VD
CS
SF
CS
SF
CS
SF
tretrig
tdoff SF
tdoff
tdon SF
tdon
tr
ton
toff
Fig. 23 General current and voltage waveforms with IGCT-specific symbols
VF(t), IF (t)
dIF/dt
IF (t)
-dIF/dt
IF (t)
VFR
Qrr
VF (t)
VF (t)
t
tfr
tfr (typ) 10 µs
VR (t)
IRM
Fig. 24 General current and voltage waveforms with Diode-specific symbols
ABB Switzerland Ltd, Semiconductors reserves the right to change specifications without notice.
Doc. No. 5SYA1230-03 Aug 07
page 12 of 13
5SHX 26L4510
Li
LCL
DUT
GCT - part
DCL
Rs
CCL
VDC
DUT
Diode - part
LLoad
Fig. 25 Test circuit
Related documents:
5SYA 2031
5SYA 2032
5SYA 2036
5SYA 2046
5SYA 2048
5SYA 2051
5SZK 9107
Applying IGCT Gate Units
Applying IGCTs
Recommendations regarding mechanical clamping of Press Pack High Power Semiconductors
Failure rates of IGCTs due to cosmic rays
Field measurements on High Power Press Pack Semiconductors
Voltage ratings of high power semiconductors
Specification of enviromental class for pressure contact IGCTs, OPERATION available on request, please contact factory
Please refer to http://www.abb.com/semiconductors for current version of documents.
ABB Switzerland Ltd, Semiconductors reserves the right to change specifications without notice.
ABB Switzerland Ltd
Semiconductors
Doc. No. 5SYA1230-03 Aug 07
Fabrikstrasse 3
CH-5600 Lenzburg, Switzerland
Telephone +41 (0)58 586 1419
Fax
+41 (0)58 586 1306
Email
Internet
abbsem@ch.abb.com
www.abb.com/semiconductors
厂商 型号 描述 页数 下载

ABB

 		5SHX03D6004 反向开展集成门极换流晶闸管[ Reverse Conducting Integrated Gate-Commutated Thyristor ] 9 页

ABB

 		5SHX04D4502 反向开展集成门极换流晶闸管[ Reverse Conducting Integrated Gate-Commutated Thyristor ] 9 页

ABB

 		5SHX06F6010 反向开展集成门极换流晶闸管[ Reverse Conducting Integrated Gate-Commutated Thyristor ] 13 页

ABB

 		5SHX08F4510 反向开展集成门极换流晶闸管[ Reverse Conducting Integrated Gate-Commutated Thyristor ] 13 页

ABB

 		5SHX10H6010 反向开展集成门极换流晶闸管[ Reverse Conducting Integrated Gate-Commutated Thyristor ] 13 页

ABB

 		5SHX14H4510 反向开展集成门极换流晶闸管[ Reverse Conducting Integrated Gate-Commutated Thyristor ] 13 页

ABB

 		5SHX19L6010 反向开展集成门极换流晶闸管[ Reverse Conducting Integrated Gate-Commutated Thyristor ] 13 页

ABB

 		5SHY35L4510 不对称的集成网关换流晶闸管[ Asymmetric Integrated Gate- Commutated Thyristor ] 9 页

ABB

 		5SHY35L4511 不对称的集成网关换流晶闸管[ Asymmetric Integrated Gate- Commutated Thyristor ] 9 页

ABB

 		5SHY35L4512 不对称的集成网关换流晶闸管[ Asymmetric Integrated Gate- Commutated Thyristor ] 9 页

购物指南

支付方式

配送服务

售后服务

发票须知

优惠券使用规则

特色服务

PCBA制造

国产品牌推荐

国产料号替代

质量保证

技术资料

行业资讯

关于我们

关于壹壹捌

联系我们

联系我们

服务热线：400-618-9990

企业邮箱：sales@ic118.com

服务时间：周一至周六 8:30-17:30

壹壹捌官方微信号

PDF索引：

A

B

C

D

E

F

G

H

I

J

K

L

M

N

O

P

Q

R

S

T

U

V

W

X

Y

Z

0

1

2

3

4

5

6

7

8

9

IC型号索引：

A

B

C

D

E

F

G

H

I

J

K

L

M

N

O

P

Q

R

S

T

U

V

W

X

Y

Z

0

1

2

3

4

5

6

7

8

9

Copyright 2024 gkzhan.com Al Rights Reserved 京ICP备06008810号-21 京

深圳网络警察报警平台
公共信息安全网络监察
经营性网站备案信息
不良信息举报中心
工商网监电子标识
全国公安机关备案
0.204128s
