OXFW900

型号：

OXFW900

描述：

IEEE1394到ATA / ATAPI本地桥[ IEEE1394 to ATA/ATAPI Native Bridge ]

品牌：

ETC[ ETC ]

页数：

30 页

PDF大小：

187 K

下载PDF手册

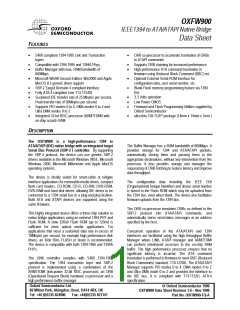

OXFW900
IEEE1394 to ATA/ATAPI Native Bridge
Data Sheet
FEATURES
·
S400 compliant 1394-1995 Link and Transaction
layers
·
ORB co-processor to accelerate translation of ORBs
to ATAPI commands
·
·
Compatible with 1394-1995 and 1394A Phys.
Buffer Manager with max. RAM bandwidth of
800Mbps
Microsoft Win98-Second Edition, Win2000 and Apple
MacOS 8.5 generic driver support
SBP-2 Target Revision 4 compliant interface
Fully ATA-4 compliant (see T13-1153D)
Sustained IDE transfer rate of 25 Mbytes per second,
Peak transfer rate of 50Mbytes per second.
Supports PIO modes 0 to 4, DMA modes 0 to 2 and
Ultra DMA modes 0 to 2
·
·
Supports ORB chaining for increased performance
High performance ATA command translation in
firmware using Reduced Block Command (RBC) set
Optional External Serial ROM interface for
configuration data, user serial number, etc.
Blank Flash memory programming feature via 1394
bus
3.3 Volts operation
Low Power CMOS
Firmware and Flash Programming Utilities supplied by
Oxford Semiconductor
ultra-thin 128-TQFP package (14mm x 14mm x 1mm )
·
·
·
·
·
·
·
·
·
·
·
Integrated 32-bit RISC processor (ARM7TDMI) with
on-chip scratch RAM
·
DESCRIPTION
The OXFW900 is
a high-performance 1394 to
ATA/ATAPI (IDE) native bridge with an integrated target
Serial Bus Protocol (SBP-2 ) controller. By supporting
the SBP-2 protocol, the device can use generic SBP-2
drivers available in the Microsoft Windows 98SE, Microsoft
Windows 2000, Microsoft Millennium and Apple MacOS
operating systems.
The Buffer Manager has a RAM bandwidth of 800Mbps. It
provides storage for 1394 and ATA/ATAPI packets,
automatically storing them and passing them to the
appropriate destinations, without any intervention from the
processor. It also provides storage and manages the
sequencing of ORB fetching to reduce latency and improve
data throughput.
The device is ideally suited for smart-cable or tailgate
interface applications for removable-media drives, compact
flash card readers, CD-ROM, CD-R, CD-RW, DVD-ROM,
DVD-RAM and hard disk drives, allowing IDE drives to be
connected to a 1394 serial bus in a plug-and-play fashion.
Both ATA and ATAPI devices are supported using the
same firmware.
The configuration data including the IEEE OUI
(Organisational Unique Identifier) and device serial number
is stored in the Flash ROM which may be uploaded from
the 1394 bus, even when blank. The device also facilitates
firmware uploads from the 1394 bus.
The ORB co-processor translates ORBs as defined in the
SBP-2 protocol into ATA/ATAPI commands, and
automatically stores error/status messages at an address
specified by the host.
This highly integrated device offers a three-chip solution to
native bridge applications using an external 1394 PHY and
Flash ROM. A slow 32Kx8 Flash ROM (up to 120ns) is
sufficient for most optical media applications. For
applications that need a sustained data rate in excess of
10Mbytes per second, for example high performance disk
drives, an 8-bit 50ns FLASH or faster is recommended.
The device is compatible with both 1394-1995 and 1394A
PHYs.
Concurrent operation of the ATA/ATAPI and 1394
interfaces are facilitated using the high throughput Buffer
Manager where LINK, ATAPI manager and ARM7TDMI
can perform interleaved accesses to the on-chip RAM
buffer. The high performance processor ensures that no
significant latency is incurred. The ATA command
translation is performed in firmware to meet RBC (Reduced
Block Commands) standard, T10-1228D. The ATA/ATAPI
Manager supports PIO modes 0 to 4, DMA modes 0 to 2
and Ultra DMA mode 0 to 2 and provides the interface to
the IDE bus. It is compliant with T13-1153D, ATA-4
specification.
The LINK controller complies with S400 1394-1995
specification. The 1394 transaction layer and SBP-2
protocol is implemented using a combination of the
ARM7TDMI (low-power 32-bit RISC processor), an ORB
(Operational Request Block) hardware co-processor and a
high performance buffer manager.
Oxford Semiconductor Ltd.
69 Milton Park, Abingdon, Oxon, OX14 4RX, UK
Tel: +44 (0)1235 824900
Ó Oxford Semiconductor 1999
OXFW900 Data Sheet Revision 1.0 – Nov 1999
Part No. OXFW900-TQ-A
Fax: +44(0)1235 821141
OXFW900
OXFORD SEMICONDUCTOR LTD.
CONTENTS
FEATURES..........................................................................................................................................................1
DESCRIPTION.....................................................................................................................................................1
CONTENTS..........................................................................................................................................................2
1
2
3
4
BLOCK DIAGRAM ......................................................................................................................................3
PIN INFORMATION.....................................................................................................................................4
PIN DESCRIPTIONS ...................................................................................................................................5
OPERATING CONDITIONS........................................................................................................................7
5
5.1
DC ELECTRICAL CHARACTERISTICS....................................................................................................7
I/O BUFFERS..........................................................................................................................................................7
6
AC ELECTRICAL CHARACTERISTICS....................................................................................................8
IDE INTERFACE .....................................................................................................................................................8
1394 LINK-PHY INTERFACE ................................................................................................................................ 11
EXTERNAL PROCESSOR INTERFACE................................................................................................................ 12
6.1
6.2
6.3
7
8
9
TIMING WAVEFORMS..............................................................................................................................13
PACKAGE INFORMATION.......................................................................................................................27
ORDERING INFORMATION .....................................................................................................................28
NOTES ...............................................................................................................................................................29
CONTACT DETAILS.........................................................................................................................................30
DISCLAIMER.....................................................................................................................................................30
Data Sheet Revision 1.0
Page 2
OXFW900
OXFORD SEMICONDUCTOR LTD.
1 BLOCK DIAGRAM
Buffer RAM
PD[7:0]
IDE_OE#
RTS[3:0]#
ID[15:0]
CTL[1:0]
RAM
Manager
PHY_CLK
LINK_ON
LPS
Link-Phy
interface
DMARQ
DIOW#
DIOR#
IORDY
ATA/
ATAPI
manager
LREQ
DMACK#
INTRQ#
IA[2:0]
D[15:0]
A[16:0]
IDE_CS#[2:0]
ORB Co-
processor
CS#[3:0]
External
ROM
interface
OE#
WE#
BWE#[1:0]
WIDTH16
INT#
ARM7TDMI
XTALO
XTALI
Clock
generator
CKIN
CKOUT
EE_DO
EE_DI
SCRATCH
RAM
EEPROM
interface
EE_CK
EE_CS
Figure 1: OXFW900 Block Diagram
Data Sheet Revision 1.0
Page 3
OXFW900
OXFORD SEMICONDUCTOR LTD.
2 PIN INFORMATION
IA1
IA0
IA2
97
98
99
64
63
62
61
60
59
58
57
56
55
54
53
52
51
50
49
48
47
46
45
44
43
42
41
40
39
38
37
36
35
34
33
IRESET
IDE_OE#
WIDTH16
INT#
A0
VDD
XTLO
XTLI
CKIN
GND
A1
A2
A3
A4
A5
A6
A7
VDD
GND
A8
ICS0#
ICS1#
LINKON
LPS
100
101
102
103
104
105
106
107
108
109
110
111
112
113
114
115
116
117
118
119
120
121
122
123
124
125
126
127
128
PD7
PD6
GND
GND
PD5
PD4
PD3
PD2
5VBIAS
CKOUT
VDD
PD1
PD0
CTL1
CTL0
GND
A9
A10
A11
A12
OXFW900-TQ-A
PHYCLK
VDD
A13
LREQ
FORCE#
TEST0
TEST1
GPO1
GPO2
GPO3
GND
5VBIAS
A14
A15
A16
WE#
BWR0#
Figure 2: Pinout (package = 128 TQFP)
Data Sheet Revision 1.0
Page 4
OXFW900
OXFORD SEMICONDUCTOR LTD.
3 PIN DESCRIPTIONS
1394 PHY-LINK interface
104, 105, 108, 109, 110, 111, 115,
Dir1
I/O
Name
PD[7:0]
Description
Phy-Link Data Bus
116
117,118
120
122
102
I/O
I
O
IU
O
CTL[1:0]
PHYCLK
LREQ
LINKON
LPS
Phy-Link Control Bus
49.152 MHz clock sourced by PHY
Link Request
Requests link to power up when in a low power mode
Indicates to phy that link is powered and ready
103
ARM external interface
2, 3, 4, 5, 6, 7, 10, 11, 12, 13, 14,
15, 18, 19, 20, 21
35, 36, 37, 40, 41, 42, 43, 44, 45,
48, 49, 50, 51, 52, 53, 54, 60
25, 26, 29, 30
T_I/O D[15:0]
T_O A[16:0]
T_O CS#[3:0]
T_O OE#
ARM external data bus
ARM external address bus
ARM external chip selects. CS0# is always used for program
ROM.
ARM external output enable. Active when reading data from
external devices including program ROM
Byte Write enables. For future expansion
Write Enable. Active when writing to external devices
31
32, 33
34
T_O BWR#[1:0]
T_O WE#
62
ID
WIDTH16
‘1’ = 16 bit external ROM
(pulldown)
‘0’ = 8 bit external ROM
61
IDE interface
65, 66, 69, 70, 71, 72, 73, 74, 77,
78, 79, 80, 81, 82, 85, 86
97, 98, 99
T_IU INT#
External ARM interrupt
T_I/O ID[15:0]
IDE data bus
T_O IA[2:0]
IDE address bus
100, 101
T_O ICS#[1:0]
T_O IDE_OE#[
IDE chip select. Selects IDE drive 0 or 1
IDE output enable. Only used when external buffering is
required to drive IDE data bus
63
64
T_O IRESET
IDE interface reset
89
T_I
DMARQ
90
91
92
95
T_O DIOW#
T_O DIOR#
T_O IORDY
T_O DMACK#
IDE interface write strobe
IDE interface read strobe
96
T_I
INTRQ
EEPROM interface
128
126
1
O
O
IU
O
GPO3
GPO1
GPI
General Purpose Output 3
General Purpose Output 1
General Purpose Input
127
Miscellaneous Pins
57
GPO2
General Purpose Output 2
I
XTLI
Crystal Oscillator input. 24.576 MHz crystal required. If a
clock module is used rather than a crystal then this input
must be tied high for the OXFW900 to operate, and the clock
module output connected to the CKIN pin. IMPORTANT -
See Application Notes regarding clocking
58
O
XTLO
Crystal Oscillator output. IMPORTANT – See Application
Notes regarding clocking.
Data Sheet Revision 1.0
Page 5
OXFW900
OXFORD SEMICONDUCTOR LTD.
56
I
CKIN
Direct clock input. Used in conjunction with an external
crystal oscillator of 24.576MHz. If a crystal is connected to
XTLI and XTLO this input must be tied low for the OXFW900
to operate. Mark space ratio of crystal oscillator must be
45:55 or better. IMPORTANT – Please refer to Application
Notes regarding clocking
23
IU
RESET#
Global reset for the OXFW900. Active Low.
113
T_O CKOUT
Clock output. 24.576 MHz clock output. IMPORTANT –
Please refer to Application Notes regarding clocking
This input is used to allow the OXFW900 to reprogram a
flash which has been loaded with a bad program. A bad
program is defined as one that does not have the correct
interlocking mechanism for reprogramming flash. This pin
forces the ARM watchdog timer to trigger thus allowing the
flash to be reprogrammed over the 1394 bus as if the flash
were blank.
123
IU
FORCE#
124, 125
IU
TEST[1:0]
‘11’ = NORMAL OPERATION. These pins have internal
pullup resistors and must be left unconnected. Other settings
are for foundry test purposes only.
Power and ground2
28, 47, 94, 114
3V3
3V3
3.3V AC VDD
3.3V DC VDD
Supplies power to output buffers in switching (AC) state
Power supply. Supplies power to core logic, input buffers
and output buffers in steady state
17, 24, 59, 84, 88, 121
9, 38, 76, 112
5V
5V BIAS VDD
Supplies 5V reference bias to all 5V tolerant I/O. All four
MUST be connected to 5V rail.
8, 27, 46, 67, 75, 93, 106
16, 22, 39, 55, 68, 83, 87, 107, 119
G
G
AC GND
DC GND
Supplies GND to output buffers in switching (AC) state
Ground (0 volts). Supplies GND to core logic, input buffers
and output buffers in steady state
Table 1: Pin Descriptions
Note 1: Direction key:
I
Input
T_O
5V tolerant output
IU
ID
O
Input with internal pull-up
Input with external pull-down
Output
T_I/O
5V tolerant bi-directional
I/O
Bi-directional
G
Ground
3V3
5V
3.3V power
5V bias power
T_I
5V tolerant input
Note 2: Power & Ground
There are two GND and three VDD rails internally. One set of rails supply power and ground to output buffers while in switching
state (called AC power) and another rail supply the core logic, input buffers and output buffers in steady-state (called DC rail). A
third rail provides 5V bias voltage to 5V tolerant IO.
The rails are not connected internally. This precaution reduces the effects of simultaneous switching outputs and undesirable RF
radiation from the chip.
Data Sheet Revision 1.0
Page 6
OXFW900
OXFORD SEMICONDUCTOR LTD.
Configuration & Operation
4 OPERATING CONDITIONS
Symbol
VDD
VIN
IIN
TSTG
Parameter
Min
-0.3
-0.3
Max
4.6
VDD + 0.3
+/- 10
125
Units
V
V
mA
°C
DC supply voltage
DC input voltage
DC input current
Storage temperature
-40
Table 2: Absolute maximum ratings
Symbol
VDD
VBB
Parameter
Min
3.0
4.75
0
Max
3.6
5.25
70
Units
V
V
DC supply voltage
5V PMOS bulk bias
Temperature
TC
°C
Table 3: Recommended operating conditions
5 DC ELECTRICAL CHARACTERISTICS
5.1 I/O Buffers
Symbol Parameter
Condition
Commercial
CMOS Interface
CMOS Schmitt trig
CMOS Interface 1
CMOS Schmitt trig
Min
3.0
0.7 x Vdd
2.1
Max
3.6
Units
V
V
VDD
VIH
Supply voltage
Input high voltage
VIL
Input low voltage
0.3 x Vdd
V
0.8
5.0
10.0
10
CIL
COL
IIH
Cap of input buffers
pF
pF
mA
mA
V
V
V
V
mA
Cap of output buffers
Input high leakage current
Input low leakage current
Output high voltage
Output high voltage
Output low voltage
Vin = VDD
Vin = VSS
-10
-10
IIL
10
VDD – 0.05
VOH
VOH
VOL
VOL
IOZ
IOH = -1 mA
IOH = -1mA to –24mA
IOL = 1 mA
IOL = 1mA to 24mA
2.4
0.05
0.4
10
Output low voltage
3-state output leakage current
-10
Symbol Parameter
Operating supply current in
Condition
Typical
Max
Units
normal mode
ICC
mA
Operating supply current in
Power-down mode
Table 4: Characteristics of OXFW900 I/O buffers
Data Sheet Revision 1.0
Page 7
OXFW900
OXFORD SEMICONDUCTOR LTD.
6 AC ELECTRICAL CHARACTERISTICS
6.1 IDE interface
Symbol Parameter
Mode 0
600
80
Mode 1
400
80
Mode 2
360
40
Mode 3
200
40
Mode 4
120
40
Units
ns
ns
t0
t1
Cycle Time
Address Valid to DIOR# / DIOW#
setup
t2
t2i
t3
t4
t5
t6
t6z
t9
DIOR# / DIOW# pulse width
DIOR# / DIOW# recovery time
DIOW# data setup (min )
320
-
60
40
50
5
320
-
45
40
35
5
320
-
30
40
20
5
80
80
30
40
20
5
80
40
20
40
20
5
ns
ns
ns
ns
ns
ns
ns
ns
DIOW# data hold
DIOR# data setup ( min )
DIOR# data hold ( min )
DIOR# data tristate (max )
DIOR# / DIOW# to address valid
hold
30
40
30
40
30
40
30
40
30
40
tRD
Read Data Valid to IORDY active if
IORDY initially low after tA
0
0
0
0
0
ns
tA
tB
tA
IORDY Setup time
IORDY Pulse Width ( max )
IORDY assertion to release
35
1250
5
35
1250
5
35
1250
5
35
1250
5
35
1250
5
ns
ns
ns
Table 5: OXFW900 IDE PIO / Register Transfers
Data Sheet Revision 1.0
Page 8
OXFW900
OXFORD SEMICONDUCTOR LTD.
Symbol Parameter
Mode 0
480
240
150
5
100
20
0
20
80
240
120
40
Mode 1
160
80
60
5
30
15
0
Mode 2
Units
t0
tD
tE
Cycle time
DIOR# / DIOW#
DIOR# data access ( max )
DIOR# data hold ( min )
120
80
50
5
20
10
0
ns
ns
ns
ns
ns
ns
ns
ns
ns
ns
ns
ns
ns
ns
ns
tF
tG
tH
tI
DIOR# / DIOW# data setup
DIOW# data hold
DMACK to DIOR# / DIOW# setup ( min )
DIOR# / DIOW# to DMACK hold ( min )
DIOR# negated pulse width
DIOW# negated pulse width
DIOR# to DMARQ delay ( max )
DIOW# to DMARQ delay ( max )
IDCS[1:0] valid to DIOR# / DIOW#
IDCS[1:0] hold
tJ
5
5
tKr
tKw
tLr
tLw
tM
tN
tZ
80
80
40
40
40
40
25
40
40
35
35
40
40
25
80
40
20
DMACK to tristate ( max )
Table 6: OXFW900 Multiword DMA timings
Data Sheet Revision 1.0
Page 9
OXFW900
OXFORD SEMICONDUCTOR LTD.
Symbol Parameter
Mode 0 Mode 0 Mode 1 Mode1 Mode 2 Mode 2 Units
min
max
min
max
min
max
t2cyc
tcyc
Typical sustained average two
cycle time
240
160
120
ns
ns
ns
Cycle time allowing for clock
variations ( refer to ATA spec)
Two cycle time allowing for clock
variations ( refer to ATA spec )
Data setup time at recipient
Data hold time at recipient
Data valid setup time at sender
(from data bus being valid until
STROBE edge )
114
235
75
55
t2cyc
156
117
tds
tdh
tdvs
15
5
70
10
5
48
7
5
34
ns
ns
ns
tdvh
tfs
Data valid hold time at sender (from
STROBE edge until data may
become invalid
First STROBE time (for device to
first negate DSTROBE from STOP
during a data-in burst)
Limited interlock time
Interlock time with minimum
Unlimited interlock time
6
0
6
0
6
0
ns
ns
230
150
10
200
150
10
170
150
10
tli
tmli
tui
0
20
0
0
20
0
0
20
0
ns
ns
ns
ns
taz
Maximum time allowed for output
drivers to release (from being
asserted or negated)
tzah
tzad
Minimum delay time required for
output drivers to assert or negate
(from released state)
Envelope time ( from DMACK# to
STOP and HDMARDY# during
data-out burst initiation
STROBE to DMARDY time ( refer
to ATA spec
Ready-to-final-STROBE time ( no
STROBE edges shall be sent this
long after the negation of
DDMARDY#
20
0
20
0
20
0
ns
ns
tenv
20
20
70
75
20
25
70
60
20
25
70
50
tsr
ns
ns
trfs
trp
Ready-to-pause time ( time that
recipient shall wait to initiate pause
after negating DMARDY# )
Pull-up time before allowing IORDY
to be released
160
125
100
ns
tiordyz
tziordy
tack
20
20
20
ns
ns
ns
ns
Minimum time a device shall wait
before driving IORDY
0
0
0
Setup and hold times for DMACK#
(before assertion or negation )
Time from STROBE edge to
negation of DMARQ or assertion of
STOP (when sender terminates a
burst )
20
50
20
50
20
50
tss
Table 7: OXFW900 Ultra DMA timings
Data Sheet Revision 1.0
Page 10
OXFW900
OXFORD SEMICONDUCTOR LTD.
6.2 1394 Link-Phy interface
The timings for 1394 Link – Phy are shown below :
Symbol Parameter
Min
6
0
Max
Units
ns
ns
tlsu
tlh
Tld1
Setup Time, PD[7:0] and CTL[1:0] before PhyClk
Hold Time, PD[7:0] and CTL[1:0] after PhyClk
Delay Time, PhyClk input high to initial instance of PD[7:0], CTL[1:0]
and Lreq outputs valid
TBD
TBD
TBD
TBD
ns
Tld2
Tld3
Delay Time, PhyClk input high to subsequent instance(s) of PD[7:0],
CTL[1:0] and Lreq outputs valid
Delay Time, PhyClk input high to PD[7:0], CTL[1:0] and Lreq outputs
invalid (high impedance)
TBD
TBD
ns
ns
Table 8: OXFW900 Link-Phy interface timings
Data Sheet Revision 1.0
Page 11
OXFW900
OXFORD SEMICONDUCTOR LTD.
6.3 External Processor Interface
Name
Description
min (ns)
typ (ns)
max (ns)
Common Timings
-
-
-
tas
tcss
tws
taddr1
taddr2
Address valid to CSx# and OE# falling
CSx# and OE# falling to WE# or IOR# falling
Wait State Additional Delay
Not Last Address Valid
Last Address Valid
Common Read Timings
IOR# valid
Address hold after CSx# or OE# rising
Single Access Read Timings
0.3
16
0
2.5
18.5
600
0
-
-
-
-
tiorl
tah
-
-
tdsa
tdha
tdsb
tdhb
Data valid and stable to CSx# and OE# rising
Data hold after CSx# and OE# rising
Data valid and stable to IOR# rising
Data hold after IOR# rising
0
0
-
Multiple Access Read Timings
Data valid and stable to CSx# and OE# rising (not last access)
Data hold after CSx# and OE# rising (not last access)
Data valid and stable to IOR# rising (not last access)
Data hold after IOR# rising (not last access)
Data valid and stable to CSx# and OE# rising (last access)
Data hold after CSx# and OE# rising (last access)
Data valid and stable to IOR# rising (last access)
Data hold after IOR# rising (last access)
IOR# rising to next address valid
Address valid to IOR# falling
-
-
dsa1
dha1
dsb1
dhb1
dsa2
dha2
dsb2
dhb2
tahr
0
0
0
0
tasr
tiorh
IOR# inactive between reads
Common Write Timings
-
-
-
tds
Data valid to WE# rising
39+tws
tdh
Data hold after WE# rising
CS# hold after WE# rising
CS# hold after Address invalid
WE# valid
13
20
1
17
2.5
tcsh
tcsa
twel
Single Access Write Timings
Address hold after WE# rising
-
19
-
-
-
-
60
-
tah
Multiple Access Write Timings
Address valid to CSx# and OE# falling
Address hold after WE# rising (not last access)
WE# falling after next address valid
Address hold after WE# rising (last access)
WE# inactive between writes
tas1
tah1
tas2
tah2
tweh
Table 9: External Processor Interface timings
All timings are preliminary and are subject to change
Data Sheet Revision 1.0
Page 12
OXFW900
OXFORD SEMICONDUCTOR LTD.
7 TIMING WAVEFORMS
t0
ADDR valid
t2
t9
t1
t2i
DIOR# /
DIOW#
t3
t4
ID[7:0]
(WRITE)
t6z
t5
t6
ID[7:0]
(READ)
IORDY
(Note1)
tA
tC
IORDY
(Note2)
tRD
IORDY
(Note3)
tC
tB
Figure 3: PIO / Register Transfer to / from IDE device
Notes : Negation of IORDY by the drive is used to extend the PIO cycle. The determination of whether the cycle is to be
extended is made by the host after tA from the Assertion of DIOR# or DIOW#. The assertion and negation of IORDY are
described in the following three cases : -
1) Device never negates IORDY and no wait is generated.
2) Device negates IORDY before tA, but causes IORDY to be asserted before tA. IORDY is released prior to negation and
may be asserted for no more than 5ns before release : no wait generated.
3) Device negated IORDY before tA. IORDY is released prior to negation and may be asserted for no more than 5ns before
release : wait generated. The cycle completes after IORDY is reasserted. For cycles where a wait is generated and DIOR#
is asserted, the device shall place read data on DD[7:0] for tRD before asserting IORDY
Data Sheet Revision 1.0
Page 13
OXFW900
OXFORD SEMICONDUCTOR LTD.
TIMING WAVEFORMS
CS0# / CS1#
tM
tN
t0
DMARQ
tL
DMACK#
tI
tD
tK
tJ
DIOR# / DIOW#
tE
tZ
READ ID[15:0]
WRITE ID[15:0]
tG
tF
tG
tH
Figure 4: MultiWord DMA transfer to / from IDE device
Data Sheet Revision 1.0
Page 14
OXFW900
OXFORD SEMICONDUCTOR LTD.
DMARQ
(device)
tui
tenv
tfs
tack
DMACK(host)
tzad
STOP(host)
(DIOW#)
HDMARDY(host)
(DIOR#)
tziordy
DSTROBE(device)
(IORDY)
tdvs
tdvh
taz
ID[15:0]
tack
IA[2:0], ICS#[1:0]
Figure 5: Initiating an Ultra DMA data-in burst
Data Sheet Revision 1.0
Page 15
OXFW900
OXFORD SEMICONDUCTOR LTD.
t2cyc
tdvh
tcyc
tcyc
DSTROBE(device)
(IORDY)
tdvh
tdvh
tdvs
tdvs
ID[15:0]
(device)
DSTROBE(host)
IORDY
tds
tdh
tdh
tds
tdh
ID[15:0] (host)
Figure 6: Sustained Ultra DMA data-in burst
Data Sheet Revision 1.0
Page 16
OXFW900
OXFORD SEMICONDUCTOR LTD.
DMARQ(device)
DMACK(host)
trp
STOP(host)
DIOW#
tsr
DSTROBE(device)
IORDY
trfs
DSTROBE(device)
IORDY
ID[15:0] (host)
Figure 7: Host pausing an Ultra DMA data-in burst
Data Sheet Revision 1.0
Page 17
OXFW900
OXFORD SEMICONDUCTOR LTD.
DMARQ(device)
DMACK(host)
tli
tli
tmli
STOP(host)
DIOW#
tack
HDMARDY(host)
DIOR#
tss
tiordyz
DSTROBE(device)
IORDY
tzah
taz
CRC
ID[15:0] (host)
tack
IA[2:0],
ICS[1:0]
Figure 8: Device terminating an Ultra DMA data-in burst
Data Sheet Revision 1.0
Page 18
OXFW900
OXFORD SEMICONDUCTOR LTD.
DMARQ(device)
DMACK(host)
tzah
trp
taz
STOP(host)
DIOW#
tack
HDMARDY(host)
DIOR#
trfs
tli
tmli
tiordyz
DSTROBE(device)
IORDY
tdvs
tdvh
CRC
ID[15:0] (host)
tack
IA[2:0],
ICS[1:0]
Figure 9: Host terminating an Ultra DMA data-in burst
Data Sheet Revision 1.0
Page 19
OXFW900
OXFORD SEMICONDUCTOR LTD.
DMARQ
(device)
tui
tenv
tack
DMACK(host)
tli
tui
STOP(host)
(DIOW#)
HSTROBE(host)
(DIOR#)
tziordy
DDMARDY(device)
(IORDY)
tdvs
tdvh
ID[15:0]
tack
IA[2:0], ICS#[1:0]
Figure 10: Initiating an Ultra DMA data-out burst
Data Sheet Revision 1.0
Page 20
OXFW900
OXFORD SEMICONDUCTOR LTD.
t2cyc
tdvh
tcyc
tcyc
HSTROBE(host)
tdvh
tdvh
tdvs
tdvs
ID[15:0] (host)
HSTROBE(device)
tds
tdh
tdh
tds
tdh
ID[15:0]
(device)
Figure 11: Sustained Ultra DMA data-out burst
Data Sheet Revision 1.0
Page 21
OXFW900
OXFORD SEMICONDUCTOR LTD.
DMARQ(device)
DMACK(host)
trp
STOP(host)
DIOW#
tsr
DDMARDY(device)
IORDY#
trfs
HSTROBE(host)
DIOR#
ID[15:0] (host)
Figure 12: Device pausing an Ultra DMA data-in burst
Data Sheet Revision 1.0
Page 22
OXFW900
OXFORD SEMICONDUCTOR LTD.
DMARQ(device)
DMACK(host)
tli
tli
tmli
STOP(host)
DIOW#
tack
DDMARDY(device)
IORDY#
tiordyz
tss
HSTROBE(host)
DIOR#
tdvs tdvh
ID[15:0] (host)
CRC
tack
IA[2:0],
ICS[1:0]
Figure 13: Host Terminating an Ultra DMA data-out burst
Data Sheet Revision 1.0
Page 23
OXFW900
OXFORD SEMICONDUCTOR LTD.
tli
DMARQ(device)
DMACK(host)
trp
STOP(host)
DIOW#
tack
DDMARDY(device)
IORDY#
trfs
tli
tmli
tiordyz
HSTROBE(device)
DIOR#
tdvs
tdvh
CRC
ID[15:0] (host)
tack
IA[2:0],
ICS[1:0]
Figure 14: Device Terminating an Ultra DMA data-out burst
Data Sheet Revision 1.0
Page 24
OXFW900
OXFORD SEMICONDUCTOR LTD.
CLK
1
2
3
4
PD[7:0]
CTL[1:0]
LReq
tlsu
tlh
Figure 15: Phy to Link timings
CLK
1
2
3
4
PD[7:0]
CTL[1:0]
LReq
tld1
tld2
tld3
Figure 16: Link to Phy timings
Data Sheet Revision 1.0
Page 25
OXFW900
OXFORD SEMICONDUCTOR LTD.
tws
Address
Data
tdsb
tdhb
tas
tcss
tdsa
tdha
CS#
OE#
tah
WE#
IOR#
tiorl
taddr1
dsb1
taddr2
Address
Data
dhb1
dsb2
dhb2
tastcss
dsa1
dha1
dsa2
dha2
CS#
tah
OE#
WE#
tahr
tasr
tiorl
tws
tiorl
IOR#
tiorh
tws
Figure 17: External Processor Bus timings
Data Sheet Revision 1.0
Page 26
OXFW900
OXFORD SEMICONDUCTOR LTD.
8 PACKAGE INFORMATION
Figure 18: 128 TQFP package information
Data Sheet Revision 1.0
Page 27
OXFW900
OXFORD SEMICONDUCTOR LTD.
9 ORDERING INFORMATION
OXFW900-TQ - A
Revision
Package Type – 128 TQFP
Data Sheet Revision 1.0
Page 28
OXFW900
OXFORD SEMICONDUCTOR LTD.
NOTES
This page has been intentionally left blank
Data Sheet Revision 1.0
Page 29
OXFW900
OXFORD SEMICONDUCTOR LTD.
CONTACT DETAILS
Oxford Semiconductor Ltd.
69 Milton Park
Abingdon
Oxfordshire
OX14 4RX
United Kingdom
Telephone:
Fax:
Sales e-mail:
+44 (0)1235 824900
+44 (0)1235 821141
sales@oxsemi.com
1394 Tech support e-mail: 1394_support@oxsemi.com
Web site:
http://www.oxsemi.com
DISCLAIMER
Oxford Semiconductor believes the information contained in this document to be accurate and reliable. However, it is subject to
change without notice. No responsibility is assumed by Oxford Semiconductor for its use, nor for infringement of patents or other
rights of third parties. No part of this publication may be reproduced, or transmitted in any form or by any means without the prior
consent of Oxford Semiconductor Ltd. Oxford Semiconductor’s terms and conditions of sale apply at all times.
Data Sheet Revision 1.0
Page 30
厂商 型号 描述 页数 下载

ETC

 		OXFW900-TQ-A IEEE1394到ATA / ATAPI本地桥[ IEEE1394 to ATA/ATAPI Native Bridge ] 30 页

ETC

 		OXFW911 IEEE1394到ATA / ATAPI本地桥[ IEEE1394 to ATA/ATAPI Native Bridge ] 32 页

ETC

 		OXFW911-TQ-A IEEE1394到ATA / ATAPI本地桥[ IEEE1394 to ATA/ATAPI Native Bridge ] 32 页

OXFORD

 		OXFW911PLUS 1394A到ATA7 / ATAPI桥[ 1394A-to-ATA7/ATAPI Bridge ] 2 页

OXFORD

 		OXFW912 1394B到ATA7 / ATAPI桥[ 1394B-to-ATA7/ATAPI Bridge ] 2 页

OXFORD

 		OXFW970-TQ-A [ Micro Peripheral IC ] 10 页

OXFORD

 		OXFW970-TQ-AG [ Micro Peripheral IC ] 10 页

OXFORD

 		OXFW971 16通道音频流火线I / O控制器， MIDI和S / PDIF[ 16 Channel Streaming Audio Firewire I/O Controller with Midi and S/PDIF ] 1 页

PLX

 		OXFW971-TQ-A [ Micro Peripheral IC, ] 12 页

购物指南

支付方式

配送服务

售后服务

发票须知

优惠券使用规则

特色服务

PCBA制造

国产品牌推荐

国产料号替代

质量保证

技术资料

行业资讯

关于我们

关于壹壹捌

联系我们

联系我们

服务热线：400-618-9990

企业邮箱：sales@ic118.com

服务时间：周一至周六 8:30-17:30

壹壹捌官方微信号

PDF索引：

A

B

C

D

E

F

G

H

I

J

K

L

M

N

O

P

Q

R

S

T

U

V

W

X

Y

Z

0

1

2

3

4

5

6

7

8

9

IC型号索引：

A

B

C

D

E

F

G

H

I

J

K

L

M

N

O

P

Q

R

S

T

U

V

W

X

Y

Z

0

1

2

3

4

5

6

7

8

9

Copyright 2024 gkzhan.com Al Rights Reserved 京ICP备06008810号-21 京

深圳网络警察报警平台
公共信息安全网络监察
经营性网站备案信息
不良信息举报中心
工商网监电子标识
全国公安机关备案
0.212734s
