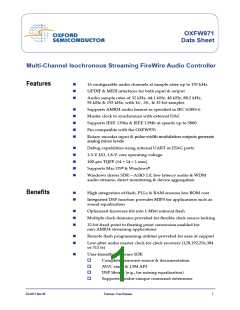

OXFW971
Data Sheet
Multi-Channel Isochronous Streaming FireWire Audio Controller
Features
„
„
„
16 configurable audio channels at sample rates up to 192 kHz
S/PDIF & MIDI interfaces for both input & output
Audio sample rates of 32 kHz, 44.1 kHz, 48 kHz, 88.2 kHz,
96 kHz & 192 kHz, with 16-, 24-, & 32-bit samples
„
„
„
„
„
Supports AM824 audio format as specified in IEC 61883-6
Master clock to synchronize with external DAC
Supports IEEE 1394a & IEEE 1394b at speeds up to S800
Pin-compatible with the OXFW970
Rotary encoder input & pulse-width modulation outputs generate
analog mixer levels
„
„
„
„
„
Debug capabilities using internal UART or JTAG ports
3.3-V I/O, 1.8-V core operating voltage
100-pin TQFP (14 × 14 × 1 mm)
Supports Mac OS & Windows
Windows driver SDK—ASIO 2.0, low latency audio & WDM
audio streams, direct monitoring & device aggregation
®
®
Benefits
„
„
High integration of flash, PLLs & RAM ensures low BOM cost
Integrated DSP function provides MIPS for applications such as
sound equalization
„
„
„
Optimized firmware fits into 1-Mbit internal flash
Multiple clock domains provided for flexible clock source locking
32-bit fixed point to floating point conversion enabled for
non-AM824 streaming applications
„
„
Remote flash programming utilities provided for ease of support
Low-jitter audio master clock for clock recovery (128,192,256,384
or 512 fs)
„
User-friendly firmware SDK
†
†
†
†
Complete firmware source & documentation
AV/C stack & 1394 API
DSP library (e.g., for mixing equalization)
Supports vendor-unique command extensions
DS-0017 Nov 06
External—Free Release
1
Multi-Channel Isochronous Streaming FireWire Audio Controller
Oxford Semiconductor, Inc.
Overview
The Oxford Semiconductor OXFW971 is a highly-integrated audio
®
streaming controller for FireWire isochronous applications. The
OXFW971 builds on the achievements of the OXFW970, but offers a
range of additional features:
„
Up to 16 I/O channels with multiple configuration options,
including:
†
Simultaneous 8 input & 8 output (up to 96 kHz sample
rate)
†
†
S/PDIF input & S/PDIF output (up to 96 kHz sample rate)
MIDI input & MIDI output
„
„
High peripheral integration, resulting in lower operational
production costs
Improved processor performance, to support an equalization
function for certain applications
The OXFW971 provides a bidirectional FireWire S400/S800 link between
®
a PC or Mac and a range of audio interfaces. The combination of eight
audio channels (both input & output) with support for both
S/PDIF and musical instrument digital interface (MIDI) make the
™
OXFW971 a highly-integrated solution for GarageBand I/O boxes,
®
external sound card and speaker applications. With an ARM7TDMI
embedded processor, 1 Mbits of flash memory and a range of peripherals
integrated on-chip, the device provides a low-cost solution for a variety
of applications.
Device
The OXFW971 has a sophisticated clocking scheme, which allows it to be
used in a variety of system configurations. It supports an external word
clock input and can generate a low-jitter audio master clock (128, 192,
256, 384 or 512 fs) for external DACs, with optional clock smoothing.
Functionality
The high-speed UART allows applications with a second microcontroller
to be controlled through the FireWire link. This facility allows users to
interface with their preferred microprocessors, utilizing a transparent
channel over a 1394 link. Such a feature can be useful where it is
necessary to re-use existing firmware or support more specific customer
applications. Other devices, such as DACs, can be controlled by the low-
speed serial interfaces, which are compatible with two-wire serial and
SPI interfaces.
2
External—Free Release
DS-0017 Nov 06
Oxford Semiconductor, Inc.
Multi-Channel Isochronous Streaming FireWire Audio Controller
Applications
The OXFW971 connects seamlessly to a range of audio processor chips
®
for applications that require AC-3/DTS decoding, Dolby Virtual audio
processing or Virtual Pro Logic II surround sound, including the
following:
„
„
Prosumer breakout boxes
External surround sound cards for laptops—for DVD playback,
games & music
„
„
Sound card solutions requiring multiple I/O S/PDIF output
Musical I/O interfaces with 8-in/8-out channels; MIDI in/out,
S/PDIF in/out
„
„
Speaker solutions with streamed 7.1/5.1/2.1/2.0 output
Bus-powered 2.0/2.1 FireWire speakers
Figure 1 shows how the OXFW971 might be used in a prosumer
breakout box; in this example, using 8 in/out, S/PDIF in/out and MIDI in/
out.
Figure 1 OXFW971 Used in a Prosumer Breakout Box
Buttons/Dials
12-V Main
Block
Power
Management
LEDs
1394 A/B
PHY
FireWire
PC/Mac
ADC
ADC
I8S
Line In/Mic
8 Channel
ADC
ADC
Optical/
Coaxial
Interface
S/PDIF In
S/PDIF Out
OXFW971
Buffers
Midi In/Out
Optical/
Coaxial
Interface
Audio
I8S
8 Channels
Audio DAC
Figure 2 on page 4 shows an example sound card application using the
OXFW971.
DS-0017 Nov 06
External—Free Release
3
Multi-Channel Isochronous Streaming FireWire Audio Controller
Oxford Semiconductor, Inc.
Figure 2 OXFW971 Sound Card Sample Application
Power
12-V Main Block
Management
LEDs
Buttons/Dials
Audio
Decoder
S/PDIF
1394 A/B
PC/Mac
PHY
6-Channel Serial
Line In/Mic
ADC
Optical/
Coaxial
S/PDIF In
OXFW971
interface
Buffers
Optical/
Coaxial
interface
MIDI In/Out
S/PDIF Out
8-Channel
Audio
Control
Audio DAC
Optional device
Development
Support
The OXFW971 is shipped with a full software development kit (SDK),
which includes full documentation and firmware containing example
applications for musical I/O devices such as multi-channel analogue
output with 8-channel, S/PDIF, MIDI input and output to PC/Mac via
FireWire; and external sound card devices such as 3D audio games, DVD
audio decoding, home cinema audio decoding and FireWire streaming
5.1/7.1 speakers. PC drivers are also available for these applications.
4
External—Free Release
DS-0017 Nov 06
Oxford Semiconductor, Inc.
Multi-Channel Isochronous Streaming FireWire Audio Controller
Environmental
Characteristics
Tables 1 to 3 detail the required operating conditions for the device and
the DC electrical characteristics.
Table 1 Absolute Maximum Device Ratings
Symbol
Parameter
Rating
Units
V
V
V
DC supply voltage
1.8 V
3.3 V
2.7
3.8
V
DD
DC input voltage
3.3-V input buffer
3.8
V
V
IN
3.3-V interface/5-V tolerant input buffer
6.5
DC output voltage
Storage temperature
3.3-V output buffer
3.8
6.5
OUT
STG
3.3-V interface/5-V tolerant output buffer
T
Storage temperature
–40 to 85
°C
Table 2 Recommended Operating Conditions
Symbol
Parameter
Rating
Units
V
V
V
DC supply voltage for internal
1.8 V
1.8 ± 0.15
3.3 ± 0.3
V
DD
DC supply voltage for I/O block 3.3 V
DC input voltage
3.3-V input buffer
3.3 ± 0.3
V
IN
3.3-V interface/5-V tolerant input buffer
3.0~5.25
DC output voltage
3.3-V output buffer
3.3 ± 0.3
3.3 ± 0.3
OUT
3.3-V interface/5-V tolerant output buffer
T
Operating temperature range
0 to 85
°C
A
Table 3 Device I/O Buffer Electrical Characteristics (Sheet 1 of 2)
Symbol
Parameter
Input high voltage
Condition
CMOS Interface
Min
2.0
Type
Max
Units
V
V
IH
V
Input low voltage
CMOS Interface
0.8
2.0
V
IL
VT
VT
VT
Switching threshold
Schmitt trigger, positive-going threshold
1.4
V
V
+
-
CMOS
CMOS
Schmitt trigger, negative-going threshold
0.8
V
I
Input high current:
Input buffer
V = V
µA
IH
IN
DD
SS
–10
10
10
60
Input buffer with pull-down
33
I
Input low current:
V = V
µA
IL
IN
Input buffer
–10
–60
10
Input buffer with pull-up
–33
–10
V
V
Output high voltage
I
I
= –1 µA
V – 0.05
V
V
OH
OL
OH
OH
DD
= –1 mA to –24 mA
2.4
Output low voltage
I
I
= 1 µA
= 1 mA to 24 mA
0.05
0.4
OL
OL
I
I
Tri-state output leakage current
Quiescent supply current
V
= V V
SS or DD
-10
10
µA
µA
OZ
DD
OUT
100
DS-0017 Nov 06
External—Free Release
5
Multi-Channel Isochronous Streaming FireWire Audio Controller
Oxford Semiconductor, Inc.
Table 3 Device I/O Buffer Electrical Characteristics (Sheet 2 of 2)
Symbol
Parameter
Input capacitance
Condition
Min
Type
Max
4
Units
pF
C
Any input &
IN
bidirectional buffers
Any output buffer
C
Output capacitance
4
pF
OUT
Pinout &
The device is supplied as a 100-pin TQFP package (14 × 14 × 1 mm).
Figure 3 shows the chip layout.
Package
Information
Figure 3 OXFW971 Pinout
76
1
AUDIO1_RX_D3
UART3_SIN
FLASH_EXHV
FLASH_VCCF
FLASH_VCC3F
JTAG_TDI
UART3_SOUT
VSS3V3
JTAG_TCLK
JTAG_TMS
I2C_SCL
VDD3V3
AUDIO1_RX_WORD_CLK
AUDIO2_RX_WORD_CLK
AUDIO1_TX_WORD_CLK
AUDIO2_TX_WORD_CLK
VCO_FS_PDOUT
SYS_FS_PDOUT
VSS1V8
TEST_MODE2
FLASH_VSSF
FLASH_VSSL
FLASH_VCCL
I2C_SDA
IR_RX
VDD1V8
PWM0
AUDIO2_RX_D3
AUDIO2_RX_D2
AUDIO2_RX_D1
AUDIO2_RX_D0
AUDIO2_TX_D3
AUDIO2_TX_D2
VSS3V3
JTAG_UART_SEL
VDD1V8
OXFW971
VSS1V8
PWM3
PWM2
PWM1
AUDIO1_NFS_CLK_OUT
VDD3V3
AUDIO2_TX_D1
AUDIO2_TX_D0
AUDIO2_RX_BIT_CLK
AUDIO2_TX_BIT_CLK
AUDIO1_RX_BIT_CLK
VSS3V3
Z_FORCE_FLASH
Z_RESET
51
26
6
External—Free Release
DS-0017 Nov 06
Oxford Semiconductor, Inc.
Multi-Channel Isochronous Streaming FireWire Audio Controller
Table 4 OXFW971 Pin Allocations (Sheet 1 of 2)
Type(1)
Pin
No.
Name
Description
Bits
LINK (External I/F) (16 pins)
26, 27, 28, 29, 32,
8
BD_4T
PD[7:0]
PHY-Link data bus
33, 34, 35
36, 37
41
2
1
BD_4T
IU
CTL[1:0]
PCLK
PHY-Link control bus
49.152 / 98.304 MHz clock sourced by PHY. Drives
the OXFW971 main clock system
42
43
45
40
1
1
1
1
1
O_4
IU
O_4
O_8
IU
LREQ
LINKON
LPS
LCLK
PINT
Link request
Requests Link to power up when in low power mode
Indicates to PHY that link is powered & ready
B mode only—PCLK returned to PHY
B mode only—PHY Interrupt
44
PDET (5 pins)
85
21
AUDIO1_NFS_CLK_OUT(2)
1
1
5_BU_6T
5_BU_6T PWM/
Sys clock generated nFs clock (to DAC)
Sys clock generated nFs clock (to DAC)
AUDIO2_NFS_CLK_OUT(2)
84
65
66
1
1
1
5_IU
5_B_4T
5_B_4T
AUDIO_NFS_CLK_IN
SYS_FS_PDOUT
VCO_FS_PDOUT
Returned (smoothed) nFs clock (from VCO)
Output of audio phase detector (from sys clk)
Output of audio phase detector (from VCO clk)
AUDIO1 (12 pins)
49
68
76, 77
81, 48
51
70
AUDIO1_TX_BIT_CLK(3)
First audio core I2S bit clock (at data bit frequency)
First audio core I2S word Clock (at Fs frequency)
First audio core audio transmit data (bits [3:2])
First audio core audio transmit data (bits [1:0])
First audio core I2S bit clock (at data bit frequency)
First audio core I2S word Clock (at Fs frequency)
First audio core audio receive data
1
1
2
2
1
1
4
5_BU_4T
5_BU_4T AUDIO1_TX_WORD_CLK
O_4 AUDIO1_TX_D[3:2]
5_BU_4T AUDIO1_TX_D[1:0]
5_BU_4T
5_BU_4T AUDIO1_RX_WORD_CLK
5_BU_4T AUDIO1_RX_D[3:0]
AUDIO1_RX_BIT_CLK(3)
75, 78, 79, 80
AUDIO2 (12 pins)
52
67
58, 57, 55, 54
53
69
AUDIO2_TX_BIT_CLK(3)
Second audio core I2S bit clock (at data bit frequency)
Second audio core I2S word clock (at Fs frequency)
Second audio core audio transmit data
Second audio core I2S bit clock (at data bit frequency)
Second audio core I2S word clock (at Fs frequency)
Second audio core audio receive data
1
1
4
1
1
4
5_BU_4T
5_BU_4T AUDIO2_TX_WORD_CLK
O_4
5_BU_4T
AUDIO2_TX_D[3:0]
AUDIO2_RX_BIT_CLK(3)
5_BU_4T AUDIO2_RX_WORD_CLK
5_BU_4T AUDIO2_RX_D[3:0]
62, 61, 60, 59
PLL (5 pins)
91
93
92
90
89
1
1
1
1
1
P
P
P
P
P
PLL_DVDD
PLL_DVSS
PLL_AVDD
PLL_AVSS
VBB_PLL
PLL digital 1.8V
PLL digital GND
PLL analogue 1.8V
PLL analogue GND
PLL bulk bias
DS-0017 Nov 06
External—Free Release
7
Multi-Channel Isochronous Streaming FireWire Audio Controller
Oxford Semiconductor, Inc.
Table 4 OXFW971 Pin Allocations (Sheet 2 of 2)
Type(1)
Pin
No.
Name
Description
Bits
UART1 / JTAG (5 pins)
15
1
5_ID
JTAG_UART_SEL
JTAG_TDO
Input only. Selects between JTAG & UART mode:
0—UART
1—JTAG
100
4
5
6
1
1
1
1
O_4
Or debug UART1 transmitter serial data output
Or debug UART1 active-low Request-to-Send output
Or debug UART1 receiver serial data input
5_BU_4T JTAG_TDI
5_IU
5_IU
JTAG_TCLK
JTAG_TMS
Or debug UART1 active-low clear-to-send input
UART2 (2 pins)
95
94
1
1
5_BU_4T UART2_SIN
5_BU_4T UART2_SOUT
Second UART serial input
Second UART serial output
UART3 (2 pins)
74
73
1
1
5_BU_4T UART3_SIN
5_BU_4T UART3_SOUT
Third UART serial input
Third UART serial output
I2C (2 pins)
7
12
1
1
5_BU_6T I2C_SCL
5_BU_6T I2C_SDA
I2C master serial clock
I2C master serial data
IR_RX (1 pin)
13
PWM (4 pins)
18, 19, 20, 14
Miscellaneous
24
1
3
5_BU_4T IR_RX
IR_RX input
5_BU_4T PWM[3:0]
Pulse width modulated output bits [3:0]
1
3
1
5_IU_S
5_ID_S
5_I_S
FORCE_FLASH
TEST_MODE
Z_RESET
Allows FLASH memory programming (Schmitt)
Selects various test modes (Schmitt)
8, 86, 99
25
Main asynchronous reset. JTAG reset to ARM
(Schmitt)
98
1
5_ID_S
SEL_B_PHY
Selects between A or B 1394 mode (schmitt):
0—A
1—B
Flash Memory
1
1
P
FLASH_EXHV
HV input or monitoring input (test mode)
Leave unconnected in normal mode
2
9
3
11
10
1
1
1
1
1
P
P
P
P
P
FLASH_VCCF
FLASH_VSSF
FLASH_VCC3F
FLASH_VCCL
FLASH_VSSL
Power to FLASH core (1.8 V)
GND to FLASH core
Power for(due to 3.3-V I/O)
Power for core test mux logic I/O & internal (1.8 V)
GND for core test mux logic I/O & internal
8
External—Free Release
DS-0017 Nov 06
Oxford Semiconductor, Inc.
Multi-Channel Isochronous Streaming FireWire Audio Controller
Note to Table 4:
1
Type key: either P (power) or format is [(W_)X(Y)(_Z(A))] where the following conventions apply:
W—Tolerance
X—Type
Y—Pull
Pull up
Pull down
None
Z—Drive
4 mA
A—Other
Tristate
5
5 V
I
O
B
Input
Output
Bidirectional
U
D
4
8
12
T
S
3V3
8 mA
12 mA
Normal
Schmitt
2
3
The Audio1 and Audio2 NFS clock output pins are not necessarily associated with the Audio1 and
Audio2 cores; they are selectable. Before committing to an application design, check which clock is
associated with which core. See the Clocks chapter in the OXFW971 Hardware Reference Manual for
details.
The function of the Audio1 and Audio2 bit clocks differs according to whether the OXFW971 is used in
slave or master mode. For details, see the Clocks chapter in the OXFW971 Hardware Reference Manual.
As shown in Table 5, any of the 32 GPIO pins can be assigned to a
primary function, an alternative function or as general-purpose I/O in
response to the peripheral control register settings. See the OXFW971
Hardware Reference Manual for further details.
Table 5 Assignment of Primary, Alternative & GPIO Functions to Pins (Sheet 1 of 2)
Bit No.
0
Pin No.
14
20
19
18
59
60
61
62
94
7
95
15
12
13
21
48
49
51
53
65
66
68
69
70
Primary Function
PWM0 (output)
PWM1 (output)
PWM2 (output)
PWM3 (output)
AUDIO2_RX_D0 (input)
AUDIO2_RX_D1 (input)
AUDIO2_RX_D2 (input)
AUDIO2_RX_D3 (input)
UART2_SOUT (output)
I2C_SCL (I/O)
UART2_SIN (input)
JTAG_UART_SEL(1)(2)
I2C_SDA (I/O)
IR_RX (input)
AUDIO2_NFS_CLK_OUT (output)
AUDIO1_TX_D0 (output)(4)
AUDIO1_TX_BIT_CLK (I/O)(4)
AUDIO1_RX_BIT_CLK (I/O)
AUDIO2_RX_BIT_CLK (I/O)
Alternative Function
SPI_SS_N (I/O)
I2C_GSI_SL (output)
I2C_SCS (output)
SPI_SCK (I/O)
GPIO Function
GPIO0(4)
GPIO1(4)
GPIO2(4)
GPIO3(4)
GPIO4(4)
GPIO5(4)
GPIO6(4)
GPIO7(4)
GPIO8(4)
GPIO9(4)
GPIO10(4)
GPIO11(4)
GPIO12(4)
GPIO13(4)
GPIO14(4)
GPIO15
1
2
3
4
5
6
7
8
ROTENC_A (input)
ROTENC_B (input)
9
I2C_GSI_SCLK (output)
10
11
12
13
14
15
16
17
18
19
20
21
22
23
I2C_GSI_SDATA (I/O)
UART1_SOUT (output)(3)
UART1_SIN (input)(3)
GPIO16
GPIO17(4)
GPIO18(4)
GPIO19
GPIO20
GPIO21
GPIO22(4)
GPIO23(4)
SYS_FS_PDOUT (output)(4)
VCO_FS_PDOUT (output) (4)
AUDIO1_TX_WORD_CLK (I/O) (4)
AUDIO2_RX_WORD_CLK (I/O)
AUDIO1_RX_WORD_CLK (I/O)
DS-0017 Nov 06
External—Free Release
9
Multi-Channel Isochronous Streaming FireWire Audio Controller
Oxford Semiconductor, Inc.
Table 5 Assignment of Primary, Alternative & GPIO Functions to Pins (Sheet 2 of 2)
Bit No.
24
25
26
27
28
29
30
31
Pin No.
73
74
75
78
79
80
81
85
Primary Function
UART3_SOUT (output)
UART3_SIN (input)
AUDIO1_RX_D3 (input)
AUDIO1_RX_D2 (input)
AUDIO1_RX_D1 (input)
AUDIO1_RX_D0 (input)
Alternative Function
SPI_D_OUT (output)
SPI_D_IN (input)
UART1_RTS (output)
UART1_CTS (input)
GPIO Function
GPIO24(4)
GPIO25(4)
GPIO26(4)
GPIO27(4)
GPIO28(4)
GPIO29(4)
GPIO30
AUDIO1_TX_D1 (output)(4)
AUDIO1_NFS_CLK_OUT (output)
GPIO31(4)
Notes:
1
2
GPIO11 is the JTAG/UART selection pin, which is input only.
When JTAG_UART_SEL=0, UART1 signals are routed to the JTAG pins, irrespective of function
settings on these pins; when JTAG_UART_SEL=1, JTAG signals are routed to the JTAG pins.
To use UART1 on these pins, JTAG_UART_SEL must be tied high.
Default.
3
4
The following rules apply to pin function selection:
„
Input signals on a pin are routed to all functions of that pin,
irrespective of which function is selected
„
Pins do not necessarily default to their primary function
Figure 4 on page 11 shows the OXFW971 package.
10
External—Free Release
DS-0017 Nov 06
Oxford Semiconductor, Inc.
Multi-Channel Isochronous Streaming FireWire Audio Controller
Figure 4 OXFW971 Package
DS-0017 Nov 06
External—Free Release
11
Multi-Channel Isochronous Streaming FireWire Audio Controller
Oxford Semiconductor, Inc.
Ordering
The following conventions are used to identify Oxford Semiconductor
products:
Information
FW971 - TQ - A
FW971 - TQ - A G
Conventional package
Green package
Green (RoHS compliant)
Revision
Package Type: TQ 100 TQFP
Part Number
Revision
Table 6 documents the revisions of this guide.
Information
Table 6 Revision Information
Revision
March 2005
November 05
February 06
June 06
Modification
First publication
Updated pinout & electrical charactereistics; datasheet no longer preliminary
Remove Draft; update contact information
Revise graphics
November 05
Pin type review
Contacting
Oxford Semi-
conductor
See the Oxford Semiconductor website (http://www.oxsemi.com) for
further details about Oxford Semiconductor devices, or email
sales@oxsemi.com.
FireWire, Mac and Mac OS are trademarks of Apple Computer, Inc., registered in the US and other countries, and
GarageBand is a trademark of Apple Computer, Inc..
Windows is a trademark of Microsoft, Inc., registered in the US and other countries.
Dolby is a registered trademark of Dolby Laboratories.
All other trademarks are the property of their respective owners
© Oxford Semiconductor, Inc. 2006
The content of this manual is furnished for informational use only, is subject to change without notice, and should not be
construed as a commitment by Oxford Semiconductor, Inc. Oxford Semiconductor , Inc. assumes no responsibility or liability
for any errors or inaccuracies that may appear in this book.
12
External—Free Release
DS-0017 Nov 06
厂商 型号 描述 页数 下载

ETC

 		OXFW900 IEEE1394到ATA / ATAPI本地桥[ IEEE1394 to ATA/ATAPI Native Bridge ] 30 页

ETC

 		OXFW900-TQ-A IEEE1394到ATA / ATAPI本地桥[ IEEE1394 to ATA/ATAPI Native Bridge ] 30 页

ETC

 		OXFW911 IEEE1394到ATA / ATAPI本地桥[ IEEE1394 to ATA/ATAPI Native Bridge ] 32 页

ETC

 		OXFW911-TQ-A IEEE1394到ATA / ATAPI本地桥[ IEEE1394 to ATA/ATAPI Native Bridge ] 32 页

OXFORD

 		OXFW911PLUS 1394A到ATA7 / ATAPI桥[ 1394A-to-ATA7/ATAPI Bridge ] 2 页

OXFORD

 		OXFW912 1394B到ATA7 / ATAPI桥[ 1394B-to-ATA7/ATAPI Bridge ] 2 页

OXFORD

 		OXFW970-TQ-A [ Micro Peripheral IC ] 10 页

OXFORD

 		OXFW970-TQ-AG [ Micro Peripheral IC ] 10 页

OXFORD

 		OXFW971 16通道音频流火线I / O控制器， MIDI和S / PDIF[ 16 Channel Streaming Audio Firewire I/O Controller with Midi and S/PDIF ] 1 页

购物指南

支付方式

配送服务

售后服务

发票须知

优惠券使用规则

特色服务

PCBA制造

国产品牌推荐

国产料号替代

质量保证

技术资料

行业资讯

关于我们

关于壹壹捌

联系我们

联系我们

服务热线：400-618-9990

企业邮箱：sales@ic118.com

服务时间：周一至周六 8:30-17:30

壹壹捌官方微信号

PDF索引：

A

B

C

D

E

F

G

H

I

J

K

L

M

N

O

P

Q

R

S

T

U

V

W

X

Y

Z

0

1

2

3

4

5

6

7

8

9

IC型号索引：

A

B

C

D

E

F

G

H

I

J

K

L

M

N

O

P

Q

R

S

T

U

V

W

X

Y

Z

0

1

2

3

4

5

6

7

8

9

Copyright 2024 gkzhan.com Al Rights Reserved 京ICP备06008810号-21 京

深圳网络警察报警平台
公共信息安全网络监察
经营性网站备案信息
不良信息举报中心
工商网监电子标识
全国公安机关备案
0.176403s
