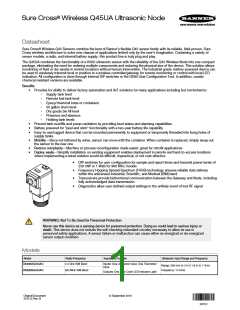

Sure Cross Wireless Q45UA Ultrasonic Node
Datasheet
®
Sure Cross Wireless Q45 Sensors combine the best of Banner’s flexible Q45 sensor family with its reliable, field-proven, Sure
Cross wireless architecture to solve new classes of applications limited only by the user’s imagination. Containing a variety of
sensor models, a radio, and internal battery supply, this product line is truly plug and play.
The Q45UA combines the functionality of a K50U ultrasonic sensor with the reliability of the Q45 Wireless Node into one compact
package, eliminating the need for ordering multiple components and reducing the physical size of the device. This solution allows
monitoring of fluid or dry assets in remote locations without human intervention. The industrial grade, battery-powered device can
be used to wirelessly transmit level or position to a wireless controller/gateway for remote monitoring or control with local LED
indication. All configuration is done through internal DIP switches or the DX80 User Configuration Tool. In addition, caustic
chemical resistant versions are available.
Benefits
•
Provides for ability to deliver factory automation and IIoT solutions for many applications including but not limited to:
◦
◦
◦
◦
◦
◦
◦
Supply tank level
Remote fuel tank level
Epoxy/chemical totes or containers
55 gallon drum level
Dry goods bin fill level
Presence and absence
Holding tank levels
•
•
•
Prevent tank overfills and pump cavitation by providing level status and alarming capabilities
Battery powered for "peel and stick" functionality with a two-year battery life capability
Easy-to-use/rugged device that can be mounted permanently to equipment or temporarily threaded into bung holes of
supply tanks.
•
Mobility—Since not tethered by wires, sensor can move with the container. When container is replaced, simply swap out
the sensor to the new one
•
•
Reduce complexity—Machine or process reconfiguration made easier; great for retrofit applications
Deploy easily—Simplify installation on existing equipment enables deployment in remote and hard-to-access locations
where implementing a wired solution would be difficult, impractical, or not cost-effective
•
•
•
•
DIP switches for user configuration for sample and report times and transmit power levels of
250 mW or 1 Watt for 900 MHz models
Frequency Hopping Spread Spectrum (FHSS) technology ensures reliable data delivery
within the unlicensed Industrial, Scientific, and Medical (ISM) band
Transceivers provide bidirectional communication between the Gateway and Node, including
fully acknowledged data transmission
Diagnostics allow user-defined output settings in the unlikely event of lost RF signal
WARNING: Not To Be Used for Personnel Protection
Never use this device as a sensing device for personnel protection. Doing so could lead to serious injury or
death. This device does not include the self-checking redundant circuitry necessary to allow its use in
personnel safety applications. A sensor failure or malfunction can cause either an energized or de-energized
sensor output condition.
Models
Model
Radio Frequency
2.4 GHz ISM Band
Inputs and Outputs
Ultrasonic Input Range and Frequency
DX80N2Q45UAC
Inputs: One Ultrasonic Input, One Thermistor
Input
Range: 300 mm to 3 m (11.8 in to 118 in)
Frequency: 114 kHz
DX80N9Q45UAC
900 MHz ISM Band
Outputs: One Four-Color LED Indicator Light
Original Document
207212 Rev. B
12 September 2018
207212
®
Sure Cross Wireless Q45UA Ultrasonic Node
®
Exporting Sure Cross Radios. It is our intent to fully comply with all national and regional regulations regarding radio frequency emissions. Customers who want to re-export this product
to a country other than that to which it was sold must ensure the device is approved in the destination country. A list of approved countries appears in the Radio Certifications section of
the product manual. The Sure Cross wireless products were certified for use in these countries using the antenna that ships with the product. When using other antennas, verify you are
not exceeding the transmit power levels allowed by local governing agencies. Consult with Banner Engineering Corp. if the destination country is not on this list.
General Operation
For the first 15 minutes after power up, the Node samples the sensor every 0.25 seconds (fast sample mode). After 15 minutes, the
Node defaults to 5 minute sample intervals. Activate fast sample mode by single clicking the button (the amber LED is solid).
Storage Mode for the Q45
While in storage mode, the Q45's radio does not operate. The Q45 ships from the factory in storage mode to conserve the battery.
To wake the device, press and hold the button for five seconds. To put any Q45 into storage mode, press and hold the button for
five seconds. The Q45 is in storage mode when the LEDs stop blinking.
Principles of Operation
Ultrasonic sensors emit one or multiple pulses of ultrasonic energy, which travel through the air at the speed of sound. A portion of
this energy reflects off the target and travels back to the sensor. The sensor measures the total time required for the energy to
reach the target and return to the sensor. The distance to the object is then calculated using the following formula: D = ct ÷ 2
D = distance from the sensor to the target
c = speed of sound in air
t = transit time for the ultrasonic pulse
To improve accuracy, an ultrasonic sensor may average the results of several pulses before outputting a new value.
Temperature Effects
The speed of sound is dependent upon the composition, pressure and temperature of the gas in which it is traveling. For most
ultrasonic applications, the composition and pressure of the gas are relatively fixed, while the temperature may fluctuate.
In air, the speed of sound varies with temperature according to the following approximation:
In metric units:
In English units:
C
=
√
=
C
ft/s
√
49 460 + T
F
20 273 + T
m/s
C
Cm/s = speed of sound in meters per second
TC = temperature in °C
Cft/s = speed of sound in feet per second
TF = temperature in °F
Temperature Compensation
Changes in air temperature affect the speed of sound, which in turn affects the total time for the echo measured by the sensor. An
increase in air temperature shifts both sensing window limits closer to the sensor. Conversely, a decrease in air temperature shifts
both limits farther away from the sensor. This shift is approximately 3.5% of the limit distance for a 20° C change in temperature.
The Q45 series ultrasonic sensors are temperature compensated, to reduce sensor errors from temperature by about 90%.
Exposure to direct sunlight can affect the sensor’s ability to accurately compensate for changes in temperature.
Replacing the Batteries
To replace the lithium "AA" cell battery, follow these steps. As with all batteries, these are a fire, explosion, and severe burn hazard.
Do not burn or expose them to high temperatures. Do not recharge, crush, disassemble, or expose the contents to water. Properly
dispose of used batteries according to local regulations by taking it to a hazardous waste collection site, an e-waste disposal
center, or other facility qualified to accept lithium batteries.
1. Lift the plastic cover.
2. Slide the board containing the batteries out of the Q45 housing.
3. Remove the discharged batteries and replace with new batteries. Use two 3.6 V
AA lithium batteries, such as Xeno's XL-60F or equivalent.
4. Verify the battery’s positive and negative terminals align to the positive and
negative terminals of the battery holder mounted within the case. Caution: There
is a risk of explosion if the battery is replaced incorrectly.
5. Slide the board containing the new batteries back into the Q45 housing.
Replacement battery model number: BWA-BATT-006. For pricing and availability, contact
Banner Engineering.
2
www.bannerengineering.com - Tel: +1-763-544-3164
P/N 207212 Rev. B
®
Sure Cross Wireless Q45UA Ultrasonic Node
Configuration Instructions
Button and LEDs
1
2
3
4
5
Button
3
2
1
Red LED (flashing) indicates a radio link error with the Gateway.
Green LED (flashing) indicates a good radio link with the Gateway.
Amber LED is not used.
5
4
DIP Switches
DIP Switches
After making any changes to any DIP switch position, reboot the Wireless Q45 Sensor by triple-clicking the button, waiting a
second, then double-clicking the button.
The DIP switches are in the OFF position. To turn a DIP switch on, push the switch toward the battery pack. DIP switches one
through four are numbered from left to right.
Description
DIP Switches
1
2
3
4
Transmit power: 1 Watt
OFF *
ON
Transmit power: 250 mW (compatible with 150 mW radios)
Sample/Report Rate: User configured (5 minutes by default)
Sample/Report Rate: 16 seconds
OFF *
OFF
ON
OFF *
ON
Sample/Report Rate: 64 seconds
OFF
ON
Sample/Report Rate: Sample on Demand
ON
1
Light mode: flash (recommended to conserve the battery)
OFF *
ON
Light mode: solid
* Default position
Transmit Power Levels
The 900 MHz radios transmit at 1 Watt (30 dBm) or 250 mW (24 dBm). While the Performance radios operate in 1 Watt mode, they
cannot communicate with the older 150 mW radios. To communicate with 150 mW radios, operate this radio in 250 mW mode. For
2.4 GHz models, this DIP switch is disabled. The transmit power for 2.4 GHz is fixed at about 65 mW EIRP (18 dBm), making the
2.4 GHz Performance models automatically compatible with older 2.4 GHz models.
Sample and Report Rates
The sample interval, or rate, defines how often the Sure Cross device samples the input. For battery-powered applications, setting
a slower rate extends the battery life.
®
The report rate defines how often the Node communicates the I/O status to the Gateway. For FlexPower applications, setting the
report rate to a slower rate extends the battery life.
What is Sampling on Demand?
Sample on Demand allows a host system to send a Modbus command to any register and require the Node's inputs to
immediately sample the sensor and report readings back to the host system. Sampling on demand can be used between the
normal periodic reporting.
To use the Sample on Demand feature requires using a host-controlled system capable of sending Modbus commands to the
Gateway.
1
The light consumes most of the sensor's power. If the light remains off most of the time, the batteries will last much longer. In flashing mode, the light can
be on for up to one year on a pair of batteries.
P/N 207212 Rev. B
www.bannerengineering.com - Tel: +1-763-544-3164
3
®
Sure Cross Wireless Q45UA Ultrasonic Node
Sample an Input Using a Host System
To sample the input, have the Host System write to the Node's register 15. To calculate which register this is for your Node, use
this equation: 15 + (Node # × 16).
1. From the host system, write 0x13xx to the Node's register 15, where xx defines the input you want to sample.
For Input
Write Value (in hex)
Write Value (in decimal)
1
0x1301
0x1302
0x1304
0x1308
0x1310
0x1320
0x133F
4865
4866
4868
4872
4880
4896
4927
2
3
4
5
6
All Inputs
2. To send the Sample on Demand command to more than one input, add together the binary representation values.
For example, to demand a sampling of inputs 1, 2, and 3, the Hex command is 0x1307.
Bind the Q45 to the Gateway and Assign the Node Address
Before beginning the binding procedure, apply power to all the devices. Separate the devices by two meters when running binding
procedure. Put only one Gateway into binding at a time to prevent binding to the wrong Gateway.
Figure 1. Buttons on a housed Gateway
1. Enter binding mode on the Gateway.
•
•
For housed DX80 Gateways, triple-click button 2 on the Gateway. Both LEDs flash red.
For board-level DX80 Gateways, triple-click the binding button on the Gateway. The green and red LED flashes.
2. Assign the Q45 a Node address using the Gateway's rotary dials. Use the left rotary dial for the left digit and the right rotary
dial for the right digit. For example, to assign your Q45 to Node 10, set the Gateway's left dial to 1 and the right dial to 0.
Valid Node addresses are 01 through 47.
3. Loosen the clamp plate on the top of the Q45 and lift the cover.
4. Enter binding mode on the Q45 by triple-clicking the Q45's binding button.
The red and green LEDs flash alternately and the sensor searches for a Gateway in binding mode. After the Q45 is bound,
the LEDs stay solid momentarily, then they flash together four times. The Q45 exits binding mode.
5. Label the sensor with the Q45's Node address number for future reference.
6. Repeat steps 2 through 5 for as many Q45 as are needed for your network.
7. After binding all Q45, exit binding mode on the Gateway.
•
•
For housed DX80 Gateways, double-click button 2 on the Gateway.
For board-level DX80 Gateways, double-click the binding button on the Gateway.
For Gateways with single-line LCDs, after binding your Q45 to the Gateway, make note of the binding code displayed under the
Gateway's *DVCFG menu, XADR submenu on the LCD. Knowing the binding code prevents having to re-bind all Q45s if your
Gateway is ever replaced.
Bind a Q45 Node to a DXM Gateway and Assign the Node Address
Before beginning the binding procedure, apply power to all the devices. Separate radios by 2 meters when running binding
procedure. Put only one DXM Gateway into binding at a time to prevent binding to the wrong Gateway.
1. On the DXM radio using the arrow keys select the ISM Radio menu on the LCD and click ENTER.
2. Highlight the Binding menu and click ENTER.
3. Use the arrow keys to select the Node address to bind the Q45 to.
4. Loosen the clamp plate on the top of the Q45 and lift the cover.
4
www.bannerengineering.com - Tel: +1-763-544-3164
P/N 207212 Rev. B
®
Sure Cross Wireless Q45UA Ultrasonic Node
5. Enter binding mode on the Q45 by triple-clicking the power/binding button.
The red and green LEDs flash alternately and the sensor searches for a Gateway in binding mode. After the Q45 binds, the
LEDs stay solid momentarily, then they flash together four times. The Q45 exits binding mode.
6. Label the sensor with the Q45's Node address number for future reference.
7. Click BACK on DXM to exit binding for that specific Node address.
8. Repeat steps 3 through 7 changing the Node address for as many Q45s as are needed for your network.
9. Click BACK on DXM until back to the main menu when finished binding.
Modbus Registers
I/O #
Modbus Holding Register
I/O Type *
I/O Range
Holding Register
Representation
Gateway
Any Node
Min.
Max.
Min.
Max.
1
2
1
2
1 + (Node# × 16)
2 + (Node# × 16)
3 + (Node# × 16)
4 + (Node# × 16)
5 + (Node# × 16)
6 + (Node# × 16)
7 + (Node# × 16)
8 + (Node# × 16)
9 + (Node# × 16)
10 + (Node# × 16)
11 + (Node# × 16)
12 + (Node# × 16)
...
Distance (mm)
Temp °C
0
65535
1638.3
1638.3
655.35
0
65535
32767
32767
65535
-1638.4
-1636.4
0
-32768
-32768
0
3
3
Temp °F
4
4
Distance (in)
5
5
6
6
7
7
Reserved
8
8
Device Message
9
9
Discrete OUT 1: Red Light
Discrete OUT 2: Yellow Light
Discrete OUT 3: Green Light
Discrete OUT 4: Blue Light
0
0
0
0
1
1
1
1
0
0
0
0
1
1
1
1
10
11
12
10
11
12
15
16
15
16
15 + (Node# × 16)
16 + (Node# × 16)
Control Message
Reserved
Distance readings below 250 mm (9.84 in) result in a register value of 0. If no reflection is received because the target is too far
away, the register value is an error value of 65535.
The temperature = (Modbus register value) ÷ 20. The distance (in) = (Modbus register value) ÷ 100.
Specifications
Performance Radio with Internal Antenna Specifications
Radio Range2
900 MHz Compliance (1 Watt)
900 MHz, 1 Watt (Internal antenna): Up to 3.2 km (2 miles) with line of sight
2.4 GHz, 65 mW (Internal antenna): Up to 1000 m (3280 ft) with line of sight
FCC ID UE3RM1809: This device complies with FCC Part 15, Subpart C,
15.247
IC: 7044A-RM1809
Antenna Minimum Separation Distance
900 MHz, 150 mW and 250 mW: 2 m (6 ft)
900 MHz, 1 Watt: 4.57 m (15 ft)
2.4 GHz Compliance
FCC ID UE300DX80-2400 - This device complies with FCC Part 15, Subpart
C, 15.247
ETSI EN 300 328: V1.8.1 (2012-06)
IC: 7044A-DX8024
2.4 GHz, 65 mW: 0.3 m (1 ft)
Radio Transmit Power
900 MHz, 1 Watt: 30 dBm (1 W) conducted (up to 36 dBm EIRP)
2.4 GHz, 65 mW: 18 dBm (65 mW) conducted, less than or equal to 20 dBm
(100 mW) EIRP
Link Timeout
Gateway: Configurable via User Configuration Tool (UCT) software
Node: Defined by Gateway
Spread Spectrum Technology
FHSS (Frequency Hopping Spread Spectrum)
Radiated Immunity HF
10 V/m (EN 61000-4-3)
2
Range depends on the environment and decreases significantly without line of sight. Always verify your wireless network's range by performing a Site Survey.
P/N 207212 Rev. B
www.bannerengineering.com - Tel: +1-763-544-3164
5
®
Sure Cross Wireless Q45UA Ultrasonic Node
Specifications for the Q45UA Node
Ultrasonic Performance
Sensing range: 300 mm to 3 m (11.8 in to 118 in)
Ultrasonic frequency: 114 kHz
Temperature effect: 0.02% of distance/°C
Resolution: 0.1% of distance (1.5 mm minimum)
Default Sensing Interval
5 minutes
Typical Battery Life
See chart.
Indicators
Red and green LEDs (radio function)
Construction
Molded reinforced thermoplastic polyester housing, oring-sealed
®
transparent Lexan cover, molded acrylic lenses, and stainless steel
hardware. Q45s are designed to withstand 1200 psi washdown.
Environmental Specifications
Operating Conditions
Environmental Rating
NEMA 6P, IEC IP67
–40 °C to +70 °C (–40 °F to +158 °F); 90% at +50 °C maximum relative
humidity (non-condensing)
Operating the devices at the maximum operating conditions for
extended periods can shorten the life of the device.
Radiated Immunity: 10 V/m (EN 61000-4-3)
Performance Curves
With Plate Target (Typical)
With Rod Target (Typical)
Maximum Target Rotation Angle
30
400 mm
300 mm
200 mm
100 mm
0
16"
12"
8"
400 mm
300 mm
200 mm
100 mm
0
16"
12"
8"
20
25 mm Rod
100 x 100 mm
10
0
4"
4"
0
0
10 mm Rod
100 mm
200 mm
300 mm
400 mm
4"
100 mm
200 mm
300 mm
400 mm
4"
10
20
30
8"
8"
12"
16"
3000 mm
(120")
12"
16"
3000 mm
(120")
0
600 mm
(24")
1200 mm
(48")
1800 mm
(72")
2400 mm
(96")
0
500 mm
(20")
1000 mm
(40")
1500 mm
(60")
2000 mm
(80")
2500 mm
(100")
3000 mm
(120")
0
600 mm
(24")
1200 mm
(48")
1800 mm
(72")
2400 mm
(96")
DISTANCE
DISTANCE
DISTANCE
Battery Life
70
60
50
40
30
20
10
2.4 GHz
900 MHz
0
0
5
3
4
1
2
6
Sample and Report Rate (minutes)
6
www.bannerengineering.com - Tel: +1-763-544-3164
P/N 207212 Rev. B
®
Sure Cross Wireless Q45UA Ultrasonic Node
Dimensions
Banner Engineering Corp. Limited Warranty
Banner Engineering Corp. warrants its products to be free from defects in material and workmanship for one year following the date of shipment. Banner Engineering Corp. will repair or
replace, free of charge, any product of its manufacture which, at the time it is returned to the factory, is found to have been defective during the warranty period. This warranty does not
cover damage or liability for misuse, abuse, or the improper application or installation of the Banner product.
THIS LIMITED WARRANTY IS EXCLUSIVE AND IN LIEU OF ALL OTHER WARRANTIES WHETHER EXPRESS OR IMPLIED (INCLUDING, WITHOUT LIMITATION, ANY WARRANTY OF
MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE), AND WHETHER ARISING UNDER COURSE OF PERFORMANCE, COURSE OF DEALING OR TRADE USAGE.
This Warranty is exclusive and limited to repair or, at the discretion of Banner Engineering Corp., replacement. IN NO EVENT SHALL BANNER ENGINEERING CORP. BE LIABLE TO
BUYER OR ANY OTHER PERSON OR ENTITY FOR ANY EXTRA COSTS, EXPENSES, LOSSES, LOSS OF PROFITS, OR ANY INCIDENTAL, CONSEQUENTIAL OR SPECIAL DAMAGES
RESULTING FROM ANY PRODUCT DEFECT OR FROM THE USE OR INABILITY TO USE THE PRODUCT, WHETHER ARISING IN CONTRACT OR WARRANTY, STATUTE, TORT,
STRICT LIABILITY, NEGLIGENCE, OR OTHERWISE.
Banner Engineering Corp. reserves the right to change, modify or improve the design of the product without assuming any obligations or liabilities relating to any product previously
manufactured by Banner Engineering Corp. Any misuse, abuse, or improper application or installation of this product or use of the product for personal protection applications when the
product is identified as not intended for such purposes will void the product warranty. Any modifications to this product without prior express approval by Banner Engineering Corp will
void the product warranties. All specifications published in this document are subject to change; Banner reserves the right to modify product specifications or update documentation at
any time. Specifications and product information in English supersede that which is provided in any other language. For the most recent version of any documentation, refer to:
www.bannerengineering.com.
For patent information, see www.bannerengineering.com/patents.
©
Banner Engineering Corp. All rights reserved
厂商 型号 描述 页数 下载

BANNER

 		DX80N2Q45UAC [ Sure Cross® Wireless Q45UA Ultrasonic Node ] 7 页

BANNER

 		DX80N2Q45VA [ Sure Cross® Wireless Q45VA Vibration and Temperature Sensor ] 10 页

BANNER

 		DX80N2Q45VTP [ Sure Cross® Wireless Q45VTP Node ] 8 页

BANNER

 		DX80N2X1S-P6 [ Sure Cross Performance Node ] 8 页

BANNER

 		DX80N2X1W-P6L [ Sure Cross® Performance Node ] 8 页

BANNER

 		DX80N2X6S-P6 [ Sure Cross Performance Node ] 8 页

BANNER

 		DX80N9Q45VA [ Sure Cross® Wireless Q45VA Vibration and Temperature Sensor ] 10 页

BANNER

 		DX80N9Q45VTP [ Sure Cross® Wireless Q45VTP Node ] 8 页

BANNER

 		DX80N9X1S-P6 [ Sure Cross Performance Node ] 8 页

BANNER

 		DX80N9X1W-P6L [ Sure Cross® Performance Node ] 8 页

购物指南

支付方式

配送服务

售后服务

发票须知

优惠券使用规则

特色服务

PCBA制造

国产品牌推荐

国产料号替代

质量保证

技术资料

行业资讯

关于我们

关于壹壹捌

联系我们

联系我们

服务热线：400-618-9990

企业邮箱：sales@ic118.com

服务时间：周一至周六 8:30-17:30

壹壹捌官方微信号

PDF索引：

A

B

C

D

E

F

G

H

I

J

K

L

M

N

O

P

Q

R

S

T

U

V

W

X

Y

Z

0

1

2

3

4

5

6

7

8

9

IC型号索引：

A

B

C

D

E

F

G

H

I

J

K

L

M

N

O

P

Q

R

S

T

U

V

W

X

Y

Z

0

1

2

3

4

5

6

7

8

9

Copyright 2024 gkzhan.com Al Rights Reserved 京ICP备06008810号-21 京

深圳网络警察报警平台
公共信息安全网络监察
经营性网站备案信息
不良信息举报中心
工商网监电子标识
全国公安机关备案
0.153329s
