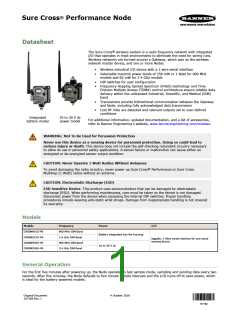

Sure Cross Performance Node
Datasheet
®
The Sure Cross wireless system is a radio frequency network with integrated
I/O that operates in most environments to eliminate the need for wiring runs.
Wireless networks are formed around a Gateway, which acts as the wireless
network master device, and one or more Nodes.
•
•
Wireless industrial I/O device with a 1-wire serial interface
Selectable transmit power levels of 250 mW or 1 Watt for 900 MHz
models and 65 mW for 2.4 GHz models
•
•
DIP switches for user configuration
Frequency Hopping Spread Spectrum (FHSS) technology and Time
Division Multiple Access (TDMA) control architecture ensure reliable data
delivery within the unlicensed Industrial, Scientific, and Medical (ISM)
band
•
•
Transceivers provide bidirectional communication between the Gateway
and Node, including fully acknowledged data transmission
Lost RF links are detected and relevant outputs set to user-defined
conditions
Integrated
battery model
10 to 30 V dc
power model
For additional information, updated documentation, and a list of accessories,
refer to Banner Engineering's website, www.bannerengineering.com/wireless.
WARNING: Not To Be Used for Personnel Protection
Never use this device as a sensing device for personnel protection. Doing so could lead to
serious injury or death. This device does not include the self-checking redundant circuitry necessary
to allow its use in personnel safety applications. A sensor failure or malfunction can cause either an
energized or de-energized sensor output condition.
CAUTION: Never Operate 1 Watt Radios Without Antennas
®
To avoid damaging the radio circuitry, never power up Sure Cross Performance or Sure Cross
MultiHop (1 Watt) radios without an antenna.
CAUTION: Electrostatic Discharge (ESD)
ESD Sensitive Device. This product uses semiconductors that can be damaged by electrostatic
discharge (ESD). When performing maintenance, care must be taken so the device is not damaged.
Disconnect power from the device when accessing the internal DIP switches. Proper handling
procedures include wearing anti-static wrist straps. Damage from inappropriate handling is not covered
by warranty.
Models
Models
Frequency
Power
I/O
DX80N9X1S-P6
DX80N2X1S-P6
DX80N9X6S-P6
DX80N2X6S-P6
900 MHz ISM Band
2.4 GHz ISM Band
900 MHz ISM Band
2.4 GHz ISM Band
Battery integrated into the housing
Inputs: 1-Wire serial interface for one serial
sensing device
10 to 30 V dc
General Operation
For the first five minutes after powering up, the Node operates in fast sample mode, sampling and sending data every two
seconds. After five minutes, the Node defaults to five minute sample intervals and the LCD turns off to save power, which
is ideal for the battery-powered models.
Original Document
157189 Rev. I
4 October 2016
157189
®
Sure Cross Performance Node
Use the DIP switches or the User Configuration Tool (UCT) software to set the sample rate. The recommended sample/
report rate for 10 to 30 V dc powered devices is 5 seconds.
To activate fast sample mode, single-click button 1. LED 2 is on (amber) during the fast sample mode. To exit fast sample
mode and turn off the LCD, click button 2 five times. This behavior is available with radio firmware versions 5.3 and
higher.
Sensors with a Serial Interface
The following sensors are designed to be used with any of the 1-Wire Serial Interface Nodes.
Models
Description
Datasheet
Temperature and Humidity Sensor, ±2% Accuracy, 1-wire serial interface
M12FTH4Q
(Requires a 5-pin threaded M12/Euro-style double-ended cordset less than 3
meters long, such as model DEE2R-5xD.)
162669
Temperature Sensor with 1-wire serial interface
M12FT4Q
QS30WEQ
(Requires a 5-pin threaded M12/Euro-style double-ended cordset less than 3
meters long, such as model DEE2R-5xD.)
WORLD-BEAM Photoelectric Emitter, QS30 (Max Range: 100 feet, 10x excess
gain at 50 feet), 1-wire serial interface
140987
WORLD-BEAM Photoelectric Receiver, QS30 (Max Range: 100 feet, 10x excess
gain at 50 feet), 1-wire serial interface
QS30WRQ
QM42VT1
Vibration and Temperature Sensor with 1-wire serial interface
186209
K50UX1RA
U-GAGE Ultrasonic Sensor with 1-wire serial interface
191599
Configuration Instructions
Setting Up Your Wireless Network
To set up and install your wireless network, follow these steps.
Disconnect the power from your Sure Cross devices.
1. Configure the DIP switches of all devices.
2. If your device has I/O, connect the sensors to the Sure Cross devices. If your device does not have I/O, skip this step.
3. Refer to the wiring diagrams to apply power to all devices.
•
For two LED models, the Gateway's LED 1 is solid green and the Node's LED 2 flashes red to indicate there is no
radio link to the Gateway.
•
For one LED models, the Gateway's LED is solid green and the Node's LED flashes red to indicate there is no radio
link to the Gateway.
4. Form the wireless network by binding the Nodes to the Gateway. If the binding instructions are not included in the
datasheet, refer to the product manual for binding instructions.
5. Observe the LED behavior to verify the devices are communicating with each other.
•
For two LED models, the Gateway's LED 1 is solid green and the Node's LED 1 flashes green to indicate it is
communicating with the Gateway.
•
For one LED models, the Gateway's LED is solid green and the Node's LED flashes green to indicate it is
communicating with the Gateway.
2
www.bannerengineering.com - Tel: +1-763-544-3164
P/N 157189 Rev. I
®
Sure Cross Performance Node
6. Configure any I/O points to use the sensors connected to the Sure Cross devices.
7. Conduct a site survey between the Gateway and Nodes. If the site survey instructions are not included in this
datasheet, refer to the product manual for detailed site survey instructions.
8. Install your wireless sensor network components. If installation instructions are not included in this datasheet, refer to
the product manual for detailed installation instructions.
For additional information, including installation and setup, weatherproofing, device menu maps, troubleshooting, and a
list of accessories, refer to one of the following product manuals.
®
•
•
•
•
Sure Cross Quick Start Guide: 128185
®
Sure Cross Wireless I/O Network Instruction Manual: 132607
Web Configurator Instruction Manual (used with "Pro" and DX83 models): 134421
Host Controller Systems Instruction Manual: 132114
Configure the DIP Switches
Before making any changes to the DIP switch positions, disconnect the power. DIP switch changes will not be recognized if
power isn't cycled to the device. For devices with batteries integrated into the housing, remove the battery for at least one
minute.
For parameters not set via DIP switches, use the User Configuration Tool (UCT) to make configuration changes. For
parameters set using the DIP switches, the DIP switch positions override any changes made using the User Configuration
Tool.
Accessing the Internal DIP Switches
To access the internal DIP switches, follow these steps:
1. Unscrew the four screws that mount the cover to the bottom housing.
2. Remove the cover from the housing without damaging the ribbon cable or the pins the cable plugs into.
3. Gently unplug the ribbon cable from the board mounted into the bottom housing. For integrated battery models (no
ribbon cable) and Class I, Division 2 certified devices (ribbon cable is glued down), skip this step.
4. Remove the black cover plate from the bottom of the device's cover.
The DIP switches are located behind the rotary dials.
After making the necessary changes to the DIP switches, place the black cover plate back into
position and gently push into place. Plug the ribbon cable in after verifying that the blocked hole
lines up with the missing pin. Mount the cover back onto the housing.
DIP Switch Settings
These DIP switch settings are available with radio firmware versions 5.3 and higher.
Device Settings
Switches
5
1
2
3
4
6
7
8
Transmit power level: 1 Watt (30 dBm) (default)
OFF
ON
Transmit power level: 250 mW (24 dBm), DX80
compatibility mode
Modbus or UCT configured (overrides DIP switches
3-8) (default)
OFF
ON
DIP switch configured
Sensor 1: 6 registers (default)
Sensor 1: 3 registers
OFF
OFF
OFF
OFF
OFF
ON
Sample/Report Rates: 5 minutes (default)
Sample/Report Rates: 2 minutes
Sample/Report Rates: 1 minute
Sample/Report Rates: 30 seconds
Sample/Report Rates: 10 seconds
OFF
OFF
OFF
OFF
ON
OFF
OFF
ON
OFF
ON
OFF
ON
ON
OFF
OFF
P/N 157189 Rev. I
www.bannerengineering.com - Tel: +1-763-544-3164
3
®
Sure Cross Performance Node
Device Settings
Switches
5
1
2
3
4
6
7
8
1
Sample/Report Rates: 5 seconds
ON
ON
OFF
ON
ON
OFF
Sample/Report Rates: sample on demand
Modbus/User Configuration Tool (UCT) or DIP Switch Configured
In Modbus/UCT Configured mode, the device parameters are changed using the User Configuration Tool (UCT) or a Modbus
command. All DIP switch positions are ignored. In DIP Switch Configured mode, use the DIP switches to configure the
parameters listed in the table.
Sample and Report Rates
The sample interval, or rate, defines how often the Sure Cross device samples the input. For battery-powered applications,
setting a slower rate extends the battery life.
The report rate defines how often the Node communicates the I/O status to the Gateway. Change of state reporting sets
®
the system to report only when the value crosses the threshold setting. For FlexPower applications, setting the report
rate to a slower rate extends the battery life.
Transmit Power Levels
The 900 MHz radios can be operated at 1 watt (30 dBm) or 250 mW (24 dBm). While the Performance radios operate in 1
Watt mode, they cannot communicate with the older 150 mW radios. To communicate with the older 150 mW radios,
operate this radio in 250 mW mode. For 2.4 GHz models, this DIP switch is disabled. The transmit power for 2.4 GHz is
fixed at about 65 mW EIRP (18 dBm), making the 2.4 GHz Performance models automatically compatible with older 2.4
GHz models.
®
Wiring Your Sure Cross Device
Use the following wiring diagrams to first wire the sensors and then apply power to the Sure Cross devices.
Control Drawings
Refer to the Class I Division 2/Zone 2 control drawings (p/n 143086) for wiring specifications or limitations.
5-Pin M12/Euro-style Female Quick Disconnect
This female quick disconnect fitting interfaces with a 1-wire serial sensor. The following information defines the wires and
the appropriate connection points in the Sure Cross radio.
5-pin M12/Euro-style Female Quick
Pin
Wire Color
Description
Disconnect
1
2
3
4
5
Brown
White
Blue
Power out + (to sensor)
Device select
2
1
4
dc common (GND)
Device output
3
5
Black
Gray
Serial comms
5-Pin M12/Euro-Style Male Quick Disconnect
Integral 5-pin M12/Euro-style male quick disconnect (QD)s are wired for 10 to 30 V dc power as shown.
1
Recommended setting for 10–30 V dc powered devices.
4
www.bannerengineering.com - Tel: +1-763-544-3164
P/N 157189 Rev. I
®
Sure Cross Performance Node
5-pin M12/Euro-style (male)
Pin
1
Wire Color
Brown
White
Description
10 to 30 V dc
2
1
3
Blue
dc common (GND)
2
3
4
Black
4
5
5
Gray
LED Behavior for the Nodes
Nodes do not sample inputs until they are communicating with the Gateway. The radios and antennas must be a minimum
distance apart to function properly. Recommended minimum distances are:
2.4 GHz 65 mW radios: 1 foot
900 MHz 150 mW and 250 mW radios: 6 feet
900 MHz 1 Watt radios: 15 feet
LED 1
LED 2
Node Status
Radio Link Ok
Device Error
No Radio Link
Flashing green
Flashing red
Flashing red
Flashing red, 1 per 3 sec
®
Sure Cross User Configuration Tool
The User Configuration Tool (UCT) offers an easy way to link I/O points in your wireless network, view I/O register values,
and set system communication parameters when a host system is not part of the wireless network.
The User Configuration Tool (UCT) software runs on any computer with the Windows Vista, Windows 7, Windows 8, or
Windows 10 operating system.
Use a USB to RS-485 adapter cable to connect a standalone DX80 Gateway to the
computer. For DXM Controllers with an internal DX80 radio, connect a computer to
the DXM Controller using a USB or Ethernet connection. Download the most recent
revisions of the UCT software from Banner Engineering's website: http://
www.bannerengineering.com/wireless.
The USB to RS-485 adapter cable is not required for the DXM Controller. For
standalone DX80 Gateway devices use:
•
•
USB to RS-485 adapter cable model BWA-UCT-900 for 1 Watt radios
USB to RS-485 adapter cable model BWA-HW-006 for all other radios
®
Installing Your Sure Cross Radios
Please refer to one of the following instruction manuals for details about successfully installing your wireless network
components.
•
DX80 and Performance Wireless I/O Network Instruction Manual: 132607
Holding Registers
Modbus Registers
I/O
EIP Registers
I/O Type
Point
Gateway
Any Node
1
2
3
4
5
6
1
2
3
4
5
6
1 + (Node# × 16)
2 + (Node# × 16)
3 + (Node# × 16)
4 + (Node# × 16)
5 + (Node# × 16)
6 + (Node# × 16)
0 + (Node# × 8)
1 + (Node# × 8)
2 + (Node# × 8)
3 + (Node# × 8)
4 + (Node# × 8)
5 + (Node# × 8)
Input 1
Input 2
Input 3
Input 4
Input 5
Input 6
Instance 100 / N7
P/N 157189 Rev. I
www.bannerengineering.com - Tel: +1-763-544-3164
5
®
Sure Cross Performance Node
Modbus Registers
EIP Registers
I/O
I/O Type
Point
Gateway
Any Node
7 + (Node# × 16)
8 + (Node# × 16)
...
7
8
7
8
6 + (Node# × 8)
7 + (Node# × 8)
Reserved
Device Message
15
16
15
16
15 + (Node# × 16)
16 + (Node# × 16)
6 + (Node# × 8)
7 + (Node# × 8)
Instance 112 / N14
Control Message
Reserved
Replacing the Integrated Battery (DX80 Models)
To replace the lithium "D" cell battery in any integrated housing model, follow these steps.
1. Remove the four screws mounting the face plate to the housing and remove the face plate.
2. Remove the discharged battery by pressing the battery toward the negative terminal to compress the spring. Pry up on
the battery’s positive end to remove from the battery holder.
3. Replace with a new battery. Only use a 3.6 V lithium battery from Xeno, model number XL-205F.
4. Verify the battery’s positive and negative terminals align to the positive and negative terminals of the battery holder
mounted within the case. The negative end is toward the spring.
Caution: There is a risk of explosion if the battery is replaced incorrectly.
5. After replacing the battery, allow up to 60 seconds for the device to power up.
6. Properly dispose of your used battery according to local regulations by taking it to a hazardous waste collection site, an
e-waste disposal center, or other facility qualified to accept lithium batteries.
As with all batteries, these are a fire, explosion, and severe burn hazard. Do not burn or
expose them to high temperatures. Do not recharge, crush, disassemble, or expose the
contents to water.
Replacement battery model number: BWA-BATT-001. For pricing and availability, contact
Banner Engineering.
Storage and Sleep Modes
Storage Mode (applies to battery-powered models only)—While in storage mode, the radio does not operate. All Sure
®
Cross radios powered from an integrated battery ship from the factory in storage mode to conserve the battery. To wake
®
the device, press and hold button 1 for 5 seconds. To put any FlexPower or integrated battery Sure Cross radio into
storage mode, press and hold button 1 for 5 seconds. The radio is in storage mode when the LEDs stop blinking, but in
some models, the LCD remains on for an additional minute after the radio enters storage mode. After a device has entered
storage mode, you must wait 1 minute before waking it.
Sleep Mode (applies to both battery and 10–30 V dc powered models)—During normal operation, the Sure Cross radio
devices enter sleep mode after 15 minutes of operation. The radio continues to function, but the LCD goes blank. To
wake the device, press any button.
6
www.bannerengineering.com - Tel: +1-763-544-3164
P/N 157189 Rev. I
®
Sure Cross Performance Node
Specifications
2
Radio Range
Supply Voltage
900 MHz, 1 Watt: Up to 9.6 km (6 miles)
2.4 GHz, 65 mW: Up to 3.2 km (2 miles)
Integrated battery models: 3.6 V dc low power option from an internal
battery
Non-battery models: 10 to 30 V dc (Outside the USA: 12 to 24 V dc,
±10%).
Minimum Separation Distance
900 MHz, 1 Watt: 4.57 m (15 ft)
2.4 GHz, 65 mW: 0.3 m (1 ft)
Housing
Polycarbonate housing and rotary dial cover; polyester labels; EDPM
rubber cover gasket; nitrile rubber, non-sulphur cured button covers
Integrated battery models: Weight: 0.30 kg (0.65 lbs)
Non-battery models: Weight: 0.26 kg (0.57 lbs)
Mounting: #10 or M5 (SS M5 hardware included)
Max. Tightening Torque: 0.56 N·m (5 lbf·in)
Radio Transmit Power
900 MHz, 1 Watt: 30 dBm (1 W) conducted (up to 36 dBm EIRP)
2.4 GHz, 65 mW: 18 dBm (65 mW) conducted, less than or equal to 20
dBm (100 mW) EIRP
900 MHz Compliance (1 Watt)
FCC ID UE3RM1809: This device complies with FCC Part 15, Subpart C,
15.247
IC: 7044A-RM1809
Link Timeout
Gateway: Configurable via User Configuration Tool (UCT) software
Node: Defined by Gateway
2.4 GHz Compliance
Antenna Connection
FCC ID UE300DX80-2400 - This device complies with FCC Part 15,
Subpart C, 15.247
Ext. Reverse Polarity SMA, 50 Ohms
Max Tightening Torque: 0.45 N·m (4 lbf·in)
ETSI EN 300 328 V1.8.1 (2012-06)
IC: 7044A-DX8024
Interface
Indicators: Two bi-color LEDs
Buttons: Two
Spread Spectrum Technology
FHSS (Frequency Hopping Spread Spectrum)
Display: Six character LCD
Sample/Report Rates
Wiring Access
3
5 minutes
Integrated battery models: One 5-pin threaded M12/Euro-style female
quick disconnect
Non-battery models: One 5-pin threaded M12/Euro-style female quick
disconnect and One 5-pin threaded M12/Euro-style male quick
disconnect
4
Operating Environment
Certifications
–40 °C to +85 °C (–40 °F to +185 °F) (Electronics); –20 °C to +80 °C
(–4 °F to +176 °F) (LCD)
95% maximum relative humidity (non-condensing)
Radiated Immunity: 10 V/m (EN 61000-4-3)
5
Environmental Rating
CSA: Class I Division 2 Groups ABCD, Class I Zone 2 AEx/Ex nA II T4
— Certificate: 1921239
IEC IP67; NEMA 6
Shock and Vibration
IEC 68-2-6 and IEC 68-2-27
Shock: 30g, 11 millisecond half sine wave, 18 shocks
Vibration: 0.5 mm p-p, 10 to 60 Hz
ATEX: II 3 G Ex nA IIC T4 Gc (Group IIC Zone 2) — Certificate LCIE
10 ATEX 1012 X
Refer to the Class I Division 2/Zone 2 control drawings (p/n 143086)
for wiring specifications or limitations. All battery-powered devices
must only use the lithium battery manufactured by Xeno, model
XL-205F.
Included with Device
•
•
•
BWA-HW-001: Mounting Hardware Kit, containing four M5-0.8 x 25mm SS screws, four M5-0.8 x 16mm SS screws,
four M5-0.8mm SS hex nuts, and four #8-32 x 3/4" SS bolts
BWA-9O2-C (900 MHz) or BWA-2O2-C (2.4 GHz): Antenna, 2 dBd Omni, Rubber Swivel RP-SMA Male. (Not
included with Internal antenna models)
Quick Start Guide (128185 for DX80 Gateways or 152653 for MultiHop models)
Warnings
Install and properly ground a qualified surge suppressor when installing a remote antenna system. Remote antenna configurations installed without surge
suppressors invalidate the manufacturer's warranty. Keep the ground wire as short as possible and make all ground connections to a single-point ground system to ensure no
®
ground loops are created. No surge suppressor can absorb all lightning strikes; do not touch the Sure Cross device or any equipment connected to the Sure Cross device
during a thunderstorm.
®
Exporting Sure Cross Radios. It is our intent to fully comply with all national and regional regulations regarding radio frequency emissions. Customers who want to
re-export this product to a country other than that to which it was sold must ensure the device is approved in the destination country. A list of approved
countries appears in the Radio Certifications section of the product manual. The Sure Cross wireless products were certified for use in these countries using the antenna that
ships with the product. When using other antennas, verify you are not exceeding the transmit power levels allowed by local governing agencies. Consult with Banner
Engineering Corp. if the destination country is not on this list.
2
Radio range is with the 2 dB antenna that ships with the product. High-gain antennas are available, but the range depends on the environment and line of
sight. Always verify your wireless network's range by performing a Site Survey.
For the 10–30 V dc models, Banner recommends setting your sample/report rate to 5 seconds.
3
4
5
Operating the devices at the maximum operating conditions for extended periods can shorten the life of the device.
®
Refer to the Sure Cross Wireless I/O Networks Instruction Manual (p/n 132607) for installation and waterproofing instructions.
P/N 157189 Rev. I
www.bannerengineering.com - Tel: +1-763-544-3164
7
®
Sure Cross Performance Node
Banner Engineering Corp. Limited Warranty
Banner Engineering Corp. warrants its products to be free from defects in material and workmanship for one year following the date of shipment. Banner Engineering Corp.
will repair or replace, free of charge, any product of its manufacture which, at the time it is returned to the factory, is found to have been defective during the warranty
period. This warranty does not cover damage or liability for misuse, abuse, or the improper application or installation of the Banner product.
THIS LIMITED WARRANTY IS EXCLUSIVE AND IN LIEU OF ALL OTHER WARRANTIES WHETHER EXPRESS OR IMPLIED (INCLUDING, WITHOUT LIMITATION,
ANY WARRANTY OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE), AND WHETHER ARISING UNDER COURSE OF PERFORMANCE, COURSE
OF DEALING OR TRADE USAGE.
This Warranty is exclusive and limited to repair or, at the discretion of Banner Engineering Corp., replacement. IN NO EVENT SHALL BANNER ENGINEERING CORP. BE
LIABLE TO BUYER OR ANY OTHER PERSON OR ENTITY FOR ANY EXTRA COSTS, EXPENSES, LOSSES, LOSS OF PROFITS, OR ANY INCIDENTAL,
CONSEQUENTIAL OR SPECIAL DAMAGES RESULTING FROM ANY PRODUCT DEFECT OR FROM THE USE OR INABILITY TO USE THE PRODUCT, WHETHER
ARISING IN CONTRACT OR WARRANTY, STATUTE, TORT, STRICT LIABILITY, NEGLIGENCE, OR OTHERWISE.
Banner Engineering Corp. reserves the right to change, modify or improve the design of the product without assuming any obligations or liabilities relating to any product
previously manufactured by Banner Engineering Corp. Any misuse, abuse, or improper application or installation of this product or use of the product for personal protection
applications when the product is identified as not intended for such purposes will void the product warranty. Any modifications to this product without prior express approval
by Banner Engineering Corp will void the product warranties. All specifications published in this document are subject to change; Banner reserves the right to modify product
specifications or update documentation at any time. Specifications and product information in English supersede that which is provided in any other language. For the most
recent version of any documentation, refer to: www.bannerengineering.com.
©
Banner Engineering Corp. All rights reserved
厂商 型号 描述 页数 下载

BANNER

 		DX80N2Q45UAC [ Sure Cross® Wireless Q45UA Ultrasonic Node ] 7 页

BANNER

 		DX80N2Q45VA [ Sure Cross® Wireless Q45VA Vibration and Temperature Sensor ] 10 页

BANNER

 		DX80N2Q45VTP [ Sure Cross® Wireless Q45VTP Node ] 8 页

BANNER

 		DX80N2X1S-P6 [ Sure Cross Performance Node ] 8 页

BANNER

 		DX80N2X1W-P6L [ Sure Cross® Performance Node ] 8 页

BANNER

 		DX80N2X6S-P6 [ Sure Cross Performance Node ] 8 页

BANNER

 		DX80N9Q45UAC [ Sure Cross® Wireless Q45UA Ultrasonic Node ] 7 页

BANNER

 		DX80N9Q45VA [ Sure Cross® Wireless Q45VA Vibration and Temperature Sensor ] 10 页

BANNER

 		DX80N9Q45VTP [ Sure Cross® Wireless Q45VTP Node ] 8 页

BANNER

 		DX80N9X1W-P6L [ Sure Cross® Performance Node ] 8 页

购物指南

支付方式

配送服务

售后服务

发票须知

优惠券使用规则

特色服务

PCBA制造

国产品牌推荐

国产料号替代

质量保证

技术资料

行业资讯

关于我们

关于壹壹捌

联系我们

联系我们

服务热线：400-618-9990

企业邮箱：sales@ic118.com

服务时间：周一至周六 8:30-17:30

壹壹捌官方微信号

PDF索引：

A

B

C

D

E

F

G

H

I

J

K

L

M

N

O

P

Q

R

S

T

U

V

W

X

Y

Z

0

1

2

3

4

5

6

7

8

9

IC型号索引：

A

B

C

D

E

F

G

H

I

J

K

L

M

N

O

P

Q

R

S

T

U

V

W

X

Y

Z

0

1

2

3

4

5

6

7

8

9

Copyright 2024 gkzhan.com Al Rights Reserved 京ICP备06008810号-21 京

深圳网络警察报警平台
公共信息安全网络监察
经营性网站备案信息
不良信息举报中心
工商网监电子标识
全国公安机关备案
0.169590s
