Applications

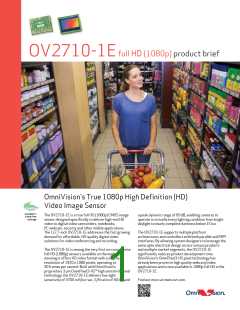

OV2710-1E
¬
¬
¬
¬
Notebooks
PC Webcams
Camcorders
Security
¬
¬
¬
Digital Still Cameras
Telepresence
Portable Media Players
Ordering Information
¬
OV02710-A68A-1E
(color, lead-free, 68-pin CSP3)
Product Features
¬
programmable controls: gain, exposure,
frame rate, image size, horizontal
mirror, vertical flip, cropping,
windowing, and panning
¬
¬
¬
support for one lane MIPI interface
(up to 800 Mbps)
Product Specifications
support for 8-/10-bit RAW RGB output
format
¬
active array size: 1920 x 1080
¬
scan mode: progressive
¬
automatic image control functions:
- automatic exposure (AEC)
- automatic gain control (AGC)
- automatic white balance (AWB)
- automatic black level
¬
power supply:
¬
maximum image transfer rate:
- 1080p: 30 fps
- cropped 720p: 60 fps
- VGA: 120 fps
- QVGA: 240 fps
support for image sizes:
- 1080p at 30 fps
- cropped 720p at 60 fps
- VGA at 120 fps
- analog: 3.0 ~ 3.6V (3.3V typical)
- core: 1.425 ~ 1.575V (1.5V typical)
- I/O: 1.7 ~ 3.6V (1.8V typical)
calibration (ABLC)
¬
¬
power requirements:
- active: 350 mW
¬
¬
support for black sun cancellation
¬
¬
¬
¬
¬
¬
¬
sensitivity: 3700 mV/lux-sec
shutter: rolling
¬
¬
¬
¬
serial camera control bus (SCCB)
lens correction (LENC)
- power down: 70 µA
embedded one-time programmable
(OTP) memory
temperature range:
- operating: -30°C to +85°C junction
temperature
- stable image: 0°C to +65°C junction
temperature
max S/N ratio: 40 dB
defect pixel correction (DPC)
¬
¬
on-chip phase lock loop (PLL)
built-in 1.5V regulator for core
dynamic range: 69 dB @ 8x gain
maximum exposure interval: 1096 tline
pixel size: 3 µm x 3 µm
support for digital video port (DVP)
parallel output interface
¬
output interfaces: 10-bit parallel/
one lane MIPI
¬
integrated auto focus filter
¬
¬
¬
¬
output formats: 10-bit RAW RGB
lens size: 1/2.7"
dark current: 20 mV/sec
@ 60°C junction temperature
¬
¬
image area: 5856 µm x 3276 µm
lens chief ray angle: 23.6°
input clock frequency: 6 ~ 27 MHz
package dimensions:
7465 µm x 5865 µm
Functional Block Diagram
OV2710
image sensor core
image sensor
processor
image output
interface
column
sample/hold
D[9:0]
10-bit
ADC
AMP
array
MCP/N (VSYNC/HREF)
MDP/N (D9/D7)
gain control
control register bank
SCCB slave interface
timing generator and system control logic
PLL
