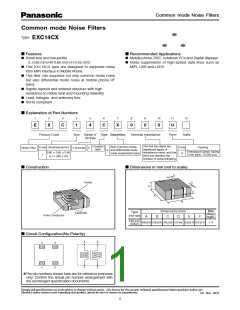

Common mode Noise Filters
Common mode Noise Filters
Type:
EXC14CX
■ Features
● Small size and low-profile
（L 0.85 mm W 0.65 mm H 0.45 mm）
● This EXC14CX type are designed to suppress noise
from MIPI interface in Mobile Phone
■ Recommended Applications
● Mobile phone, DSC, notebook PCs and Digital displays
● Noise suppression of high-speed data lines such as
MIPI, USB and LVDS
×
×
● This filter can suppress not only common mode noise
but also differential mode noise at mobile phone RF
band
● Rigidly layered and sintered structure with high
resistance to reflow heat and mounting reliability
● Lead, halogen, and antimony free
● RoHS compliant
■ Explanation of Part Numbers
1
2
3
4
5
6
7
8
9
10
11
12
&
9
$
ꢀ
ꢁ
$
9
ꢂ
ꢃ
ꢃ
6
Product Code
Size
Number of Type Characteristics
Terminals
Nominal Impedance
Form
Suffix
Coupled
type
The first two digits are
significant figure of
impedance value, and the
third one denotes the
number of zeros following
Both Common mode
and Differential mode
noise suppression type
Code Dimensions(mm)
Code
U
Packing
4 Terminals
C
Noise Filter
E
Embossed Carrier Taping
2 mm pitch, 10,000 pcs.
0.85 L 0.65 L 0.45
1
(L) L (W) L (H)
■ Construction
■ Dimensions in mm (not to scale)
F
Ferrite
D
E
C
A
B
Mass
Dimensions (mm)
Type
(inch size)
Electrode
(Weight)
Inner Conductor
A
B
C
D
E
F
[mg/pc.]
EXC14C
(0302)
0.65 0.05 0.85 0.05 0.45 0.05 0.10 min. 0.50 0.10 0.27 0.10
1.4
■ Circuit Configuration(No Polarity)
4
3
2
4
3
1
1
2
✽The pin numbers shown here are for reference purposes
only. Confirm the actual pin number arrangement with
the exchanged specification documents.
