EXC-CET220U

型号:

EXC-CET220U

品牌:

PANASONIC[ PANASONIC ]

页数:

3 页

PDF大小:

99 K

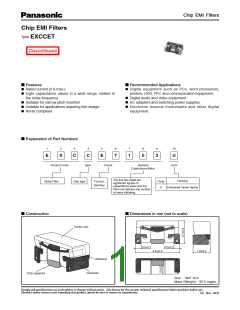

Chip EMI Filters
Chip EMI Filters
Type:
EXCCET
Discontinued
Features
Rated current (2 A max.)
Eight capacitance values in a wide range, related to
the noise frequency
Recommended Applications
Digital equipment such as PCs, word processors,
printers, HDD, PPC and communication equipment.
Digital audio and video equipment.
Suitable for narrow pitch insertion
Suitable for applications requiring thin design
RoHS compliant
AC adapters and switching power supplies.
Electronic musical instruments and other digital
equipment.
Explanation of Part Numbers
1
2
3
4
5
6
7
8
9
10
&
9
$
$
&
5
6
Product Code
Type
Circuit
Nominal
CapacitanceValue
Form
The first two digits are
significant figures of
capacitance value and the
third one denotes the number
of zeros following.
Packing
Embossed Carrier Taping
Noise Filter
Chip type
T-circuit
Code
EMI filter
U
Construction
Dimensions in mm (not to scale)
Ferrite core
0.5 0.2
0.5 0.2
4.5 0.4
1.8 0.2
Adhesive
Electrode
Chip capacitor
Size : 1807 inch
Mass (Weight) : 92.5 mg/pc.
Design and specications are each subject to change without notice. Ask factory for the current technical specications before purchase and/or use.
Should a safety concern arise regarding this product, please be sure to contact us immediately.
02 Nov. 2012
Chip EMI Filters
Discontinued
Ratings
Rated
Toler-
ance
(%)
Rated
Current Resistance
(A DC)
DC
25 dB Attenuate 15 dB Attenuate
(1)
(2)
Part Number Voltage Capacitance
Frequency
(MHz)
Frequency
(MHz)
Characteristics
(V DC)
(pF)
(mΩ)
EXCCET220U
EXCCET470U
EXCCET101U
EXCCET271U
EXCCET471U
EXCCET102U
EXCCET222U
EXCCET103U
50
50
50
50
50
50
50
50
22
47
100
270
470
20
20
20
20
20
20
20
20
YB
YB
YB
YB
YB
YB
YB
YB
2
2
2
2
2
2
2
2
50 max.
50 max.
50 max.
50 max.
50 max.
50 max.
50 max.
50 max.
800 to 1000
450 to 550
300 to 450
200 to 300
100 to 220
65 to 200
35 to 180
15 to 120
600 to 1000
350 to 1000
200 to 900
80 to 700
50 to 700
30 to 700
15 to 700
15 to 700
1000
2200
10000
(1) Please inquire to us about the particular capacitance value, on a range of 22 to 10000 pF.
(2) Characteristics YB: Maximum capacitance is 10 ꢀ over the temperature range of ꢁ2ꢂ ꢃC to ꢄ+ꢂ ꢃC in reference to ꢄ20 ꢃC.
Category Temperature Range –40 °C to +85 °C
Attenuation Characteristics (Reference Data)
0
10
20
Measurement Circuit
50 ?
30
Sample
470
101
271
471
40
220
~
102
50 ?
222
50
60
103
1M
10M
100M
1G
Frequency (Hz)
Packaging Methods (Taping)
Standard Quantity
Part Number
Kind of Taping
Pitch (P1)
4 mm
Quantity
EXCCET□□□U
Embossed Carrier Taping
1000 pcs./reel
Embossed Carrier Taping
Taping Reel
T
Compartment
E
Sprocket hole
fD0
f C
A
f D
t2
P1 P2 P0
Tape running direction
Chip component
f A
W
A
B
W
F
P1
0A
0B
0C
0D
Dimensions
(mm)
Dimensions
(mm)
0.2
0.1
0.2
0.2
0.05
0.1
2.2
4.9
P0
12.0
5.50
4.0
180.00
60.0 1.0 13.0 0.5 21.0 0.8
–3.0
P2
2.0
0D0
t2
E
W
T
Dimensions
(mm)
Dimensions
(mm)
0.1
0.1
4.0
1.5
3.5 max.
2.0 0.5 13.0 1.0 16.5 max.
Design and specications are each subject to change without notice. Ask factory for the current technical specications before purchase and/or use.
Should a safety concern arise regarding this product, please be sure to contact us immediately.
02 Nov. 2012
Chip EMI Filters
Discontinued
Recommended Land Pattern Design(mm)
For Single Mounting
For High Density Mounting
Copper foil
Resist
1.0
Resist
Copper foil
1.0
Resist
1.3
1.3
5.4
Using the land pattern which we do not recommend,
or mounting by the solder under 180μm, verify the
performance, reliability, etc. thoroughly.
1.3
1.3
5.4
Recommended Soldering Conditions
Recommendations and precautions are described below.
Recommended soldering conditions for reflow
· Reflow soldering shall be performed a maximum of
two times.
· Please contact us for additional information when
used in conditions other than those specified.
· Please measure the temperature of the terminals
and study every kind of solder and printed circuit
board for solderability before actual use.
For soldering (Example : Sn-37Pb)
Temperature
Time
Preheating
Main heating
Peak
140 °C to 160 °C
Above 200 °C
235 10 °C
60 s to 120 s
30 s to 40 s
max. 10 s
Peak
Preheating
For lead-free soldering (Example : Sn/3Ag/0.5Cu)
Temperature
150 °C to 170 °C
Above 230 °C
max. 260 °C
Time
Heating
Preheating
Main heating
Peak
60 s to 120 s
30 s to 40 s
max. 10 s
Time
Flow soldering
·
Chip EMI Filters cannot be mounted on a printed circuit board by flow soldering.
Mount them by reflow soldering.
<Repair with hand soldering>
Preheat with a blast of hot air or similar method. Use a soldering iron with a tip temperature of 350 °C or less. Solder
each electrode for 3 seconds or less.
Never touch this product with the tip of a soldering iron.
Safety Precautions
The following are precautions for individual products. Please also refer to the common precautions for Noise Suppression
Device shown on this catalog.
1. Use rosin-based flux or halogen-free flux.
2. For cleaning, use an alcohol-based cleaning agent. Before using any other type, consult with our sales person
in advance.
3. Do not apply shock to Chip EMI Filters (hereafter called the filters) or pinch them with a hard tool (e.g. pliers and
tweezers). Otherwise, their bodies may be chipped, affecting their performance. Excessive mechanical stress
may damage the filters. Handle with care.
4. Avoid applying static electricity to the filters.
5. The performance of the filters deteriorates in a circuit that is susceptible to surges or other abnormal voltages.
Carefully check the circuit operations before use.
°
°
6. Store the filters in a location with a temperature ranging from 5 C to +40 C and a relative humidity of 40 % to 60 %,
where there are no rapid changes in temperature or humidity.
7. Use the filters within a year after the date of the outgoing inspection indicated on the packages.
Design and specications are each subject to change without notice. Ask factory for the current technical specications before purchase and/or use.
Should a safety concern arise regarding this product, please be sure to contact us immediately.
02 Nov. 2012
