F
E
D
C
B
A
`0,13
47,04
`0,1
16,56
( 5 : 1 )
`0,1
13,82
`0,1
11,05
8,28
5,54
SEALING
`0,1
COMPOUND
D
D
`0,1
0,1 (25x)
1+
n
`0,1
2,77
-
0
1
`0,1 (2x)
3,1
n
`0,1
1,4
`0,1
4,14
6,91
9,68
`0,1
`0,1
`0,1
0,02
0,23
8+-
12,42
`0,1
15,19
P.C.B. HOLE DRILLINGS
AT ALL TIMES WATER RESISTANT CONNECTORS NOT
IN USE SHOULD BE COVERED WITH A CONEC WATER
RESISTANT CAP OR WATER TIGHT HOOD.
0,2
61,4 +-
0
C
C
`0,13
47,05
38,5
+0
- 0,25
n0,64
O-RING
B
B
M3
SEE NOTE 6
SEE NOTE 9
NOTES:
M3
1. METALSHELLS: COPPER ALLOY; min. 315µin TIN over 40-80µin NICKEL
2. INSULATORS: PBT GF UL 94 V-0, BLACK
3. CONTACTS: COPPER ALLOY
PLATING: 30µin HARD GOLD over min. 50µin NICKEL
4. THREADED SPACER CLIP: COPPER ALLOY; min. 200µin TIN over 80µin NICKEL
PCB-HOLE: n3.1`0.1; PCB THICKNESS 1.6mm
5. COLLAR: COPPER ALLOY; min. 200µin TIN over 80µin NICKEL
6. FRAME: ZINC DIE CAST; NICKEL PLATED
7. HEXLOCKING SCREW: STAINLESS STEEL
8. RECOMMENDED TORQUE FOR MOUNTING SCREW 35Ncm (3.1 in.LB) / max.40Ncm (3.5 in.LB)
9. CONNECTOR IS PART MARKED: 6STD25SCR99E10X CONEC ABC
APPROVAL # FREIGABE # DEBLOCAGE # AUTORIZACION # APPROVAL
CUSTOMER APPROVAL DATE:
2:1 (5:1)
scale:
material:
tolerance
SEE NOTES
dim. in mm
A
A
date
name
title:
drawn
02.05.08
05.05.08
Lehmenkühler
Mickenbecker

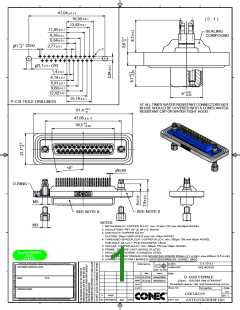

D-SUB FEMALE
NAME:
TITLE:
appd.
norm
d-old
25pos. SOLDER PIN STRAIGHT
threaded spacer clip and hexlocking screw
dwg no:
Inventor
DIN-
A3
COMPANY NAME:
R
15K1A219
a
Origin
sh: 1
APPROVAL # FREIGABE # DEBLOCAGE # AUTORIZACION # APPROVAL
part no:
rev. description
D
name
date
6STD25SCR99E10X
F
E
C
B
A
