6ST8272

型号:

6ST8272

描述:

通用变压器[ GENERAL PURPOSE TRANSFORMER ]

品牌:

BOTHHAND[ BOTHHAND USA, LP. ]

页数:

1 页

PDF大小:

62 K

Bothhandusa.com

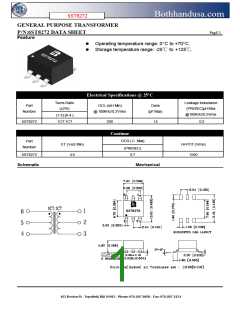

6ST8272
GENERAL PURPOSE TRANSFORMER
P/N:6ST8272 DATA SHEET
Feature
Pag1/1
l
l
Operating temperature range: 0°C to +70°C.
Storage temperature range: -25to +125.
Electrical Specifications @ 25°C
Turns Ratio
(±2%)
Leakage Inductance
(PRI/SEC)µH Max
@100KHz/0.2Vrms
Part
OCL (mH Min)
Cw/w
Number
@ 100KHz/0.2Vrms
(pF Max)
(1-3):(6-4 )
1CT:1CT
6ST8272
200
14
0.2
Continue
DCR (Ω Max)
Part
ET (V-uS Min)
HI-POT (Vrms)
1500
Number
(PRI/SEC)
0.7
6ST8272
4.0
Schematic
Mechanical
