OXUSB954-LQAG

型号：

OXUSB954-LQAG

品牌：

OXFORD[ OXFORD SEMICONDUCTOR ]

页数：

34 页

PDF大小：

667 K

下载PDF手册

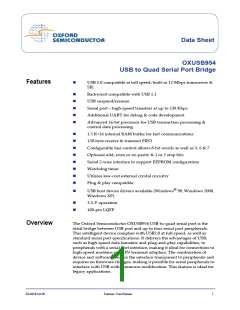

Data Sheet
OXUSB954
USB to Quad Serial Port Bridge
Features
„
USB 2.0 compatible at full speed; built-in 12-Mbps transceiver &
SIE
„
„
„
„
„
Backward-compatible with USB 1.1
USB suspend/resume
Serial port—high-speed transfers at up to 230 Kbps
Additional UART for debug & code development
Advanced 16-bit processor for USB transaction processing &
control data processing
„
„
„
„
„
„
„
„
1.5 K×16 internal RAM buffer for fast communications
128-byte receive & transmit FIFO
Configurable line control allows 8-bit words as well as 5, 6 & 7
Optional odd, even or no parity & 1 or 2 stop bits
Serial 2-wire interface to support EEPROM configuration
Watchdog timer
Utilizes low-cost external crystal circuitry
Plug & play compatible
„
USB host device drivers available (Windows® 98, Windows 2000,
Windows XP)
„
„
3.3-V operation
100-pin LQFP
Overview
The Oxford Semiconductor OXUSB954 USB-to-quad serial port is the
ideal bridge between USB port and up to four serial port peripherals.
This intelligent device complies with USB2.0 at full speed, as well as
standard serial port specifications. It delivers the advantages of USB,
such as high-speed data transfers and plug-and-play capabilities, to
peripherals with a serial port interface, making it ideal for connections to
high-speed modems or ISDN terminal adapters. The combination of
device and software renders the interface transparent to peripherals and
requires no firmware changes, making it possible for serial peripherals to
interface with USB with minimum modification. This feature is ideal for
legacy applications.
DS-0016 Oct 06
External—Free Release
1
USB to Quad Serial Port Bridge Data Sheet
Oxford Semiconductor, Inc.
Figure 1 shows the Oxford Semiconductor OXUSB954.
Figure 1 OXUSB954 Diagram
Watchdog
Timer
DTR
RTS
DCD
DSR
VP
USB
Interface
VM
Serial
Timer 1
Timer 0
Interface
x4
CTS
RI
16-Bit
Processor
Serial
interface
Engine
Txd
Rxd
16-Bit Address/Data Bus
UART_Txd
UART_Rxd
Debug
UART
CLK
3 Kbytes RAM
Mask ROM
PLL & Clock
Generator
x2
External
Memory
Interface
EEPROM
Serial
Interface
SCL
SDA
Functionality
The OXUSB954 integrated 16-bit processor has direct access to the RAM
buffer, external memory, I/O interfaces, and all control and status
registers. It runs at up to 5 MIPs. It serves as a micro-controller for USB
peripherals, offering additional processing power that allows the design
of intelligent peripherals that can process data prior to passing it to the
host PC. This type of task optimization enhances system efficiency and
improves overall performance, while the masked ROM instruction set
promotes efficient code for algorithm and USB transaction processing.
The processor supports up to 240 software interrupt vectors.
The processor provides the following address modes:
„
„
„
„
„
Memory-to-memory
Memory-to register
Register-to-register
Immediate-to-register
Immediate-to-memory
Register, direct, immediate, indirect and indirect-indexed addressing
modes are supported, plus an additional auto-increment mode, in which
a register used as an address pointer is automatically incremented after
each use, making repetitive operations more efficient.
2
External—Free Release
DS-0016 Oct 06
Oxford Semiconductor, Inc.
USB to Quad Serial Port Bridge Data Sheet
The processor features program control, logical and integer arithmetic
instructions. All instructions are sixteen bits wide, although some
instructions require operands, which may occupy another one or two
words. Several short immediate instructions are available, allowing
operations with small constant operands to fit into a 16-bit instruction.
The processor divide/multiply function contains all the instructions of
the base processor with additional integer divide and multiply
instructions. A signed multiply instruction takes two 16-bit operands
and returns a 32-bit result. A signed divide instruction divides a 32-bit
operand by a 16-bit operand.
Programmable Timers
There are two built-in programmable timers that generate interrupts.
Both timers decrement on every micro-second clock tick and generate an
interrupt when the timer reaches zero. Similarly, a separate watchdog
timer, that can also generate an interrupt on the OXUSB954, is also
provided.
USB
Internal buffer memory in the USB controller is used to buffer data and
USB packets. The memory is accessed by the 16-bit processor and the
serial interface engine (SIE).
USB transactions are automatically routed to the memory buffer, using
pointers and block sizes set up by the processor, which reads data from
the interface, processes and packetizes it. If there is no activity on the
USB for 3 ms, the USB enters a suspend state.
The USB controller transceiver with its differential driver can transmit
and receive serial data at full speed (12 Mbps). While the transceiver
driver is differential, the receiver section comprises a differential receiver
and two single-ended receivers. Internally, the transceiver interfaces to
the SIE; externally it connects to the USB PHY. The USB controller serial
interface provides access to external EEPROMs and can support a variety
of serial EEPROM formats.
Communication and data flow on the USB is implemented using
uniquely-identifiable endpoints, which are the terminals of
communication flow between a USB host and USB devices. The
OXUSB954 supports 10 endpoints, numbered 0 to 9.
DS-0016 Oct 06
External—Free Release
3
USB to Quad Serial Port Bridge Data Sheet
Oxford Semiconductor, Inc.
Serial Ports
The four UART serial ports can be individually configured for rates from
300 to 230.4 K baud, providing USB access to external serial devices.
An additional independent UART serial port is provided for code
development and debugging, supporting transmit and receive data at
rates from 7200 to 115.2 K baud. The UART timers are independent of
the general-purpose timers.
When the receiver buffer transitions to full or the transmit buffer
transitions to empty, a UART interrupt is generated.
Clocks
In the OXUSB954, PLL circuitry generates the internal 48-MHz clock,
which is connected to CLK and X2. The circuitry is designed to allow the
use of a low-cost 12-MHz crystal oscillator, supplied internally or from
an application source connected directly to the CLK input pin. If the PLL
is disabled, a 48-MHz crystal or clock can be used.
EEPROM Support
The OXUSB954 interfaces with a serial EEPROM device to program the
OXUSB954.
An EEPROM is required for the correct functionality of the OXUSB954
ꢀ
ꢀ
External Memory
The 16-bit memory interface on the OXUSB954 can support a variety of
external RAM and ROM. Each external memory space can be 8 or 16 bits
wide, and can be programmed for up to seven wait states. The byte-
addressable memory address range is divided into two banks that can
each be assigned to internal or external ROM under register control.
External memory is required for the correct functionality of the
OXUSB954.
4
External—Free Release
DS-0016 Oct 06
Oxford Semiconductor, Inc.
USB to Quad Serial Port Bridge Data Sheet
Registers
This section documents the registers used to configure, use, and obtain
status information about, the OXUSB954. Register locations and reset
values are given for each register. Other locations in the register address
space are reserved.
Processor Control
The processor control registers in the OXUSB954 configure the device to
operate at different clock frequencies and select a power-saving mode
that is used to suspend USB operation. In addition, the version control
register located in the ROM BIOS can be read to discover the firmware
version. Table 1 lists the processor control registers
Table 1 Processor Control Registers
Register
Address
0x0C006
0x0C008
0x0C00A
0x0C014
0x0C0E0
0x0C0E2
0x0C0E4
0x0C0E4
Register Details
page 6
page 6
page 5
page 7
page 7
page 8
page 8
page 8
Config
Speed Control
Power Down Control
Breakpoint
UART Control
Status
UART Transmit Data
UART Receive Data
PowerDownControl
Offset: 0x0C00A
Reset: 0x00
7
6
5
4
3
2
1
0
USB
GPIO
PUD[1]
PUD[0]
Suspend
Halt
Read/write
In power-down mode, the peripherals are paused and the counters and
timers stop incrementing. Specifying Suspend or Halt invokes power-
down mode, although associated features differ as explained below.
USB
Enable restart on USB transition; results in device power up. Must be one of:
0—disable restart
1—enable restart
(1)
Selects the power-up delay. Select one of the following:
PUD[1:0]
00—0 ms
01—1 ms
10—8 ms
11—64 ms
The power-up delay is the time between the device powering-up and
executing the application. A delay in the power-up procedure allows the clock
to settle before the application commences
DS-0016 Oct 06
External—Free Release
5
USB to Quad Serial Port Bridge Data Sheet
Oxford Semiconductor, Inc.
Suspend
Invoke suspend mode; stops all device clocks to save power. Must be one of:
0—no action
1—suspend the device
Suspend mode terminates with a transition on either USB or the GPIO
interrupt lines, if enabled. Device resumption is followed by the delay specified
in PUD[1:0]
Halt
Invoke halt mode; stops solely the processor clock. Halt mode terminates with
any interrupt. Device resumption is followed by the delay specified in PUD[1:0]
Note:
1
Oxford Semiconductor advises you not to set this field to anything other than 1 ms.
The processor can be configured to restart if there is activity on any of
the four ring indicator pins.
ꢀ
SpeedControl
Offset: 0x0C008
7
6
5
4
3
2
1
0
SPD[3]
SPD[2]
SPD[1]
SPD[0]
Reset: 0x00
Read/write
This register is used to select the operational speed of the OXUSB954.
48 MHz is selected after a power-up or reset.
SPD[3:0]
Speed selector control; must be one of:
0000—48 MHz (default)
0001—24 MHz
0010—16 MHz
0011—12 MHz
0100—9.6 MHz
0101—8 MHz
0110—6.86 MHz
0111—6 MHz
1000—5.33 MHz
1001—4.80 MHz
1010—4.36 MHz
1011—4.00 MHz
1100—3.69 MHz
1101—3.42 MHz
1110—3.20 MHz
1111—3.00 MHz
Config
15
14
13
12
11
10
9
8
7
6
5
4
3
2
1
0
ILC
C0
CD
Offset: 0x0C006
Reset: 0x02
Read only
ILC
Custom logic selector; must be one of:
0—external custom logic
1—internal custom logic
6
External—Free Release
DS-0016 Oct 06
Oxford Semiconductor, Inc.
USB to Quad Serial Port Bridge Data Sheet
(1)
Clock source selector; must be one of:
C0
0—PCLK=X1, RCLK=X1
1—PCLK=2/3 X1, RCLK=X1 (default)
CD
Configuration disable; must be one of:
0—configuration by software allowed
1—configuration by software disallowed
This is a sticky bit used to lock the configuration by writing to it from within the
boot PROM code
Note:
1
X1 input pin must be 12 MHz when using the PLL.
Breakpoint
15
14
13
12
11
10
9
8
7
6
5
4
3
2
1
0
A[15] A[14] A[13] A[12] A[11] A[10] A[9] A[8] A[7] A[6] A[5] A[4] A[3] A[2] A[1] A[0]
Offset: 0x0C014
Reset: 0x00
Read/write
This register holds the breakpoint address. Accessing this register
generates an interrupt.
A[15:0]
Breakpoint address
UARTControl
Offset: 0x0C0E0
Reset: 0x00
15
14
13
12
11
10
9
8
7
6
5
4
3
2
1
0
Div8 B[2] B[1] B[0]
Read/write
This register facilitates debugging over the UART serial debugging
interface.
Div8
Pre-scaler trigger; used in conjunction with B[2:0]. Must be one of:
0—not used
1—used
If the pre-scaler is used, its effect is to divide the input clock by 8 to generate
the UART clock
B[2:0]
Baud rate selector; see Table 2 on page 7 for details
Table 2 Debug UART Baud Rates
B[2:0] Bit Setting
Baud Rate (Kbaud)
Baud Rate with Div8
Pre-Scaler (Kbaud)
000
001
010
011
100
101
110
115.2
57.6
38.4
28.8
19.2
14.4
9.6
14.4
7.2
4.8
3.6
2.4
1.8
1.2
DS-0016 Oct 06
External—Free Release
7
USB to Quad Serial Port Bridge Data Sheet
Oxford Semiconductor, Inc.
Table 2 Debug UART Baud Rates
B[2:0] Bit Setting
Baud Rate (Kbaud)
Baud Rate with Div8
Pre-Scaler (Kbaud)
111
7.2
0.9
UARTStatus
Offset: 0x0C0E2
7
6
5
4
3
2
1
0
RxF
TxF
Reset: 0x00
Read only
This register facilitates debugging over the UART serial debugging
interface.
RxF
Receive buffer full flag; must be one of:
0—not full
1—full
TxF
Transmit buffer flag; must be one of:
0—not full
1—full
Note:
1
The device does not support error detection on receive
UARTTransmit
7
6
5
4
3
2
1
0
TR[7]
TR[6]
TR[5]
TR[4]
TR[3]
TR[2]
TR[1]
TR[0]
Offset: 0x0C0E4
Reset: 0x00
Write only
TR[7:0]
UART data for transmitting
UARTReceive
7
6
5
4
3
2
1
0
RD[7]
RD[6]
RD[5]
RD[4]
RD[3]
RD[2]
RD[1]
RD[0]
Offset: 0x0C0E4
Reset: 0x00
Read only
RD[7:0]
UART data received
UART Interface
On the OXUSB954 UART serial ports, individual baud rate selection is
made in the appropriate line control register, which includes an optional
pre-scaler. For each UART, buffer and control status are monitored in the
Status register, while transmit and receive data is written or read from
the UART transmit/receive data register. The UART timers are
independent of the general-purpose timers.
8
External—Free Release
DS-0016 Oct 06
Oxford Semiconductor, Inc.
USB to Quad Serial Port Bridge Data Sheet
When the receiver buffer transitions to full or the transmit buffer
transitions to empty, a UART interrupt is generated on the rising edge.
The interrupts are prioritized, with UART 1 having the highest priority.
The QuadUARTInterrupt Status register identifies the highest-priority
interrupt requiring service, adjusting this information as each interrupt
is serviced until no interrupts are outstanding.
Table 3 lists the UART interface registers.
Table 3 UART Interface Registers
Register
UART 1 LineControl
Address
0x0BF00
Register Details
page 10
UART 1 Modem Control
UART 1 Status
0x0BF02
0x0BF04
0x0BF06
0x0BF06
0x0BF10
0x0BF12
0x0BF14
0x0BF16
0x0BF16
0x0BF20
0x0BF22
0x0BF24
0x0BF26
0x0BF26
0x0BF30
0x0BF32
0x0BF34
0x0BF36
0x0BF36
0x0BF40
0x0BF42
page 11
page 12
page 13
page 13
UART 1 Transmit Data
UART 1 Receive Data
UART 2 LineControl
UART 2 Modem Control
UART 2 Status
UART 2 Transmit Data
UART 2 Receive Data
UART 3 LineControl
UART 3 Modem Control
UART 3 Status
UART 3 Transmit Data
UART 3 Receive Data
UART 4 LineControl
UART 4 Modem Control
UART 4 Status
UART 4 Transmit Data
UART 4 Receive Data
Quad UART Interrupt Status
Quad UART Enable
page 13
page 14
DS-0016 Oct 06
External—Free Release
9
USB to Quad Serial Port Bridge Data Sheet
Oxford Semiconductor, Inc.
UART 1 LineControl
Offset: 0x0BF00
UART 2 LineControl
Offset: 0x0BF10
UART 3 LineControl
Offset: 0x0BF20
UART 4LineControl
Offset: 0x0BF30
Reset: 0x00
15
14
13
12
11
10
9
8
7
6
5
4
3
2
1
0
W[1] W[0] BK
SP
OE
PE
S
Div32 Div8 B[2] B[1] B[0]
Read/write
W[1:0]
BK
Word length; must be one of:
00—5 bits
01—6 bits
10—7 bits
11—8 bits
Break trigger; must be one of:
0—resumes serial output
1—stops serial output
When a break is in force, serial output becomes inactive and remains so,
regardless of transmitter activity, until BK is cleared
SP
Stick parity; must be one of:
0—no action
1—send parity as 0 if even, or 1 if odd
OE
PE
Parity indicator; must be one of:
0—even
1—odd
Parity enable; must be one of:
0—turn parity off
1—turn parity off
S
Number of stop bits; must be one of:
0—1 stop bit
1—2 stop bits
Div32
Pre-scaler trigger; used in conjunction with B[2:0]. Must be one of:
0—not used
1—used
If the pre-scaler is used, its effect is to divide the input clock by 32 to generate
the UART clock
Div8
Pre-scaler trigger; used in conjunction with B[2:0]. Must be one of:
0—not used
1—used
If the pre-scaler is used, its effect is to divide the input clock by 8 to generate
the UART clock
B[2:0]
Baud rate selector; see Table 4 on page 11 for details
10
External—Free Release
DS-0016 Oct 06
Oxford Semiconductor, Inc.
USB to Quad Serial Port Bridge Data Sheet
Table 4 UART Baud Rates
B[2:0] Bit Setting
Baud Rate
(Kbaud)
Baud Rate with
Div32 Pre-Scaler
(Kbaud)
Baud Rate with
Div8 Pre-Scaler
(Kbaud)
000
001
010
011
100
101
110
111
230.4
115.2
76.8
57.6
38.4
28.8
19.2
14.4
28.8
14.4
9.6
7.2
4.8
3.6
2.4
1.8
4.8
3.6
2.4
1.8
1.2
900 baud
600 baud
450 baud
UART 1 ModemControl
Offset: 0x0BF02
7
6
5
4
3
2
1
0
DTR
RTS
UART 2 ModemControl
Offset: 0x0BF12
UART 3 ModemControl
Offset: 0x0BF22
UART 4 ModemControl
Offset: 0x0BF32
Reset: 0x00
Read/write
DTR
RTS
Data terminal ready output
Request to send output
DS-0016 Oct 06
External—Free Release
11
USB to Quad Serial Port Bridge Data Sheet
Oxford Semiconductor, Inc.
UART 1 StatusRegister
Offset: 0x0BF04
15
14
13
12
11
10
9
8
7
6
5
4
3
2
1
0
FE
BD
OV
E
RI DCD DSR CTS RxF TxF
UART 2 StatusRegister
Offset: 0x0BF14
UART 3 StatusRegister
Offset: 0x0BF24
UART 4 StatusRegister
Offset: 0x0BF34
Reset: 0x00
Read only
FE
BD
Frame error indicator; must be one of:
0—no problems
1—frame error detected
(1)
Break detected indicator; must be one of:
0—no problems
1—break detected
(1)
OV
Receiver overrun indicator; must be one of:
0—no problems
1—receiver overrun error
E
Data parity error indicator; must be one of:
0—no problems
1—data parity error
RI
Ring indicator; must be one of:
0—no ring
1—ring input detected
DCD
DSR
CTS
RxF
Data carrier detected indicator; must be one of:
0—no data carrier
1—data carrier input detected
Data set ready indicator; must be one of:
0—no data set ready
1—data set ready input detected
Clear to send indicator; must be one of:
0—clear to send
1—clear to send input detected
Receive buffer full flag; must be one of:
0—no problems
1—Rx buffer is full
(1)
TxE
Transmit buffer full flag; must be one of:
0—no problems
1—Tx buffer is empty
Note
1
RxF, BD and FE are cleared when the Rx data buffer is read.
12
External—Free Release
DS-0016 Oct 06
Oxford Semiconductor, Inc.
USB to Quad Serial Port Bridge Data Sheet
UART 1 TransmitData
Offset: 0x0BF06
UART 2 TransmitRegister
Offset: 0x0BF16
UART 3 TransmitRegister
Offset: 0x0BF26
UART 4 TransmitRegister
Offset: 0x0BF36
7
6
5
4
3
3
7
2
2
5
1
1
3
0
TR[7]
TR[6]
TR[5]
TR[4]
TR[3]
TR[2]
TR[1]
TR[0]
Reset: 0x00
Write only
TR[7:0]
UART data for transmitting
UART 1 ReceiveData
Offset: 0x0BF06
UART 2 ReceiveRegister
Offset: 0x0BF16
UART 3 ReceiveRegister
Offset: 0x0BF26
UART 4 ReceiveRegister
Offset: 0x0BF36
7
6
5
4
0
RD[7]
RD[6]
RD[5]
RD[4]
RD[3]
RD[2]
RD[1]
RD[0]
Reset: 0x00
Read only
RD[7:0]
IS[3:0]
UART data received
QuadUARTInterrupt Status
Offset: 0x0BF40
Reset: 0x00
15
14
13
12
11
10
9
8
6
4
2
1
0
IS[3] IS[2] IS[1] IS[0]
Read only
Quad UART interrupt status. See Table 5 on page 14 for details
DS-0016 Oct 06
External—Free Release
13
USB to Quad Serial Port Bridge Data Sheet
Oxford Semiconductor, Inc.
Table 5 Quad UART Interrupt Status
IS[3:0]
0000
0001
0010
0011
0100
0101
0110
0111
1000
Interrupt
No interrupt pending
Channel 1 Rx full
Channel 2 Rx full
Channel 3 Rx full
Channel 4 Rx full
Channel 1 Tx empty
Channel 2 Tx empty
Channel 3 Tx empty
Channel 4 Tx empty
QuadUARTEnable
Offset: 0x0BF42
Reset: 0x00
7
6
5
4
3
2
1
0
I
E4
E3
E2
E1
Write only
I
Interrupt select; must be one of:
0—only issue an interrupt if IS[3:0] = 0000
1—always issue interrupts
E4, E3, E2,
E1
Quad UART channel enables; must be one of:
0—disable the channel
1—enable the channel
The quad UART channels should be disabled for external custom logic
development
Programmable Timers
Table 6 lists the programmable timers.
Table 6 Programmable Timer Registers
Register
Watchdog Timer Count & Control Register
Timer 0 Count Register
Address
0x0C00C
0x0C010
0x0C012
Register Details
page 15
page 15
Timer 1 Count Register
page 15
14
External—Free Release
DS-0016 Oct 06
Oxford Semiconductor, Inc.
USB to Quad Serial Port Bridge Data Sheet
WatchdogTimer
Offset: 0x0C00C
Reset: 0x00
15
14
13
12
11
10
9
8
7
6
5
4
3
2
1
0
WT TO[1] TO[0] EP ENB RC
Read only
(1)(3)
Watchdog timeout indicator; must be one of:
0—no timeout
WT
1—watchdog timeout occurred
TO[1:0]
Timeout count; must be one of:
00—1 ms
01—4 ms
10—16 ms
11—64 ms
EP
Enable permanent watchdog timer; must be one of:
0—not permanently enabled
1—permanently enabled
ENB
Enable watchdog timer; must be one of:
0—watchdog timer disabled
1—watchdog timer enabled
(2)
Enable the watchdog reset count; must be one of:
RC
0—watchdog reset count disabled
1—watchdog reset count enabled
Note:
1
2
3
WT is cleared following the next external reset.
RC must be set before a timeout occurs to prevent the watchdog triggering and the processor being reset.
The watchdog timer overflow causes an internal processor reset, after which WT can be read to
determine whether a watchdog timeout occurred.
Timer0
15
14
13
12
11
10
9
8
7
6
5
4
3
2
1
0
T[15] T[14] T[13] T[12] T[11] T[10] T[9] T[8] T[7] T[6] T[5] T[4] T[3] T[2] T[1] T[0]
Offset: 0x0C010
Reset: 0x00
Read/write
T[15:0]
T[15:0]
Timer count value
Timer1
15
14
13
12
11
10
9
8
7
6
5
4
3
2
1
0
T[15] T[14] T[13] T[12] T[11] T[10] T[9] T[8] T[7] T[6] T[5] T[4] T[3] T[2] T[1] T[0]
Offset: 0x0C012
Reset: 0x00
Read/write
Timer count value
DS-0016 Oct 06
External—Free Release
15
USB to Quad Serial Port Bridge Data Sheet
Oxford Semiconductor, Inc.
Interrupts
Table 7 lists the software interrupts on the OXUSB954
Table 7 OXUSB954 Software Interrupts (Sheet 1 of 2)
Number
Vector Address
0x0000
Interrupt Type
0
1
2
3
4
5
6
7
8
Timer0
Timer1
0x0002
0x0004
0x0006
0x0008
0x000A
0x000C
0x000E
0x0010
UART Tx (debug port)
UART Rx (debug port)
Reserved
USB Reset
(1)
USB SOF
9
0x0012
0x0014
0x0016
0x0018
0x001A
0x001C
0x001E
0x0020
0x0022
0x0024
0x0026
0x0028
0x002A
0x002C
0x002E
0x0030
0x0032
0x0034
0x0036
0x0038
0x003A
USB endpoint0 no error
USB endpoint0 error
USB endpoint1 no error
USB endpoint1 error
USB endpoint2 no error
USB endpoint2 error
USB endpoint3 no error
USB endpoint3 error
USB endpoint4 no error
USB endpoint4 error
USB endpoint5 no error
USB endpoint5 error
USB endpoint6 no error
USB endpoint6 error
USB endpoint7 no error
USB endpoint7 no error
USB endpoint8 error
USB endpoint8 no error
USB endpoint9 error
USB endpoint9 no error
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
(2)
(2)
Quad UART interface/CU_IRQ0
Quad UART interface/CU_IRQ1
30
31
32
33
34
0x003C
0x003E
0x0040
0x0042
0x0044
(2)
(2)
Quad UART interface/DMA_IRQ0
Quad UART interface/DMA_IRQ1
(3)
Ring 1 (if enabled)
(3)
Ring 2 (if enabled)
16
External—Free Release
DS-0016 Oct 06
Oxford Semiconductor, Inc.
USB to Quad Serial Port Bridge Data Sheet
Table 7 OXUSB954 Software Interrupts (Sheet 2 of 2)
Number
Vector Address
Interrupt Type
(3)
35
36
0x0046
Ring 3 (if enabled)
(3)
0x0048
Ring 4 (if enabled)
Notes:
1
2
An incoming SOF on the USB invokes an SOF interrupt.
These interrupts are provided for external circuitry development. They can only be used if the quad
UART channels are disabled
3
These interrupts are available when the quad UART channels are enabled. Each UART has a GPIO pin
dedicated for the ring indicator signal, and these inputs can be used as interrupts. They can also be used
to activate the device when it is in suspend mode, by enabling the GPIO bit in PowerDownControl.
Table 8 lists the interrupt registers on the device.
Table 8 Interrupt Registers
Register
Interrupt Enable Register
Address
0x0C00E
Register Details
page 17
InterruptEnable
Offset: 0x0C00E
Reset: 0x00
15
14
13
12
11
10
9
8
7
6
5
4
3
2
1
0
RI QINT USB
UART GP
T1
T0
Read/write
Setting the bits identified in this register enables interrupts from the
specified elements of the device. This register must be initialized after
power-up and resets.
RI
0—disable ring interrupt
1—enable ring interrupt
QINT
USB
UART
T1
0—disable quad UARTs
1—enable quad UARTs
0—disable USB interrupt
1—enable USB interrupt
0—enable debug UART interrupt
1—disable debug UART interrupt
0—disable timer1 interrupt
1—enable timer1 interrupt
T0
0—disable timer0 interrupt
1—enable timer0 interrupt
DS-0016 Oct 06
External—Free Release
17
USB to Quad Serial Port Bridge Data Sheet
Oxford Semiconductor, Inc.
Memory Interface
For external memory, the address range C100–FFFF is divided into two
banks that can each be assigned to internal or external ROM by setting
bits in the Extended Memory Control Register.The address range C100–
FFFF is divided into two banks that can each be assigned to internal or
external ROM under register control. The memory space is byte-
addressable and is divided as shown in Table 9.
Table 9 Memory Allocation
Function
Address
Internal Ram
External Ram
Memory Mapped Registers
Bank 0 External/Internal ROM
Bank 1 External/Internal ROM
0x0000 to 0x0BFF
0x0C00 to 0xBFFF
0xC000 to 0xC0FF
0xC100 to 0xDFFF
(1)(2)
(1)(3)
0xE000 to 0xFFFF
Note:
1
2
3
External or internal ROM is selected in the ExtendedMemory register.
Default is external ROM.
Default is internal ROM.
External RAM can be implemented as 1 × 8-bit SRAM, 2 × 8-bit SRAM or
1 × 16-bit SRAM; variations are selectable under register control.
The signals nXRAMSEL, nXBHE and XA_0 are used differently depending
on the SRAM configuration, as shown in Table 10.
Table 10 Signal Use for the Memory Interface
2 - n × 8 RAM
XD[15:8] XD[7:0]
1 - n × 8 ram
XD[7:0
nXRAMSEL
1 - n × 16
XD[15:0]
nXRAMSEL
nXBHE
Data
CS-
nXBHE
nXRAMSEL
BHE-
BLE-
XA_0
For pinout details, see “Pinout” on page 29. For SRAM timings, see
“Timings” on page 26.
18
External—Free Release
DS-0016 Oct 06
Oxford Semiconductor, Inc.
USB to Quad Serial Port Bridge Data Sheet
Table 11 lists the memory interface registers.
Table 11 Memory Interface Registers
Register
Memory Control Register
Extended Memory Control Register
Address
0x0C03E
0x0C03A
Register Details
page 19
page 19
MemoryControl
Offset: 0x0C03E
Reset: 0x02
15
14
13
12
11
10
9
8
7
6
5
4
3
2
1
0
RA
R0
DB
Read/write
RA
RO
Wait state selector for internal RAM; must be one of:
0—0 wait states(default)
1—1 wait state
Wait state selector for internal ROM; must be one of:
0—0 wait states
1—1 wait state (default)
DB
Enable debug mode; must be one of:
0—disable debug mode
(1)
1—enable debug mode
Note:
1
In debug mode, the internal address bus is echoed to the external address pins.
ExtendedMemory
Offset: 0x0C03A
Reset: 0x87FF
Read/write
15
14
13
12
11
10
9
8
7
6
5
4
3
2
1
0
2CS EB1 EB0 CRD C[2] C[1] C[0] ROW RO[2] RO[1] RO[0] RAW RA[2] RA[1] RA[0]
2CS
Chip selector; must be one of:
0—1 × external RAM
1—2 × external RAM (default)
For 2 × 8-bit RAM, also tie nXBHE to the upper 8 bits of the SRAM chip-select
& nXRAMSEL to the lower 8 bits of the SRAM chip-select
EB1
EB0
Enable ROM bank 1; must be one of:
0—not enabled
1—enabled (default)
If ROM bank 1 is enabled, default is for external ROM
Enable ROM bank 0; must be one of:
0—not enabled (default)
1—enabled
If ROM bank 0 is enabled, default is for internal ROM
CRD
Enable clean read; must be one of:
0—disabled (default)
1—enabled
C[2:0]
Custom logic wait states in the range 2 to 7 (binary). Default 7
DS-0016 Oct 06
External—Free Release
19
USB to Quad Serial Port Bridge Data Sheet
Oxford Semiconductor, Inc.
ROW
External ROM width selector; must be one of:
0—16 bits
1—8 bits (default)
RO[2:0]
RAW
External ROM wait states in the range 0 to 7 (binary). Default 7
External ROM width selector; must be one of:
0—16 bits
1—8 bits (default)
RA[2:0]
External RAM wait states in the range 0 to 7 (binary). Default 7
USB
The USB controller contains a number of registers. The first set of
registers is for overall control and status functions, while the second
group is dedicated to specific endpoint functions. Table 12 lists the USB
registers.
Table 12 USB Registers
Register
Address
Register
Details
Endpoint 0 Address Register to Endpoint 9
Address Register
0x00120, 0x00124, 0x00128, 0x0012C, 0x00130,
0x00134, 0x00138, 0x0013C, 0x00140, 0x00144
page 24
Endpoint 0 Count Register to Endpoint 9 Count
0x00122, 0x00126, 0x0012A, 0x0012E, 0x00132,
page 24
Register
0x00136, 0x0013A, 0x0013E, 0x00142, 0x00146
Control & Status Register
Frame Number Register
USB Address Register
Command Done Register
0x0C080
0x0C082
0x0C084
0x0C086
page 21
page 21
page 22
page 22
page 24
Endpoint 0 Control & Status Register to Endpoint 0x0C090, 0x0C092, 0x0C094, 0x0C096, 0x0C098,
9 Control & Status Register 0x0C09A, 0x0C09C, 0x0C09E, 0x0C0A0, 0x0C0A2
Endpoints
Communication and data flow on the USB is implemented using
uniquely-identifiable endpoints, which are the terminals of
communication flow between a USB host and USB devices. The
OXUSB954 supports 10 endpoints, numbered 0 to 9. Endpoint 0 is a
control endpoint. It is the default pipe, which is used to initialize and
manipulate the device. It also provides access to the device's
configuration information, and supports control transfers. Other
endpoints support interrupt transfers, bulk transfers, or isochronous
transfers.
On endpoint 0, DIR is read-only; it indicates the direction of the last
completed transaction. If the direction is incorrect, the firmware must
handle the error. On other endpoints, DIR is written, and if the direction
of the transfer does not match DIR, the transaction is treated as though
the endpoint is not enabled.
20
External—Free Release
DS-0016 Oct 06
Oxford Semiconductor, Inc.
USB to Quad Serial Port Bridge Data Sheet
At the end of any transfer to an armed and enabled endpoint with DIR
set correctly, an interrupt occurs. Depending on whether an error
occurred, the interrupt vectors to a different location. At the end of the
transfer, the corresponding endpoint is disarmed and the toggle bit is
advanced if no error occurs. If a packet is received with an incorrect
toggle state, it is ignored, so that if the host misses an ACK and resends
data, it is only seen once.
USB Control
USBControl&Status
Offset: 0x0C080
Reset: 0x00
7
6
5
4
3
2
1
0
URL
WK
UA
US
URA
UE
Read/write
URL
USB reset latch; must be one of:
0—no reset
1—USB received reset command
Write 1 to this bit to clear it
WK
UA
Wakeup trigger; must be one of:
0—no wakeup
1—send remote wakeup command to the USB
Activity indicator; must be one of:
0—no activity seen
1—USB activity seen
Write 1 to this bit to clear it
US
USB start-of-file command indicator; must be one of:
0—no SOF command encountered
1—SOF command encountered
This bit is cleared when USBFrameNumber is read
URA
UE
USB reset active indicator; must be one of:
0—no reset currently active
1—reset command currently active
USB enable; must be one of:
0—USB disabled
1—USB enabled
USBFrameNumber
Offset: 0x0C082
Reset: 0x00
15
14
13
12
11
10
9
8
7
6
5
4
3
2
1
0
S[10] S[9] S[8] S[7] S[6] S[5] S[4] S[3] S[2] S[1] S[0]
Read/write
S[10:0]
SOF ID of the last SOF received
DS-0016 Oct 06
External—Free Release
21
USB to Quad Serial Port Bridge Data Sheet
Oxford Semiconductor, Inc.
USBAddress
Offset: 0x0C084
Reset: 0x00
Read/write
7
6
5
4
3
2
1
0
0
A[6]
A[5]
A[4]
A[3]
A[2]
A[1]
A[0]
A[6:0]
USB address of the device assigned by the host
USBCommandDone
Offset: 0x0C086
Reset: 0x00
7
6
5
4
3
2
1
0
M[1]
M[0]
Read/write
M[1:0]
Command done; see Table 13 on page 22 for details
Table 13 Command Done Settings
M1
0
0
1
1
M0
Function
0
1
0
1
Sets command done for In or Out status phase
Sets command done for Out status phase only
Sets command done for In status phase only
Undefined
USB Endpoints
EndpointControl&Status0 to EndpointControl&Status0
Offset: 0x0C090, 0x0C092, 0x0C094, 0x0C096, 0x0C098, 0x0C09A, 0x0C09C, 0x0C09E, 0x0C0A0, 0x0C0A2
Reset: 0x00
Read/write
7
6
5
4
3
2
1
0
Write
Read
Enable
Arm
Z
Stall
8
ISO
6
Dir
15
14
13
12
11
10
9
7
5
4
0
3
2
1
Done Error Setup
Stall ISO Dir Enable Arm
Read mode
Done
Done indicator; must be one of:
0—not done
1—transaction completed
When the transaction is complete, Arm is set to 0
Error
Error indicator; must be one of:
0—no error
1—error occurred on the last transaction for this endpoint
22
External—Free Release
DS-0016 Oct 06
Oxford Semiconductor, Inc.
USB to Quad Serial Port Bridge Data Sheet
Setup
Stall
ISO
Setup packet indicator; must be one of:
0—no setup packet
1—setup packet received
Stall trigger; must be one of:
0—no stall sent
1—1—stall response sent in response to the next request on this endpoint
ISO enable; must be one of:
0—isochronous mode disabled
1—isochronous mode enabled
Dir
Direction indicator; must be one of:
0—receive from host
1—transmit to host
Enable
Arm
Enable endpoint; must be one of:
0—endpoint disabled
1—endpoint enabled
Endpoint armed indicator; must be one of:
0—not armed
1—armed
Write mode
Z
Zero-length packet indicator; must be one of:
0—non-zero packet
1—zero-length packet
Stall
Stall trigger; must be one of:
0—no stall response sent
1—stall response sent in response to the next request on this endpoint
(2)
ISO enable; must be one of:
0—isochronous mode disabled
1—isochronous mode enabled
ISO
(1)
Direction indicator; must be one of:
Dir
0—receive from host
1—transmit to host
Enable
ARM
Enable transfers to this endpoint; must be one of:
0—transactions ignored
1—transfers allowed
If Arm is 0 & Enable is 1, the endpoint returns NAK to USB transmissions
Allow enabled transfers; must be one of:
0—transfer complete
1—allow enabled transfers
Note:
1
2
Dir is read-only for endpoint 0.
ISO is interpreted differently for endpoint 0. It allows independent stall responses for solely in or out
transactions as follows: if ISO is set to 1, setting Stall to 0 stalls only in transactions and setting Stall to 1
stalls solely out transactions.
DS-0016 Oct 06
External—Free Release
23
USB to Quad Serial Port Bridge Data Sheet
Oxford Semiconductor, Inc.
EndpointAddress0
Offset: 0x00120, 0x00124, 0x00128, 0x0012C, 0x00130, 0x00134, 0x00138, 0x0013C, 0x00140, 0x00144
Reset: 0x00
Read/write
15
14
13
12
11
10
9
8
7
6
5
4
3
2
1
0
A[15] A[14] A[13] A[12] A[11] A[10] A[9] A[8] A[7] A[6] A[5] A[4] A[3] A[2] A[1] A[0]
These registers point to the memory buffer location for USB reads and
writes to the endpoint.
A[15:0]
Address
EndpointCount0
Offset: 0x00122, 0x00126, 0x0012A, 0x0012E, 0x00132, 0x00136, 0x0013A, 0x0013E, 0x00142, 0x00146
Reset: 0x00
Read/write
15
14
13
12
11
10
9
8
7
6
5
4
3
2
1
0
C[15] C[14] C[13] C[12] C[11] C[10] C[9] C[8] C[7] C[6] C[5] C[4] C[3] C[2] C[1] C[0]
These registers indicate the maximum packet size for the endpoint.
C[15:0]
Maximum packet size
24
External—Free Release
DS-0016 Oct 06
Oxford Semiconductor, Inc.
USB to Quad Serial Port Bridge Data Sheet
Environmental
Characteristics
Tables 14 to 15 detail the required operating conditions for the device
and the DC electrical characteristics.
Table 14 Device Absolute Maximum Ratings
Parameter
Supply voltage
Symbol
Ratings
–0.3 to +4.0
Unit
V
V
DD
Input voltage
V (normal)
–0.3 to V +0.3
V
V
IN
DD
V (5-V tolerant)
–0.3 to +6.0
IN
Storage temperature
Operating temperature
TSTG
–55 to +125
0 to 70
°C
°C
(1)
Table 15 DC Characteristics & Conditions
Symbol
Parameter
Condition
Value
Unit
Min
3.0
2.0
–
Typ
3.3
–
–
1.8
Max
3.6
–
0.8
2.3
VDD
VIH
VIL
Supply voltage
V
V
V
V
Input high voltage
Input low voltage
Input high voltage
(2)
Schmitt
Schmitt
Schmitt
–
V+
(2)
Input low voltage
Hysteresis voltage
0.5
0.4
0.9
–
–
–
V
V
V-
VH (2)
IIH
IIL
VOH
VOL
IOZ
Input high current
Input low current
Output high voltage
Output low voltage
3-state leakage current
VIN = VDD
VIN = Vss
–10
–10
2.4
–
–10
–10
–
–
–
–
–
–
–10
–10
–
0.4
–10
–10
µA
µA
V
V
µA
µA
VOH=VSS
VOL=VDD
Note:
1
2
V
DD @ 3.3 V ± 0.3 V
For reset (nRESET is pin 66)
Power
Table 16 gives typical power consumption figures for the OXUSB954.
Consumption
Table 16 OXUSB954 Power Consumption
(1)
Suspend Mode
Idle Mode
Active Mode
3.3 V
250 µA
22 mA
35 mA
Note:
1
The active current depends on the baud rate and number of ports in use and could be higher or lower than
the figure quoted.
DS-0016 Oct 06
External—Free Release
25
USB to Quad Serial Port Bridge Data Sheet
Oxford Semiconductor, Inc.
Timings
The timings shown in Figures 2 to 4 show the behavior of the external
SRAM in 8-bit and 16-bit width configurations, with one wait state
selected.
Figure 2 8-Bit External SRAM
26
External—Free Release
DS-0016 Oct 06
Oxford Semiconductor, Inc.
USB to Quad Serial Port Bridge Data Sheet
Figure 3 2 × 8-Bit External SRAM
DS-0016 Oct 06
External—Free Release
27
USB to Quad Serial Port Bridge Data Sheet
Oxford Semiconductor, Inc.
Figure 4 16-Bit External SRAM
28
External—Free Release
DS-0016 Oct 06
Oxford Semiconductor, Inc.
USB to Quad Serial Port Bridge Data Sheet
Pinout
Figure 5 shows the chip layout for the OXUSB954.
Figure 5 OXUSB954 Chip Layout
76
VDD
SDA
XA_7
1
XA_6
PU #1
XA_5
UART4_DCD
UART4_DSR
UART4_CTS
UART4-DTR
UART4_RTS
UART4_RxD
UART4_TxD
UART3_RI
nPWR_DWN
GND
XA_4
XA_3
XA_2
XA_1
GND
nTST
OXUSB954
nRESET
nXROMSEL
nXWR
nXRD
UART1_TxD
UART1_RxD
UART1_RTS
UART1_DTR
UART1_CTS
UART1_DSR
UART1_DCD
UART1_RI
nTxD
UART3_DCD
UART3_DSR
UART3_CTS
UART3_DTR
UART3_RTS
UART3_RxD
nXRAMSEL
GND
nXBHE
XA_0
GND
VP
XA_14
VM
VDD
51
26
Table 17 gives the pinout details for the OXUSB954.
Table 17 OXUSB954 Pinout (Sheet 1 of 4)
Pin
1
2
I/O
Identifier
Description
VDD
VDD
(1)
In/out
Serial EEPROM serial data. Connect to
SDA
EEPROM/SDA
(1)
3
4
In
In
Pull up to USB +Pin for high speed
Data carrier detect
Data set ready
PU#1
(1)
UART4_DCD
(1)
5
In
UART4_DSR
(1)
6
In
Clear to send
UART4_CTS
UART4_DTR
(1)
(1)
7
Out
Out
In
Data terminal ready
Request to send
Receive data
8
UART4_RTS
(1)
9
UART4_Rxd
(1)
10
Out
Transmit data
UART4_Txd
DS-0016 Oct 06
External—Free Release
29
USB to Quad Serial Port Bridge Data Sheet
Oxford Semiconductor, Inc.
Table 17 OXUSB954 Pinout (Sheet 2 of 4)
Pin
11
I/O
In
Identifier
Description
(1)
Ring indicate
UART3_RI
(1)
12
Out
Active-low Power-down mode signal
nPWR_DWN
GND
13
14
GND
Transmit data
(1)
Out
In
UART1_Txd
UART1_Rxd
(1)
(1)
15
16
17
18
19
20
21
Receive data
Out
Out
In
Request to send
Data terminal ready
Clear to send
UART1_RTS
UART1_DTR
(1)
(1)
UART1_CTS
(1)
In
Data Set Ready
Data carrier detect
Ring indicate
UART1_DSR
UART1_DCD
(1)
In
(1)
In
UART1_RI
22
23
24
25
26
27
Out
nTXD
GND
VP
VM
VDD
Debug UART TxD
USB GND
USB + Pin
USB - Pin
USB VDD
In/out
In/out
(1)
In
Ring indicate
UART4_RI
(1)
28
Out
Serial EEPROM clock. Connect to
EEPROM/SCL
SCL
29
30
31
32
33
34
35
36
37
GND
GND
In
Out
VCO_IN
CP_OUT
VDD
PLLEN*
nRXD*
N/C
PLL VCO in
PLL VCO out
VDD
PLL enable
Debug UART RxD
No connection
No connection
Transmit data
In
In
N/C
(1)
Out
In
UART2_Txd
UART2_Rxd
UART2_RTS
(1)
38
39
40
41
42
43
Receive data
(1)
(1)
Out
Out
In
Request to send
Data terminal ready
Clear to send
UART2_DTR
(1)
UART2_CTS
UART2_DSR
(1)
(1)
In
Data set ready
Data carrier detect
Ring indicate
In
UART2_DCD
(1)
44
In
UART2_RI
(1)
45
Out
Transmit data
UART3_Txd
30
External—Free Release
DS-0016 Oct 06
Oxford Semiconductor, Inc.
USB to Quad Serial Port Bridge Data Sheet
Table 17 OXUSB954 Pinout (Sheet 3 of 4)
Pin
46
47
48
49
50
51
52
53
54
55
56
57
I/O
Identifier
Description
GND
CLK
X2
GND
In
Out
Out
12-MHz clock/crystal input
12-MHz crystal output
External address pin
VDD
XA_15
VDD
VDD
VDD
Out
Out
Out
XA_14
XA_0
nXBHE
GND
External address pin
External address pin
External byte high enable (Active-low)
GND
External RAM CS (active-low)
Receive data
Out
In
nXRAMSEL
(1)
(1)
UART3_Rxd
58
59
60
61
62
Out
Out
In
Request to send
Data terminal ready
Clear to send
UART3_RTS
UART3_DTR
(1)
(1)
UART3_CTS
(1)
In
Data set ready
UART3_DSR
(1)
In
Data carrier detect
UART3_DCD
nXRD
63
64
65
66
67
Out
Out
Out
In
External memory read (active-low)
External memory write (active-low)
External ROM CS (active-low)
Reset pin
nXWR
nXROMSEL
nNRESET
(1)
In
Test pin, disconnect for normal operation
nNTST
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
GND
GND
Out
Out
Out
Out
Out
Out
Out
Out
Out
Out
Out
Out
Out
XA_1
XA_2
XA_3
XA_4
XA_5
XA_6
XA_7
XA_8
XA_9
XA_10
XA_11
XA_12
XA_13
GND
External address pin
External address pin
External address pin
External address pin
External address pin
External address pin
External address pin
External address pin
External address pin
External address pin
External address pin
External address pin
External address pin
GND
(1)
In/out
External Data Pin
XD_0
DS-0016 Oct 06
External—Free Release
31
USB to Quad Serial Port Bridge Data Sheet
Oxford Semiconductor, Inc.
Table 17 OXUSB954 Pinout (Sheet 4 of 4)
Pin
84
I/O
In/out
Identifier
Description
External data pin
(1)
XD_1
XD_2
XD_3
XD_4
XD_5
XD_6
XD_7
XD_8
XD_9
(1)
(1)
(1)
(1)
(1)
(1)
(1)
(1)
(1)
85
86
87
88
89
90
91
92
93
94
95
96
In/out
In/out
In/out
In/out
In/out
In/out
In/out
In/out
In/out
In/out
In/out
In/out
External data pin
External Data Pin
External data pin
External data pin
External data pin
External data pin
External data pin
External data pin
External data pin
External data pin
External data pin
External data pin
XD_10
(1)
XD_11
XD_12
(1)
(1)
XD_13
GND
97
98
GND
(1)
(1)
In/out
In/out
External data pin
XD_14
99
External data pin
XD_15
VDD
100
VDD
Note:
1
5-V tolerant.
32
External—Free Release
DS-0016 Oct 06
Oxford Semiconductor, Inc.
USB to Quad Serial Port Bridge Data Sheet
Package
Details
The OXUSB954 is supplied as a 100-pin LQFP, as shown in Figure 6.
Figure 6 OXUSB954 Package
Ordering
The order codes for the Oxford Semiconductor OXUSB954 are as follows:
Information
OXUSB954-LQ-A
OXUSB954-LQAG
The following conventions are used to identify Oxford Semiconductor
products:
OXUSB954 - LQ - A
OXUSB954 - LQ
A G
RoHS compliant
Revision
Package Type: LQ 100 LQFP
Part Number
DS-0016 Oct 06
External—Free Release
33
USB to Quad Serial Port Bridge Data Sheet
Oxford Semiconductor, Inc.
Contacting
Oxford Semi-
conductor
Oxford Semiconductor contact details:
Oxford Semiconductor, Inc.
1768 McCandless Drive
Milpitas, CA 95035
USA
Website:
Email:
http://www.oxsemi.com
sales@oxsemi.com
Alternatively, you can contact your local representative.
Revision
Table 18 documents the revisions of this manual.
Information
Table 18 Revision Information
Revision
December 2004
Modification
First publication
July 2005
Add operating temperature range; modify support level; add
green order code
November 2005
October 2006
Revision to USB compatibility; power consumption figures
added
Further clarification concerning EEPROM & external SRAM
Windows is a trademark of Microsoft, Inc., registered in the US and other countries.
All other trademarks are the property of their respective owners
© Oxford Semiconductor, Inc. 2006
The content of this manual is furnished for informational use only, is subject to change without notice, and should not be
construed as a commitment by Oxford Semiconductor, Inc. Oxford Semiconductor, Inc. assumes no responsibility or liability for
any errors or inaccuracies that may appear in this book.
34
External—Free Release
DS-0016 Oct 06
厂商 型号 描述 页数 下载

OXFORD

 		OXU121HP USB的On-the -进入全速主机和高速外设控制器[ USB On-The-Go Full-Speed Host and High-Speed Peripheral Controller ] 22 页

OXFORD

 		OXU121HP-LQBG USB的On-the -进入全速主机和高速外设控制器[ USB On-The-Go Full-Speed Host and High-Speed Peripheral Controller ] 22 页

OXFORD

 		OXU121HP-PBBG USB的On-the -进入全速主机和高速外设控制器[ USB On-The-Go Full-Speed Host and High-Speed Peripheral Controller ] 22 页

OXFORD

 		OXU140CM USB的On-the -全速主机，高速外设与多存储接口[ USB On-The-Go Full Speed Host, High Speed Peripheral with Multi-Storage Interface ] 20 页

OXFORD

 		OXU140CM-LQBG USB的On-the -全速主机，高速外设与多存储接口[ USB On-The-Go Full Speed Host, High Speed Peripheral with Multi-Storage Interface ] 20 页

OXFORD

 		OXU140CM-PBBG USB的On-the -全速主机，高速外设与多存储接口[ USB On-The-Go Full Speed Host, High Speed Peripheral with Multi-Storage Interface ] 20 页

PLX

 		OXU200-LQAG [ Micro Peripheral IC, ] 16 页

PLX

 		OXU200-TBAG [ Micro Peripheral IC, ] 16 页

OXFORD

 		OXU210HP USB2.0到四串口网桥[ USB2.0 to Quad Serial Port Bridge ] 2 页

PLX

 		OXU210HP 局部总线高速USB主机，外设/ OTG控制器[ Local bus to Hi-Speed USB Host, Peripheral/OTG controller ] 1 页

购物指南

支付方式

配送服务

售后服务

发票须知

优惠券使用规则

特色服务

PCBA制造

国产品牌推荐

国产料号替代

质量保证

技术资料

行业资讯

关于我们

关于壹壹捌

联系我们

联系我们

服务热线：400-618-9990

企业邮箱：sales@ic118.com

服务时间：周一至周六 8:30-17:30

壹壹捌官方微信号

PDF索引：

A

B

C

D

E

F

G

H

I

J

K

L

M

N

O

P

Q

R

S

T

U

V

W

X

Y

Z

0

1

2

3

4

5

6

7

8

9

IC型号索引：

A

B

C

D

E

F

G

H

I

J

K

L

M

N

O

P

Q

R

S

T

U

V

W

X

Y

Z

0

1

2

3

4

5

6

7

8

9

Copyright 2024 gkzhan.com Al Rights Reserved 京ICP备06008810号-21 京

深圳网络警察报警平台
公共信息安全网络监察
经营性网站备案信息
不良信息举报中心
工商网监电子标识
全国公安机关备案
0.189403s
