NOTES:
1. FOR WAVESOLDERING (SOLDER BATH TEMPERATURE 240°C FOR 5 SEC.
AND SOLDER PREHEAT 120°C FOR 120 SEC.)
0,5
0,3
4,55 +-
2. METALSHELLS: COPPER ALLOY; min. 315µin TIN over 40-80µin NICKEL
3. INSULATORS: PBT GF UL 94 V-0, BLACK
( 5 : 1 )
`0,3
6,35
4. SIGNAL CONTACTS: COPPER ALLOY; PLATING (SEE PART NO.):
o
o
o
PLEASE ADD A for GOLD FLASH over NICKEL (PREFERRED TYPE)
PLEASE ADD B for 20µin HARD GOLD over min. 50µin NICKEL
PLEASE ADD C for 30µin HARD GOLD over min. 50µin NICKEL
D
D
SEALING
COMPOUND
5. METAL BRACKETS: ZINC DIE CAST;
300µin COPPER/ 40-120µin NICKEL/120-200µin TIN
6. THREADED INSERTS: COPPER ALLOY; min. 200µin TIN over 80µin NICKEL
7. COLLARS: COPPER ALLOY; NICKEL PLATED
8. HEXLOCKING SCREWS: STAINLESS STEEL
9. FRAME: ZINC DIE CAST; NICKEL PLATED
`0,2
3,2
10. O-RING: SILICON; BLUE
11. RUBBER GASKET: TPE; BLACK
12. P.C.P. SNAPS: COPPER ALLOY; min. 200µin TIN over 80µin NICKEL
PCB-HOLE:
n3,1 0,1; PCB-THICKNESS 1,6mm
13. SEALING COMPOUND: PUR; BLUE
14. P.C.B. HOLE DRILLINGS AND RECOMMENDED PANEL CUT-OUT ON SHEET 2
15. RECOMMENDED TORQUE FOR MOUNTING SCREW
35N cm (3.1 in.LB) / max. 40N cm (3.5 in.LB)
16. CONNECTOR IS PART MARKED: 6STD09P
oU99R30X CONEC ABC (see note 4)
0,3
0
39,4 +-
0,22
0,03
8,26 +-
C
C
0,12
0,13
25 +-
POS. 1
POS. 6
RUBBER GASKET
PLACED ON TOP SURFACE
OF MALE INSULATER
0,2
0,05
16,84 +-
B
B
PRESS FOR FIXING ON PCB
METAL BRACKET
6STD09P U99R30X
o
O-RING
SEE NOTE 9
CONEC ABC
M3
M3
SEE NOTE 16
SW 4,75
2:1 (5:1)
scale:
tolerance
material:
SEE NOTES
AT ALL TIMES WATER RESISTANT
CONNECTORS NOT IN USE
SHOULD BE COVERED
WITH A CONEC WATER
RESISTANT CAP
dim. in mm
A
A
date
name
title:
drawn 15.09.14 Henneboel

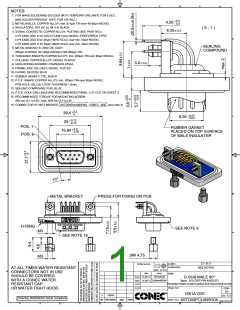

D-SUB MALE 90°
9pos. SOLDER PIN ANGLED
appd.
15.09.14 Lehmenkühler
norm
d-old
threaded insert,metal bracket and hexlocking screw
dwg no:
DIN-
A3
OR WATER TIGHT HOOD.
R
15K1A1557
a
Original
1/2
sh:
Directive 2002/95/EC RoHS compliant
rev. description
name
part no:
date
6STD09P U99R30X (see note 4)
