NOTES:
0,31
0,49
4,74+-
1. FOR WAVESOLDERING (SOLDER BATH TEMPERATURE 240°C FOR 5 SEC.
AND SOLDER PREHEAT 120°C FOR 120 SEC.)
`0,2
`0,3
2. METALSHELLS: COPPER ALLOY; min. 315µin TIN over 40-80µin NICKEL
3. SEALING COMPOUND: PUR; BLUE
3,2
6,35
4. INSULATORS: PBT GF UL 94 V-0; BLACK
( 5 : 1 )
5. CONTACTS: COPPER ALLOY
D
D
PLATING: GOLD FLASH over NICKEL
6. METAL BRACKETS: ZINC DIE CAST;
SEALING
COMPOUND
300µin COPPER/40-120µin NICKEL/120-200µin TIN
7. THREADED INSERTS: COPPER ALLOY; min. 200µin TIN over 80µin NICKEL
8. PCB-SNAPS: COPPER ALLOY; min. 200µin TIN over 80µin NICKEL
PCB-HOLE: n3,1`0,1mm; PCB-THICKNESS: 1,6mm
9. HEXLOCKING SCREWS: STAINLESS STEEL
10. FRAME: ZINC DIE CAST; NICKEL PLATED
11. O-RING: SILICON; BLUE
12. PCB HOLE DRILLINGS AND RECOMMENDED PANEL CUT-OUT ON SHEET 2
13. RECOMMENDED TORQUE FOR MOUNTING SCREW
35Ncm (3.1 in.LB) / max.40Ncm (3.5 in.LB)
14. CONNECTOR IS PART MARKED: 6STD09SAU99R40X CONEC ABC
0,02
0,23
8 +-
0,3
39,4 +-
0
C
C
0,13
0,12
24,99 +-
AT ALL TIMES WATER RESISTANT CONNECTORS NOT
IN USE SHOULD BE COVERED WITH A CONEC WATER
RESISTANT CAP OR WATER TIGHT HOOD.
0,05
16,41 +- 0,2
PRESS FOR
FIXING ON PCB
METAL BRACKET
B
B
O-RING
PCB SNAP
6STD09SAU99R40X
CONEC ABC
4-40 UNC
SEE NOTE 10
SW 4,8
4-40 UNC
SEE NOTE 14
APPROVAL # FREIGABE # DEBLOCAGE # AUTORIZACION # APPROVAL
CUSTOMER APPROVAL DATE:
2:1 (5:1)
scale:
material:
tolerance
SEE NOTES
dim. in mm
A
A
date
name
title:
drawn
appd.
norm
18.11.10
18.11.10
Henneboel
Fischer

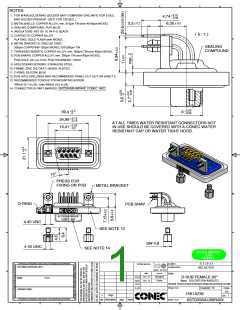

D-SUB FEMALE 90°
9pos. SOLDER PIN ANGLED
NAME:
TITLE:
thread insert,metal bracket,snap,hexlocking screw
dwg no:
d-old
Inventor 10
DIN-
A3
COMPANY NAME:
R
15K1A756
6STD09SAU99R40X
a
Origin
1
sh:
APPROVAL # FREIGABE # DEBLOCAGE # AUTORIZACION # APPROVAL
rev. description
name
part no:
date
