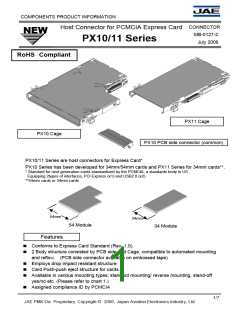

COMPONENTS PRODUCT INFORMATION
CONNECTOR
MB-0127-2
July 2006
Host Connector for PCMCIA Express Card
NEW
PX10/11 Series
RoHS Compliant
PX11 Cage
PX10 Cage
PX10 PCB side connector (common)
PX10/11 Series are host connectors for Express Card*
PX10 Series has been developed for 34mm/54mm cards and PX11 Series for 34mm cards**.
* Standard for next generation cards standardized by the PCMCIA, a standards body in US.
Equipping 2types of interfaces, PCI Express (x1) and USB2.0 (x2)
**54mm cards or 34mm cards
54mm
34mm
54 Module
34 Module
Features
ꢀ Conforms to Express Card Standard (Rev. 1.0).
ꢀ 2 Body structure consisted by PCB side and Cage, compatible to automated mounting
and reflow. (PCB side connector available on embossed tape)
ꢀ Employs drop impact resistant structure
ꢀ Card Push-push eject structure for cards.
ꢀ Available in various mounting types; standard mounting/ reverse mounting, stand-off
yes/no etc. (Please refer to chart 1.)
ꢀ Assigned compliance ID by PCMCIA
1/7
JAE PMK Div. Proprietary. Copyright © 2006，Japan Aviation Electronics Industry, Ltd.
MB-0127-2
Chart 1 -Variations and Development status
PX10 Series (for 34/54 Module)
Part number
Specification
Standoff
height
Mounting
type
Lower
Cage
PCB side
stand***
No
Yes
Yes
PX10FS00NH
PX10FS02PH
PX10BSB00
PX10BSB02
PX10BSB16
0.0
Standard
Reverse
1.5±0.2
0.0
PX10FS16PH
PX10FR02PH (not developed)
PX10FR02PH-1
Yes
Yes
PX10BRB02
PX10BRB16
1.5±0.2
PX10FR16PH (not developed)
PX11Series (for 34 Module)
Specification
Part number
PCB side
Mounting
Standoff
height
Lower
Cage
type
stand***
0.0
No
No
PX11FS00NH
PX11FS16NH
PX10BSB00
PX10BSB16
Standard
1.85±0.2
*** Lower plate
Lower plate
Product with lower plate
Product without lower plate
General Specifications
ꢀ
ꢀ
No. of contacts: 26pos.
ꢀ
ꢀ
ꢀ
Insertion loss: -1.7dB max. (3.125Ghz max.)
-5.5dB max.(6Ghz max.)
Return loss: -10dB max. (3.125Ghz max.)
-5dB max. (6Ghz max.)
Contact resistance: 40m ohm max.
(after test 55m ohm max.)
With standing voltage: AC 500Vrms per
minute
Operating temperature: 0 Deg. C to 55
Deg. C (Degree of humidity 95%)
Rated current: 0.75A/ per pin
Life time: 5,000 times
ꢀ
ꢀ
Cross talk (NEXT):
-32dB max. (3.125Ghz max.)
-26dB max. (6Ghz max.)
ꢀ
ꢀ
2/7
JAE PMK Div. Proprietary. Copyright © 2006，Japan Aviation Electronics Industry, Ltd.
MB-0127-2
Materials and Finishes
Components
Materials and finishes
Contact
Insulator
Frame
Cooper alloy/ 0.1 um min. Au plating over Ni
PCB
side
LCP
SUS
Hart cam
Cam follower
Slider
PBT
SUS
SUS
Spring
SWPB
Aluminum
PBT
Cage
Nut
Stopper
Boss
Aluminum
PBT
Guide
Lower plate
SUS
Ordering Information
PCB
PX10 B S B 02 -1
Series
PCB
Modification code
Height code ****
Positioning boss
B: with/ N: without
Mounting type
S: Standard/ R: Reverse
Cage
PX10 F S 02 P H-1
Series
Cage
Modification code
Nut
H: with /N: without
Mounting type
S: Standard/ R: Reverse
Bottom plate
P: with/ N: without
Height code ****
**** Please use PCB side and cage with same height code.
Please refer to Chart 2 regarding the stand off height and height code
Chart2 –Height code
PX10 Series
Standoff
PX11Series
Part number Standoff height
Height
code
PCB side
Part number
height
00
02
16
PX10B*B00 PX10F*00NH
PX10B*B02 PX10F*02PH
PX10B*B16 PX10F*16PH
PX11F*00NH
0.0
0.0
1.5±0.2 PX11F*16NH
1.85±0.2
Please refer Chart 1 regarding development status. (Please contact us for further information.)
3/7
JAE PMK Div. Proprietary. Copyright © 2006，Japan Aviation Electronics Industry, Ltd.
MB-0127-2
Dimensions
PX10 PCB side (Standard)
a
Height code
a
00
02
16
4.0
4.2
5.6
PX10 PCB side (Reverse)
b
Height code
b
02
16
4.25
5.65
Packaging specification
Embossed tape width: 44mm
Reel: 380mm dia. (plastic reel)
Pitch: 16mm
Quantity per packaging
Height code 00, 02: 1,000 pcs.
Height code 16: 800pcs.
4/7
JAE PMK Div. Proprietary. Copyright © 2006，Japan Aviation Electronics Industry, Ltd.
MB-0127-2
PX10 Cage (Standard)
c
Height code
c
Shape of products
00
02
16
5.7
5.9
7.3
and components vary
according to height
code.
PX10 Cage (Reverse: PX10FR02PH-1)
5/7
JAE PMK Div. Proprietary. Copyright © 2006，Japan Aviation Electronics Industry, Ltd.
MB-0127-2
PX11Cage (Standard)
d
Height code
Shape of products vary
according to height
code.
d
00
16
5.7
7.3
6/7
JAE PMK Div. Proprietary. Copyright © 2006，Japan Aviation Electronics Industry, Ltd.
MB-00127-2
SJ Drawings
Chart 3 -PCB side
Specifications
Mounting Height
Single unit
Embossed packaging
Part number SJ Drawing
Part number SJ Drawing
type
code
00
02
16
02
16
PX10BSB00
PX10BSB02
PX10BSB16
PX10BRB02
PX10BRB16
SJ100882 PX10BSB00-R1000
SJ100883 PX10BSB02-R1000
SJ100884 PX10BSB16-R800
SJ101060 PX10BRB02-R1000
SJ101061 PX10BRB16-R800
SJ101128
SJ101129
SJ101130
SJ101131
SJ101132
Standard
Reverse
Chart 4 -PX10 Cage
Specifications
Mounting
type
Height
code
Part number
SJ Drawing
00
02
16
02
PX10FS00NH
PX10FS02PH
PX10FS16PH
SJ100885
SJ100886
SJ100887
Standard
Reverse
PX10FR02PH-1 SJ101126
Chart 5 -PX11 Cage
Specifications
Mounting
type
Height
code
Part number
SJ Drawing
00
16
PX11FS00NH
PX11FS16NH
SJ102904
SJ102129
Standard
Specifications
PX10 Series: JACS-10177
PX11 Series: JACS-10227
Notice:
Products shown in this leaflet are
made for the applications listed below.
However, if the above-mentioned products are to
be used in aerospace devices, marine
cable-connection devices, atomic power control
systems, medical equipment for life-support
systems, or any other specific application
requiring extremely high reliability, please
contact JAE for further information.
Handling Instructions
PX10 Series: JAHL-10177
PX11 Series: JAHL-10227
Japan Aviation Electronics Industry, Limited
Recommended applications: Computers, Office
machines,
Measuring
devices,
Product Marketing Division
Telecommunication devices (Terminals, Mobile
devices), AV devices, Household applications,
FA devices, etc.
Aobadai Building, 3-1-19, Aobadai, Meguro-ku, Tokyo 153-8539
Phone: +81-3-3780-2787 FAX: +81-3-3780-2946
* The specifications in this brochure are subject to change without notice. Please contact JAE for information. 7/7
