PX10020EJ06V0PF

型号:

PX10020EJ06V0PF

描述:

射频和微波器件选型指南 - 应用系统 - \n[ RF and Microwave Devices Selection Guide -Application System- ]

品牌:

ETC[ ETC ]

页数:

38 页

PDF大小:

380 K

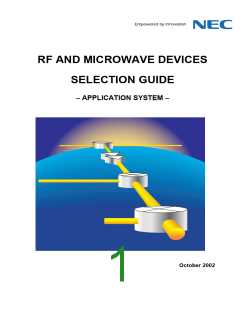

RF AND MICROWAVE DEVICES
SELECTION GUIDE
APPLICATION SYSTEM −
October 2002
This document covers “Silicon Microwave Transistors”, “Silicon Microwave Monolithic ICs”
and “Microwave GaAs Devices”.
SAFETY INFORMATION ON THIS PRODUCT
The product contains gallium arsenide, GaAs.
Caution GaAs Products
GaAs vapor and powder are hazardous to human health if inhaled or ingested.
• Do not destroy or burn the product.
• Do not cut or cleave off any part of the product.
• Do not crush or chemically dissolve the product.
• Do not put the product in the mouth.
Follow related laws and ordinances for disposal. The product should be excluded from general
industrial waste or household garbage.
Bluetooth is a trademark owned by Bluetooth SIG, Inc., U.S.A.
The information in this document is current as of October, 2002. The information is subject to
change without notice. For actual design-in, refer to the latest publications of NEC's data sheets or
data books, etc., for the most up-to-date specifications of NEC semiconductor products. Not all
products and/or types are available in every country. Please check with an NEC sales representative
for availability and additional information.
No part of this document may be copied or reproduced in any form or by any means without prior
written consent of NEC. NEC assumes no responsibility for any errors that may appear in this document.
NEC does not assume any liability for infringement of patents, copyrights or other intellectual property rights of
third parties by or arising from the use of NEC semiconductor products listed in this document or any other
liability arising from the use of such products. No license, express, implied or otherwise, is granted under any
patents, copyrights or other intellectual property rights of NEC or others.
Descriptions of circuits, software and other related information in this document are provided for illustrative
purposes in semiconductor product operation and application examples. The incorporation of these
circuits, software and information in the design of customer's equipment shall be done under the full
responsibility of customer. NEC assumes no responsibility for any losses incurred by customers or third
parties arising from the use of these circuits, software and information.
While NEC endeavours to enhance the quality, reliability and safety of NEC semiconductor products, customers
agree and acknowledge that the possibility of defects thereof cannot be eliminated entirely. To minimize
risks of damage to property or injury (including death) to persons arising from defects in NEC
semiconductor products, customers must incorporate sufficient safety measures in their design, such as
redundancy, fire-containment, and anti-failure features.
NEC semiconductor products are classified into the following three quality grades:
"Standard", "Special" and "Specific". The "Specific" quality grade applies only to semiconductor products
developed based on a customer-designated "quality assurance program" for a specific application. The
recommended applications of a semiconductor product depend on its quality grade, as indicated below.
Customers must check the quality grade of each semiconductor product before using it in a particular
application.
"Standard": Computers, office equipment, communications equipment, test and measurement equipment, audio
and visual equipment, home electronic appliances, machine tools, personal electronic equipment
and industrial robots
"Special": Transportation equipment (automobiles, trains, ships, etc.), traffic control systems, anti-disaster
systems, anti-crime systems, safety equipment and medical equipment (not specifically designed
for life support)
"Specific": Aircraft, aerospace equipment, submersible repeaters, nuclear reactor control systems, life
support systems and medical equipment for life support, etc.
The quality grade of NEC semiconductor products is "Standard" unless otherwise expressly specified in NEC's
data sheets or data books, etc. If customers wish to use NEC semiconductor products in applications not
intended by NEC, they must contact an NEC sales representative in advance to determine NEC's willingness
to support a given application.
(Note)
(1) "NEC" as used in this statement means NEC Corporation, NEC Compound Semiconductor Devices, Ltd.
and also includes its majority-owned subsidiaries.
(2) "NEC semiconductor products" means any semiconductor product developed or manufactured by or for
NEC (as defined above).
M8E 00. 4-0110
2
Selection Guide PX10020EJ06V0PF
Major Revisions in This Edition
Pages
Description
pp.7, 8
p.9
Modification PDC (Digital Cellular Phone)
Modification W-CDMA
pp.13, 14
p.15
Modification PHS (Digital Cordless Phone)
Modification DECT (Digital Cordless Phone)
Modification GSM (Digital Cellular Phone)
Modification Analog CATV
pp.17, 18
pp.24, 25
p.26
Modification Digital CATV
The mark shows major revised points.
3
Selection Guide PX10020EJ06V0PF
CONTENTS
1. INTRODUCTION ………………………………………………………………………………………………………
1-1. Basic RF Blocks …………………………………………………………………………………………………
5
6
2. EXPLANATION OF THE RF AND MICROWAVE DEVICES ……………………………………………………
2-1. Mobile Communication System ……………………………………………………………………………….
Digital Cellular/Cordless Phone
7
7
PDC ……………………………………………………………………………………………………….
W-CDMA ………………………………………………………………………………………………….
7
9
N-CDMA …………………………………………………………………………………………………. 11
PHS ………………………………………………………………………………………………………. 13
DECT …………………………………………………………………………………………………….. 15
CT-2 ……………………………………………………………………………………………………… 16
GSM ……………………………………………………………………………………………………… 17
Analog Cellular/Cordless Phone
AMPS ……………………………………………………………………………………………………. 19
900 MHz Cordless Phone ……………………………………………………………………………… 20
2-2. Multimedia System ……………………………………………………………………………………………. 22
Digital DBS ……………………………………………………………………………………………..……… 22
CATV
Analog CATV …………………………………………………………………………………………..
Digital CATV ……………………………………………………………………………………………
2-3. Others …………………………………………………………………………………………………………..
24
26
27
GPS ……………………………………………………………………………………………………………. 27
Cable Modem/CATV ………………………………………………………………………………………… 29
2.4 GHz Wireless LAN ………………………………………………………………………………………… 31
Bluetooth ………………………………………………………………………………………………………… 33
FRS (Family Radio Service) / GMRS (General Mobile Radio Service)…………………………………… 35
3. WEB SITE INFORMATION …………………………………………………………………………………………
37
4
Selection Guide PX10020EJ06V0PF
1. INTRODUCTION
The Microwave Devices are used for each system as shown in Figure 1. This selection guide explains the
Microwave devices by each Microwave block diagram for the application system.
The basic block diagram is indicated to Figure 2.
Figure 1 Example of the Microwave application systems
CATV/TRUNK
SATELLITE
AMPLIFIER
COMMUNICATION
CELLULAR
PHONE
DBS/CS
CABLE MODEM
ANTENNA
CORDLESS PHONE
GPS
WIRELESS LAN
FRS/GMRS
BluetoothTM
Si MMIC
Si TRANSISTOR
GaAs MMIC
GaAs HJ-FET
30M
100M
300M
1G
3G
10G
30G (Hz)
5
Selection Guide PX10020EJ06V0PF
1-1. Basic RF Blocks
The basic RF block consists of nine function blocks as shown in the next figure.
Figure 2 Microwave Basic Blocks
RF Front-end Basics
Rx
D/C
VCO
U/C
DEMOD
PLL
in
LNA
PA
Base
Band
f
RF
SW
Tx
Processor
out
MOD
1. SW (Switch)
2. LNA (Low Noise Amplifier)
3. PA (Power Amplifier)
4. D/C (Down-converter)
5. VCO (Voltage Controlled Oscillator)
6. U/C (Up-converter)
7. DEMOD (Demodulator)
8. PLL (Phase Locked Loop)
9. MOD (Modulator)
The application circuits and their parameters are for reference only and are not intended for use in
actual design-ins.
6
Selection Guide PX10020EJ06V0PF
2. EXPLANATION OF THE RF AND MICROWAVE DEVICES
Explain the devices by the microwave block diagram for following application systems.
2-1. Mobile Communication System
PDC (Digital Cellular Phone)
RF Front-end Basics
Rx
D/C
VCO
U/C
DEMOD
PLL
in
LNA
PA
Base
Band
f
RF
SW
Tx
Processor
out
MOD
Recommended device list
Block
Function
Type Name
Feature
LNA
Discrete Tr.
2SC5015
Si Bipolar Tr. (fT = 12 GHz)
Si Bipolar Tr. (fT = 15.5 GHz)
Si Bipolar Tr. (fT = 14 GHz)
Low Noise GaAs FET
Low Distortion GaAs HBT
6-pin Super Minimold
2SC5185 etc.
2SC5369
NE34018, NE38018
NE52418
µPC8112TB
HJ-FET
GaAs HBT
D/C
Down-converter
2nd Mixer + RSSI
Dual PLL
DEMOD
PLL
VCO
Oscillator + Buffer
µPA85x Series
µPA86x Series
Twin Tr.
Buffer
µPC8128TB
Low Current Consumption
µPC8178TB/TK
µPG2304TK
U/C + MOD
PA
I/Q Modulator
µPG2106TB
µPG2110TB
µPG2115TB
AGC + PA Driver
800 MHz (6-pin Super Minimold)
1.5 GHz (6-pin Super Minimold)
800 MHz (6-pin Super Minimold)
PA Driver
SPDT SW
SW
µPG153TB, µPG154TB GaAs SW IC, 6-pin Super Minimold
µPG155TB, µPG158TB
Remark The devices listed in the above table are merely examples. The product recommendation may change
depending on the requirements of each system’s design.
7
Selection Guide PX10020EJ06V0PF
System configuration example (RF Modulation System)
SPDT Switch
µPG152TA
µPG153TB
µPG154TB
µPG155TB
µPG158TB
Frequency Down-converter
µPC8112TB
SUB ANT
455 kHz
2nd Mixer BPF
LNA BPF 1st Mixer
SAW
SW
To DEMOD.
RSSI OUT
MAIN ANT
2SC5015
2SC5185
2SC5369
NE34018
NE38018
NE52418
RSSI
SW
SW
Buffer
PLL
PSC
µPC8128TB
µPC8178TB/TK
µPG2304TK
EXT
PA Driver
µPG2115TB
I
0˚
X 2
φ
(F/F)
90˚
Q
µPG2106TB (PDC800M)
AGC + PA Driver
System configuration example (IF Modulation System)
SPDT Switch
µPG152TA
µPG153TB
µPG154TB
µPG155TB
µPG158TB
Frequency Down-converter
µPC8112TB
SUB ANT
455 kHz
LNA
BPF 1st Mixer
SAW
2nd Mixer BPF
To DEMOD.
SW
SW
MAIN ANT
2SC5015
RSSI
2SC5185
2SC5369
NE34018
NE38018
NE52418
RSSI OUT
PLL1 PLL2
SW
2nd LO
1st LO
LPF
EXT
I
0˚
(CR)
90˚
φ
AGC
PA Driver BPF
Q
µPG2115TB µPG2106TB
(PDC800M)
(PDC800M)
µPG2110TB
(PDC1.5G)
8
Selection Guide PX10020EJ06V0PF
W-CDMA
RF Front-end Basics
Rx
D/C
VCO
U/C
DEMOD
PLL
in
LNA
PA
Base
Band
f
RF
SW
Processor
out
MOD
Tx
Recommended device list
Block
Function
Type Name
Feature
LNA
Discrete Tr.
2SC5508
Si Bipolar Tr. (fT = 25 GHz)
SiGe Tr.
2SC5761
HJ-FET
NE34018
NE38018
Low Noise GaAs FET
GaAs HBT
NE52418
Low Distortion GaAs HBT
D/C
Down-converter
DEMOD
IF AGC + I/Q Demodulator
µPC8190K
µPC8194K
Used in combination with the µPC8191K.
Used in combination with the µPC8195K.
PLL
Dual PLL
VCO
Oscillator + Buffer
µPA85x Series
µPA86x Series
Twin Tr.
Buffer
µPC8179TB
µPC8179TK
U/C
Up-converter
IF AGC + I/Q Modulator
µPC8172TB
µPC8187TB
6-pin Super Minimold
MOD
µPC8191K
µPC8195K
Used in combination with the µPC8190K.
Used in combination with the µPC8194K.
PA
AGC + PA Driver
SPDT SW
SW
µPG2009TB
GaAs SW IC
µPG2010TB (Under
development)
Remark The devices listed in the above table are merely examples. The product recommendation may change
depending on the requirements of each system’s design.
9
Selection Guide PX10020EJ06V0PF
System configuration example
W-CDMA transceiver
Variation of IF frequency
µPC8190/91K: RX-IF = 380 MHz, TX-IF = 570 MHz
µPC8194/95K: RX-IF = 190 MHz, TX-IF = 380 MHz
SiGe Tr. 2SC5761
GaAs HBT NE52418
etc.
AGC + I/Q Demodulator
µPC8190K or µPC8194K
RX = 2110 to 2170 MHz
BPF
LNA
Mixer
BPF
to B/B
90˚
ANT
1st LO
SPDT
SW
H
PLL1 PLL2
DUPLX
Buffer
µPC8179TB
µPC8179TK
2nd LO = 760 MHz
EXT
GaAs MMIC
SPDT SW
PA
AGC + PA Driver
µPG2009TB
µPG2010TB
from B/B
90˚
TX = 1920 to 1980 MHz
Mixer
µPC8172TB
µPC8187TB
AGC + I/Q Modulator
µPC8191K or µPC8195K
; Si MMIC
; GaAs MMIC
; GaAs MCM
; GaAs or Si Discrete
Under development
10
Selection Guide PX10020EJ06V0PF
N-CDMA
RF Front-end Basics
Rx
D/C
VCO
U/C
DEMOD
PLL
in
LNA
PA
Base
Band
f
RF
SW
Processor
out
MOD
Tx
Recommended device list
Block
Function
Type Name
Feature
LNA
Discrete Tr.
HJ-FET
2SC5508
Si Bipolar Tr. (fT = 25 GHz)
Low Noise GaAs FET
NE34018
NE38018
GaAs HBT
NE52418
Low Distortion GaAs HBT
D/C
Down-converter
IF AGC + I/Q Demodulator
Dual PLL
DEMOD
PLL
VCO
Oscillator + Buffer
µPA85x Series
µPA86x Series
Twin Tr.
Buffer
µPC8128TB
µPC8151TB
µPC8178TB/TK
µPC8179TB/TK
U/C + MOD
Up-converter
µPC8172TB
µPC8187TB
6-pin Super Minimold
PA
SW
SPDT SW
µPG2009TB
GaAs SW IC
µPG2010TB (Under
development)
Remark The devices listed in the above table are merely examples. The product recommendation may change
depending on the requirements of each system’s design.
11
Selection Guide PX10020EJ06V0PF
System configuration example
N-CDMA transceiver
Under development
Under examination
Li-ion Battery Pack 1cell: 3.6 V(TYP.)
GaAs HJ-FET NE34018, NE38018
Si Bi. Tr. 2SC5508
GaAs HBT NE52418 etc.
f
f
f
RX = 832 to 834 MHz
RX = 843 to 846 MHz
RX = 860 to 870 MHz
I(RX)
to B/B
φ
BPF
BPF
1/2
SW
SW
MAIN ANT
Q(RX)
to B/B
GaAs SPDT SW
µPG20xx Series
6-pin SMM
TCXO
PLL
SPDT Duplexer
SW Filter
Si MMIC
µPC8128TB
µPC8151TB
Synthesizer
EXT
GaAs MMIC
SPDT SW
µPC8178TB/TK
µPC8179TB/TK
ISOLATOR
µPG2009TB
µPG2010TB
I(TX)
from B/B
BPF
BPF
φ
Q(TX)
from B/B
AGC
Si MMIC
f
f
f
TX = 887 to 889 MHz
TX = 898 to 901 MHz
TX = 915 to 925 MHz
Up-converter
µPC8172TB
µPC8187TB
6-pin SMM
12
Selection Guide PX10020EJ06V0PF
PHS (Digital Cordless Phone)
RF Front-end Basics
Rx
D/C
VCO
U/C
DEMOD
PLL
in
LNA
PA
Base
Band
f
RF
SW
Processor
out
MOD
Tx
Recommended device list
Block
Function
Type Name
Feature
LNA
Discrete Tr.
HJ-FET
2SC5369
High fT, Low Noise
NE34018
NE38018
Low Noise GaAs FET
GaAs HBT
NE52418
Low Distortion GaAs HBT
D/C
Down-converter
IF D/C + RSSI
µPC8112TB
6-pin Super Minimold
DEMOD
PLL
Dual PLL Synthesizer
Oscillator + Buffer
VCO
µPA85x Series
µPA86x Series
Twin Tr.
MOD + U/C
U/C
I/Q Modulator + Up-converter
Up-converter
µPC8106TB
µPC8109TB
6-pin Super Minimold
PA
AGC Amplifier
Discrete Tr.
SPDT SW
µPC8119T
µPC8120T
6-pin Minimold
2SC5288
2SC5289
Medium Output Power Use Tr.
GaAs SW IC, 6-pin Super Minimold
SW
µPG153TB
µPG154TB
µPG155TB
µPG158TB
Remark The devices listed in the above table are merely examples. The product recommendation may change
depending on the requirements of each system’s design.
13
Selection Guide PX10020EJ06V0PF
System configuration example
PHS (Digital Cordless Phone)
1895.15 to 1917.95 MHz
or
(1906.55 ± 11.4 MHz)
243.95 MHz
or
248.45 MHz
µPC8112TB
1st Mixer
10.8 MHz
BPF
NE34018
NE52418
LNA
2nd Mixer
BPF
SAW
To DEMOD.
RSSI OUT
ATT
MAIN ANT
1651.2 to 1674.0 MHz
or
RSSI
1646.7 to 1669.5 MHz
1st LO
2nd LO
233.15 MHz
or
SW
SW
PLL1 PLL2
259.25 MHz
1662.0 to 1684.8 MHz
or
2SC5006
µPG152TA
µPG154TB
µPG158TB
1635.9 to 1658.7 MHz
I
AGC
0˚
φ
(CR)
BPF
LPF
90˚
Q
µPC2763TB
µPC2771TB
µPC8182TB
2SC5288
2SC5289
14
Selection Guide PX10020EJ06V0PF
DECT (Digital Cordless Phone)
RF Front-end Basics
Rx
D/C
VCO
U/C
DEMOD
PLL
in
LNA
PA
Base
Band
f
RF
SW
Processor
out
MOD
Tx
Recommended device list
Block
Function
Type Name
Feature
LNA
Discrete Tr.
HJ-FET
2SC5369
High fT, Low Noise
NE34018
NE38018
Low Noise GaAs FET
GaAs HBT
NE52418
Low Distortion GaAs HBT
6-pin Super Minimold
D/C
Down-converter
µPC2756TB
µPC2757TB
µPC2758TB
µPC8112TB
DEMOD
PLL
IF D/C + RSSI
Dual PLL Synthesizer
Oscillator + Buffer
VCO
µPA85x Series
µPA86x Series
Twin Tr.
MOD (OSC)
Oscillator + Buffer
Up-converter
AGC Amplifier
Discrete Tr.
µPA85x Series
µPA86x Series
Twin Tr.
U/C
PA
µPC8106TB
µPC8109TB
6-pin Super Minimold
6-pin Minimold
µPC8119T
µPC8120T
2SC5288
Medium Output Power Use Tr.
2SC5289
NE5500179A
SW
SPDT SW
µPG153TB
µPG154TB
µPG158TB
GaAs SW IC, 6-pin Super Minimold
Remark The devices listed in the above table are merely examples. The product recommendation may change
depending on the requirements of each system’s design.
15
Selection Guide PX10020EJ06V0PF
CT-2 (Digital Cordless Phone)
RF Front-end Basics
Rx
D/C
VCO
U/C
DEMOD
PLL
in
LNA
PA
Base
Band
f
RF
SW
Processor
out
MOD
Tx
Recommended device list
Block
Function
Type Name
Feature
LNA
Discrete Tr.
2SC5369
High fT, Low Noise
Low Noise Amplifier
Down-converter
µPC2749TB
Low Noise
D/C
µPC8112TB
6-pin Super Minimold
DEMOD
PLL
PLL
VCO
Oscillator + Buffer
µPA85x Series
µPA86x Series
Twin Tr.
Buffer
µPC8151TB
µPC8152TB
µPC8179TB
Low Current Consumption
MOD
U/C
I/Q Modulator
Up-converter
µPC8106TB
µPC8109TB
6-pin Super Minimold
PA
Medium Output Power Amplifier
µPC2762TB
µPC2763TB
µPC2771TB
µPC8182TB
6-pin Super Minimold
SW
SPDT SW
µPG153TB
µPG154TB
µPG158TB
GaAs SW IC, 6-pin Super Minimold
Remark The devices listed in the above table are merely examples. The product recommendation may change
depending on the requirements of each system’s design.
16
Selection Guide PX10020EJ06V0PF
GSM (Digital Cellular Phone)
RF Front-end Basics
Rx
D/C
VCO
U/C
DEMOD
PLL
in
LNA
PA
Base
Band
f
RF
SW
Tx
Processor
out
MOD
Recommended device list
Block
Function
Type Name
Feature
LNA
Discrete Tr.
HJ-FET
2SC5508
fT = 25 GHz Tr.
NE34018
Low Noise GaAs FET
GaAs HBT
NE52418
Low Distortion GaAs HBT
D/C
Down-converter
I/Q Demodulator
Dual PLL
µPC8112TB
6-pin Super Minimold
DEMOD
PLL
VCO
Oscillator + Buffer
µPA85x Series
µPA86x Series
Twin Tr.
MOD + U/C
U/C
I/Q Modulator
Up-converter
µPC8106TB
µPC8109TB
6-pin Super Minimold
PA
Driver Amplifier
Discrete Tr.
µPC2763TB
µPC2771TB
µPC8182TB
6-pin Super Minimold
2SC5288
Medium Output Power Use Tr.
2SC5289
NE5510279A
NE5520379A
SW
SPDT SW
Remark The devices listed in the above table are merely examples. The product recommendation may change
depending on the requirements of each system’s design.
17
Selection Guide PX10020EJ06V0PF
System configuration example (IF Modulation System)
GSM (Digital Cellular Phone)
LNA
2SC5015
2SC5185
NE34018
NE52418
I
Q
DEMOD.
RSSI
PLL
RSSI OUT
Down-converter
MAIN ANT
µPC8112TB
SW
SW
PSC
0˚
PLL
Up-converter
µPC8106TB
µPC8109TB
I
X2
φ
(F/F)
90˚
Driver Amplifier
µPC2763TB
µPC2771TB
µPC8182TB
AGC Amplifier
µPC8119T
Power Amplifier (Bip.Tr.)
2SC5192 (DECT 1st)
2SC5288 (DECT 2nd)
(PHS 1st)
2SC5289 (DECT 3rd)
(PHS 2nd)
Q
BPF
µPC8120T
18
Selection Guide PX10020EJ06V0PF
AMPS (Analog Cellular Phone)
RF Front-end Basics
Rx
D/C
VCO
U/C
DEMOD
PLL
in
LNA
PA
Base
Band
f
RF
SW
Processor
out
MOD
Tx
Recommended device list
Block
Function
Type Name
Feature
LNA
Discrete Tr.
HJ-FET
2SC5369
High fT, Low Noise
NE34018
Low Noise GaAs FET
6-pin Super Minimold
D/C
Down-converter
2nd Down-converter
PLL
µPC8112TB
DEMOD
PLL
VCO
Oscillator + Buffer
µPA85x Series
µPA86x Series
Twin Tr.
Buffer
µPC8151TB
µPC8152TB
µPC8179TB
Low Current Consumption
MOD
U/C
PA
Oscillator + Buffer
Up-converter
µPA85x Series
µPA86x Series
Twin Tr.
µPC8106TB
µPC8109TB
6-pin Super Minimold
6-pin Minimold
AGC Amplifier
µPC8119T
µPC8120T
Discrete Tr.
Duplexer
NE5500479A
Medium Output Power Use Tr.
SW
Remark The devices listed in the above table are merely examples. The product recommendation may change
depending on the requirements of each system’s design.
19
Selection Guide PX10020EJ06V0PF
900 MHz Cordless Phone (Analog Cordless Phone)
RF Front-end Basics
Rx
D/C
VCO
U/C
DEMOD
PLL
in
LNA
PA
Base
Band
f
RF
SW
Tx
Processor
out
MOD
Recommended device list
Block
Function
Type Name
Feature
LNA
D/C
Discrete Tr.
2SC5369
High fT, Low Noise
Down-converter
Discrete Tr.
µPC8112TB
6-pin Super Minimold
µPA85x Series
µPA86x Series
Twin Tr. with Different Dice
PLL
PLL
VCO
Oscillator + Buffer
µPA85x Series
µPA86x Series
Twin Tr.
Discrete Tr. (Doubler)
Buffer
2SC5011 etc.
fT = 7 GHz
µPC8151TB
µPC8152TB
µPC8179TB
Low Current Consumption
MOD
Oscillator
µPA85x Series
µPA86x Series
Twin Tr.
U/C
PA
Discrete Tr. (Doubler)
Discrete Tr.
2SC5011 etc.
2SC3356 etc.
fT = 7 GHz
fT = 7 GHz
SW
Duplexer
Remark The devices listed in the above table are merely examples. The product recommendation may change
depending on the requirements of each system’s design.
20
Selection Guide PX10020EJ06V0PF
System configuration example 1 (900 MHz Cordless Phone)
900 MHz Cordless Phone (Analog Cordless Phone)
2SC5369
LNA
2SC5369
Mixer
BPF
To DEMOD.
2SC4093
2SC4094
µPA85x Series
µPA86x Series
Down-converter
µPC8112TB
DUP
X2
PLL
VCO
MOD. in
Buffer
PA
Driver
Oscillator
X2
2SC5288
2SC5289
µPA85x Series
µPA86x Series
2SC4093
2SC4094
System configuration example 2 (900 MHz Cordless Phone)
Down-converter
µPC8112TB
µPA85x Series
2SC4095
2SC5507
µPA86x Series
Mixer
SAW LNA BPF
BPF
To DEMOD.
Twin Tr.
µPA85x Series
µPA86x Series
X2
PLL
MOD. in
PA
Buffer
BPF
X2
Twin Tr.
Twin Tr.
µPA85x Series
µPA86x Series
µPA85x Series
µPA86x Series
21
Selection Guide PX10020EJ06V0PF
2-2. Multimedia System
Digital DBS (Satellite Broadcasting)
RF Front-end Basics
Rx
D/C
DEMOD
in
LNA
Base
Band
Processor
f
RF
SW
OSC
Refer to System configuration example below.
Recommended device list
Block
Function
Type Name
HJ-FET Series
µPC2711TB
Feature
GaAs HJ-FET Series for X, Ku-band
fu = 2.9 GHz, GP = 13 dB
LNA
LNA
IF Amplifier
µPC2712TB
fu = 2.6 GHz, GP = 20 dB
µPC3215TB
fu = 2.9 GHz, GP = 20.5 dB,
Low NF, Wideband Type
Medium Output Power Amplifier
Twin IF Switch
µPC2709TB
µPG181GR
µPG183GR
PO(sat) = 11.5 dBm
16-pin HTSSOP
SW
4 × 2 IF Switch
OSC
DRO
2SC5508
NE52418
Low Phase Noise
Remark The devices listed in the above table are merely examples. The product recommendation may change
depending on the requirements of each system’s design.
22
Selection Guide PX10020EJ06V0PF
System configuration example
Digital DBS (Satellite Broadcasting)
IF Amplifier
µPC2711TB
µPC2712TB
µPC3215TB
GaAs MMIC
Twin IF Switch
µPG181GR
Medium Output
Amplifier
µPC2709TB
HJ-FET
NE3210S01
HJ-FET
NE4210S01
SW
Si Bip.Tr.
2SC5508
Parabolic ANT
To IDU
23
Selection Guide PX10020EJ06V0PF
Analog CATV
RF Front-end Basics
Rx
D/C
DEMOD
PLL
in
LNA
Base
Band
f
RF
VCO
Processor
Recommended device list
Block
Function
Type Name
Feature
LNA
Discrete Tr.
2SC5336
Low Distortion, Power Minimold
2SC5337
2SC5338
D/C
Up-converter
Down-converter
FM Demodulator
PLL
DEMOD
PLL
Prescaler
µPB1507GV
µPB1508GV
µPB1510GV
Up to 3 GHz, 1/64, 1/128, 1/256
Up to 3 GHz, 1/2
Up to 3 GHz, 1/4
Twin Tr.
VCO
Oscillator + Buffer
µPA85x Series
µPA86x Series
Remark The devices listed in the above table are merely examples. The product recommendation may change
depending on the requirements of each system’s design.
24
Selection Guide PX10020EJ06V0PF
System configuration example (Analog CATV)
Pre-Amplifier
2SC4703
2SC5338
1st IF Amplifier
2SC4093
2nd IF Amplifier
2SC4093
1st Mixer
2nd Mixer
IN
LPF
OUT
2SC4093
Buffer
2SC4093
Prescaler
Buffer
µPB1507GV
2SC4093
1st Oscillator
2SC3356
2nd Oscillator
2SC3356
1/N
Up-converter
Down-converter
25
Selection Guide PX10020EJ06V0PF
Digital CATV
RF Front-end Basics
Rx
D/C
DEMOD
PLL
in
LNA
Base
Band
f
RF
VCO
Processor
Recommended device list
Block
Function
Type Name
Feature
LNA
Discrete Tr.
2SC5336
Low Distortion, Power Minimold
2SC5337
2SC5338
D/C
Up-converter
Down-converter
IF Down-converter
AGC Amplifier
DEMOD
µPC2798GR
µPC3206GR
µPC3217GV
With AGC, Oscillator, Video Amplifier
With AGC, Video Amplifier
With AGC, Video Amplifier
(Middle-gain Type)
µPC3218GV
µPC3219GV
With AGC, Video Amplifier
(High-gain Type)
With AGC, Video Amplifier
(Low-gain, High-linearity Type)
PLL
PLL
Prescaler
µPB1507GV
Up to 3 GHz, 1/64, 1/128, 1/256
µPB1508GV
µPB1510GV
Up to 3 GHz, 1/2
Up to 3 GHz, 1/4
VCO
Oscillator + Buffer
µPA85x Series
µPA86x Series
Twin Tr. with Different Dice
Remark The devices listed in the above table are merely examples. The product recommendation may change
depending on the requirements of each system’s design.
26
Selection Guide PX10020EJ06V0PF
2-3. Others
GPS
RF Front-end Basics
Rx
D/C
DEMOD
PLL
in
LNA
Base
Band
f
RF
VCO
Processor
Recommended device list
Block
Function
Type Name
Feature
LNA
1st stage
NE34018
GaAs HJ-FET
NE38018
2nd stage or later
Discrete Tr.
µPC2749TB
Low Noise, Si MMIC
2SC5507
2SC5508
Si Bipolar Tr. (fT = 25 GHz)
RF SINGLE CHIP 1st Down-converter + 2nd Down-converter +
OP Amplifier + PLL + Oscillator + Buffer
µPB1005K
Pre-Amplifier +
µPB1007K
Low Current Consumption,
1st Down-converter + 2nd Down-converter +
OP Amplifier + PLL + Oscillator + Buffer
Built-in Power Saving Function
Remark The devices listed in the above table are merely examples. The product recommendation may change
depending on the requirements of each system’s design.
27
Selection Guide PX10020EJ06V0PF
System configuration example (GPS)
RX
1575.42 MHz
1st IF
2nd IF
61.38 MHz
4.092 MHz
A/D
BPF
BPF
1/25
BPF
BPF
NE34018
NE38018
B/B IC
2SC5507
2SC5508
µPC2749TB
1/8
1/2
PD
µPB1005K
RAM
µPB1007K
Tank
Circuit
Loop
Filter
TCXO
16.368 MHz
OSC
1636.8 MHz
28
Selection Guide PX10020EJ06V0PF
Cable Modem/CATV
RF Front-end Basics
Rx
D/C
DEMOD
PLL
in
U/C
PA
Base
Band
f
RF
VCO
Processor
out
MOD
Tx
Recommended device list
Block
Function
Type Name
Feature
U/C + VCO
D/C + VCO
DEMOD
U/C + VCO
D/C + VCO
IF Down-converter
AGC Amplifier
µPC2798GR
With AGC, Oscillator, Video Amplifier
With AGC, Video Amplifier
µPC3206GR
µPC3217GV
With AGC, Video Amplifier
(Middle-gain Type)
µPC3218GV
µPC3219GV
With AGC, Video Amplifier
(High-gain Type)
With AGC, Video Amplifier
(Low-gain, High-linearity Type)
PLL
VCO
MOD
PA
PLL
Discrete Tr.
2SC5338
Power Minimold
Remark The devices listed in the above table are merely examples. The product recommendation may change
depending on the requirements of each system’s design.
29
Selection Guide PX10020EJ06V0PF
System configuration example 1
(Example of transceiver block for digital Cable Modem/CATV Set-top-box)
Cable Modem/CATV
Up-
converter
Down-
converter
IF Down-
converter
LPF
QAM
DEMOD.
& FEC
HPF
SAW
A/D
SAW
RF in
50 to 750 MHz
µPC2798GR
DUAL
PLL
RF return
5 to 42 MHz
Return Path AGC + Driver
BIAS
QPSK
Modulator
LPF
System configuration example 2
(Example of receiver block for digital Cable Modem/CATV Set-top-box)
Up-
converter
Down-
converter
IF Down-
converter
LPF
QAM
DEMOD.
& FEC
HPF
A/D
SAW
SAW
µPC2798GR
DUAL
PLL
System configuration example 3
(Example of receiver block for digital Cable Modem/CATV Set-top-box)
Up-
converter
Down-
converter
IF AGC +
Video Amplifier
LPF
QAM
DEMOD.
& FEC
HPF
SAW
A/D
SAW
50 dB AGC
µPC3206GR
µPC3217GV
µPC3218GV
µPC3219GV
DUAL
PLL
30
Selection Guide PX10020EJ06V0PF
2.4 GHz Wireless LAN
RF Front-end Basics
Rx
D/C
VCO
U/C
DEMOD
PLL
in
LNA
PA
Base
Band
f
RF
SW
Processor
out
MOD
Tx
Recommended device list
Block
Function
Type Name
Feature
LNA
D/C
Discrete Tr.
2SC5508
Si Bipolar Tr. (fT = 25 GHz)
2SC5509
Si Bipolar Tr. (fT = 17 GHz)
Down-converter
DEMOD
PLL
PLL
VCO
Oscillator + Buffer
2SC5004
2SC5011
2SC5800
Buffer
2SC5015
2SC5185
Low Current Consumption
µPC8178TB/TK
µPC8179TB/TK
MOD
U/C
I/Q Modulator
Up-converter
µPC8172TB
µPC8187TB
6-pin Super Minimold
PA
Discrete Tr.
2SC5288
2SC5289
2SC5754
Medium Output Power Use Tr.
NE552R479A
Medium Output Power (0.4 W) Si LDMOS
FET
PA MMIC
SPDT SW
µPG2301TQ
GaAs MMIC
SW
µPG154TB
µPG158TB
6-pin Super Minimold
µPG2008TK
6-pin Leadless Minimold
Remark The devices listed in the above table are merely examples. The product recommendation may change
depending on the requirements of each system’s design.
31
Selection Guide PX10020EJ06V0PF
System configuration example (IF Modulation System)
2.4 GHz Wireless LAN
I/Q Demodulator
LNA
2SC5508
2SC5509
I(RX)
to B/B
H
1/2
BPF
BPF
Q(RX)
to B/B
ANT
Buffer Amplifier
2SC5015
2SC5185
µPC8178TB/TK
µPC8179TB/TK
Oscillator
2SC5800
Oscillator
+ Buffer
2SC5004
2SC5011
TCXO
PLL
VCO
SW
VCO
PLL
SPDT Switch
I/Q Modulator
µPG154TB
µPG158TB
µPG2008TK
I(TX)
from B/B
BPF
BPF
H
1/2
Q(TX)
from B/B
Driver Amplifier
µPC8181TB
µPC8182TB
Up-converter
µPC8172TB
µPC8187TB
Power Amplifier
2SC5288
2SC5289
2SC5754
NE552R479A
µPG2301TQ
32
Selection Guide PX10020EJ06V0PF
Bluetooth
RF Front-end Basics
Rx
D/C
VCO
U/C
DEMOD
PLL
in
LNA
PA
Base
Band
f
RF
SW
Processor
out
MOD
Tx
Recommended device list
Block
LNA
Function
Type Name
Feature
D/C
DEMOD
PLL
VCO
MOD
U/C
PA
µPG2301TQ
GaAs MMIC
Si Tr.
2SC5754
NE552R479A
µPG158TB
µPG2008TK
Si LDMOS FET
SW
SPDT SW
GaAs SW IC, 6-pin Super Minimold
GaAs SW IC, 6-pin Leadless Minimold
Remark The devices listed in the above table are merely examples. The product recommendation may change
depending on the requirements of each system’s design.
33
Selection Guide PX10020EJ06V0PF
System configuration example
Bluetooth
µPG158TB
µPG2008TK
ANT
RX
TX
BPF
SW
PA
I/F
B/B Block
µPG2301TQ
2SC5754
NE552R479A
34
Selection Guide PX10020EJ06V0PF
FRS (Family Radio Service) / GMRS (General Mobile Radio Service)
RF Front-end Basics
Rx
D/C
VCO
U/C
DEMOD
PLL
in
LNA
PA
Base
Band
f
RF
SW
Tx
Processor
out
MOD
Recommended device list
Block
Function
Type Name
Feature
LNA
Discrete Tr.
2SC4226
Low Noise, High Gain
2SC5006
2SC4226
2SC5006
D/C
Discrete Tr.
Low Noise, High Gain
DEMOD
PLL
PLL
VCO
Discrete Tr.
2SC4226
2SC5006
Low Current Consumption
MOD
U/C
PA
Discrete Tr.
Si LDMOS
2SC4226
2SC5006
2SC5751
2SC5753
2SC5754
Driver Use Tr.
Output: 100 mW class
Output: 500 mW class
NE5500179A
NE552R679A
NE5500479A
NE5510279A
NE5520279A
NE5520379A
Output: 2 W class or higher
SW
Remark The devices listed in the above table are merely examples. The product recommendation may change
depending on the requirements of each system’s design.
35
Selection Guide PX10020EJ06V0PF
System configuration example
460 MHz FRS
2SC4226
2SC5006
2SC4226
2SC5006
LNA
BPF
Mixer
To DEMOD.
2SC4226
2SC5006
2SC4226
2SC5006
1/N
SW
PLL
VCO
PA
Driver
2SC4226
2SC5006
MOD. in
2SC4226
2SC5006
2SC5751
2SC5753
2SC5754
NE5500179A
NE5500479A
NE5510279A
NE5520279A
NE5520379A
NE552R679A
PA Selection Map
3 W
(34.8 dBm)
GMRS
MURS
NE5520279A
NE5520379A
NE5510279A
NE5520379A
NE5500479A
2 W
(33 dBm)
FRS
PMR
0.5 W
(27 dBm)
NE552R679A
NE5500179A
0.1 W
(20 dBm)
2SC5754
LPD
3 to 3.2 V
4.5 to 4.8 V
6 V
36
Selection Guide PX10020EJ06V0PF
3. WEB SITE INFORMATION
The RF and Microwave Devices homepage has many documents available for viewing or downloaded. Please see
our web site. The our web site address is as follows;
RF and Microwave Devices
http://www.csd-nec.com/microwave/
37
Selection Guide PX10020EJ06V0PF
Business issue
NEC Compound Semiconductor Devices, Ltd.
5th Sales Group, Sales Division TEL: +81-3-3798-6372 FAX: +81-3-3798-6783 E-mail: salesinfo@csd-nec.com
NEC Compound Semiconductor Devices Hong Kong Limited
Hong Kong Head Office
Taipei Branch Office
Korea Branch Office
TEL: +852-3107-7303
FAX: +852-3107-7309
TEL: +886-2-8712-0478 FAX: +886-2-2545-3859
TEL: +82-2-528-0301
FAX: +82-2-528-0302
NEC Electronics (Europe) GmbH
http://www.ee.nec.de/
TEL: +49-211-6503-01 FAX: +49-211-6503-487
California Eastern Laboratories, Inc.
http://www.cel.com/
TEL: +1-408-988-3500 FAX: +1-408-988-0279
Technical issue
NEC Compound Semiconductor Devices, Ltd.
http://www.csd-nec.com/
Sales Engineering Group, Sales Division
E-mail: techinfo@csd-nec.com FAX: +81-44-435-1918
0209
Document No. PX10020EJ06V0PF (6th edition)
Date Published October 2002 CP(K)
NEC Corporation 1999
NEC Compound Semiconductor Devices 2001, 2002
Printed in Japan
厂商 型号 描述 页数 下载

HRS

PX10-AD4WP 电源连接器工业设备[ Power Supply Connectors For Industrial Equipment ] 8 页

HRS

PX10-AD4WP50 电源连接器工业设备[ Power Supply Connectors For Industrial Equipment ] 8 页

HRS

PX10-AF6WP 电源连接器工业设备[ Power Supply Connectors For Industrial Equipment ] 8 页

HRS

PX10-AF6WP(50) [ Rectangular Power Connector, 8 Contact(s), Female, Solder Terminal, Receptacle, ROHS COMPLIANT ] 8 页

HRS

PX10-AF6WP50 电源连接器工业设备[ Power Supply Connectors For Industrial Equipment ] 8 页

HRS

PX10-AF6WP_06 电源连接器工业设备[ Power Supply Connectors For Industrial Equipment ] 8 页

MURATA

PX10004 [ SAW Filter, 1 Function(s), 82.2MHz ] 5 页

RFM

PX1002 专为TDMA IS- 54接收器IF应用[ Designed for TDMA IS-54 Receiver IF Applications ] 10 页

RFM

PX1004 82.2 MHz的SAW滤波器[ 82.2 MHz SAW Filter ] 10 页

RFM

PX1004-1 单端输入和输出[ Single-ended Input and Output ] 5 页

PDF索引:

A

B

C

D

E

F

G

H

I

J

K

L

M

N

O

P

Q

R

S

T

U

V

W

X

Y

Z

0

1

2

3

4

5

6

7

8

9

IC型号索引:

A

B

C

D

E

F

G

H

I

J

K

L

M

N

O

P

Q

R

S

T

U

V

W

X

Y

Z

0

1

2

3

4

5

6

7

8

9

Copyright 2024 gkzhan.com Al Rights Reserved 京ICP备06008810号-21 京

0.224793s
