F
E
D
C
B
A
b
NOTES:
0,6
0,2
3,2 +-
1. FOR WAVESOLDERING (SOLDER BATH TEMPERATURE 240°C FOR 5 SEC.
AND SOLDER PREHEAT 120°C FOR 120 SEC.)
`
6,35
0,3
b
( 5 : 1 )
2. METALSHELLS: COPPER ALLOY; min. 315µin TIN over 40-80µin NICKEL
3. INSULATORS: PBT GF UL 94 V-0, BLACK
4. CONTACTS: COPPER ALLOY; PLATING (SEE PART NO.):
o
o
o
PLEASE ADD A for GOLD FLASH over NICKEL (PREFERRED TYPE)
PLEASE ADD B for 20µin HARD GOLD over min. 50µin NICKEL
PLEASE ADD C for 30µin HARD GOLD over min. 50µin NICKEL
D
D
5. METAL BRACKETS: ZINC DIE CAST;
300µin COPPER/ 40-120µin NICKEL/120-200µin TIN
6. THREADED INSERTS: COPPER ALLOY;
min. 200µin TIN over 80µin NICKEL
SEALING
COMPOUND
7. COLLARS: COPPER ALLOY; NICKEL PLATED
8. PCB-SNAPS: COPPER ALLOY; min. 200µin TIN over 80µin NICKEL
PCB-HOLE: Ø3,1±0,1; PCB THICKNESS 1,6mm
9. HEXLOCKING SCREWS: STAINLESS STEEL
10. FRAME: ZINC DIE CAST; NICKEL PLATED
11. O-RING: SILICON; BLUE
`
0,2
3,2
12. RUBBER GASKET: TPE
13. SEALING COMPOUND: PUR; BLUE
14. P.C.B. HOLE DRILLINGS AND RECOMMENDED PANEL CUT-OUT
ON SHEET 2
15. RECOMMENDED TORQUE FOR MOUNTING SCREW 35N cm (3.1 in.LB)
/ max. 40N cm (3.5 in.LB)
16. CONNECTOR IS PART MARKED: 6STD25P
oZ99S40X CONEC ABC (see note 4)
C
C
0,3
61,4 +-
0
0,22
0,03
8,26 +-
`
0,13
47,04
b
RUBBER GASKET
PLACED ON TOP SURFACE
OF MALE INSULATOR
0,23
0,02
38,86 +-
POS. 1
POS. 14
B
B
PRESS FOR FIXING ON PCB
METAL BRACKET
b
PCB-SNAP
6STD25P
o
Z99S40X CONEC ABC
O-RING
4-40 UNC
SEE NOTE 16
SEE NOTE 10
4-40 UNC
SW 4,8
2:1 (5:1)
scale:
tolerance
material:
SEE NOTES
dim. in mm
A
A
date
name
title:
drawn 04.12.12 Henneboel

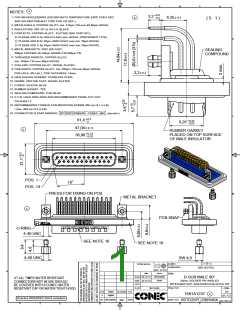

D-SUB MALE 90°
AT ALL TIMES WATER RESISTANT
CONNECTORS NOT IN USE SHOULD
BE COVERED WITH A CONEC WATER
appd.
norm
d-old
04.12.12
Koch
25pos. SOLDER PIN ANGLED
with threaded insert, metal bracket,snap and hex bolt
dwg no:
DIN-
18K1A306
RESISTANT CAP OR WATER TIGHT HOOD.
5 x b
a
Ä4569
Original
04.12.2012 K.H.
A3
R
b
15K1A1237
1/2
sh:
Directive 2002/95/EC RoHS compliant
rev. description
name
part no:
date
6STD25PoZ99S40X (see note 4)
F
E
D
C
B
A
