F
E
D
C
B
A
NOTES:
b
b
1. FOR WAVESOLDERING (SOLDER BATH TEMPERATURE 240°C FOR 5 SEC.
AND SOLDER PREHEAT 120°C FOR 120 SEC.)
( 5 : 1 )
2. METALSHELLS: COPPER ALLOY; min. 315µin TIN over 40-80µin NICKEL
3. INSULATORS: PBT GF UL 94 V-0, BLACK
4. CONTACTS: COPPER ALLOY; PLATING (SEE PART NO.):
SEALING
COMPOUND
o
o
o
PLEASE ADD C for 30µin HARD GOLD over min. 50µin NICKEL
PLEASE ADD B for 20µin HARD GOLD over min. 50µin NICKEL
PLEASE ADD A for GOLD FLASH over NICKEL (PREFERRED TYPE)
D
D
5. THREADED SPACER CLIPS: COPPER ALLOY;
min. 200µin TIN over 80µin NICKEL
PCB-HOLE: n3.1`0.1; PCB THICKNESS 1.6mm
6. COLLARS: COPPER ALLOY; min. 200µin TIN over 80µin NICKEL
7. FRAME: ZINC DIE CAST; NICKEL PLATED
8. O-RING: SILICON; BLUE
9. SEALING COMPOUND: PUR; BLUE
10. RUBBER GASKET: TPE; BLACK
11. HEXLOCKING SCREWS: STAINLESS STEEL
12. PCB HOLE DRILLINGS AND RECOMMENDED PANEL CUT-OUT ON SHEET 2
13. RECOMMENDED TORQUE FOR MOUNTING SCREW 35Ncm (3.1 in.LB)
/ max.40Ncm (3.5 in.LB)
0,22
8,26 +- 0,03
14. CONNECTOR IS PART MARKED: 6STD15P R99E10X CONEC ABC (see note 4)
o
RUBBER GASKET
PLACED ON TOP SURFACE
OF MALE INSULATOR
0,3
0
47,7 +-
0,15
0,1
33,3 +-
C
C
b
0,2
0,05
25,17 +-
`
0,05
n0,6
(15x)
b
B
B
6STD15PoR99E10X
CONEC ABC
O-RING
M3
M3
SEE NOTE 7
SEE NOTE 14
SW 4,75
AT ALL TIMES WATER RESISTANT CONNECTORS NOT
IN USE SHOULD BE COVERED WITH A CONEC WATER
RESISTANT CAP OR WATER TIGHT HOOD.
2:1 (5:1)
scale:
tolerance
material:
SEE NOTES
dim. in mm
A
A
date
name
title:
drawn
appd.
norm
30.06.08
30.06.08
Lehmenkühle
Mickenbecker

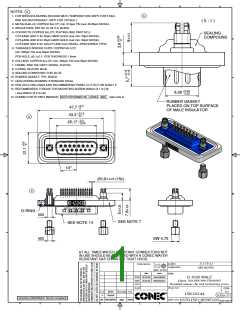

D-SUB MALE
15pos. SOLDER PIN STRAIGHT
threaded spacer clip and hexlocking screw
dwg no:
DIN-
d-old
5 x b
a
19.07.2012 K.H.
Ä4394
A3
1/2
sh:
R
15K1A244
b
Original
Directive 2002/95/EC RoHS compliant
part no:6STD15P R99E10X(see note 4)
rev. description
name
date
o
F
E
D
C
B
A
