FZAM30N5001

型号:

FZAM30N5001

品牌:

IVO[ BAUMER IVO GMBH & CO. KG ]

页数:

1 页

PDF大小:

85 K

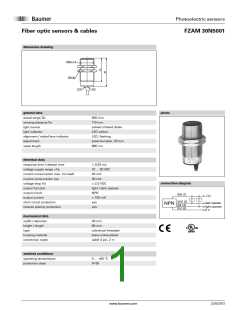

Photoelectric sensors
Fiber optic sensors & cables
FZAM 30N5001
dimension drawing
M30x 1,5
SW 36
LED
Pot
general data
actual range Sb
sensing distanceTw
light source
600 mm
110 mm
pulsed infrared diode
LED yellow
light indicator
alignment / soiled lens indicator
adjustment
LED, flashing
potentiometer, 20 turn
880 nm
wave length
electrical data
response time / release time
voltage supply range +Vs
current consumption max. (no load)
current consumption typ.
voltage drop Vd
< 0,25 ms
10 ... 30 VDC
40 mA
30 mA
connection diagram
< 2,5 VDC
light / dark operate
NPN
output function
output circuit
BN (1)
+VS
output current
< 100 mA
yes
Z
Z
WH (2)
BK (4)
BU (3)
short circuit protection
reverse polarity protection
dark operate
light operate
0 V
NPN
yes
mechanical data
width / diameter
height / length
type
30 mm
66 mm
cylindrical threaded
brass nickel plated
cable 4 pin, 2 m
housing material
connection types
ambient conditions
operating temperature
protection class
0 ... +65 °C
IP 65
www.baumer.com
22/5/2013
