FZAM08P3001/S35L

型号:

FZAM08P3001/S35L

品牌:

IVO[ BAUMER IVO GMBH & CO. KG ]

页数:

1 页

PDF大小:

66 K

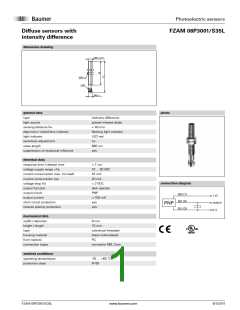

Photoelectric sensors
Diffuse sensors with
intensity difference
FZAM 08P3001/S35L
dimension drawing
M8 x 0,75
SW 11
LED
M8 x 1
general data
type
intensity difference
pulsed infrared diode
< 40 mm
light source
sensing distanceTw
alignment / soiled lens indicator
light indicator
flashing light indicator
LED red
sensitivity adjustment
wave length
no
880 nm
suppression of reciprocal influence
yes
electrical data
response time / release time
voltage supply range +Vs
current consumption max. (no load)
current consumption typ.
voltage drop Vd
< 1 ms
10 ... 30 VDC
42 mA
20 mA
connection diagram
< 2 VDC
dark operate
PNP
output function
output circuit
BN (1)
+VS
output current
< 100 mA
yes
BK (4)
short circuit protection
reverse polarity protection
output
PNP
Z
yes
BU (3)
0 V
mechanical data
width / diameter
height / length
type
8 mm
73 mm
cylindrical threaded
brass nickel plated
PC
housing material
front (optics)
connection types
connector M8, 3 pin
ambient conditions
operating temperature
protection class
-25 ... +65 °C
IP 65
www.baumer.com
FZAM 08P3001/S35L
8/1/2014
