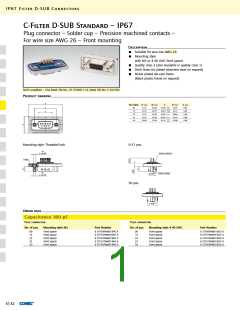

IP67 Filter D-SUB Connectors
C-Filter D-SUB Standard – IP67
Plug connector – Solder cup – Precision machined contacts –
For wire size AWG 26 – Front mounting
Description
Suitable for wire size AWG 26
Mounting style:
with M3 or 4-40 UNC front spacer
Quality class 3 (also available in quality class 1)
Shell: Brass tin plated (stainless steel on request)
Nickel plated die-cast frame
(Black plastic frame on request)
RoHS compliant – CSA listed, File No.: LR 115000-1–UL listed, File No.: E 202784
Product drawing
No. of pos. A +0.20
B +0.20
39.40
47.70
61.40
77.90
75.50
C
25.00
33.30
47.04
63.50
61.10
D +0.25
16.79
25.12
38.84
55.30
52.68
E -0.30
5.82
5.82
5.69
5.69
5.69
+ 0.12
0.13
09
15
25
37
50
21.10
21.10
21.10
21.10
23.90
-
+ 0.15
-
0.10
0.13
0.13
+ 0.14
0.11
-
Mounting style: Threaded lock
9-37 pos.
50 pos.
Order data
Capacitance 180 pF
Plug connector
Plug connector
No. of pos. Mounting style 4-40 UNC
No. of pos. Mounting style M3
Part Number
Part Number
09
15
25
37
50
Front spacer
Front spacer
Front spacer
Front spacer
Front spacer
6 STF09PAM01B40 X
6 STF15PAM01B40 X
6 STF25PAM01B40 X
6 STF37PAM01B40 X
6 STF50PAM01B40 X
09
15
25
37
50
Front spacer
Front spacer
Front spacer
Front spacer
Front spacer
6 STF09PAM01B50 X
6 STF15PAM01B50 X
6 STF25PAM01B50 X
6 STF37PAM01B50 X
6 STF50PAM01B50 X
|
