n1,12 (25x)
AT ALL TIMES WATER RESISTANT CONNECTORS NOT
IN USE SHOULD BE COVERED WITH A CONEC WATER
RESISTANT CAP OR WATER TIGHT HOOD.
( 5 : 1 )
SEALING
COMPOUND
D
D
0,3
61,4 +-
0
`
0,13
47,04
0,23
38,86 +- 0,02
POS. 1
0,22
8,26 +- 0,03
RUBBER GASKET
PLACED ON TOP SURFACE
OF MALE INSULATOR
C
C
POS. 14
SW 4,75
M3
M3

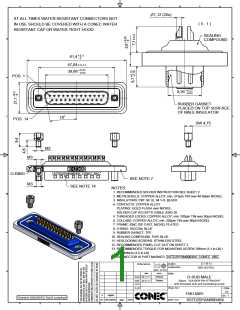

6STD25PAM99B40X CONEC ABC
O-RING
SEE NOTE 7
M3
SEE NOTE 14
NOTES:
1. RECOMMENDED SOLDER INSTRUCTION SEE SHEET 2
2. METALSHELLS: COPPER ALLOY; min. 315µin TIN over 40-80µin NICKEL
3. INSULATORS: PBT GF UL 94 V-0, BLACK
B
B
4. CONTACTS: COPPER ALLOY
PLATING: GOLD FLASH over NICKEL
SOLDER CUP ACCEPTS CABLE AWG 20
5. THREADED LOCKS: COPPER ALLOY; min. 200µin TIN over 80µin NICKEL
6. COLLARS: COPPER ALLOY; min. 200µin TIN over 80µin NICKEL
7. FRAME: ZINC DIE CAST; NICKEL PLATED
8. O-RING: SILICON; BLUE
9. RUBBER GASKET: TPE
10. SEALING COMPOUND: PUR; BLUE
11. HEXLOCKING SCREWS: STAINLESS STEEL
12. RECOMMENDED PANEL CUT-OUT ON SHEET 2
13. RECOMMENDED TORQUE FOR MOUNTING SCREW 35Ncm (3.1 in.LB) /
max.40Ncm (3.5 in.LB)
14. CONNECTOR IS PART MARKED: 6STD25PAM99B40X CONEC ABC
2:1 (5:1)
scale:
tolerance
material:
SEE NOTES
dim. in mm
A
A
date
name
title:
drawn 02.11.11
Gitinow
Fischer
D-SUB MALE
appd.
norm
d-old
03.11.11
25pos. SOLDER PIN STRAIGHT
with threaded lock and hexlocking screw
dwg no:
DIN-
A3
R
15K1A961
a
Original
1
sh:
Directive 2002/95/EC RoHS compliant
rev. description
name
part no:
date
6STD25PAM99B40X
