F
E
D
C
B
A
0,5
0,3
3,3 +-
6,35
NOTES:
1. FOR WAVESOLDERING (SOLDER BATH TEMPERATURE 240°C FOR 5 SEC.
AND SOLDER PREHEAT 120°C FOR 120 SEC.)
( 5 : 1 )
`0,3
2. METALSHELLS: COPPER ALLOY; min. 315µin TIN over 40-80µin NICKEL
3. INSULATORS: PBT GF UL 94 V-0, BLACK
4. CONTACTS: COPPER ALLOY; PLATING (SEE PART NO.):
D
D
SEALING
COMPOUND
o
o
o
PLEASE ADD A for GOLD FLASH over NICKEL (PREFERRED TYPE)
PLEASE ADD B for 20µin HARD GOLD over min. 50µin NICKEL
PLEASE ADD C for 30µin HARD GOLD over min. 50µin NICKEL
5. METAL BRACKETS: ZINC DIE CAST;
300µin COPPER/ 40-120µin NICKEL/120-200µin TIN
6. THREADED INSERTS: COPPER ALLOY;
min. 200µin TIN over 80µin NICKEL
7. HEXLOCKING SCREWS: STAINLESS STEEL
8. FRAME: ZINC DIE CAST; NICKEL PLATED
9. O-RING: SILICON; BLUE
10. RUBBER GASKET: TPE
11. SEALING COMPOUND: PUR; BLUE
12. P.C.B. HOLE DRILLINGS AND RECOMMENDED PANEL CUT-OUT
ON SHEET 2
13. RECOMMENDED TORQUE FOR MOUNTING SCREW 35N cm (3.1 in.LB)
/ max. 40N cm (3.5 in.LB)
o
14. CONNECTOR IS PART MARKED: 6STD09P T99S20X CONEC ABC (see note 4)
0,22
8,26 +- 0,03
C
C
0,3
39,4+-
0
RUBBER GASKET
PLACED ON TOP SURFACE
OF MALE INSULATER
0,12
25 +- 0,13
POS. 1
0,2
0,05
16,84 +-
POS. 6
METAL BRACKET
B
B
6STD09P
o
T99S20X
CONEC ABC
O-RING
4-40 UNC
SEE NOTE 8
SEE NOTE 14
SW 4,8
4-40 UNC
2:1 (5:1)
scale:
tolerance
material:
see notes
AT ALL TIMES WATER
dim. in mm
A
A
RESISTANT CONNECTORS
NOT IN USE SHOULD BE
COVERED WITH A CONEC
WATER RESISTANT CAP
OR WATER TIGHT HOOD.
date
name

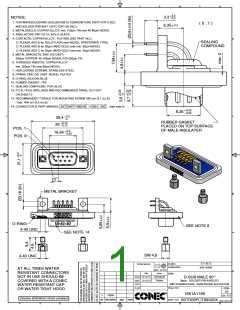

title:
drawn 12.10.12 Henneboel
D-SUB MALE 90°
9pos. SOLDER PIN ANGLED
appd.
norm
d-old
12.10.12
Fischer
with threaded insert, metal bracket and hex bolt
dwg no:
DIN-
A3
R
15K1A1189
a
Original
1/2
sh:
Directive 2002/95/EC RoHS compliant
rev. description
name
part no:
date
6STD09PoT99S20X
(see note 4)
A
F
E
D
C
B
