FZAM30P5002

型号:

FZAM30P5002

品牌:

IVO[ BAUMER IVO GMBH & CO. KG ]

页数:

1 页

PDF大小:

73 K

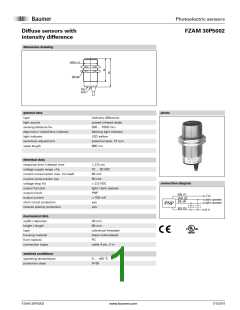

Photoelectric sensors
Diffuse sensors with
intensity difference
FZAM 30P5002
dimension drawing
M30x 1,5
SW 36
Pot
LED
general data
type
intensity difference
pulsed infrared diode
300 ... 1500 mm
flashing light indicator
LED yellow
light source
sensing distanceTw
alignment / soiled lens indicator
light indicator
sensitivity adjustment
wave length
potentiometer, 15 turn
880 nm
electrical data
response time / release time
voltage supply range +Vs
< 2,5 ms
10 ... 30 VDC
60 mA
current consumption max. (no load)
current consumption typ.
voltage drop Vd
50 mA
connection diagram
< 2,5 VDC
light / dark operate
PNP
output function
output circuit
BN (1)
WH (2)
BK (4)
+VS
dark operate
light operate
output current
< 100 mA
yes
short circuit protection
reverse polarity protection
PNP
Z
Z
yes
BU (3)
0 V
mechanical data
width / diameter
height / length
type
30 mm
66 mm
cylindrical threaded
brass nickel plated
PC
housing material
front (optics)
connection types
cable 4 pin, 2 m
ambient conditions
operating temperature
protection class
0 ... +65 °C
IP 65
www.baumer.com
FZAM 30P5002
7/1/2014
