AT ALL TIMES WATER RESISTANT CONNECTORS NOT
IN USE SHOULD BE COVERED WITH A CONEC WATER
RESISTANT CAP OR WATER TIGHT HOOD.
( 5 : 1 )
SEALING
COMPOUND
D
D
0,3
39,4+-
0
0,12
0,13
25 +-
0,2
0,05
16,84 +-
POS. 1
0,22
8,26+- 0,03
RUBBER-GASKET PLACED
ON TOP SURFACE OF
MALE INSULATOR
`
0,05
n0,6
(9x)
C
C
O-RING
6STD09PoR99E10X
SEE NOTE 7
CONEC ABC
M3
M3
SEE NOTE 14
SW4,75
b
NOTES:
1. FOR WAVESOLDERING (SOLDER BATH TEMPERATURE 240°C FOR 5 SEC.
AND SOLDER PREHEAT 120°C FOR 120 SEC.)
2. METALSHELLS: COPPER ALLOY; min. 315µin TIN over 40-80µin NICKEL
3. INSULATORS: PBT GF UL 94 V-0; BLACK
B
B
4. CONTACTS: COPPER ALLOY; PLATING (SEE PART NO.):
o
o
o
PLEASE ADD A for GOLD FLASH over NICKEL (PREFERRED TYPE)
PLEASE ADD B for 20µin HARD GOLD over min. 50µin NICKEL
PLEASE ADD C for 30µin HARD GOLD over min. 50µin NICKEL
5. THREADED REAR SPACER CLIPS: COPPER ALLOY; min. 200µin TIN over 80µin NICKEL
PCB-HOLE: 3,1 0,1mm; PCB THICKNESS 1,6mm
n
`
6. COLLARS: COPPER ALLOY, min. 200µin TIN over 80µin NICKEL
7. FRAME: ZINC DIE CAST; NICKEL PLATED
8. O-RING: SILICON; BLUE
9. RUBBER GASKET: TPE; BLACK
10. SEALING COMPOUND: PUR; BLUE
11. HEXLOCKING SCREWS: STAINLESS STEEL
12. P.C.B. HOLE DRILLINGS + RECOMMENDED PANEL CUT-OUT ON SHEET 2
13. RECOMMENDED TORQUE FOR MOUNTING SCREW
35Ncm (3,1 in.LB) / max. 40Ncm (3,5 in.LB)
14. CONNECTOR IS PART MARKED: 6STD09PoR99E10X CONEC ABC (see note 4)
2:1 (5:1)
scale:
tolerance
material:
SEE NOTES
dim. in mm
A
A
date
name
title:

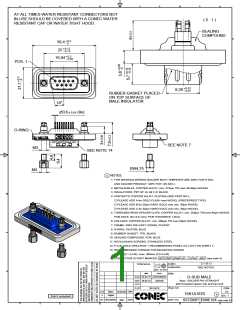

drawn 05.04.16 Lehmenkühler
D-SUB MALE
appd.
norm
d-old
06.04.16
Schmidt
9pos. SOLDER PIN STRAIGHT
with threaded spacer clip and hex bolt
dwg no:
18K1A679
DIN-
2 x b
a
Ä6072
Original
05.04.2016
date
Lehm.
A3
R
15K1A1870
b
1
sh:
RoHS compliant
rev. description
name
part no:
6STD09P R99E10X (see note 4)
