F
E
D
C
B
A
( 5 : 1 )
AT ALL TIMES WATER RESISTANT CONNECTORS NOT
IN USE SHOULD BE COVERED WITH A CONEC WATER
RESISTANT CAP OR WATER TIGHT HOOD.
n
1,12 (25x)
SEALING
COMPOUND
D
D
b
0,3
61,4 +-
0
`
0,13
47,04
POS. 1
0,23
38,86 +- 0,02
0,22
0,03
8,26 +-
POS. 14
RUBBER-GASKET
PLACED ON TOP
SURFACE OF MALE
INSULATOR
C
C
b
CONNECTOR WILL BE
SUPPLIED WITH:
2 x NUTS
2 x FLAT WASHERS
2 x SPRING WASHERS
4-40 UNC
O-RING
6STD25P
oM99B70X CONEC ABC
b
b
B
B
SEE NOTE 7
n
4
4-40 UNC
SEE NOTE 14
NOTES:
b
1. RECOMMENDED SOLDER INSTRUCTION SEE SHEET 2
2. METALSHELLS: COPPER ALLOY; min. 320µin TIN over 40-80µin NICKEL
3. INSULATORS: PBT GF UL 94 V-0; BLACK
4. SIGNAL CONTACTS: COPPER ALLOY; PLATING (SEE PART NO.):
o
o
o
PLEASE ADD C for 30µin HARD GOLD over min. 50µin NICKEL
PLEASE ADD B for 20µin HARD GOLD over min. 50µin NICKEL
PLEASE ADD A for GOLD FLASH over NICKEL (PREFERRED TYPE)
SOLDER CUP ACCEPTS CABLE AWG 20
5. THREADED LOCKS: COPPER ALLOY; min. 200µin TIN over 80µin NICKEL
6. COLLARS: COPPER ALLOY, min. 200µin TIN over 80µin NICKEL
7. FRAME: ZINC DIE CAST; NICKEL PLATED
8. STUD BOLTS / 4-40 UNC: STEEL; TIN PLATED
9. O-RING: SILICON; BLUE
10. SEALING COMPOUND: PUR; BLUE
11. RUBBER GASKET: TPE; BLACK
12. RECOMMENDED PANEL CUT-OUT ON SHEET 2
13. RECOMMENDED TORQUE FOR STUD BOLT 35Ncm (3,1 in.LB) / max. 40Ncm (3,5 in.LB)
14. CONNECTOR IS PART MARKED: 6STD25P
o
M99B70X CONEC ABC (see note 4)
2:1 (5:1)
scale:
tolerance
material:
SEE NOTES
dim. in mm
A
A
date
name
title:
drawn 01.07.13 Lehmenkühler

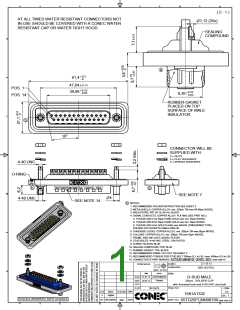

D-SUB MALE
appd.
norm
d-old
02.07.13
Fischer
25pos. SOLDER CUP
with threaded lock and 4-40 UNC stud bolt
dwg no:
18K1A272
DIN-
A3
5 x b
Ä4815
01.07.2013
date
Lehm.
R
15K1A1332
a
Original
1
sh:
Directive 2002/95/EC RoHS compliant
rev. description
name
part no:
o
(see note 4)
6STD25P M99B70X
F
E
D
C
B
A
