AT ALL TIMES WATER RESISTANT CONNECTORS NOT
IN USE SHOULD BE COVERED WITH A CONEC WATER
RESISTANT CAP OR WATER TIGHT HOOD.
n1,16 (9x)
( 5 : 1 )
D
D
SEALING
COMPOUND
0,3
39,4 +-
0
0,12
0,13
25 +-
0,05
16,41 +- 0,2
0,02
0,23
8 +-
C
C
SEE NOTE 7
O-RING
6STD09SoM99B20X
b
CONEC ABC
M3
SEE NOTE 13
B
B
SW 4,75
M3
NOTES:
1. RECOMMENDED SOLDER INSTRUCTION SEE SHEET 2
2. METALSHELLS: COPPER ALLOY; min. 315µin TIN over 40-80µin NICKEL
3. INSULATORS: PBT GF UL 94 V-0, BLACK
4. CONTACTS: COPPER ALLOY; PLATING (SEE PART NO.)
o
o
o
PLEASE ADD A for GOLD FLASH over NICKEL (PREFERRED TYPE)
PLEASE ADD B for 20µin HARD GOLD over min. 50µin NICKEL
PLEASE ADD C for 30µin HARD GOLD over min. 50µin NICKEL
SOLDER CUP ACCEPTS CABLE AWG 20
5. THREADED INSERTS: COPPER ALLOY; min. 200µin TIN over 80µin NICKEL
6. COLLARS: COPPER ALLOY; min. 200µin TIN over 80µin NICKEL
7. FRAME: ZINC DIE CAST; NICKEL PLATED
8. O-RING: SILICON; BLUE
9. SEALING COMPOUND: PUR; BLUE
10. HEXLOCKING SCREWS: STAINLESS STEEL
11. RECOMMENDED PANEL CUT OUT ON SHEET 2
12. RECOMMENDED TORQUE FOR MOUNTING SCREW 35Ncm (3.1 in.LB) / max. 40Ncm (3.5 in.LB)
13. CONNECTOR IS PART MARKED: 6STD09S
oM99B20X CONEC ABC
(see note 4)
2:1 (5:1)
scale:
tolerance
material:
SEE NOTES
dim. in mm
A
A
date
name

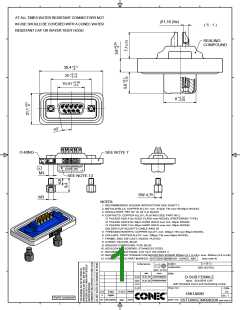

title:
drawn 16.01.08 Lehmenkühler
D-SUB FEMALE
appd.
norm
d-old
16.01.08 Mickenbecker
9pos. SOLDER CUP
with threaded insert and hexlocking screw
dwg no:
DIN-
A3
21.10.15
date
Unkrüer
name
1 x b
a
Ä 5862
Original
R
18K1A680
1
sh:
RoHS compliant
part no: 6STD09S
o
M99B20X (see note 4)
